   The transmitting system must only be used

when shielded to prevent interference in the
antenna wiring. To ensure the system it is
tuned and operating correctly it is
recommended that an output/performance
check is carried out.



   Further additional installations



   The installation of further electronic

equipment like business equipment (e.g. TV,
FAX) or household equipment (e.g. electrical
cool box) is only permitted, if these
appliances are marked with a CE or e-sign
(Europe only).



   Voltage supply is performed via a separate

wiring harness and secured by a fuse.

Mobile telephone and two-way radio operation, notes

13/2/2005

91-112





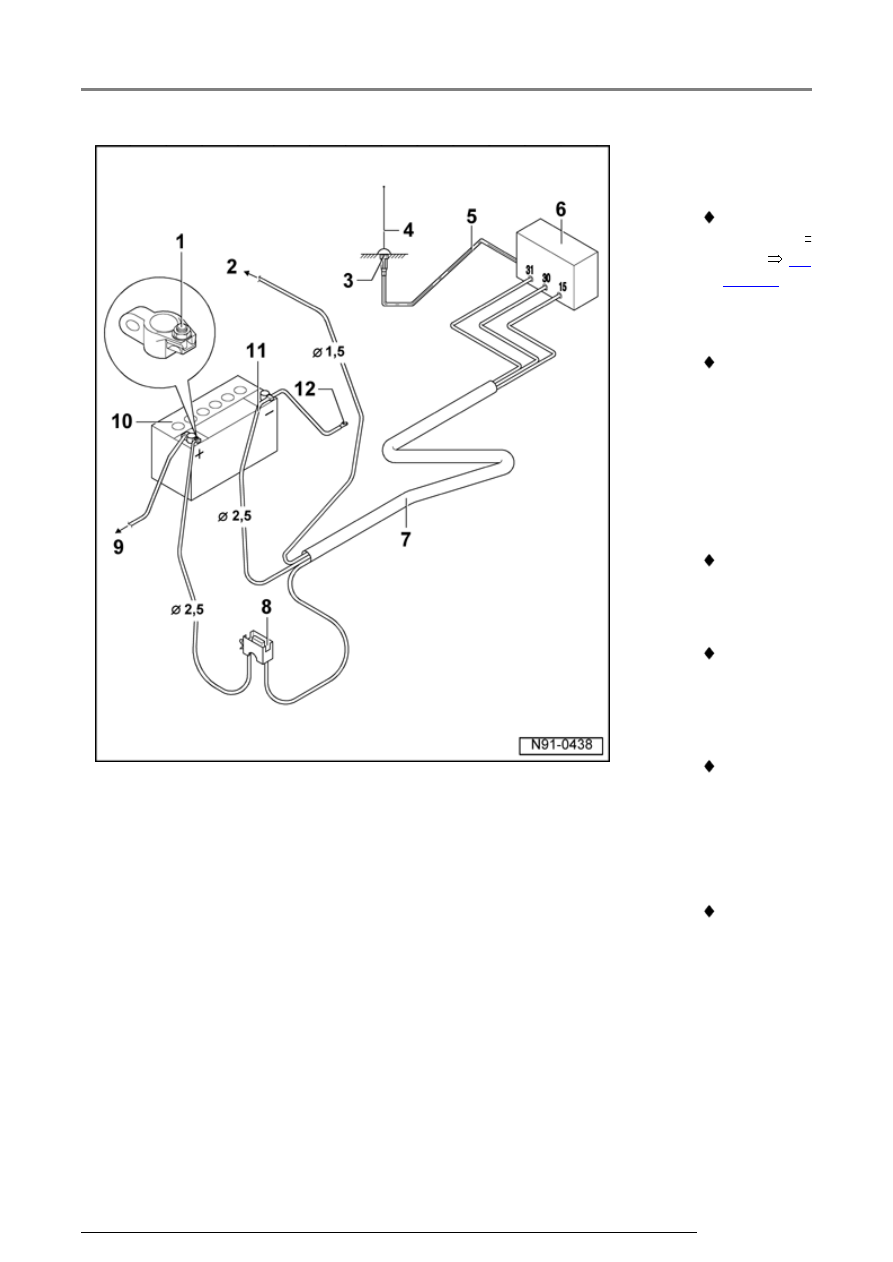

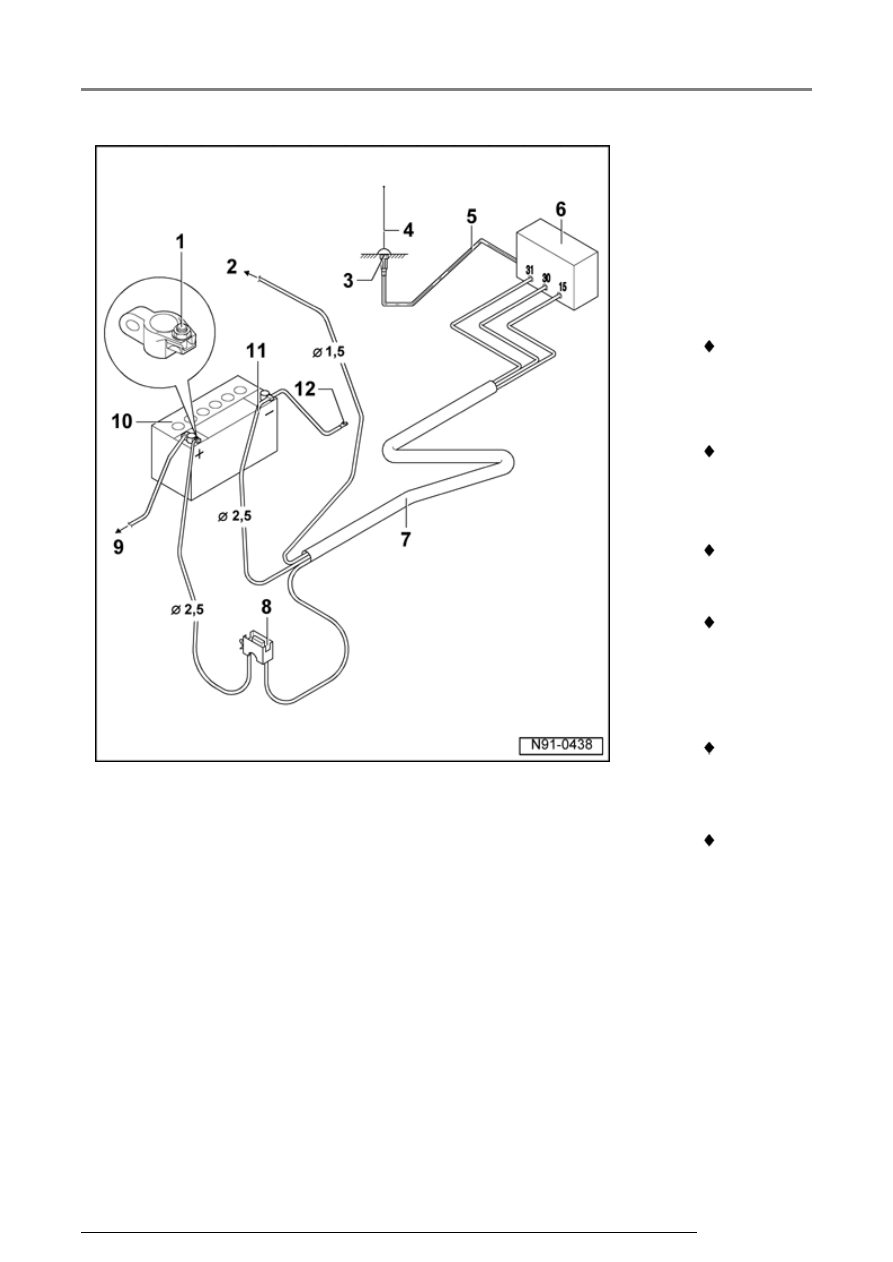

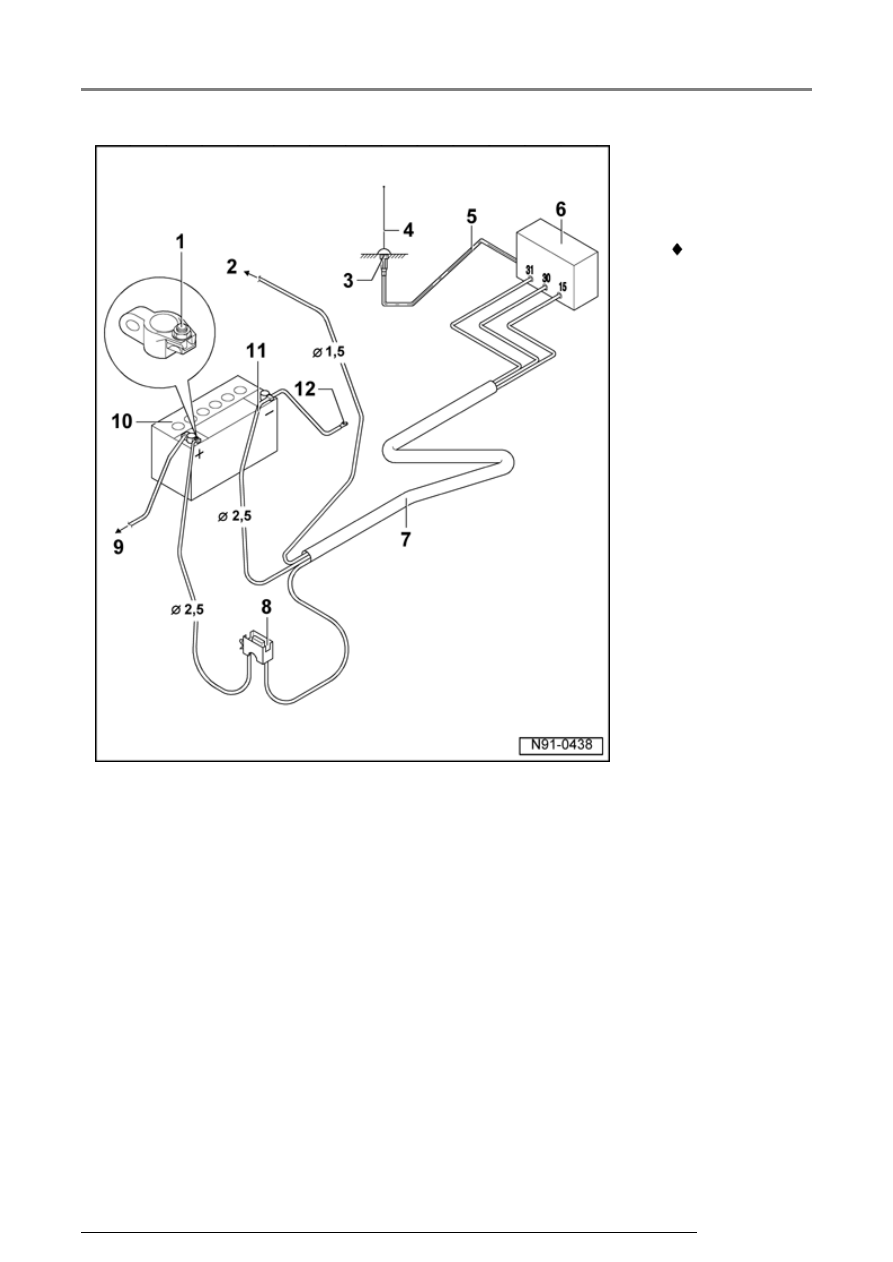

Battery,
transmitter/receiver
unit - fuse and
wiring harness,
overview



Wiring Diagrams and
Component Locations

1 - Positive

connection

 Red wire with

suitable
connection.

2 - To terminal 15a

 Connection to

terminal 15a:

 Ensure wire is

protected by
fuse.

 Fuse

protection
max. 15A

3 - Antenna

Ground (GND)

 Ensure correct

Ground (GND)
connection to
body.

 The antenna

location must
be treated with
suitable
corrosion
protection.

Mobile telephone and two-way radio operation, notes

13/2/2005

91-113





-

Transmitter/receiver
antenna


 Fitting

locations:
table



Page

91-115

 .

5 - Shielded

antenna wire

 Wire with

coaxial
connector

-

Telephone or two
way radio
transmitter/receiver
unit


7 - Wiring harness

 Voltage supply

positive via red
wire 2.5 mm
cross section.

 Voltage supply

negative via
brown wire 2.5
mm cross
section.

 If necessary,

wire to terminal
15a via black
wire 1.5 mm
cross section.

8 - Fuse holder

 Install next to

battery.

Mobile telephone and two-way radio operation, notes

13/2/2005

91-114





9 - To

Starter

10 - Battery

 Located in

the engine
compartment
at the front
left corner.

11 - Negative

( - ) wire

12 - Body

Ground
(GND)
