27-55







Note:





New generation batteries are
equipped with a central gas venting
system and integrated flame trap.
Function: Gases produced during
charging escape through a central
opening on the side of the upper
cover. The integrated flame trap
prevents flammable gases in the
battery from igniting. The flame trap
is comprised of a small round
fiberglass mat with a diameter of 15
mm and a thickness of 2 mm.
Working as a one-way-valve, it
allows gases produced during
charging to vent.



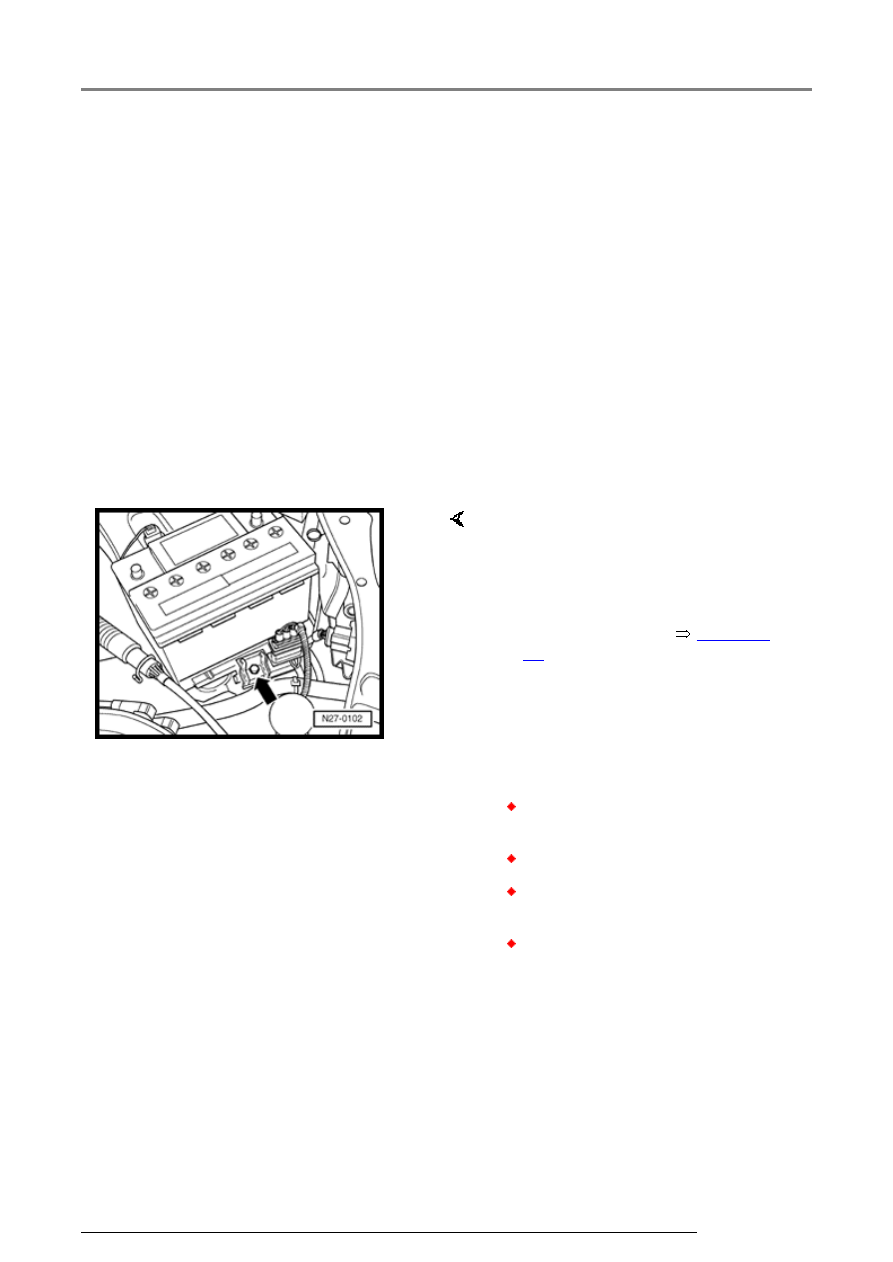

CAUTION!



Results of inadequately secured
battery:



-  Install hold-down bracket with bolt

(tightening torque: 25 Nm).

-  Reinstall insulation jacket where

applicable.

-  Reconnect battery



Page 27-

43

 .



Shorter battery service life due
to vibration damage.





Battery cell and plate damage.





Electrolyte leakage due to
battery case damage.





Poor collision safety.



Battery, removing and installing

13/2/2005

27-56







Battery with clipped fuse
holder, removing and
installing







WARNING!







Prior to handling or servicing
batteries, read, understand and
observe the Warning and Safety
measures for lead-acid batteries



Page 27-4

 .







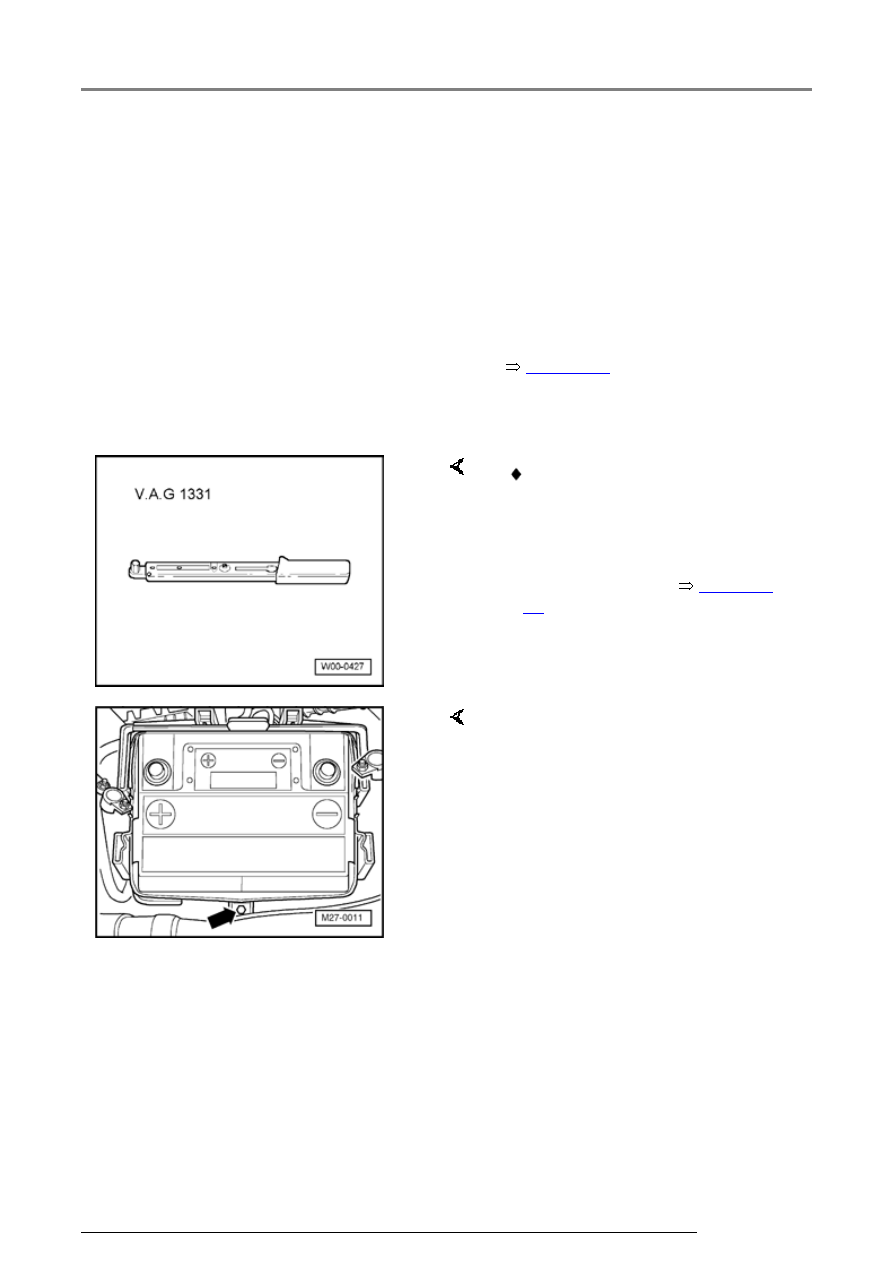

Special tools and auxiliary items
needed



Battery, removing

 VAG 1331 Torque wrench (or

equivalent 5 - 50 Nm )

-  Disconnect battery



Page 27-

46

 .



-  Remove bolt -arrow-.

-  Remove battery hold-down

bracket.

-  If present, disconnect central gas

vent hose from top cover.

-  Carefully lift battery together with

insulation from engine
compartment.

Battery, removing and installing

13/2/2005

27-57







Battery, installing





To ensure battery seats securely,
only install batteries with a 10.5 mm
battery foot strip and adhere to the
following work sequences:



It must not be possible to move a
battery to the left or to the right.

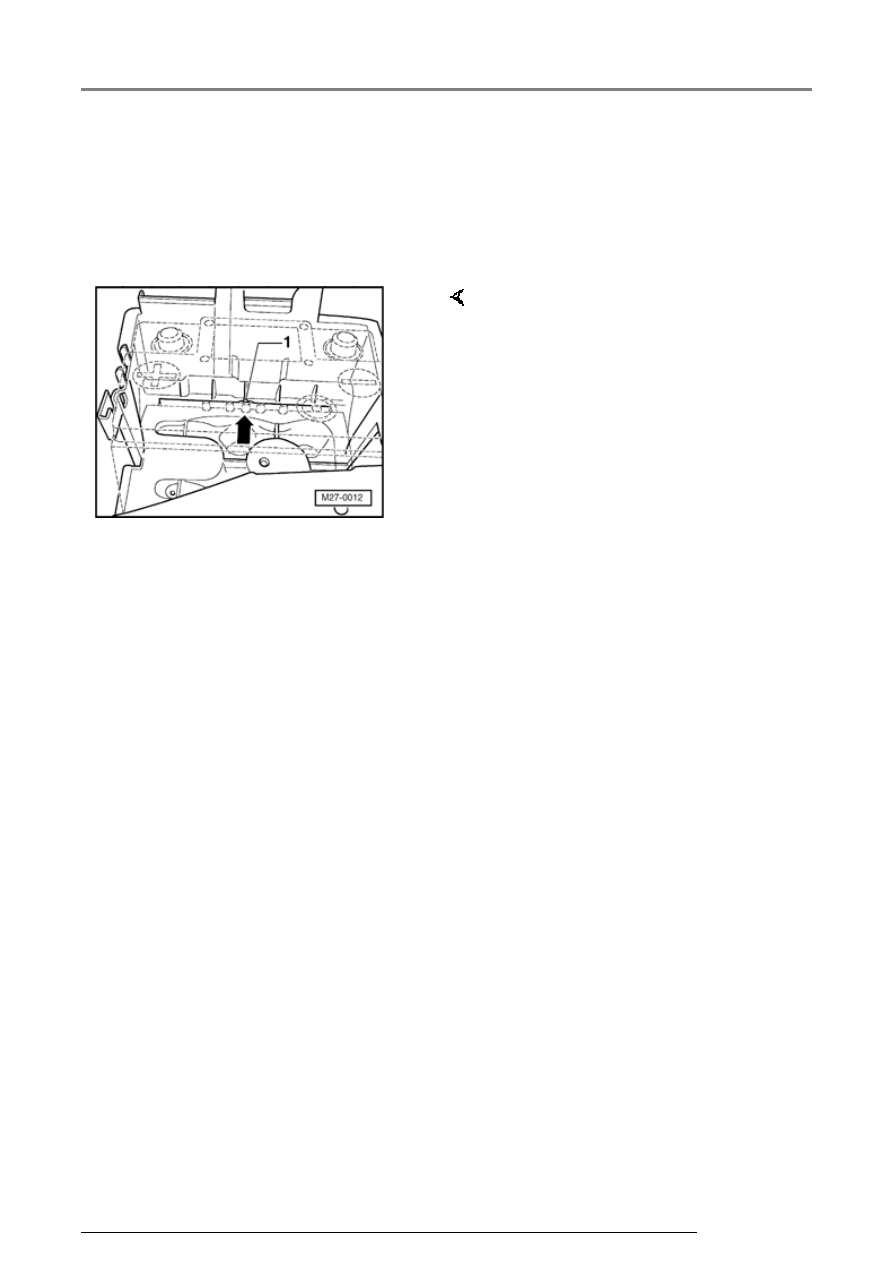

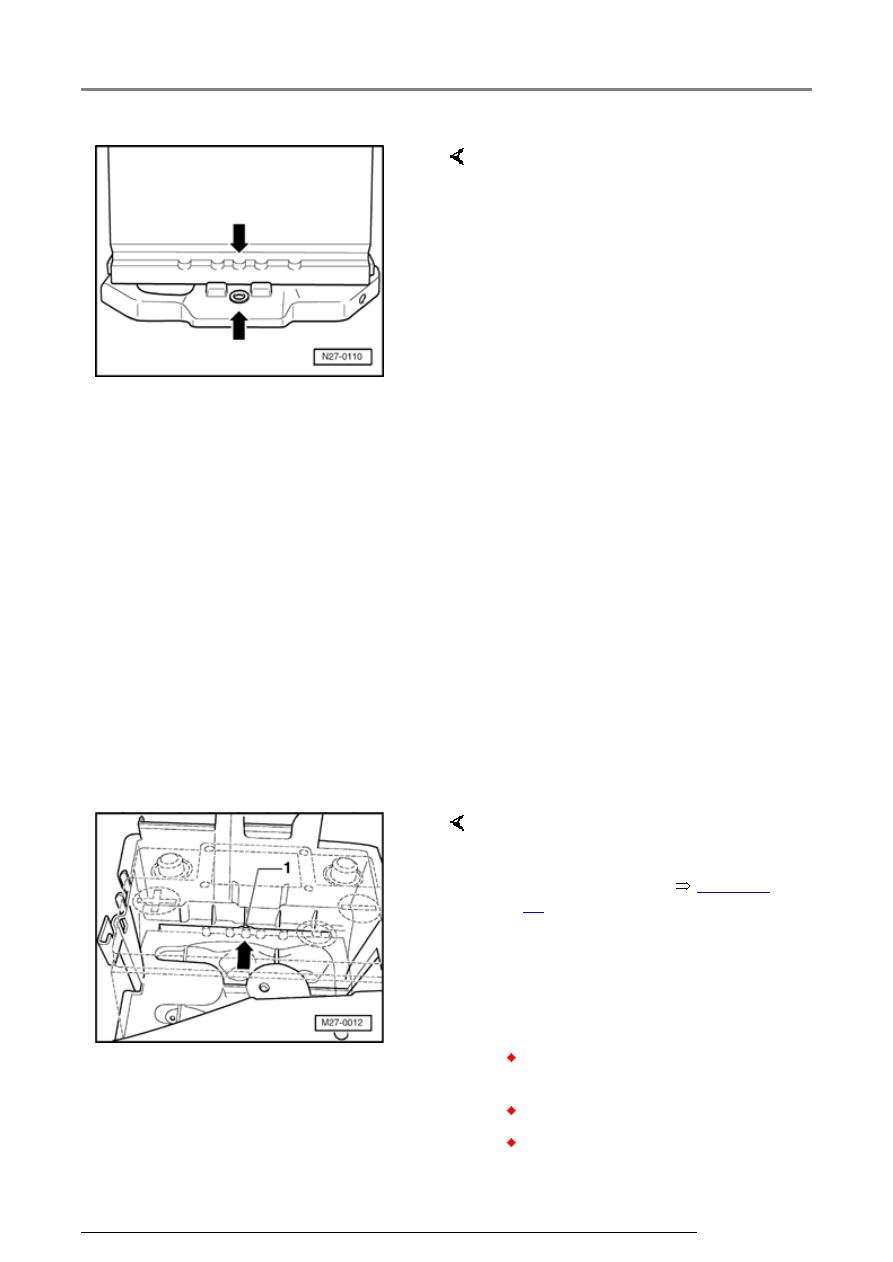

-  Install battery so battery carrier

lug -arrow- engages in battery
foot strip cut-out -1-.

Battery, removing and installing

13/2/2005

27-58



     Battery is inserted correctly when

center cut-out in battery foot strip
aligns with threaded hole in battery
carrier -arrows-.

Note:

New generation batteries are
equipped with a central gas venting
system and integrated flame trap.
Function: Gases produced during
charging escape through a central
opening on the side of the upper
cover. The integrated flame trap
prevents flammable gases in the
battery from igniting. The flame trap
is comprised of a small round
fiberglass mat with a diameter of 15
mm and a thickness of 2 mm.
Working as a one-way-valve, it
allows gases produced during
charging to vent.

-  On batteries with a hose for

central venting ensure that the
hose is not squashed. Only then
can the battery vent freely.

-  On batteries without a hose for

central venting ensure that the
opening on the upper side of the
battery cover is not blocked.



CAUTION!



Results of inadequately secured
battery:



-  Install hold-down bracket with bolt

(tightening torque: 25 Nm).

-  Reconnect battery



Page 27-

49

 .



Shorter battery service life due
to vibration damage.





Battery cell and plate damage.





Electrolyte leakage due to

Battery, removing and installing

13/2/2005
