27-19







An insufficient electrolyte level allows the cell
plates to dry, resulting in a loss of battery
capacity (reduced output). If the cell plates are
not completely submerged by electrolyte,
(sulfuric acid/water mixture) corrosion will occur
on the plates, plate bridges and cell connector.
Optimum battery function is not possible under
these conditions and battery failure results.





If electrolyte level is too high, electrolyte (sulfuric
acid/water mixture) may leak out and damage
the surrounding area, i.e.: plenum and engine
compartment.





CAUTION!







Before beginning repairs on the electrical
system









Switch off all electrical consumers.









Switch ignition off and remove ignition
key.







-  Check electrolyte level visually, either via charge

indicator (if equipped) or from min./max.
markings on battery housing.

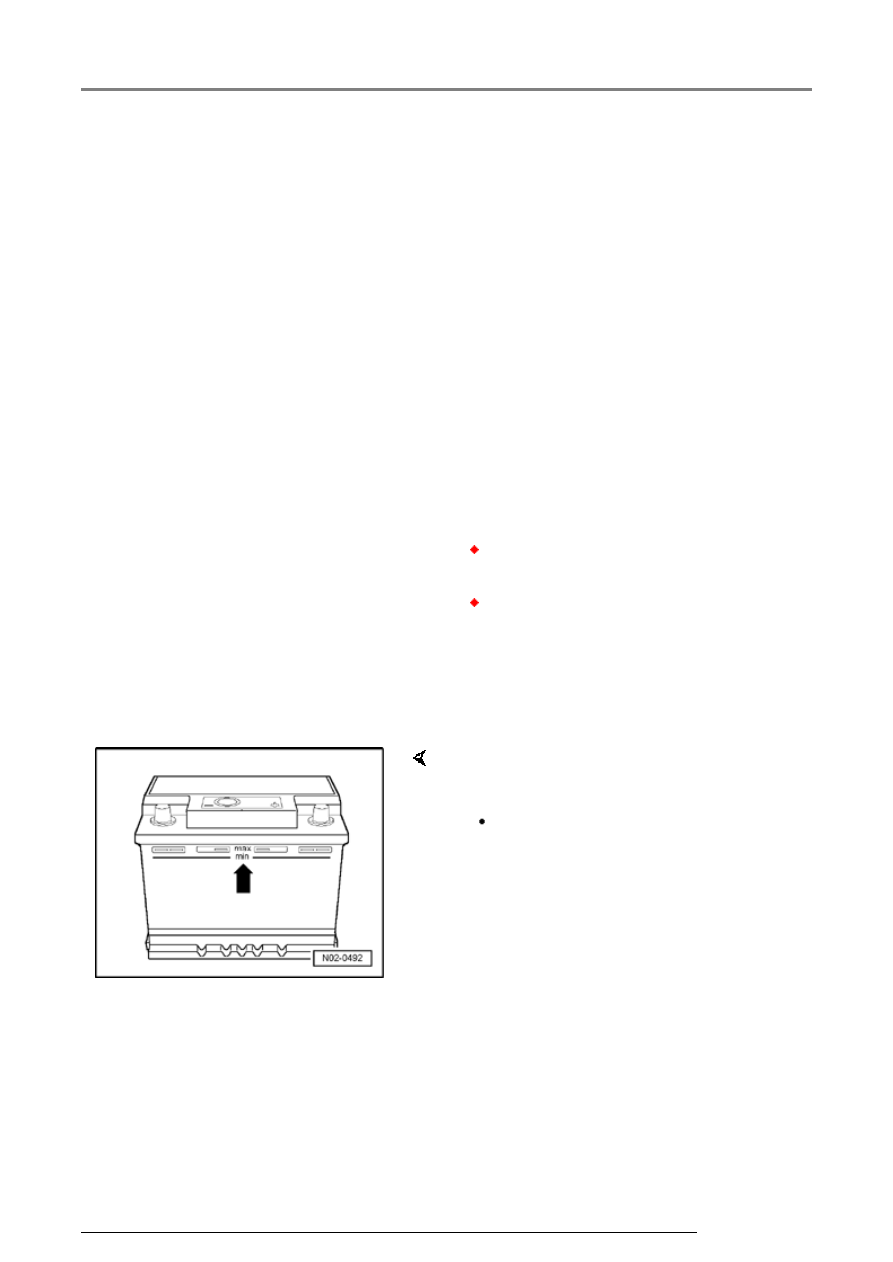

     Electrolyte level reading from min./max. marking on

battery housing -arrow-.

If no minimum and maximum markings are visible
on the battery housing (either not molded- in or not
visible due to installation location) or if the battery
housing is black, the sealing plugs must be
removed. Then determine electrolyte level by
viewing inside the battery cells.

 Electrolyte level must be above the minimum

marking or just reach the maximum marking.

Battery, checking

13/2/2005

27-20







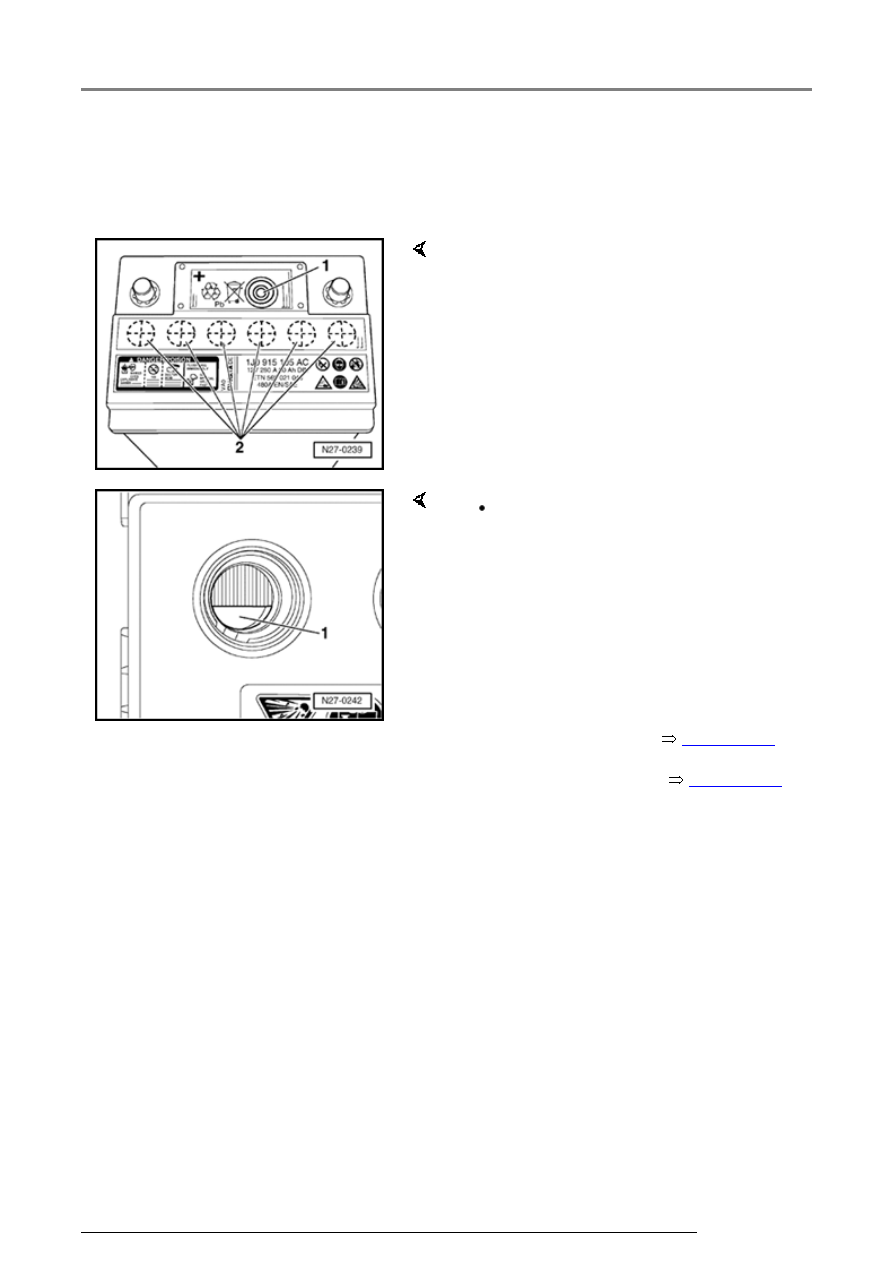

-  First remove plastic foil from cell caps (where

applicable), being sure not to disturb plastic
safety warning label on battery.



-  Unscrew cell caps -2-.

-  Look into individual battery cells to determine

electrolyte level.



Note:

On batteries with black housings, obtain accurate
electrolyte level readings by illuminating inside of
cells with a flashlight.

Electrolyte level too low



Page 27-21



Electrolyte level too high



Page 27-22



 Electrolyte level must align with the internal

electrolyte level indicator (lip) -1-. This equates
to the external "maximum" marking on the
battery case.

Battery, checking

13/2/2005

27-21







Electrolyte level too low





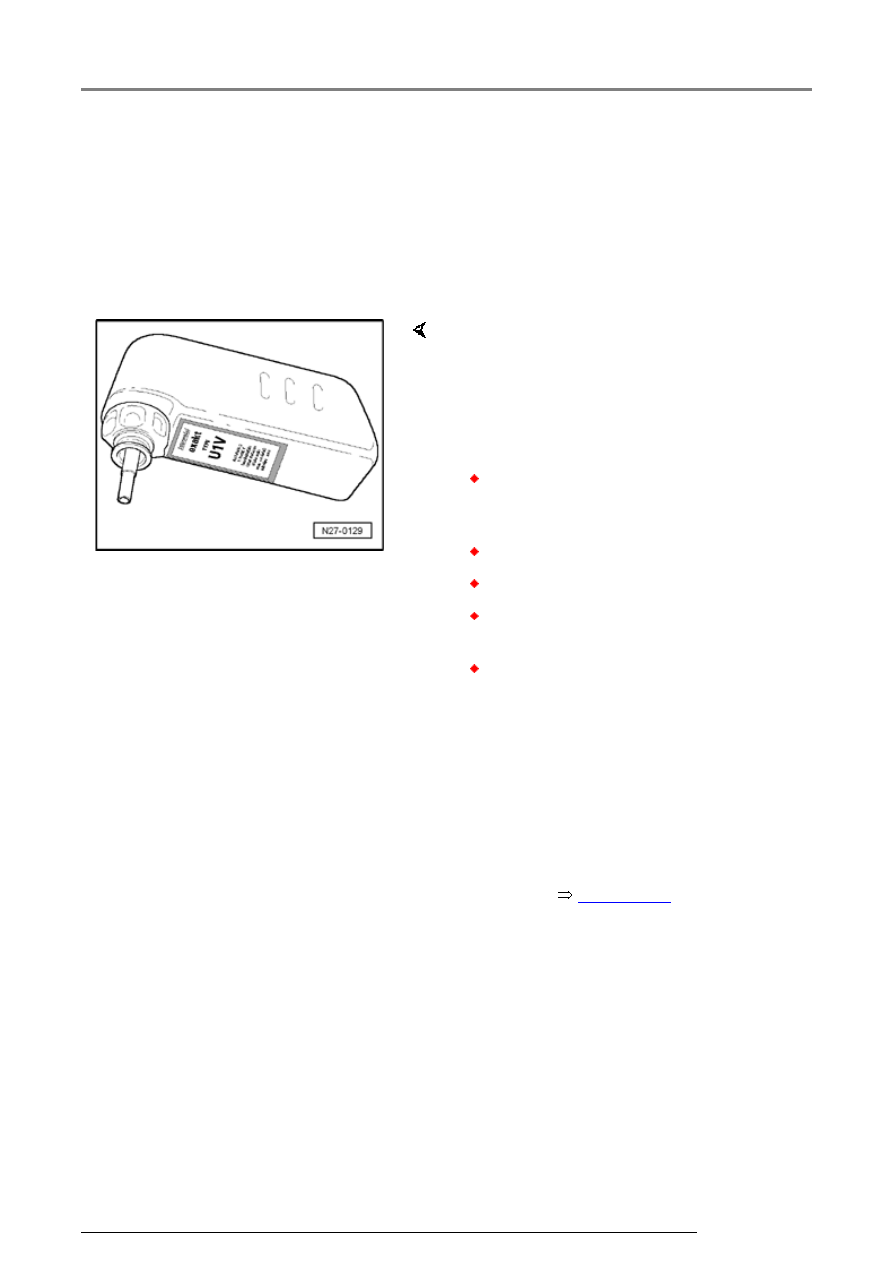

-  Fill with distilled water using battery filling bottle

VAS 5045 (or equivalent) up to the max.
marking





Note:

     Design of filler support on filling bottle VAS 5045

prevents overfilling of battery cells and subsequent
electrolyte leaks. When max. level is reached the
flow of distilled water into battery cells stops.

CAUTION!



Note:

If it becomes necessary to top up the battery with
distilled water, always perform battery test
afterwards



Page 27-30

 .



Only use distilled water to top-up batteries.
This prevents electrolyte impurities which
cause self-discharging.





DO NOT overfill the battery





Overfilled batteries can boil over.





Too little electrolyte reduces the service life
of the battery.





Use use of genuine VW battery cell caps
ensures the different battery cover systems
are sealed correctly. Only use genuine cell
caps of the same construction if lost or
damaged. All cell caps must be equipped
with an O-ring seal.



Battery, checking

13/2/2005

27-22







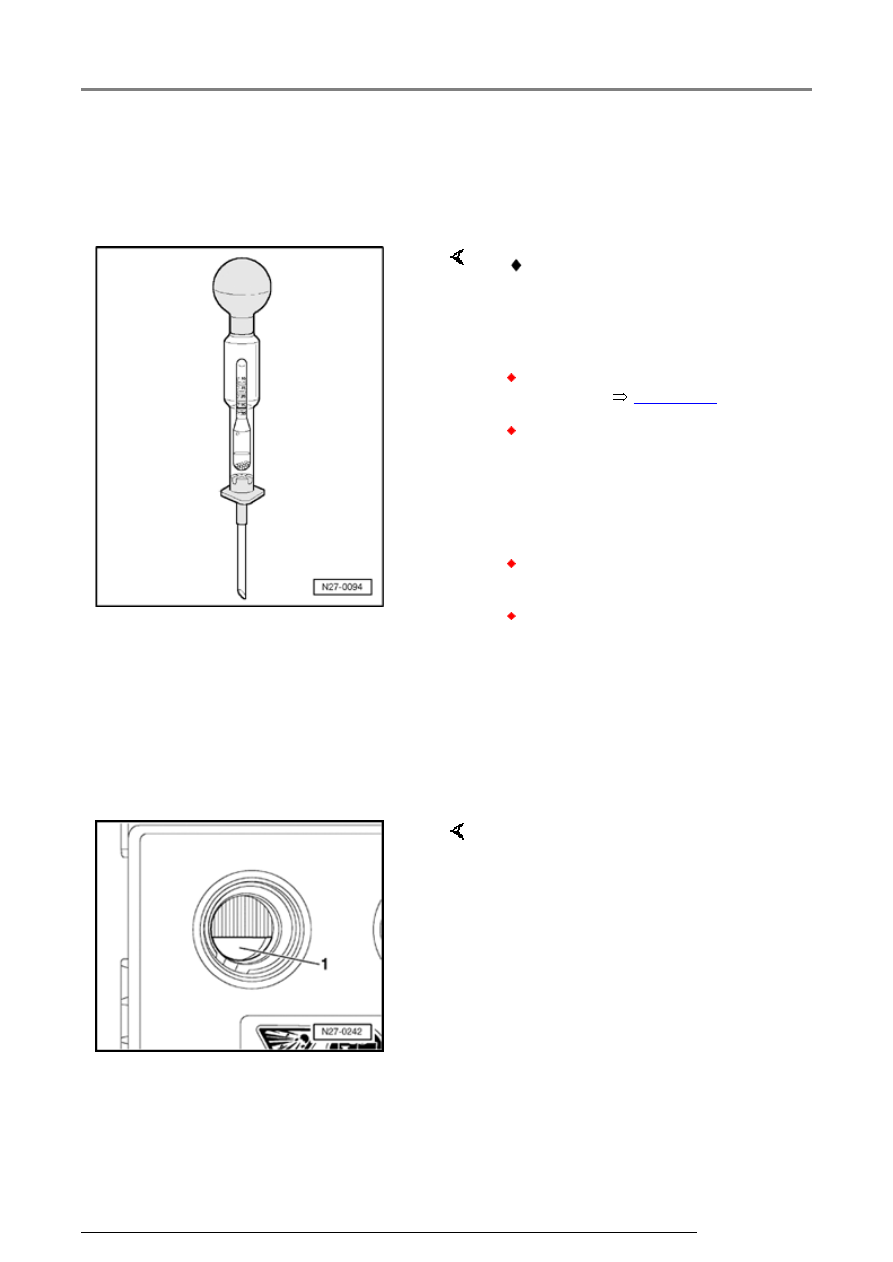

Electrolyte level too high





Special tools and auxiliary items
needed



WARNING!



 Commercially available

hydrometer



Refer to Warnings and Safety
Measures



Page 27-4

 .



If electrolyte level is too high,
electrolyte (sulfuric acid/water
mixture) may leak out and
damage the surrounding area,
i.e.: plenum and engine
compartment.





Excess electrolyte MUST be
extracted using a hydrometer





Dispose of electrolyte (sulfuric
acid) properly! Waste
electrolyte must only be
disposed of in appropriate
waste disposal sites. Refer to
local regulations pertaining to
electrolyte disposal.



-  Remove cell caps from cells with

excess electrolyte.



CAUTION!



Use use of genuine VW battery
cell caps ensures the different
battery cover systems are sealed
correctly. Only use genuine cell
caps of the same construction if
lost or damaged. All cell caps
must be equipped with an O-ring
seal.



-  Extract excess electrolyte using

hydrometer until electrolyte level
is lowered to internal level
indicator -1- or external maximum
marking.

Battery, checking

13/2/2005
