In the event of repair, the complete component must be renewed.

Removing:
– Remove switch module window lifter, driver side

⇒ page 250

 .

– Unclip installation frame for switch from trim.
– Release locking lugs -arrows- and remove switch from the in‐

stallation frame.

Installing:
Install in reverse order of removal.

3.3

Removing and installing driver side in‐

terior locking button for central locking

system -E308-

Note

The driver side interior locking button for central locking system -

E308- features a button illumination bulb -L76- , which must not

be replaced individually.

70 ; Removing and installing front door trim, driver side .

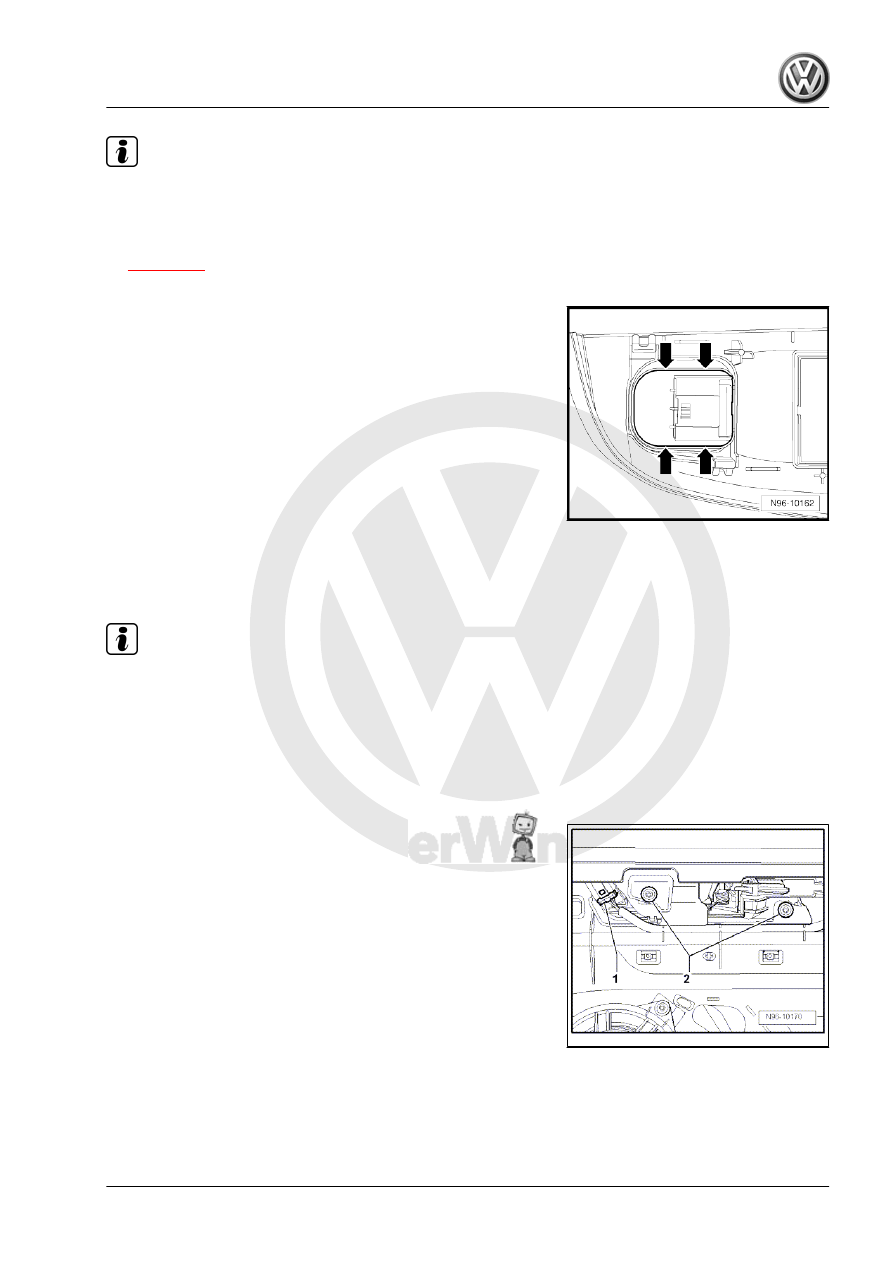

– Disconnect connector -1- and tighten securing bolts -2-.
– Take door opener with switch out of the door trim.

Jetta 2005 ➤ , Bora 2006 ➤

3. Lights and switches in front doors

249

switch from the installation frame.

Installing:
Install in reverse order of removal.

3.4

Components - front door locks

The following components (depending on equipment) are inte‐

grated into the driver side door lock:
♦ Driver door contact switch -F2-
♦ Driver side central locking lock unit -F220-
♦ Driver door central locking motor -V56-
♦ Driver door central locking deadlock function motor -V161-
The following components (depending on equipment) are inte‐

grated into the passenger side door lock:
♦ Front passenger door contact switch -F3-
♦ Front passenger side central locking lock unit -F221-
♦ Front passenger seat central locking motor -V57-
♦ Front passenger door central locking deadlock function motor

-V162-

Note

In the event of repair, the complete component must be renewed.

In the event of component defects - front door locks:
– Replace relevant door lock ⇒  General Body Repairs, Exterior;

Rep. Gr.  57 ; Front door; Removing and installing door lock .

3.5

Removing and installing switch module

for driver side window lift

Special tools and workshop equipment required

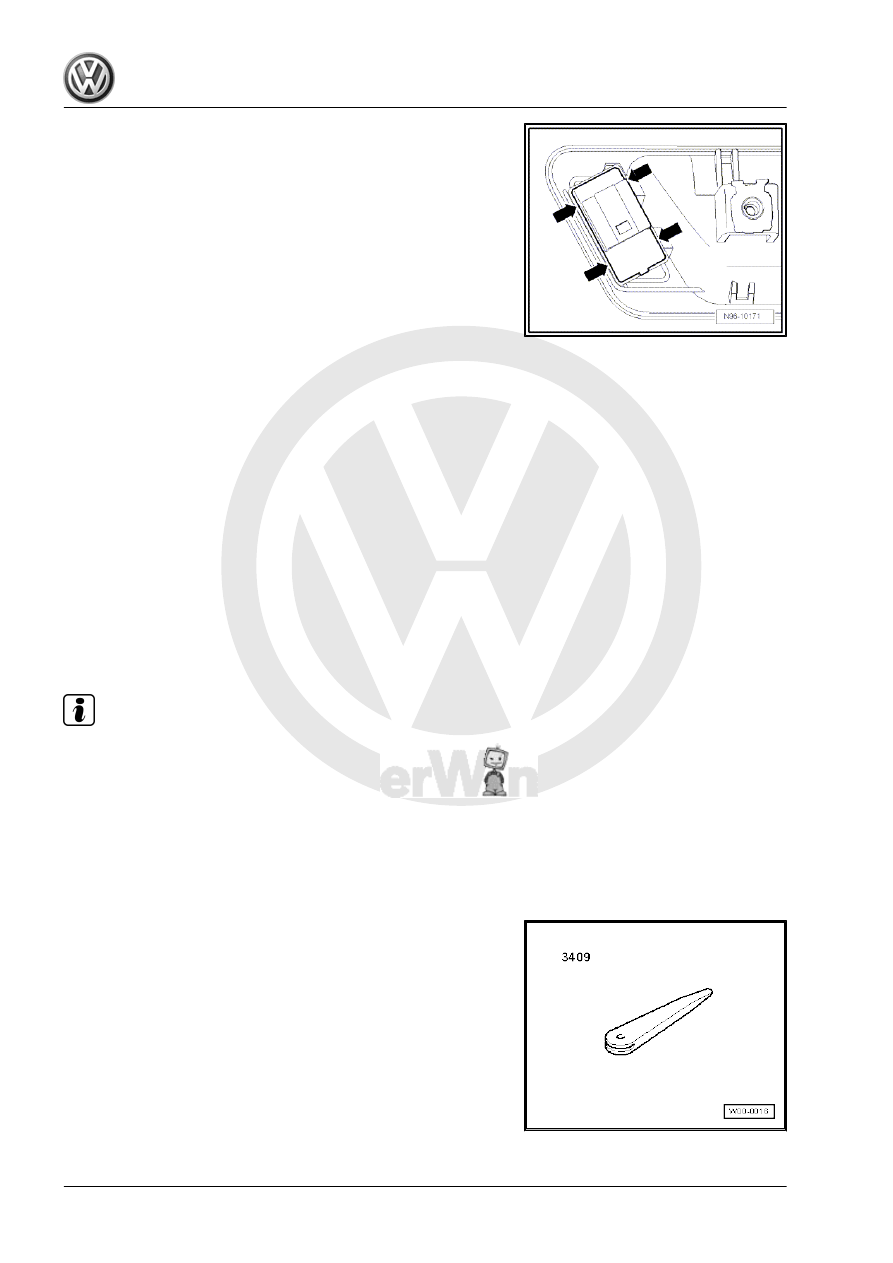

♦ Removal wedge -VAS 3409-

Jetta 2005 ➤ , Bora 2006 ➤

250

When removing and installing components in visual area (con‐

nectors, covers, trims etc.) apply a commercial adhesive tape

where a lever tool is applied ( removal wedge -VAS 3409- , srew‐

driver).

The following components (in models with 4 doors) are integrated

into the switch module for the driver side window lift:
♦ Front left window regulator switch -E40-
♦ Rear left window regulator switch, in driver door -E53-
♦ Rear right window regulator switch, in driver door -E55-
♦ Front right window regulator switch in driver door -E81-
♦ Childproof lock button -E318-
♦ Button illumination bulb -L76-

Note

In the event of repair, the complete component must be renewed.

The following components (in models with 2 doors) are integrated

into the switch module for the driver side window lift:
♦ Front left window regulator switch -E40-
♦ Front right window regulator switch in driver door -E81-
♦ Button illumination bulb -L76-

Note

In the event of repair, the complete component must be renewed.

Removing:
– Switch off the ignition and all electrical consumers.

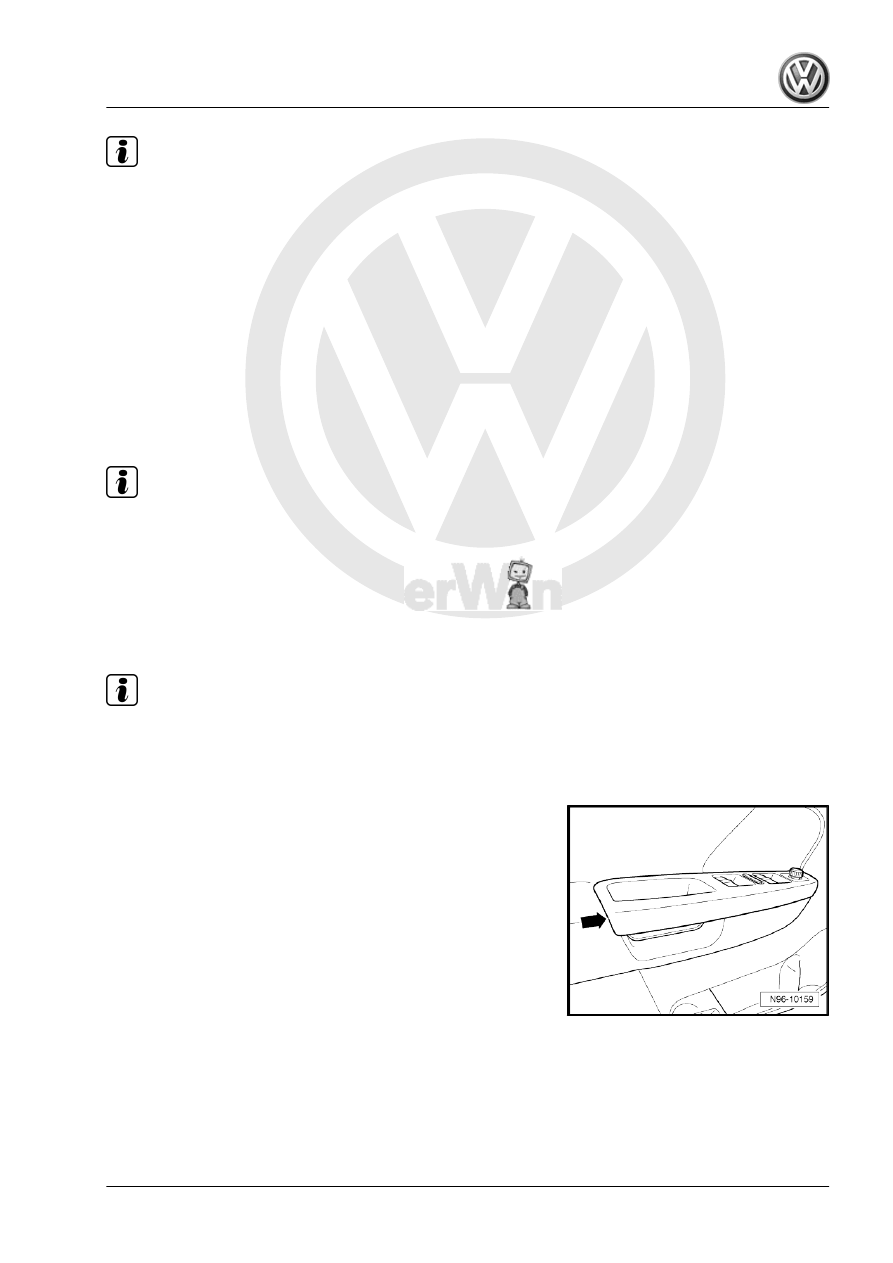

– Carefully lever installation frame out of door trim using removal

wedge -VAS 3409- or screwdriver -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

3. Lights and switches in front doors

251

– Release locking lugs -arrows- and remove switch from the in‐

stallation frame.

Installing:
Install in reverse order of removal.

3.6

Removing and installing remote release

button for fuel filler flap and rear lid -

E463- and key operated switch to block

release of rear lid remote -E232-

Note

The remote release button for fuel filler flap and rear lid -E463-

features a button illumination bulb -L76- , which must not be

replaced individually.

70 ; Door trim; Removing and installing front door trim, driver

side .

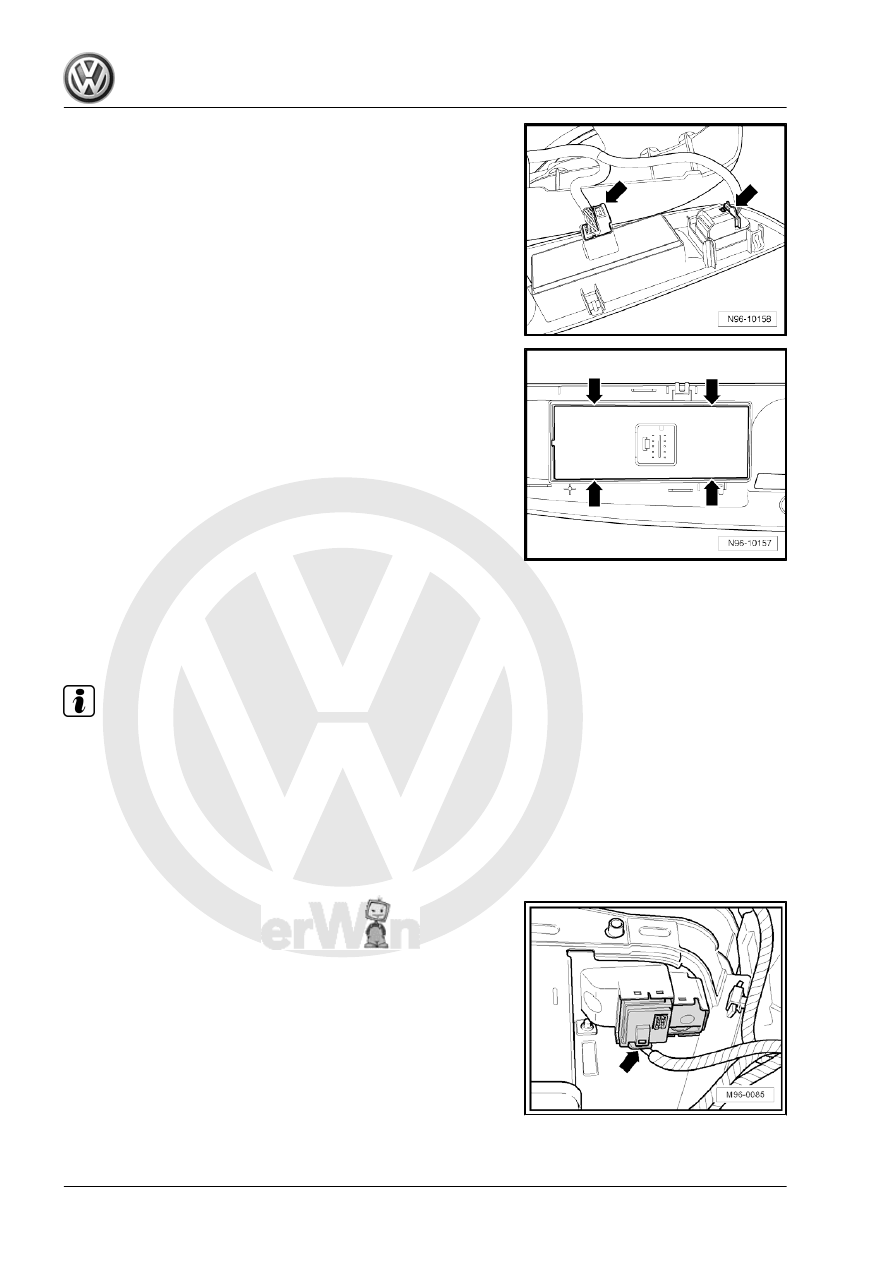

– Disconnect connector -arrow-.
