Vehicles with 2.0 l SDI engine

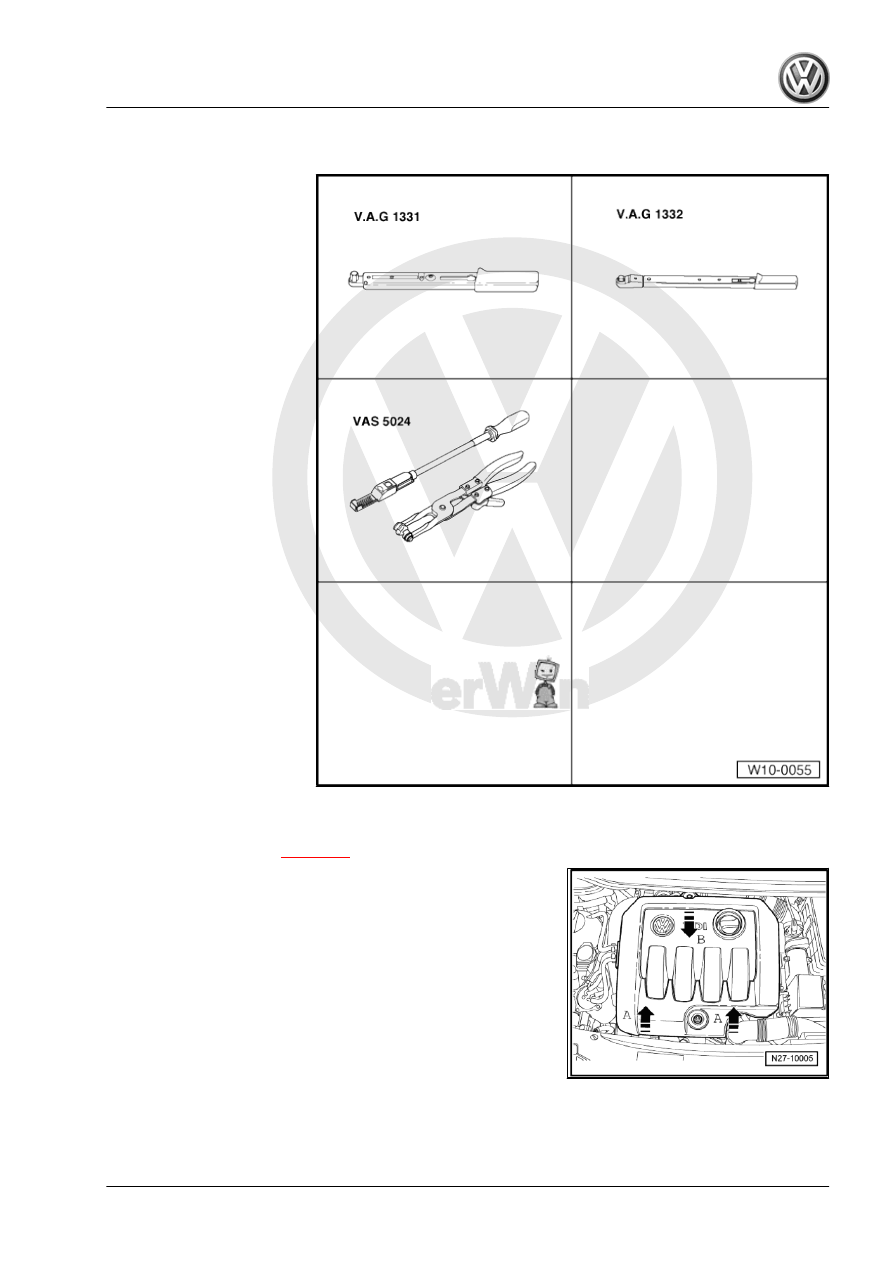

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

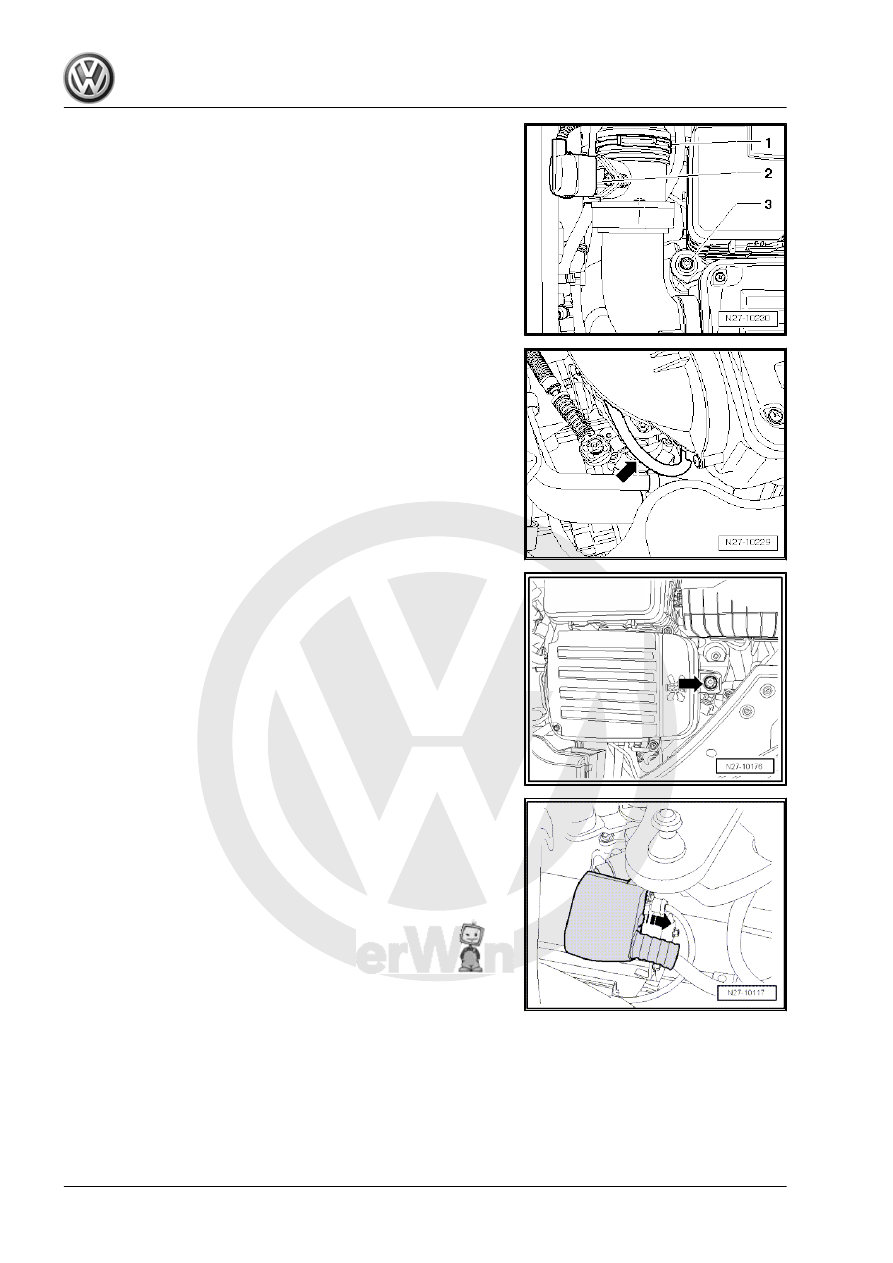

5024- and disconnect connector -2-.

– Remove securing bolt -3-.

– Pull vacuum hose off -arrow-.

– Pull air filter housing on right side upwards off rubber mounting

-arrow-.

– Remove air filter housing from vehicle.

– Push down protective cap -direction of arrow- from solenoid

switch.

Jetta 2005 ➤ , Bora 2006 ➤

minal 50 -2-.

– Unscrew earth wire from starter securing bolt -arrow-.

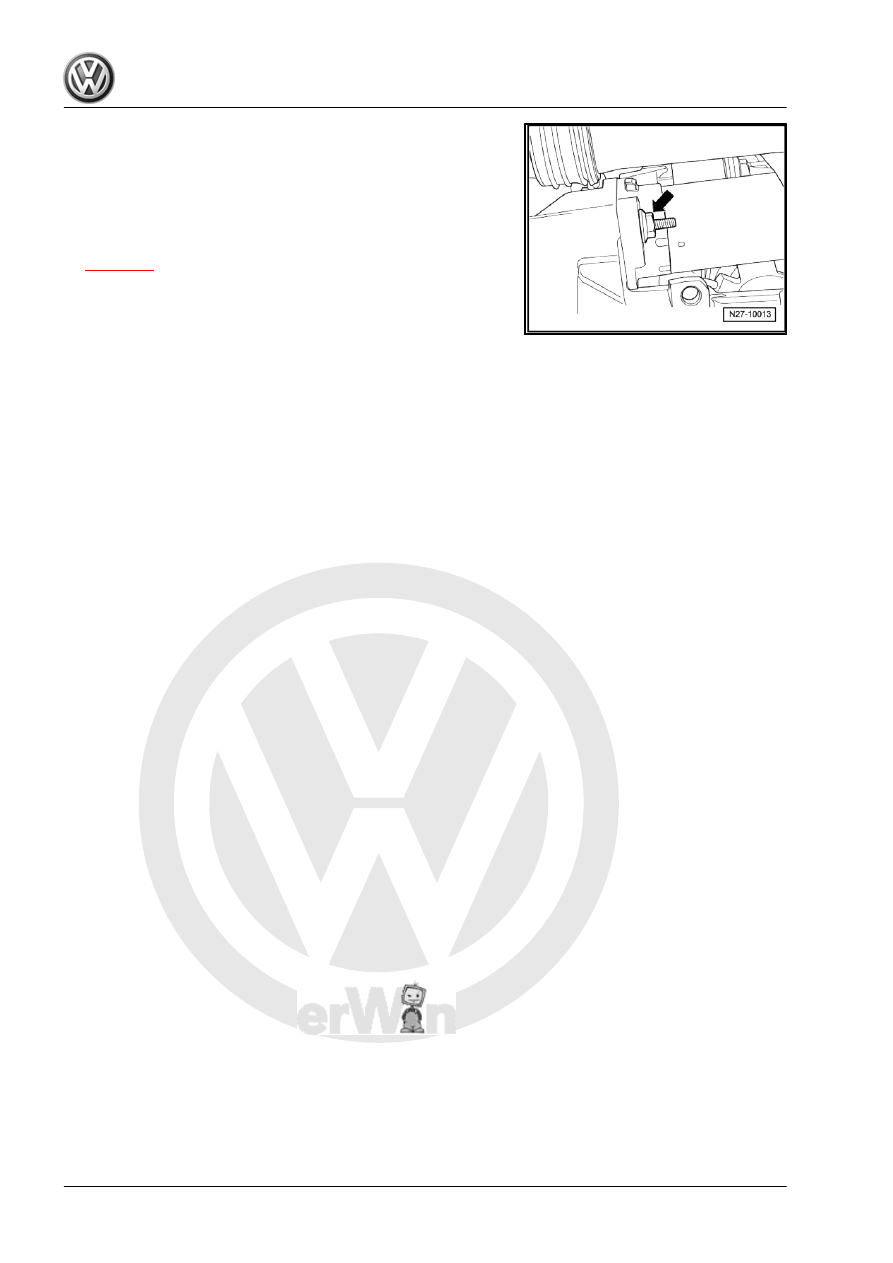

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒ General Body Repairs, Exterior;

Rep. Gr. 50 ; Body front; Noise insulation .

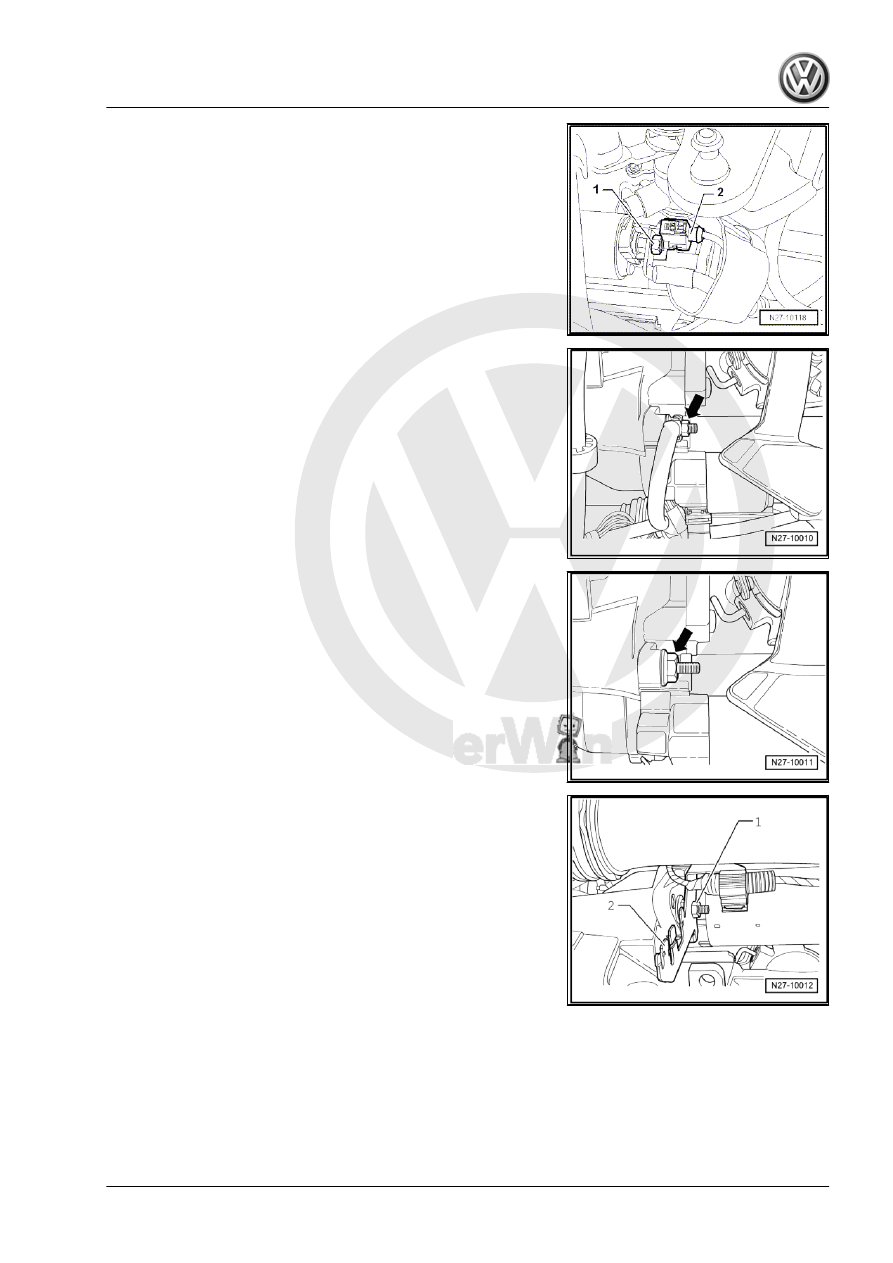

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

note the following:
– Tighten threaded connections to specified torque settings

Jetta 2005 ➤ , Bora 2006 ➤
