Volkswagen Jetta / Bora: Electrical System Manual - part 16

Vehicles with 2,0 l FSI engine

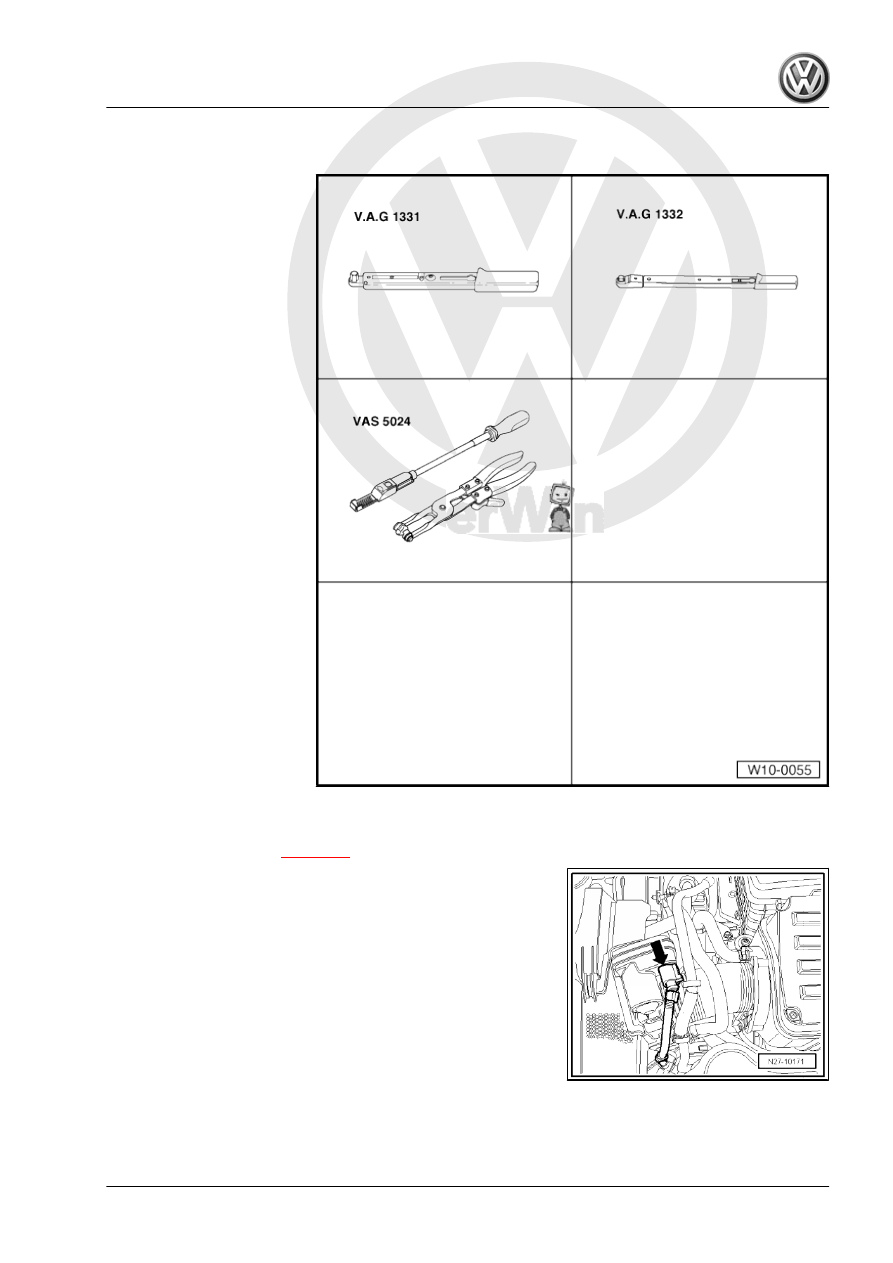

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

– Disconnect connector -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

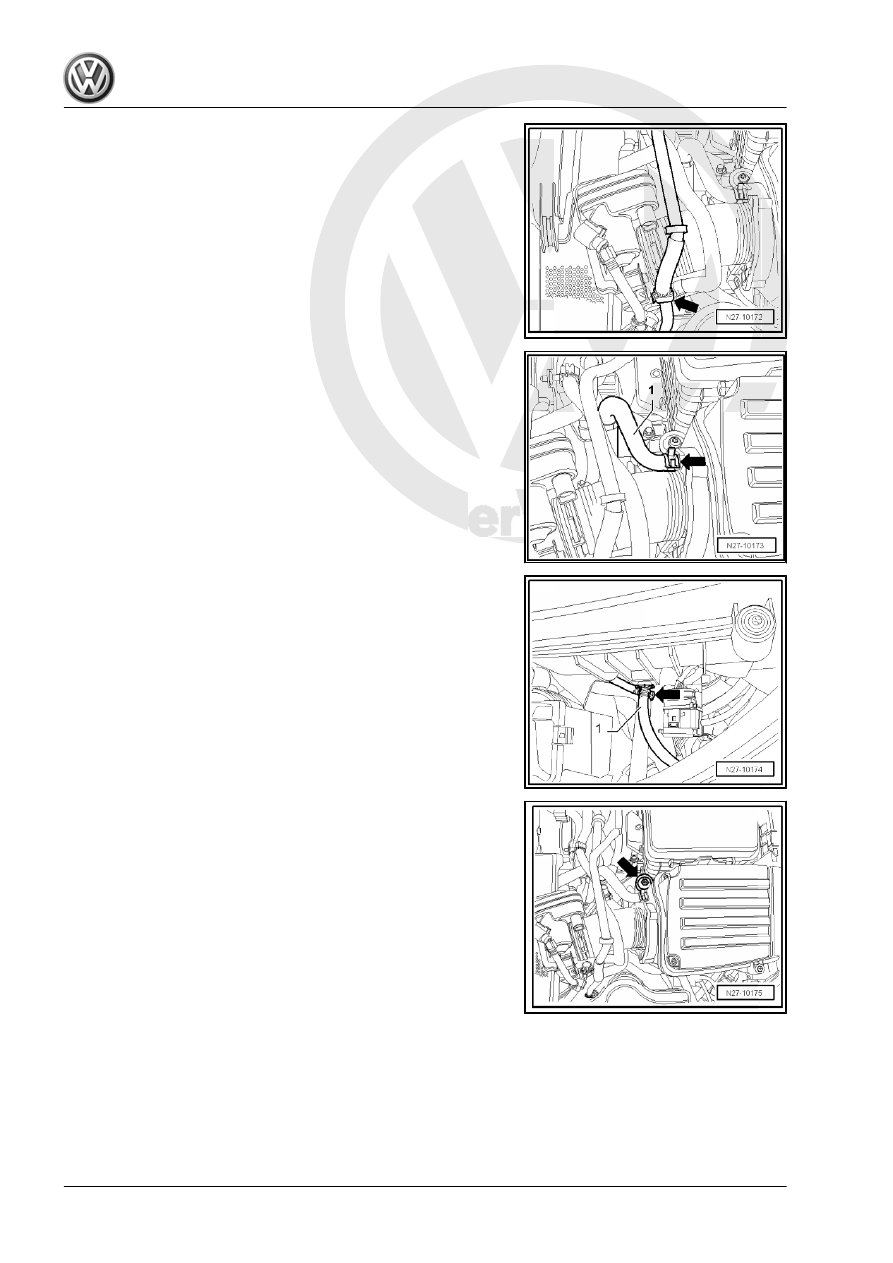

– Loosen spring-type clip -arrow- from hose -1- using spring type

clip pliers -VAS 5024- .

– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front side of air filter housing and take

hose -1- off.

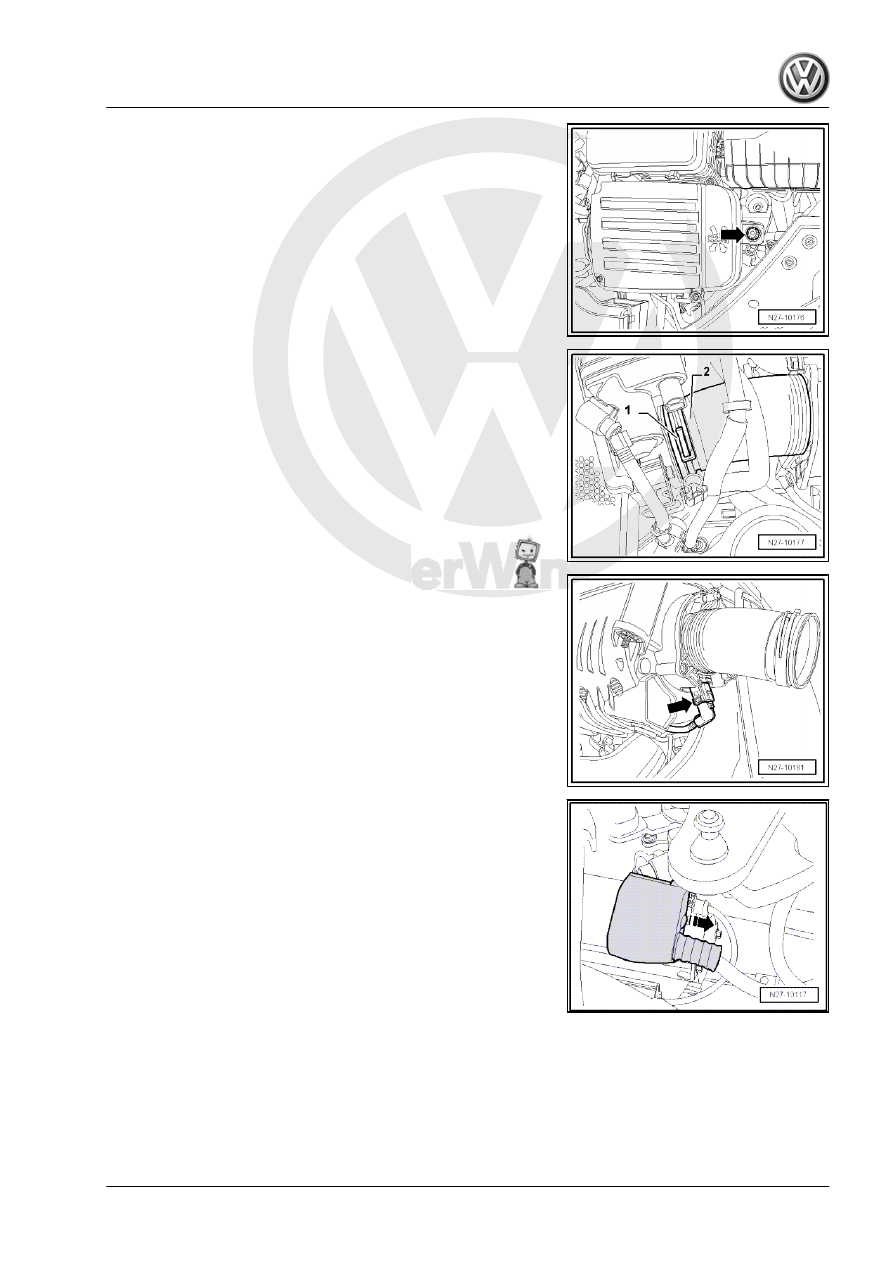

– Unscrew air filter housing securing bolt -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

-arrow-.

– Loosen spring-type clip -1- using spring type clip pliers -VAS

5024- .

– Pull hose -2- off pipe union.
– Carefully lift air filter housing upwards out of the vehicle taking

into consideration the length of the hose.

– Separate connector -arrow- on rear of air filter housing.

– Remove air filter housing from vehicle.
– Push down protective cap in -direction of arrow- from solenoid

switch.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

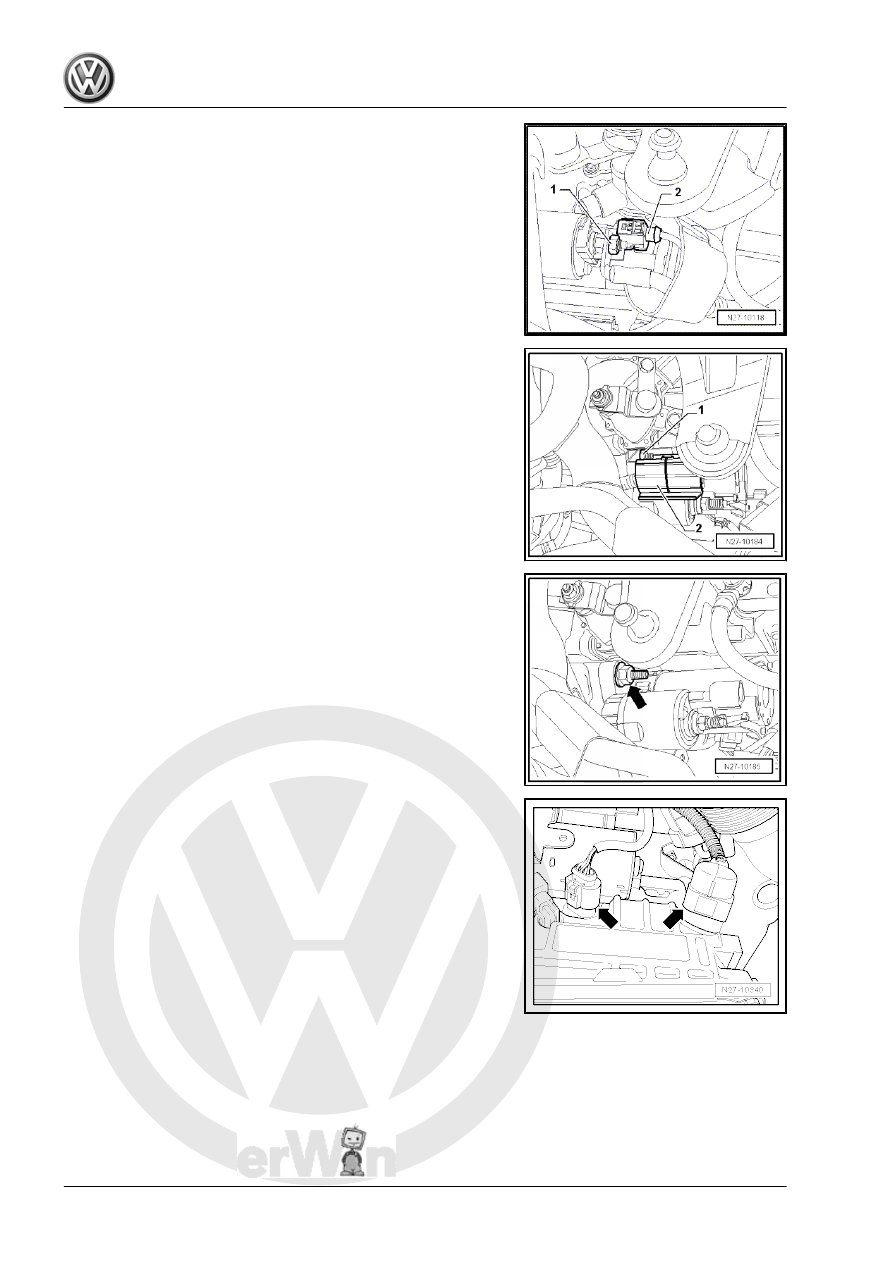

minal 50 -2-.

– Unscrew securing nut -1- from upper starter securing bolt.
– Remove wiring retainer -2-.

– Remove upper securing bolt of starter -arrow-.
– Remove noise insulation ⇒ General Body Repairs, Exterior;

Rep. Gr. 50 ; Body front; Noise insulation .

– Remove connectors -arrows-.
