indication.
– Follow the indications on the screen.

Note

This indication appears just before the engine temperature rea‐

ches 80 degrees Celsius.

– The engine temperature must reach the necessary level.

Measurement in high idle speed rotation:
It switches automatically to the high idle speed rotation measure‐

ment indication.
– Follow the indications on the screen.
The measurement starts as soon as the engine rotation reaches

the necessary level.

Note

♦

With the key

→

 — it is possible to cancel the measurement,

that is, not perform the exhaust gas test.

♦

With the key

←

 — the measurement values are reset and the

test can be repeated.

– Keep the engine rotation on the necessary level.

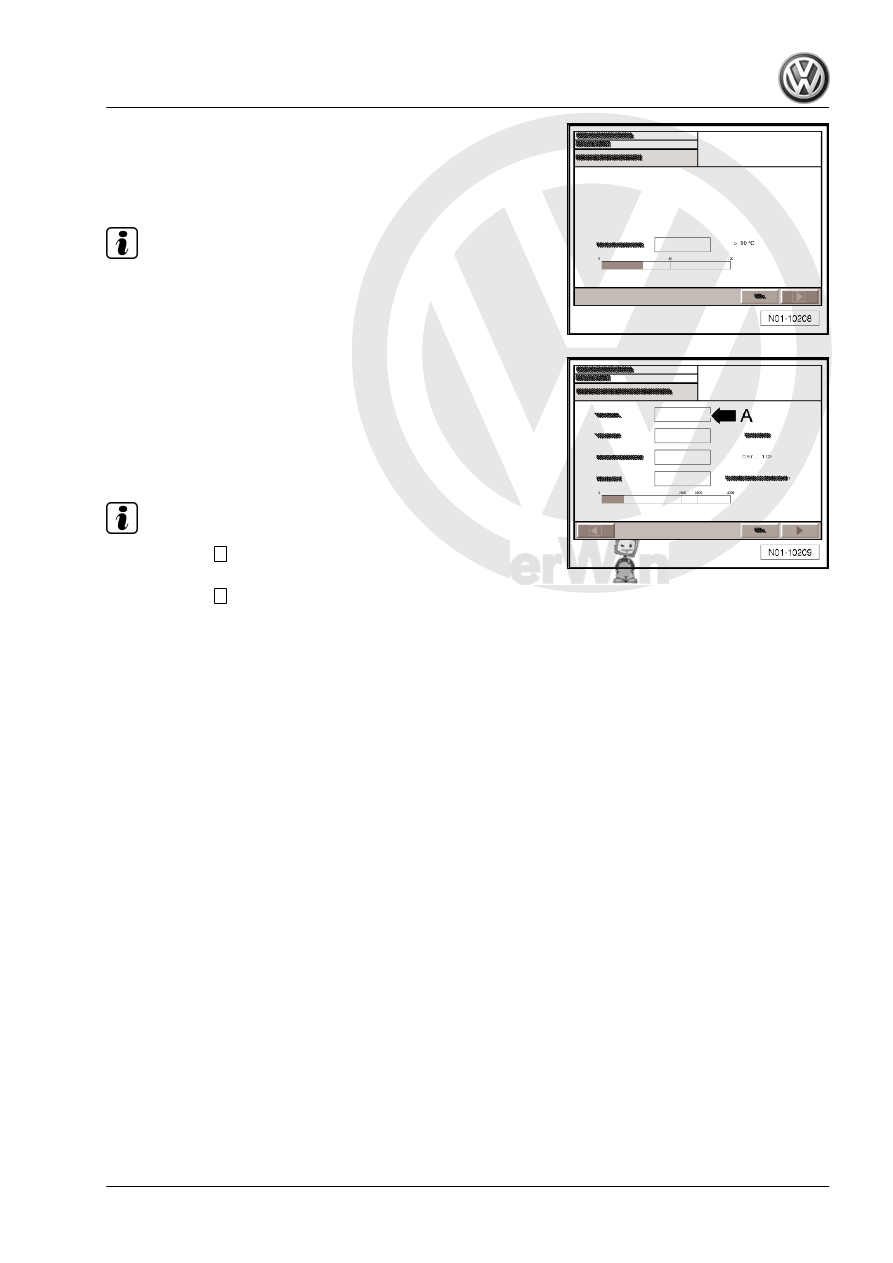

The remaining time for performing the measurement is indicated

on the space -arrow A-.

FOX 2004 ➤

5. Additional tasks due to country legislation

105

measurement and content of CO.
The measurement starts as soon as the engine rotation reaches

the necessary level.
The remaining time for performing the measurement is indicated

on the space -arrow A-.
Probe inspection test:

Note

The probe inspection test is not performed when all readiness

code values are at zero.

It switches automatically to the probe inspection test indication.

Note

The probe inspection test is performed individually for each Lamb‐

da Probe .

The measurement starts as soon as the engine rotation reaches

the necessary level.
– Keep the engine rotation on the necessary level.
The remaining time for performing the measurement is indicated

on the space -arrow A-.

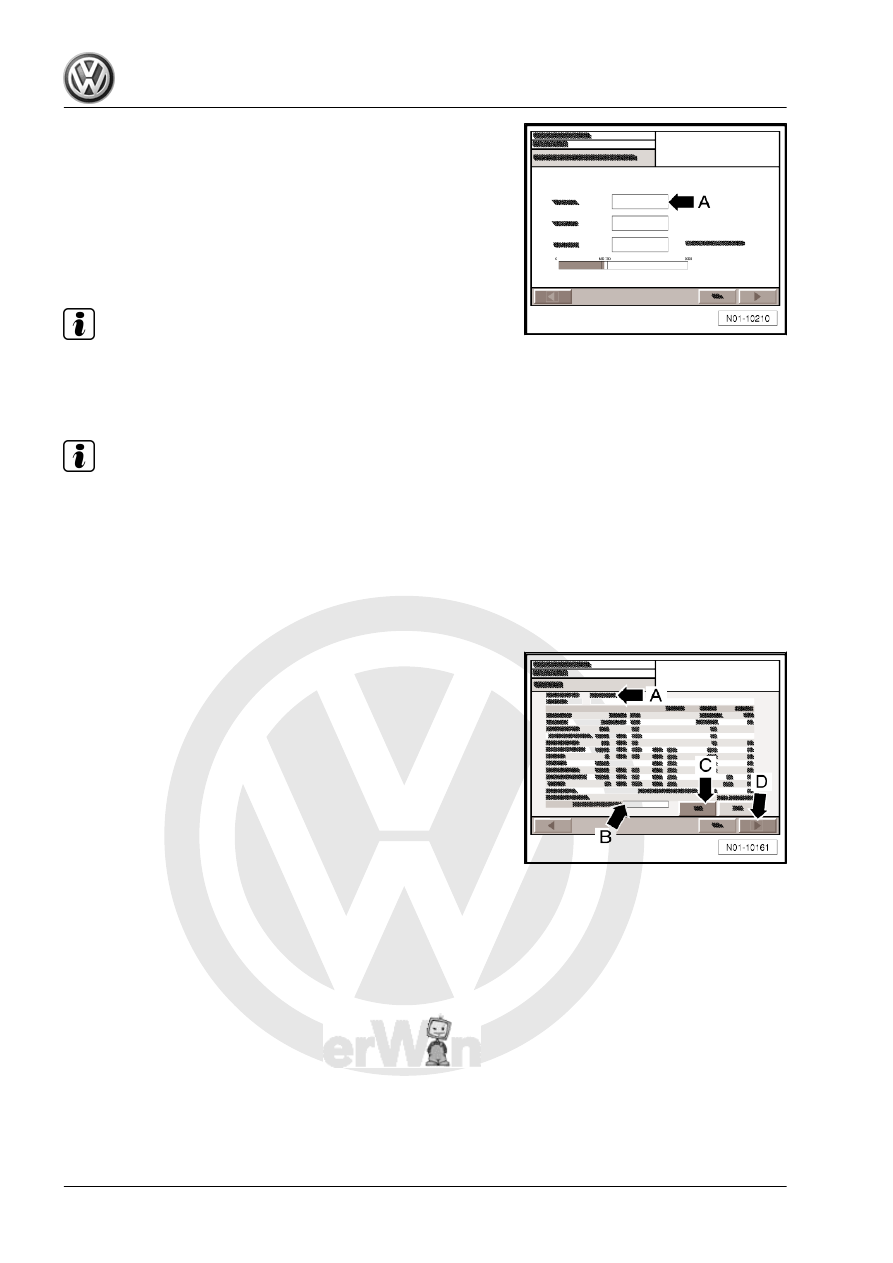

Assessment:
After the exhaust gas test, the report will be displayed on the

screen.
The test result is indicated.
In this location, remarks about the exhaust gas test can be en‐

tered -arrow A-. They are included on the test report.
– After successfully performing the exhaust gas test, select on

the hanging menu - arrow B - “Assigned exhaust gas test plate”

and the date.

– Confirm with “Yes” - arrow C -.
– Then, press it.

FOX 2004 ➤

106

    5. Additional tasks due to country legislation

ically printed.
– To get other certificates, press the -arrow A - “Print” button.
– Follow the indications on the screen.
– Remove the exhaust gas probe from the final exhaust gas

tube.

– Then, press

→

 - arrow B-.

The exhaust gas test is concluded. It is possible to perform a new

exhaust gas test.
Exhaust gas test for petrol engines without OBD

Note

♦

All test conditions and data necessary for the exhaust gas test:

⇒ "Exhaust gas test"

♦

The ignition point is determined by the Engine control unit -

J623- and will not be indicated. It is not possible to make an

adjustment.

♦

The idle speed rotation and the content of CO cannot be ad‐

justed (just checked). If there are divergences between the

actual and the theoretical values: perform a Repair Measure!

♦

The content of CO is adjusted to the theoretical value by the

lambda probe adjustment. The defects in the lambda probe

inspections are processed by the Diagnosis, Measurement

and Information System -VAS 5051A /52- and stored in the

fault memory.

♦

When consulting the fault memory, the faults detected (elec‐

tronic engine system) must be eliminated and deleted from the

fault memory.

♦

To avoid injuries in people and/or destruction of ignition and

injection systems, the ignition system cables (also high volt‐

age cables) must be turned on and off only with the ignition

turned off.

Note

The following description refers to vehicles without OBD with cat‐

alytic converter adjusted.

Special tools and workshop equipment required

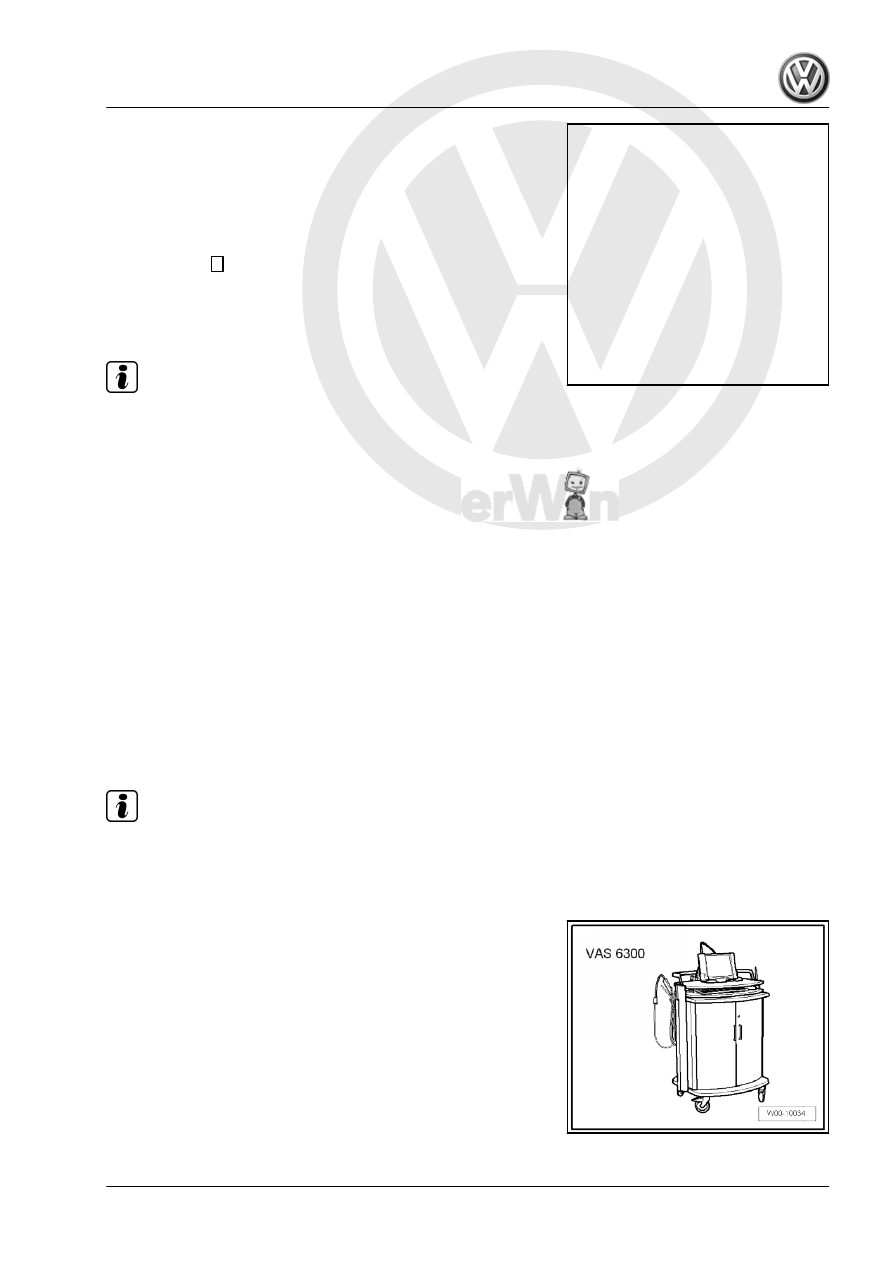

♦ Gas tester - 4 components (CO, CO2, HC and O2) or GAS

TESTER -VAS 6300-

♦ Adapter for older vehicles -VAS 5051/2-

FOX 2004 ➤

5. Additional tasks due to country legislation

107

Note

♦

It is only possible to perform an exhaust gas test when all de‐

vices from the Gas tester - 4 components (CO, CO2, HC and

O2) or GAS TESTER -VAS 6300- are working and connected

with one another, according to the operation instructions.

♦

All works to be performed are indicated by the Gas tester - 4

components (CO, CO2, HC and O2) or GAS TESTER -VAS

6300- .

Prior conditions for inspection:
• All conditions for inspection and data necessary for the ex‐

haust gas test are available on the exhaust gas test datasheet

for the respective engine⇒ Data sheets for exhaust emission

test.

• The exhaust gas test datasheet must be printed to enable the

barcode reading.

• Automatic gearbox: selector level in position “P” or “N”.
• Mechanical transmission: selector lever in “neutral gear”.
• Handbrake operated.
– Perform the exhaust gas test according to the instructions on

the screen.

Startup screen:

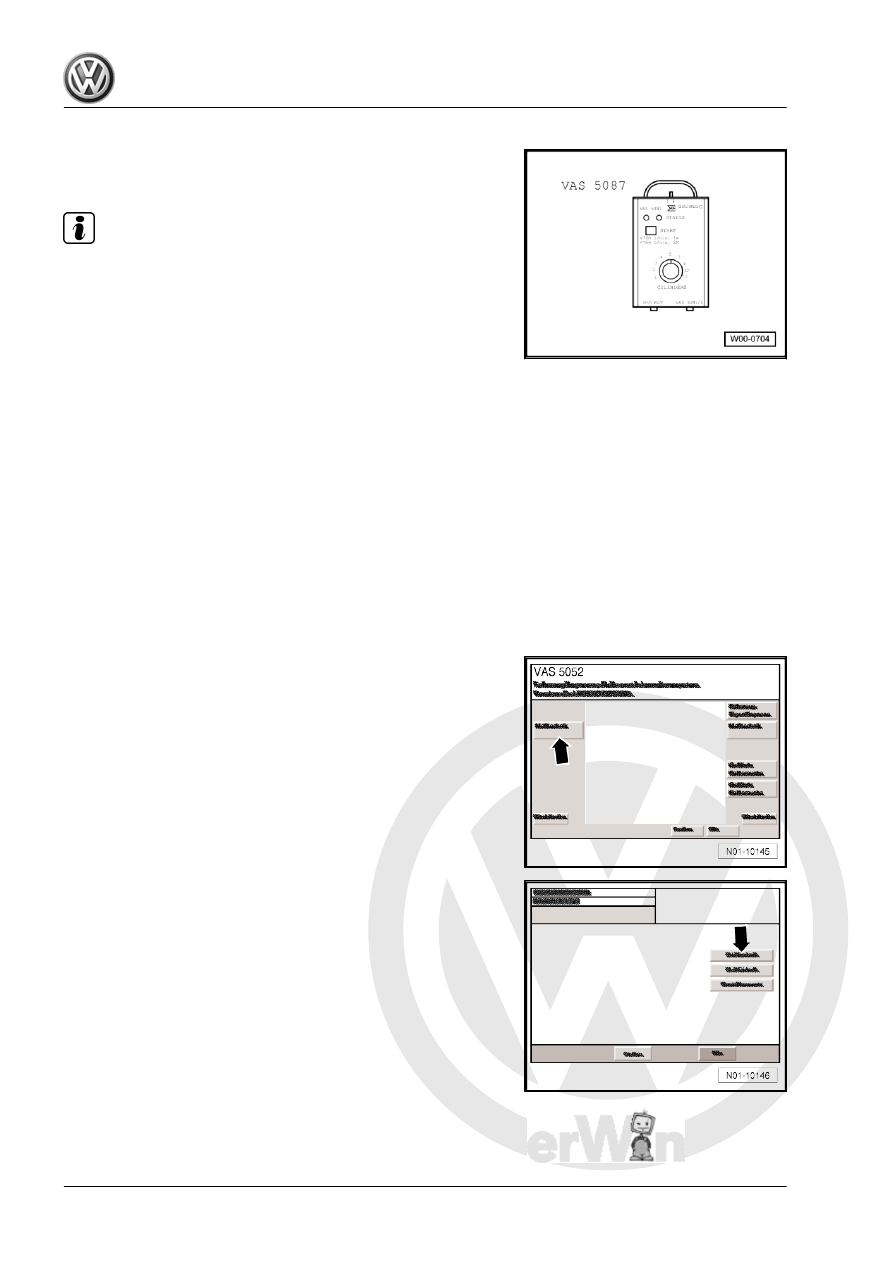

– Select the function-arrow-, “Exhaust gas test”.

The general view for selecting the respective type of exhaust gas

test will be displayed.
– Select “Petrol exhaust gas test” -arrow-.

FOX 2004 ➤
