Volkswagen Touareg (2003 year). Manual - part 1

1

Technical data

Engine data

⇒ page 1

Engine number

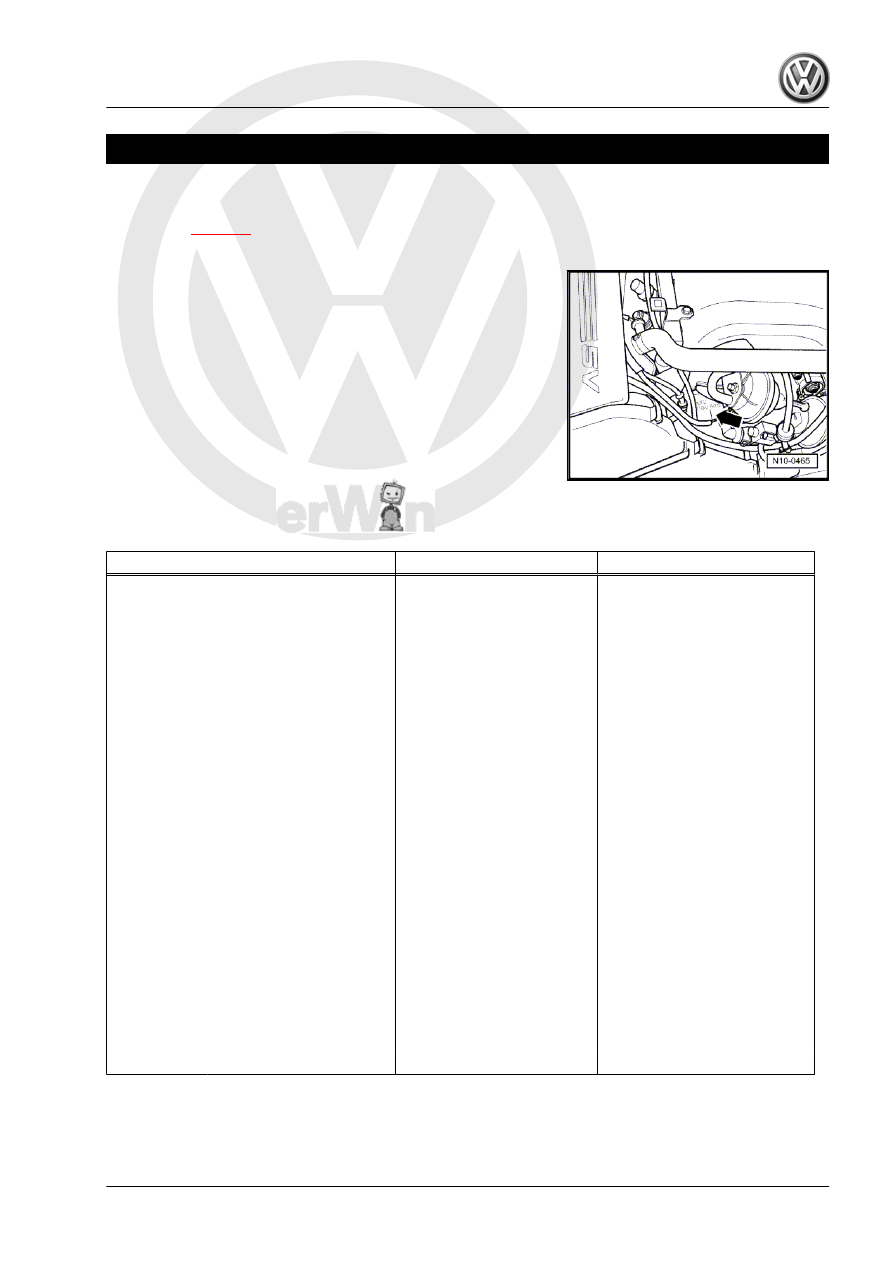

The engine number („engine code“ and „serial number“) is stam‐

ped on the right side of the cylinder block.
Additionally there is a sticker on the toothed belt guard with „en‐

gine code“ and „serial number“.
The engine code is also included on the vehicle data sticker.

1.1

Engine data

Issued 11.2011; Version 6.0

Engine code

AXQ

BHX

Manufactured

03.03 ►

03.03 ►

Cylinder arrangement

V-engine

V-engine

Cylinder angle

90°

90°

Capacity

l

4.2

4.2

Output

kW at rpm

228/6200

228/6200

Torque

Nm at rpm

410/3200

410/3200

Bore

∅ mm

84.5

84.5

Stroke

mm

93.0

93.0

Compression ratio

11.0

11.0

Valves per cylinder

5

5

Injection, ignition

Motronic ME 7.1

Motronic ME 7.1

Firing order

1-5-4-8-6-3-7-2

1-5-4-8-6-3-7-2

Knock control

2 knock sensors

2 knock sensors

Lambda control

4 probes

4 probes

Leak diagnosis system

Only vehicles for USA and

Canada

yes

Catalytic converter

yes

yes

Exhaust gas recirculation

no

no

Turbocharging/supercharging

no

no

Secondary air system

yes

yes

Electronic power control

yes

yes

Variable intake manifold

yes

yes

Camshaft timing control

yes

yes

RON

min.

98 unleaded

1)

98 unleaded

1)

1) In exceptional circumstances min. 95 RON, however with reduced perform‐

ance.

Touareg 2003 ➤

1. Technical data

1

1

Removing and installing engine

Removing engine

⇒ page 3

 .

Securing engine on engine and gearbox support -VAS 6095-

⇒ page 9

 .

Notes on installing

⇒ page 10

 .

Special tools and workshop

equipment required

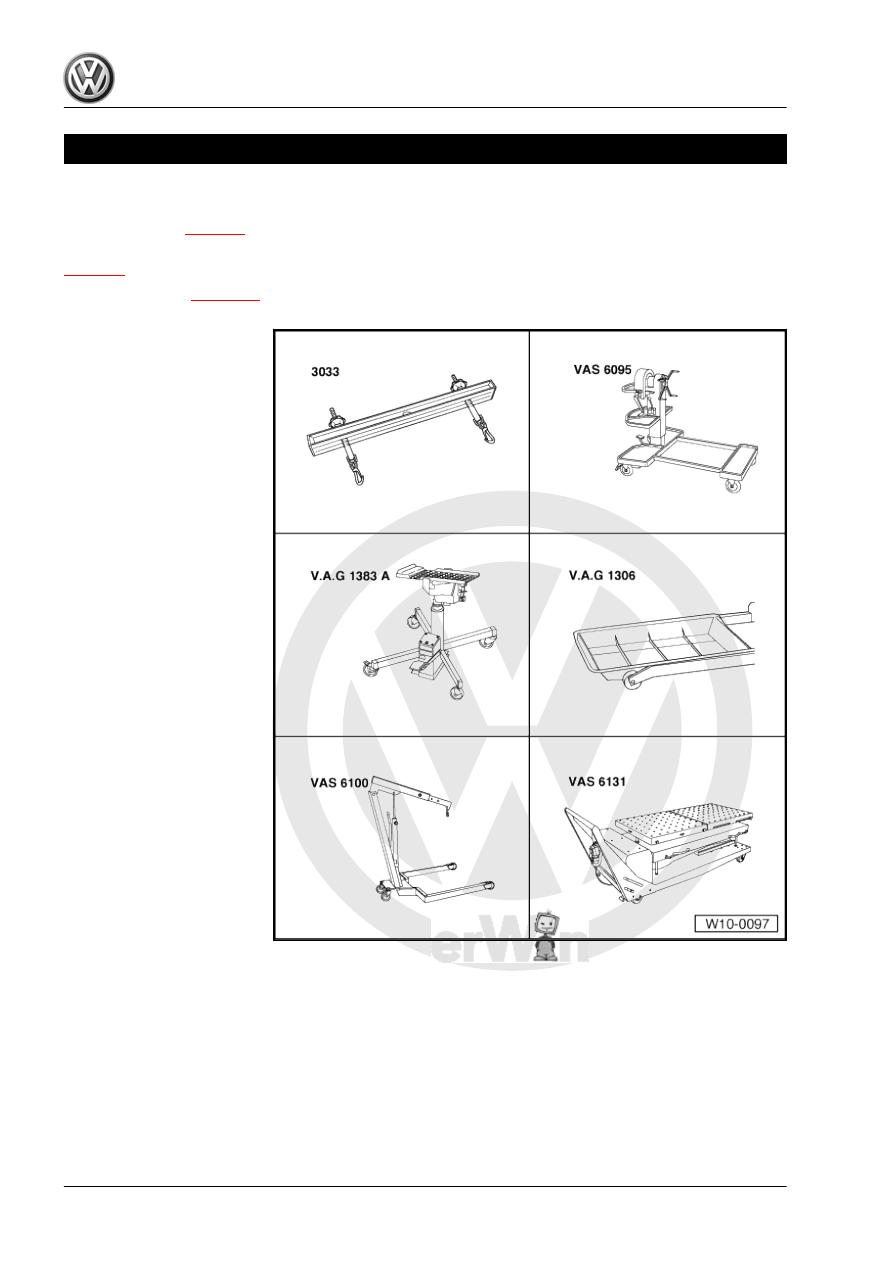

♦ Lifting tackle -VAS 3033-
♦ Drip tray -V.A.G 1306-
♦ Engine and gearbox sup‐

port -VAS 6095-

♦ Workshop hoist -VAS

6100-

♦ Scissor-type assembly

platform -VAS 6131-

♦ Engine and gearbox jack -

V.A.G 1383 A-

Not illustrated:
♦ Left support -VAS 6131/6-1-
♦ Right support -VAS 6131/6-2-
♦ Left running gear support -VAS 6131/6-3-
♦ Right running gear support -VAS 6131/6-4-
♦ Support (Qty. 2) -VAS 6131/6-5-
♦ Support (Qty. 2) -VAS 6131/6-6-
♦ Support -VAS 6131/8-

Touareg 2003 ➤

2

1.1

Removing engine

The engine is removed from below with the gearbox
– Read fault memories of all control units before removal: ⇒

Diagnostic tester VAS 5051; Guided fault finding; Vehicle sys‐

tem test or VAS 5052; Vehicle self-diagnosis .

Note

♦

To enable the propshaft to rotate freely, move selector lever

to the „N“ position.

♦

Leave key in ignition to prevent steering wheel lock from en‐

gaging.

♦

It is advisable to remove the front wheels before beginning

engine removal. The vehicle can then be lowered on hoist until

the brake disc splash plates are just above the floor. This pro‐

vides the most ergonomic working position regarding acces‐

sibility of engine compartment components.

♦

Some components cannot be removed, or removed only with

difficulty, with the engine installed. Therefore, you should de‐

termine all defective components before removing engine and

renew them while engine is removed.

♦

To prevent damage to removed components, place them in

the container for removed parts -V.A.G 1698- .

♦

All cable ties which are opened or cut through when engine is

removed must be replaced in the same position when engine

is installed.

Disconnecting battery
The procedure must be strictly followed!
– Switch off ignition and all electrical consumers.
– First disconnect battery under driver seat ⇒  Electrical system;

Rep. gr.  27 ; Disconnecting and reconnecting batteries .

Procedure
– Remove left and right wiper arms: ⇒  Electrical system; Rep.

gr.  29 ; Removing and installing wiper system .

– Pull engine compartment seal off bulkhead.

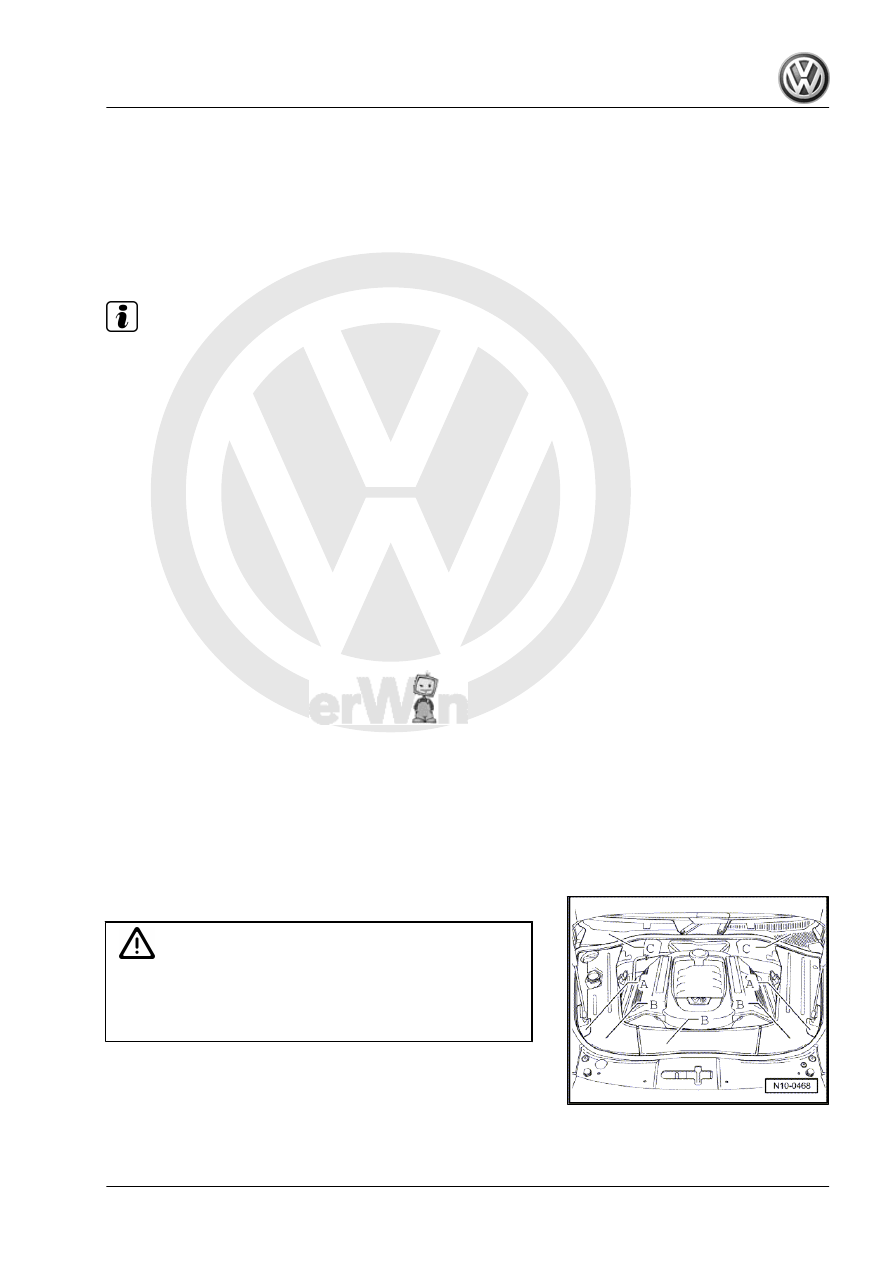

– Remove covers -A-, -B- and -C- from engine compartment.

WARNING

Fuel supply lines are under pressure! Wear eye protection and

gloves  to  avoid  injuries  and  skin  contact.  Before  loosening

hose connections, wrap a cloth around the connection. Then

release pressure by carefully pulling hose off connection.

– Wrap a cloth around the joint to catch fuel which flows out.

Touareg 2003 ➤

1. Removing and installing engine

3

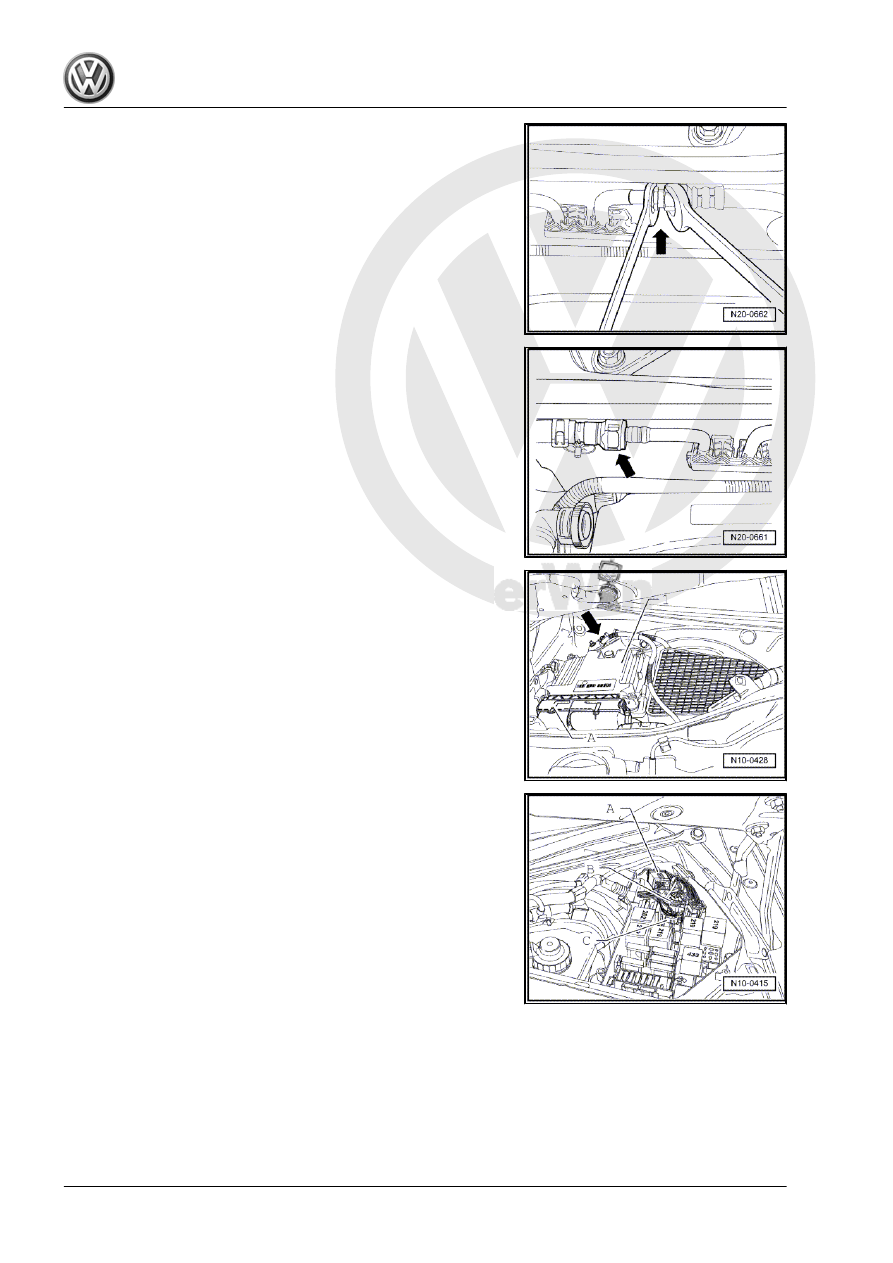

– Disconnect breather line -arrow- to solenoid valve in engine

compartment.

– Disconnect small connector -A- from engine control unit -1-

and disconnect earth connection -arrow- of wiring harness.

– Open fuse box cover in plenum chamber on left and separate

connectors -A-, -B- and -C-.

– Remove wiring harness from plenum chamber and lay it on

engine.

Touareg 2003 ➤
