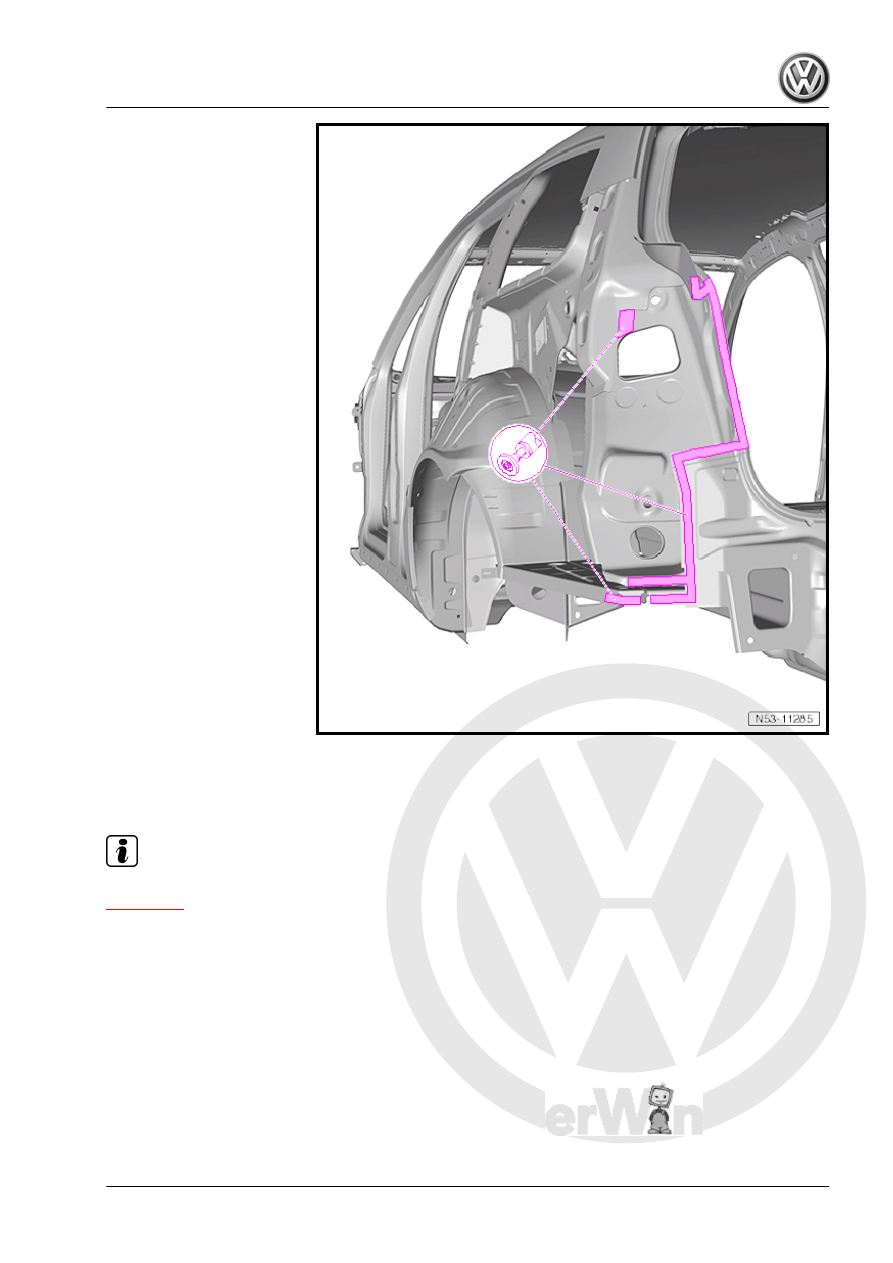

5.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 292

 .

5.3.1

Preparing new part

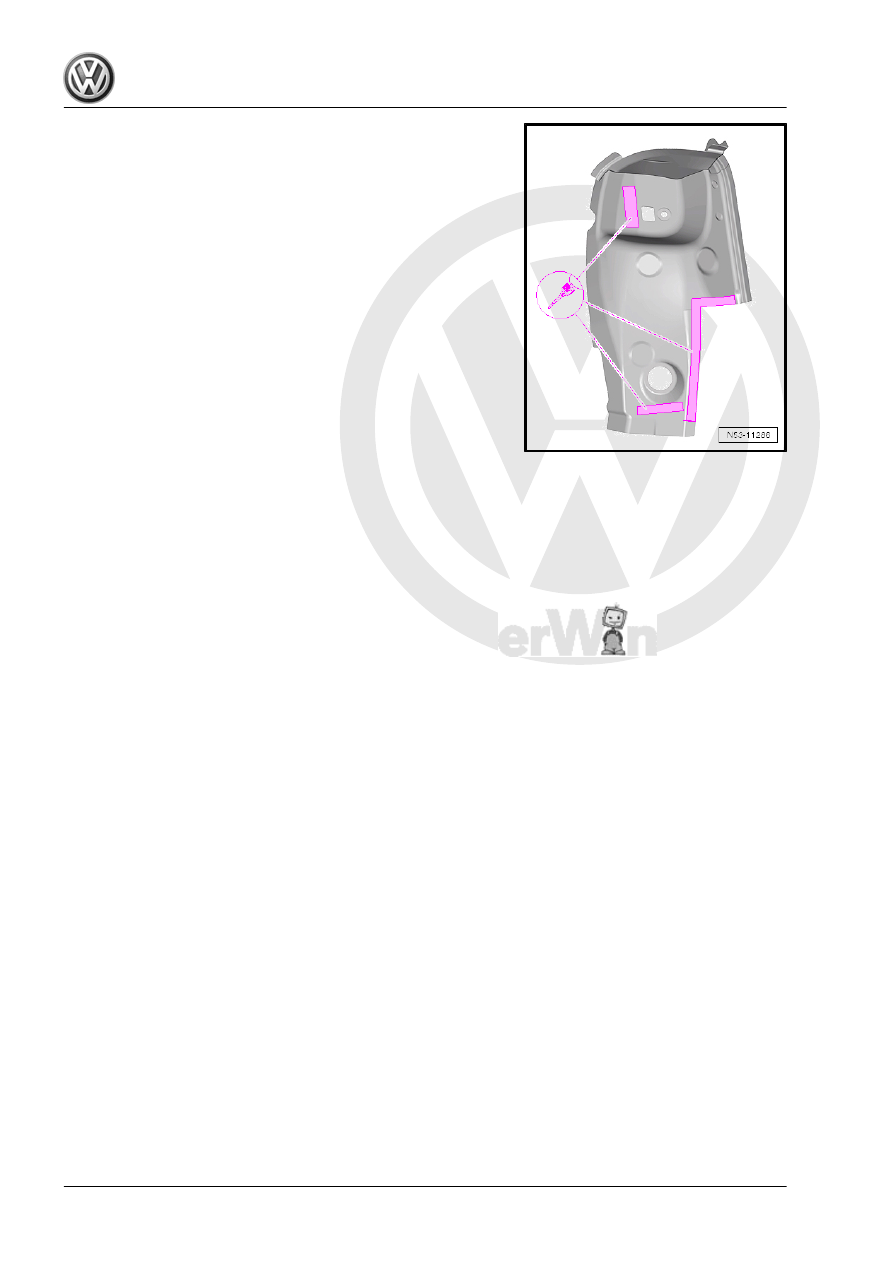

New part
♦ Tail light mounting

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing tail light mounting (Variant)

293

5.3.2

Welding in

– Adapt new part with vehicle standing on its wheels or align‐

ment bracket set and fix in position.

Passat 2011 ➤ , Passat Variant 2011 ➤

294

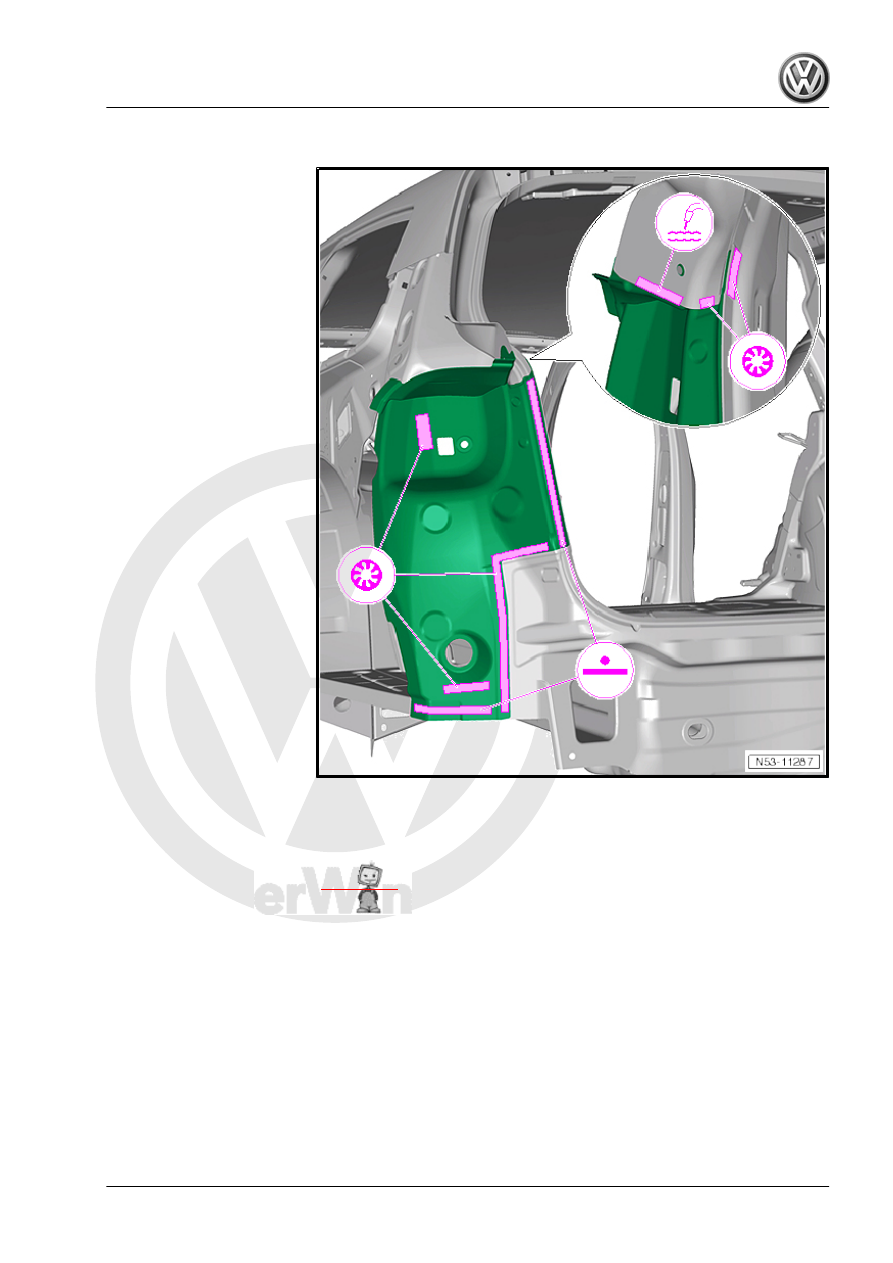

– Weld in new part, SG plug weld seam and RP spot weld seam.
– Weld in remaining joints to sealing channel, MIG continuous

weld seam.

– Install side panel for Variant,

⇒ page 345

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing tail light mounting (Variant)

295

6

Renewing C-pillar reinforcement

WARNING

Observe safety notes!
Welding, parting using spark generating machines/tools or tin‐

ning in foam treated areas creates gases which are hazardous

to health and environment. Therefore, refrain from using these

processes.

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Side panel already removed

⇒ page 332

 .

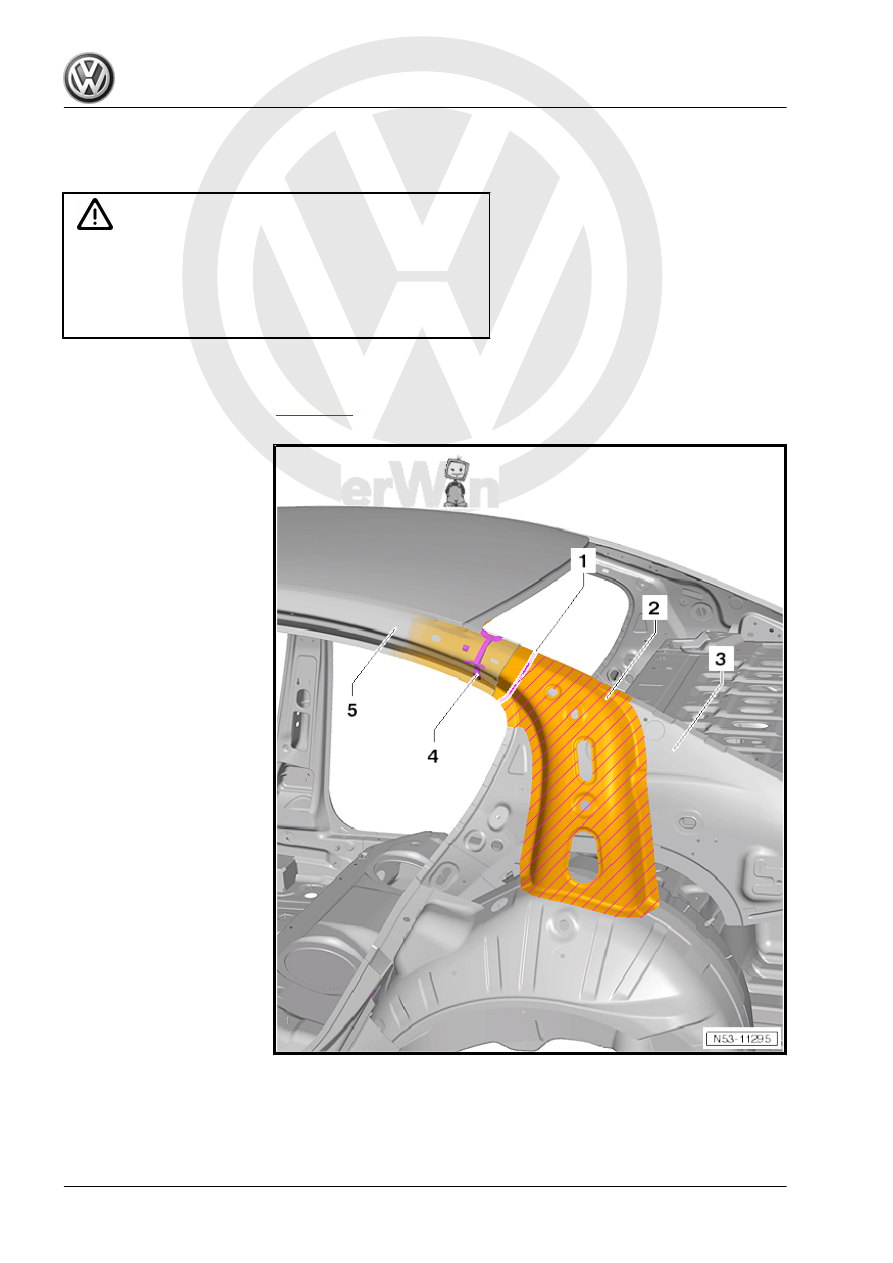

1 - Cutting point
2 - C-pillar reinforcement
3 - Inner side panel
4 - Moulded foam element
5 - Side panel
Part section removed.

Passat 2011 ➤ , Passat Variant 2011 ➤
