Removing

– Separate original joint.

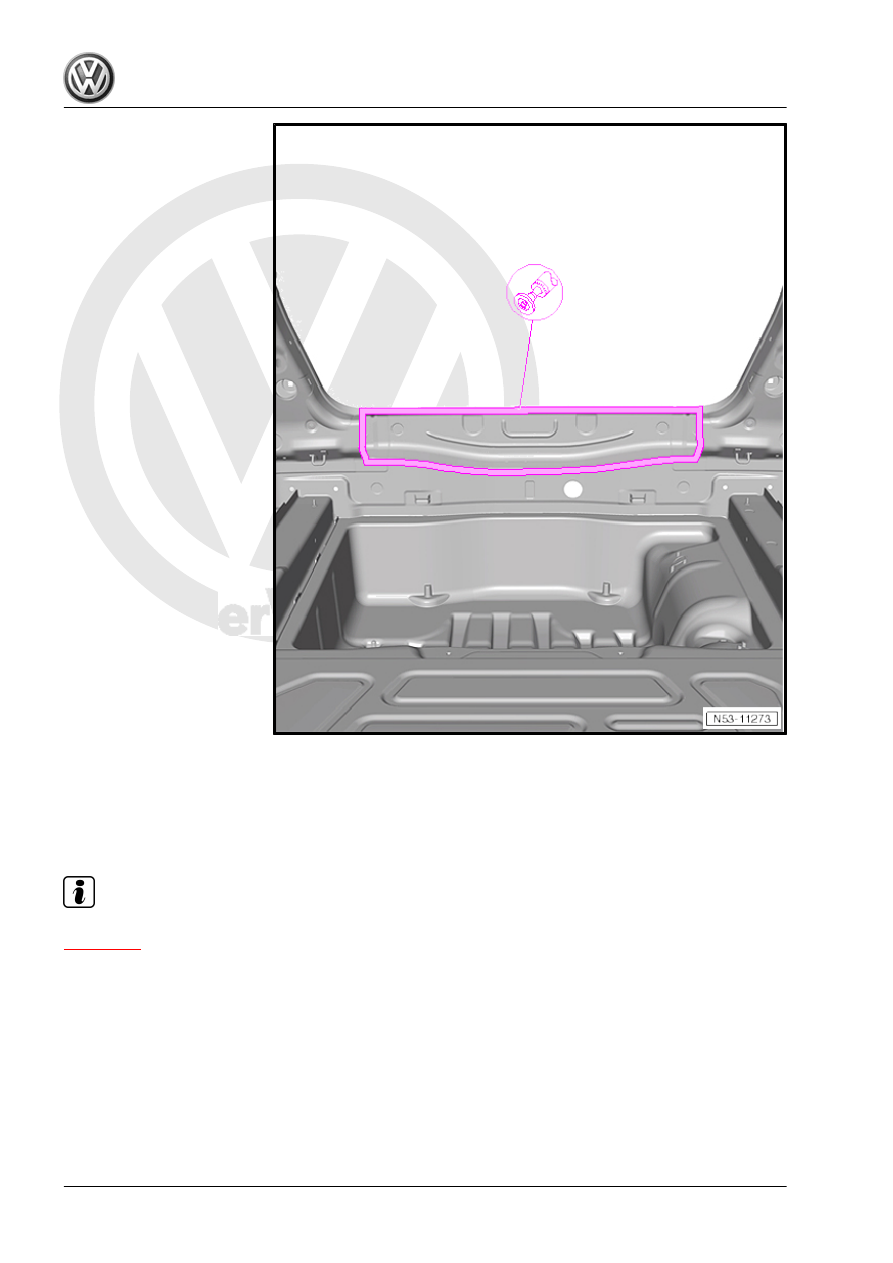

– Separate bonded areas -1-.

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing lock carrier

281

surface back to bare metal.

3.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 280

 .

3.3.1

Preparing new part

New part

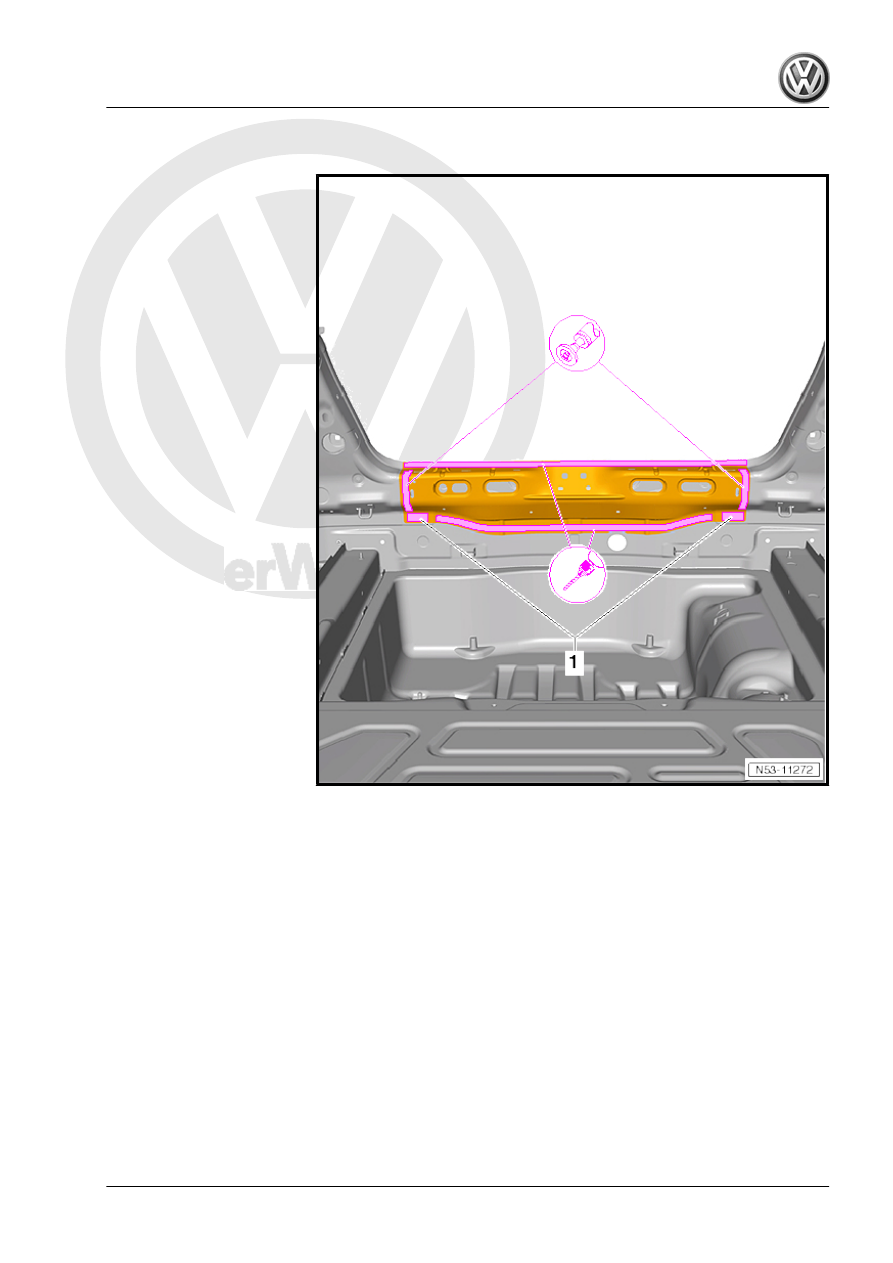

♦ Lock carrier

Passat 2011 ➤ , Passat Variant 2011 ➤

282

the factory.

3.3.2

Welding in

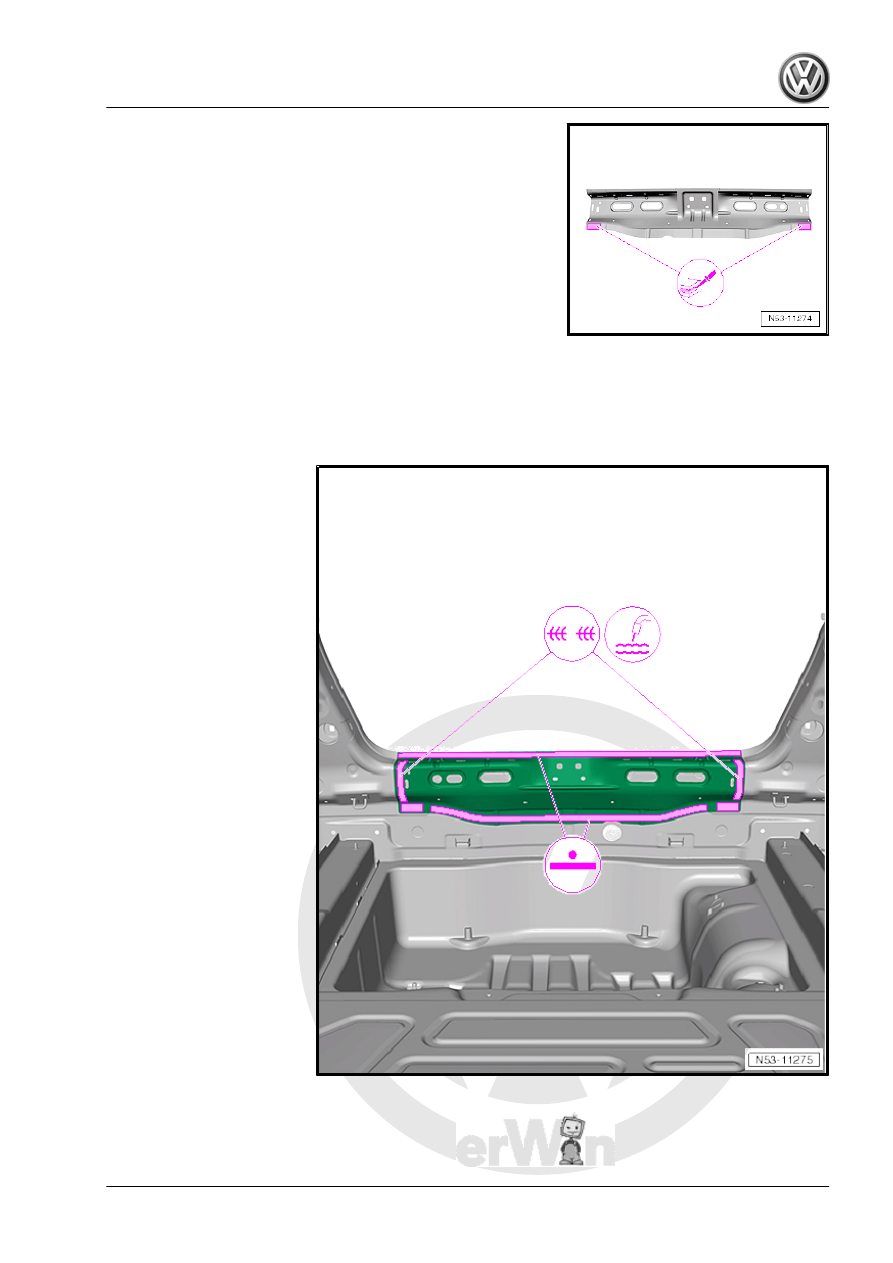

– Adapt new part with vehicle standing on its wheels and fix in

place.

– Check fit with bolt-on parts.

– Weld in lock carrier, RP spot weld seam and SG staggered

continuous weld seam or MIG staggered solder seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing lock carrier

283

4

Renewing tail light mounting

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

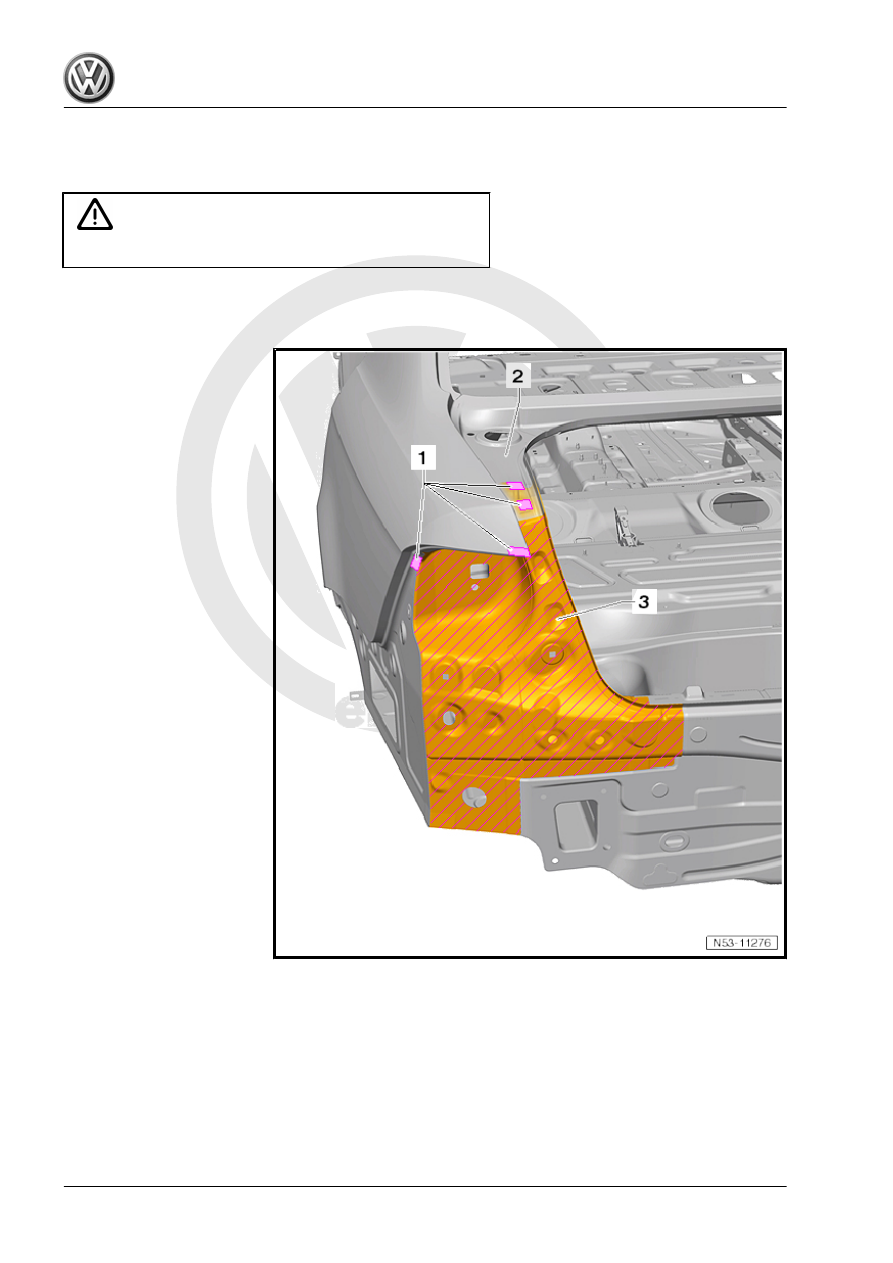

1 - Bonded areas
2 - Sealing channel
3 - Tail light mounting
