Renewing rear side member rein‐

forcement

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Side member already removed

⇒ page 229

 .

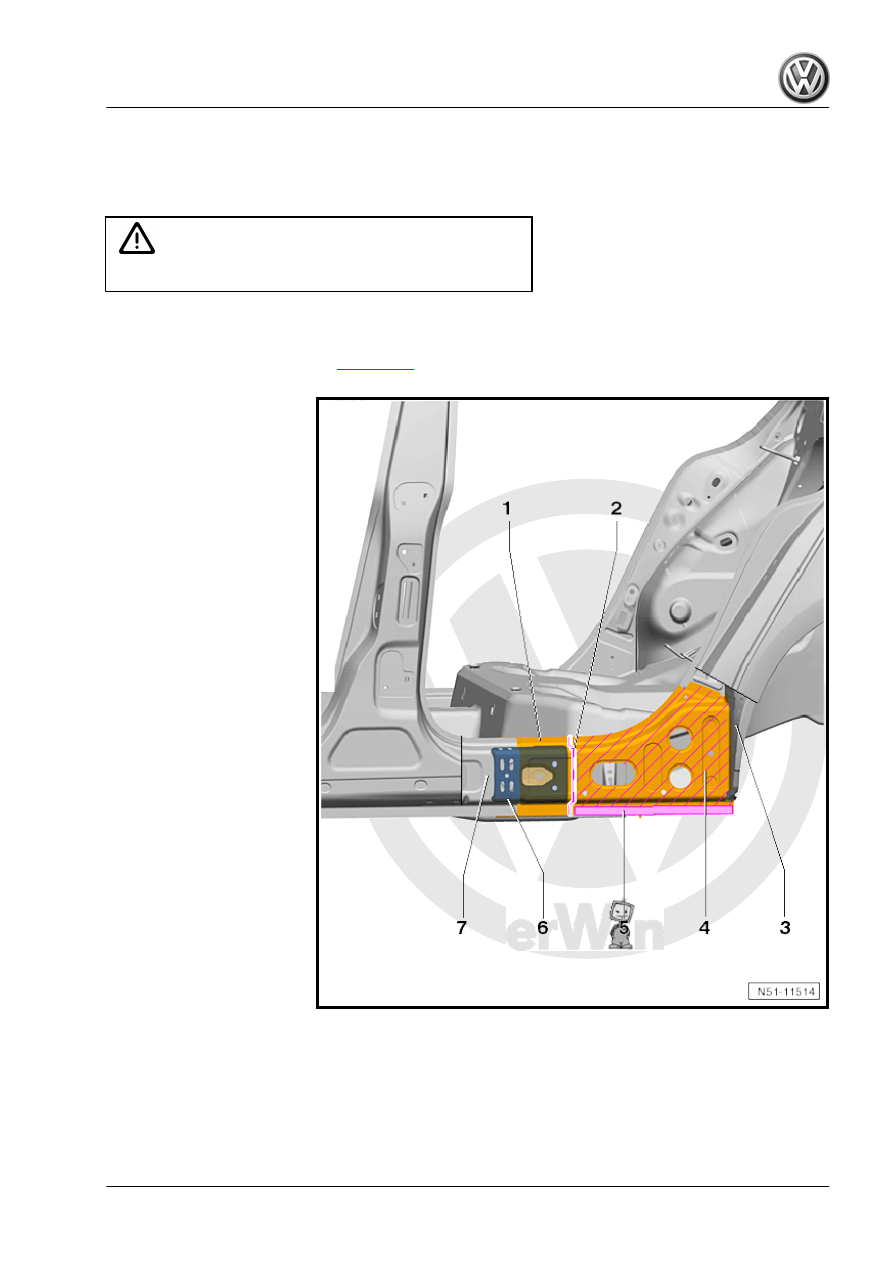

1 - Remaining section of rear

side member reinforcement

(remains)
2 - Cutting point
3 - Outer wheel housing liner
4 - Rear side member rein‐

forcement
5 - Bonded section
6 - Web plate

❑ Only shown for clarity,

must not be damaged.

7 - B-pillar reinforcement

Passat 2011 ➤ , Passat Variant 2011 ➤

16. Renewing rear side member reinforcement

245

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

16.2

Removing

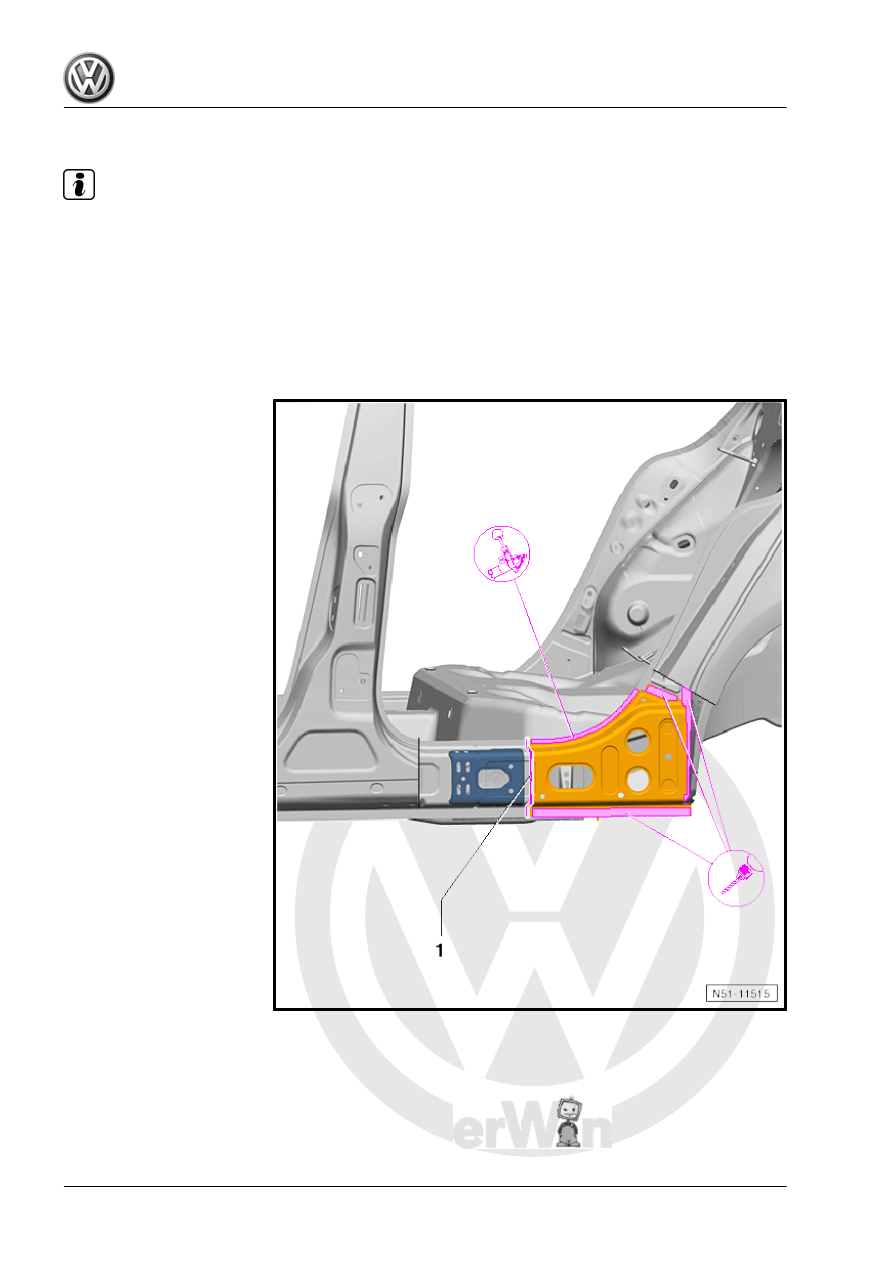

– Separate original joint to inner side member and to outer wheel

housing liner.

– Make parting cut -1- as shown.

Passat 2011 ➤ , Passat Variant 2011 ➤

246

surface back to bare metal.

16.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 246

 .

16.3.1

Preparing new part

New part

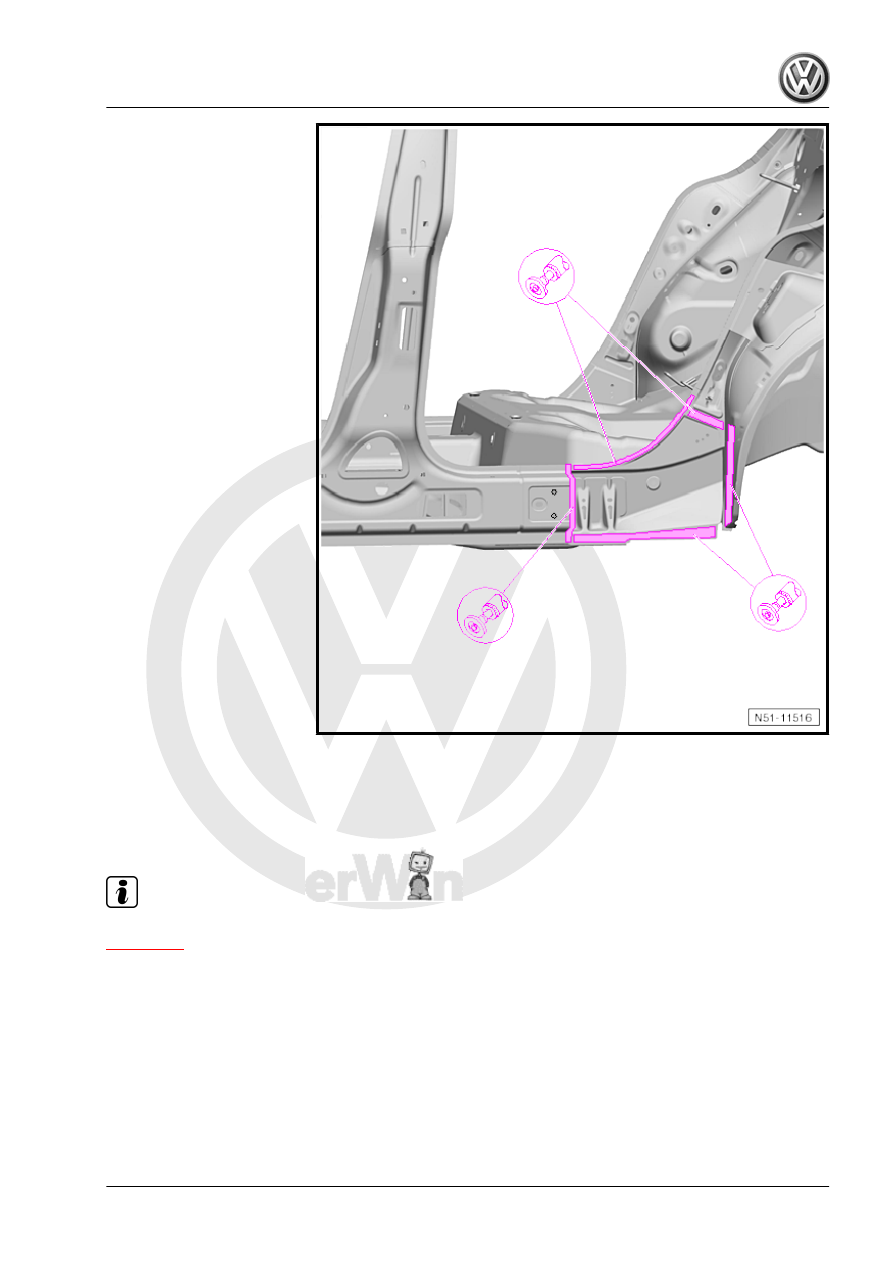

♦ Rear side member reinforcement
♦ 2K body adhesive -D 180 KD3 A2-

Passat 2011 ➤ , Passat Variant 2011 ➤

16. Renewing rear side member reinforcement

247

16.3.2

Welding in

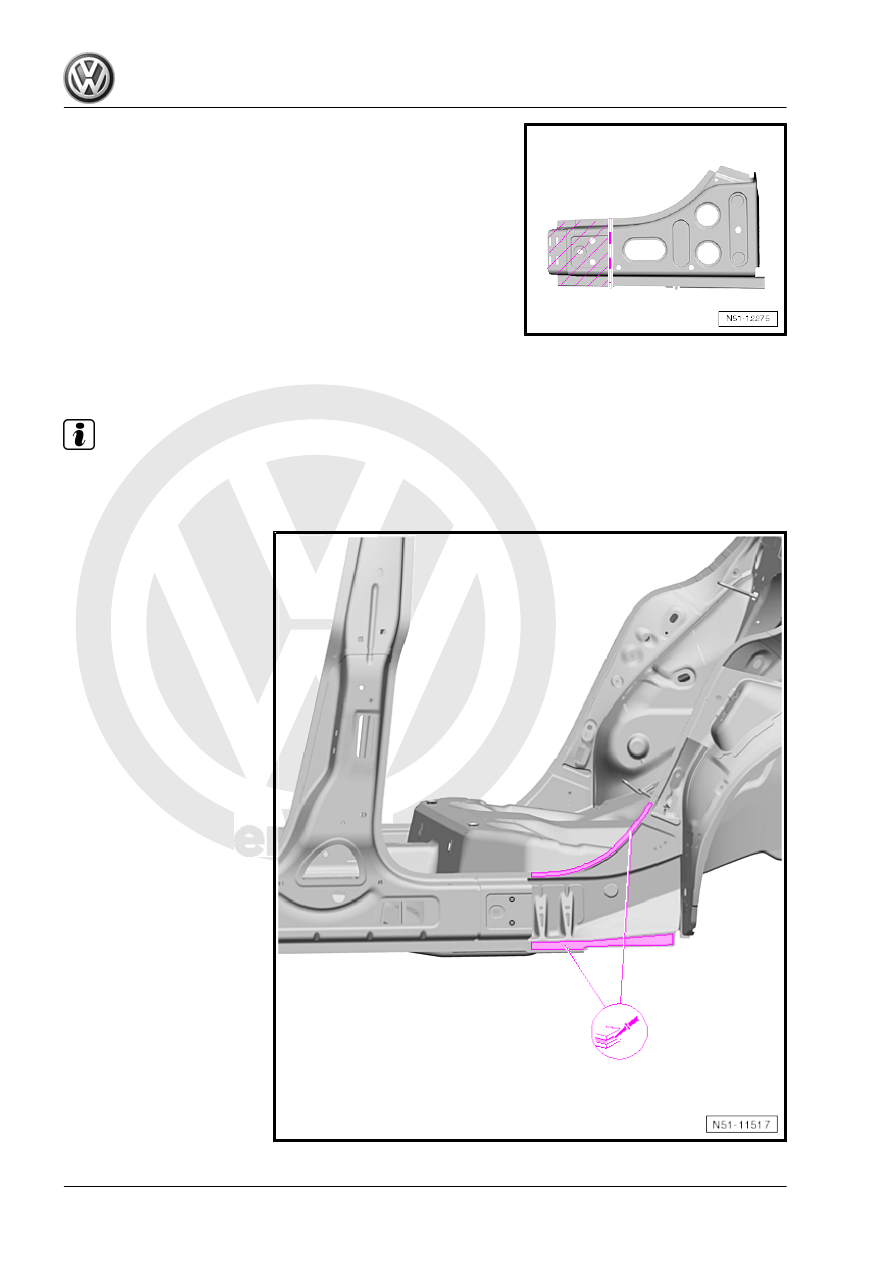

New part

Note

The new part must be welded in within 90 minutes, or adhesion

of adhesive will be impaired.

Passat 2011 ➤ , Passat Variant 2011 ➤
