Volkswagen Passat / Passat Variant (2011 year). Manual - part 51

Note

Keep the cutting of the replacement part in mind.

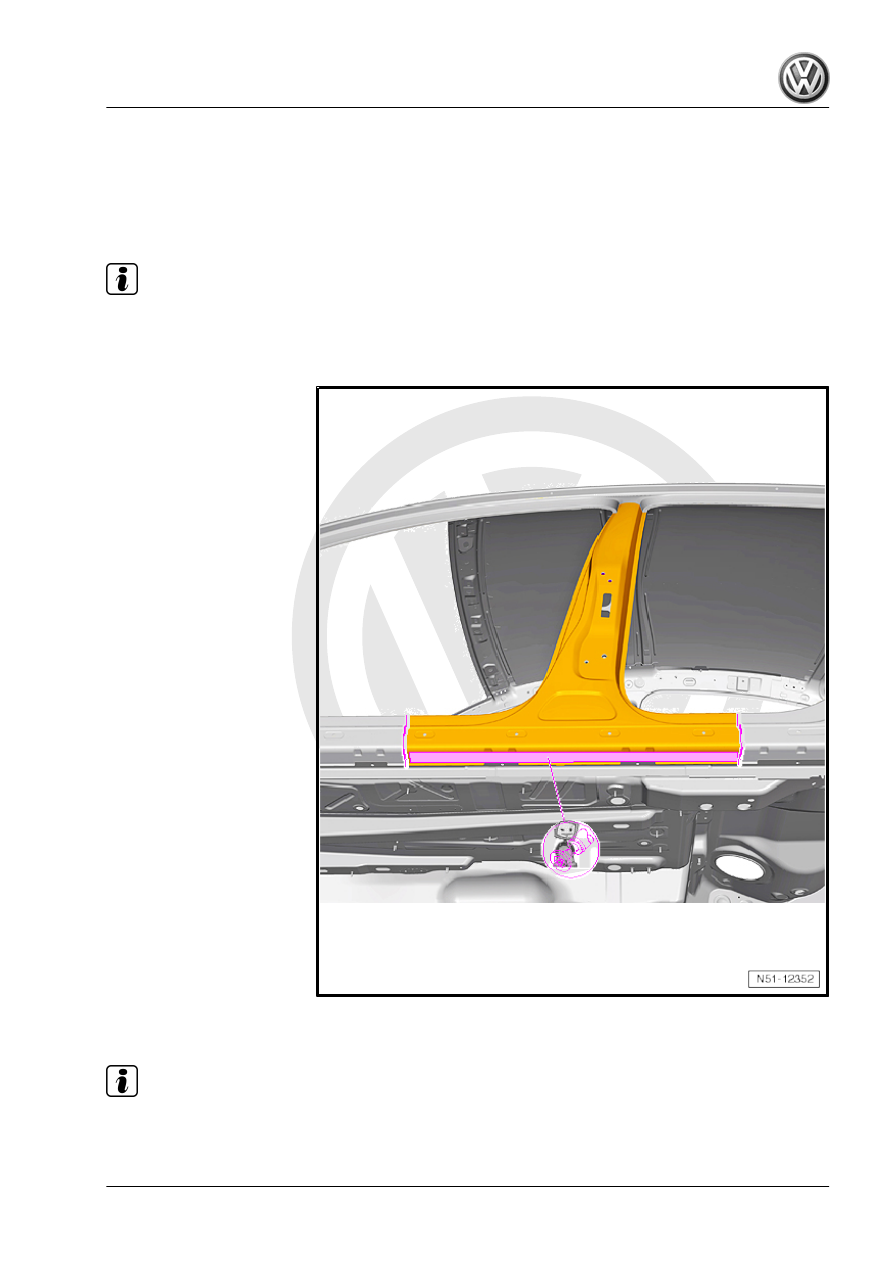

– Separate original joint to B-pillar reinforcement.

– Separate original joint to side member reinforcement.

Note

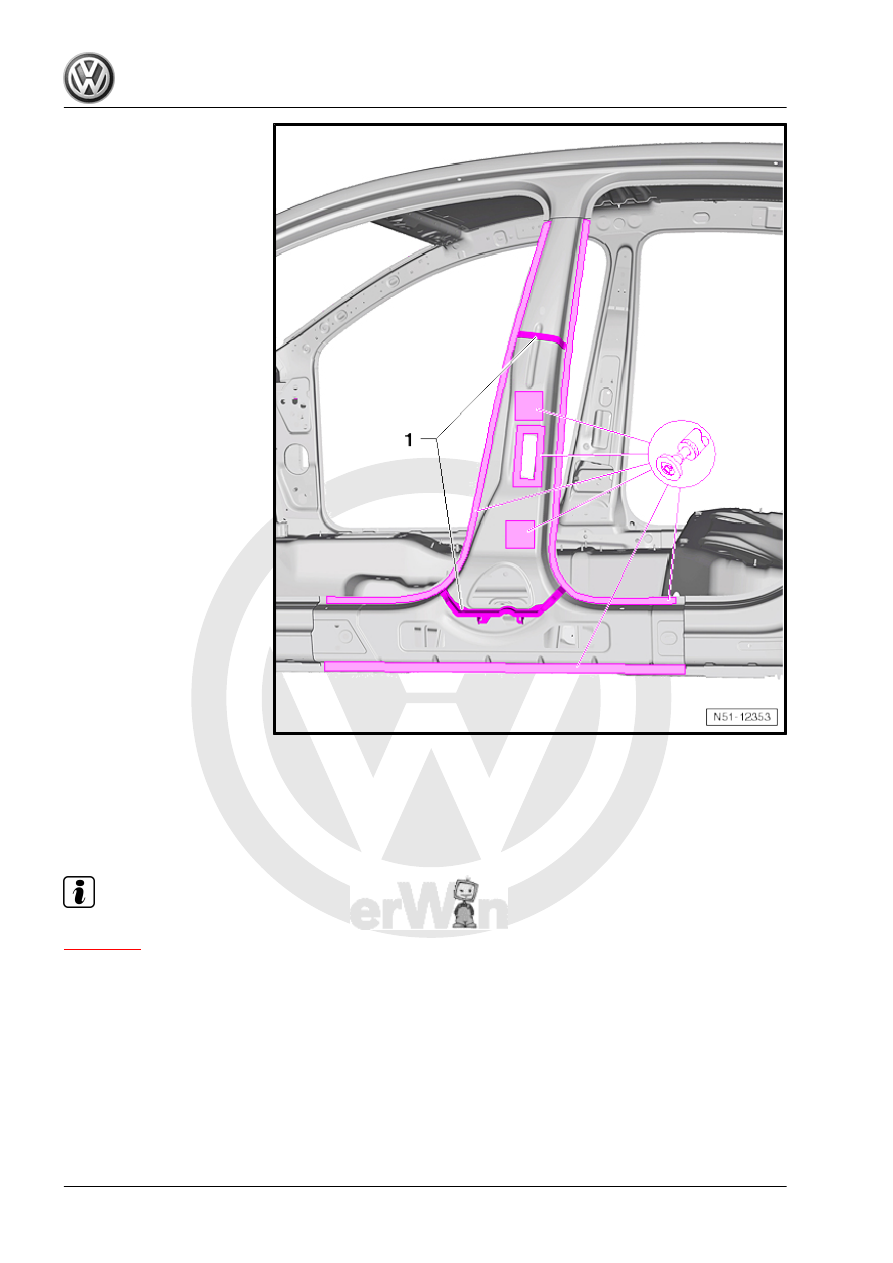

Remove as much of the foam residue -1- as possible before starting grinding work.

Passat 2011 ➤ , Passat Variant 2011 ➤

11. Renewing B-pillar

201

surface back to bare metal.

11.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 183

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

202

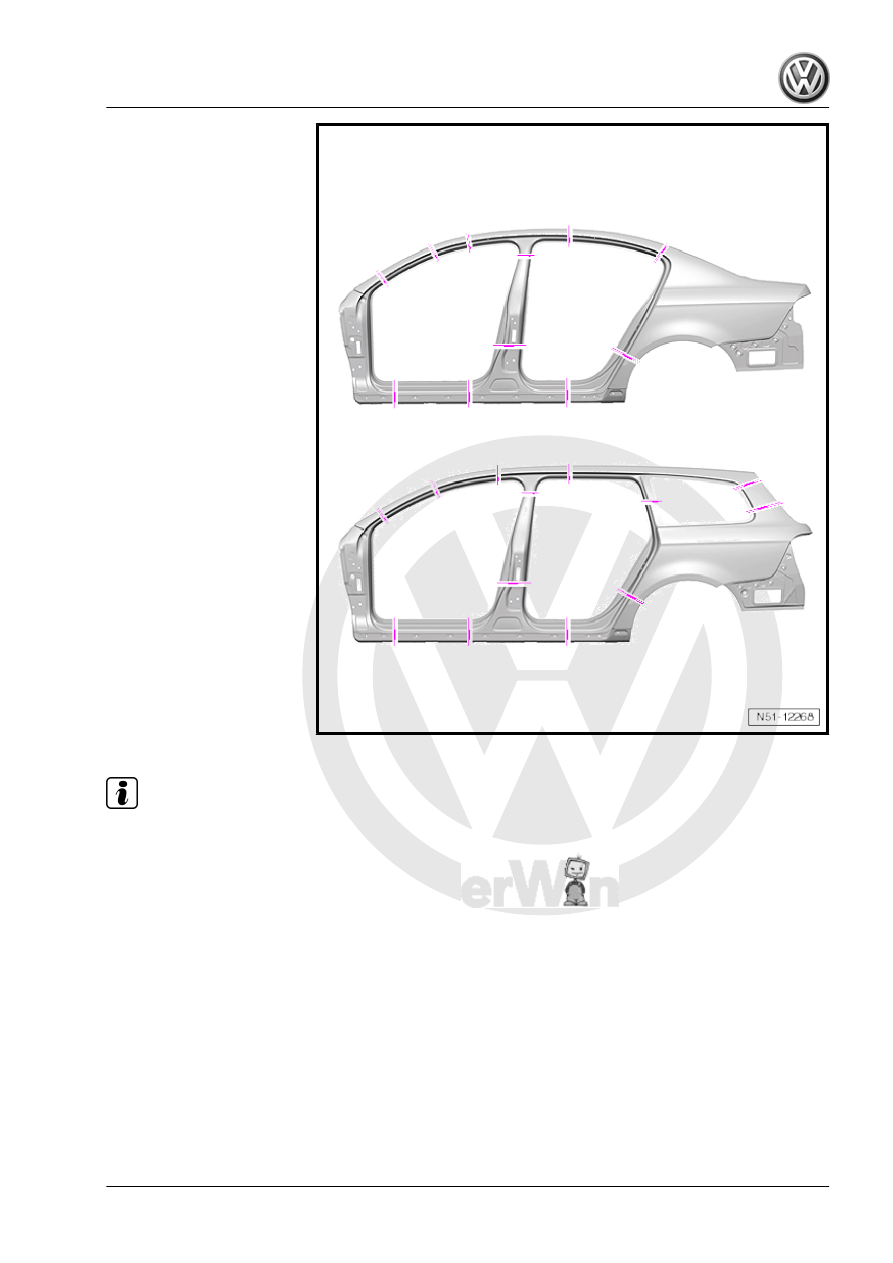

MIG solder seams or SG continuous weld seams are permitted at the parting cuts shown in the illustration.

11.3.1

Preparing new part

New part
♦ Subpart side panel
♦ Moulded foam element
♦ Sealing cord -AKD 497 010 04 R10-
♦ 2K body adhesive -D 180 KD3 A2-

Passat 2011 ➤ , Passat Variant 2011 ➤

11. Renewing B-pillar

203

11.3.2

Marking area where no welding work

may be carried out

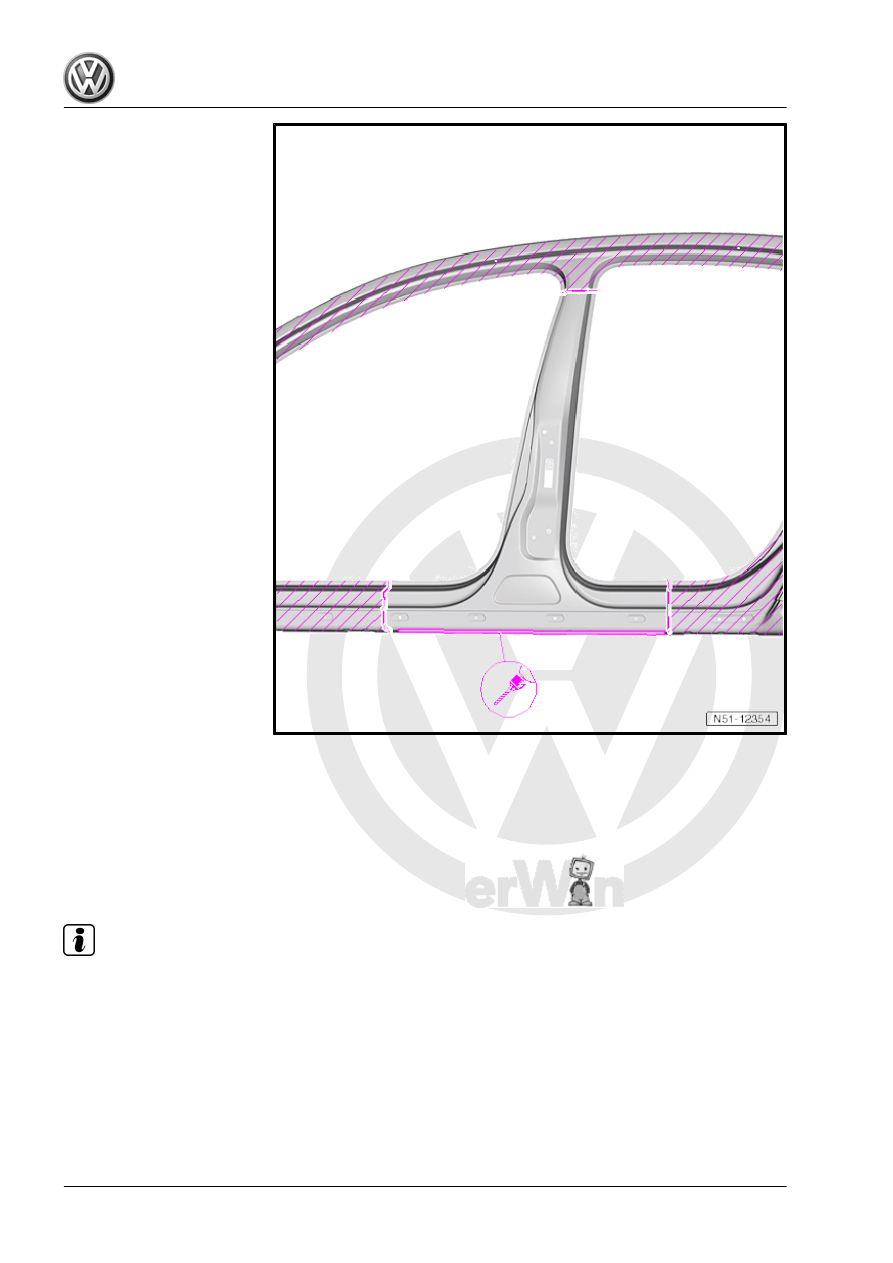

– Mark areas on outer B-pillar where welding for safety reasons

»crash safety« is prohibited.

Note

The measurements given must be adhered to.

Passat 2011 ➤ , Passat Variant 2011 ➤

204
