5. Renewing roof side member

165

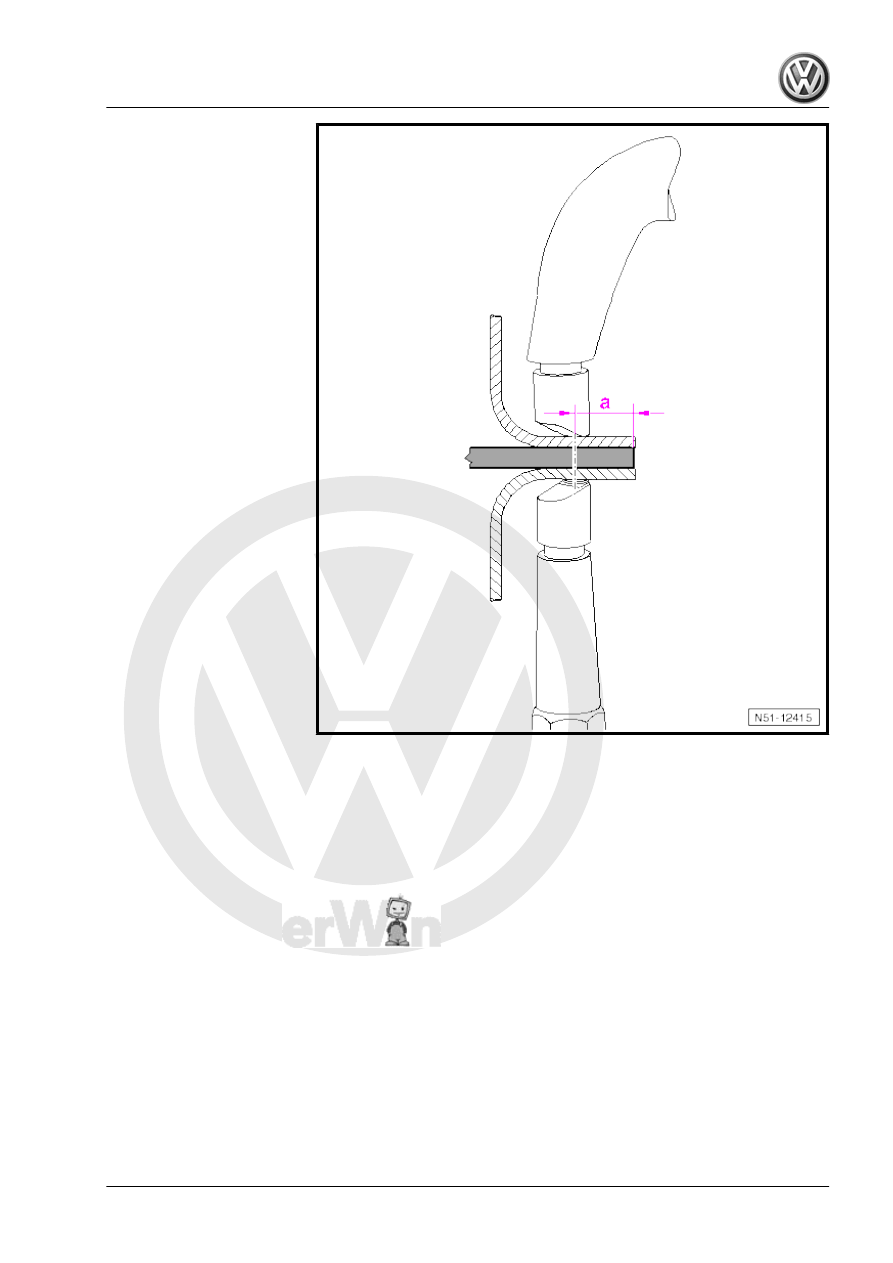

weld seam are permitted.

Note

Both weld symbols are shown in the figure.

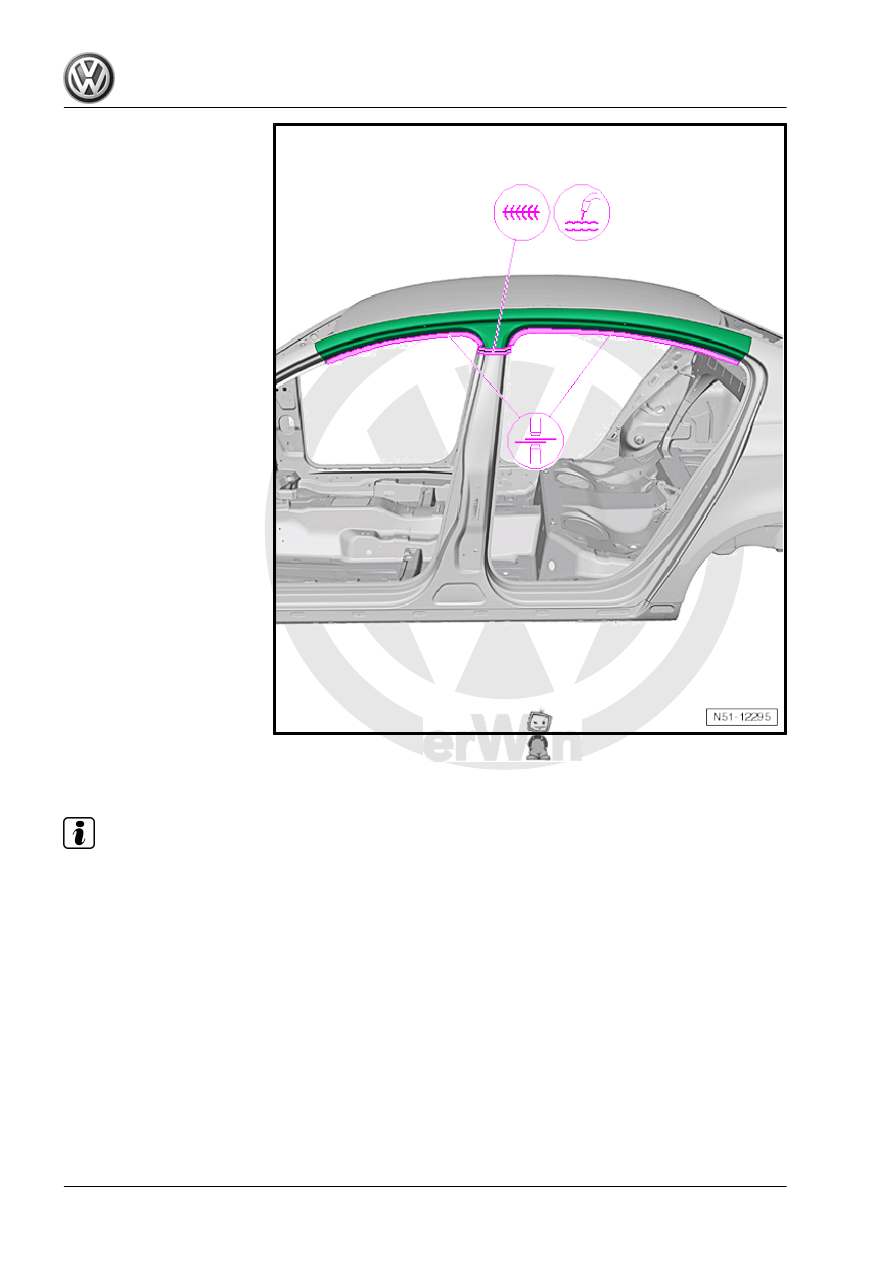

– Weld roof side member to door apertures, RP spot weld seam

(inverter).

5.4

Foam treating roof side member

5.4.1

Treating with foam

– Heat 2K structural foam cartridge in an approx. 60 °C water

bath for 20 minutes.

Passat 2011 ➤ , Passat Variant 2011 ➤

166

– Open cap

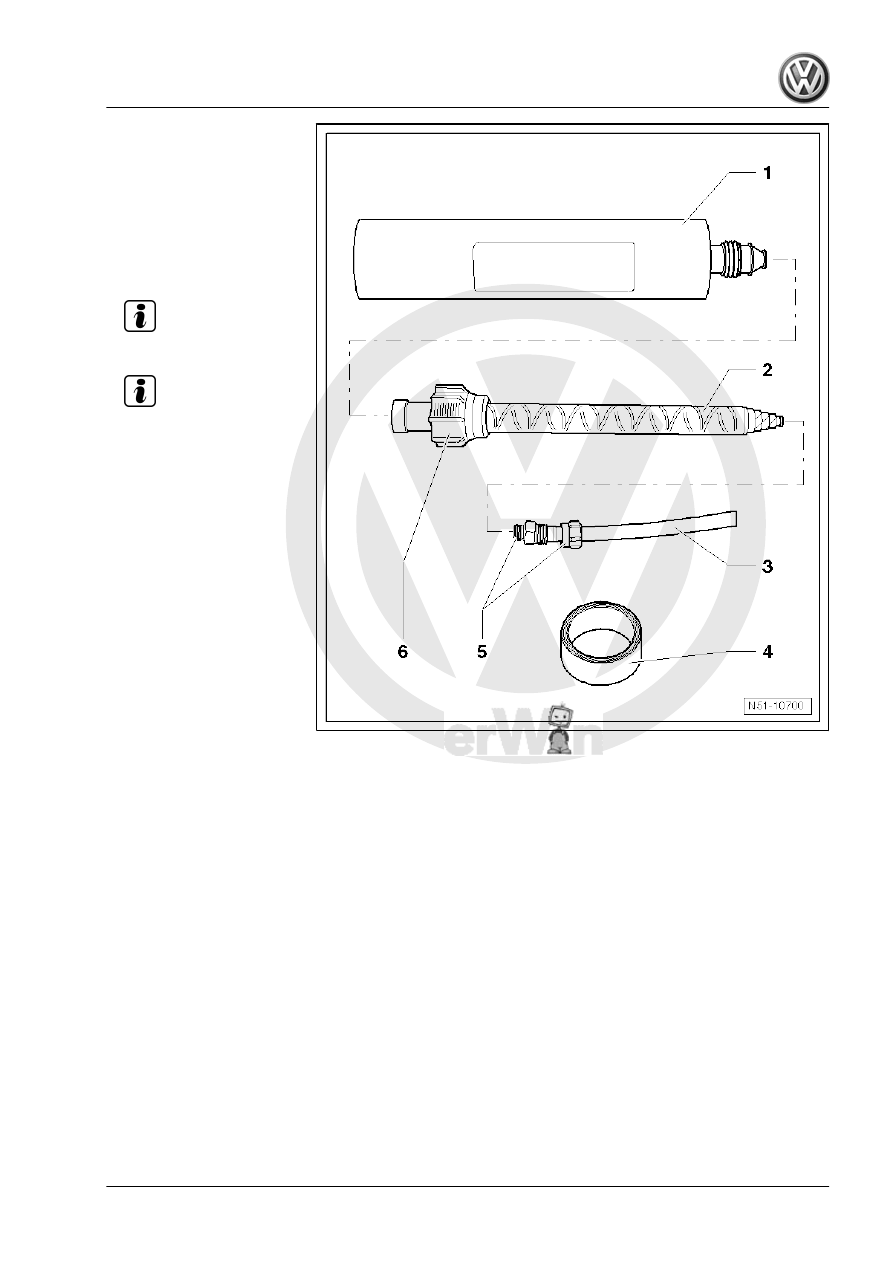

2 - Static mixer

– Cut of the front section

of the cone only.

3 - Extension hose
4 - Textile adhesive tape

Note

5 - Adapter

Note

6 - Union nut

– Connect static mixer -2-

to 2K structural foam

cartridge -1- using union

nut.

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing roof side member

167

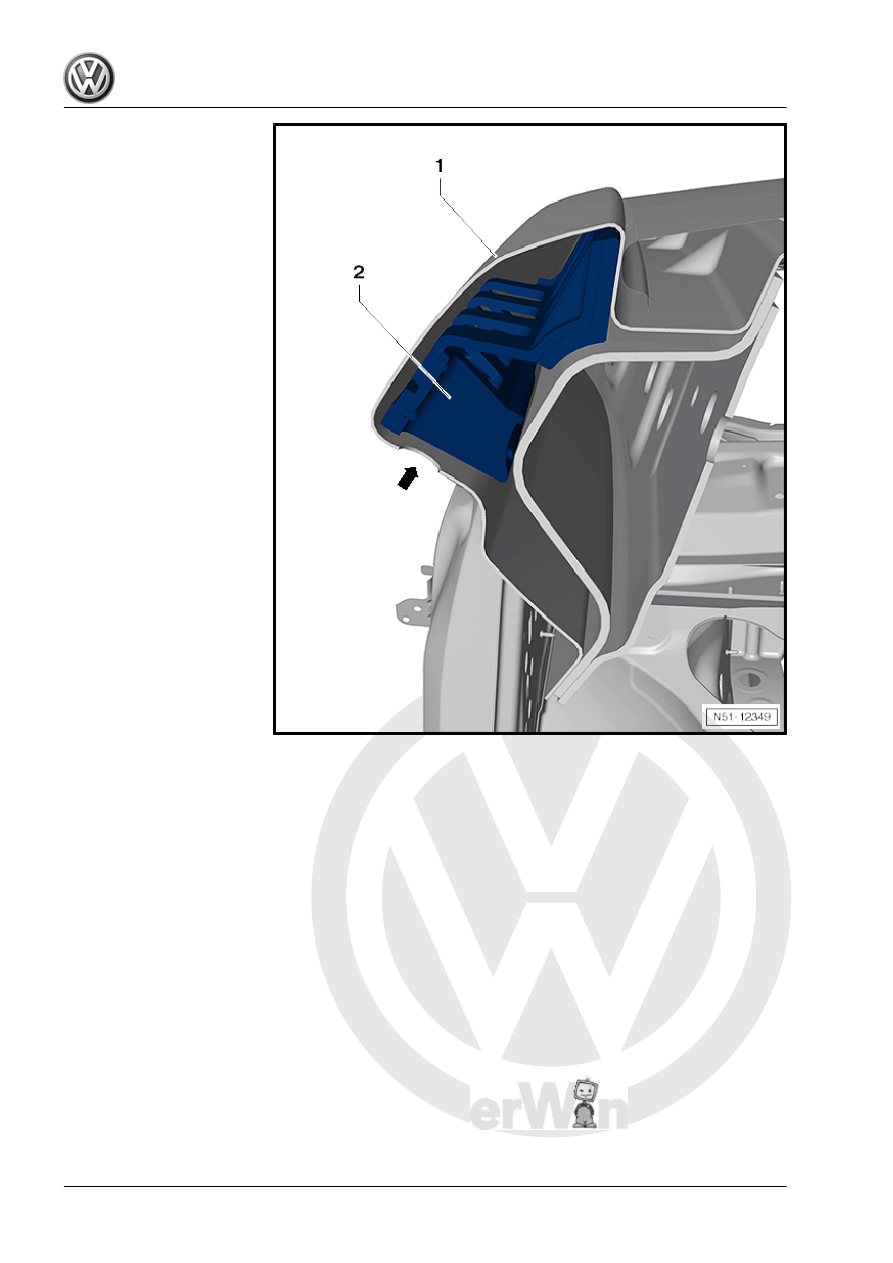

-arrow- in roof -1- using pneumatic cartridge gun -V.A.G

1761/1- and static mixer.

– Then seal opening with a blind rivet nut.
