ture using vice-grip pliers and secure centre of roof using

securing belts

⇒ page 147

 .

– Check roof depth dimension and adjust if necessary.
– Remove excessive 2K body adhesive -D 180 KD3 A2- along

edge of roof immediately using a cloth soaked in silicone re‐

mover -LSE 020 100 A3- .

Note

♦

After bonding, vehicle must remain stationary on a level sur‐

face for 8-10 hours at room temperature (min. 15 °C) so that

adhesive can harden.

♦

No further work should be performed on the vehicle until the

„minimum curing time“ has expired.

Passat 2011 ➤ , Passat Variant 2011 ➤

4. Renewing roof - Variant with panorama sliding sunroof

153

Welding in

– Weld roof in windscreen aperture, RP spot weld seam.
– Weld roof in tailgate aperture, SG plug weld seam and MIG

solder seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

154

continuous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

4. Renewing roof - Variant with panorama sliding sunroof

155

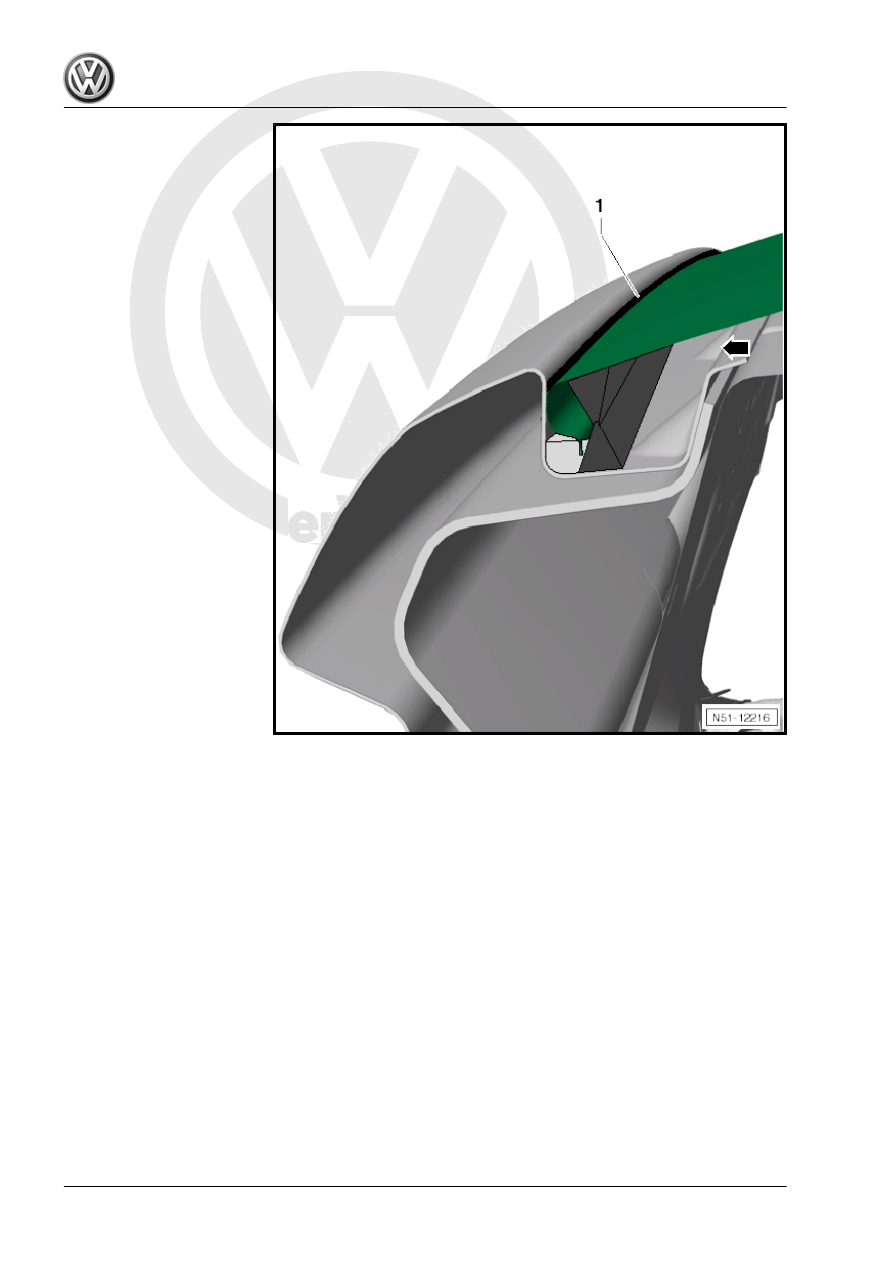

roof and roof side member to fully seal bonded seam -1-.

– After painting, preserve roof cavities -arrow- with corrosion-

preventive wax -AKR 321 M15 4- .
