ture using vice-grip pliers and secure centre of roof using

securing belts

⇒ page 131

 .

– Check roof depth dimension and adjust if necessary.

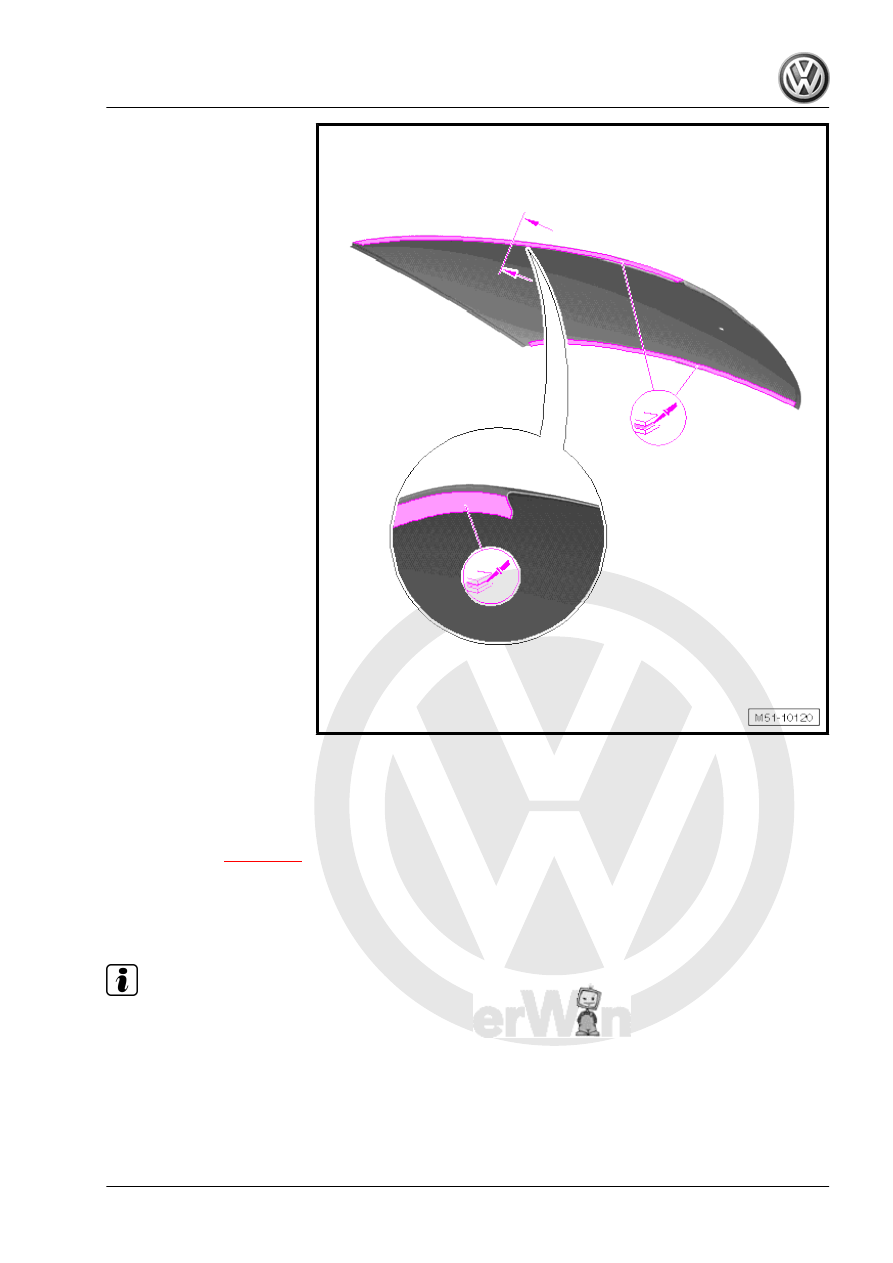

– Remove excessive 2K body adhesive -D 180 KD3 A2- along

edge of roof immediately using a cloth soaked in silicone re‐

mover -LSE 020 100 A3- .

Note

♦

After bonding, vehicle must remain stationary on a level sur‐

face for 8-10 hours at room temperature (min. 15 °C) so that

adhesive can harden.

♦

No further work should be performed on the vehicle until the

„minimum curing time“ has expired.

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing roof (Variant)

137

Welding in

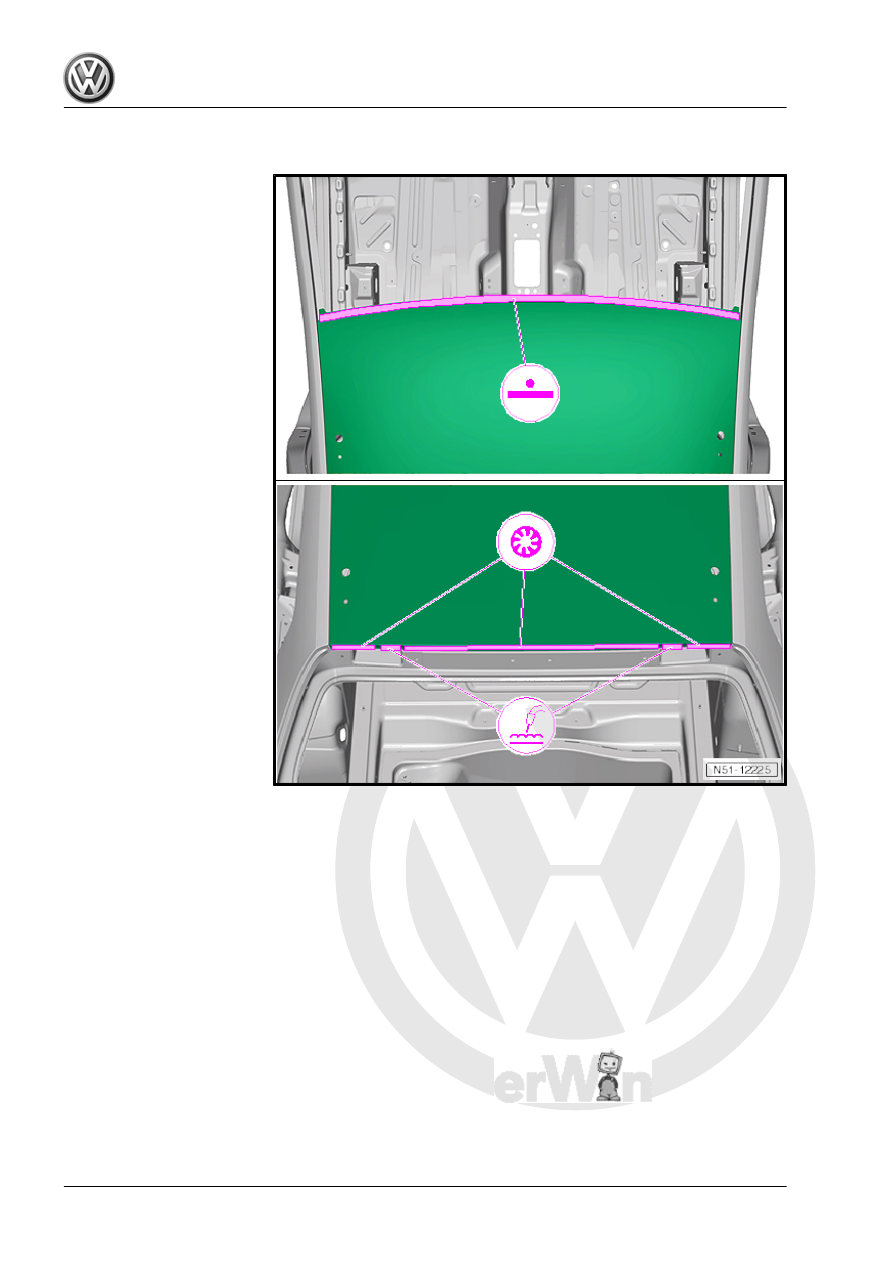

– Weld roof in windscreen aperture, RP spot weld seam.
– Weld roof in tailgate aperture, SG plug weld seam and MIG

solder seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

138

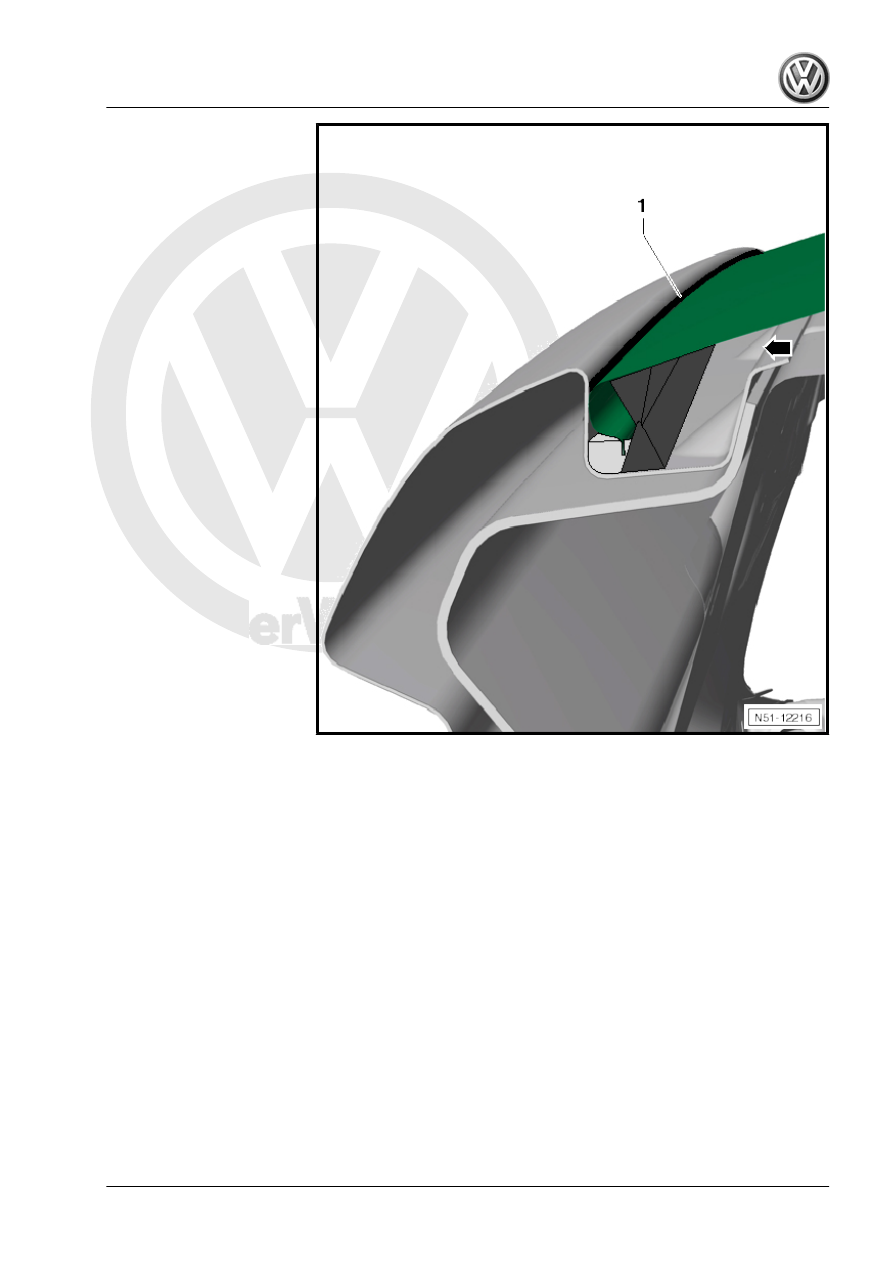

roof and roof side member to fully seal bonded seam -1-.

– After painting, preserve roof cavities -arrow- with corrosion-

preventive wax -AKR 321 M15 4- .

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing roof (Variant)

139

4

Renewing roof - Variant with panora‐

ma sliding sunroof

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

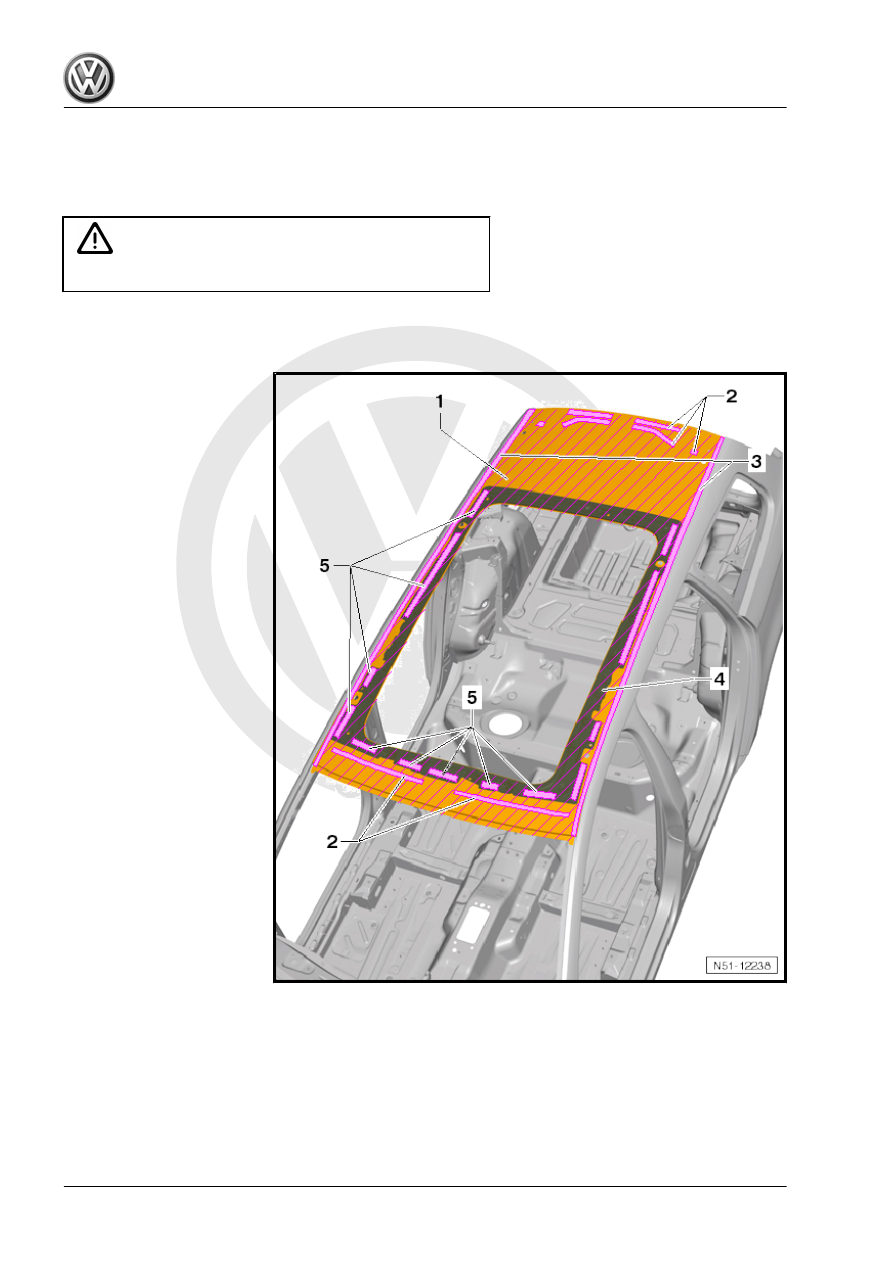

1 - Roof
2 - Bonded areas (roof cross

member)
3 - Laser solder seam
4 - Reinforcing frame (panora‐

ma sliding sunroof)
5 - Bonded areas (reinforcing

frame)

Passat 2011 ➤ , Passat Variant 2011 ➤
