8. Renewing front longitudinal member

73

shown.

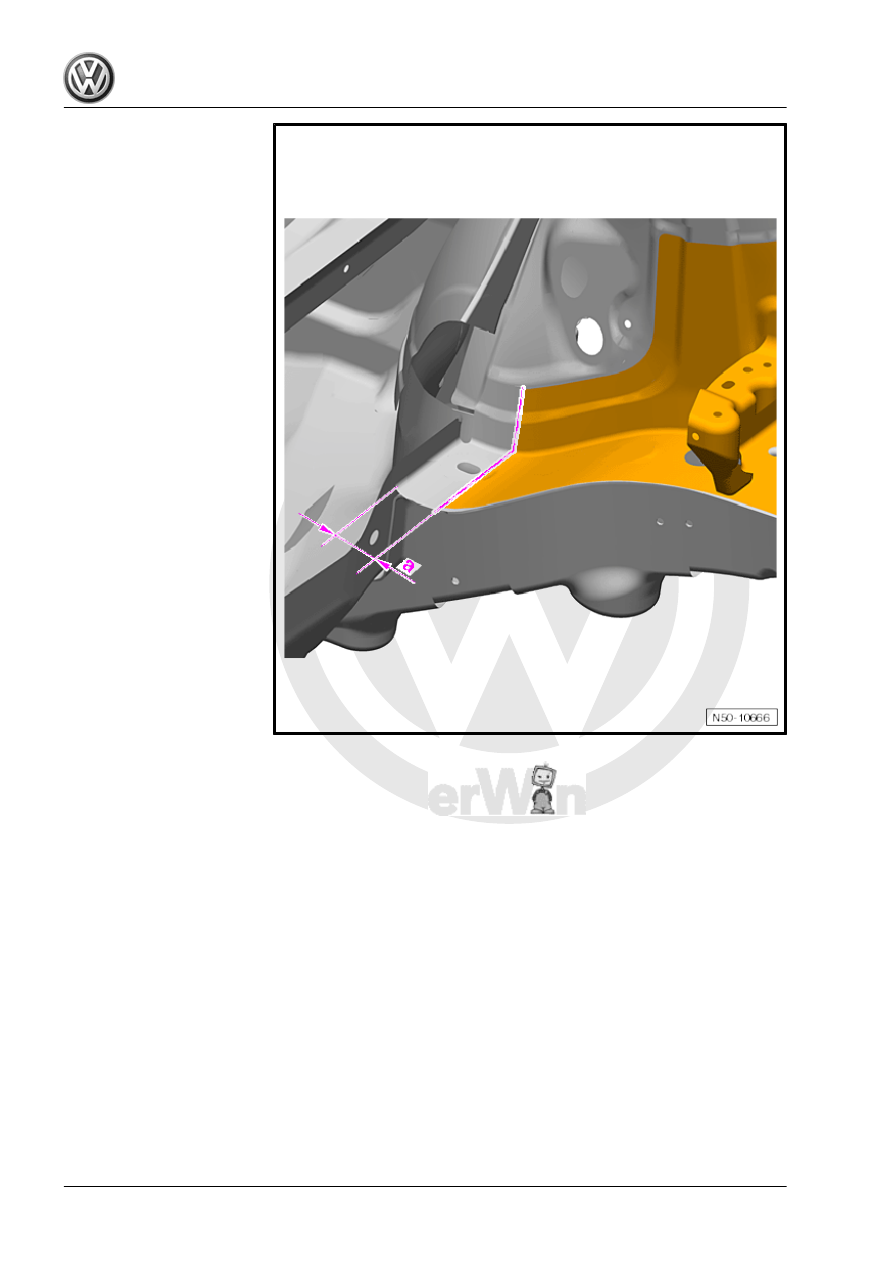

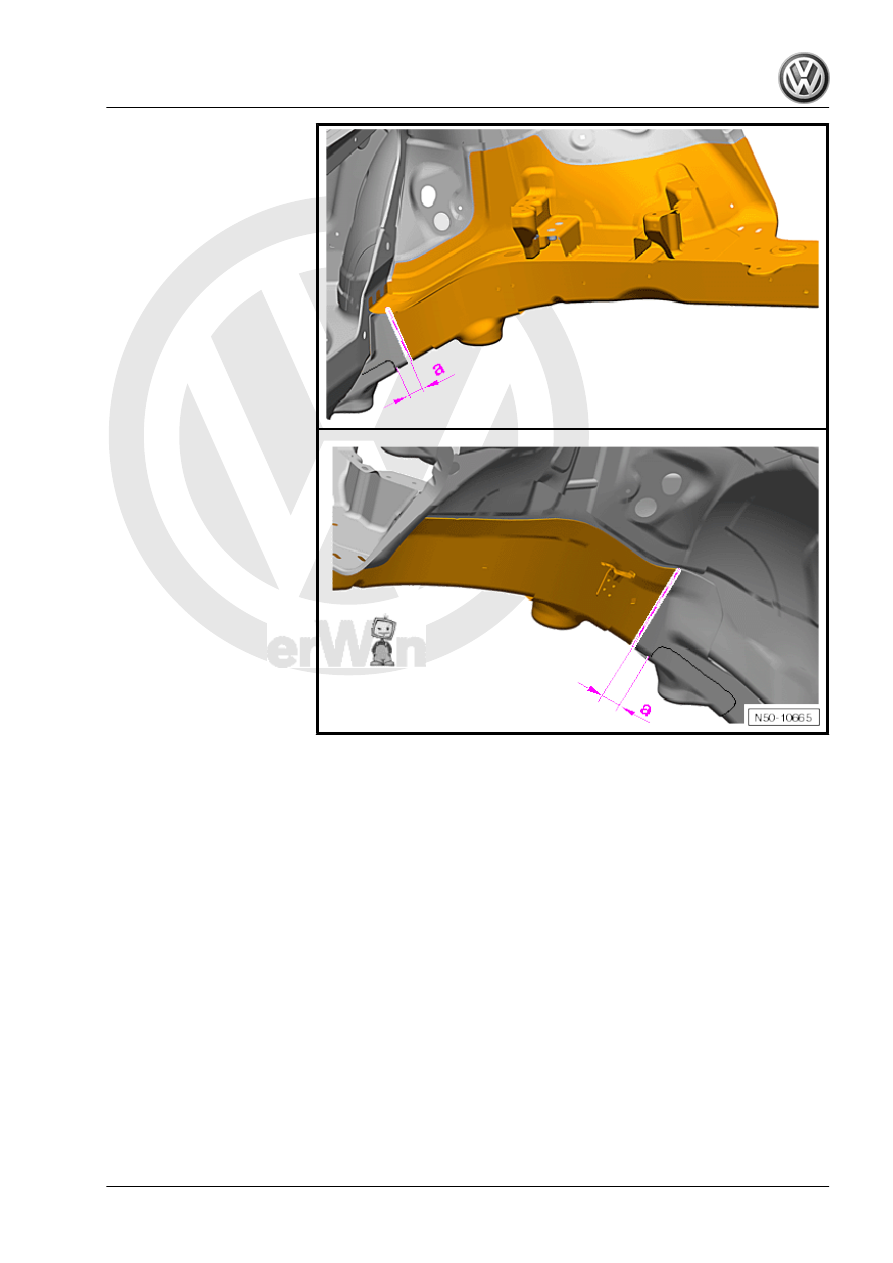

Dimension -a- = 55 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

74

8.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 72

 .

8.3.1

Preparing new part

New part

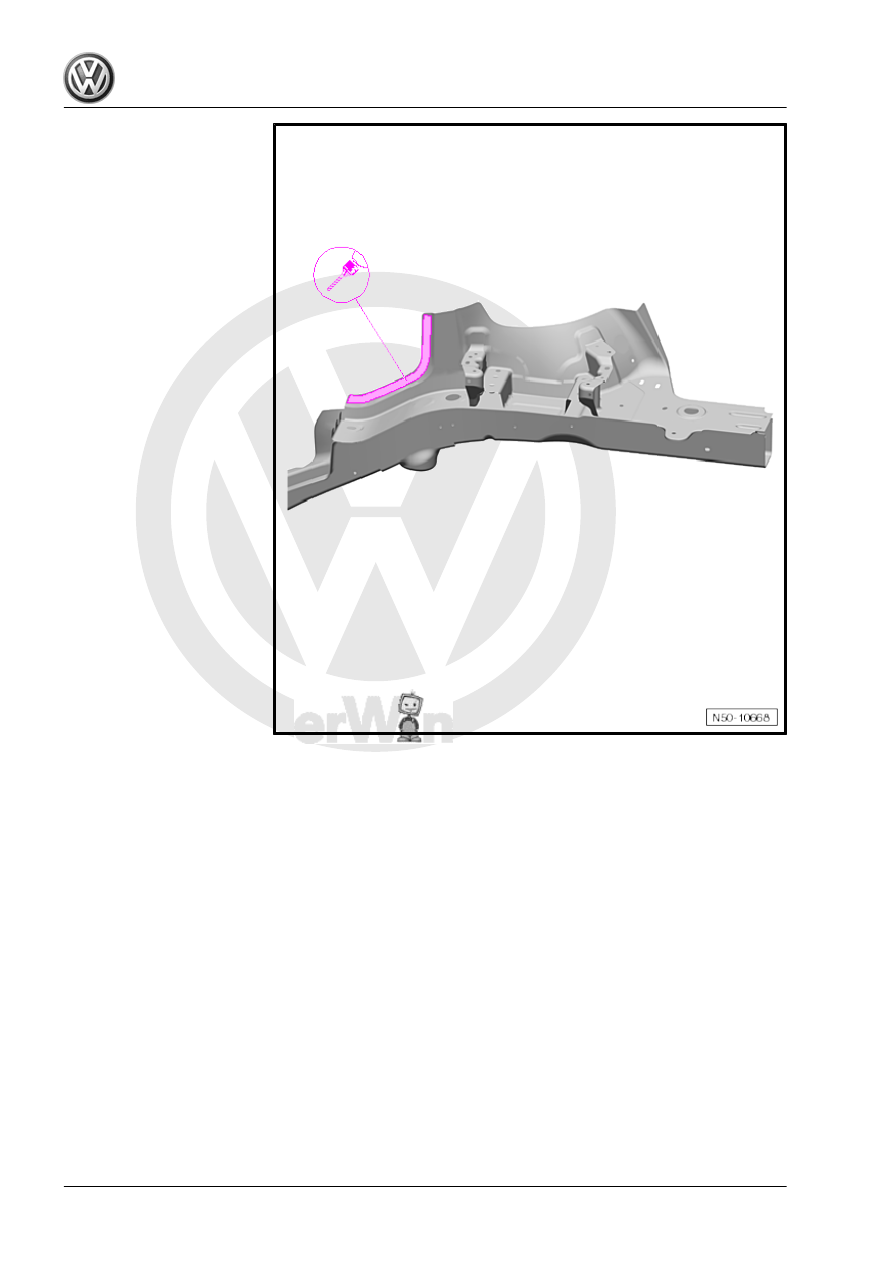

♦ Longitudinal member assembly

Passat 2011 ➤ , Passat Variant 2011 ➤

8. Renewing front longitudinal member

75

8.3.2

Welding in

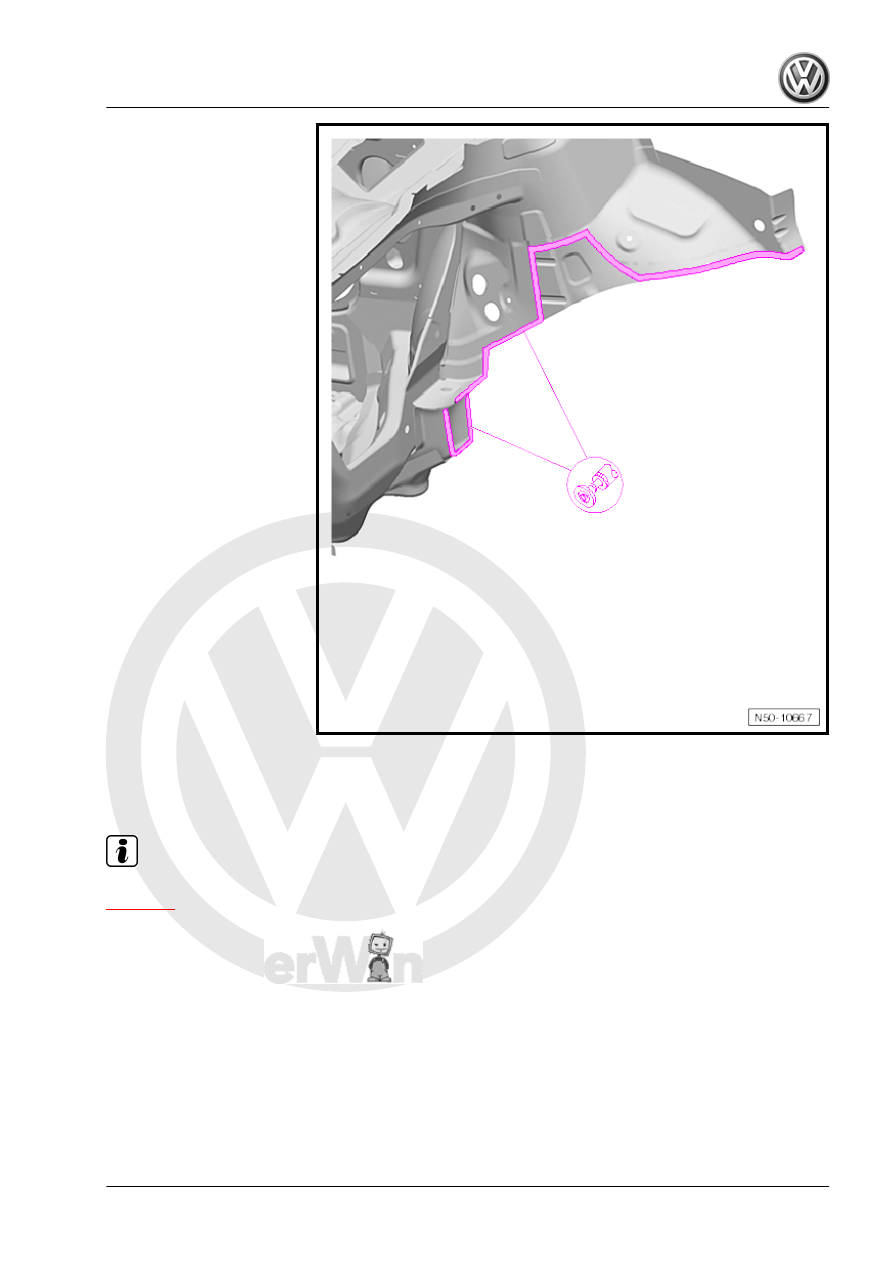

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.
