Volkswagen Passat / Passat Variant (2011 year). Manual - part 16

Welding in

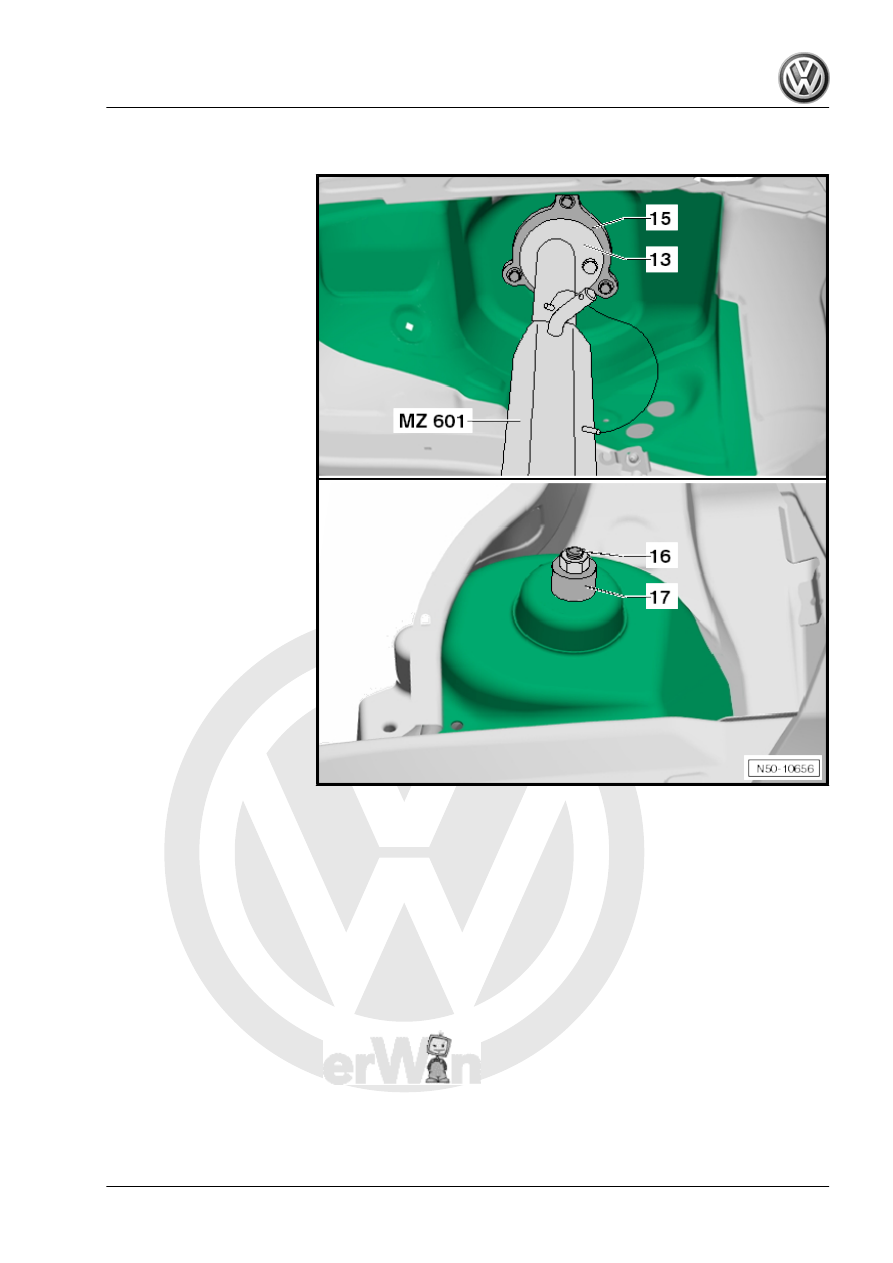

– Adapt new part with assistance of alignment bracket fixtures

-item 13-, -item 15-, -item 16- and -item 17- from alignment

bracket set and to adjacent parts and fix in place.

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Renewing front wheel housing

61

reinforcement, SG plug weld seam.

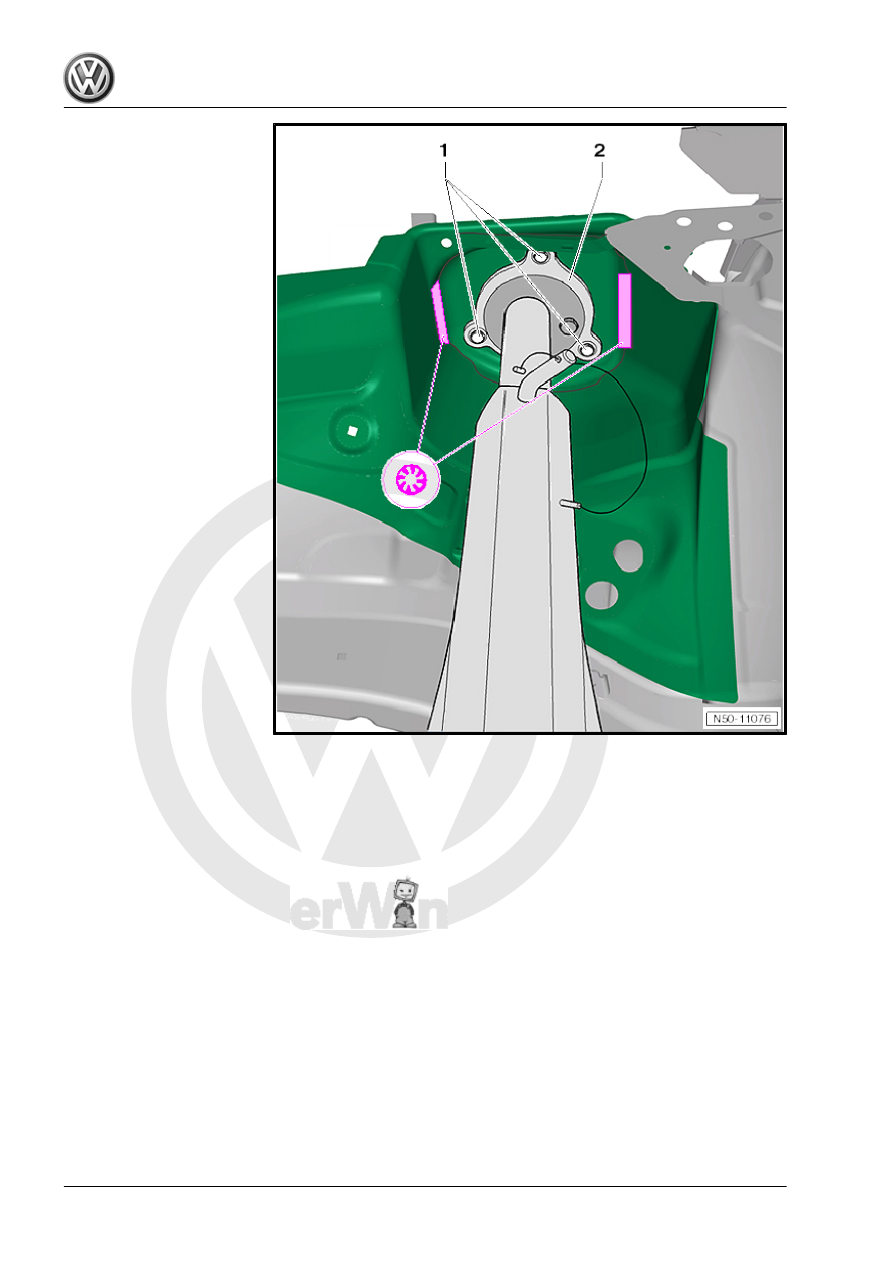

– Drill holes -1- (10 mm ∅) for mounting suspension strut. Ad‐

ditionally secure suspension strut mounting and suspension

strut mounting reinforcement to alignment bracket fixture -2-

using bolts.

Passat 2011 ➤ , Passat Variant 2011 ➤

62

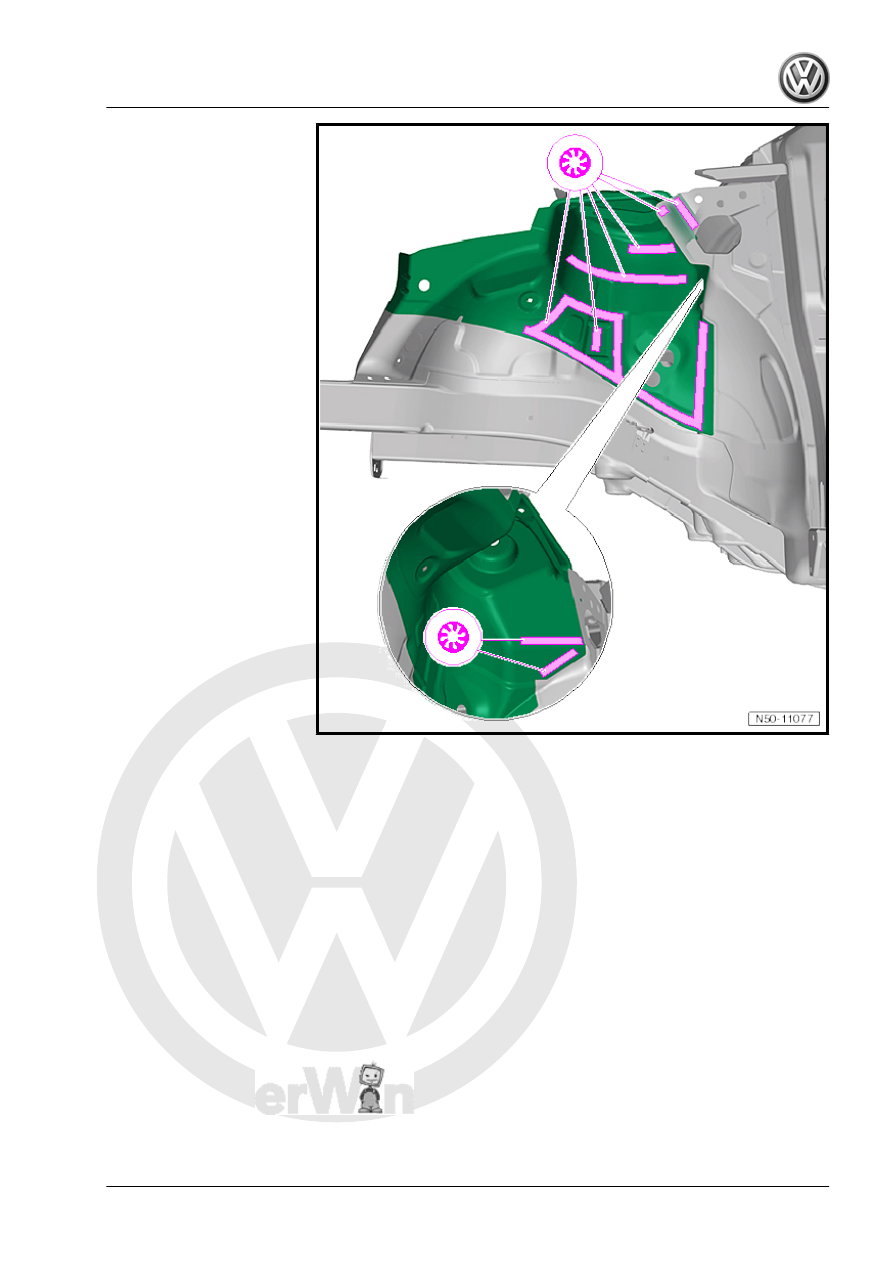

ment, SG plug weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Renewing front wheel housing

63

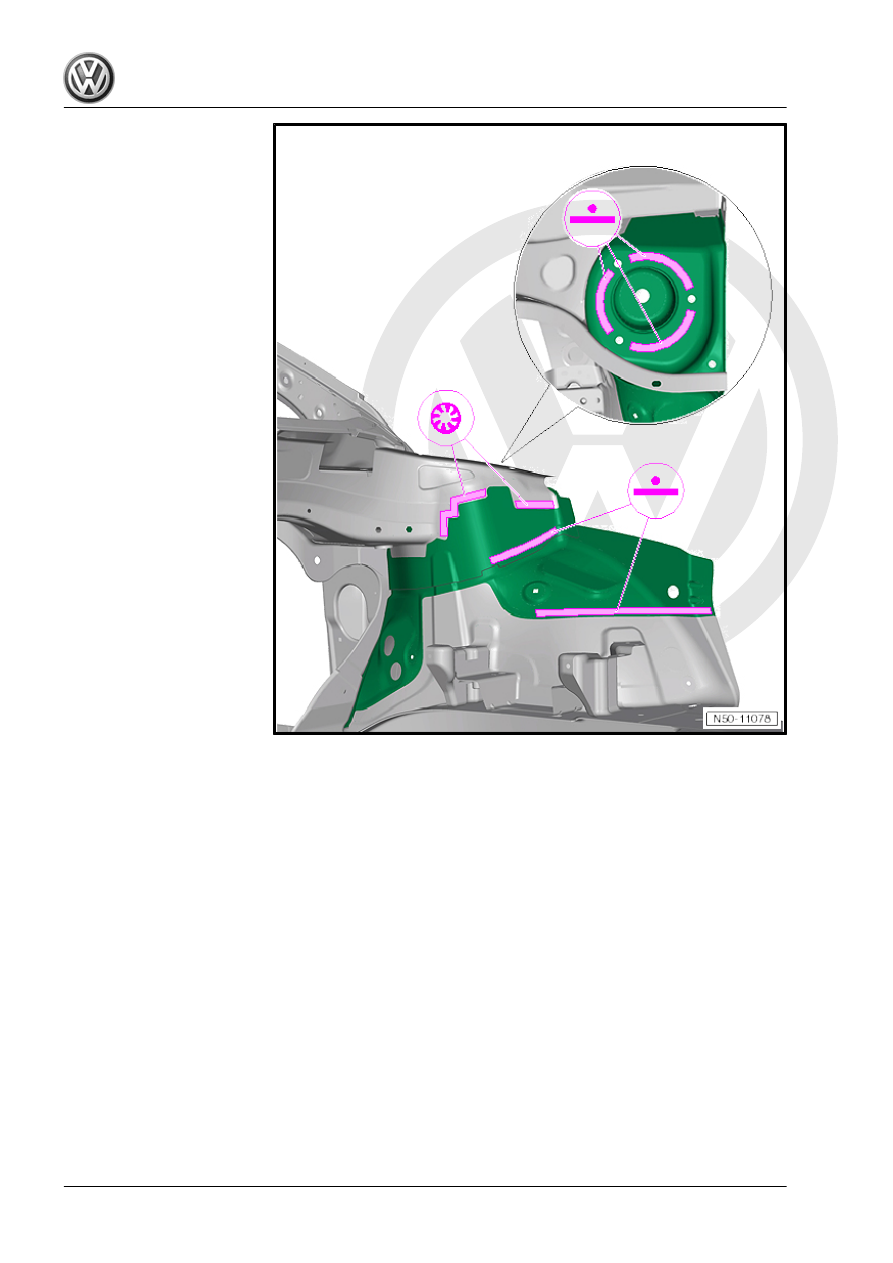

num chamber; SG plug weld seam.

– Recreate original joint between suspension strut mounting and

suspension strut mounting reinforcement, RP spot weld seam.

– Recreate remaining joints for wheel housing, RP spot weld

seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

64
