4.1

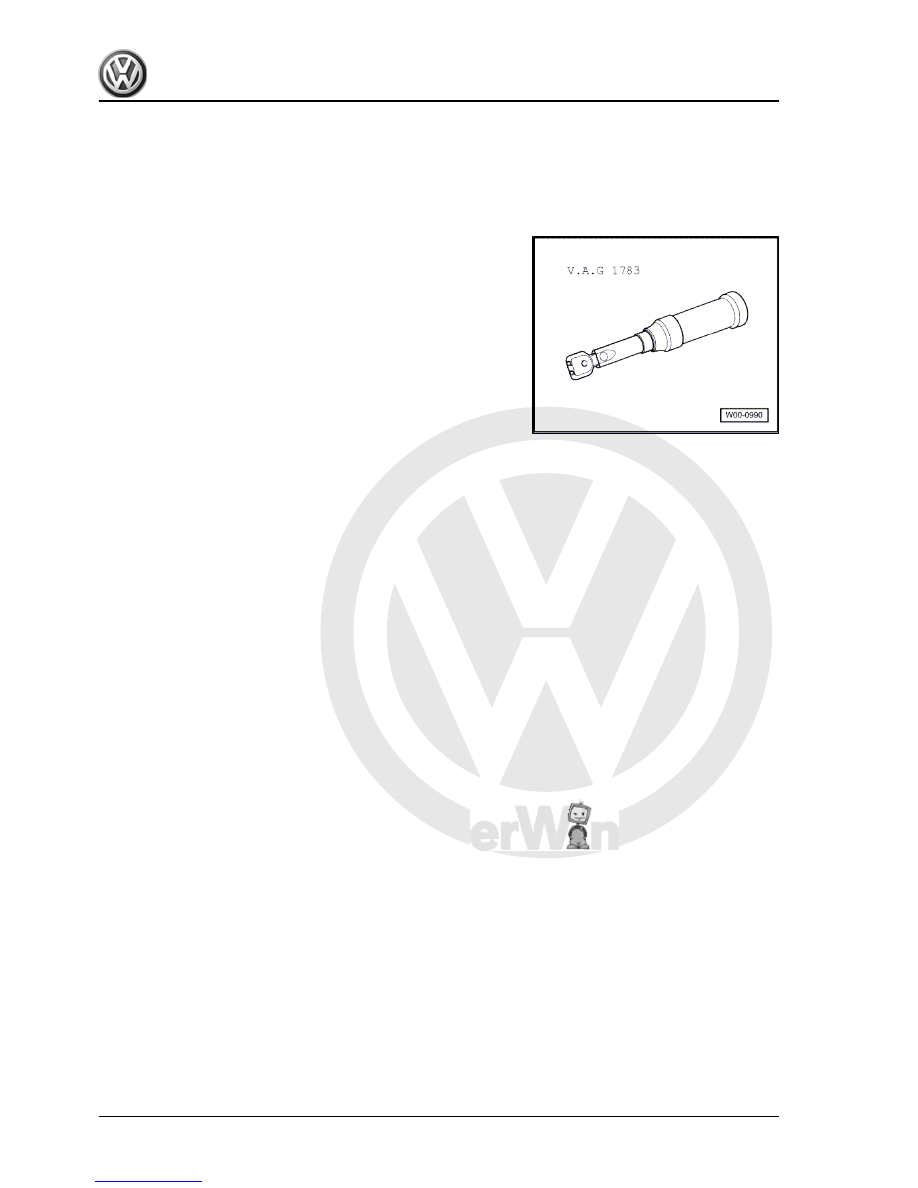

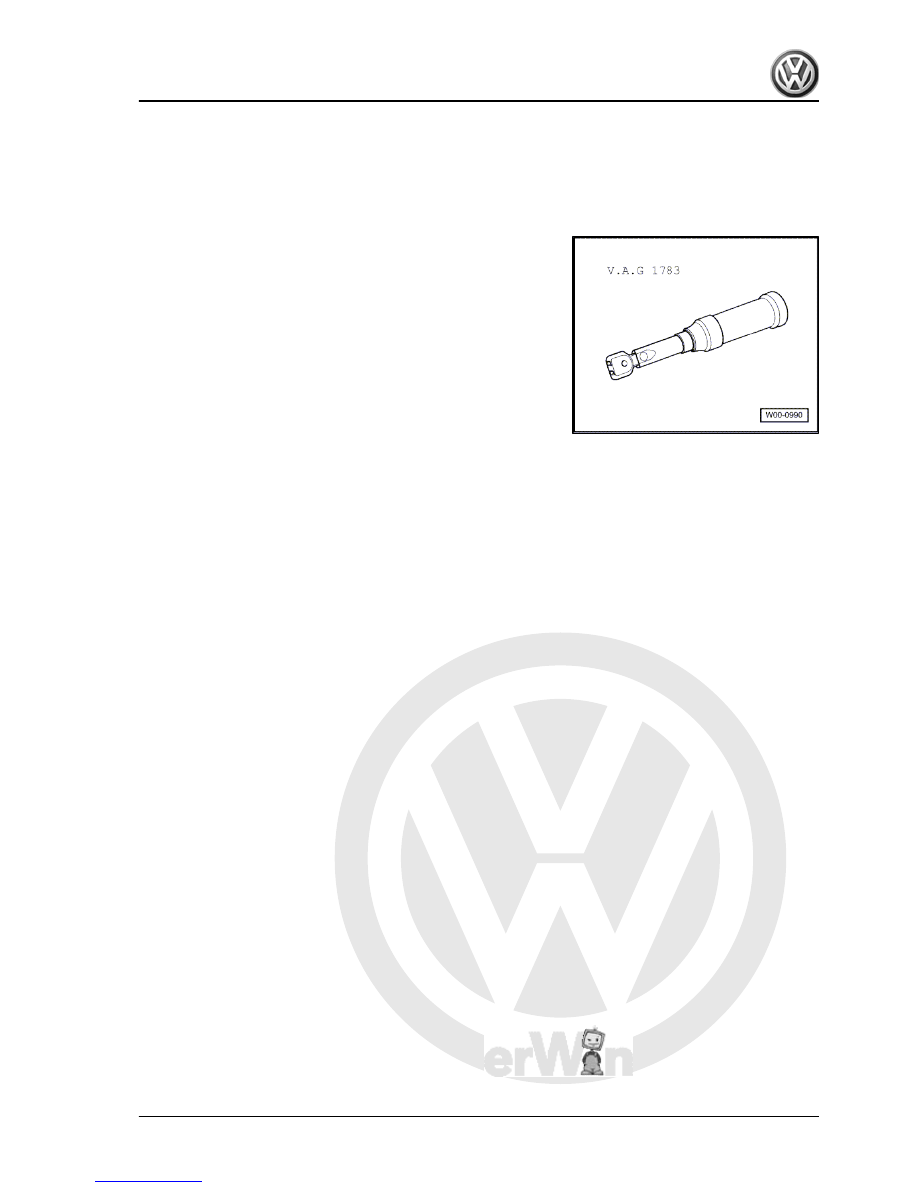

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

4. Noise insulation

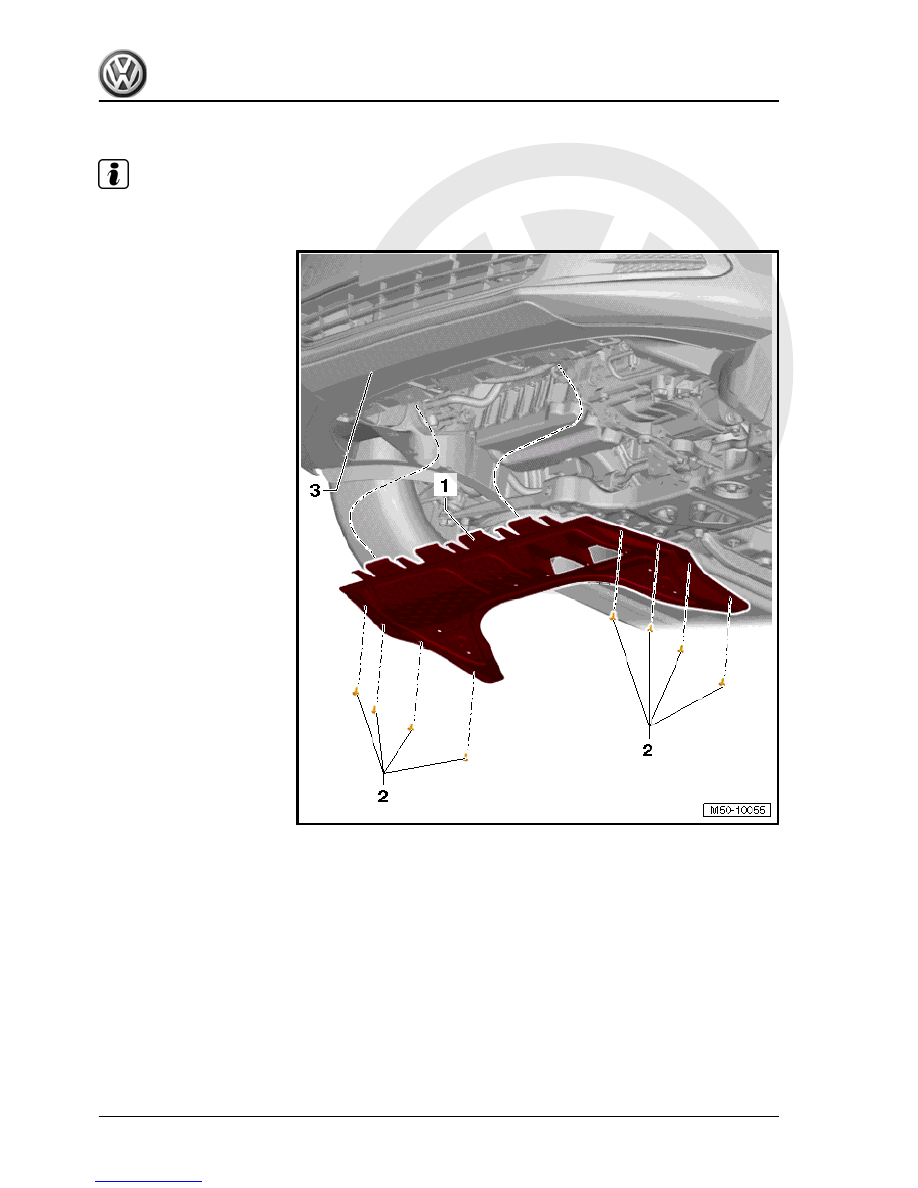

21



Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

1 - Noise insulation

❑ Removing:
– Remove bolts -2-.

– Pull noise insulation to‐

wards the rear and out

of front bumper cover

-3-.

2 - Bolt

❑ Qty. 4 on each side.
❑ Specified torque: 2 Nm.

3 - Front bumper cover

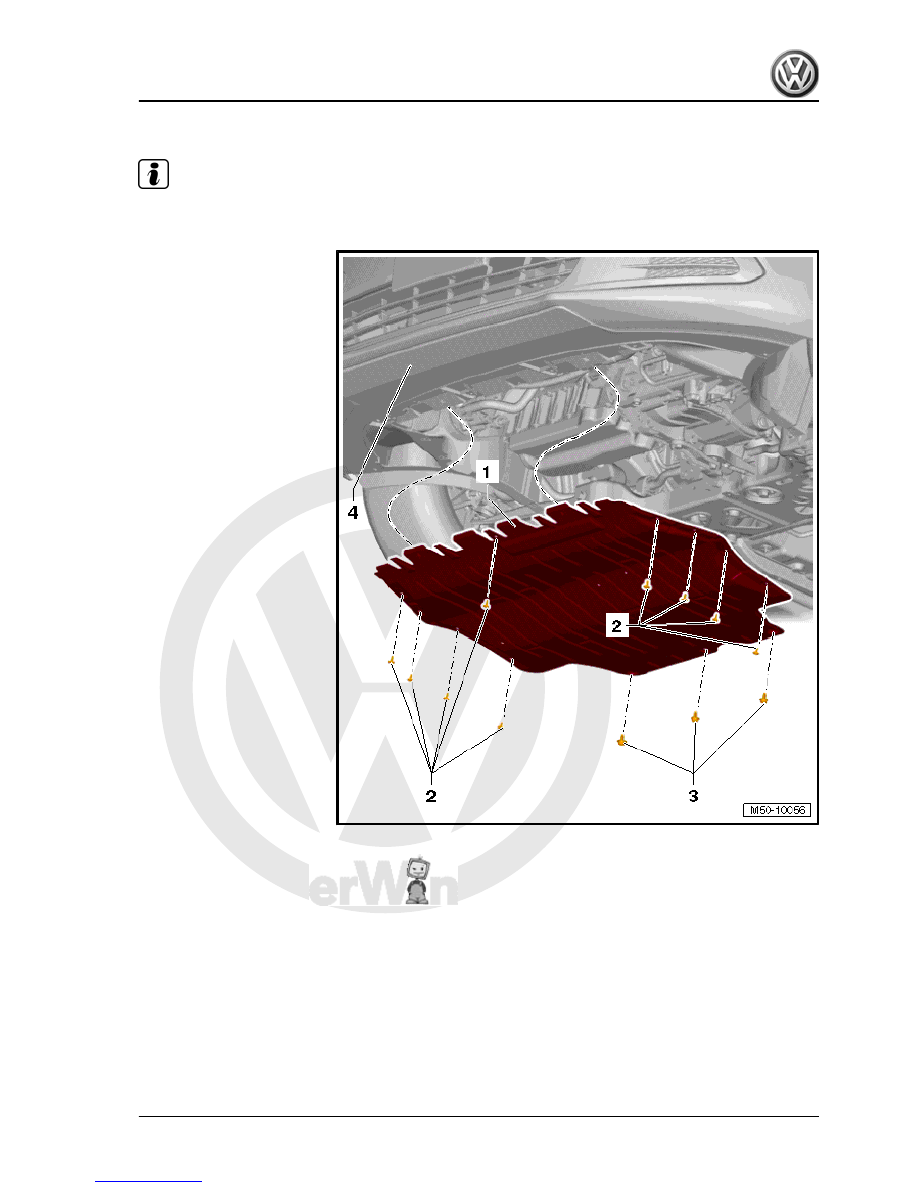

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

22



Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

1 - Noise insulation

❑ Removing:
– Remove bolts -2- and

-3-

– Pull noise insulation to‐

wards the rear and out

of front bumper cover

-4-.

2 - Bolt

❑ Qty. 4 per side and one

at front

❑ Specified torque: 2 Nm.

3 - Bolt

❑ Qty. 3.
❑ Specified torque: 6 Nm.

4 - Front bumper cover

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

4. Noise insulation

23



5.1

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
