sembly overview - subframe, anti-roll bar, suspension links .

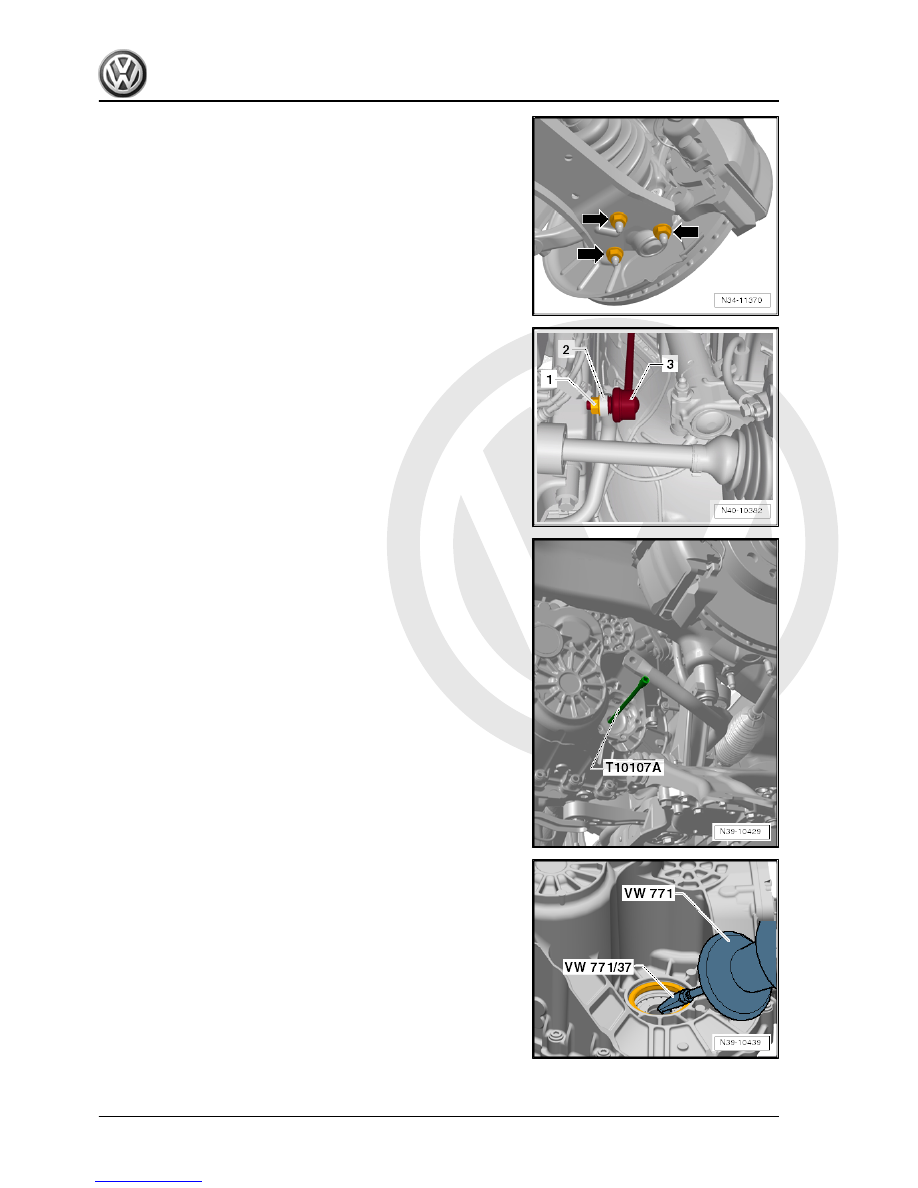

– Pull off coupling rod and turn anti-roll bar -2- upwards slightly.
– Swing left drive shaft into wheel housing.
– Raise drive shaft as high as possible and secure. Take care

not to damage paint on drive shaft in the process.

– Place drip tray under gearbox.

– Remove left flange shaft of gearbox.
Bolt has a 6 mm hexagon socket. Bolt can also be removed and

installed with socket -V.A.G 1669- .
– Pull out flange shaft.

– Remove flange shaft oil seal.
– Lightly oil outer circumference of new oil seal.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤
