Information about gearboxes with different output shafts

⇒ page 73

Vehicles with petrol engines
1.4 l/90 kW TFSI engine and 1.4 l/118 kW TSI engine

⇒ page 74

1.6 l/75 kW MPI engine

⇒ page 81

Vehicles with diesel engine
1.9 l/77 kW TDI PD engine

⇒ page 90

1.6 l/77 kW TDI CR engine

⇒ page 97

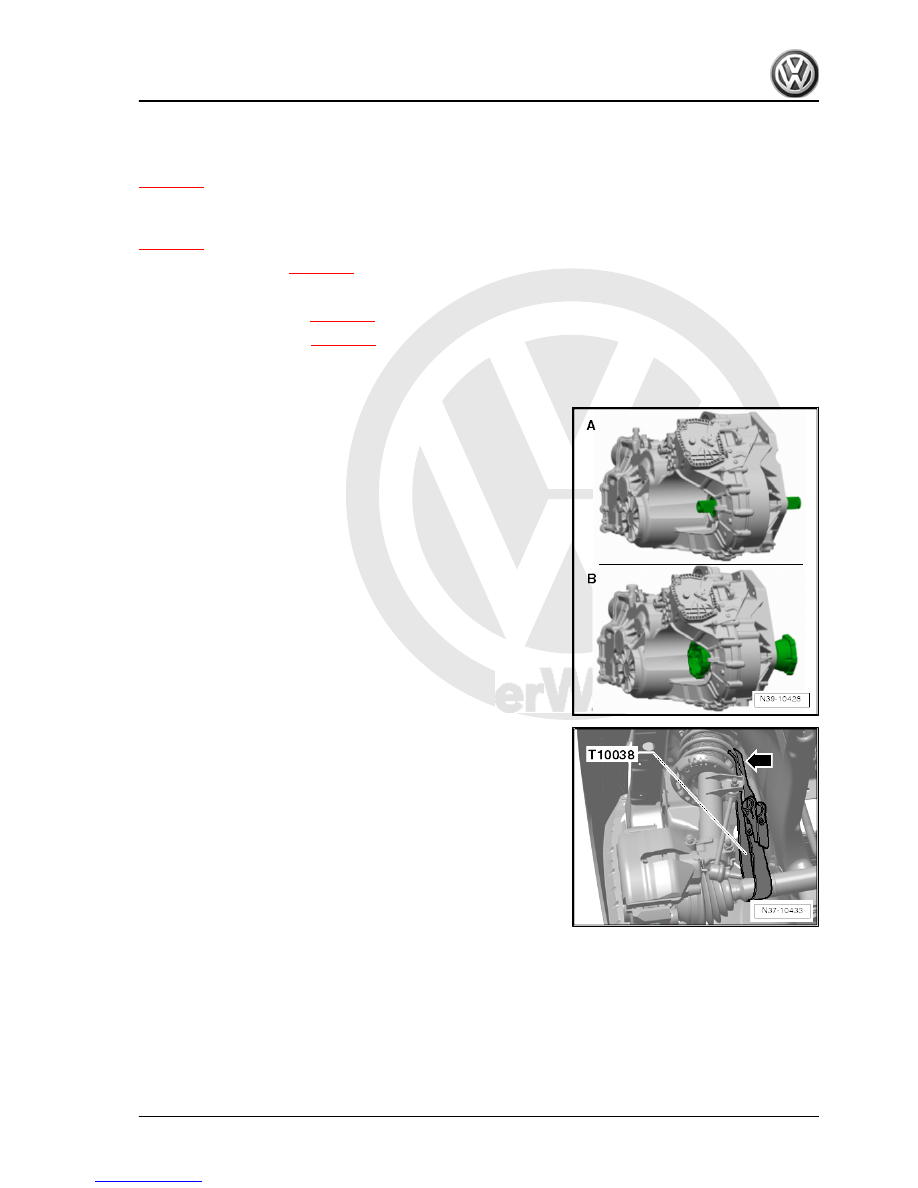

4.1

Information about gearboxes with differ‐

ent output shafts

Gearbox with different output shafts.
A - Stub shafts “to 11.2008”
B - Flange shafts “from 12.2008”
Vehicles with stub shafts on gearbox
To remove gearboxes with stub shafts, it is necessary to remove

stub shafts. Only shafts with straight joints can be put back onto

the output shafts safely. Therefore, these drive shafts must be

removed.
Vehicles with flange shafts on gearbox
For gearboxes with flange shafts, the drive shafts must be unbol‐

ted from the gearbox. This way, the gearbox can be removed. In

individual cases, it is necessary to remove right-hand flange shaft

from gearbox. This gives you enough clearance for removing

gearbox.

Secure both drive shafts to suspension struts using tensioning

straps -T10038- .

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

73

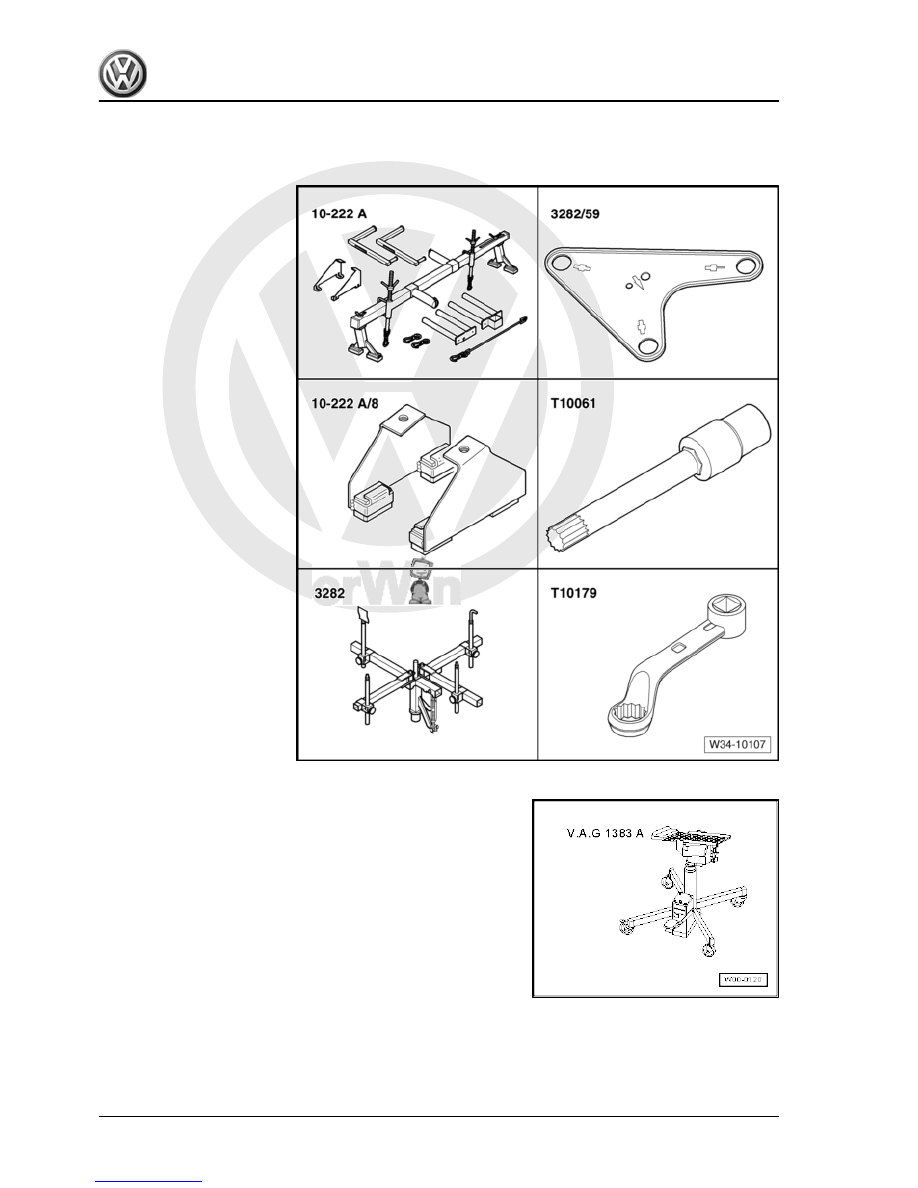

TSI engine

Special tools and workshop

equipment required
♦ Support bracket -10 - 222

A-

♦ Adjustment plate -3282/59-
♦ Adapter -10 - 222 A /8-
♦ Insert tool, 18 mm -T10179-
♦ Gearbox support -3282-
♦ Socket -T10061-

♦ Engine and gearbox jack -V.A.G 1383 A-

Brief description
The gearbox is removed downwards separately, without engine.
The battery, air filter and starter are removed “from above”.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

74

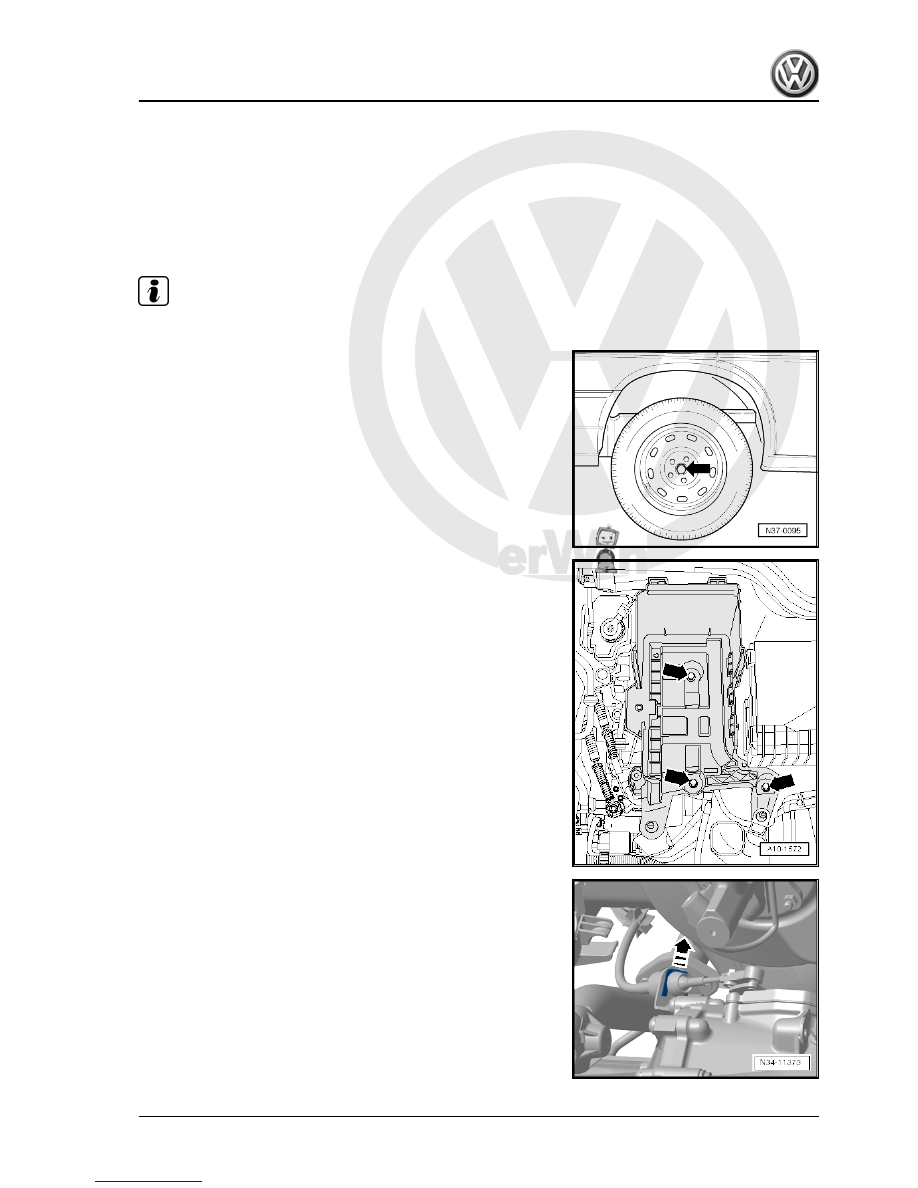

height.

– Move selector lever to position “P” position.
Only in vehicles with stub shafts

Note

After loosening centre bolt, do not lower vehicle to ground again.

– Step on the brake pedal while a 2nd mechanic loosens the two

drive shaft bolts -arrow-.

and installing air filter .

Removing and installing battery .

starter .

– Remove securing clip in -direction of arrow-.
Securing clips for selector lever cable must always be renewed.
– Remove Bowden cable from ball head.
Cable may also be pushed slightly backwards out of cable support

bracket and removed later when gearbox is lowered. But then

observe cable when lowering gearbox.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

75

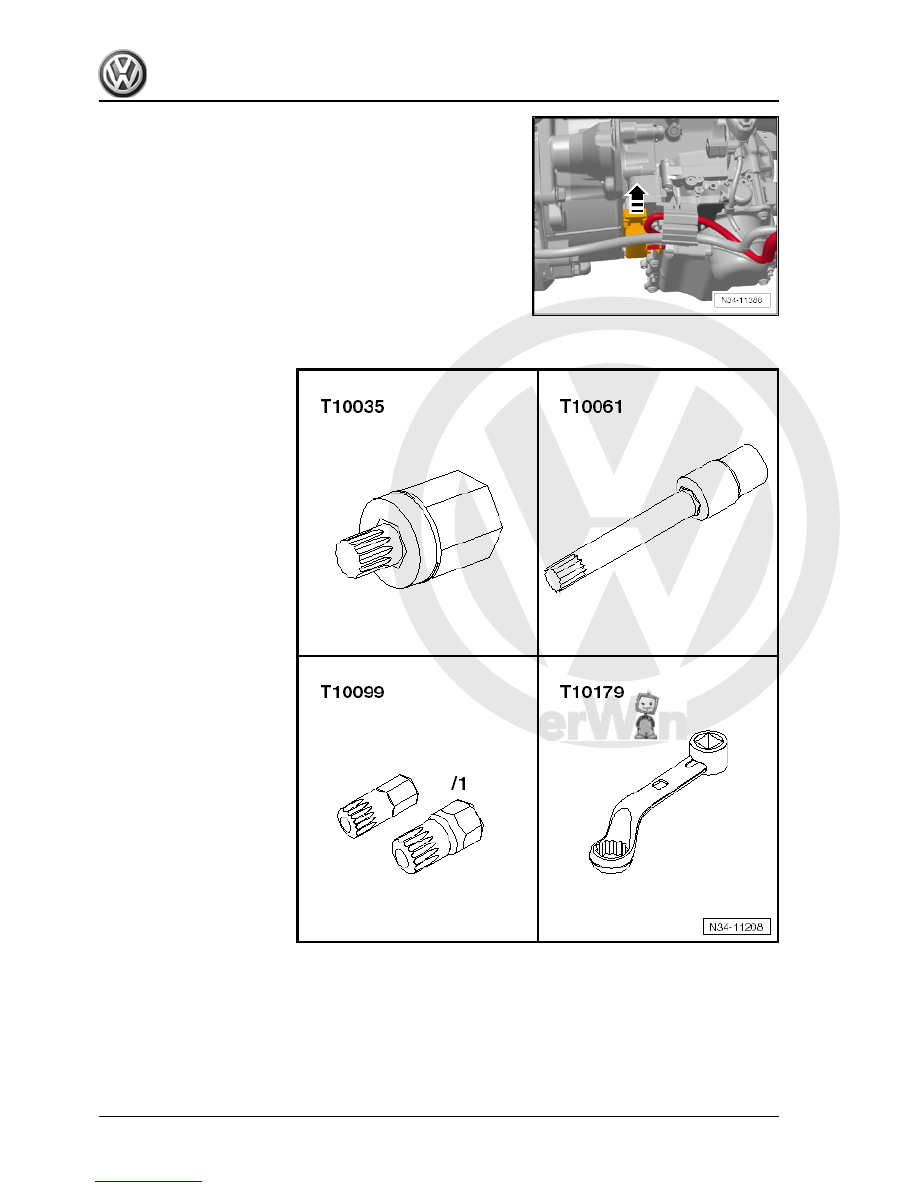

– Now remove all upper connecting bolts between engine and

gearbox.

These tools are appropriate for this.
