Selector mechanism

⇒ “1.1 Assembly overview - selector mechanism”, page 45
⇒ “1.2 Emergency release from position P”, page 47
⇒ “1.3 Removing and installing selector lever handle”,

page 48
⇒ “1.4 Moving push-button to installation position in the handle”,

page 49
⇒ “1.5 Removing and installing selector mechanism”, page 51
⇒ “1.6 Checking selector mechanism”, page 59
⇒ “1.7 Checking and adjusting selector lever cable”, page 60
⇒ “1.8 Renewing oil seal for selector shaft”, page 64

1.1

Assembly overview - selector mecha‐

nism

WARNING

Before working on vehicle with engine running, move selector

lever into position “P” and apply handbrake.

Jetta Hybrid 2013 ➤

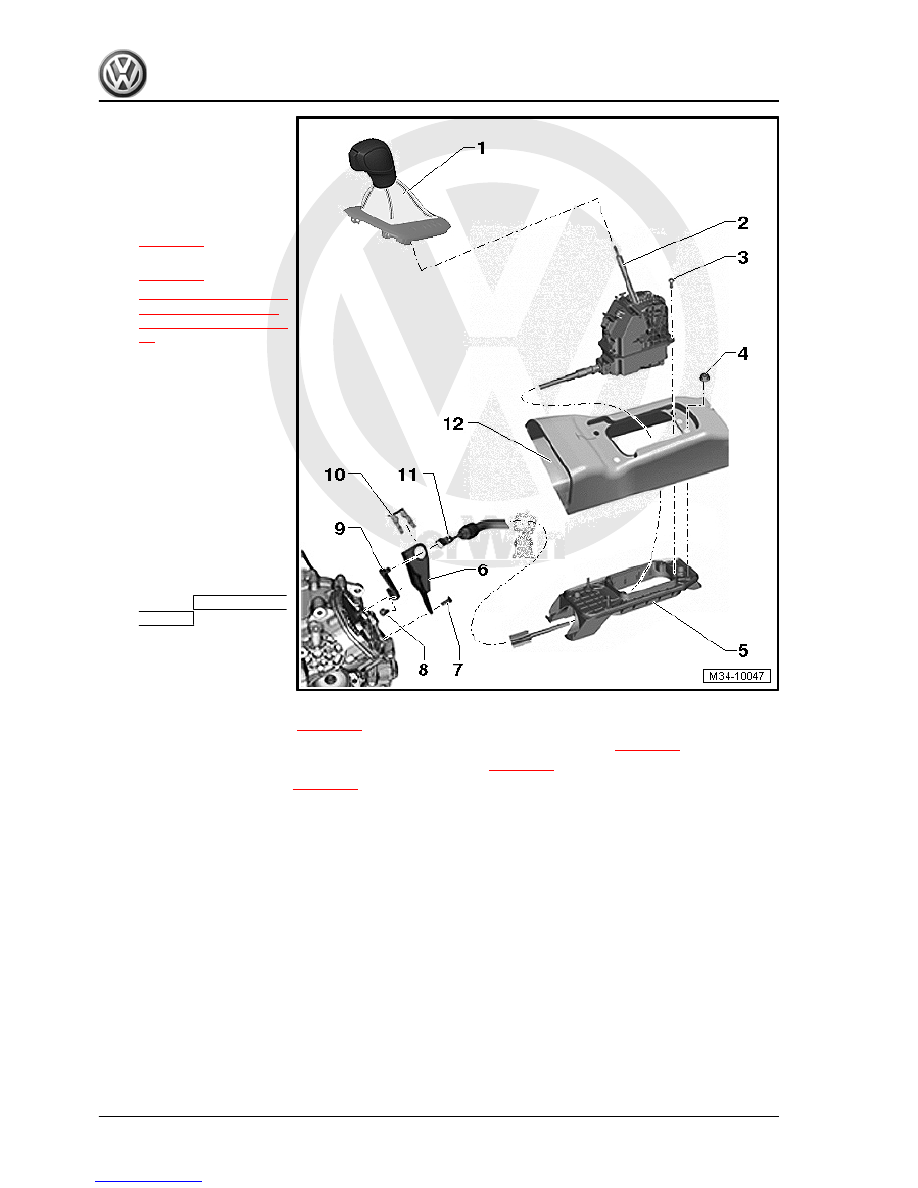

1. Selector mechanism

45



without reason.

❑ For emergency release,

only the cover needs to

be unclipped

⇒ page 47

 .

❑ Removing and installing

⇒ page 48

 .

❑

⇒ “1.4 Moving push-but‐

ton to installation posi‐

tion in the handle”, page

49

2 - Selector mechanism with

gear selector cable

❑ With firmly integrated

printed circuit board for

selector mechanism.

❑ With integrated selector

lever -E313- with selec‐

tor lever sensors control

unit -J587- , Tiptronic

switch -F189- , selector

lever locked in position

P switch -F319- and se‐

lector lever lock sole‐

noid -N110- .

❑ Testing is carried out via

⇒ Vehicle diagnostic

tester in

Guided fault

finding

 mode.

❑ Selector lever -E313-

with selector lever sen‐

sors control unit -J587- ,

Tiptronic switch -F189- ,

selector lever locked in

position P switch -F319- and selector lever lock solenoid -N110- can only be renewed as a unit together

with selector mechanism

⇒ page 51

 .

❑ Selector lever cable can only be renewed together with selector mechanism

⇒ page 51

 .

❑ Carrying out emergency release of selector mechanism

⇒ page 47

 .

❑ Removing and installing

⇒ page 51

 .

❑ Do not grease selector lever cable.

3 - Bolt

❑ For selector mechanism to selector housing.
❑ Qty. 4
❑ 4 Nm

4 - Nut

❑ For selector mechanism to body.
❑ Qty. 4
❑ 8 Nm

5 - Selector housing
6 - Cable support bracket

❑ For selector lever cable

7 - Bolt

❑ For selector cable support bracket to gearbox

Jetta Hybrid 2013 ➤

46



❑ For gearbox selector lever.
❑ Renew after each removal.
❑ 10 Nm +90°

9 - Gearbox selector lever
10 - Securing clip

❑ For selector lever cable to cable support bracket.
❑ Renew.

Note

11 - Bolt

❑ Adjustment screw for selector lever cable.
❑ 13 Nm

12 - Tunnel/body

1.2

Emergency release from position P

Do not remove handle.
♦ The selector lever lock solenoid -N110- locks the selector lever

in position “P”. The selector lever can only be shifted out of

position “P” with ignition switched on/engine running, with

brake pedal depressed and with selector lever button pressed

⇒ page 59

 .

♦ If the power supply for the selector lever lock solenoid -N110-

fails (battery discharged or fuse defective) or if the solenoid is

defective, the selector lever cannot be shifted out of position

“P”. Hence, the vehicle cannot be moved because the parking

lock is engaged.

If this is the case:
– Check fuses ⇒ Current flow diagrams, Electrical fault finding

and Fitting locations.

tery; Checking battery .

Note

If the fault finding is completed and the selector lever still can't be

shifted out of position “P”, an emergency release of the solenoid

must be carried out. If the selector lever is shifted back into posi‐

tion “P” after the emergency release, the selector lever will be

locked again in position “P”.

Jetta Hybrid 2013 ➤

1. Selector mechanism

47



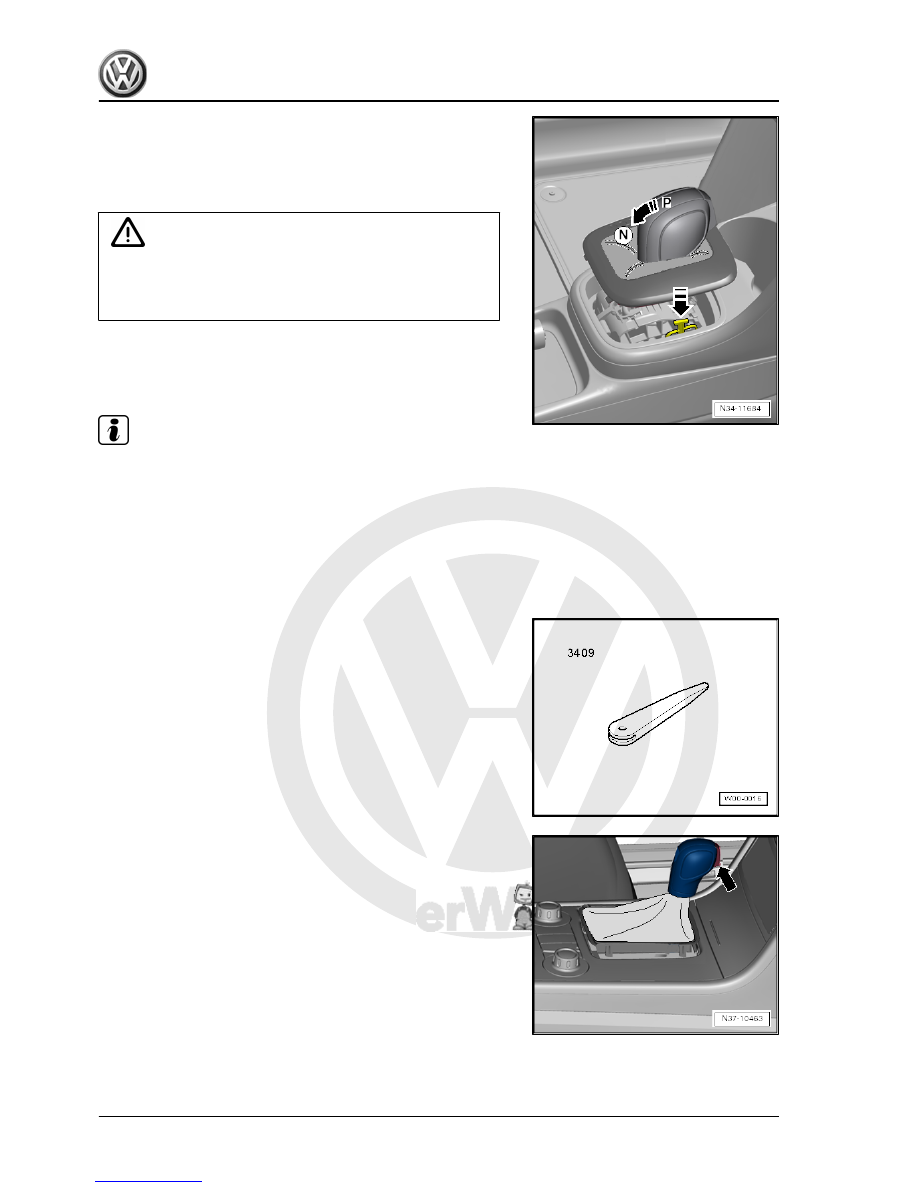

Risk of damage to selector mechanism.

♦ If parts of the selector mechanism are damaged, the se‐

lector mechanism must be renewed completely.

• The solenoid releases the selector lever.
– With solenoid released press button on selector lever handle

and shift selector lever out of position “P”.

Note

If the selector lever is now moved back into position “P”, the se‐

lector lever will be mechanically locked in position “P” again by

the solenoid. Then, the emergency release must be carried out

again.

1.3

Removing and installing selector lever

handle

Special tools and workshop equipment required
♦ Removal wedge -3409-

Removing
The selector lever handle is removed together with the selector

lever cover.
– Shift selector lever to position “D”.
– Switch off ignition.

Jetta Hybrid 2013 ➤

48
