Identification

⇒ “1.1 Gearbox identification”, page 1

1.1

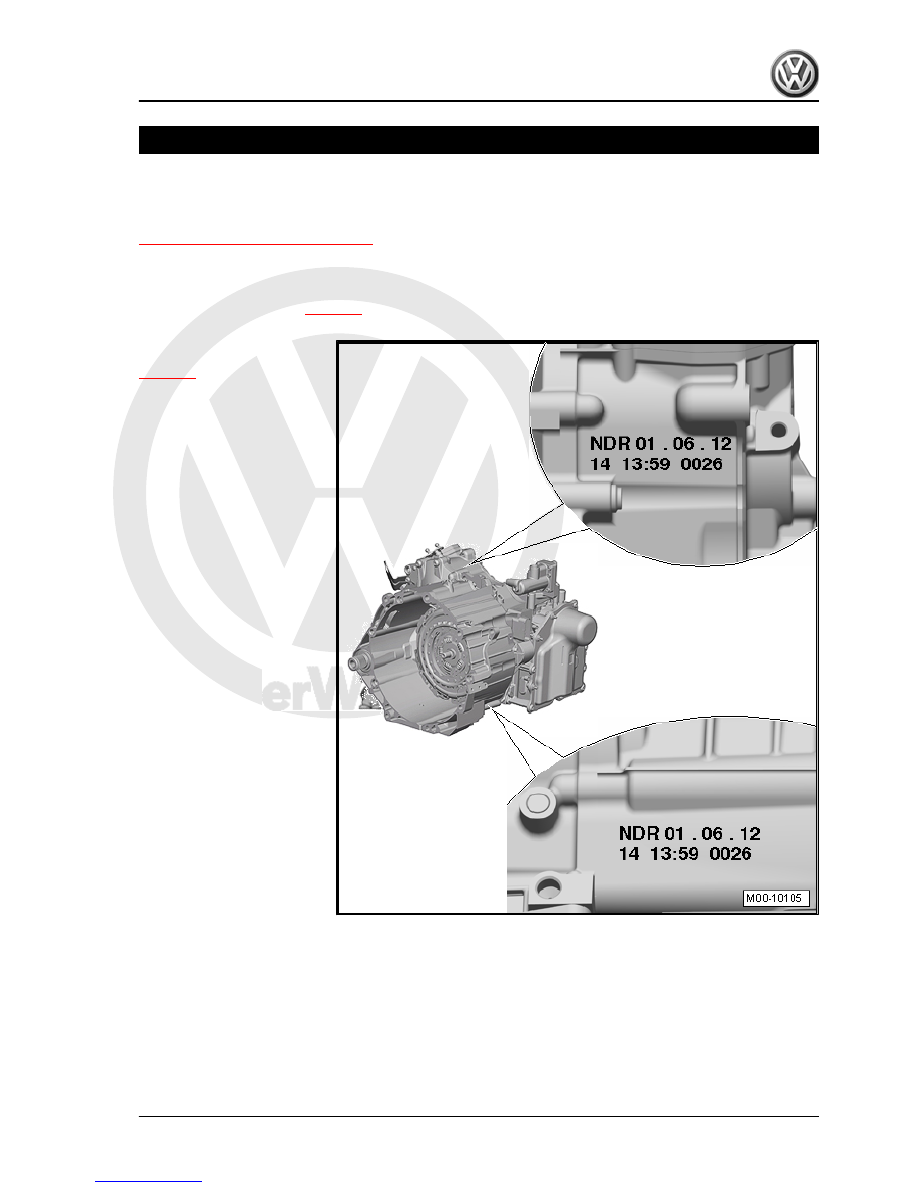

Gearbox identification

The “7-speed dual clutch gearbox 0CG” is installed in the Jetta

models 2011 ▶. Allocation

⇒ page 2

 .

NDR - Gearbox code letters

⇒ page 2

01. 06.12 - Production date:

1 June 2012
14 - Factory code
13:59 - Time
0026 - Serial number

Jetta Hybrid 2013 ➤

1. Identification

1



⇒ “2.1 Allocation gearbox - engine”, page 2
⇒ “2.2 Calculation of gear ratios”, page 2
⇒ “2.3 Capacities”, page 3

2.1

Allocation gearbox - engine

Dual clutch gearbox

0CG

Gearbox

Identification code

NDR





Allocation

Model



Jetta 2011 ▶







Engine



1.4 l TSI - 110 kW





Ratios

Final drive I

for 1st to 4th gear

71 : 16 = 4.438





Z2 : Z1

Final drive II

for 5th and 6th

gear

71 : 22 = 3.227





Z2 : Z1

Final drive III

for 7th gear and re‐

verse gear

71 : 17 = 4.176





Take account of the gearbox code if spare parts are required for a repair ⇒  Electronic parts catalogue

“ETKA” .

2.2

Calculation of gear ratios

Example:



7th gear

Final drive

Drive gear

ZG1 = 49

ZA1 = 17

Driven gear

ZG2 = 32

ZA2 = 71

i = Z2 : Z1 (Z1 = number of teeth on drive gear, Z2 = number of

teeth on driven gear)
iG = Gear ratio = ZG2: ZG1= 32 : 49 = 0.653
iA = Final drive ratio = ZA2 : ZA1 = 71 : 17 = 4.176
Overall ratio = total ratio = iG x iA = 0.653 x 4.176 = 2.730

Jetta Hybrid 2013 ➤

2



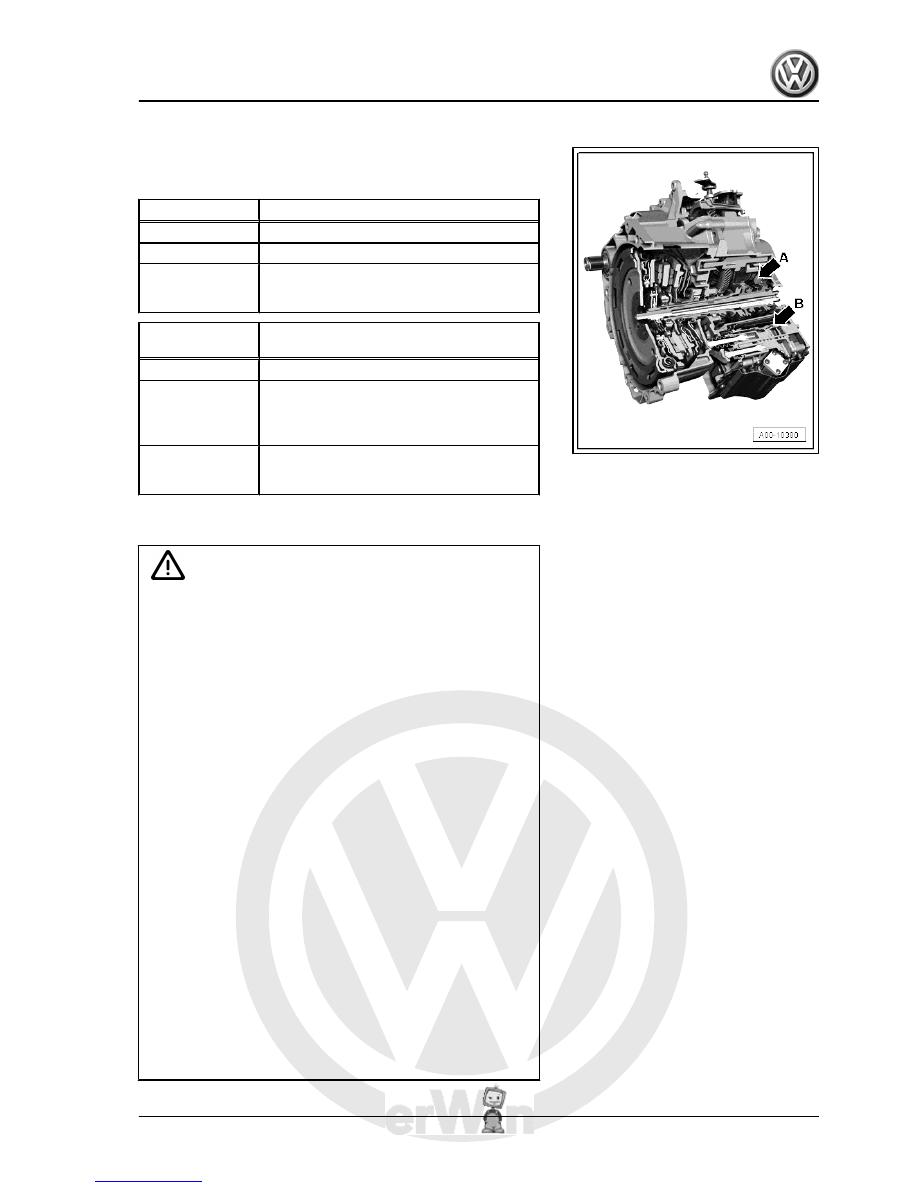

The 7-speed dual clutch gearbox has two separate and different

oil systems. One for the gearbox oil section -arrow A- and one for

the hydraulic fluid section -arrow B-.

Capacities

Gearbox oil section

Initial filling

2.1 litre

Change

No change necessary

Lubricant

Gearbox oil for dual clutch gearbox 0CG

Part number ⇒  Electronic parts catalogue

“ETKA”

Capacities

Hydraulic fluid section in mechatronic unit for

dual clutch gearbox -J743-

Initial filling

1 litre

Change

No change possible

It is not possible to check the fill level of the

hydraulic fluid section of the mechatronic unit

for dual clutch gearbox -J743-

1)

.

Lubricant

Hydraulic fluid

Part number ⇒  Electronic parts catalogue

“ETKA”

1)

 Hydraulic fluid can be replenished through the breather con‐

nection of the mechatronic unit.

Caution

Risk of damage to gearbox.

♦ Only the gearbox oil for the 7-speed dual clutch gearbox

0CG, which is available through the replacement parts

system, must be used ⇒  Electronic parts catalogue “ET‐

KA” .

♦ Other oils will lead to malfunctions or failure of the gear‐

box.

♦ It is not possible to check the fill level of the hydraulic fluid

section of the mechatronic unit for dual clutch gearbox -

J743- . Before repairs, the breather of the mechatronic unit

for dual clutch gearbox -J743- must be sealed so that no

oil can escape.

♦ If any oil escapes from the hydraulic fluid section of the

mechatronic unit for dual clutch gearbox -J743- , the oil

must not be filled back into the mechatronic unit!

♦ If the hydraulic line between the valve block of the me‐

chatronic unit for dual clutch gearbox -J743- and the con‐

nection for the disengagement clutch of the electric drive

motor -V141- is being removed, seal all connections with

suitable sealing plugs. After reinstallation of the hydraulic

line, hydraulic fluid must be replenished through the

breather connection of the mechatronic unit , if necessary.

For allocation of the sealing plugs, hydraulic fluid and fill‐

ing equipment refer to ⇒  Electronic parts catalogue .

♦ If oil escapes from the gearbox oil section, it can only be

rectified by changing the gearbox oil. It is not possible to

check the fill level.

♦ If the level of oil/fluid is too high or too low in either of the

parts, the function of the gearbox will be impaired.

Jetta Hybrid 2013 ➤

2. Technical data

3



⇒ “2.4.1 Overview - power transmission - front-wheel drive”, page

4

2.4.1

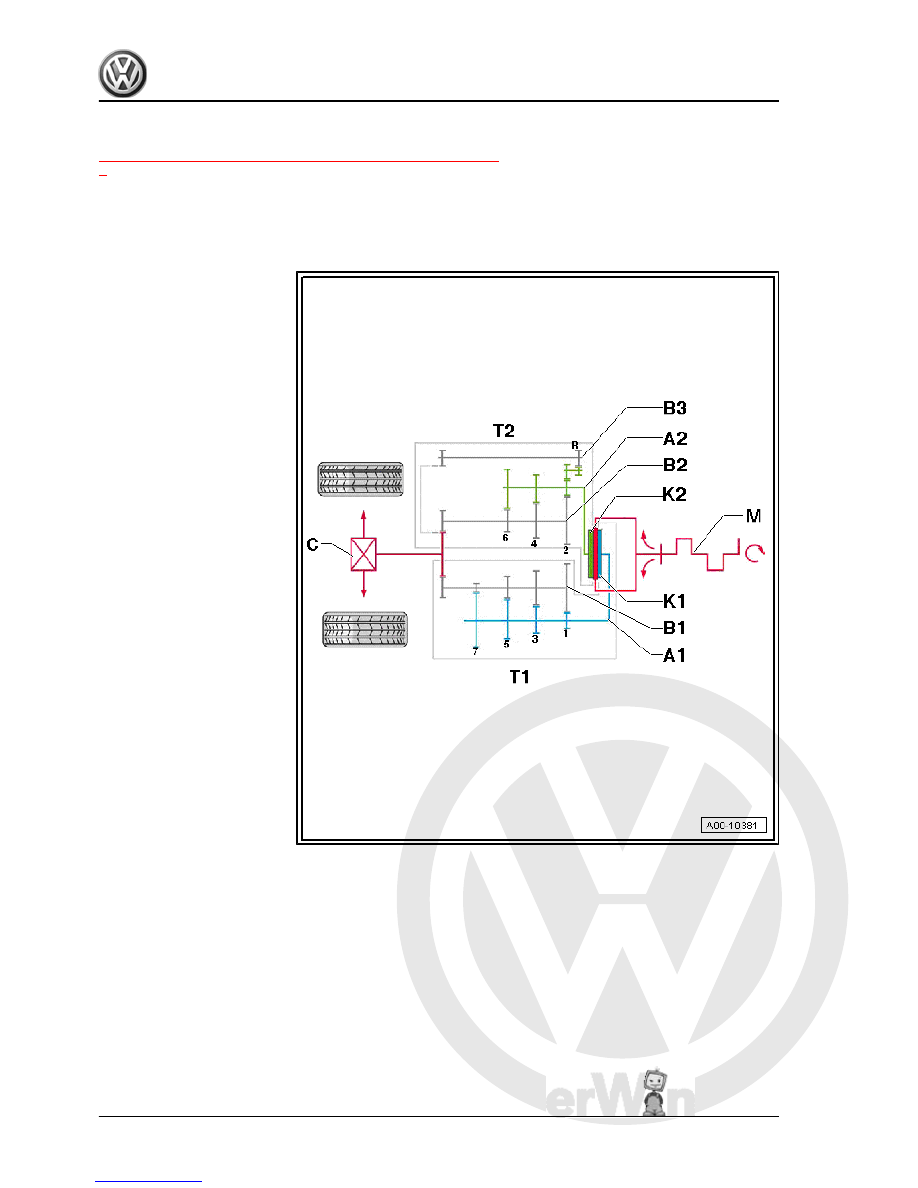

Overview - power transmission - front-wheel drive

The 7-speed dual clutch gearbox 0CG is configured as a 5-shaft

gearbox. There are two input shafts and three output shafts.

A1 - Input shaft 1
A2 - Input shaft 2
B1 - Output shaft 1
B2 - Output shaft 2
B3 - Output shaft 3
C - Front final drive
K1 - Dual clutch 1
K2 - Dual clutch 2
M - Engine
T1 - Sub-gearbox 1

❑ with gears 1, 3, 5 and 7

T2 - Sub-gearbox 2

❑ with gears 2, 4, 6 and

reverse gear R

Jetta Hybrid 2013 ➤
