1-1. For safe use

Fo
r

safety and securi

4RUNNER (U)

While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.

After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.

■

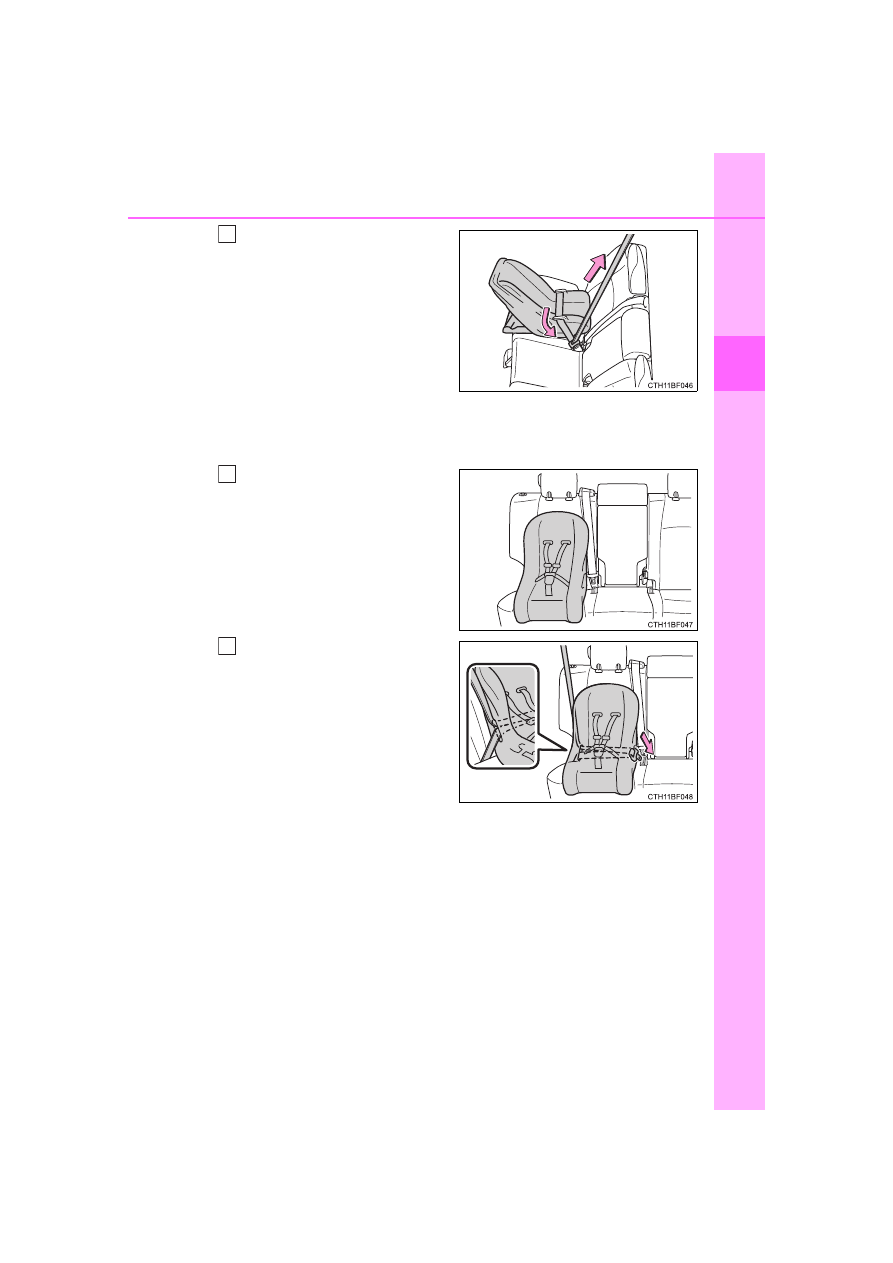

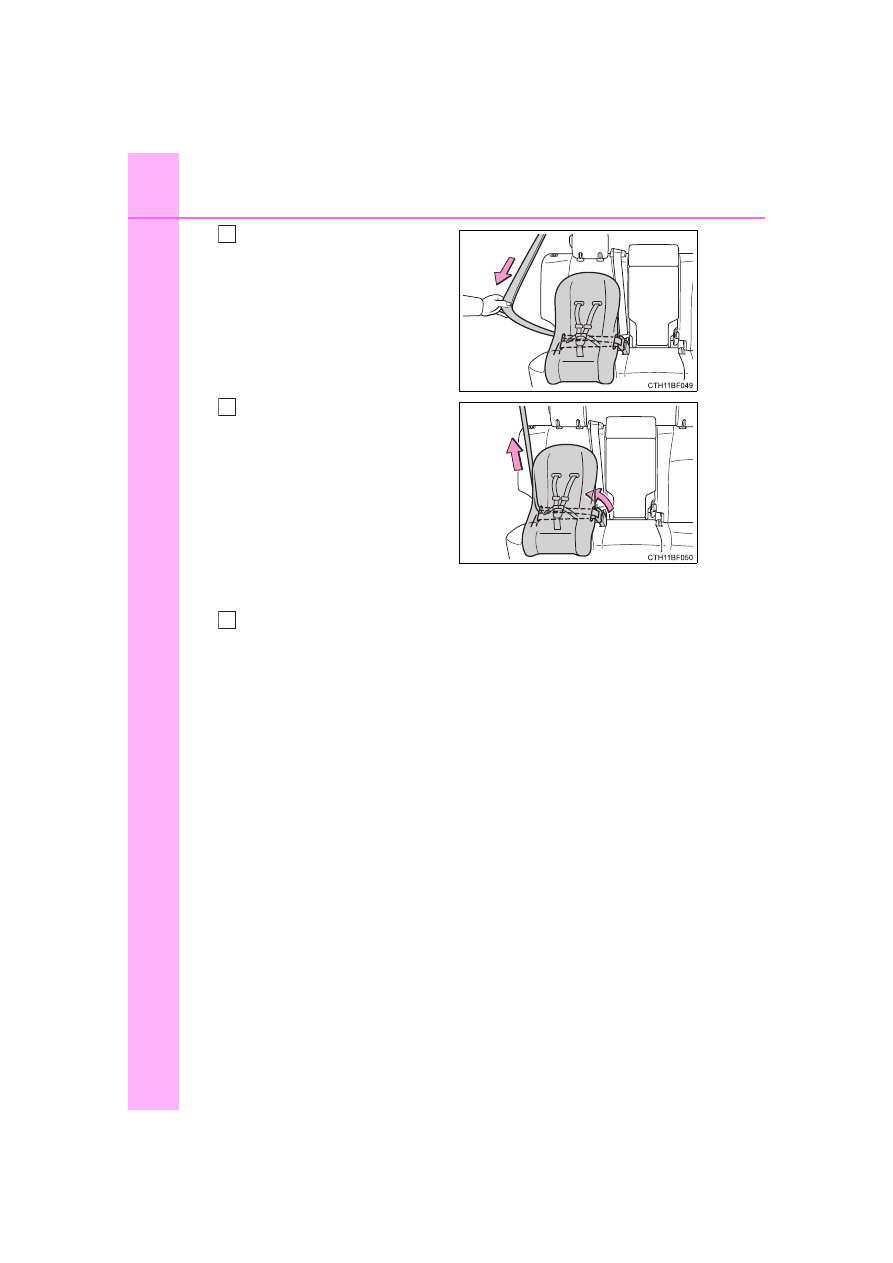

Forward-facing



Convertible seat

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

1-1. For safe use

Fo
r

safety and securi

4RUNNER (U)

■

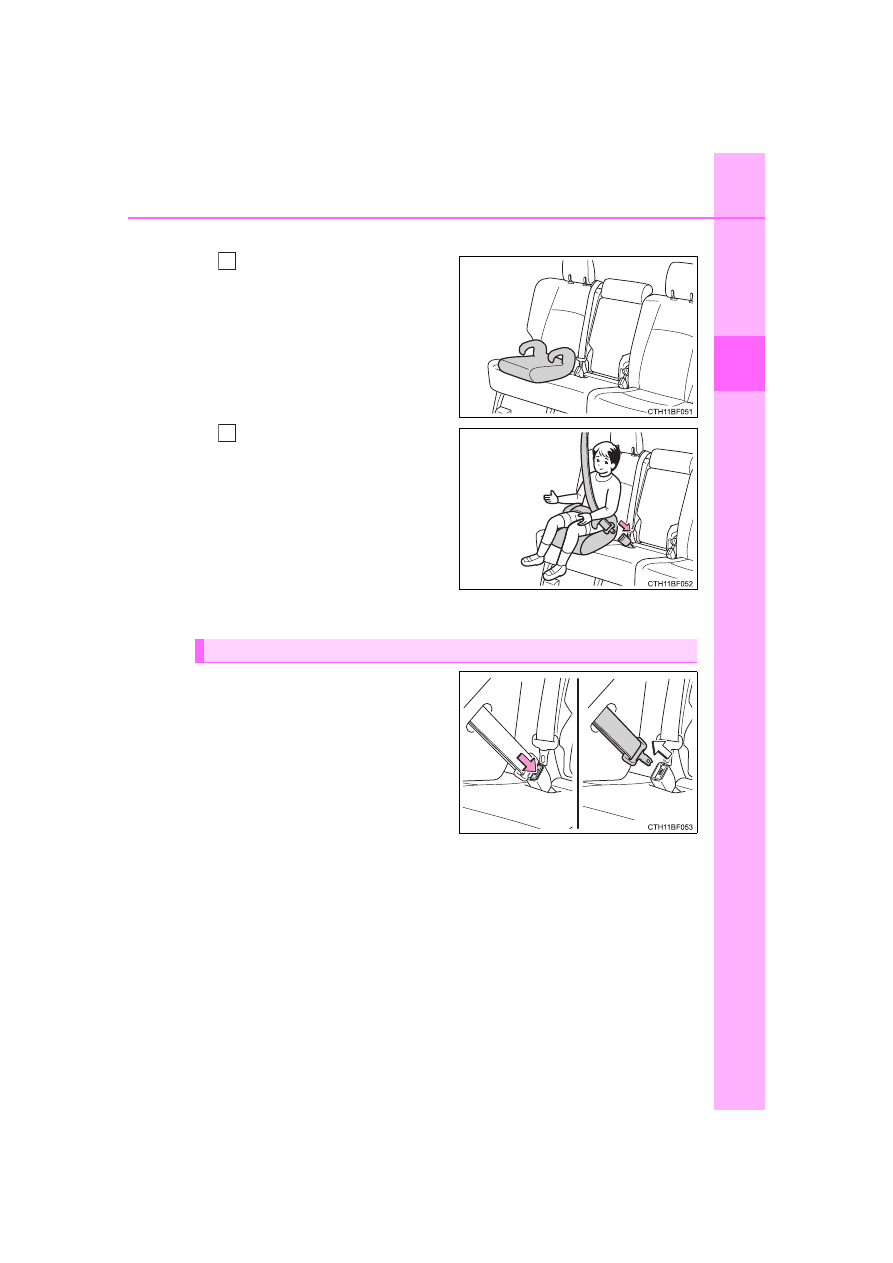

Booster seat

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (



P. 32)

Push the buckle release button
and fully retract the seat belt.

Removing a child restraint installed with a seat belt

1-1. For safe use

r safety

and securi

4RUNNER (U)

■

Laws and regulations pertaining to anchorages

The LATCH system conforms to FMVSS225 or CMVSS210.2.

Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-

tions can be used.

This vehicle is designed to conform to the SAE J1819.

WARNING

■

When installing a booster seat

To prevent the belt from going into ALR lock mode, do not fully extend the

shoulder belt. ALR mode causes the belt to tighten only. This could cause

injury or discomfort to the child. (



P. 33)

■

When installing a child restraint system

Follow the directions given in the child restraint system installation manual

and fix the child restraint system securely in place.

If the child restraint system is not correctly fixed in place, the child or other

passengers may be seriously injured or even killed in the event of a sudden

braking or an accident.

●

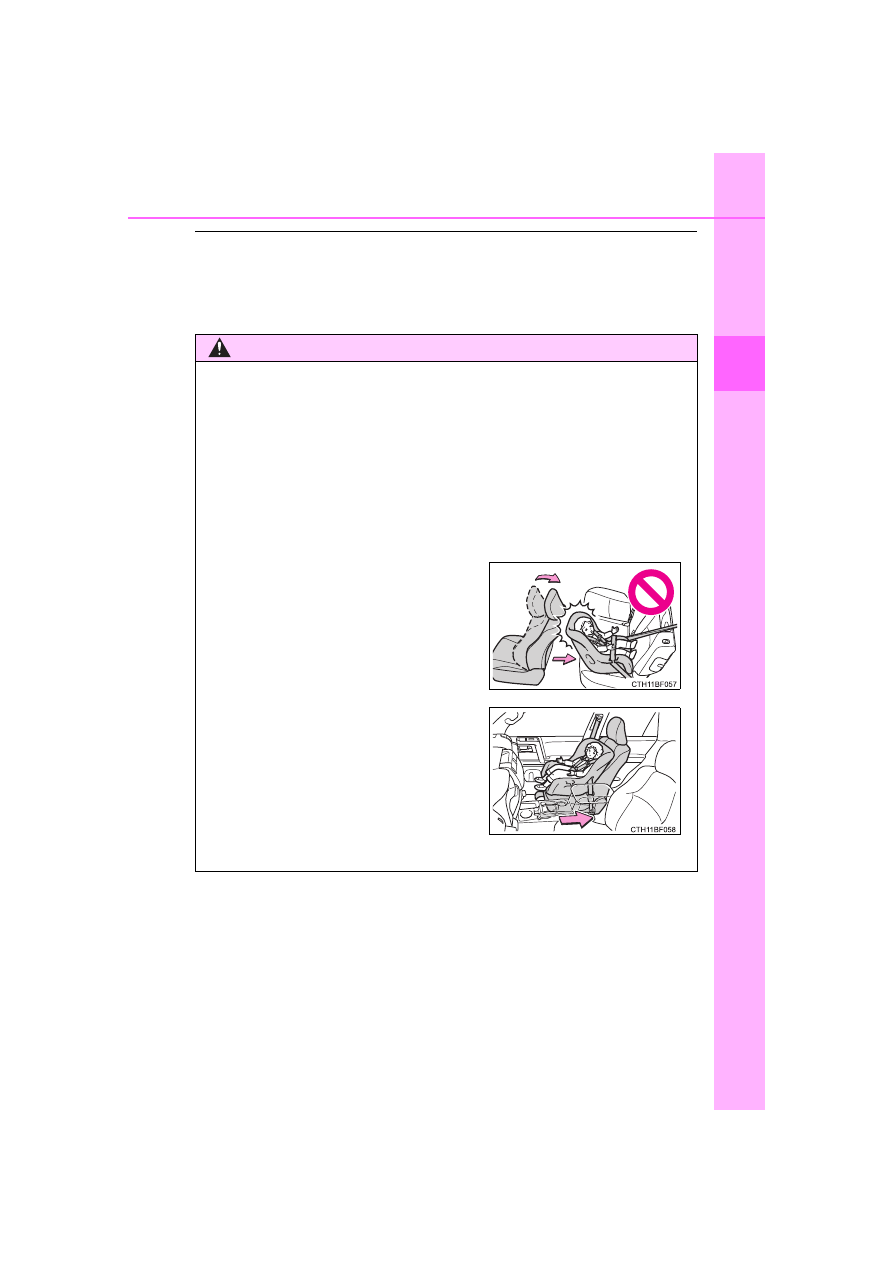

If the driver’s seat interferes with the

child restraint system and prevents it

from being attached correctly, attach the

child restraint system to the right-hand

rear seat.

●

Adjust the front passenger seat so that

it does not interfere with the child

restraint system.

●

Only put a forward-facing child restraint

system on the front seat when unavoid-

able. When installing a forward-facing

child restraint system on the front pas-

senger seat, move the seat as far back

as possible even if the “AIR BAG OFF”

indicator light is illuminated. Failure to

do so may result in death or serious

injury if the airbags deploy (inflate).

1-1. For safe use

4RUNNER (U)

WARNING

■

When installing a child restraint system

●

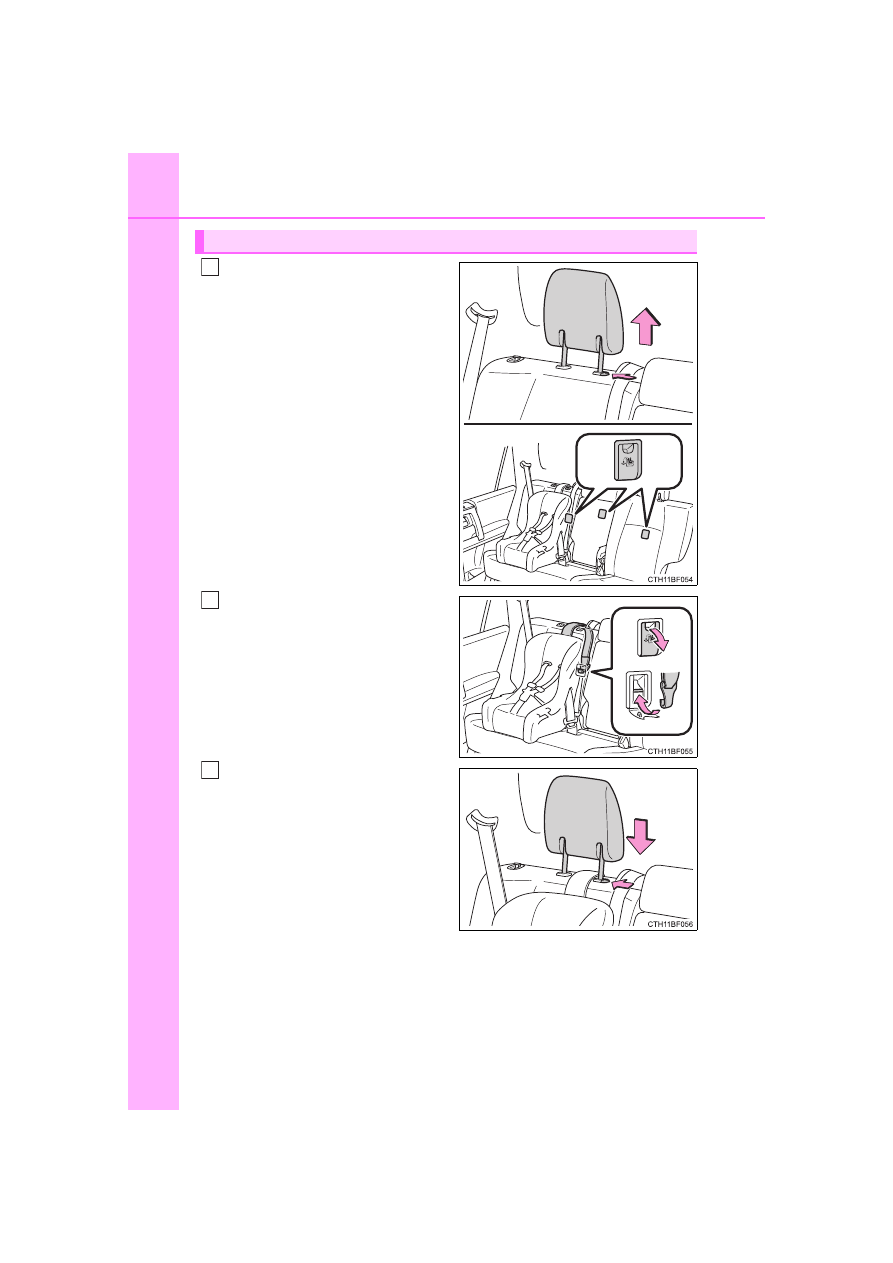

Vehicles with third row seats: When using the LATCH anchors for a child

restraint system, move the seat as far back as possible, with the seatback

close to the child restraint system.

●

When a booster seat is installed, always ensure that the shoulder belt is

positioned across the center of the child’s shoulder. The belt should be

kept away from the child’s neck, but not so that it could fall off the child’s

shoulder. Failing to do so may result in death or serious injury in the event

of an accident or a sudden braking.

●

Ensure that the belt and plate are securely locked and the seat belt is not

twisted.

●

Shake the child restraint system left and right, and forward and backward

to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

Follow all installation instructions provided by the child restraint system

manufacturer.

●

When securing some types of child restraint systems in second or third

row seats, it may not be possible to properly use the seat belts in positions

next to the child restraint without interfering with it or affecting seat belt

effectiveness. Be sure your seat belt fits snugly across your shoulder and

low on your hips. If it does not, or if it interferes with the child restraint,

move to a different position. Failure to do so may result in death or serious

injury.

■

Do not use a seat belt extender

If a seat belt extender is used when installing a child restraint system, the

seat belt will not securely hold the child restraint system, which could cause

death or serious injury to the child or other passengers in the event of a sud-

den braking, sudden swerving or an accident.

■

To correctly attach a child restraint system to the anchors

When using the LATCH anchors, be sure that there are no foreign objects

around the anchors and that the seat belt is not caught behind the child

restraint system. Make sure the child restraint system is securely attached,

or it may cause death or serious injury to the child or other passengers in

the event of a sudden braking or an accident.

1-1. For safe use

r safety

and securi

4RUNNER (U)

Exhaust gas precautions

Harmful substance to the human body is included in exhaust

gases if inhale.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and

odorless. Observe the following precautions.

Failure to do so may cause exhaust gases enter the vehicle and may lead to

an accident caused by light-headedness, or may lead to death or a serious

health hazard.

■

Important points while driving

●

Keep the back door closed.

●

If you smell exhaust gases in the vehicle even when the back door is

closed, open the windows and have the vehicle inspected at your Toyota

dealer as soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a

garage, stop the engine.

●

Do not leave the vehicle with the engine on for a long time.

If such a situation cannot be avoided, park the vehicle in an open space

and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it

is snowing. If snowbanks build up around the vehicle while the engine is

running, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or

crack caused by corrosion, damage to a joint or abnormal exhaust noise, be

sure to have the vehicle inspected and repaired by your Toyota dealer.

4RUNNER (U)

1-2. Emergency assistance

■

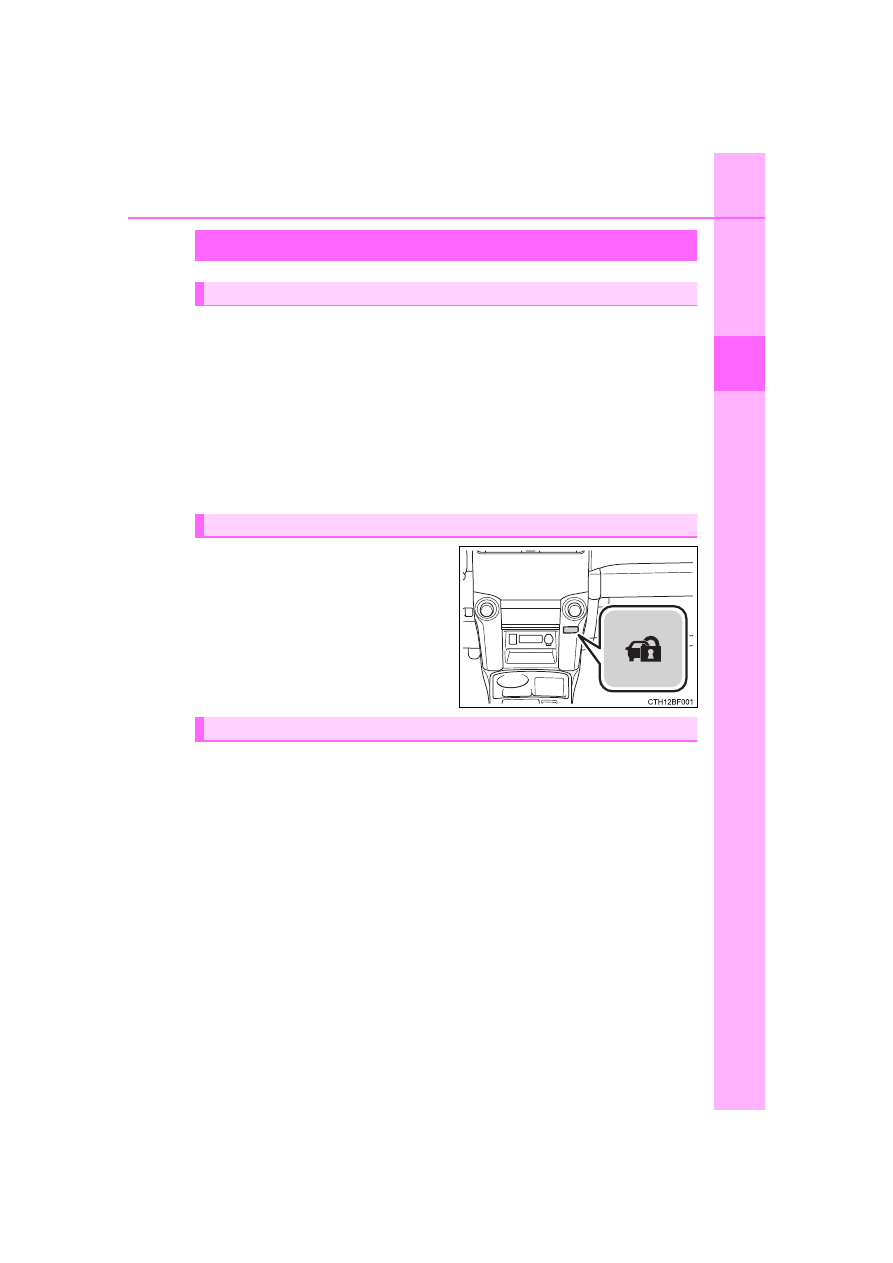

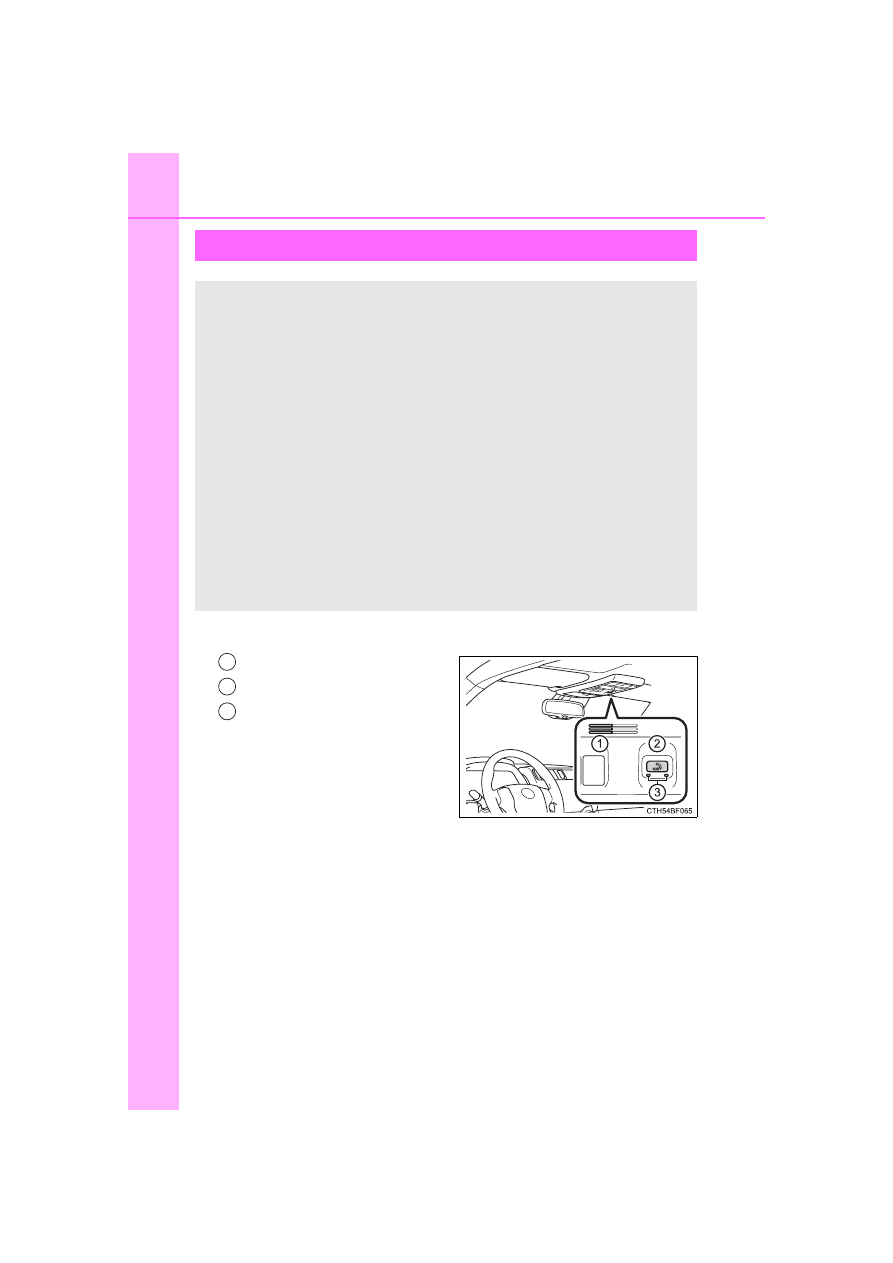

System components

Microphone

“SOS” button

LED light indicators

Safety Connect



: If equipped

Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.

Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.

By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.

1-2. Emergency assistance

Fo
r

safety and securi

4RUNNER (U)

■

Services

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification

Helps drivers receive necessary response from emergency ser-
vice providers. (



P. 75)

: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 75)

●

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (



P. 75)

●

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (



P. 76)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Customer Experi-
ence Center or push the “SOS” button in your vehicle for further
subscription details.

• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

1-2. Emergency assistance

4RUNNER (U)

■

Safety Connect Services Information

●

Phone calls using the vehicles Bluetooth

technology will not be possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the contiguous United States only). Contact with the Safety Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emer-
gency service support. Enrollment and Telematics Subscription Service
Agreement required. A variety of subscription terms is available; charges
vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

1-2. Emergency assistance

Fo
r

safety and securi

4RUNNER (U)

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency, contacts the nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.

Safety Connect services

1-2. Emergency assistance

4RUNNER (U)

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.

Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com in the United States, Toyotapr.com in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.

In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]

●

ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).

The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

4RUNNER (U)

1-3. Theft deterrent system

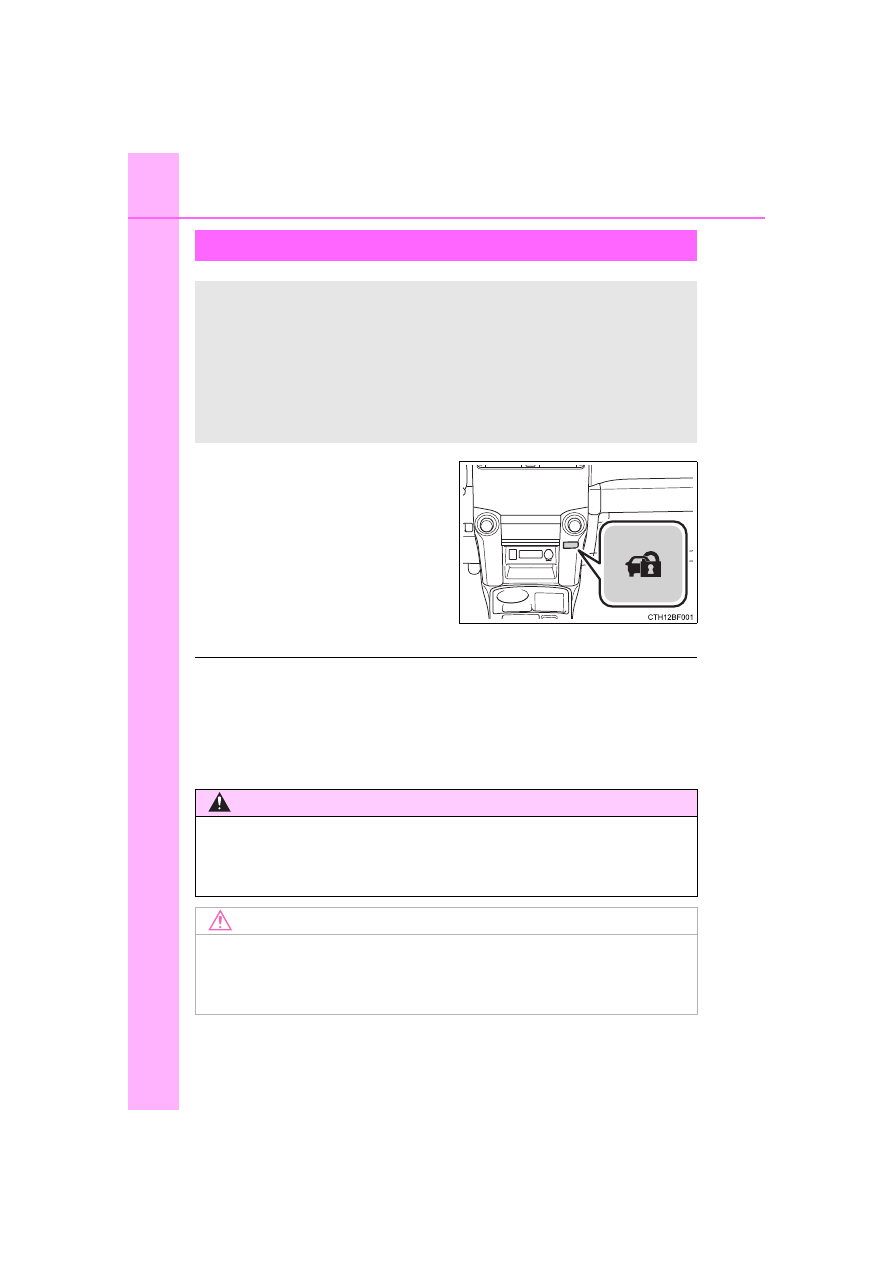

The indicator light flashes after

the engine switch has been turned

off to indicate that the system is

operating.
The indicator light stops flashing

after the engine switch has been

turned to ACCESSORY or IGNI-

TION ON mode to indicate that

the system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system

(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent

the engine from starting if a key has not been previously regis-

tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-

cle.
This system is designed to help prevent vehicle theft but does

not guarantee absolute security against all vehicle thefts.

WARNING

■

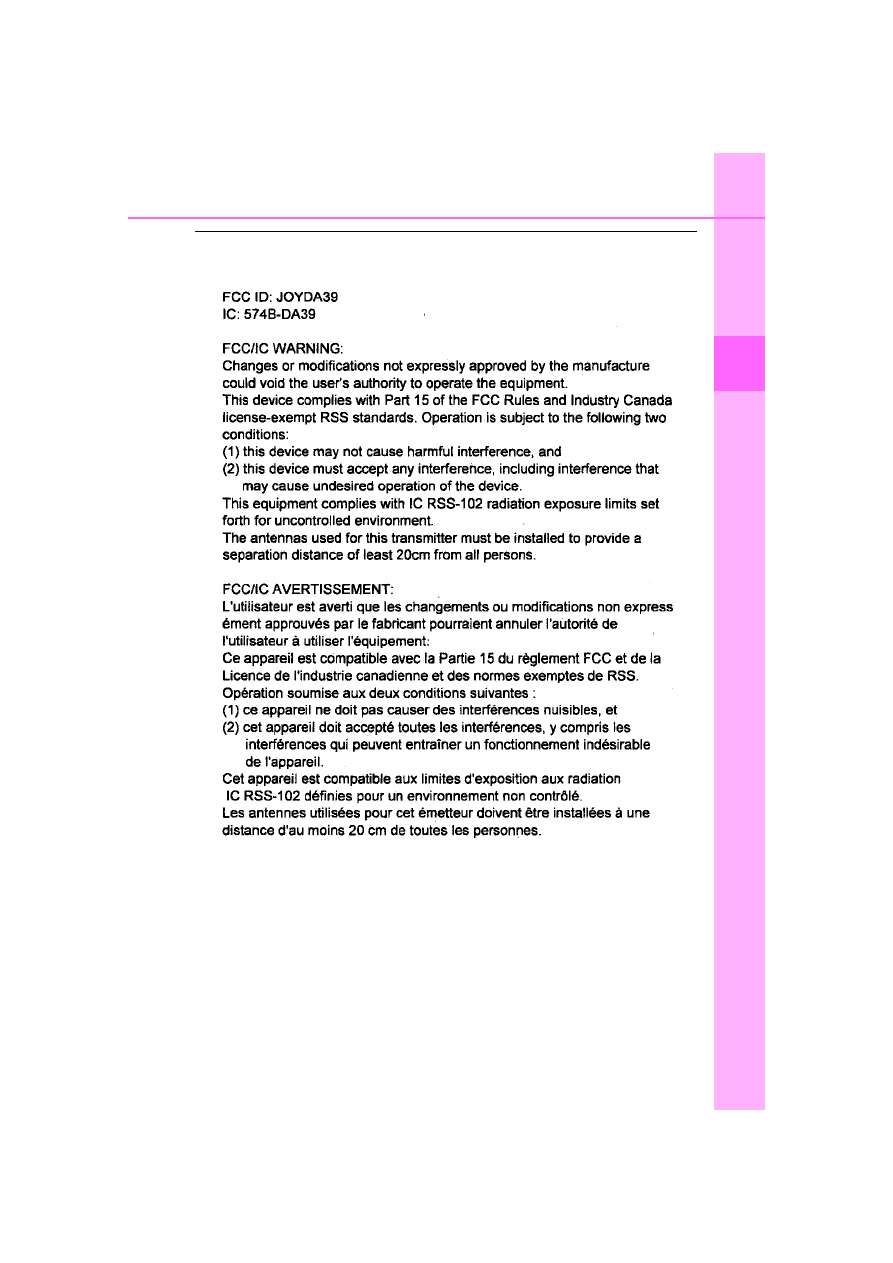

Certifications for the engine immobilizer system

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper

operation of the system cannot be guaranteed.

1-3. Theft deterrent system

Fo
r

safety and securi

4RUNNER (U)

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

●

The hood is opened.

●

The battery is reconnected.

Close the doors and hood, and
lock all the doors. The system will
be set automatically after 30 sec-
onds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stopping the alarms:

●

Unlock the doors.

●

Turn the engine switch is in ACCESSORY or IGNITION ON mode,
or start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

Alarm



: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

1-3. Theft deterrent system

4RUNNER (U)

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of

the following:

●

Nobody is in the vehicle.

●

The windows and moon roof are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

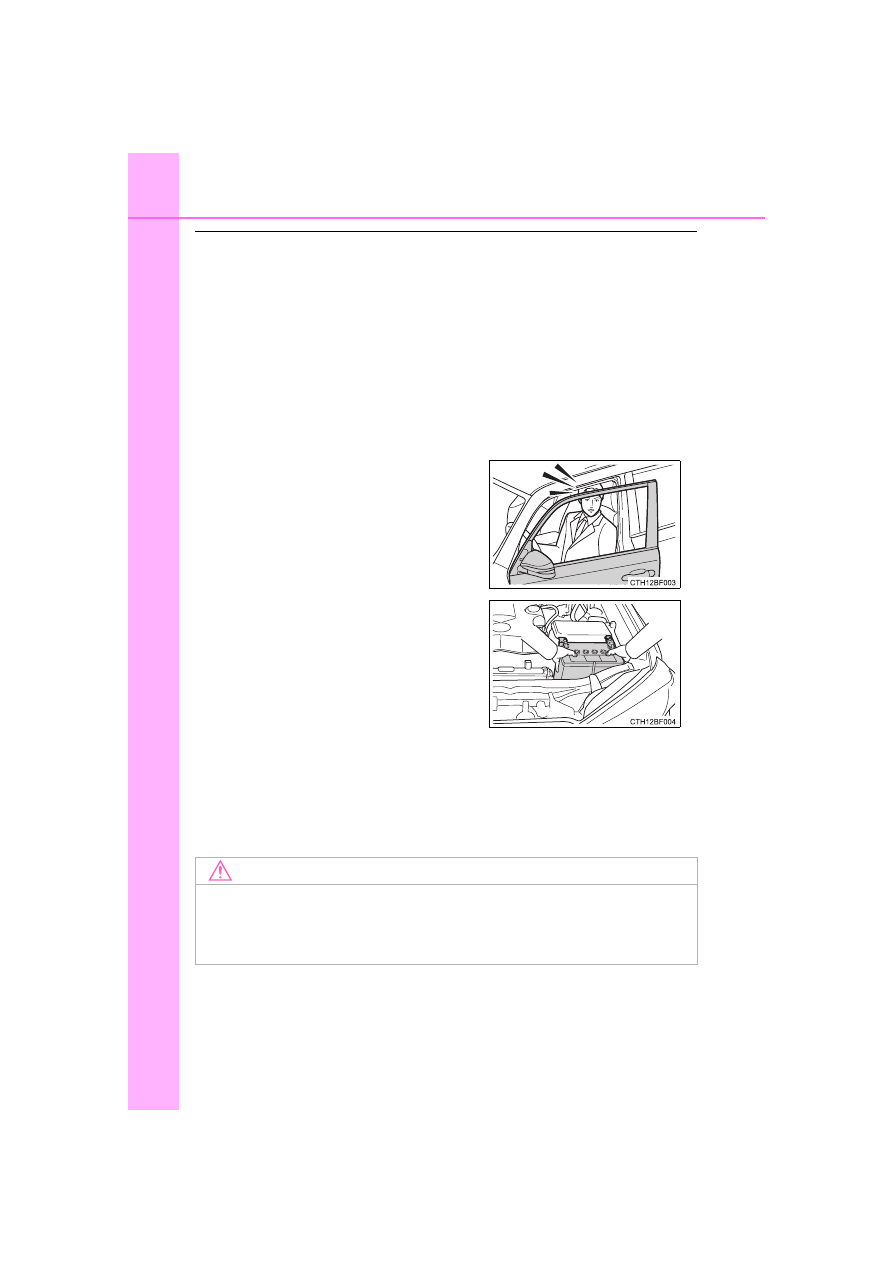

Triggering of the alarm

The alarm may be triggered in the following situations:

(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock

●

When the alarm is operating, the doors are locked automatically to prevent

intruders.

●

Do not leave the key inside the vehicle when the alarm is operating, and

make sure the key is not inside the vehicle when recharging or replacing the

battery.

●

A person inside the vehicle opens a door

or the hood.

●

The battery is recharged or replaced

when the vehicle is locked.

NOTICE

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper

operation of the system cannot be guaranteed.

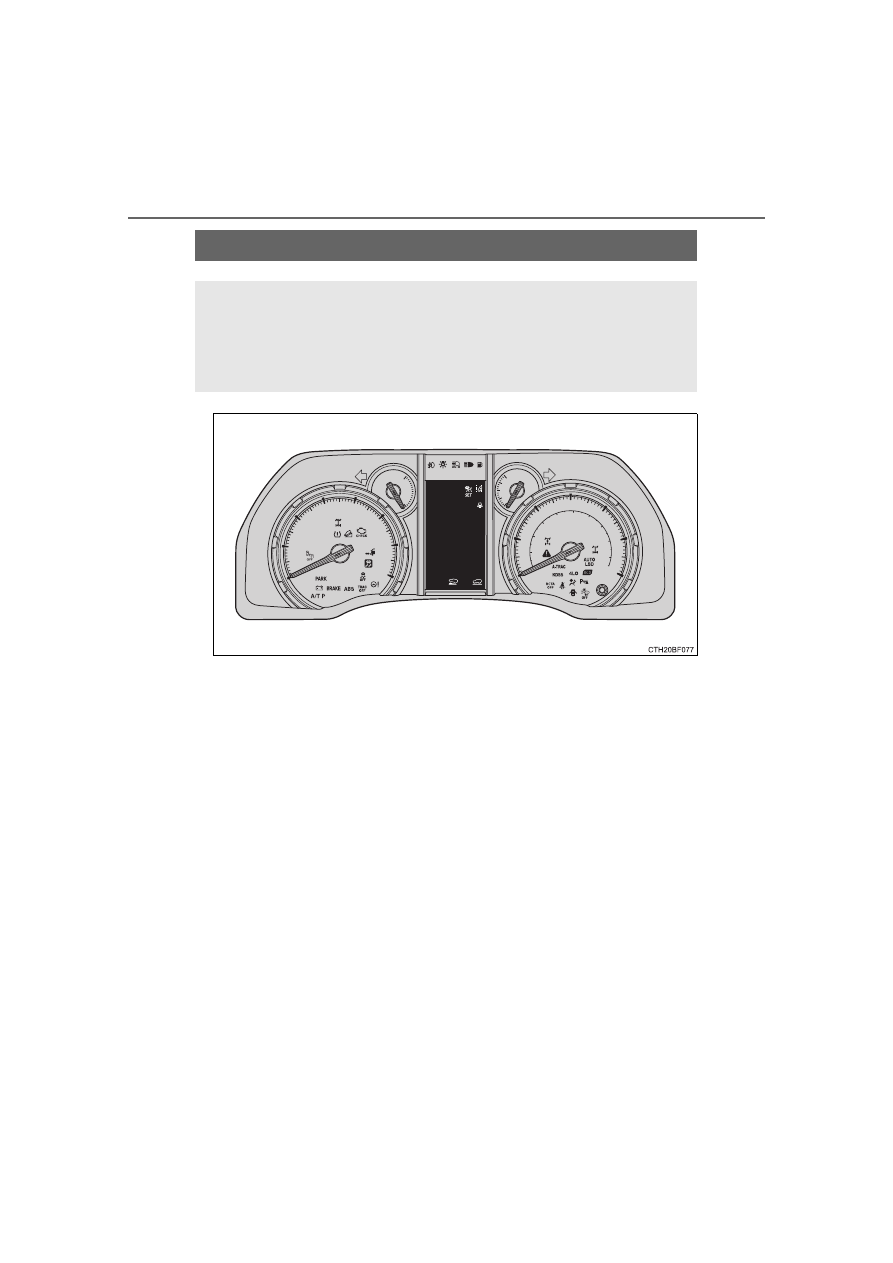

2. Instrument cluster

Instrum

nt clus

ter

4RUNNER (U)

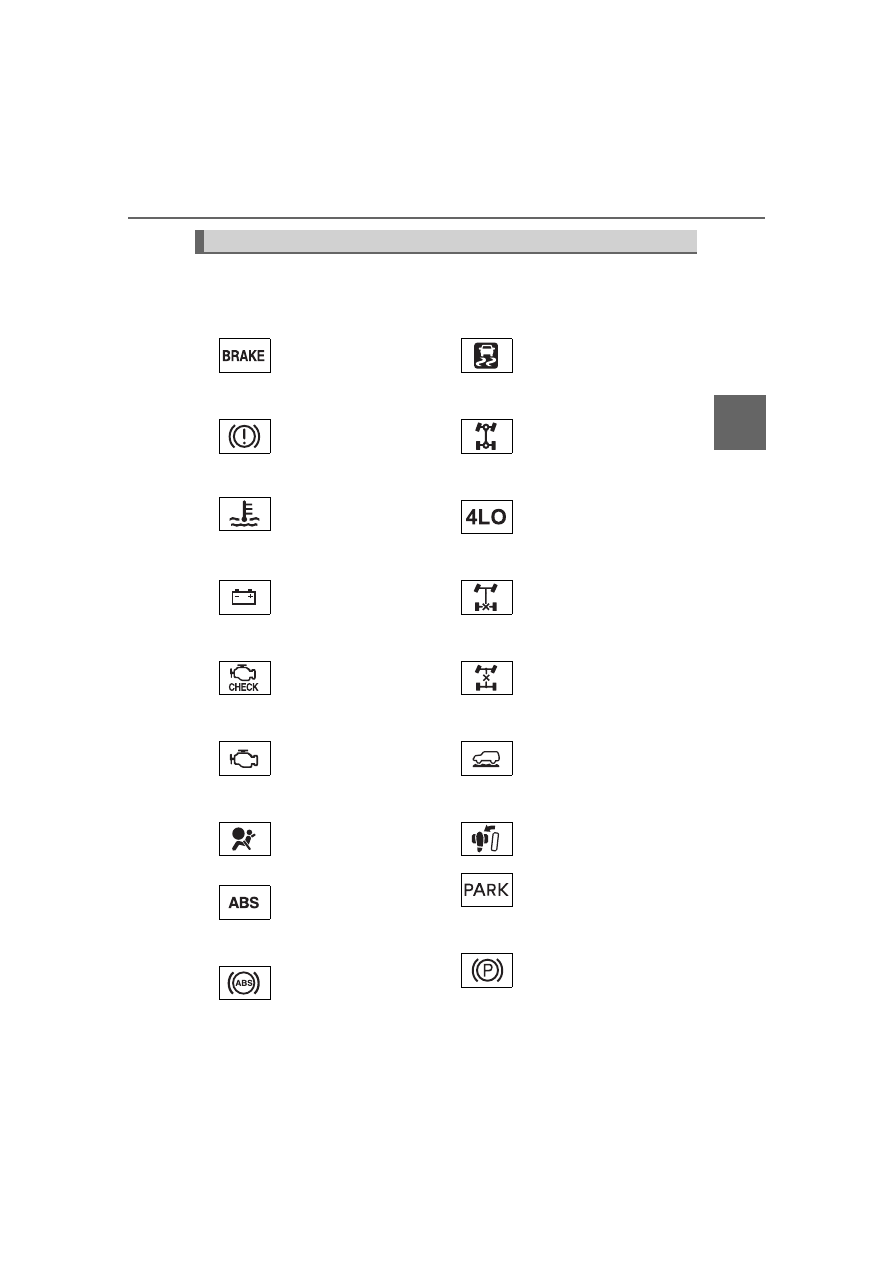

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light (



P. 477)

Slip indicator (



P. 478)

(Canada)

Brake system warning
light (



P. 477)

(if equipped)

Four-wheel drive indica-
tor light (



P. 479)

High coolant tempera-
ture warning light
(



P. 477)

(if equipped)

Low speed four-wheel
drive indicator light
(



P. 479)

Charging system warn-
ing light (



P. 477)

(if equipped)

Rear differential lock
indicator light (



P. 478)

(U.S.A.)

Malfunction indicator
lamp (



P. 478)

(if equipped)

Center differential lock
indicator light (



P. 479)

(Canada)

Malfunction indicator
lamp (



P. 478)

2, 4, 5

(if equipped)

Multi-terrain Select indi-
cator light (



P. 479)

SRS warning light
(



P. 478)

Brake Override System/
Drive-Start Control/
warning light (



P. 480)

(U.S.A.)

ABS warning light
(



P. 478)

(U.S.A.)

Parking brake indicator
(



P. 480)

(Canada)

ABS warning light
(



P. 478)

(Canada)

Parking brake indicator
(



P. 480)

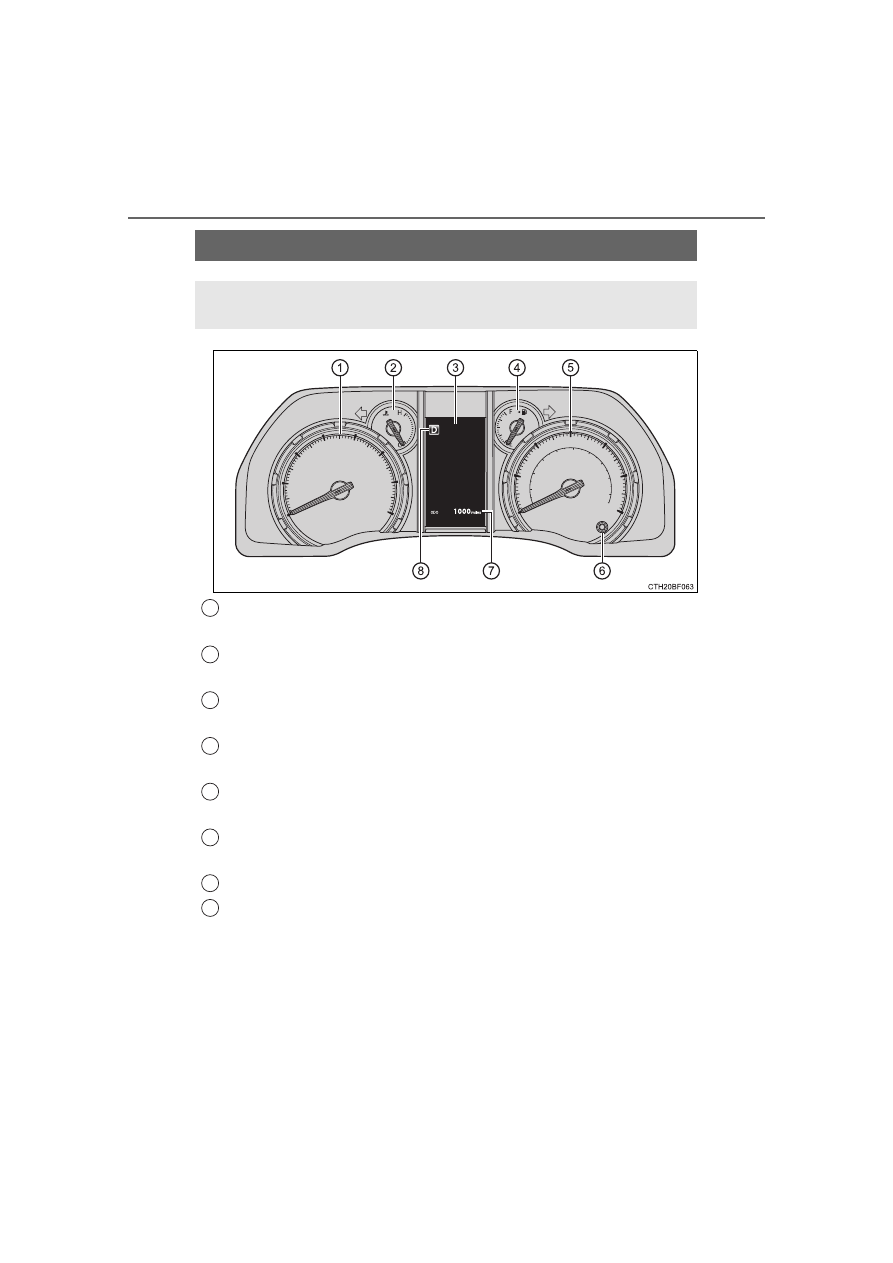

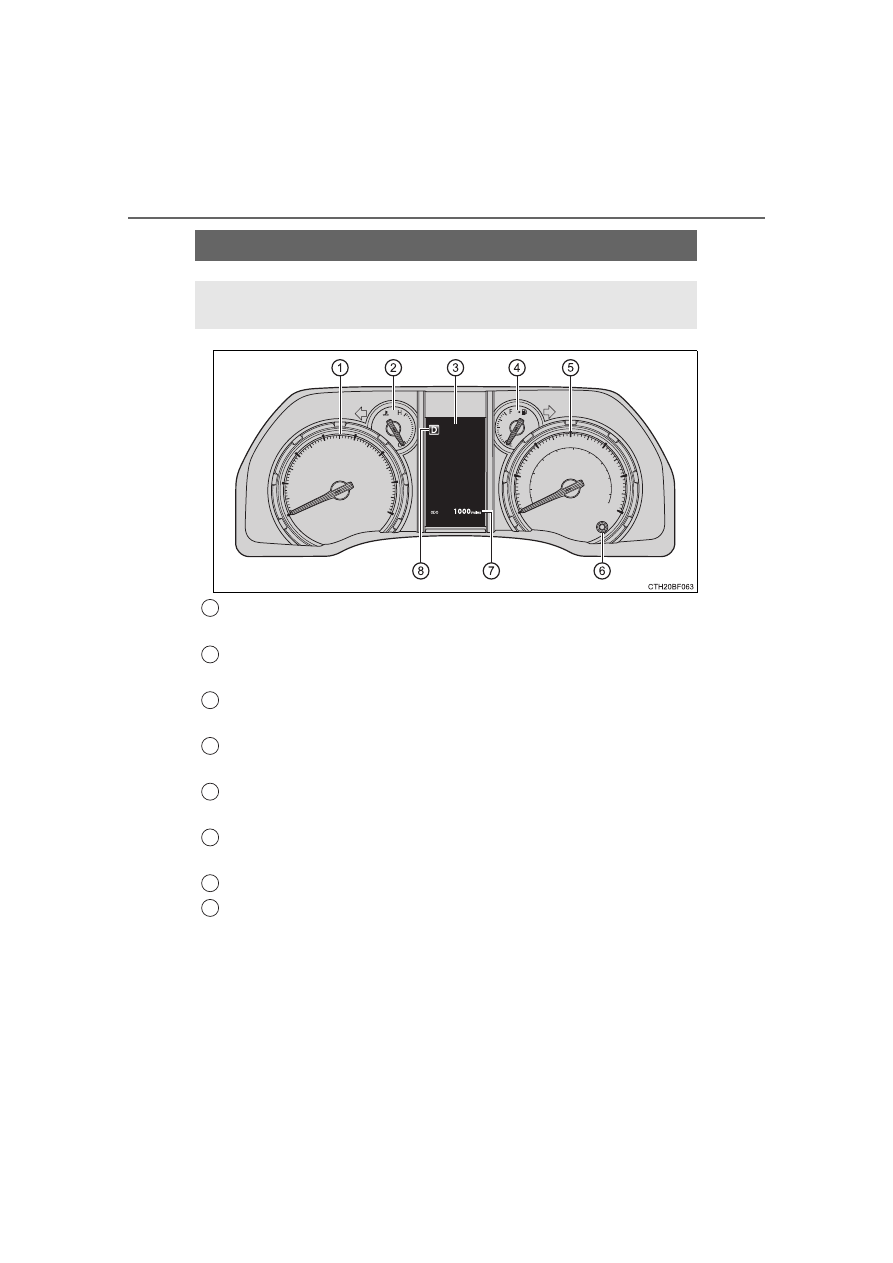

2. Instrument cluster

4RUNNER (U)

: These lights turn on when the engine switch is turned to IGNITION ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

: This light flashes to indicate a malfunction.

: This light flashes rapidly to indicate a malfunction.

: This light flashes continuously to indicate a malfunction.

: This light illuminates on the multi-information display.

: This light flashes or illuminates to indicate a malfunction.

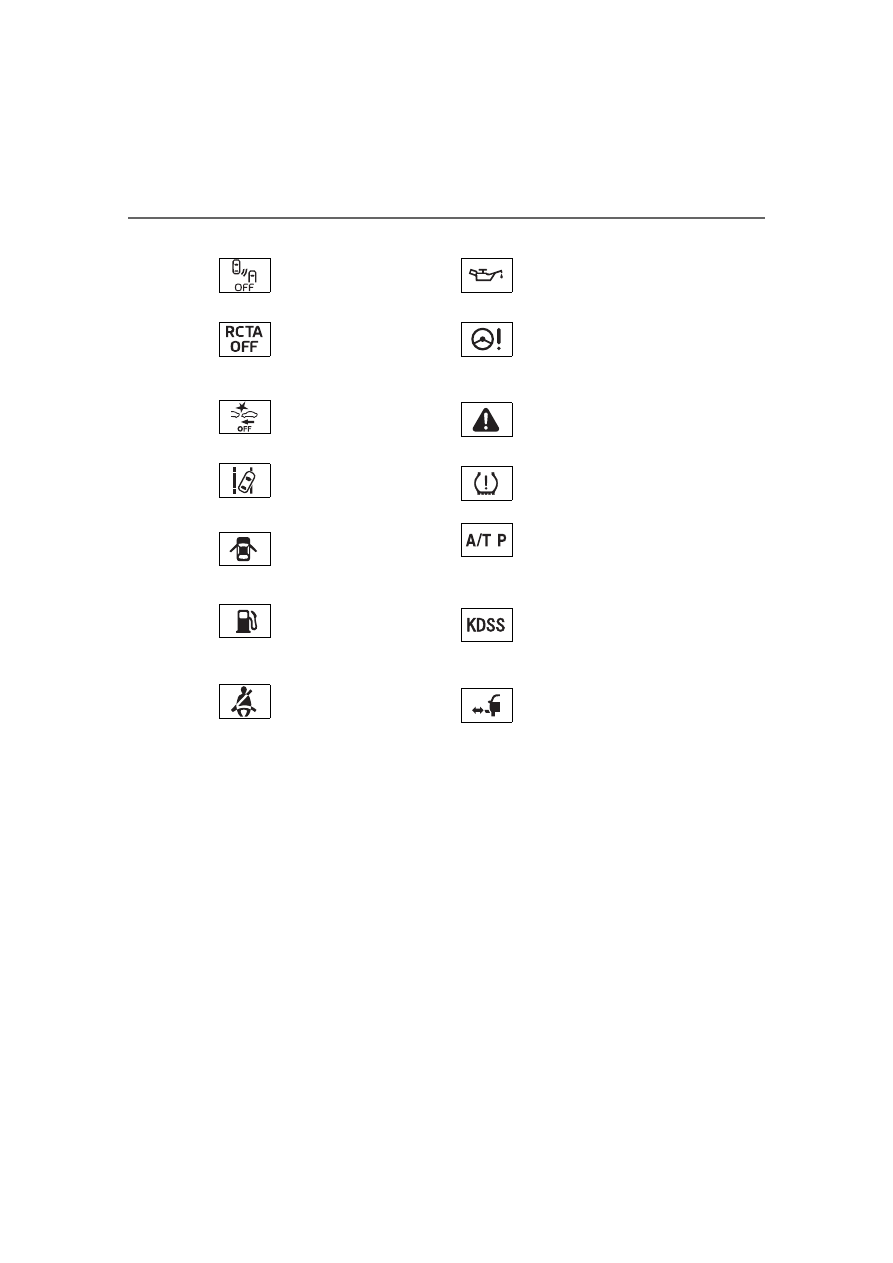

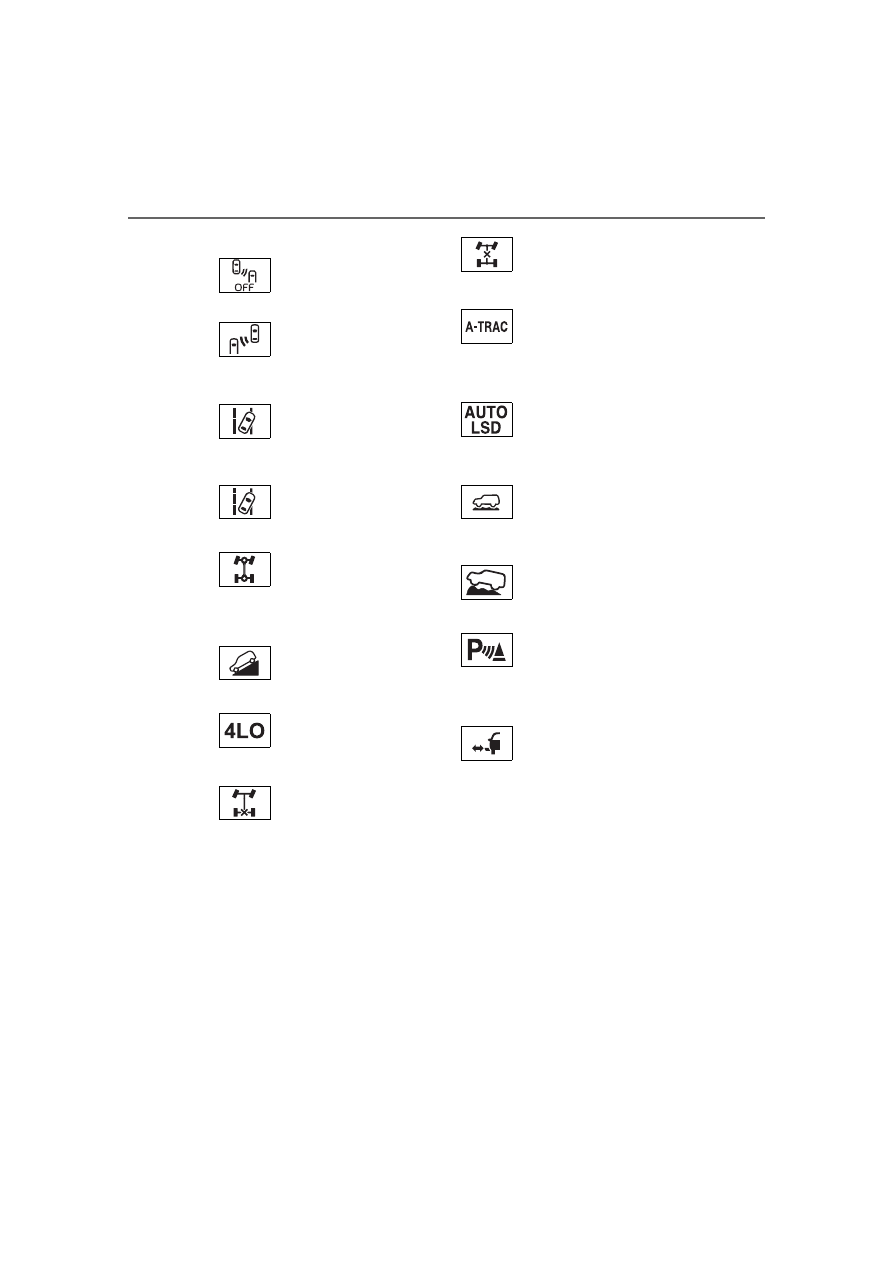

BSM OFF (Blind Spot
Monitor) indicator
(



P. 482)

Low engine oil pressure
warning light (



P. 477)

(Flashes)

RCTA OFF (Rear Cross
Traffic Alert) indicator
(



P. 482)

Power steering warning
light (



P. 479)

1, 6

PCS warning light
(



P. 481)

Master warning light
(



P. 488)

(Amber)

LDA indicator (



P. 481)

Tire pressure warning
light (



P. 481)

Open door warning light
(



P. 479)

(if equipped)

Unengaged “Park” warn-
ing light (



P. 479)

Low fuel level warning
light (



P. 480)

(if equipped)

KDSS warning light
(



P. 479)

Seat belt reminder light
(



P. 480)

1, 2

(if equipped)

Automatic running
boards indicator light
(



P. 479)

2. Instrument cluster

Instrum

ent

clus
ter

4RUNNER (U)

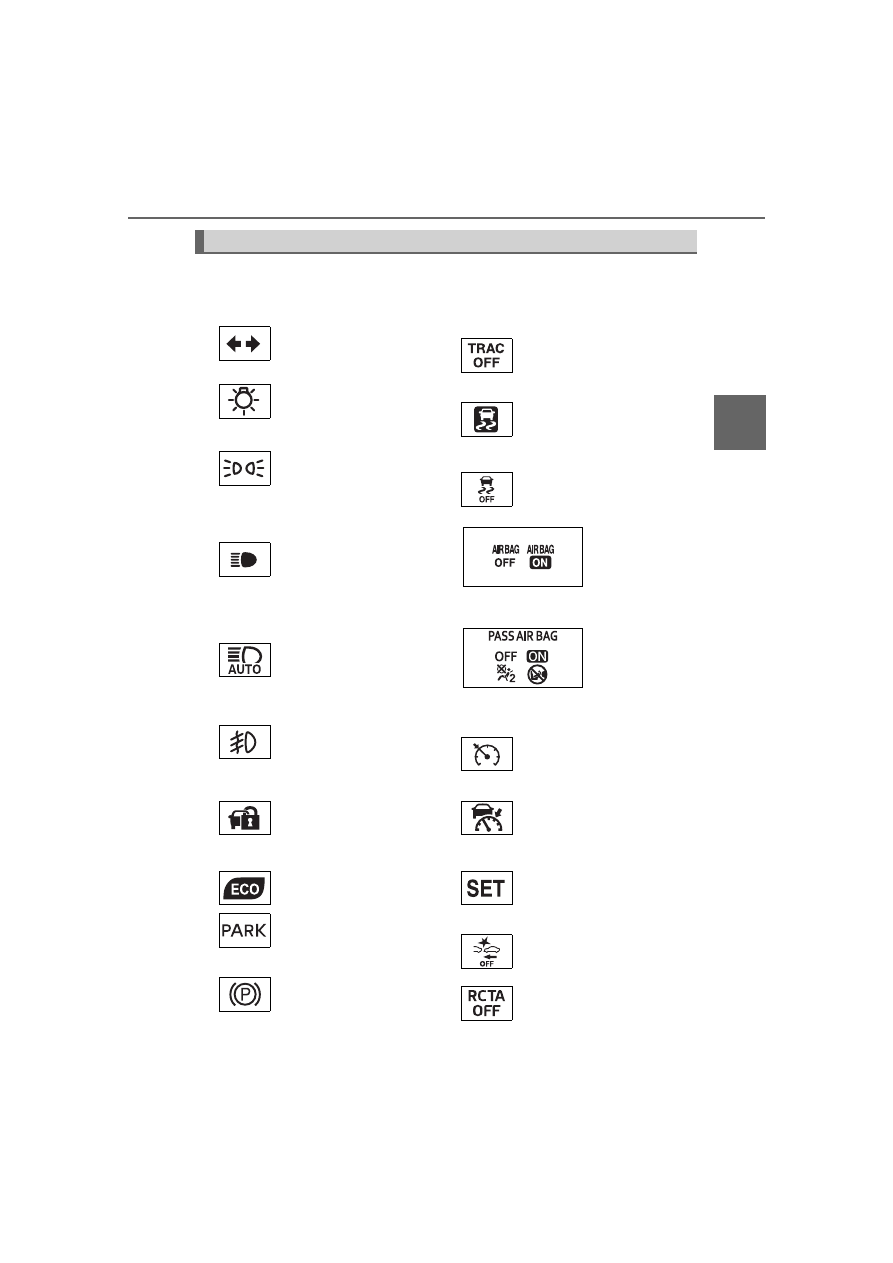

The indicators inform the driver of the operating state of the vehicle’s

various systems.

Indicators

Turn signal indicator

(



P. 210)

“TRAC OFF” indicator

(



P. 324)

(U.S.A.)

Headlight indicator

(



P. 212)

1, 2

Slip indicator (



P. 323)

(Canada)

Tail light indicator

(



P. 212)

VSC OFF indicator

(



P. 324)

Headlight high beam

indicator (



P. 214)

Automatic High Beam

indicator (



P. 217)

Front fog light indicator

(



P. 221)

Cruise control indicator

(



P. 257)

Security indicator

(



P. 78, 79)

Dynamic radar cruise

control indicator

(



P. 257)

1, 3

Eco Driving Indicator

Light (



P. 98)

Cruise control set indica-

tor (



P. 257)

(U.S.A.)

Parking brake indicator

(



P. 211)

1, 6

PCS warning light

(



P. 239)

(Canada)

Parking brake indicator

(



P. 211)

RCTA OFF (Rear Cross

Traffic Alert) indicator

(



P. 286)

“AIR BAG

ON/OFF”

indicator

(



P. 48)

1, 4

(U.S.A.)

“AIR BAG

ON/OFF”

indicator

(



P. 48)

1, 4

(Canada)

2. Instrument cluster

4RUNNER (U)

1, 6

BSM OFF (Blind Spot
Monitor) indicator
(



P. 270)

(if equipped)

Center differential lock
indicator (



P. 298)

1, 7, 8

(if equipped)

Outside rear view mirror
indicator (



P. 270)

(if equipped)

“A-TRAC” indicator
(



P. 302)

(Green)

LDA indicator (



P. 249)

(if equipped)

“AUTO LSD” indicator
(



P. 304)

2, 5

(Amber)

LDA indicator (



P. 249)

(if equipped)

Multi-terrain Select indi-
cator (



P. 315)

(if equipped)

Four-wheel drive indica-
tor (



P. 294)

(if equipped)

Crawl Control indicator
(



P. 312)

(if equipped)

Downhill assist control
system indicator
(



P. 309)

(if equipped)

Intuitive parking assist
indicator (



P. 277)

(if equipped)

Low speed four-wheel
drive indicator
(



P. 294, 298)

1, 2

(if equipped)

Automatic running
boards indicator
(



P. 121)

(if equipped)

Rear differential lock
indicator (



P. 306)

2. Instrument cluster

Instrum

ent

clus
ter

4RUNNER (U)

: These lights turn on when the engine switch is turned to IGNITION ON

mode to indicate that a system check is being performed. They will turn off

after the engine is started, or after a few seconds. There may be a mal-

function in a system if a light does not come on, or turn off. Have the vehi-

cle inspected by your Toyota dealer.

: This light flashes to indicate that the system is operating.

: This light does not turn on when the system is disabled.

: This light illuminates on the center panel.

: This light illuminates on the multi-information display.

: This light turns on when the system is off.

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to IGNITION ON mode while the sys-

tem is set to on.

• When the system is set to on while the engine switch is in IGNITION ON

mode.

: This light illuminates on the outside rear view mirrors.

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning light not

come on when you start the engine, this could mean that these systems are

not available to help protect you in an accident, which could result in death

or serious injury. Have the vehicle inspected by your Toyota dealer immedi-

ately if this occurs.

2. Instrument cluster

4RUNNER (U)

Tachometer

Displays the engine speed in revolutions per minute

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P. 90)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Speedometer

Displays the vehicle speed

Odometer/trip meter display change button

Switches the trip information.

Odometer/trip meter display

Shift position and shift range

Displays the selected shift position or selected shift range (



P. 205)

Gauges and meters

The displayed content may differ depending on the type of
meter.

2. Instrument cluster

Instrum

ent

clus
ter

4RUNNER (U)

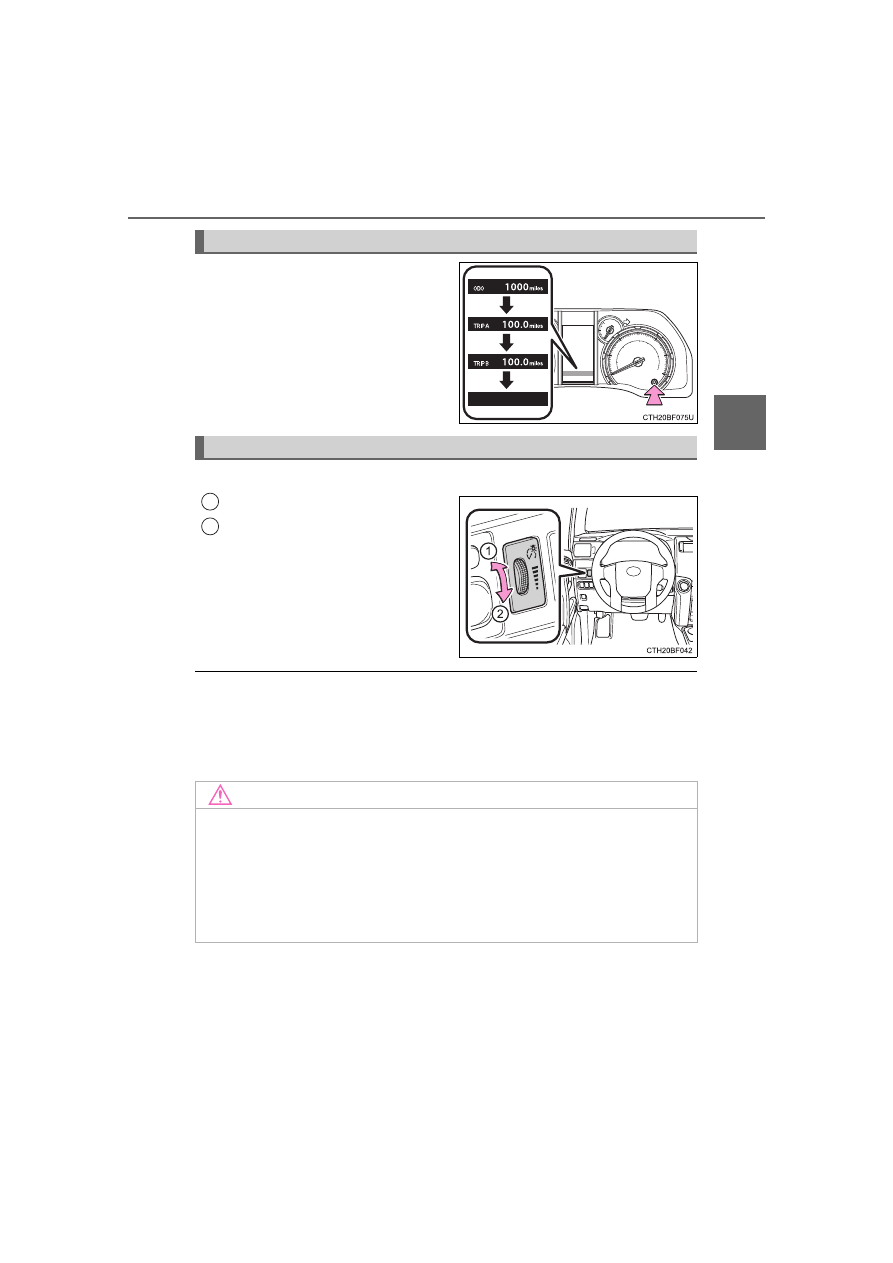

Switches between odometer and

trip meter displays. When the trip

meter is displayed, pressing and

holding the button will reset the

trip meter.

The brightness of the instrument panel lights can be adjusted.

Brighter
Darker

■

The meters and display illuminate when

The engine switch is in IGNITION ON mode.

■

The brightness of the instrument panel lights

When the headlight switch is turned to on, the brightness will be reduced

slightly unless the control dial is turned fully upward.

Changing the display

Instrument panel light control

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is

in the red zone (H). In this case, immediately stop the vehicle in a safe

place, and check the engine after it has cooled completely. (



P. 519)

2. Instrument cluster

4RUNNER (U)

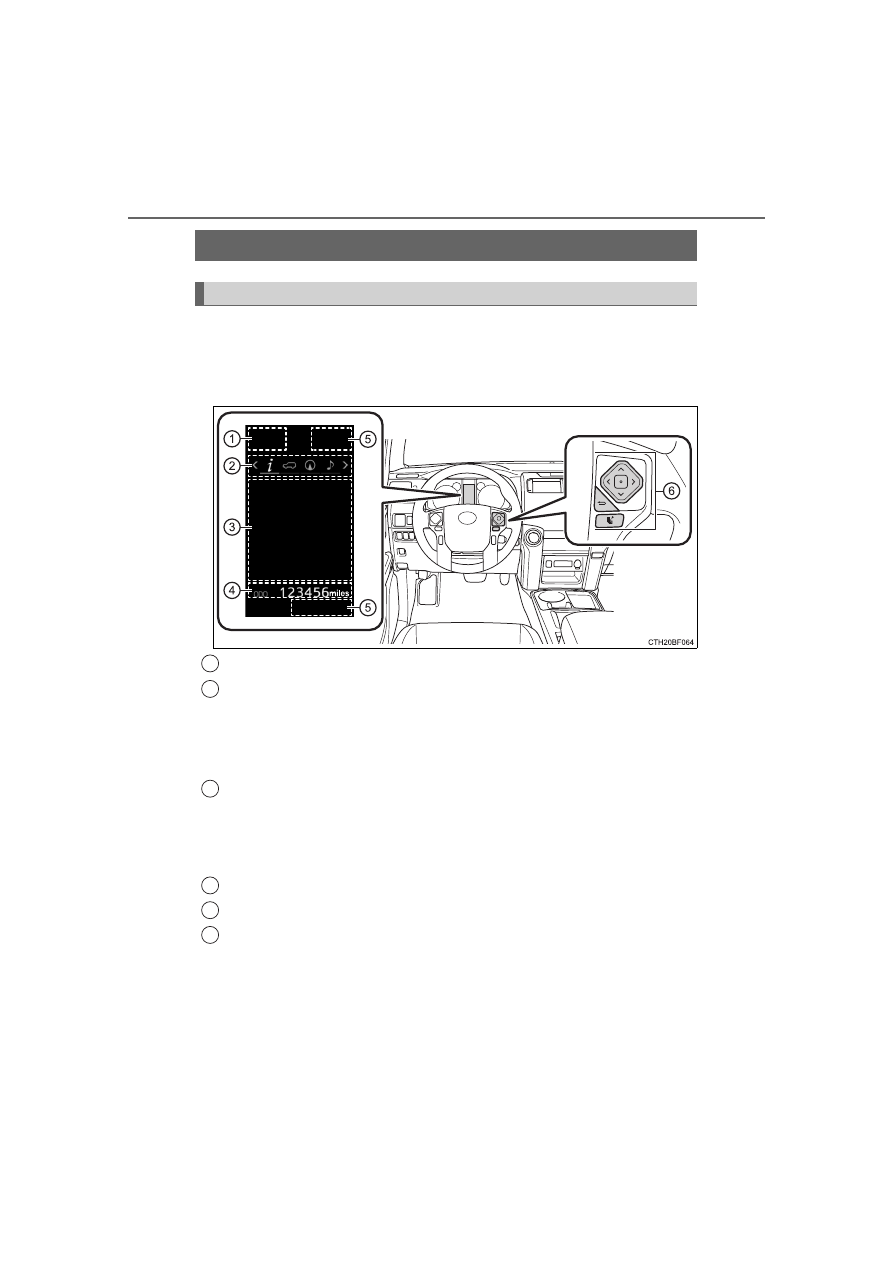

The multi-information display presents the driver with a variety of driv-
ing related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.

Shift position and shift range (



P. 205

)

Menu icon display area

Displays the following items.

When a menu icon is not selected, the outside temperature is displayed.

• Menu icons (



P. 92)

• Outside temperature (



P. 98)

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or pop-up display will be displayed in some situations.

• Menu icon content (

• Warning message (

Odometer and trip meter

(



P. 88)

Indicators

(



P. 82)

Meter control switches

(



P. 91)

Multi-information display

Summary of functions

2. Instrument cluster

Instrum

nt clus

ter

4RUNNER (U)

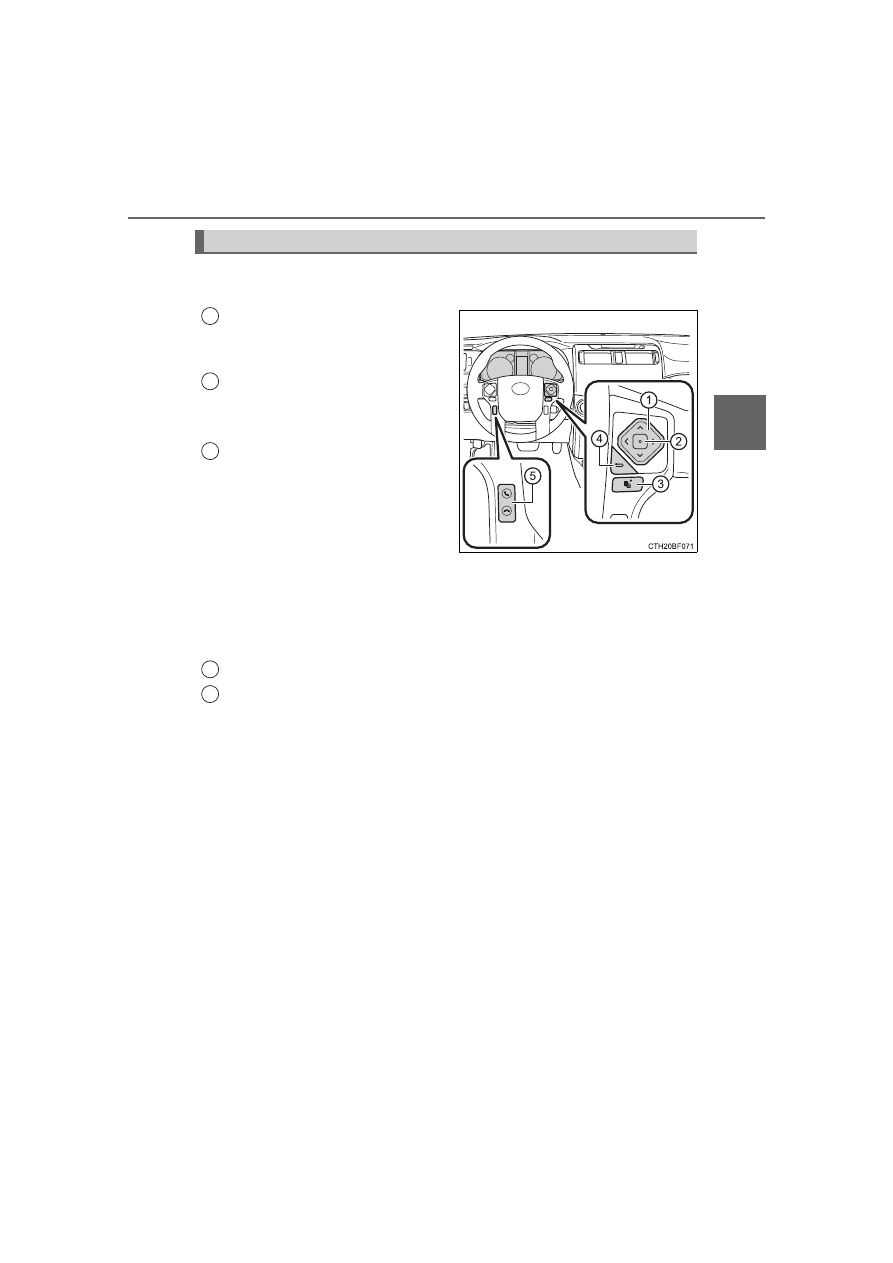

The multi-information display is operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor

Press: Enter/Set

Press and hold:
Reset/Display the next screen

Press: Displays the screen reg-
istered as the top screen

When no screen has been regis-
tered, the drive information screen
will be displayed.

Press and hold: Registers the
currently displayed screen as
the top screen

When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.

Return to the previous screen

Call sending/receiving display

Linked with the hands-free system, sending or receiving call is displayed.
For details regarding the hands-free system, refer to the “Navigation sys-
tem owner's manual”.

: When the screen can be scrolled or different content can be displayed, a

mark, such as an arrow, will be displayed to suggest which switch to oper-
ate.

Operating the meter control switches

2. Instrument cluster

4RUNNER (U)

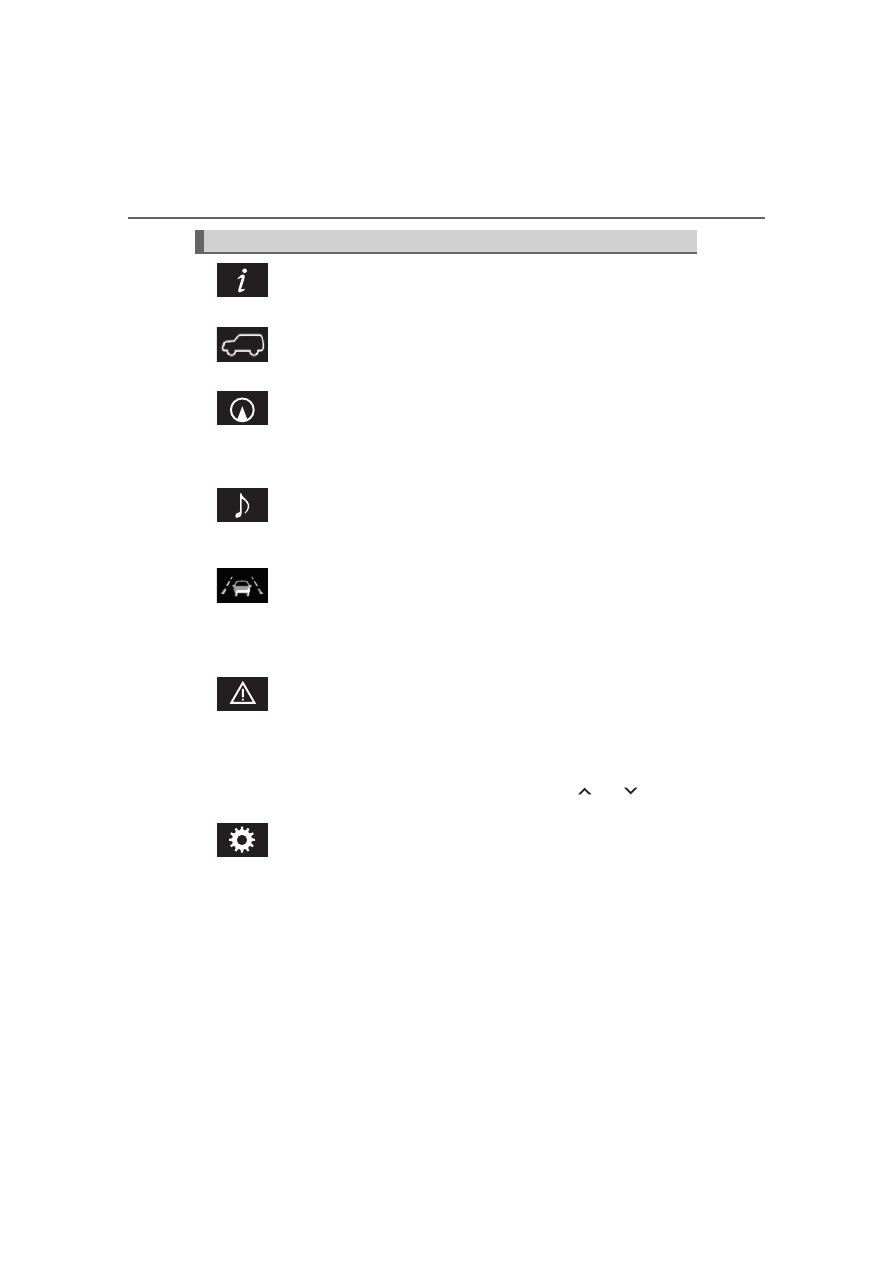

Drive information

Select to display various drive data. (



P. 93)

Vehicle information display

Select to display the vehicle information. (



P. 95)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance
• Compass display (north-up display/heading-up display)

Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the display
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control (



P. 257)

• LDA (Lane Departure Alert) (



P. 249)

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 488)

• When there are no current warning messages, “No Messages” is

displayed.

• When there are multiple warning messages,

can be

used to switch the displayed warning message.

Settings display

Select to change the meter display settings and the operation set-
tings of some vehicle functions. (



P. 95)

Menu icons

2. Instrument cluster

Instrum

nt clus

ter

4RUNNER (U)

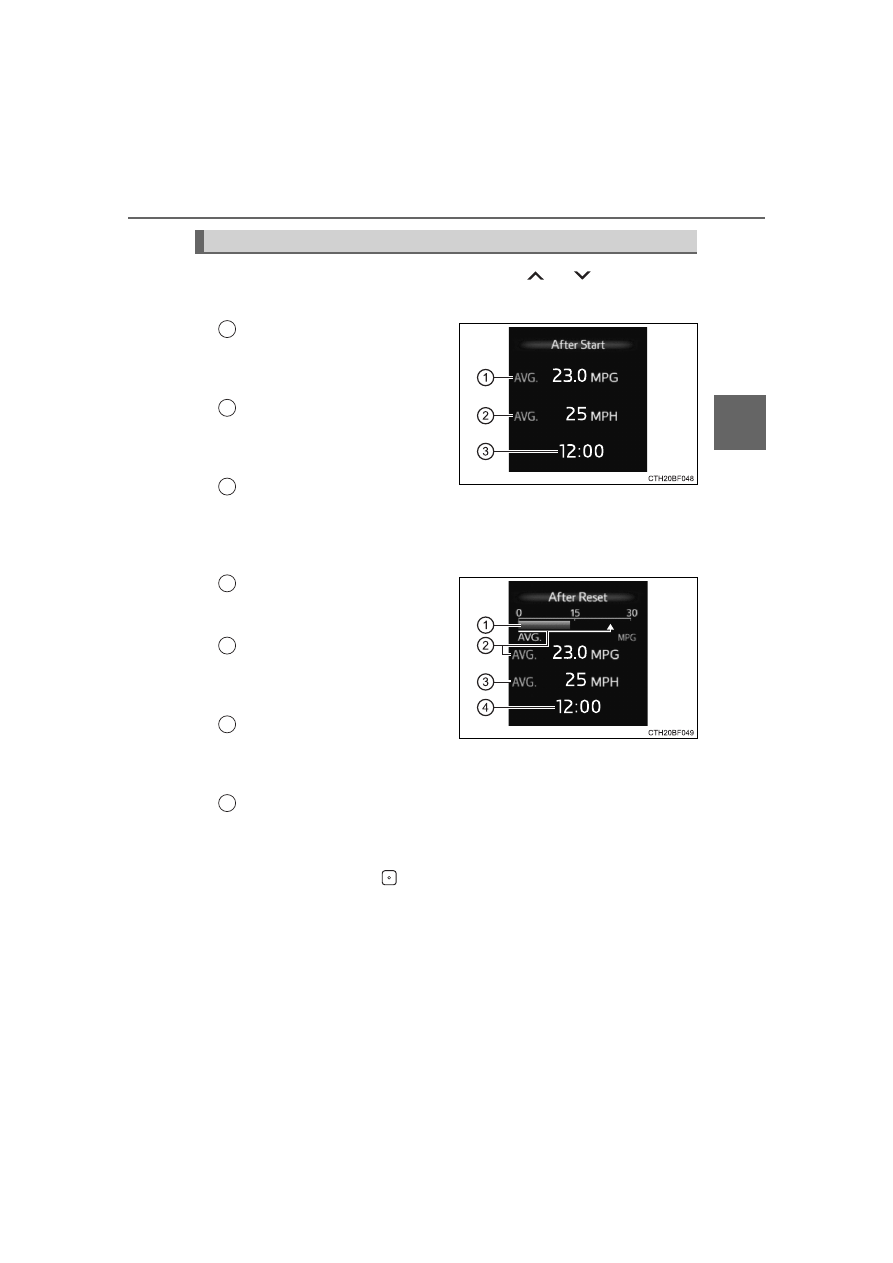

Items displayed can be switched by pressing

up and down.

■

After Start

Average fuel economy

Displays the average fuel con-
sumption since the engine was
started.

Average vehicle speed

Displays the average vehicle
speed since the engine was
started.

Elapsed time

Displays the elapsed time since the engine was started.

: Use the displayed average fuel economy as a reference.

■

After Reset

Current fuel economy

Displays the current rate of fuel
consumption.

Average fuel economy

1,2

Displays the average fuel con-
sumption since the function was
reset.

Average speed

Displays the average vehicle
speed since the function was
reset.

Elapsed time

Displays the elapsed time since the function was reset.

: Use the displayed average fuel economy as a reference.

: Pressing and holding

will reset.

Drive information

2. Instrument cluster

4RUNNER (U)

■

After Refuel

Range

1,2

Displays the driving range with
remaining fuel.

Average fuel economy

2,3

Displays the average fuel con-
sumption since the vehicle was
refueled.

: This distance is computed

based on your average fuel con-
sumption. As a result, the actual
distance that can be driven may
differ from that displayed.

: When only a small amount of fuel is added to the tank, the display may

not be updated. When refueling, turn the engine switch off. If the vehicle
is refueled without turning the engine switch off, the display may not be
updated.

: Use the displayed average fuel economy as a reference.

■

Eco Indicator (Eco Driving Indicator Zone Display)



P. 98

■

Speed

Displays the vehicle speed.

■

Vehicle sway warning

Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.

The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The dis-
play is enabled when the operating conditions of the vehicle sway warn-
ing function are met. (



P. 249)

■

Blank screen (display off)

Drive information is not displayed.

2. Instrument cluster

Instrum

nt clus

ter

4RUNNER (U)

Items displayed can be switched by pressing

up and down.

■

Steering angle

Displays the direction of the front tires.

The tire direction is displayed in 3 stages for both left and right, in accor-
dance with the angle of the tire.

If a battery terminal is disconnected and reconnected, the display may
be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.

■

Tire inflation pressure

Displays inflation pressure of each tire.

The inflation pressure of the spare tire will be displayed. (if equipped)

The settings of some features can be changed by using the meter
control switches.

■

Setting procedure

On the setting screen, choose the desired item using

and then press

• For functions that can be enabled or disabled, the function switches

between on and off each time

is pressed.

• For functions that allow to select operation contents, display con-

tents, etc., the setting screen is displayed.

Select the desired setting by operating

, and then

press .

To stop the selection, press

to return to the previous screen.

Vehicle information

Settings display

2. Instrument cluster

4RUNNER (U)

■

Setting items

●

LDA (Lane Departure Alert)

Select to set up LDA. (



P. 560)

• Alert sensitivity
• Sway warning
• Sway sensitivity

●

BSM (Blind Spot Monitor)

Select to activate/deactivate BSM. (



P. 558)

• BSM on/off
• BSM sensitivity
• Outside rear view mirror indicator brightness

●

RCTA (Rear Cross Traffic Alert)

Select to activate/deactivate RCTA. (



P. 558)

• RCTA on/off

●

PCS (Pre-Collision System)

Select to set the following items. (



P. 242)

• PCS on/off
• PCS sensitivity

●

Intuitive parking assist (if equipped)

Select to set the Intuitive parking assist on/off

●

Vehicle settings

“TPWS” (Tire Pressure Warning System) (



P. 430)

• “Set Pressure”

Select to initialize the tire pressure warning system.

• “Change Wheel Set”

Select to register the ID codes of the tire pressure sensors to
the tire pressure warning system.3

Toyota 4Runner (2024 year). Manual in english - page 3
