4-5. Using the driving support systems

Dr
iv

ing

Illuminated in green: Steering
wheel assistance of the steering
assist function or lane centering
function is operating.

Flashing in orange: Lane departure
alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.

Indicates that steering wheel assis-
tance of the steering assist function
or lane centering function is operat-
ing.

Both outer sides of the lane are dis-
played: Indicates that steering
wheel assist of the lane centering
function is operating.

One outer side of the lane is dis-
played: Indicates that steering
wheel assist of the steering assist
function is operating.

Both outer sides of the lane are
flashing: Alerts the driver that their
input is necessary to stay in the
center of the lane (lane centering
function).

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.

Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.

When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-

ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.



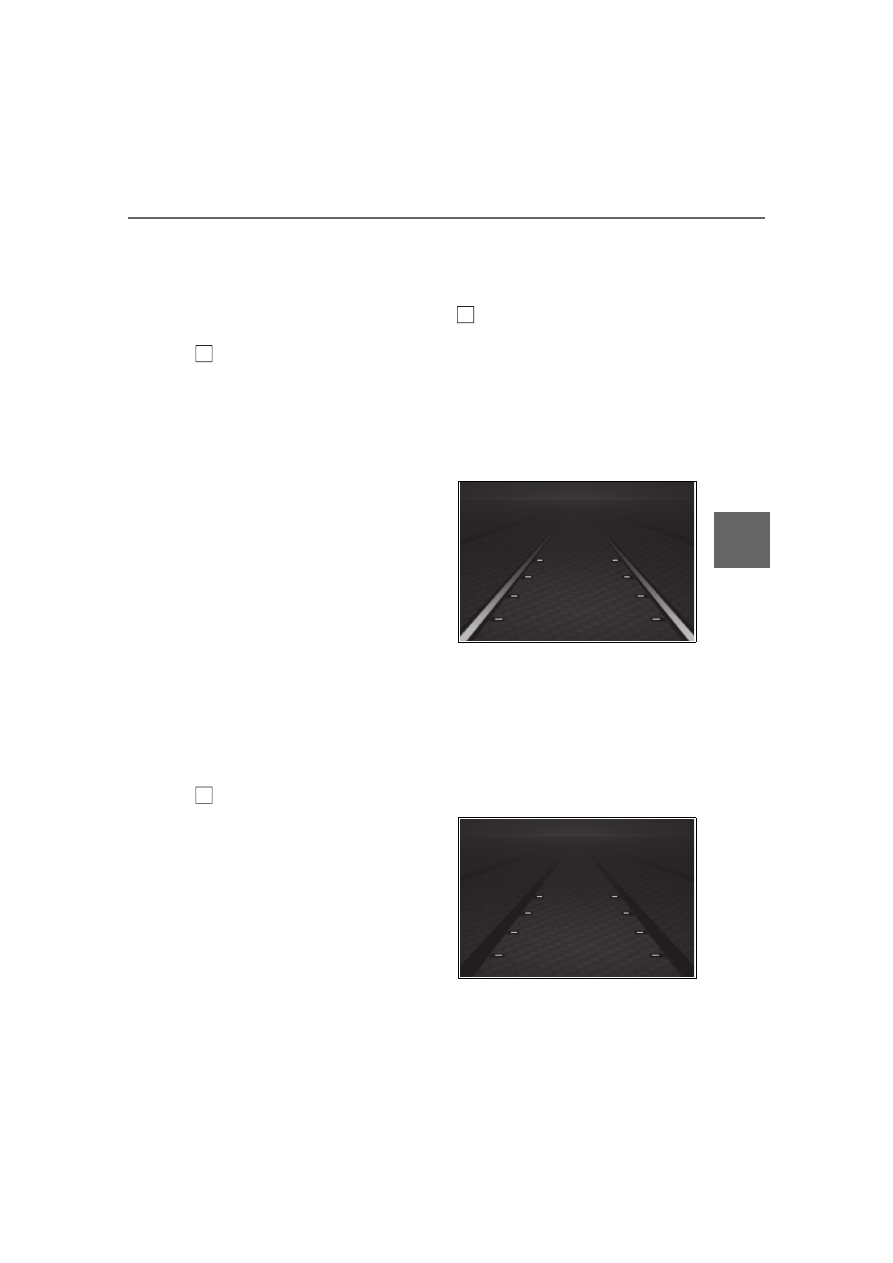

Inside of displayed lines is
white

Indicates that the system is recog-
nizing white (yellow) lines or a

course

. When the vehicle departs

from its lane, the white line dis-
played on the side the vehicle
departs from flashes orange.



Inside of displayed lines is
black

Indicates that the system is not able
to recognize white (yellow) lines or

a course

or is temporarily can-

258

4-5. Using the driving support systems

celed.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Operation conditions of each
function

●

Lane departure alert function

This function operates when all of
the following conditions are met.
• LTA is turned on.
• Vehicle speed is approximately 32

mph (50 km/h) or more.

• System recognizes white (yellow)

lane lines or a course

. (When a

white [yellow] line or course

recognized on only one side, the
system will operate only for the
recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Vehicle with BSM: Except when
another vehicle is in the lane on
the side where the turn signal was
operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.260)

: The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of
the following conditions are met in
addition to the operation conditions
for the lane departure alert function.
• Vehicle is not accelerated or

decelerated by a fixed amount or
more.

• Steering wheel is not operated

with a steering force level suitable
for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.
• Hands off steering wheel warning

is not displayed. (



P.259)

●

Vehicle sway warning function

This function operates when all of
the following conditions are met.
• Setting for “Sway Warning” in the

screen of the multi-information

display is set to “ON”. (



P.93,

102)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.260)

●

Lane centering function

This function operates when all of
the following conditions are met.
• LTA is turned on.
• Setting for “Lane Center” in the

screen of the multi-information

display is set to “ON”. (



P.93,

102)

• This function recognizes white

(yellow) lane lines or the position
of a preceding vehicle (except
when the preceding vehicle is
small, such as a motorcycle).

• The dynamic radar cruise control

with full-speed range is operating
in vehicle-to-vehicle distance con-
trol mode.

• Width of traffic lane is approxi-

mately 10 to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.
• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.260)

• Vehicle does not accelerate or

decelerate by a fixed amount or
more.

• Steering wheel is not operated

259

4-5. Using the driving support systems

Dr
iv

ing

with a steering force level suitable
for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.
• Hands off steering wheel warning

is not displayed. (



P.259)

• The vehicle is being driven in the

center of a lane.

• Steering assist function is not

operating.

■

Temporary cancelation of func-
tions

●

When operation conditions are no
longer met, a function may be
temporarily canceled. However,
when the operation conditions are
met again, operation of the func-
tion is automatically restored.
(



P.258)

●

If the operation conditions
(



P.258) are no longer met while

the lane centering function is
operating, the buzzer may sound
to indicate that the function has
been temporarily canceled.

■

Steering assist function/lane
centering function

●

Depending on the vehicle speed,
lane departure situation, road con-
ditions, etc., the driver may not
feel the function is operating or
the function may not operate at
all.

●

The steering control of the func-
tion is overridden by the driver’s
steering wheel operation.

●

Do not attempt to test the opera-
tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-
cult to hear due to external noise,
audio playback, etc.

●

If the edge of the course

is not

clear or straight, the lane depar-
ture alert function may not oper-
ate.

●

Vehicle with BSM: It may not be
possible for the system to deter-

mine if there is a danger of a colli-
sion with a vehicle in an adjacent
lane.

●

Do not attempt to test the opera-
tion of the lane departure alert
function.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Hands off steering wheel warn-
ing

In the following situations, a warning
message urging the driver to hold
the steering wheel and the symbol
shown in the illustration are dis-
played on the multi-information dis-
play to warn the driver. The warning
stops when the system determines
that the driver holds the steering
wheel. Always keep your hands on
the steering wheel when using this
system, regardless of warnings.

●

When the system determines that
the driver is driving without hold-
ing the steering wheel while the
system is operating

If the driver continues to keep their
hands off of the steering wheel, the
buzzer sounds, the driver is warned
and the function is temporarily can-
celed. This warning also operates in
the same way when the driver con-
tinuously operates the steering
wheel only a small amount.

●

When the system determines that
the vehicle may deviate from the
lane while driving around a curve
while the lane centering function is
operating.

260

4-5. Using the driving support systems

Depending on the vehicle condition
and road conditions, the warning
may not operate. Also, if the system
determines that the vehicle is driv-
ing around a curve, warnings will
occur earlier than during straight-
lane driving.

●

When the system determines that
the driver is driving without hold-
ing the steering wheel while the
steering wheel assist of the steer-
ing assist function is operating.

If the driver continues to keep their
hands off of the steering wheel and
the steering wheel assist is operat-
ing, the buzzer sounds and the
driver is warned. Each time the
buzzer sounds, the continuing time
of the buzzer becomes longer.

■

Vehicle sway warning function

When the system determines that
the vehicle is swaying while the
vehicle sway warning function is
operating, a buzzer sounds and a
warning message urging the driver
to rest and the symbol shown in the
illustration are simultaneously dis-
played on the multi-information dis-
play.

Depending on the vehicle and road
conditions, the warning may not
operate.

■

Warning message

If the following warning message is
displayed on the multi-information
display and the LTA indicator illumi-
nates in orange, follow the appropri-
ate troubleshooting procedure. Also,
if a different warning message is

displayed, follow the instructions
displayed on the screen.

●

“LTA Malfunction Visit Your
Dealer”

The system may not be operating
properly. Have the vehicle inspected
by your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled
due to a malfunction in a sensor
other than the front camera. Turn
the LTA system off, wait for a little
while, and then turn the LTA system
back on.

●

“LTA Unavailable at Current
Speed”

The function cannot be used as the
vehicle speed exceeds the LTA
operation range. Drive slower.

■

Customization

Function settings can be changed.
(



P.98, 107)

261

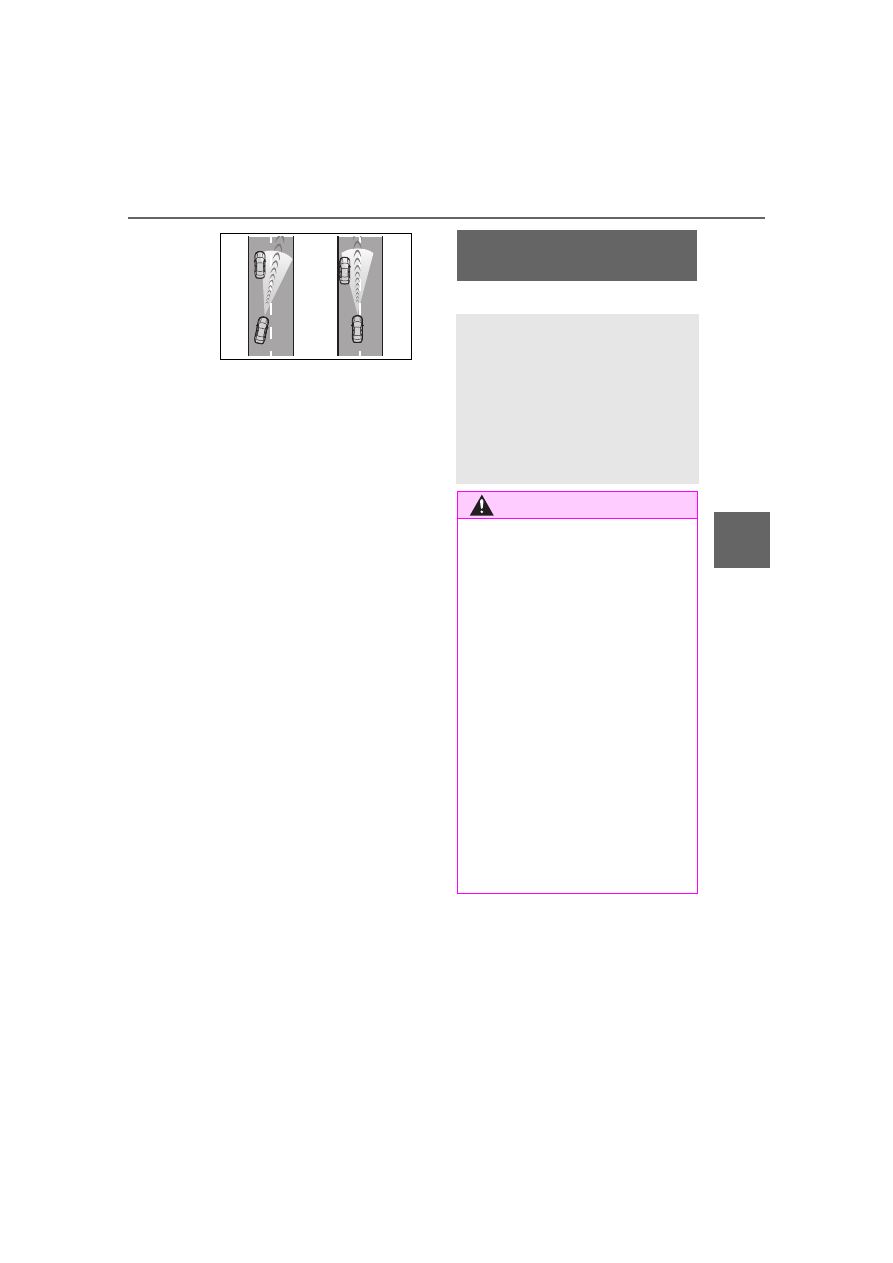

4-5. Using the driving support systems

ing

: If equipped

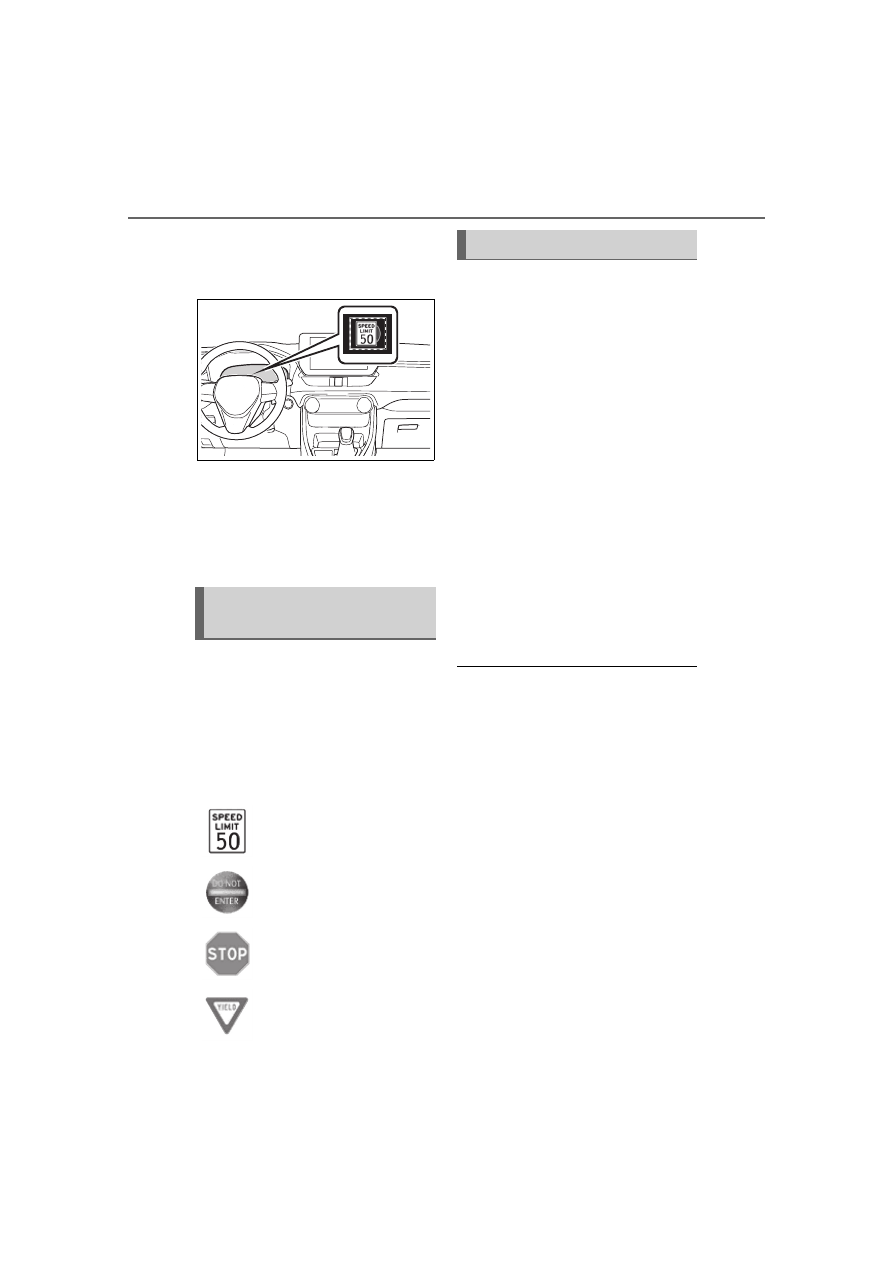

When the front camera recog-

nizes a sign, the sign will be dis-

played on the multi-information

display.



Vehicles with 7-inch display:

When the driving support sys-

tem information display is

selected, a maximum of 3

signs can be displayed.

(



P.93)

Vehicles with 12.3-inch dis-

play:

A maximum of 2 signs can be

displayed. (



P.102)

Vehicles with 7-inch display
Vehicles with 12.3-inch dis-

play



Vehicles with 7-inch display:

When a tab other than the

driving support system infor-

mation display is selected, the

following types of road signs

will be displayed. (



P.93)

RSA (Road Sign

Assist)

The RSA system recognizes

specific road signs using

the front camera to provide

information to the driver via

the display.

If the system judges that the

vehicle is being driven over

the speed limit, performing

prohibited actions, etc.

according to the recog-

nized road signs, it notifies

the driver through a visual

notification and notification

buzzer.

WARNING

■

Before using the RSA

Do not rely solely upon the RSA

system. RSA is a system which

supports the driver by providing

information, but it is not a replace-

ment for a driver’s own vision and

awareness. Drive safely by

always paying careful attention to

the traffic rules.

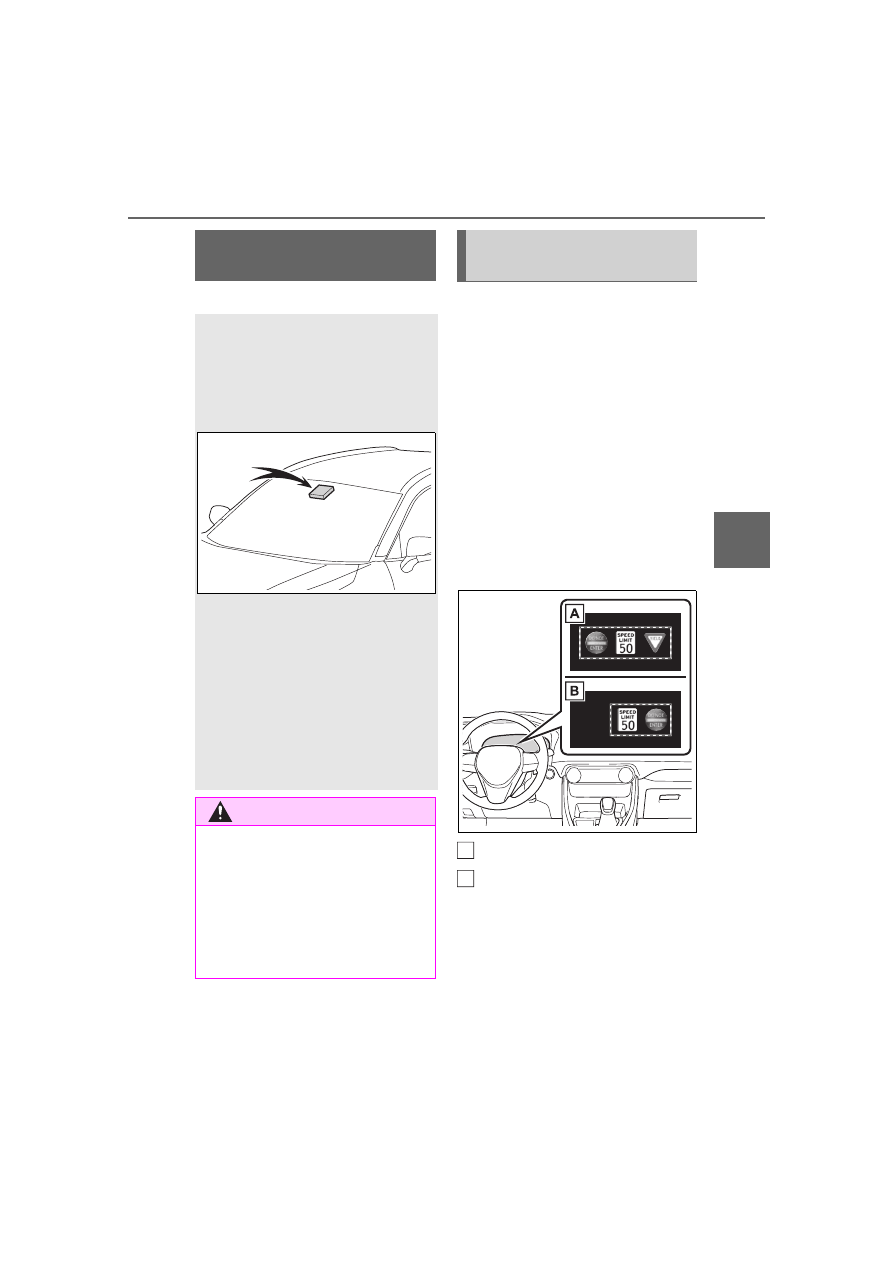

Indication on the multi-

information display

262

4-5. Using the driving support systems

• Speed limit sign

• Do Not Enter sign (when notifica-

tion is necessary)

If signs other than speed limit
signs are recognized, they will
be displayed in an overlapping
stack under the current speed
limit sign.

The following types of road
signs, including electronic signs
and blinking signs, are recog-
nized.

A non-official or a recently intro-
duced traffic sign may not be recog-
nized.

In the following situations, the
RSA system will notify the
driver.



When the vehicle speed
exceeds the speed notifica-
tion threshold of the speed
limit sign displayed, the sign
display will be emphasized
and a buzzer will sound.



When the RSA system recog-
nizes a do not enter sign and
determines that your vehicle
has entered a no-entry area,
the displayed sign will flash
and a buzzer will sound.

Depending on the situation, a
notification function may not
operate properly.

■

Setting procedure



P.98, 107

■

Automatic turn-off of RSA sign
display

In the following situations, a dis-
played speed limit sign and/or do
not enter sign will stop being dis-
played automatically:

●

No sign has been recognized for a
certain distance.

●

The road changes due to a left or
right turn, etc.

In the following situations, stop and
yield signs will stop being displayed
automatically:

●

The system determines that your
vehicle has passed the sign.

●

The road changes due to a left or
right turn, etc.

Supported types of road
signs

Speed limit

Do Not Enter

Stop

Yield

Notification function

263

4-5. Using the driving support systems

Dr
iv

ing

■

Conditions in which the func-
tion may not operate or detect
correctly

In the following situations, RSA
does not operate normally and may
not recognize signs, display the
incorrect sign, etc. However, this
does not indicate a malfunction.

●

The front camera is misaligned
due to a strong impact being
applied to the sensor, etc.

●

Dirt, snow, stickers, etc. are on the
windshield near the front camera.

●

In inclement weather such as
heavy rain, fog, snow or sand
storms.

●

Light from an oncoming vehicle,
the sun, etc. enters the front cam-
era.

●

The sign is dirty, faded, tilted or
bent.

●

The contrast of electronic sign is
low.

●

All or part of the sign is hidden by
the leaves of a tree, a pole, etc.

●

The sign is only visible to the front
camera for a short amount of time.

●

The driving scene (turning, lane
change, etc.) is judged incorrectly.

●

If a sign not appropriate for the
currently traveled lane, but the
sign exists directly after a freeway
branches, or in an adjacent lane
just before merging.

●

Stickers are attached to the rear
of the preceding vehicle.

●

A sign resembling a system com-
patible sign is recognized.

●

Side road speed signs may be
detected and displayed (if posi-
tioned in sight of the front camera)
while the vehicle is traveling on
the main road.

●

Roundabout exit road speed signs
may be detected and displayed (if
positioned in sight of the front
camera) while traveling on a
roundabout.

●

The front of the vehicle is raised or
lowered due to the carried load.

●

The surrounding brightness is not
sufficient or changes suddenly.

●

When a sign intended for trucks,
etc. is recognized.

●

The speed information displayed
on the meter and on the naviga-
tion system may be different due
to the navigation system using
map data.

■

Speed limit sign display

If the engine switch was last turned
off while a speed limit sign was dis-
played on the multi-information dis-
play, the same sign displays again
when the engine switch is turned to
ON.

■

If “RSA Malfunction Visit Your
Dealer” is shown

The system may be malfunctioning.
Have the vehicle inspected by your
Toyota dealer.

■

Customization

Some functions can be customized.
(



P.98, 107)

264

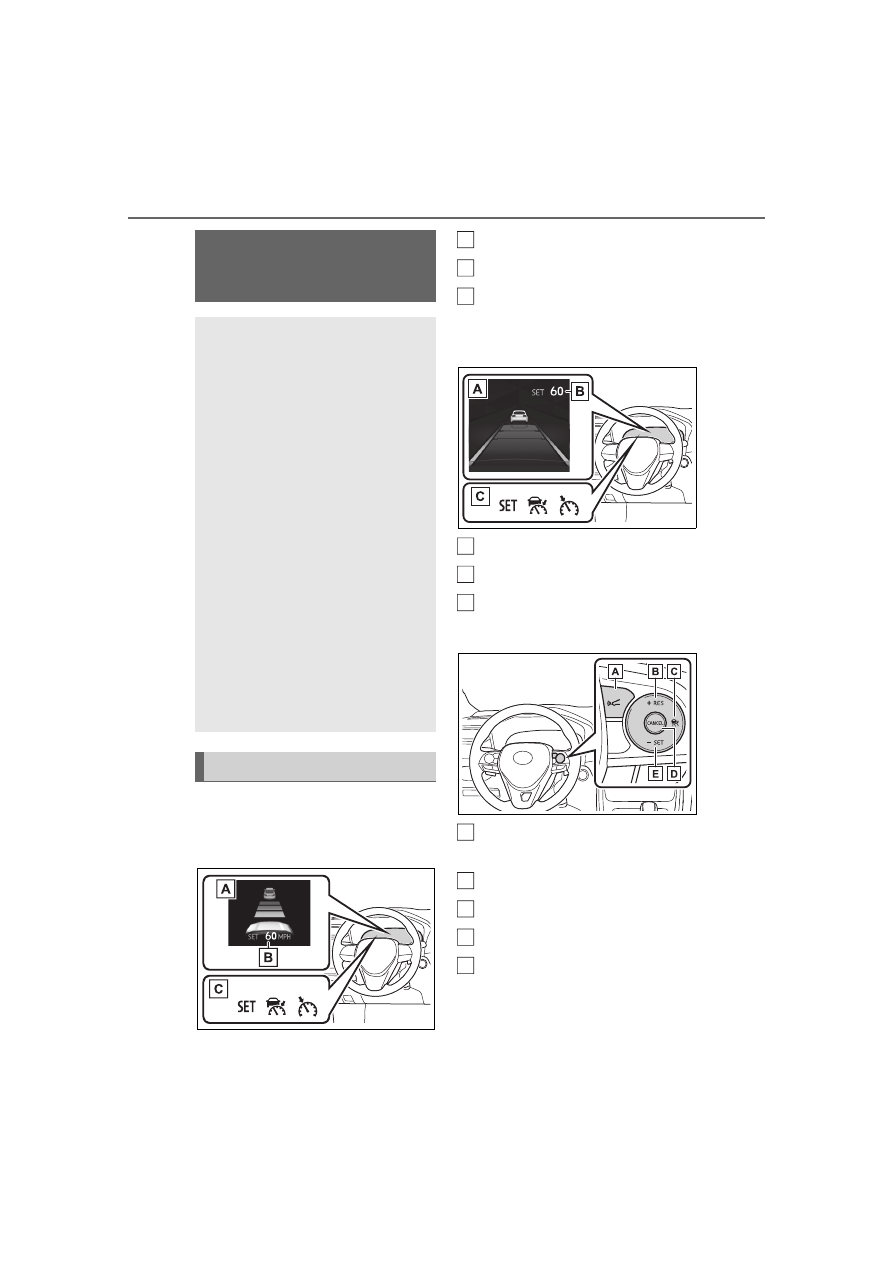

4-5. Using the driving support systems

■

Meter display



Vehicles with 7-inch multi-
information display

Multi-information display

Set speed

Indicators



Vehicles with 12.3-inch multi-
information display

Multi-information display

Set speed

Indicators

■

Operation switches

Vehicle-to-vehicle distance
switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

Dynamic radar cruise

control with full-speed

range

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates, decelerates and
stops to match the speed
changes of the preceding
vehicle even if the accelera-
tor pedal is not depressed.
In constant speed control
mode, the vehicle runs at a
fixed speed.

Use the dynamic radar
cruise control with full-
speed range on freeways
and highways.



Vehicle-to-vehicle distance
control mode (



P.267)



Constant speed control
mode (



P.272)

System Components

265

4-5. Using the driving support systems

ing

WARNING

■

Before using dynamic radar

cruise control with full-speed

range

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

●

The dynamic radar cruise con-

trol with full-speed range pro-

vides driving assistance to

reduce the driver’s burden.

However, there are limitations

to the assistance provided.

Read the following conditions

carefully. Do not overly rely on

this system and always drive

carefully.
• When the sensor may not be

correctly detecting the vehicle

ahead:



P.274

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.274

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition

of the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control with full-speed range

setting to off, using the cruise

control main switch when not in

use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

●

Assisting the driver to measure

following distance

The dynamic radar cruise control

with full-speed range is only

intended to help the driver in

determining the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead. It is not a mechanism that

allows careless or inattentive driv-

ing, and it is not a system that can

assist the driver in low-visibility

conditions.
It is still necessary for driver to

pay close attention to the vehi-

cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control

with full-speed range determines

whether the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead is within a set range. It is

not capable of making any other

type of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger in any

given situation.

266

4-5. Using the driving support systems

WARNING

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control

with full-speed range does not

include functions which will pre-

vent or avoid collisions with vehi-

cles ahead of your vehicle.

Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

the safety of all involved.

■

Situations unsuitable for

dynamic radar cruise control

with full-speed range

Do not use dynamic radar cruise

control with full-speed range in

any of the following situations.

Doing so may result in inappropri-

ate speed control and could

cause an accident resulting in

death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the

set speed when driving down a

steep hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sandstorm,

heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

When your vehicle is towing a

trailer or during emergency tow-

ing

●

When an approach warning

buzzer is heard often

267

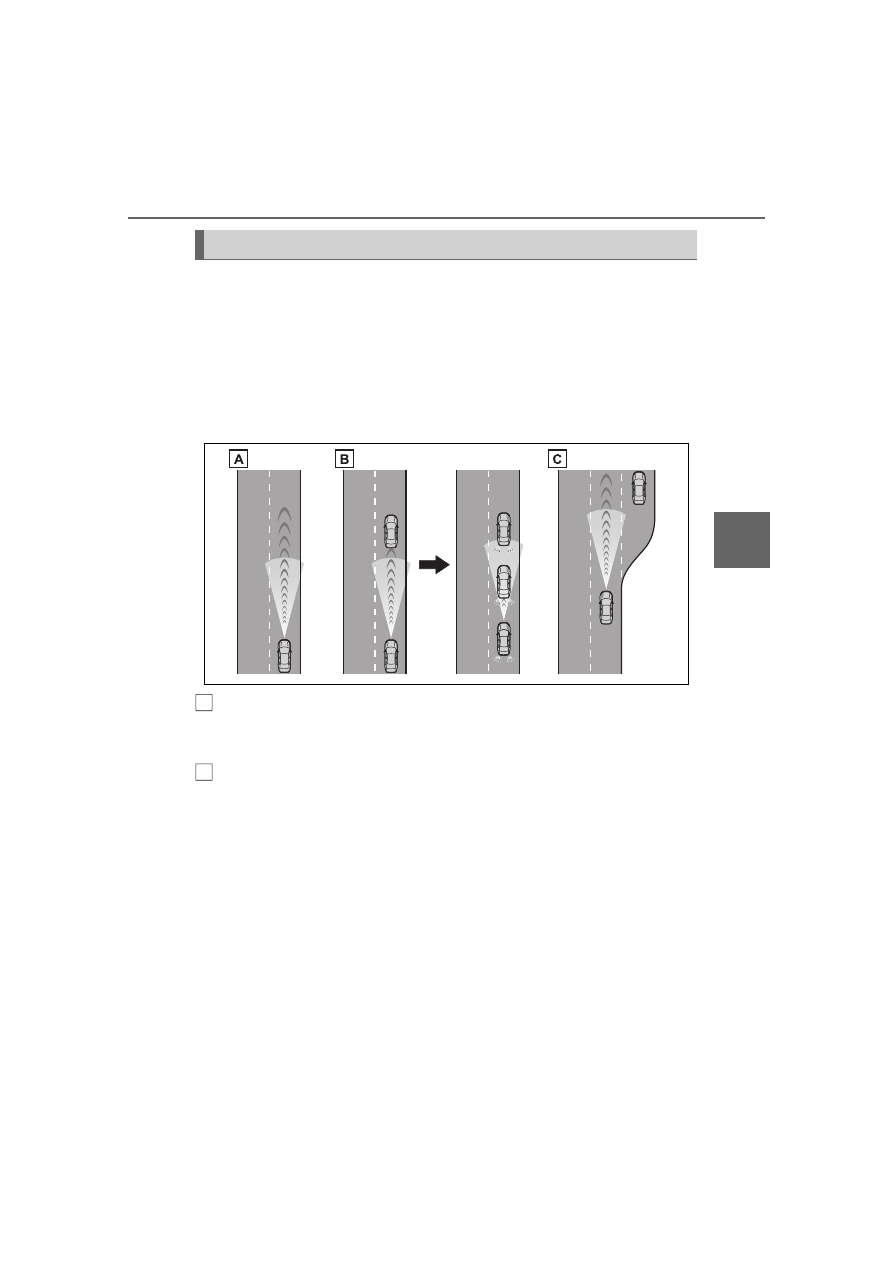

4-5. Using the driving support systems

Dr
iv

ing

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehicle-
to-vehicle following distance, and operates to maintain a suitable fol-
lowing distance from the vehicle ahead. The desired vehicle-to-vehi-
cle distance can also be set by operating the vehicle-to-vehicle
distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.

When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pressing the
“+RES” switch or depressing the accelerator pedal (start-off operation) will
resume follow-up cruising. If the start-off operation is not performed, system

Driving in vehicle-to-vehicle distance control mode

268

4-5. Using the driving support systems

control continues to keep your vehicle stopped.

When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.

The system’s identification of what is an overtaking lane may be deter-
mined solely based on the location of the steering wheel in the vehicle (left
side driver position versus right side driver position.) If the vehicle is driven
to a region where the overtaking lane is on a different side from where the
vehicle is normally driven, the vehicle may accelerate when the turn signal
lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane is
to the right but then drives to a region where the overtaking lane is to the
left, the vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

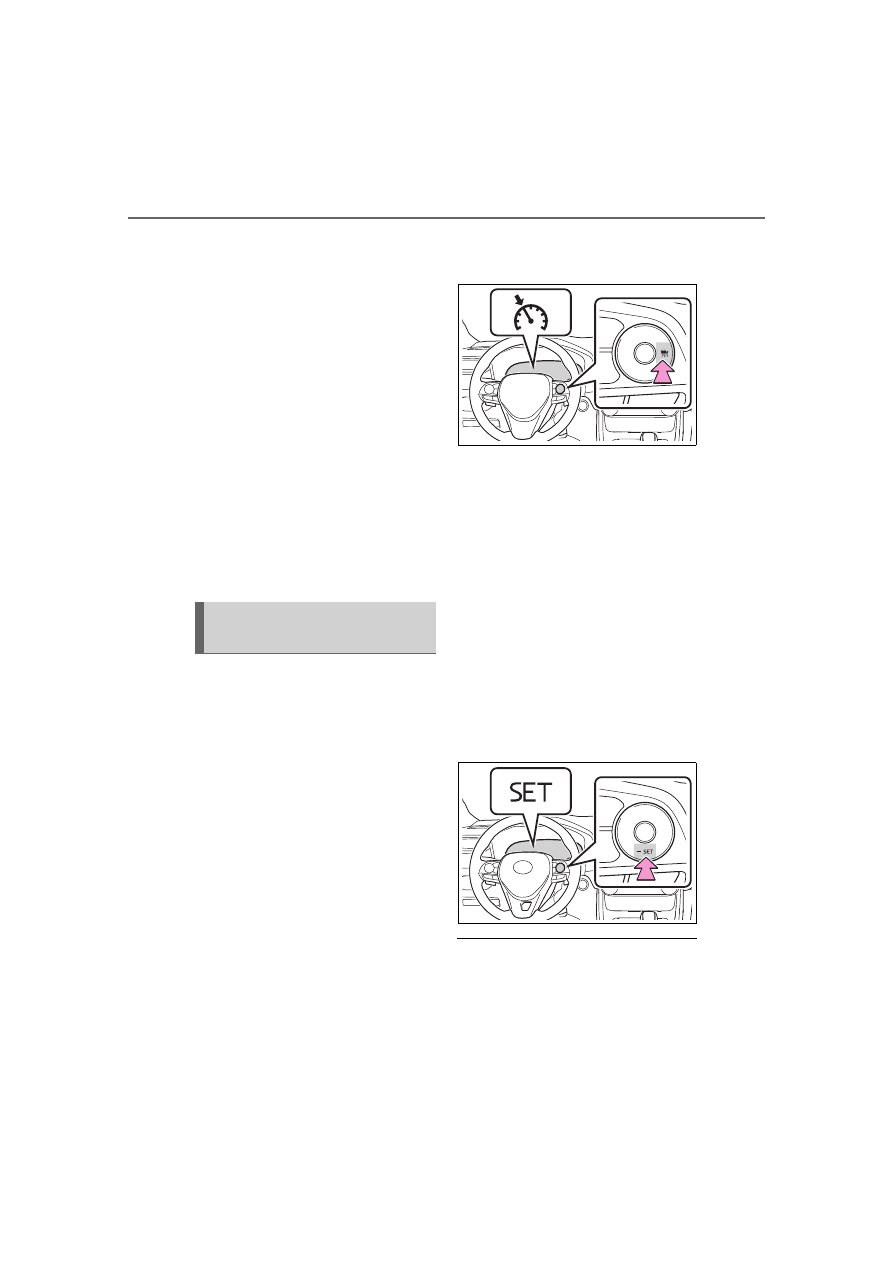

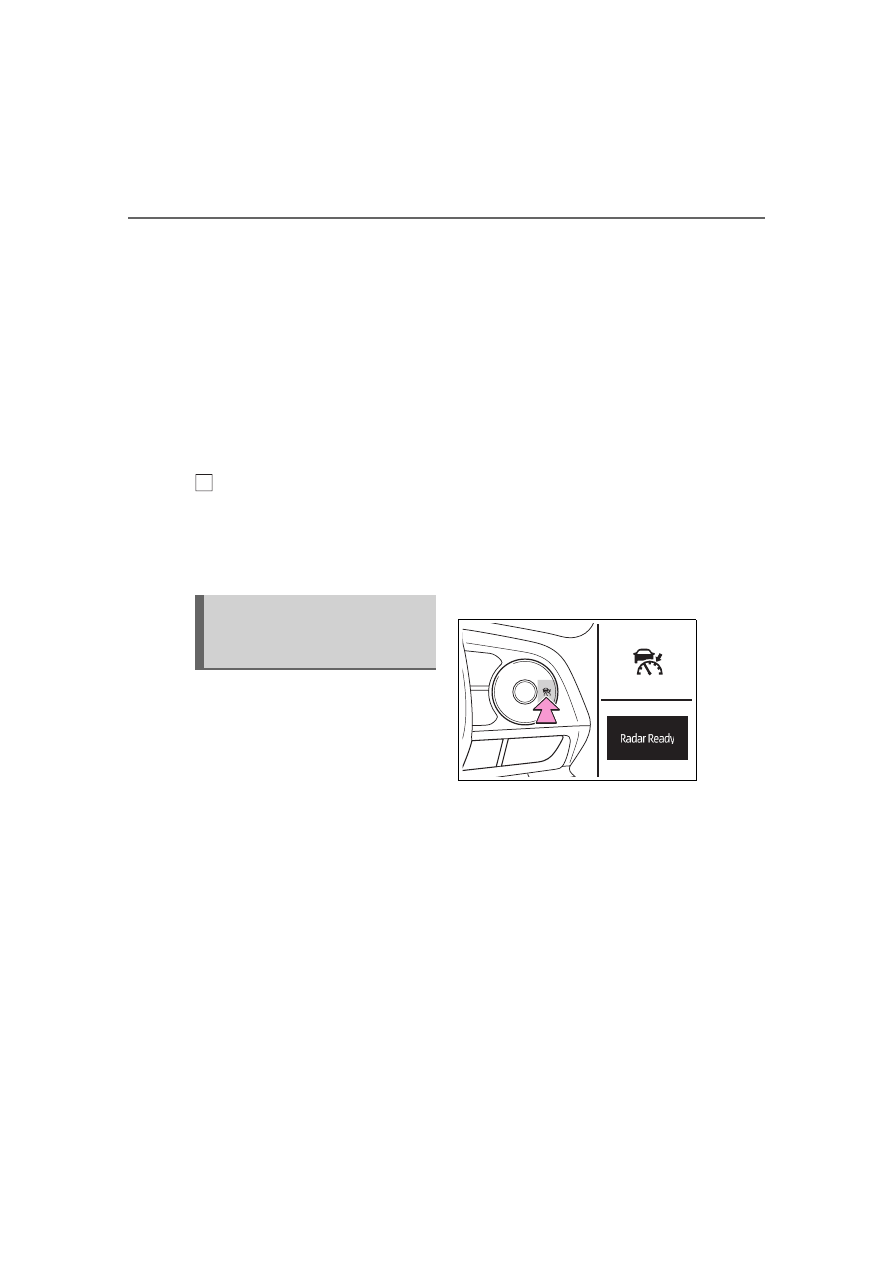

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-
cator will come on and a message
will be displayed on the multi-infor-
mation display. Press the switch
again to deactivate the cruise con-
trol.

If the cruise control main switch is
pressed and held for 1.5 seconds
or more, the system turns on in
constant speed control mode.

(



P.272)

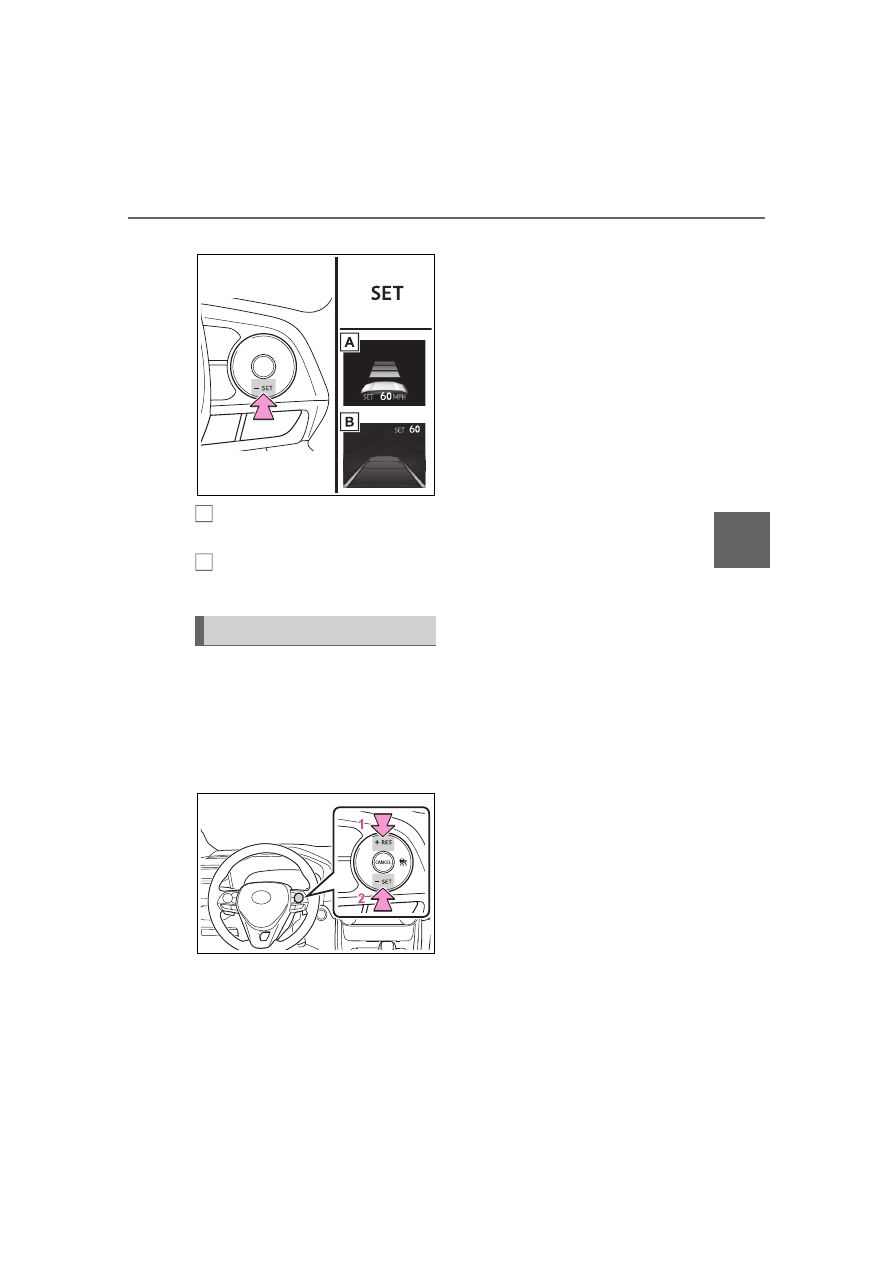

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will
come on.

The vehicle speed at the moment
the switch is released becomes the

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

269

4-5. Using the driving support systems

Dr
iv

ing

set speed.

Vehicles with 7-inch multi-
information display

Vehicles with 12.3-inch multi-
information display



Adjusting the set speed by the
switch

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

Increases the speed (Except
when the vehicle has been
stopped by system control in
vehicle-to-vehicle distance

control mode)

Decreases the speed

Fine adjustment: Press the switch.

Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set
speed will be increased or
decreased as follows:



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6

km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed

Large adjustment: Increases or

decreases in 1 mph (1.6 km/h)

1 km/h (0.6 mph)

increments for

as long as the switch is held



Except for the U.S. mainland
and Hawaii

Fine adjustment: By 1 mph (1.6

km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed

Large adjustment: Increases or

decreases in 5 mph (8 km/h)

or 5

km/h (3.1 mph)

increments for as

long as the switch is held

In the constant speed control
mode (



P.272), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6

km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed

Large adjustment: The speed will
continue to change while the switch

Adjusting the set speed

270

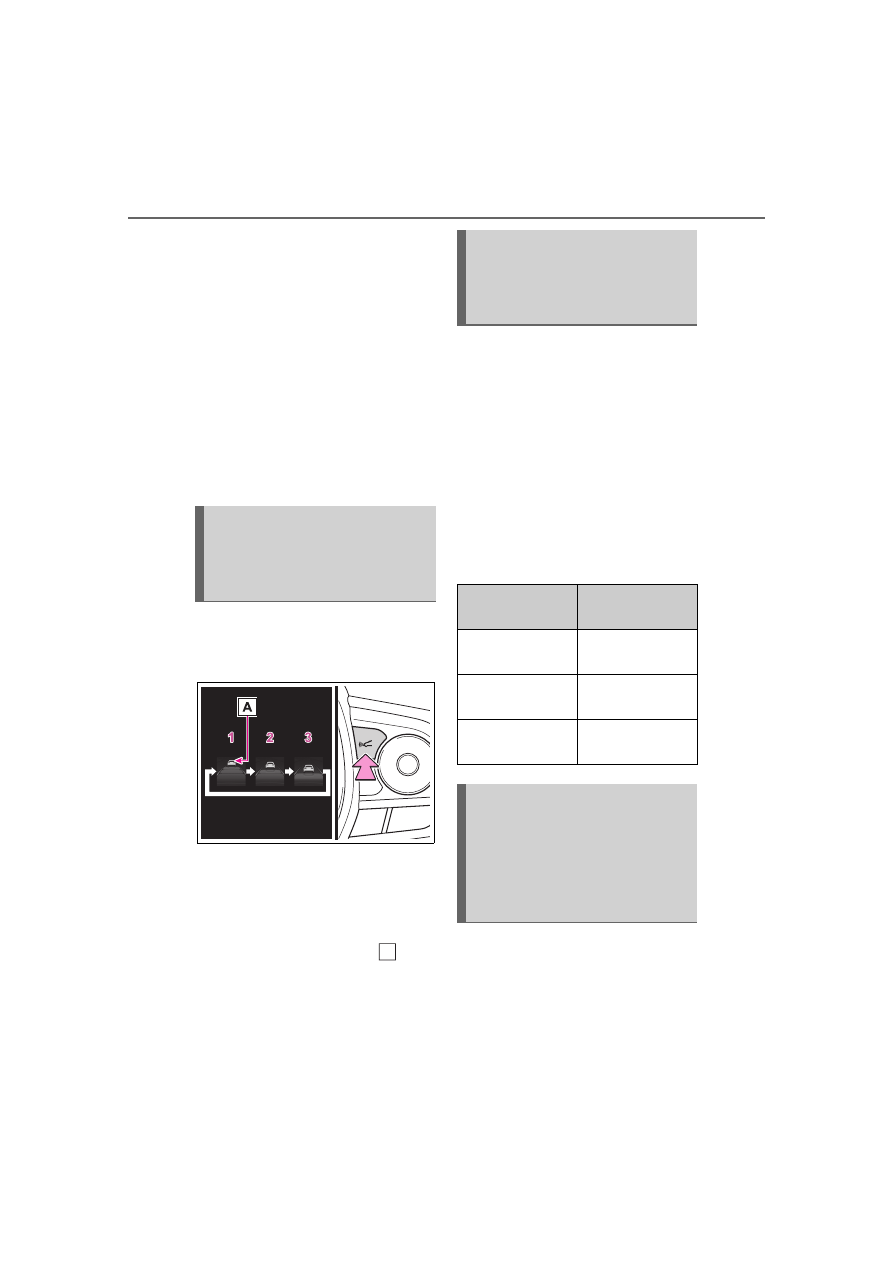

4-5. Using the driving support systems

is held.

: When the set speed is shown in

“MPH”

: When the set speed is shown in

“km/h”



Increasing the set speed by
the accelerator pedal (AWD
models only)

Accelerate with accelerator
pedal operation to the
desired vehicle speed

Press the “-SET” switch

Pressing the switch changes the
vehicle-to-vehicle distance as
follows:

Long

Medium

Short

If a vehicle is running ahead of you,

the preceding vehicle mark

will

also be displayed.

Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance
increases/decreases in accor-
dance with vehicle speed. When
the vehicle is stopped by system
control, the vehicle stops at a
certain vehicle-to-vehicle dis-
tance depending on the situa-
tion.

After the vehicle ahead of you
starts off, press the “+RES”
switch.

Your vehicle will also resume
follow-up cruising if the acceler-

Changing the vehicle-to-
vehicle distance (vehicle-
to-vehicle distance con-
trol mode)

Vehicle-to-vehicle dis-
tance settings (vehicle-to-
vehicle distance control
mode)

Distance options

Vehicle-to-vehi-

cle distance

Long

Approximately

160 ft. (50 m)

Medium

Approximately

130 ft. (40 m)

Short

Approximately

100 ft. (30 m)

Resuming follow-up
cruising when the vehicle
has been stopped by sys-
tem control (vehicle-to-
vehicle distance control
mode)

271

4-5. Using the driving support systems

Dr
iv

ing

ator pedal is depressed after the
vehicle ahead of you starts off.

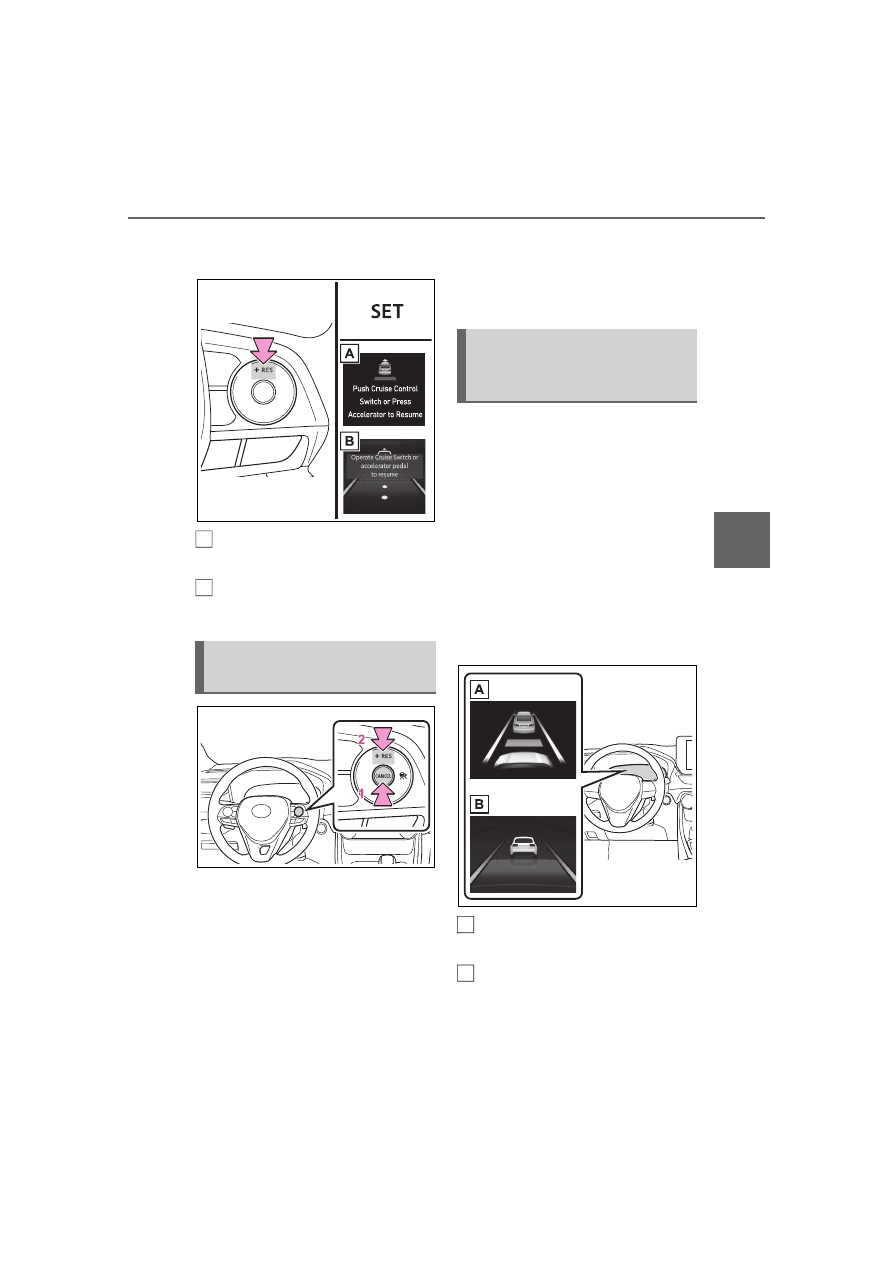

Vehicles with 7-inch multi-
information display

Vehicles with 12.3-inch multi-
information display

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

When your vehicle is too close
to a vehicle ahead, and suffi-
cient automatic deceleration via
the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

Vehicles with 7-inch multi-
information display

Vehicles with 12.3-inch multi-
information display

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

272

4-5. Using the driving support systems

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

When constant speed control
mode is selected, your vehicle
will maintain a set speed without
controlling the vehicle-to-vehi-
cle distance. Select this mode
only when vehicle-to-vehicle dis-
tance control mode does not
function correctly due to a dirty
radar, etc.

With the cruise control off,
press and hold the cruise
control main switch for 1.5
seconds or more.

Immediately after the switch is
pressed, the dynamic radar cruise
control indicator will come on. After-
wards, it switches to the cruise con-
trol indicator.

Switching to constant speed control

mode is only possible when operat-
ing the switch with the cruise con-
trol off.

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will
come on.

The vehicle speed at the moment
the switch is released becomes the
set speed.

Adjusting the speed setting:



P.269

Canceling and resuming the speed
setting:



P.271

■

Dynamic radar cruise control
with full-speed range can be set
when

●

The shift lever is in D.

●

The desired set speed can be set

Selecting constant speed
control mode

273

4-5. Using the driving support systems

Dr
iv

ing

when the vehicle speed is approx-
imately 20 mph (30 km/h) or more.
(However, when the vehicle speed
is set while driving at below
approximately 20 mph [30 km/h],
the set speed will be set to
approximately 20 mph [30 km/h].)

■

Accelerating after setting the
vehicle speed

The vehicle can accelerate by oper-
ating the accelerator pedal. After
accelerating, the set speed
resumes. However, during vehicle-
to-vehicle distance control mode,
the vehicle speed may decrease
below the set speed in order to
maintain the distance to the preced-
ing vehicle.

■

When the vehicle stops while
follow-up cruising

●

Pressing the “+RES” switch while
the vehicle ahead stops will
resume follow-up cruising if the
vehicle ahead starts off within
approximately 3 seconds after the
switch is pressed.

●

If the vehicle ahead starts off
within 3 seconds after your vehicle
stops, follow-up cruising will be
resumed.

■

Automatic cancelation of vehi-
cle-to-vehicle distance control
mode

Vehicle-to-vehicle distance control
mode is automatically canceled in
the following situations.

●

VSC is activated.

●

TRAC is activated for a period of
time.

●

When the VSC or TRAC system is
turned off.

●

The sensor cannot detect cor-
rectly because it is covered in
some way.

●

When the brake control or output
restriction control of a driving sup-
port system operates.
(For example: Pre-Collision Sys-
tem, Drive-Start Control)

●

The parking brake is operated.

●

The vehicle is stopped by system
control on a steep incline.

●

The following are detected when
the vehicle has been stopped by
system control:

• The driver is not wearing a seat

belt.

• The driver’s door is opened.
• The vehicle has been stopped for

about 3 minutes

If vehicle-to-vehicle distance control
mode is automatically canceled for
any reasons other than the above,
there may be a malfunction in the
system. Contact your Toyota dealer.

■

Automatic cancelation of con-
stant speed control mode

Constant speed control mode is
automatically canceled in the follow-
ing situations:

●

Actual vehicle speed is more than
approximately 10 mph (16 km/h)
below the set vehicle speed.

●

Actual vehicle speed falls below
approximately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of
time.

●

When the VSC or TRAC system is
turned off.

●

When the brake control or output
restriction control of a driving sup-
port system operates.
(For example: Pre-Collision Sys-
tem, Drive-Start Control)

●

The parking brake is operated.

If constant speed control mode is
automatically canceled for any rea-
sons other than the above, there
may be a malfunction in the system.
Contact your Toyota dealer.

■

Brake operation

A brake operation sound may be
heard and the brake pedal response
may change, but these are not mal-

274

4-5. Using the driving support systems

functions.

■

Warning messages and buzzers
for dynamic radar cruise con-
trol with full-speed range

Warning messages and buzzers are
used to indicate a system malfunc-
tion or to inform the driver of the
need for caution while driving. If a
warning message is shown on the
multi-information display, read the
message and follow the instructions.
(



P.237, 457)

■

When the sensor may not be
correctly detecting the vehicle
ahead

In the case of the following and
depending on the conditions, oper-
ate the brake pedal when decelera-
tion of the system is insufficient or
operate the accelerator pedal when
acceleration is required.

As the sensor may not be able to
correctly detect these types of vehi-
cles, the approach warning
(



P.271) may not be activated.

●

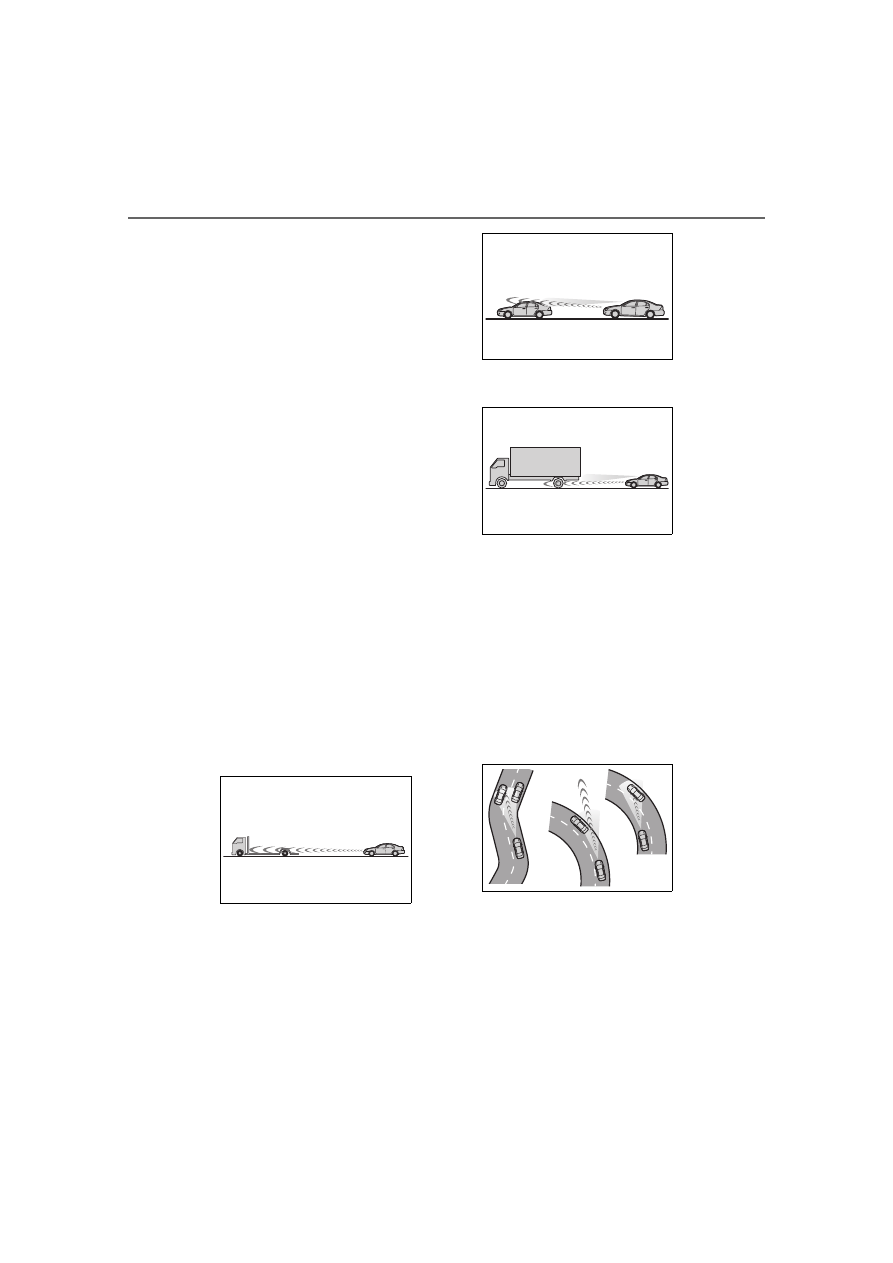

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in
the same lane

●

Vehicles with small rear ends
(trailers with no load on board,
etc.)

●

Motorcycles traveling in the same
lane

●

When water or snow thrown up by
the surrounding vehicles hinders
the detecting of the sensor

●

When your vehicle is pointing
upwards (caused by a heavy load
in the luggage compartment, etc.)

●

Preceding vehicle has an
extremely high ground clearance

■

Conditions under which the
vehicle-to-vehicle distance con-
trol mode may not function cor-
rectly

In the case of the following condi-
tions, operate the brake pedal (or
accelerator pedal, depending on the
situation) as necessary.

As the sensor may not be able to
correctly detect vehicles ahead, the
system may not operate properly.

●

When the road curves or when the
lanes are narrow

●

When steering wheel operation or
your position in the lane is unsta-
ble

275

4-5. Using the driving support systems

ing

●

When the vehicle ahead of you

decelerates suddenly

●

When driving on a road sur-

rounded by a structure, such as in

a tunnel or on a bridge

●

While the vehicle speed is

decreasing to the set speed after

the vehicle accelerates by

depressing the accelerator pedal

: If equipped

BSM (Blind Spot Moni-

tor)

The Blind Spot Monitor is a

system that uses rear side

radar sensors installed on

the inner side of the rear

bumper on the left and right

side to assist the driver in

confirming safety when

changing lanes.

WARNING

■

Cautions regarding the use of

the system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

●

The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear

view mirrors or is approaching

rapidly from behind into a blind

spot. Do not overly rely on the

Blind Spot Monitor. As the func-

tion cannot judge if it is safe to

change lanes, over reliance

could lead to an accident result-

ing in death or serious injury. As

the system may not function

correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary.

276

4-5. Using the driving support systems

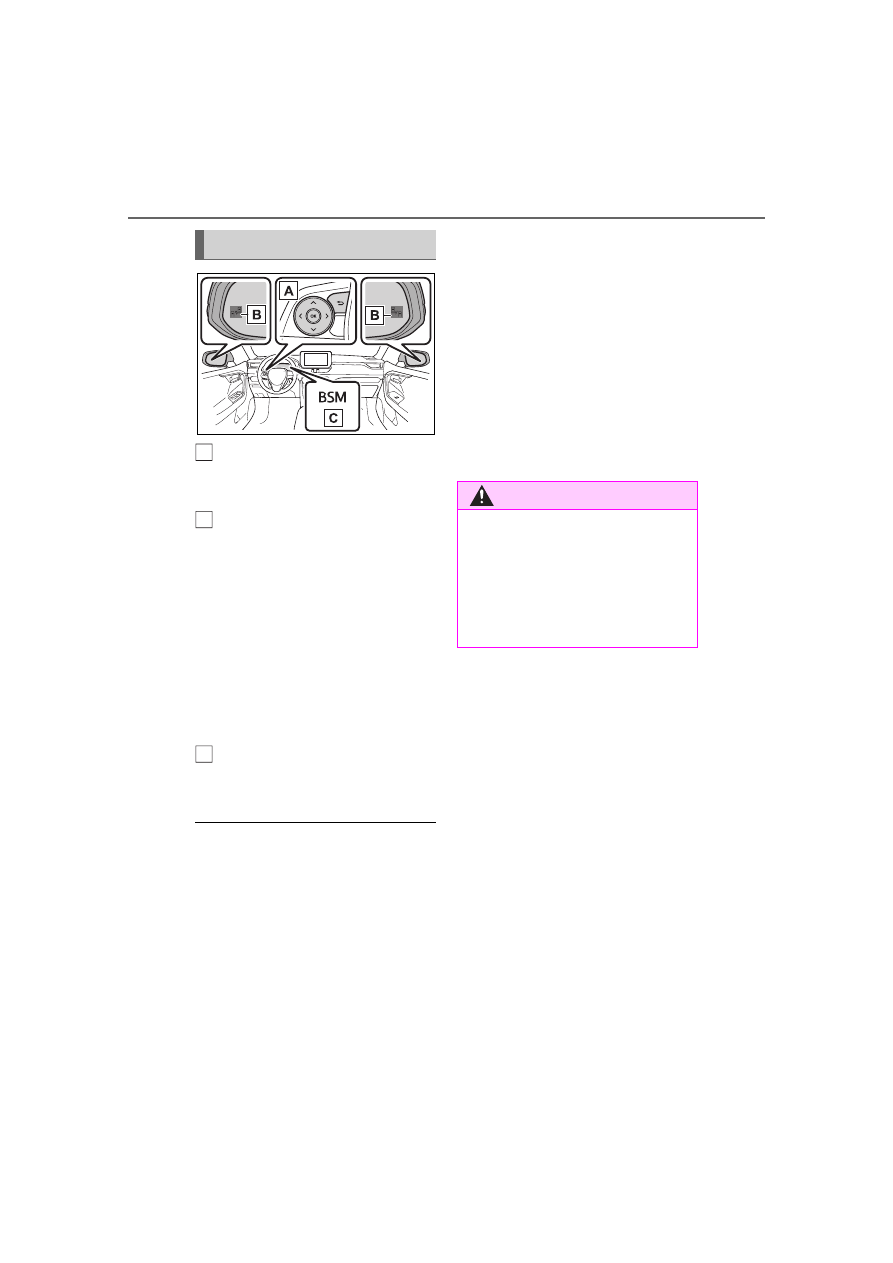

Meter control switches

Turning the Blind Spot Monitor

on/off.

Outside rear view mirror indi-

cators

When driving:
When a vehicle is detected in a

blind spot of the outside rear view

mirrors or approaching rapidly from

behind into a blind spot, the outside

rear view mirror indicator on the

detected side will illuminate. If the

turn signal lever is operated toward

the detected side, the outside rear

view mirror indicator flashes.

“BSM” indicator

When the BSM function is turned

on, the indicator illuminates.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

When “Blind Spot Monitor

Unavailable” is shown on the

multi-information display

Ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. The system should

return to normal operation after

removing the ice, snow, mud, etc.

from the rear bumper. Additionally,

the sensors may not operate nor-

mally when driving in extremely hot

or cold environments.

■

When “Blind Spot Monitor Mal-

function Visit Your Dealer” is

shown on the multi-information

display

There may be a sensor malfunction

of misaligned. Have the vehicle

inspected by your Toyota dealer.

■

Customization

Some functions can be customized.

(



P.508)

System components

WARNING

■

To ensure the system can

operate properly

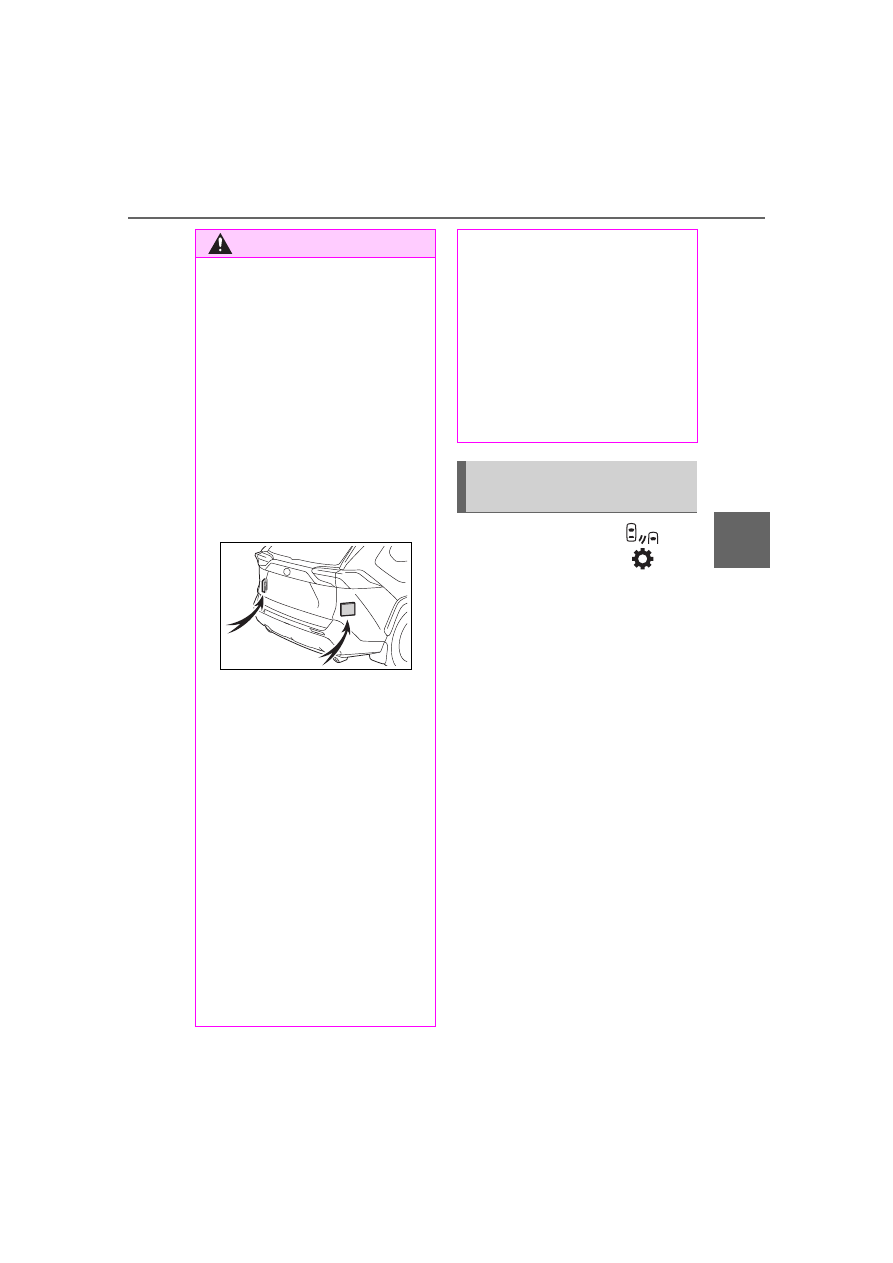

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

277

4-5. Using the driving support systems

ing

The Blind Spot Monitor

can

be enabled/disabled on of

the multi-information display.

(



P.508)

When the Blind Spot Monitor is

enabled, the BSM indicator will

illuminate.

WARNING

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding

area on the rear bumper is dirty

or covered with snow, the Blind

Spot Monitor may not operate

and a warning message

(



P.276) will be displayed. In

this situation, clear off the dirt or

snow and drive the vehicle with

the operation conditions of the

BSM function (



P.279) satis-

fied for approximately 60 min-

utes. If the warning message

does not disappear, have the

vehicle inspected by your

Toyota dealer.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your

Toyota dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

Turning the Blind Spot

Monitor on/off

278

4-5. Using the driving support systems

■

Objects that can be detected while driving

The Blind Spot Monitor uses rear side radar sensors to detect the
following vehicles traveling in adjacent lanes and advises the driver
of the presence of such vehicles via the indicators on the outside
rear view mirrors.

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

■

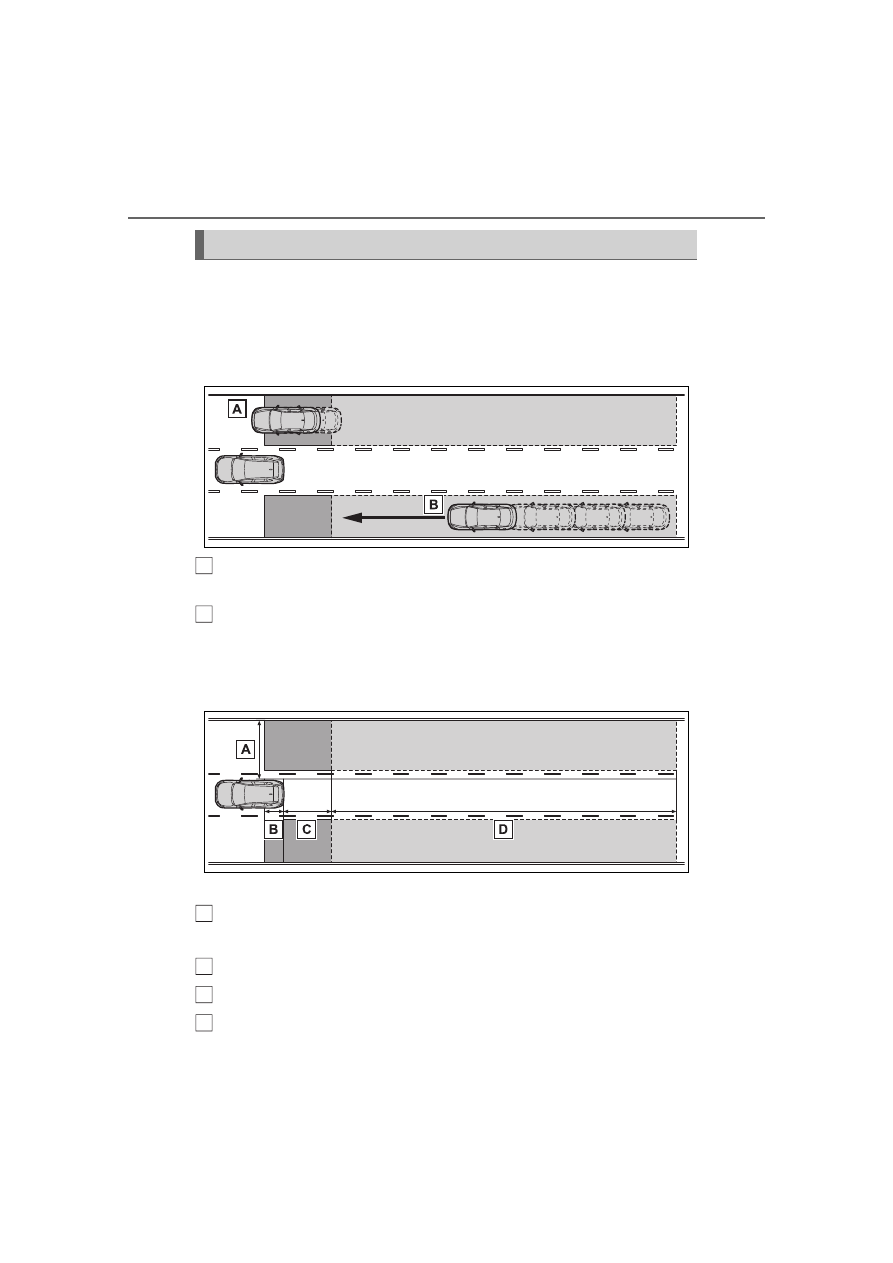

Detection range while driving

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of

the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear

Blind Spot Monitor operation

279

4-5. Using the driving support systems

Dr
iv

ing

bumper

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

: The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

■

The Blind Spot Monitor is oper-
ational when

The Blind Spot Monitor is opera-
tional when all of the following con-
ditions are met:

●

The engine switch is in ON.

●

The Blind Spot Monitor is on.

●

The shift lever is in a position
other than R.

●

The vehicle speed is approxi-
mately 7 mph (10 km/h) or more
(while driving).

■

The Blind Spot Monitor will
detect a vehicle when

The Blind Spot Monitor will detect a
vehicle present in the detection area
in the following situations:

●

A vehicle in an adjacent lane over-
takes your vehicle.

●

You overtake a vehicle in an adja-
cent lane slowly.

●

Another vehicle enters the detec-
tion area when it changes lanes.

■

Situations in which the Blind
Spot Monitor cannot detect
vehicles (while driving)

The Blind Spot Monitor cannot
detect the following vehicles and
other objects (while driving):

●

Small motorcycles, bicycles,
pedestrians, etc.

●

Vehicles traveling in the opposite
direction

●

Guardrails, walls, signs, parked
vehicles and similar stationary
objects

●

Following vehicles that are in the

same lane

●

Vehicles traveling 2 lanes away
from your vehicle

●

Vehicles which are being over-
taken rapidly by your vehicle

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the
system may not function cor-
rectly

●

In the following situations, vehi-
cles may not be detected correctly
(while driving):

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When mud, snow, ice, a sticker,

etc., is covering the sensor or sur-
rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water
during bad weather, such as
heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap
between each vehicle

• When the distance between your

vehicle and a following vehicle is
short

• When there is a significant differ-

ence in speed between your vehi-
cle and the vehicle that enters the
detection area

• When the difference in speed

between your vehicle and another
vehicle is changing

• When a vehicle enters a detection

area traveling at about the same
speed as your vehicle

• As your vehicle starts from a stop,

280

4-5. Using the driving support systems

a vehicle remains in the detection
area

• When driving up and down con-

secutive steep inclines, such as
hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or
uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a
lane, and the vehicle in an adja-
cent lane is far away from your
vehicle

• When an accessory (such as a

bicycle carrier) is installed to the
rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-
cle and the vehicle that enters the
detection area

• Immediately after the Blind Spot

Monitor is turned on

• When towing with the vehicle

●

Instances of unnecessary detec-
tion may increase in situations
such as the following (while driv-
ing):

• When the sensor is misaligned

due to a strong impact to the sen-
sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.
that enters the detection area is
short

• When driving up and down con-

secutive steep inclines, such as
hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a
lane, and a vehicle traveling in a
lane other than the adjacent lanes
enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or
uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is
short

• When an accessory (such as a

bicycle carrier) is installed to the
rear of the vehicle

• When towing with the vehicle

: If equipped

■

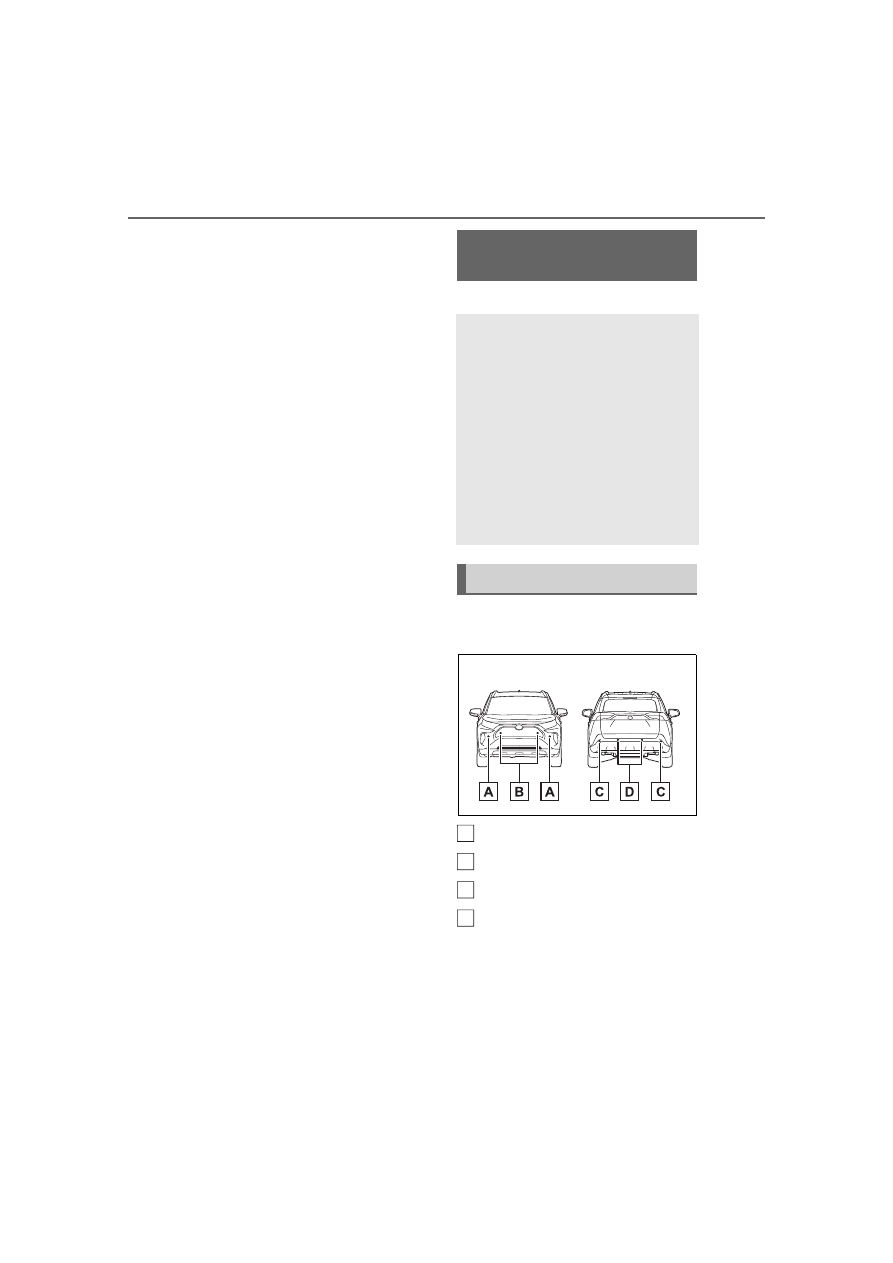

Location and types of sen-
sors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display (Multi-information
display)

When the sensors detect an
object, such as a wall, a graphic
is shown on the multi-informa-

Intuitive parking

assist

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communicated
via the multi-information
display or Multimedia Dis-
play and a buzzer. Always
check the surrounding area
when using this system.

System components

281

4-5. Using the driving support systems

Dr
iv

ing

tion display depending on the
position and distance to the
object.

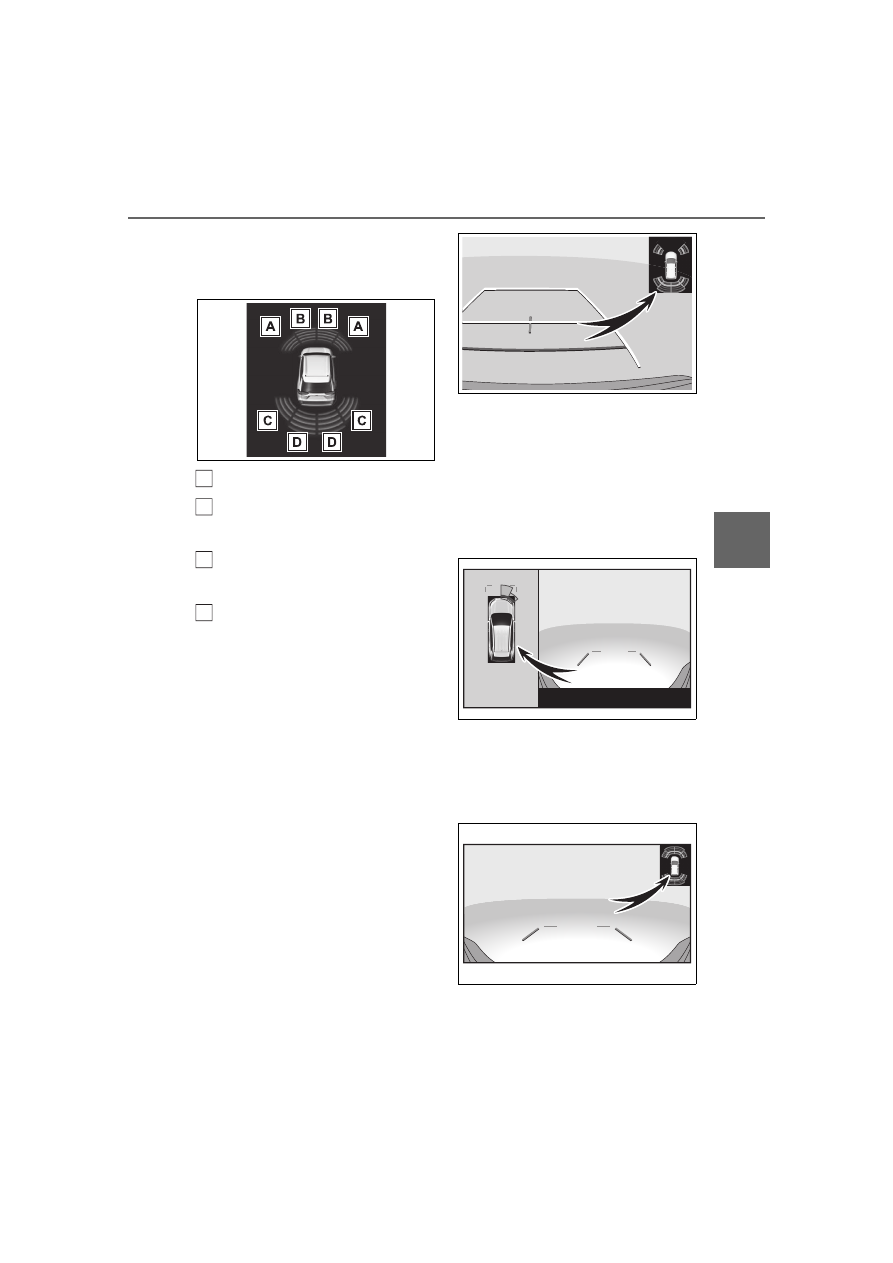

Front corner sensor detection

Front center sensor detec-

tion

Rear corner sensor detec-

tion

Rear center sensor detec-

tion

: Displayed when the shift lever is

in a driving position

: Displayed when the shift lever is

in R

■

Display (Multimedia Dis-
play)

When the sensors detect an
object, such as a wall, a graphic
is shown on the Multimedia Dis-
play depending on the position
and distance to the object.



When the Toyota parking
assist monitor (if equipped) is
displayed

A simplified image is displayed on
the upper corner of the screen
when an obstacle is detected.



When the panoramic view
monitor (if equipped) is dis-
played



Panoramic view

A graphic is shown when the
panoramic view monitor is dis-
played.



Except panoramic view

A simplified image is displayed
on the upper corner of the

282

4-5. Using the driving support systems

screen when an obstacle is

detected.

The Intuitive parking assist can
be enabled/disabled on the

screen of the multi-information

display. (



P.98, 107)

When the intuitive parking assist

function is disabled, the intuitive

parking assist OFF indicator

(



P.80) illuminates on the multi-

information display.
To re-enable the system, select

on the multi-information display,
select

and turn it on.

If the system is disabled, it will

remain off even if the engine switch

is turned to ON after the engine

switch has been turned off.

Turning intuitive parking

assist on/off

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

■

To ensure the system can

operate properly

Observe the following precau-

tions.

Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not damage the sensors,

and always keep them clean.

●

Do not attach a sticker or install

an electronic component, such

as a backlit license plate (espe-

cially fluorescent type), fog

lights, fender pole or wireless

antenna near a radar sensor.

●

Do not subject the surrounding

area of the sensor to a strong

impact. If subjected to an

impact, have the vehicle

inspected by your Toyota

dealer. If the front or rear

bumper needs to be

removed/installed or replaced,

contact your Toyota dealer.

●

Do not modify, disassemble or

paint the sensors.

●

Do not attach a license plate

cover.

●

Keep your tires properly

inflated.

■

When to disable the function

In the following situations, disable

the function as it may operate

even though there is no possibility

of a collision.

●

Failing to observe the warnings

above.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

283

4-5. Using the driving support systems

ing

■

The system can be operated

when

●

The engine switch is in ON.

●

Intuitive parking assist function is

on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

The shift lever is in a position

other than P.

■

If “Parking Assist Unavailable

Clean Parking Assist Sensor” is

displayed on the multi-informa-

tion display

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.
Also, due to ice forming on a sensor

at low temperatures, a warning

message may be displayed or the

sensor may not be able to detect an

object. Once the ice melts, the sys-

tem will return to normal.
If a warning message is displayed

even if the sensor is clean, there

may be a sensor malfunction. Have

the vehicle inspected by your

Toyota dealer.

■

If “Parking Assist Unavailable”

is displayed on the multi-infor-

mation display

Water may be continuously flowing

over the sensor surface, such as in

a heavy rain. When the system

determines that it is normal, the sys-

tem will return to normal.

■

Sensor detection information

●

The sensor’s detection areas are

limited to the areas around the

vehicle’s front and rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the

object and other factors, the

detection distance may shorten,

or detection may be impossible.

• Detection may be impossible if

static objects draw too close to the

sensor.

• There will be a short delay

between static object detection

and display (warning buzzer

sounds). Even at low speeds,

there is a possibility that the object

will come within 11.9 in. (30 cm)

before the display is shown and

the warning buzzer sounds.

• It might be difficult to hear the

buzzer due to the volume of the

audio system or air flow noise of

the air conditioning system.

• It may be difficult to hear the

sound of this system due to the

buzzers of other systems.

■

Objects which the system may

not properly detect

The shape of the object may pre-

vent the sensor from detecting it.

Pay particular attention to the fol-

lowing objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials

that absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

People may not be detected if they

are wearing certain types of cloth-

ing.

■

Situations in which the system

may not operate properly

Certain vehicle conditions and the

surrounding environment may affect

the ability of a sensor to correctly

detect objects. Particular instances

where this may occur are listed

WARNING

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

284

4-5. Using the driving support systems

below.

●

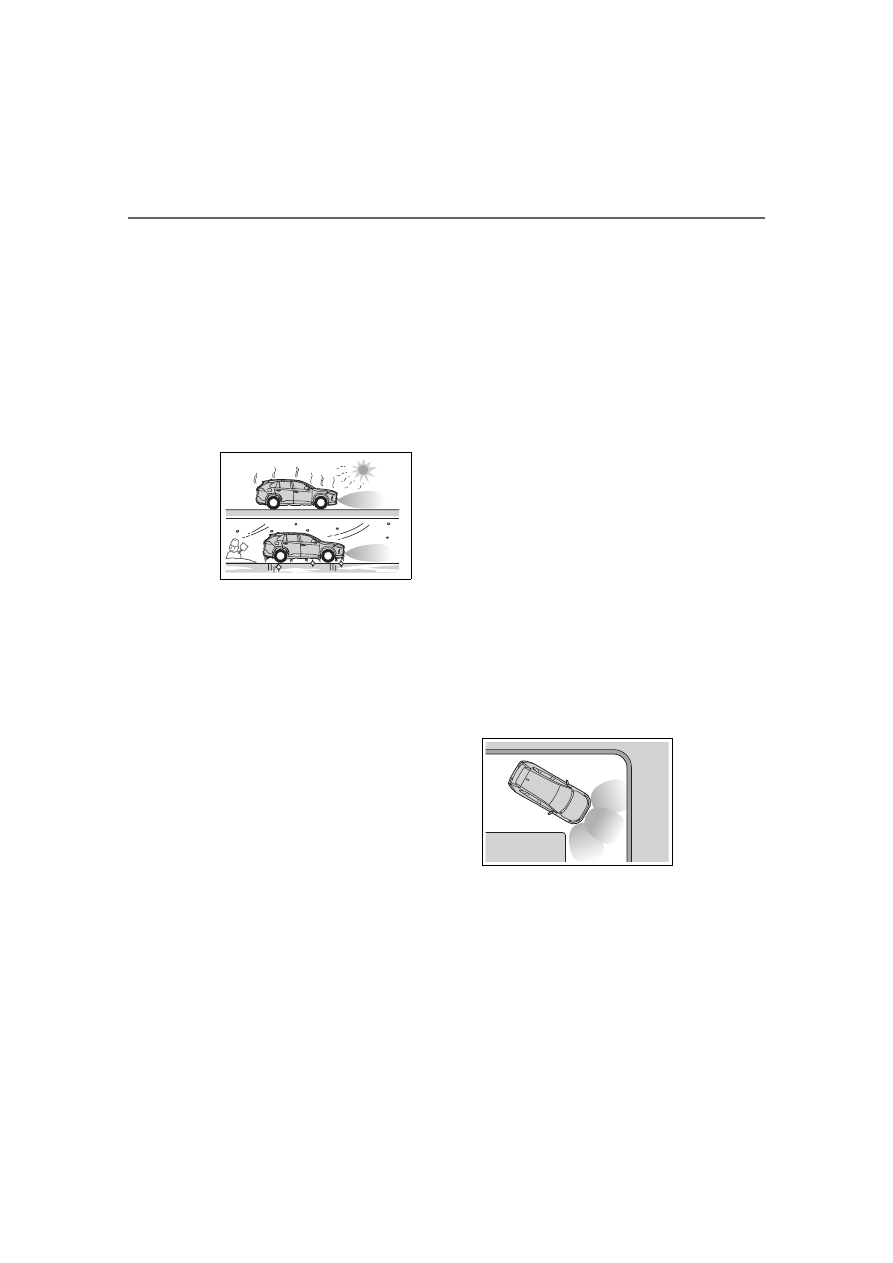

There is dirt, snow or ice on a sen-
sor. (Cleaning the sensors will
resolve this problem.)

●

A sensor is frozen. (Thawing the
area will resolve this problem.)
In especially cold weather, if a
sensor is frozen the sensor dis-
play may be displayed abnor-
mally, or objects, such as a wall,
may not be detected.

●

When a sensor or the area around
a sensor is extremely hot or cold.

●

On an extremely bumpy road, on
an incline, on gravel, or on grass.

●

When vehicle horns, vehicle
detectors, motorcycle engines, air
brakes of large vehicles, the clear-
ance sonar of other vehicles or
other devices which produce ultra-
sonic waves are near the vehicle.

●

A sensor is coated with a sheet of
spray or heavy rain.

●

If objects draw too close to the
sensor.

●

When a pedestrian is wearing
clothing that does not reflect ultra-
sonic waves (ex. skirts with gath-
ers or frills).

●

When objects that are not perpen-
dicular to the ground, not perpen-
dicular to the vehicle traveling
direction, uneven, or waving are in
the detection range.

●

Strong wind is blowing.

●

When driving in inclement weather
such as fog, snow or a sandstorm.

●

When an object that cannot be
detected is between the vehicle
and a detected object.

●

If an object such as a vehicle,
motorcycle, bicycle or pedestrian
cuts in front of the vehicle or runs
out from the side of the vehicle.

●

If the orientation of a sensor has
been changed due to a collision or
other impact.

●

When equipment that may
obstruct a sensor is installed, such
as a towing eyelet, bumper pro-
tector (an additional trim strip,
etc.), bicycle carrier, or snow
plow.

●

If the front of the vehicle is raised
or lowered due to the carried load.

●

If the vehicle cannot be driven in a
stable manner, such as when the
vehicle has been in an accident or
is malfunctioning.

●

When tire chains, a compact
spare tire or an emergency tire
puncture repair kit are used.

■

Situations in which the system
may operate even if there is no
possibility of a collision

In some situations, such as the fol-
lowing, the system may operate
even though there is no possibility of
a collision.

●

When driving on a narrow road.

●

When driving toward a banner,
flag, low-hanging branch or boom
barrier (such as those used at rail-
road crossings, toll gates and
parking lots).

●

When there is a rut or hole in the
surface of the road.

●

When driving on a metal cover
(grating), such as those used for
drainage ditches.

285

4-5. Using the driving support systems

Dr
iv

ing

●

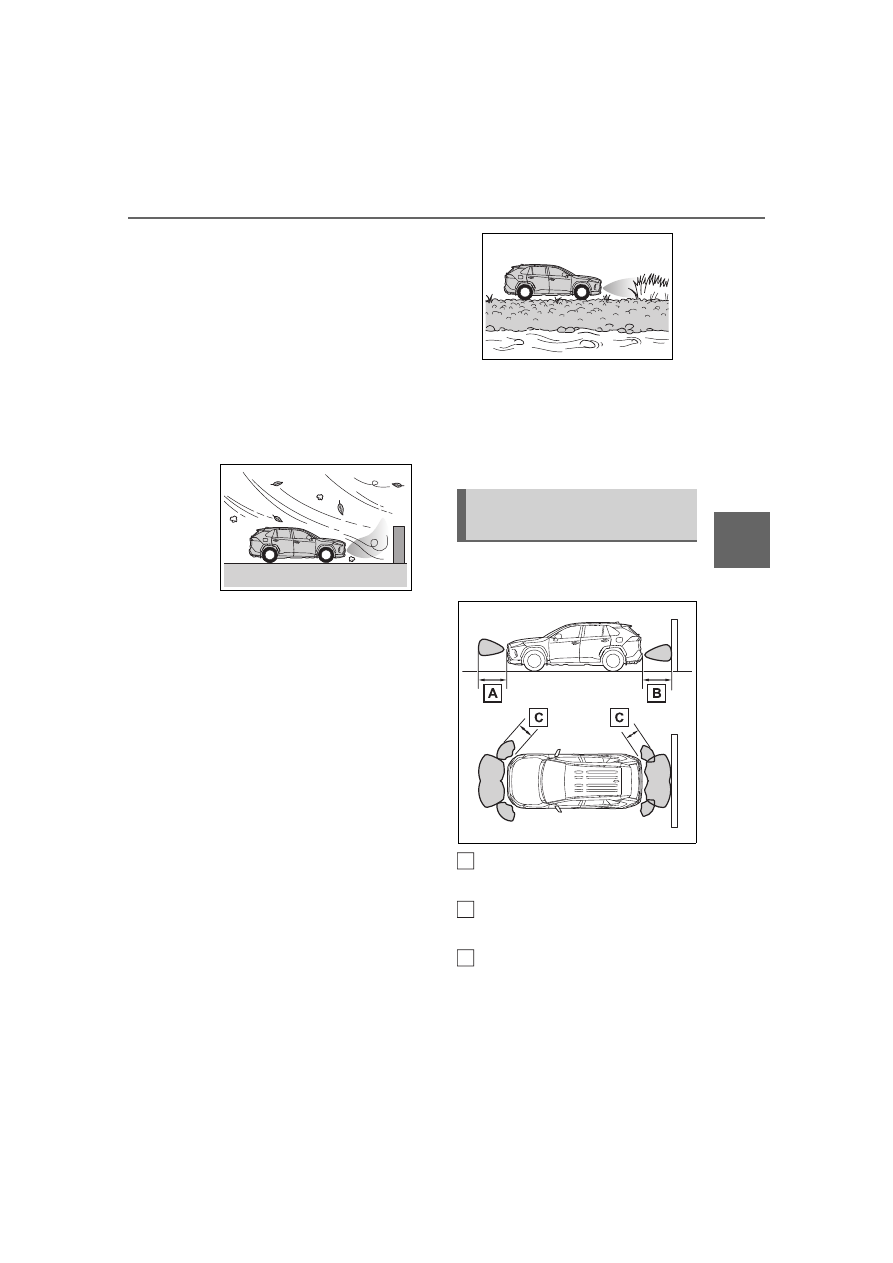

When driving up or down a steep
slope.

●

If a sensor is hit by a large amount
of water, such as when driving on
a flooded road.

●

There is dirt, snow, water drops or
ice on a sensor. (Cleaning the
sensors will resolve this problem.)

●

A sensor is coated with a sheet of
spray or heavy rain.

●

When driving in inclement weather
such as fog, snow or a sandstorm.

●

When strong winds are blowing.

●

If the front of the vehicle is raised
or lowered due to the carried load.

●

If the orientation of a sensor has
been changed due to a collision or
other impact.

●

The vehicle is approaching a tall
or curved curb.

●

Driving close to columns (H-
shaped steel beams, etc.) in multi-
story parking garages, construc-
tion sites, etc.

●

If the vehicle cannot be driven in a
stable manner, such as when the
vehicle has been in an accident or
is malfunctioning.

●

On an extremely bumpy road, on
an incline, on gravel, or on grass.

●

When tire chains, a compact
spare tire or an emergency tire
puncture repair kit are used.

■

Certification (Canada only)

This ISM device complies with
Canadian ICES-001.

■

Detection range of the sen-
sors

Approximately 3.3 ft. (100
cm)

Approximately 4.9 ft. (150
cm)

Approximately 2.1 ft. (63 cm)

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect objects that

Sensor detection display,
object distance

286

4-5. Using the driving support systems

are extremely close to the vehicle.

The range of the sensors may

change depending on the shape of
the object, etc.

■

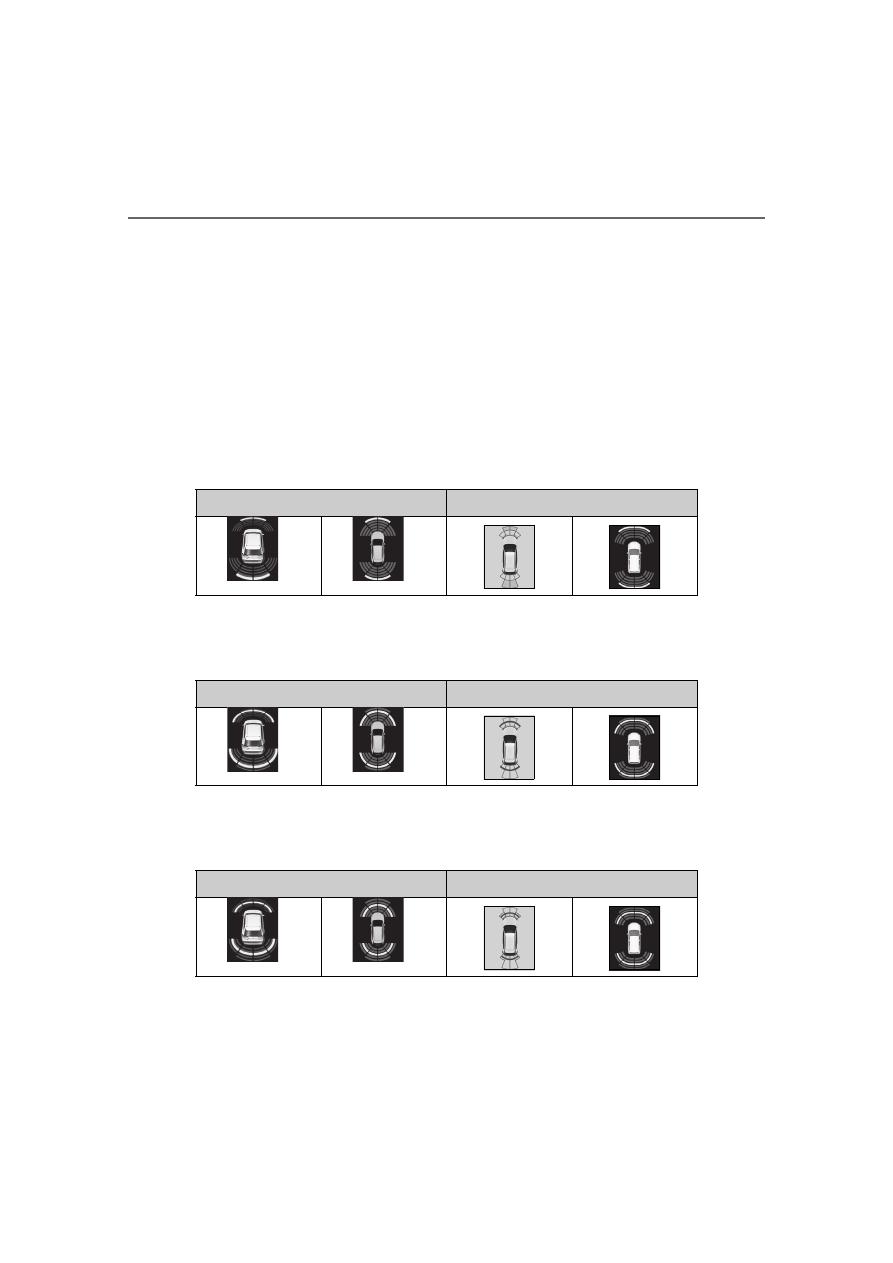

Distance display

When an object is detected by a sensor, the approximate distance to
the object will be displayed on the multi-information display or Multi-
media Display. (As the distance to the object becomes short, the dis-
tance segments may blink.)

The images may differ from that shown in the illustrations.



Approximate distance to object

• Front center sensor: 3.3 ft. (100 cm) to 2.1 ft. (63 cm)

• Rear center sensor: 4.9 ft. (150 cm) to 2.1 ft. (63 cm)

: Vehicles with 7-inch multi-information display

: Vehicles with 12.3-inch multi-information display



Approximate distance to object: 2.1 ft. (63 cm) to 1.6 ft. (48 cm)

: Vehicles with 7-inch multi-information display

: Vehicles with 12.3-inch multi-information display



Approximate distance to object: 1.6 ft. (48 cm) to 1.1 ft. (34 cm)

: Vehicles with 7-inch multi-information display

: Vehicles with 12.3-inch multi-information display

Multi-information display

Multimedia Display

Multi-information display

Multimedia Display

Multi-information display

Multimedia Display

287

4-5. Using the driving support systems

Dr
iv

ing



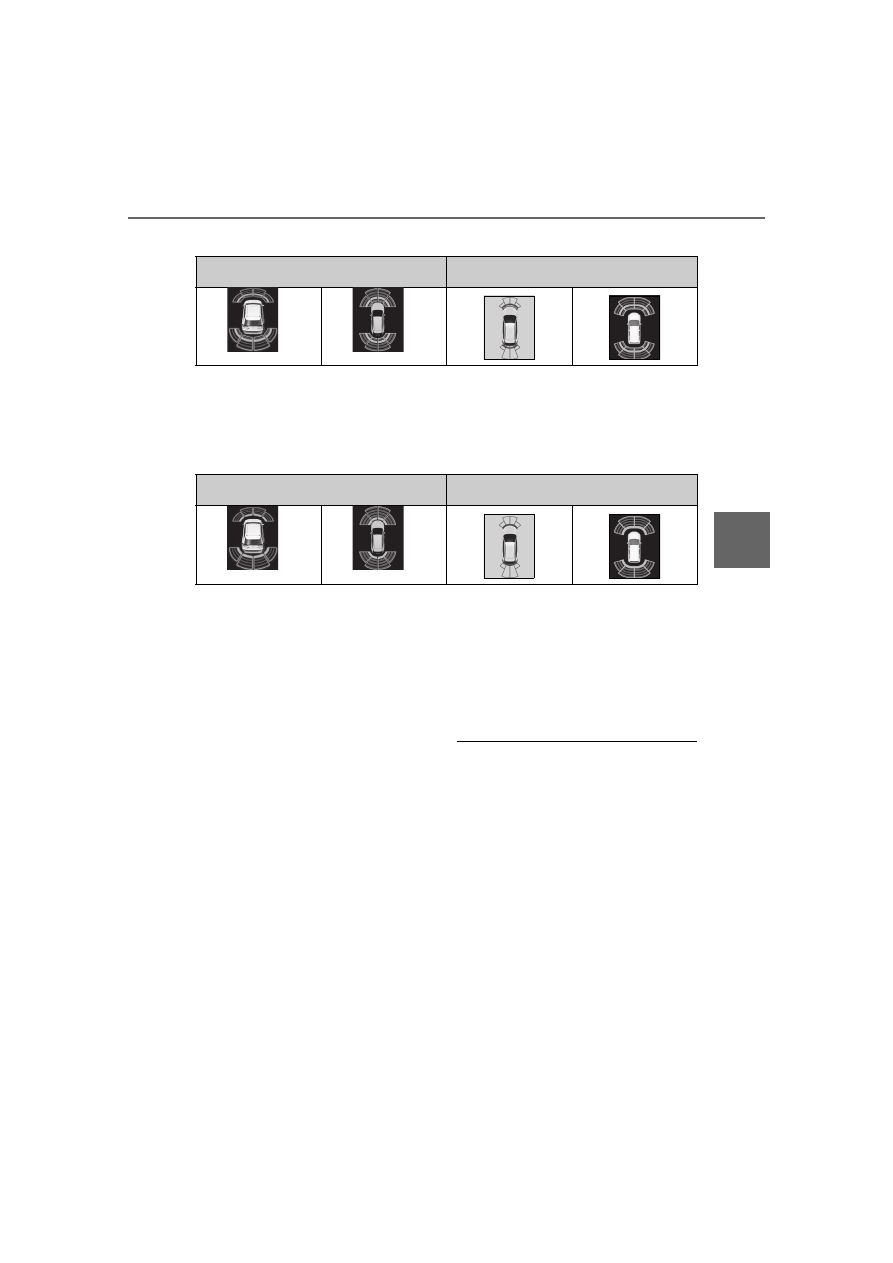

Approximate distance to object: 1.1 ft. (34 cm) to 0.5 ft. (15 cm)

: Vehicles with 7-inch multi-information display

: Vehicles with 12.3-inch multi-information display

: The distance segments will blink slowly.



Approximate distance to object: Less than 0.5 ft. (15 cm)

: Vehicles with 7-inch multi-information display

: Vehicles with 12.3-inch multi-information display

: The distance segments will blink rapidly.

■

Buzzer operation and dis-
tance to an object

A buzzer sounds when the sen-
sors are operating.



The buzzer beeps faster as
the vehicle approaches an
object.
When the vehicle comes
within approximately 1.1 ft.
(34 cm) of the object, the
buzzer sounds continuously.



When 2 or more sensors
simultaneously detect a static
object, the buzzer sounds for
the nearest object.



Even when the sensors are
operating, the buzzer will be

muted in some situations.
(automatic buzzer mute func-
tion)

■

Muting the buzzer sound

●

Automatic buzzer mute function

Even when the sensors are operat-
ing, the buzzer will be muted in the
following situations:
• The distance between the vehicle

and the detected object does not
become shorter (except when the
distance between the vehicle and
object is 1.1 ft. [34 cm] or less).

• Your vehicle is moving away from

the object.

• There are no detectable objects

entering the path of your vehicle.

However, if another object is
detected or the situation changes
while the buzzer is muted, the

Multi-information display

Multimedia Display

Multi-information display

Multimedia Display

288

4-5. Using the driving support systems

buzzer begins sounding again.

●

To mute the buzzer sound

The buzzer can be temporarily
muted by pressing

of the meter

control switches while a suggestion

that says mute is available is shown

on the multi-information display.

●

When the mute is canceled

Mute will be automatically canceled

in the following situations.

• When the shift position is changed

• When the vehicle speed has

reached or exceeded a certain

speed

• When the Intuitive parking assist

is turned off once and turned on

again

• When the engine switch is turned

off once and turned to ON again

■

Customization

The buzzer volume can be adjusted

on the multi-information display.

(



P.98, 107)

: If equipped

RCTA (Rear Cross

Traffic Alert) function

The RCTA function uses the

BSM rear side radar sensors

installed behind the rear

bumper. This function is

intended to assist the driver

in checking areas that are

not easily visible when

backing up.

WARNING

■

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The RCTA function is only a sup-

plementary function which alerts

the driver that a vehicle is

approaching from the right or left

at the rear of the vehicle.
As the RCTA function may not

function correctly under certain

conditions, the driver’s own visual

confirmation of safety is neces-

sary.
Over reliance on this function may

lead to an accident resulting

death or serious injury.

Toyota RAV4 (2024 year). Manual in english - page 9
