1-3. Emergency assistance

1

For

 safety and secu

rity

1-3.Emergency assistance

*

: If equipped

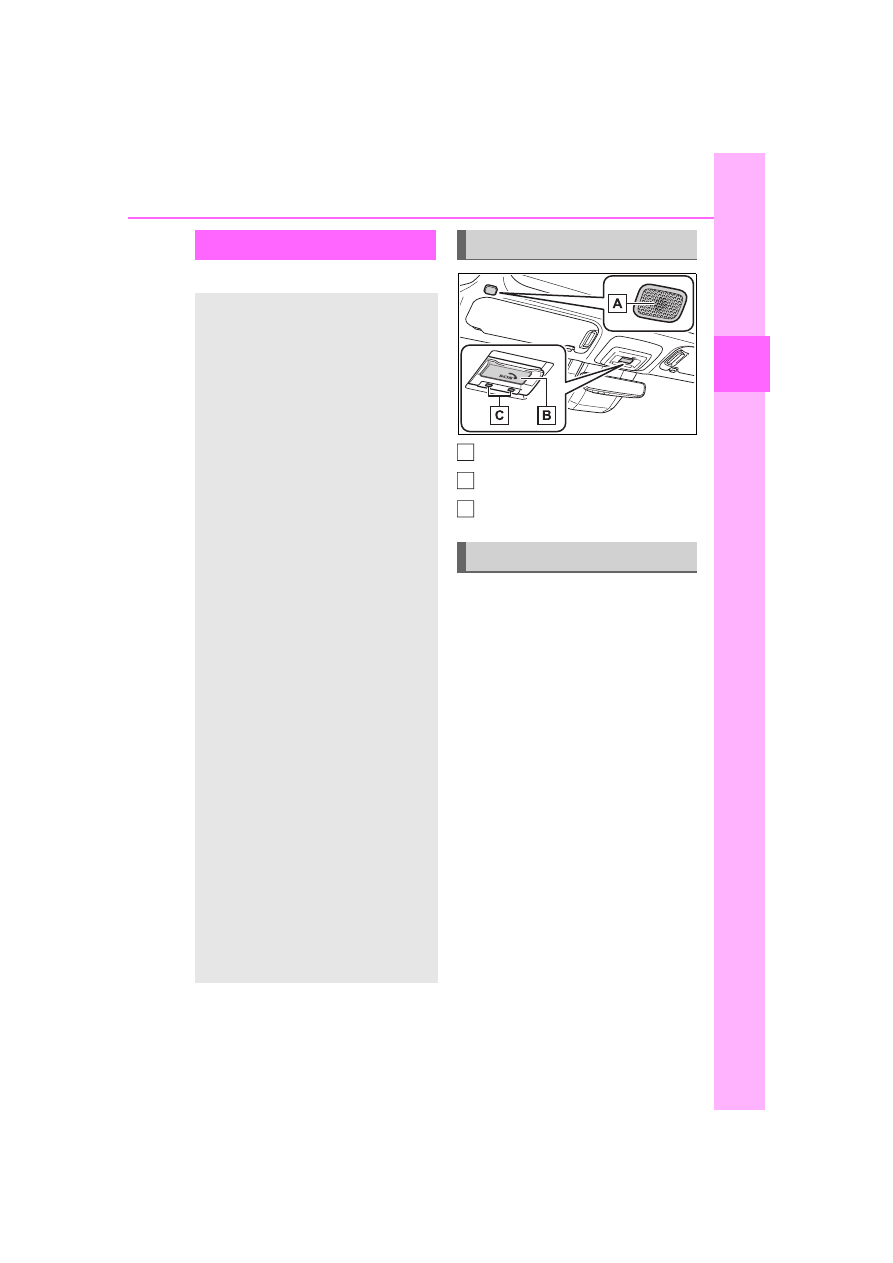

Microphone

“SOS” button

LED light indicators

Subscribers have the following
Safety Connect services avail-
able:

Automatic Collision Notifica-
tion

*

Helps drivers receive necessary
response from emergency service
providers. (

P.67)

*

: U.S. Patent No. 7,508,298 B2

Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (

P.67)

Emergency Assistance Button
(“SOS”)

Connects drivers to response-cen-
ter support. (

P.67)

Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (

P.68)

Safety Connect

*

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security features
to subscribers. Safety Con-
nect is supported by
Toyota’s designated
response center, which
operates 24 hours per day, 7
days per week.

Safety Connect service is
available by subscription on
select, telematics hardware-
equipped vehicles.

By using the Safety Connect
service, you are agreeing to
be bound by the Telematics
Subscription Service Agree-
ment and its Terms and
Conditions, as in effect and
amended from time to time,
a current copy of which is
available at Toyota.com in
the United States,
Toyotapr.com in Puerto
Rico and Toyota.ca in Can-
ada. All use of the Safety
Connect service is subject
to such then-applicable
Terms and Conditions.

System components

Services

A

B

C

66

1-3. Emergency assistance

After you have signed the
Telematics Subscription Ser-
vice Agreement and are
enrolled, you can begin receiv-
ing services.

A variety of subscription terms
are available for purchase. Con-
tact your Toyota dealer, call the
following appropriate Customer
Experience Center or push the
“SOS” button in your vehicle for
further subscription details.

The United States

1-800-331-4331

Canada

1-888-869-6828

Puerto Rico

1-877-855-8377

Safety Connect Services Infor-
mation

Phone calls using the vehicle’s
Bluetooth

®

 technology will not be

possible when Safety Connect is
active and in use.

Safety Connect is available begin-
ning Fall 2009 on select Toyota
models (in the contiguous United
States only). Contact with the
Safety Connect response center
is dependent upon the telematics
device being in operative condi-
tion, cellular connection availabil-
ity, and GPS satellite signal
reception, which can limit the abil-
ity to reach the response center or
receive emergency service sup-
port. Enrollment and Telematics
Subscription Service Agreement
are required. A variety of subscrip-
tion terms are available; charges

vary by subscription term selected
and location.

Automatic Collision Notification,
Emergency Assistance and Stolen
Vehicle Location are available in
the United States, including
Hawaii and Alaska, Puerto Rico
and Canada, and Enhanced
Roadside Assistance are avail-
able in the United States, Puerto
Rico and Canada.

Automatic Collision Notification,
Emergency Assistance, Stolen
Vehicle and Enhanced Road
Assistance are not available in the
U.S. Virgin Islands.
For vehicles first sold in the U.S.
Virgin Islands, no Safety Connect
services will function in or outside
the U.S. Virgin Islands.

Safety Connect services are not
subject to section 255 of the Tele-
communications Act and the
device is not TTY compatible.

Languages

The Safety Connect response cen-
ter will offer support in multiple lan-
guages. The Safety Connect system
will offer voice prompts in English,
Spanish, and French. Please indi-
cate your language of choice when
enrolling.

When contacting the response
center

You may be unable to contact the
response center if the network is
busy.

When the power switch is turned
to ON, the red indicator light
comes on for 2 seconds then
turns off. Afterward, the green
indicator light comes on, indicat-
ing that the service is active.

Subscription

Safety Connect LED light
Indicators

67

1-3. Emergency assistance

1

For

 safety and secu

rity

The following indicator light pat-
terns indicate specific system
usage conditions:

Green indicator light on =
Active service

Green indicator light flashing
= Safety Connect call in pro-
cess

Red indicator light (except at
vehicle start-up) = System
malfunction (contact your
Toyota dealer)

No indicator light (off) =
Safety Connect service not
active

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the
vehicle occupants to assess the
level of emergency. If the occu-
pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Customer Experi-
ence Center at 1-800-331-4331
in the United States, 1-877-855-
8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow
the prompts for Safety Connect
to initiate this service.

In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Connect-
equipped vehicle location data
may, under certain circum-
stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button
to reach the Safety Connect
response center. The answering
agent will determine your vehi-
cle’s location, assess the emer-
gency, and dispatch the
necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

Safety Connect services

68

1-3. Emergency assistance

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.

Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Enhanced
Roadside Assistance services
and their limitations, please see
the Safety Connect Terms and
Conditions, which are available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

Important! Read this informa-
tion before using Safety Con-
nect.

Exposure to radio fre-
quency signals

The Safety Connect system
installed in your vehicle is a low-
power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.

In August 1996, the Federal
Communications Commission
(FCC) adopted RF exposure
guidelines with safety levels for

mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.

ANSI (American National
Standards Institute) C95.1
[1992]

NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]

ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-
entific literature. Over 120 scien-
tists, engineers, and physicians
from universities, and govern-
ment health agencies and
industries reviewed the avail-
able body of research to
develop the ANSI Standard
(C95.1).

The design of Safety Connect
complies with the FCC guide-
lines in addition to those stan-
dards.

Free/Open Source Soft-
ware Information

This product contains
Free/Open Source Software
(FOSS). The license information
and/or the source code of such
FOSS can be found at the fol-
lowing URL.

Safety information for
Safety Connect

69

1-3. Emergency assistance

1

For

 safety and secu

rity

https://opensource.lge.com/
osSch/list?types=ALL&search=
TL21BNU

70

1-4. Hybrid system

1-4.Hybrid system

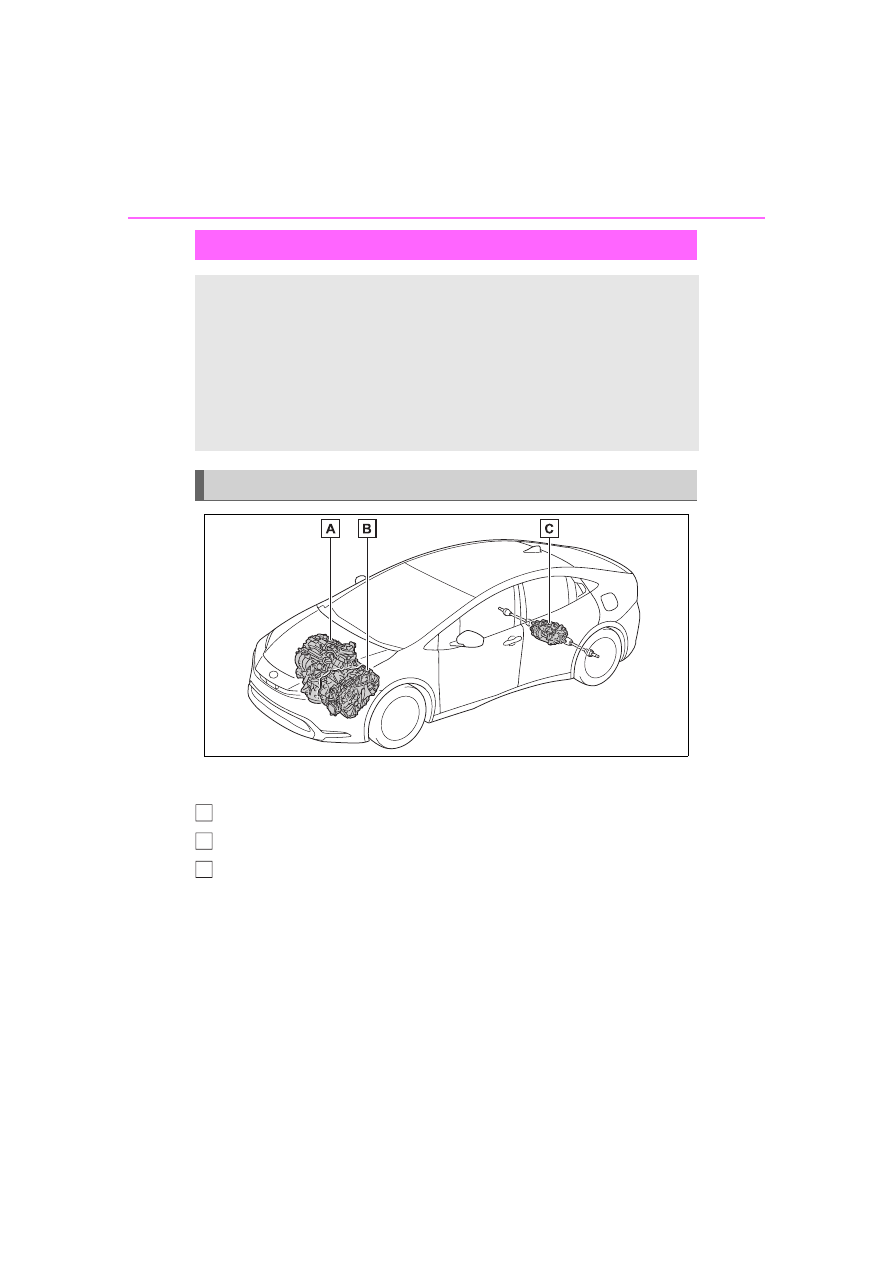

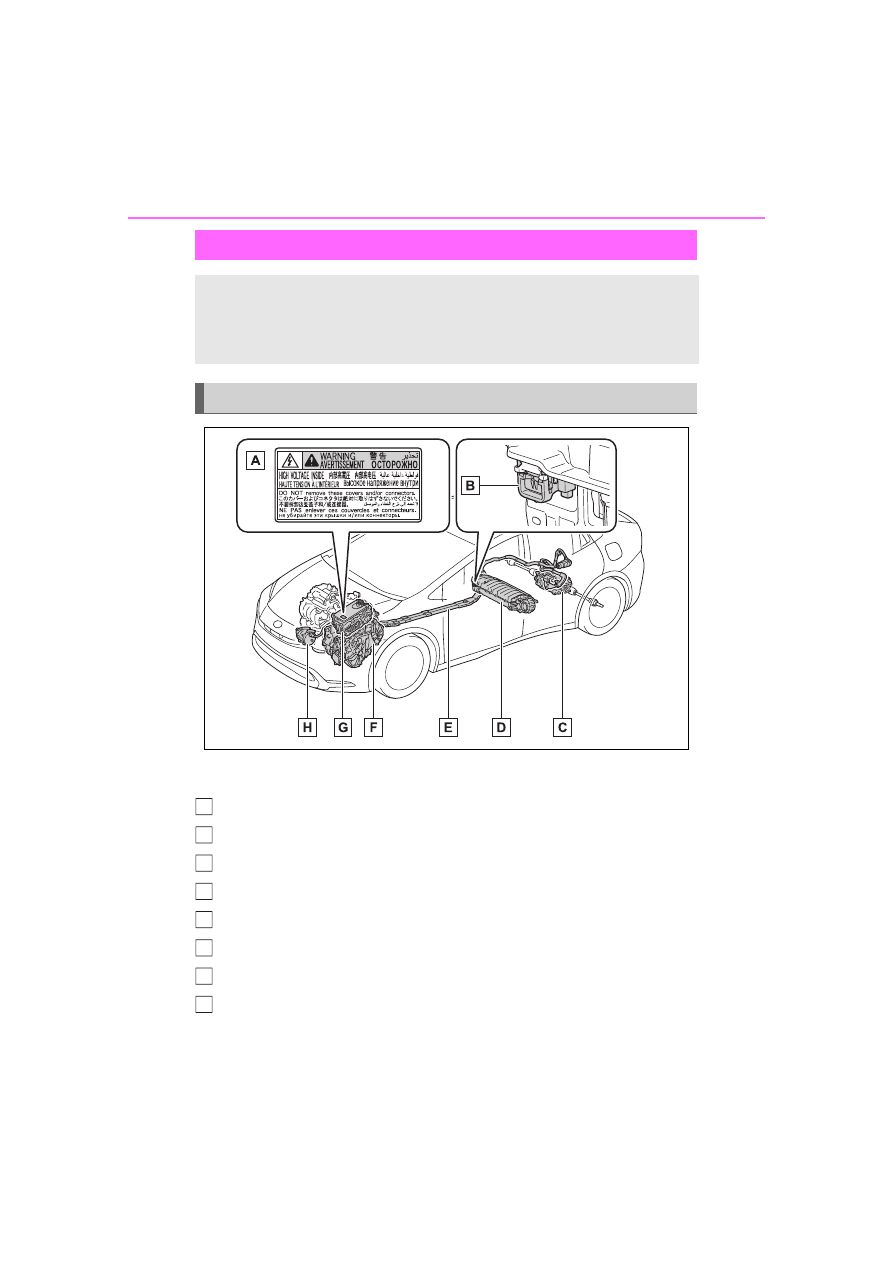

The illustration is an example for explanation and may differ from the actual
item.

Gasoline engine

Front electric motor (traction motor)

Rear electric motor (traction motor) (AWD models)

When stopped/during start
off

The gasoline engine stops

*



when the vehicle is stopped.
During start off, the electric
motor (traction motor) drives the
vehicle. At slow speeds or when

traveling down a gentle slope,

the engine is stopped

*

 and the

electric motor (traction motor) is
used.

When the shift position is in N,
the hybrid battery (traction bat-
tery) is not being charged.

Hybrid system features

Your vehicle is a Hybrid Electric Vehicle. It has characteristics
different from conventional vehicles. Be sure you are closely
familiar with the characteristics of your vehicle, and operate it
with care.

The hybrid system combines the use of a gasoline engine and
an electric motor (traction motor) according to driving condi-
tions, improving fuel efficiency and reducing exhaust emis-
sions.

System components

A

B

C

71

1-4. Hybrid system

1

For

 safety and secu

rity

*

: When the hybrid battery (traction

battery) requires charging or the
engine is warming up, etc., the
gasoline engine will not automati-
cally stop. (

P.71)

During normal driving

The gasoline engine is predomi-
nantly used. The electric motor
(traction motor) charges the
hybrid battery (traction battery)
as necessary.

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of
the hybrid battery (traction bat-
tery) is added to that of the gas-
oline engine via the electric
motor (traction motor).

When braking (regenera-
tive braking)

The wheels operate the electric
motor (traction motor) as a
power generator, and the hybrid
battery (traction battery) is
charged.

Regenerative braking

In the following situations, kinetic
energy is converted to electric
energy and deceleration force can
be obtained in conjunction with the
recharging of the hybrid battery
(traction battery).

The accelerator pedal is released
while driving with the shift position
in D or B.

The brake pedal is depressed
while driving with the shift position
in D or B.

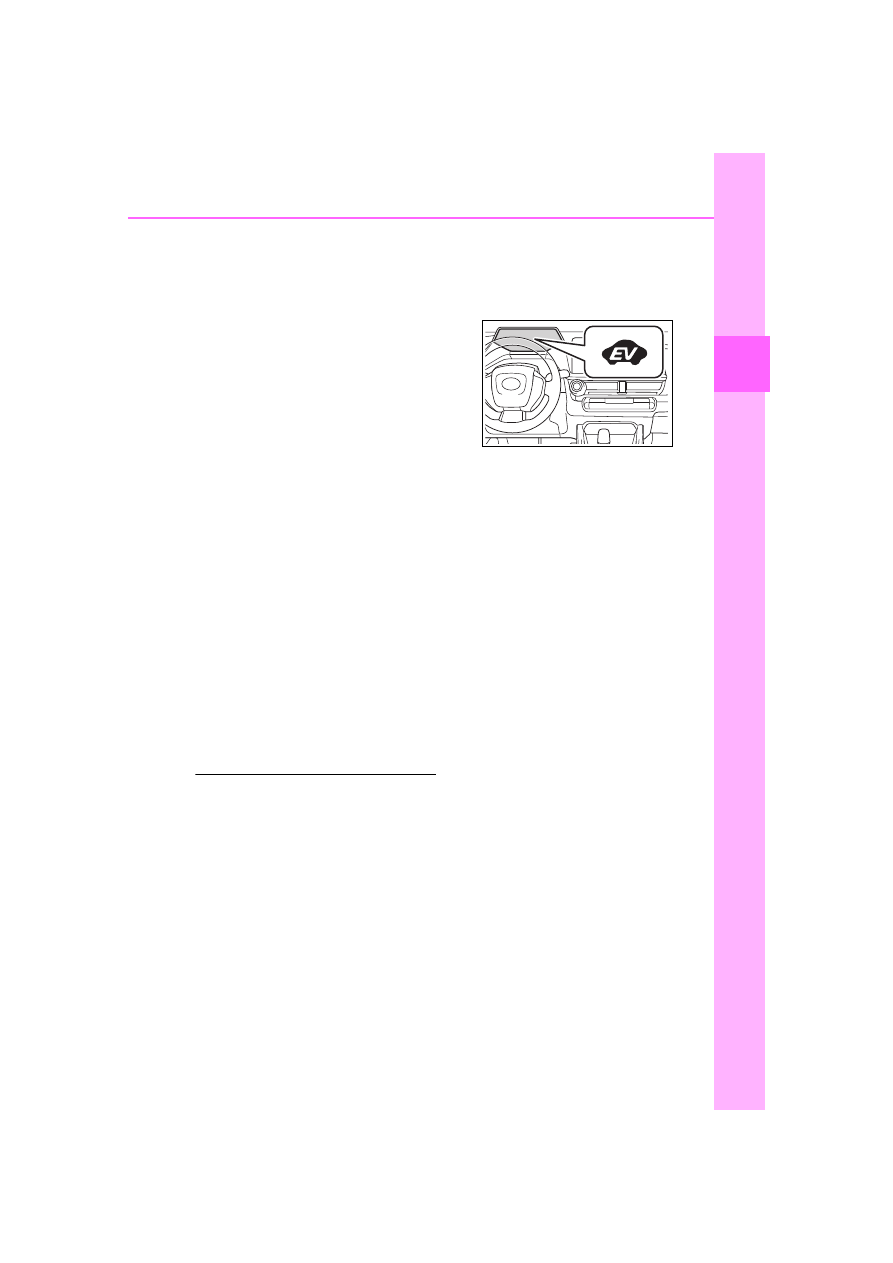

EV indicator

The EV indicator comes on when

the vehicle is driven using only the
electric motor (traction motor) or the
gasoline engine is stopped.

The on/off operation of the EV indi-
cator can be changed. (

P.96)

Conditions in which the gaso-
line engine may not stop

The gasoline engine starts and
stops automatically. However, it
may not stop automatically in the
following conditions

*

:

During gasoline engine warm-up

During hybrid battery (traction bat-
tery) charging

When the temperature of the
hybrid battery (traction battery) is
high or low

When the heater is switched on

*

: Depending on the circumstances,

the gasoline engine may also not
stop automatically in other situa-
tions.

Charging the hybrid battery
(traction battery)

As the gasoline engine charges the
hybrid battery (traction battery), the
battery does not need to be charged
from an outside source. However, if
the vehicle is left parked for a long
time the hybrid battery (traction bat-
tery) will slowly discharge. For this
reason, be sure to drive the vehicle
at least once every few months for
at least 30 minutes or 10 miles (16
km). If the hybrid battery (traction
battery) becomes fully discharged
and you are unable to start the
hybrid system, contact your Toyota
dealer.

72

1-4. Hybrid system

Charging the 12-volt battery

P.510

After the 12-volt battery has dis-
charged or when the terminal
has been removed and installed
during exchange, etc.

The gasoline engine may not stop
even if the vehicle is being driven by
the hybrid battery (traction battery).
If this continues for a few days, con-
tact your Toyota dealer.

Sounds and vibrations specific
to a Hybrid Electric Vehicle

Because there is no engine sound
or vibration, it is easy to mistake the
hybrid vehicle for being off when it is
actually still running, as indicated by
the “READY” indicator being illumi-
nated. For safety, make sure to
always shift the shift position to P
and apply the parking brake when
parked.

The following sounds or vibrations
may occur when the hybrid system
is operating and are not a malfunc-
tion:

Motor sounds may be heard from
the engine compartment.

Sounds may be heard from the
hybrid battery (traction battery)
under the rear seats when the
hybrid system starts or stops.

Relay operating sounds such as a
snap or soft clank will be emitted
from the hybrid battery (traction
battery), under the rear seats,
when the hybrid system is started
or stopped.

Sounds from the hybrid system
may be heard when the back door
is open.

Sounds may be heard from the
transmission when the gasoline
engine starts or stops, when driv-
ing at low speeds, or during idling.

Engine sounds may be heard
when accelerating sharply.

Sounds may be heard due to
regenerative braking when the

brake pedal is depressed or as
the accelerator pedal is released.

Vibration may be felt when the
gasoline engine starts or stops.

Cooling fan sounds may be heard
from the air intake vent under the
rear seat.

Maintenance, repair, recycling,
and disposal

Contact your Toyota dealer regard-
ing maintenance, repair, recycling
and disposal. Do not dispose of the
vehicle yourself.

When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).

Acoustic Vehicle Alerting Sys-
tem

In the following cases, the Acoustic
Vehicle Alerting System may be dif-
ficult for surrounding people to hear.

In very noisy areas

In the wind or the rain

Also, as the Acoustic Vehicle Alert-
ing System is installed on the front
of the vehicle, it may be more diffi-
cult to hear from the rear of the vehi-
cle compared to the front.

If “Acoustic Vehicle Alerting
System Malfunction Visit your
Dealer” is displayed on the
multi-information display

The system may be malfunctioning.
Have the vehicle inspected by your

Acoustic Vehicle Alerting
System

73

1-4. Hybrid system

1

For

 safety and secu

rity

Toyota dealer.

*

: This function can only be used in

the mainland U.S.A. It cannot be
used in other states and territo-
ries, including Alaska and Hawaii.

This system operates based on
the driving situation and traffic
information to enhance fuel
economy.

For details about Predictive effi-
cient drive, refer to “MULTIME-
DIA OWNER’S MANUAL”.

Predictive deceleration sup-
port

When the vehicle approaches
to predictive deceleration sup-
port points registered in the
navigation system, the “Refer-

ence operation range” (

) of

the ECO Accelerator Guid-
ance (

P.93) on the multi-

information display will be
turned off to encourage the
driver to reduce excessive
acceleration.

The engine braking force will
be increased according to the
driving conditions to more effi-
ciently charge the hybrid bat-
tery (traction battery) after the
accelerator pedal is released.

Predictive SOC

*

 control

The following types of control
are performed based on data
such as road and traffic informa-
tion during route guidance by
the navigation system to help
ensure that the vehicle effi-
ciently uses electricity.

When there is a long downhill
slope along the route, the sys-
tem reduces the hybrid bat-
tery (traction battery) level
before reaching the slope to
help ensure charging capacity
for regenerative braking while
traveling downhill.

When traffic congestion is
predicted along the route, the
system helps ensure a certain
battery level before reaching
congested roads to reduce
the frequency of starting the
engine to charge the hybrid
battery (traction battery) due
to low battery levels.

*

: SOC means state of charge

Predictive efficient drive
(vehicles with navigation

system)

*

A

74

1-4. Hybrid system

The illustration is an example for explanation and may differ from the actual
item.

Warning label

Service plug

Rear electric motor (traction motor) (AWD models)

Hybrid battery (traction battery)

High voltage cables (orange)

Front electric motor (traction motor)

Power control unit

Air conditioning compressor

Hybrid system precautions

Take care when handling the hybrid system, as it is a high
voltage system (about 600V at maximum) as well as contains
parts that become extremely hot when the hybrid system is
operating. Obey the warning labels attached to the vehicle.

System components

A

B

C

D

E

F

G

H

75

1-4. Hybrid system

1

For
 safety and secu

rity

Running out of fuel

When the vehicle has run out of fuel

and the hybrid system cannot be

started, refuel the vehicle with at

least enough gasoline to make the

low fuel level warning light (

P.471)

go off. If there is only a small

amount of fuel, the hybrid system

may not be able to start. (The stan-

dard amount of fuel is about 2.3 gal.

[8.8 L, 1.9 Imp.gal.], when the vehi-

cle is on a level surface. This value

may vary when the vehicle is on a

slope. Add extra fuel when the vehi-

cle is inclined.)

Electromagnetic waves

High voltage parts and cables on

Hybrid Electric Vehicles incorpo-

rate electromagnetic shielding,

and therefore emit approximately

the same amount of electromag-

netic waves as conventional gaso-

line powered vehicles or home

electronic appliances.

Your vehicle may cause sound

interference in some third party-

produced radio parts.

Hybrid battery (traction battery)

The hybrid battery (traction battery)

has a limited service life. The lifes-

pan of the hybrid battery (traction

battery) can change in accordance

with driving style and driving condi-

tions.

Starting the hybrid system in an

extremely cold environment

When the hybrid battery (traction

battery) is extremely cold (below

approximately -22°F [-30°C]) under

the influence of the outside tem-

perature, it may not be possible to

start the hybrid system. In this case,

try to start the hybrid system again

after the temperature of the hybrid

battery increases due to the outside

temperature increase etc.

WARNING

High voltage precautions

This vehicle has high voltage DC

and AC systems as well as a 12-

volt system. DC and AC high volt-

age is very dangerous and can

cause severe burns and electric

shock that may result in death or

serious injury.

Never touch, disassemble,

remove or replace the high volt-

age parts, cables or their con-

nectors.

The hybrid system will become

hot after starting as the system

uses high voltage. Be careful of

both the high voltage and the

high temperature, and always

obey the warning labels

attached to the vehicle.

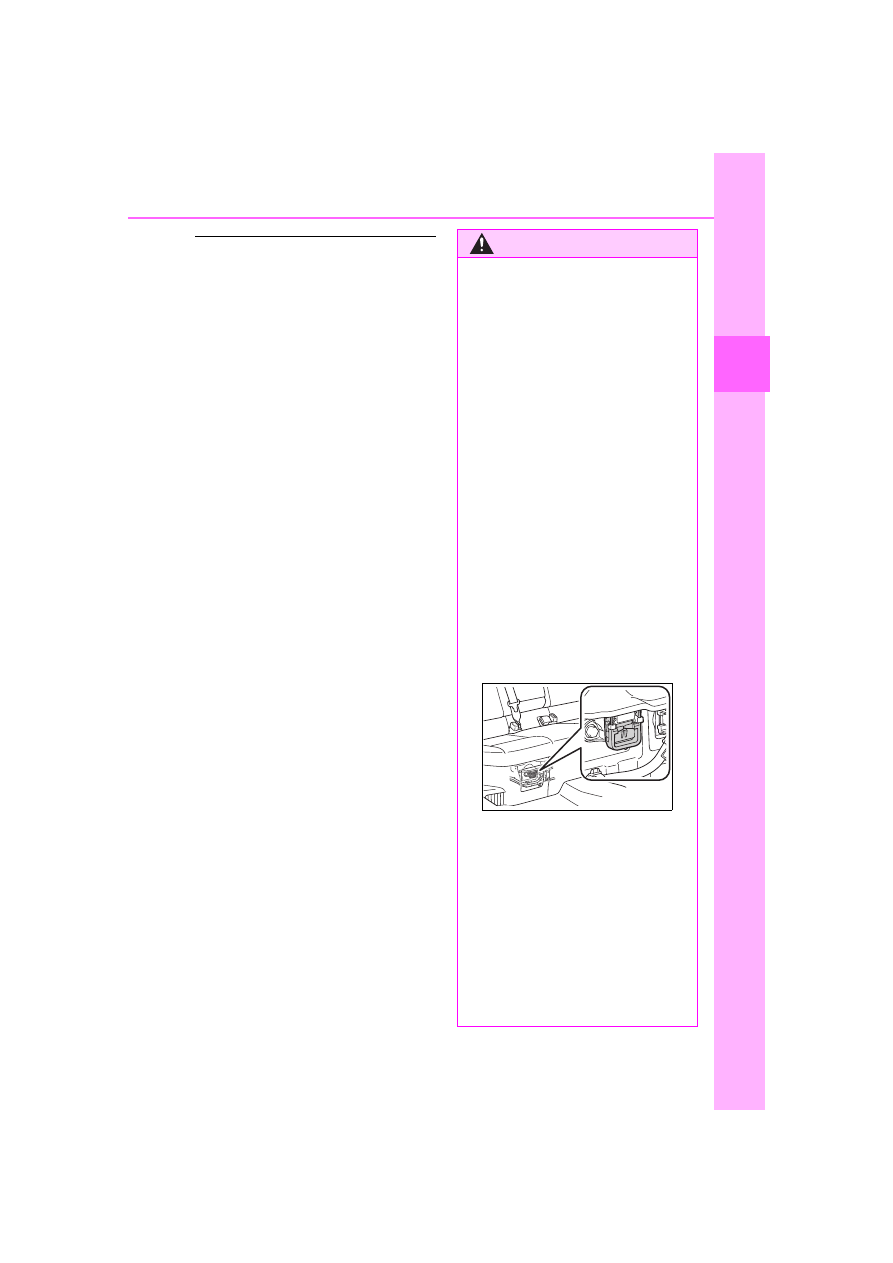

Never try to open the service

plug access hole located under-

neath the rear seats. The ser-

vice plug is used only when the

vehicle is serviced and is sub-

ject to high voltage.

Road accident cautions

Observe the following precautions

to reduce the risk of death or seri-

ous injury:

Stop the vehicle in a safe place

to prevent subsequent acci-

dents. While depressing the

brake pedal, apply the parking

brake and shift the shift position

to P to stop the hybrid system.

Then, slowly release the brake

pedal.

76

1-4. Hybrid system

WARNING

Do not touch the high voltage

parts, cables and connectors.

If electric wires are exposed

inside or outside your vehicle,

an electric shock may occur.

Never touch exposed electric

wires.

Do not touch the battery if liquid

is leaking from or adhering to it.

If electrolyte (carbonic-based

organic electrolyte) from the

hybrid battery (traction battery)

comes into contact with the

eyes or skin, it could cause

blindness or skin wounds. In the

unlikely event that it comes into

contact with the eyes or skin,

wash it off immediately with a

large amount of water, and seek

immediate medical attention.

If electrolyte is leaking from the

hybrid battery (traction battery),

do not approach the vehicle.

Even in the unlikely event that

the hybrid battery (traction bat-

tery) is damaged, the internal

construction of the battery will

prevent a large amount of elec-

trolyte from leaking out. How-

ever, any electrolyte that does

leak out will give off a vapor.

This vapor is an irritant to skin

and eyes and could cause acute

poisoning if inhaled.

Do not bring burning or high-

temperature items close to the

electrolyte.

The electrolyte may ignite and

cause a fire.

If a fire occurs in the Hybrid

Electric Vehicle, leave the vehi-

cle as soon as possible. Never

use a fire extinguisher that is

not meant for electric fires.

Using even a small amount of

water may be dangerous.

If your vehicle needs to be

towed, do so with four wheels

raised. If the wheels connected

to the electric motor (traction

motor) are on the ground when

towing, the motor may continue

to generate electricity. This may

cause a fire. (

P.458)

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

Hybrid battery (traction bat-

tery)

Your vehicle contains a sealed

lithium-ion battery.

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through Toyota dealer. Do not

dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

• The hybrid battery is intended to

be used exclusively with your

Hybrid Electric Vehicle. If the

hybrid battery is used outside of

your vehicle or modified in any

way, accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

77

1-4. Hybrid system

1

For
 safety and secu

rity

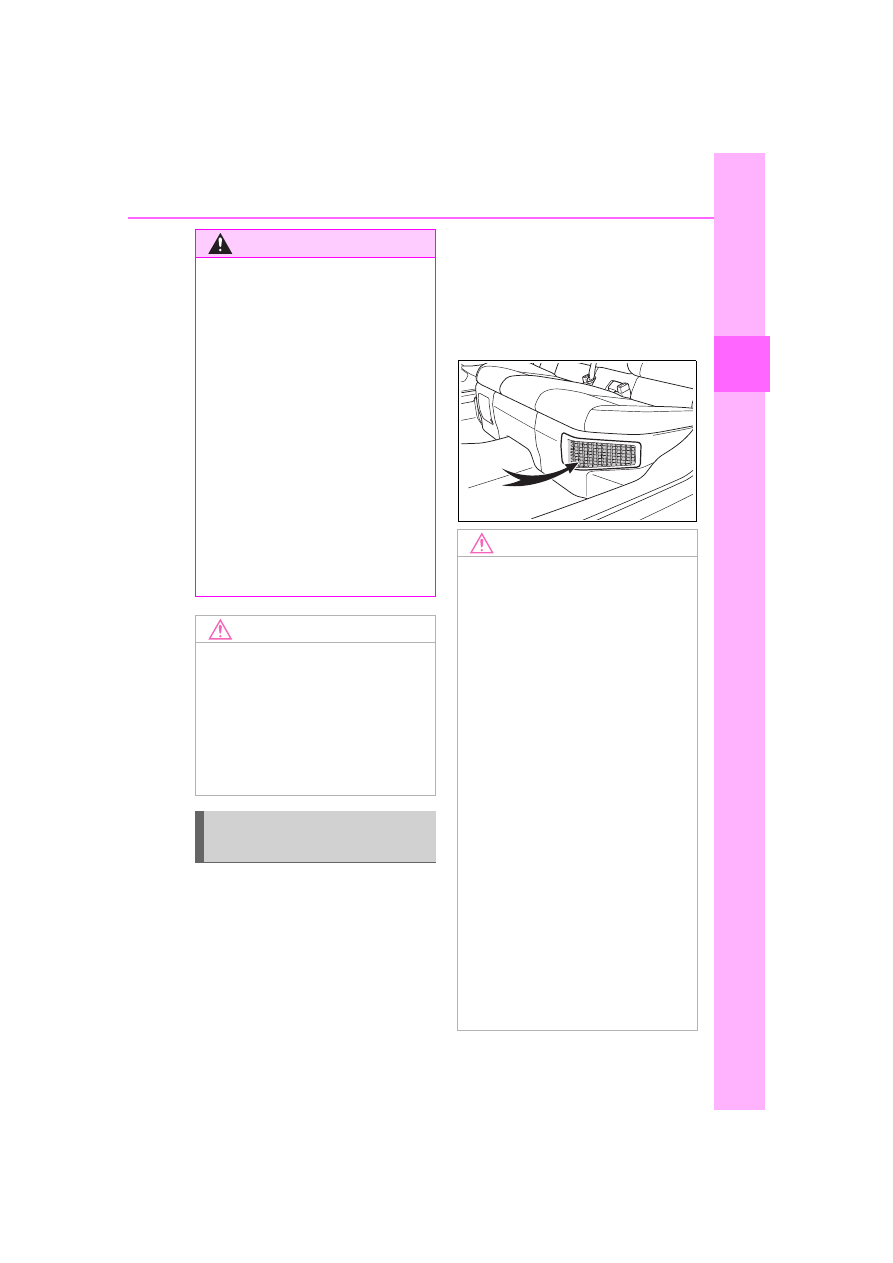

There is an air intake vent under

the left side of the rear seat with

the purpose of cooling the

hybrid battery (traction battery).
If the vent is blocked, it may

interfere with the cooling of the

hybrid battery (traction battery).
If input/output of the hybrid bat-

tery (traction battery) becomes

limited and the distance that the

vehicle can be driven using the

electric motor (traction motor) is

reduced, the fuel economy may

be reduced.

WARNING

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

NOTICE

Hybrid battery (traction bat-

tery)

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

Hybrid battery (traction

battery) air intake vent

NOTICE

Hybrid battery (traction bat-

tery) air intake vent

Make sure not to block the air

intake vent with anything, such

as a seat cover, plastic cover, or

luggage.

The input/output of the hybrid

battery (traction battery) may be

restricted, leading to a reduction

in hybrid battery (traction bat-

tery) output and a malfunction.

Periodically clean the air intake

vent to prevent it from clogging.

(

P.443)

Do not get water or foreign

materials in the air intake vent

as this may cause a short circuit

and damage the hybrid battery

(traction battery).

There is a filter installed to the

air intake vent. When the filter

remains noticeably dirty even

after cleaning the air intake

vent, filter cleaning or replace-

ment is recommended. For

information regarding filter

cleaning or replacement, refer

to P.443.

78

1-4. Hybrid system

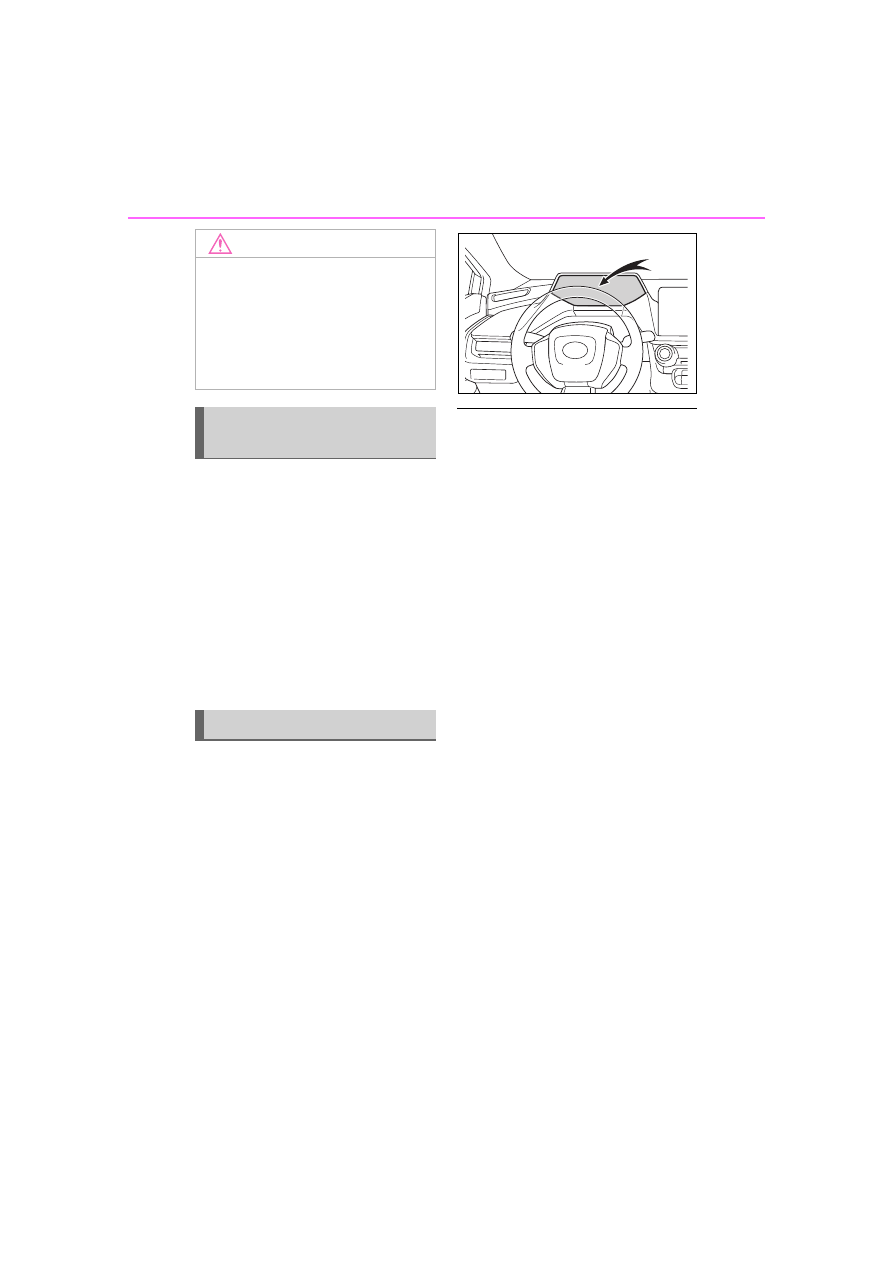

When a certain level of impact is

detected by the impact sensor,

the emergency shut off system

blocks the high voltage current

and stops the fuel pump to mini-

mize the risk of electrocution

and fuel leakage. If the emer-

gency shut off system activates,

your vehicle will not restart. To

restart the hybrid system, con-

tact your Toyota dealer.

A message is automatically dis-

played when a malfunction

occurs in the hybrid system or

an improper operation is

attempted.
If a warning message is shown

on the multi-information display,

read the message and follow the

instructions.

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The hybrid system may not start. In

this case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

NOTICE

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is shown

on the multi-information dis-

play, the air intake vent and fil-

ter may be clogged. Refer to

P.443 for information on how to

clean the air intake vent.

Emergency shut off sys-

tem

Hybrid warning message

79

1-5. Theft deterrent system

1

For
 safety and secu

rity

1-5.Theft deterrent system

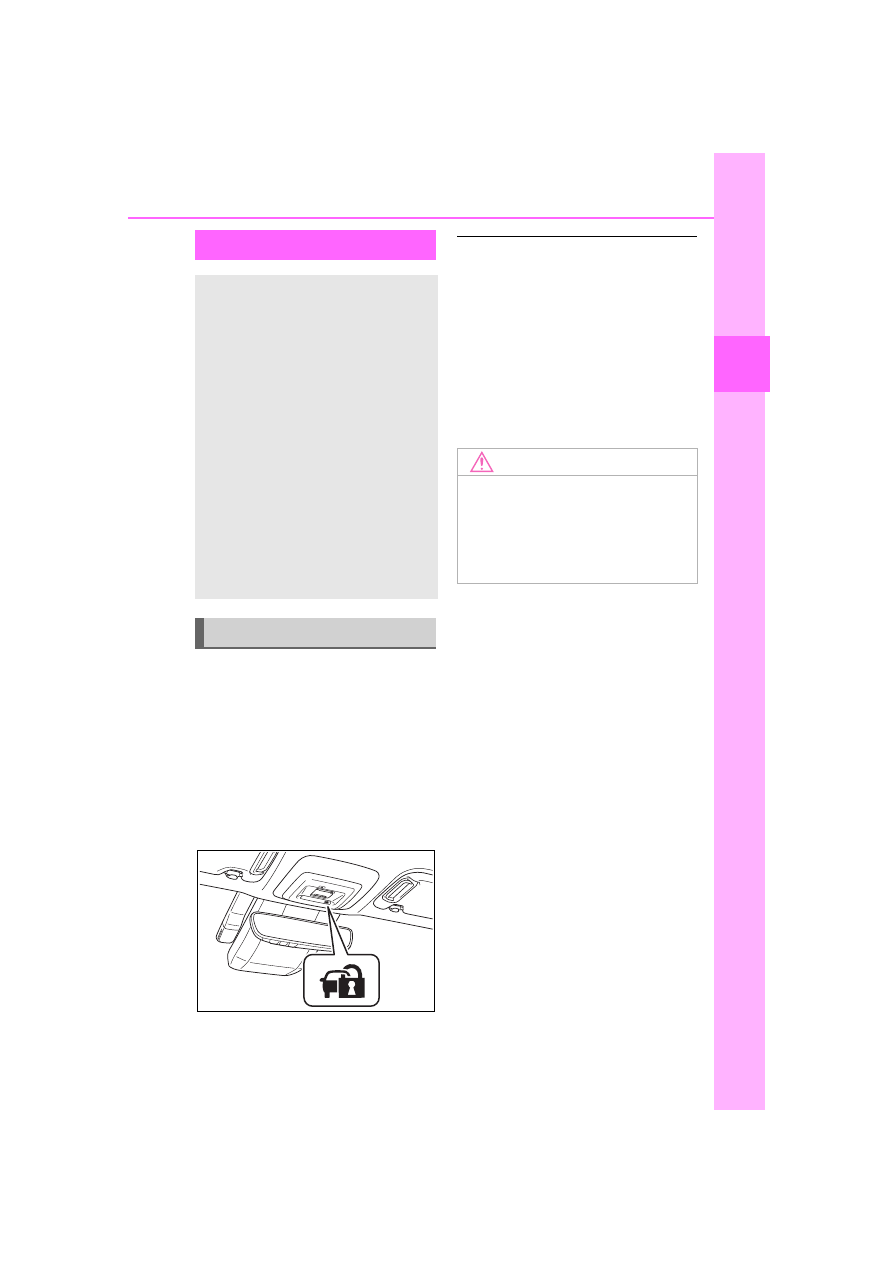

The indicator light flashes after

the power switch has been

turned to off to indicate that the

system is operating.

The indicator light stops flashing

after the power switch has been

turned to ACC or ON to indicate

that the system has been can-

celed.

System maintenance

The vehicle has a maintenance-free

type immobilizer system.

Conditions that may cause the

system to malfunction

If the grip portion of the key is in

contact with a metallic object

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Immobilizer system

The vehicle’s keys have

built-in transponder chips

that prevent the hybrid sys-

tem from starting if a key

has not been previously

registered in the vehicle’s

on-board computer.
Never leave the keys inside

the vehicle when you leave

the vehicle.

This system is designed to

help prevent vehicle theft but

does not guarantee absolute

security against all vehicle

thefts.

Operating the system

NOTICE

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

80

1-5. Theft deterrent system

81

2

2

Vehicle

 statu

s

 information an

in

dicator

s

Vehicle status informa-

tion and indicators

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

82

Gauges and meters .......

87

Multi-information display

92

Energy monitor/consump-

tion screen.................

102

82

2-1. Instrument cluster

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights and indicators

The warning lights and indicators on the instrument cluster,
overhead console panel and outside rear view mirrors inform
the driver of the status of the vehicle’s various systems.

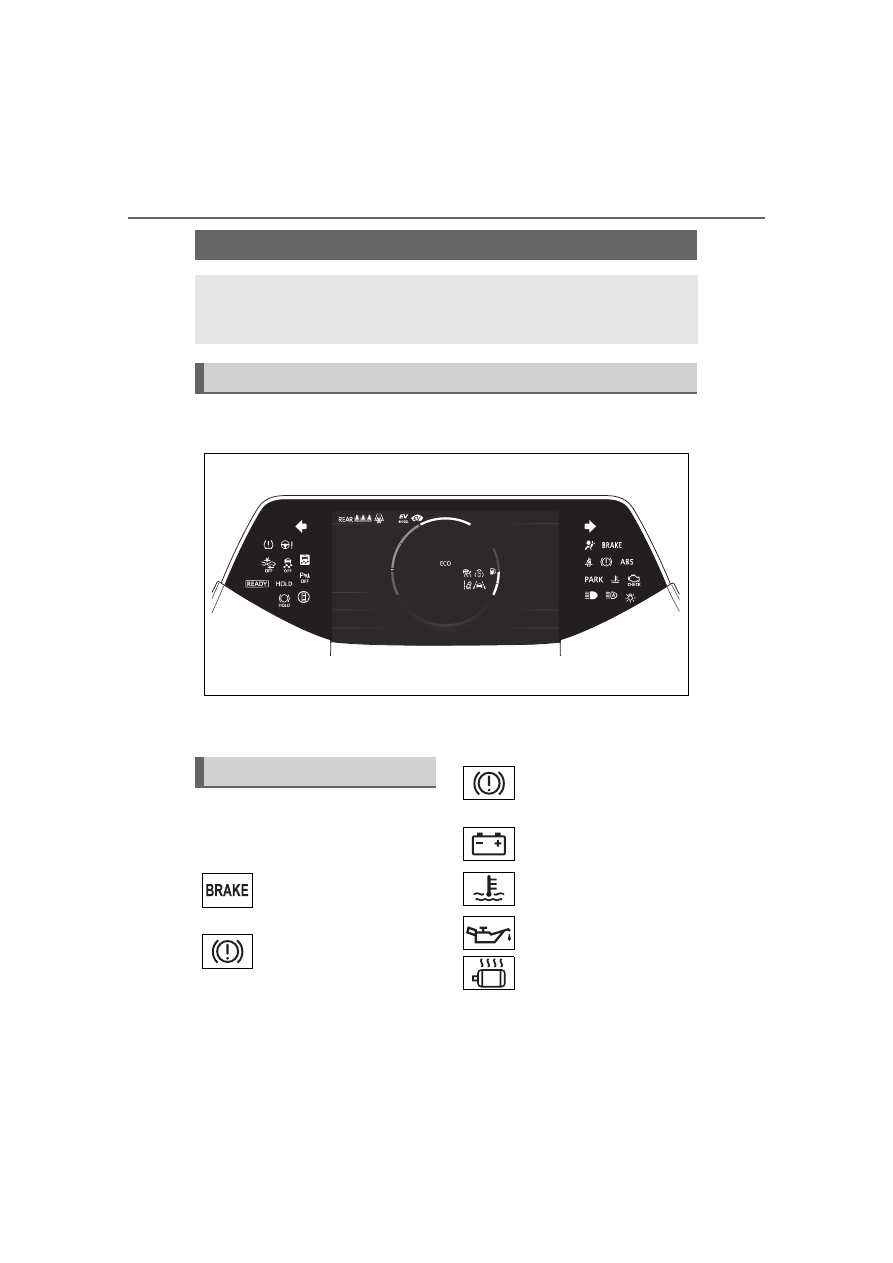

Instrument cluster

Warning lights

(U.S.A.)

Brake system warning

light

*1

 (

P.464)

(Canada)

(Red)

Brake system warning

light

*1

 (

P.464)

(Yellow)

Brake system warning

light

*1

 (

P.464)

Charging system warning

light

*2

 (

P.464)

High coolant temperature
warning light (

P.465)

Low engine oil pressure

warning light

*2

 (

P.465)

Hybrid system overheat

warning light

*2

 (

P.465)

83

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

*1

: These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

: This light illuminates on the

multi-information display with a
message.

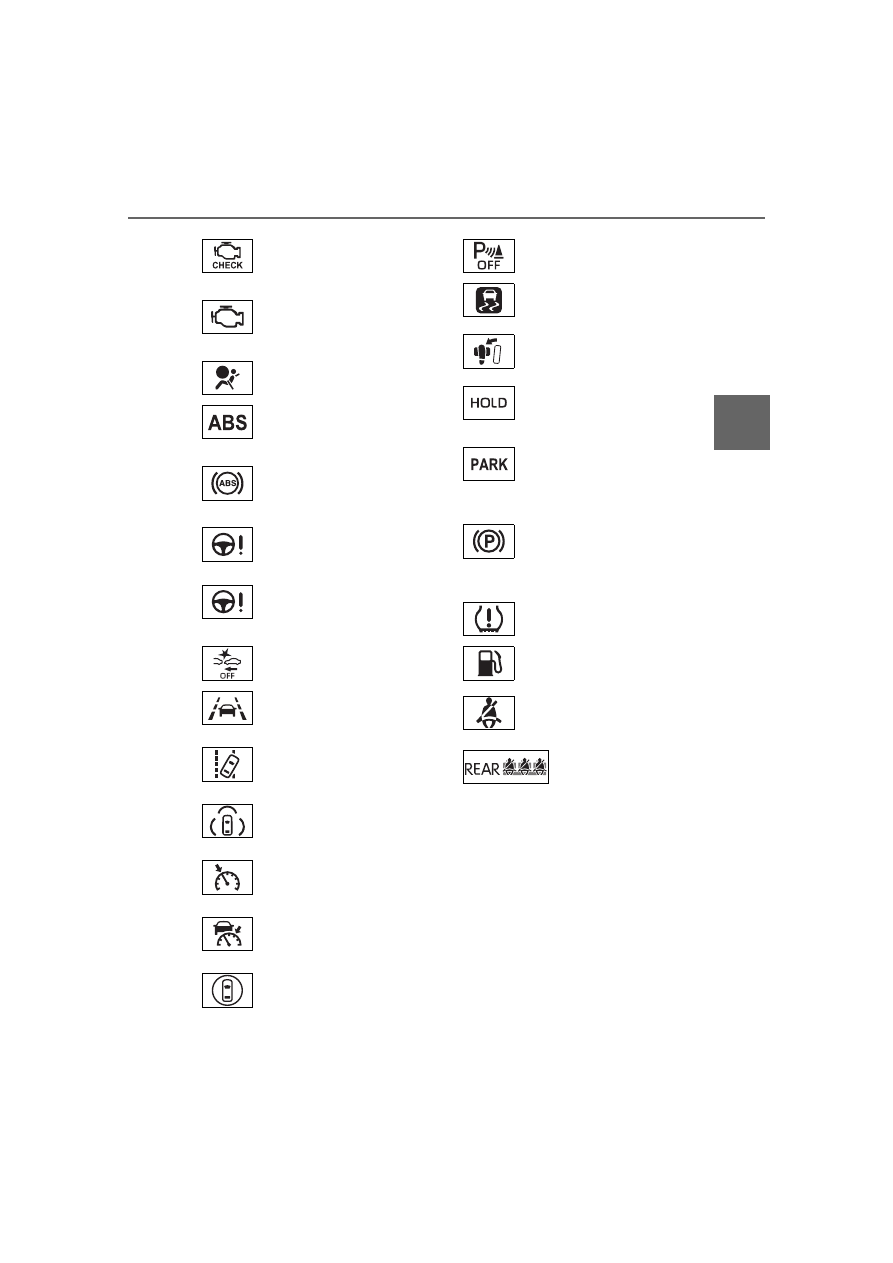

(U.S.A.)

Malfunction indicator

lamp

*1

 (

P.465)

(Canada)

Malfunction indicator

lamp

*1

 (

P.465)

SRS warning light

*1



(

P.466)

(U.S.A.)

ABS warning light

*1



(

P.466)

(Canada)

ABS warning light

*1



(

P.466)

(Red)

Electric power steering

system warning light

*1



(

P.467)

(Yellow)

Electric power steering

system warning light

*1



(

P.467)

PCS warning light

*1



(

P.467)

(Orange)

LTA indicator (

P.467)

(Orange)

LDA indicator (

P.467)

(Orange)

PDA indicator (

P.468)

(Orange)

Cruise control indicator
(

P.468)

(Orange)

Dynamic radar cruise con-
trol indicator (

P.468)

Driving assist information

indicator

*1

 (

P.468)

Intuitive parking assist

OFF indicator

*3

 (

P.469)

Slip indicator light

*1



(

P.469)

Inappropriate pedal opera-

tion warning light

*2



(

P.469)

(Flashes)

Brake hold operated indi-

cator

*1

 (

P.470)

(U.S.A.)

(Flashes)

Parking brake indicator
(

P.470)

(Canada)
(Flashes)

Parking brake indicator
(

P.470)

Tire pressure warning

light

*1

 (

P.470)

Low fuel level warning
light (

P.471)

Driver’s and front passen-
ger’s seat belt reminder
light (

P.471)

Rear passengers’
seat belt reminder
light (

P.471)

84

2-1. Instrument cluster

*3

:Intuitive parking assist OFF indi-

cator turns on when the power

switch is turned to ON while the

Intuitive parking assist function is

on. It will turn off after a few sec-

onds.

The indicators inform the driver

of the operating state of the

vehicle’s various systems.

WARNING

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

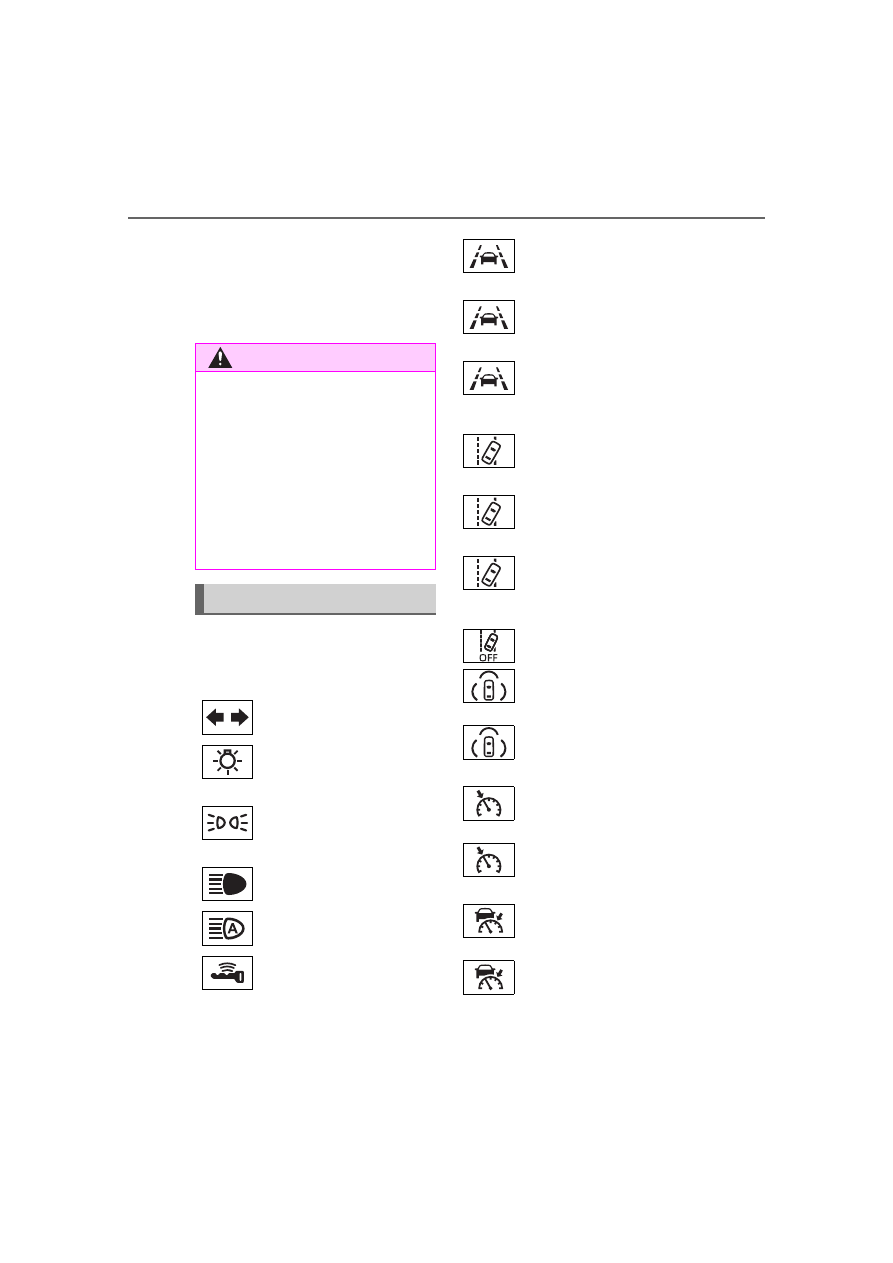

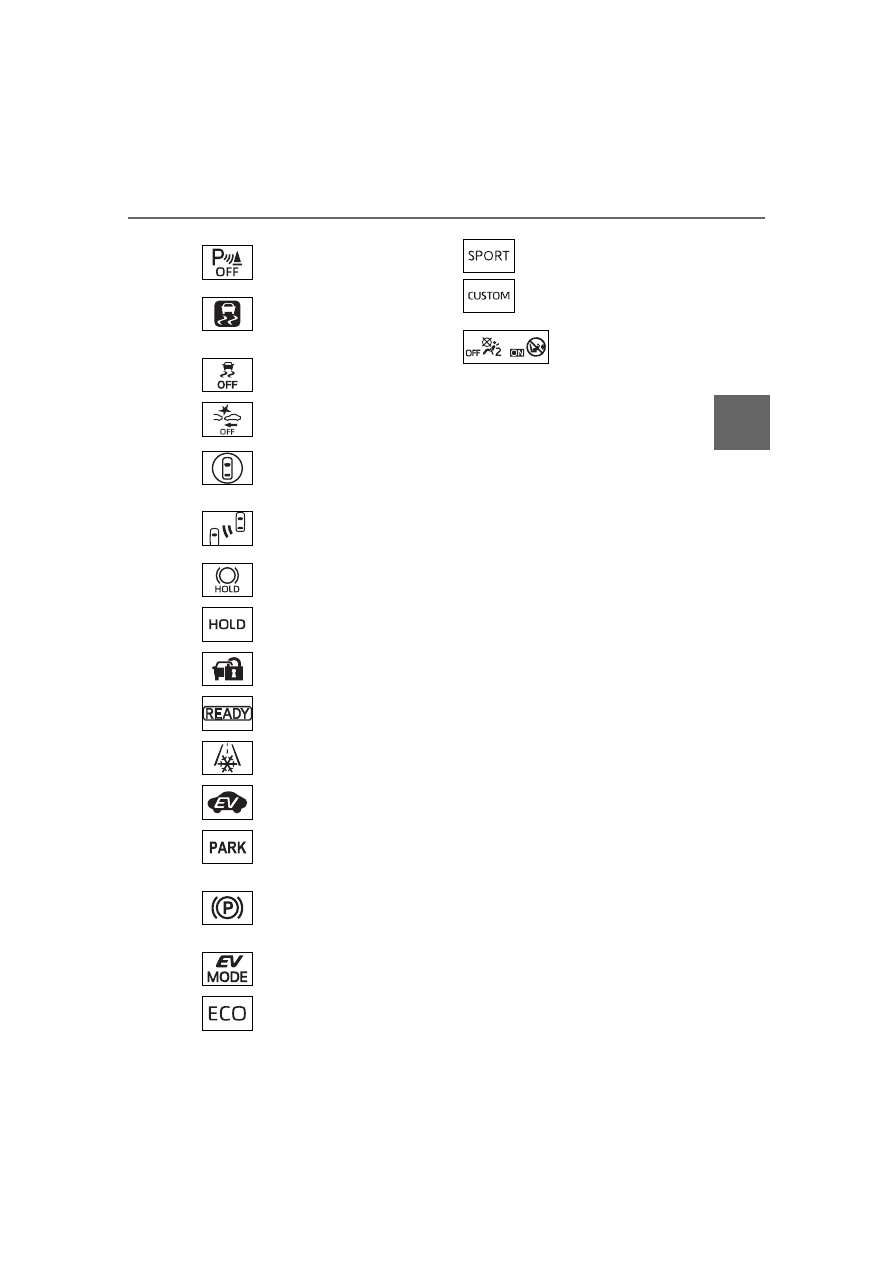

Indicators

Turn signal indicator

(

P.192)

(U.S.A.)

Headlight indicator

(

P.199)

(Canada)

Tail light indicator

(

P.199)

Headlight high beam indi-

cator (

P.201)

AHB indicator (

P.202)

Smart key system indica-
tor

*1

 (

P.180)

(White)

LTA indicator (

P.238)

(Green)

LTA indicator (

P.238)

(Orange)

(Flashes)

LTA indicator (

P.238)

(White)

LDA indicator

*2

 (

P.246)

(Green)

LDA indicator (

P.246)

(Orange)

(Flashes)

LDA indicator (

P.246)

LDA OFF indicator

*3, 4



(

P.246)

(White)

PDA indicator (

P.252)

(Green)

PDA indicator (

P.252)

(Green)

Cruise control indicator

(

P.269)

(White)

Cruise control indicator

(

P.269)

(Green)

Dynamic radar cruise con-

trol indicator (

P.259)

(White)

Dynamic radar cruise con-

trol indicator (

P.259)

85

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

*1

: This light illuminates on the

multi-information display with a
message.

*2

: Except for Puerto Rico

*3

: For Puerto Rico

*4

: The light comes on when the

system is turned off.

*5

: Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*6

: These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

*7

: This light illuminates on the out-

side rear view mirrors.

*8

: This light illuminates on the over-

head console panel.

*9

: When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

Intuitive parking assist

OFF indicator

*4, 5



(

P.285)

(Flashes)

Slip indicator light

*6



(

P.346)

VSC OFF indicator

*4, 6



(

P.346)

PCS warning light

*4, 6



(

P.222)

Driving assist information

indicator

*4, 6

 (

P.281,

295, 300, 305)
BSM outside rear view

mirror indicators

*7

 (if

equipped) (

P.275)

Brake hold standby indica-

tor

*6

 (

P.196)

Brake hold operated indi-

cator

*6

 (

P.196)

Security indicator

*8



(

P.79)

“READY” indicator
(

P.180)

Low outside temperature

indicator

*9

 (

P.90)

EV indicator (

P.71)

(U.S.A.)

Parking brake indicator
(

P.193)

(Canada)

Parking brake indicator
(

P.193)

EV drive mode indicator
(

P.185)

Eco drive mode indicator
(

P.343)

Sport mode indicator
(

P.343)

Custom mode indicator
(

P.343)

“PASSENGER AIR
BAG” indicator

lights

*8

 (

P.44)

86

2-1. Instrument cluster

BSM (Blind Spot Monitor) out-
side rear view mirror indicators
(if equipped)

In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the turning the
BSM function/RCTA function on
(

P.275).

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.

If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle inspected by your
Toyota dealer.

87

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

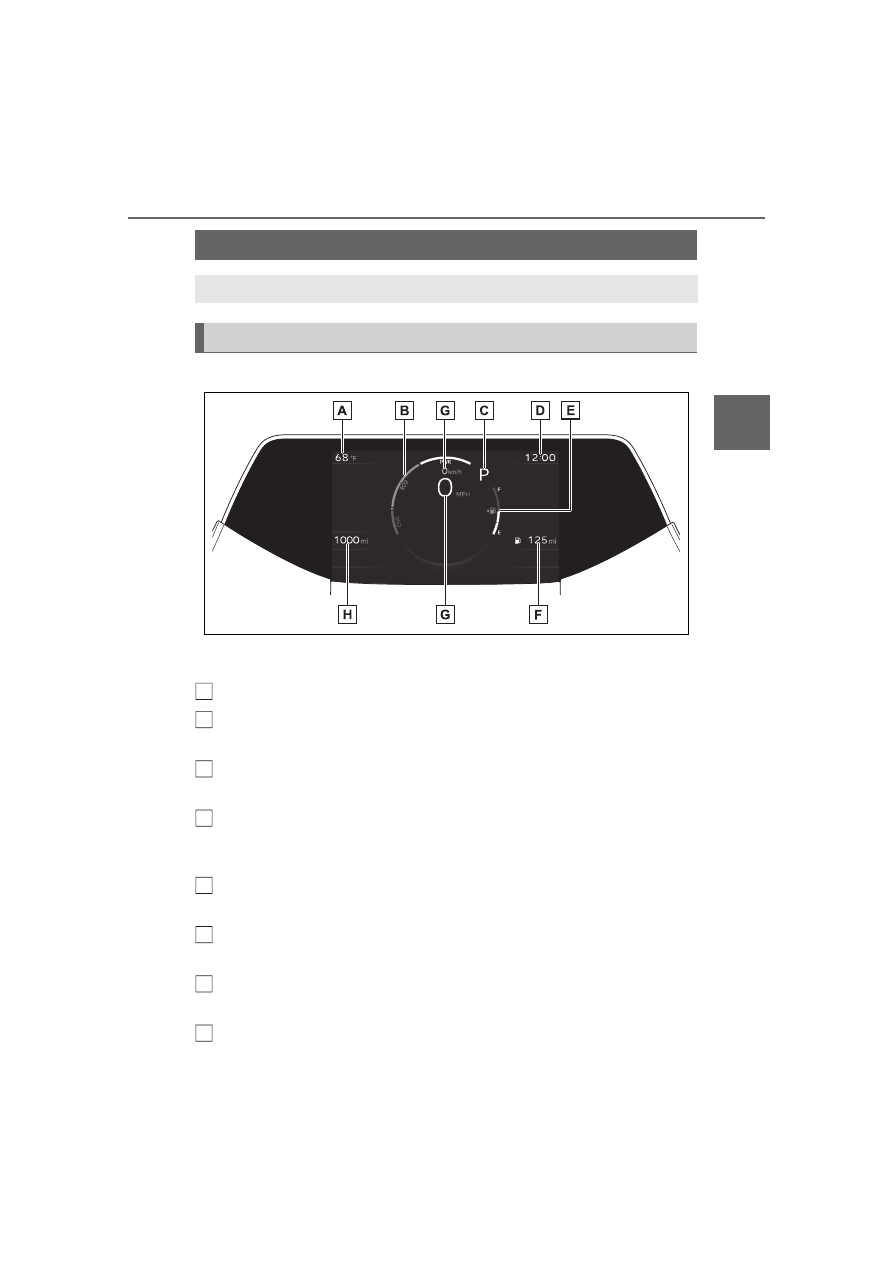

Main meter in center position

The units used on the meter and display may differ depending on the target
region.

Outside temperature (

P.90)

Hybrid System Indicator

Displays hybrid system output or regeneration level. (

P.89)

Shift position indicator

Displays the selected shift position. (

P.187)

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time infor-
mation. For details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Distance to empty

Displays driving range with remaining fuel. (

P.89)

Speedometer

Displays the vehicle speed.

Odometer, trip meter and oil maintenance

Gauges and meters

The meters display various drive information.

Meter display

A

B

C

D

E

F

G

H

88

2-1. Instrument cluster

Odometer:
Displays the total distance that the vehicle has been driven.

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Oil maintenance:
Displays the distance until the next engine oil change.

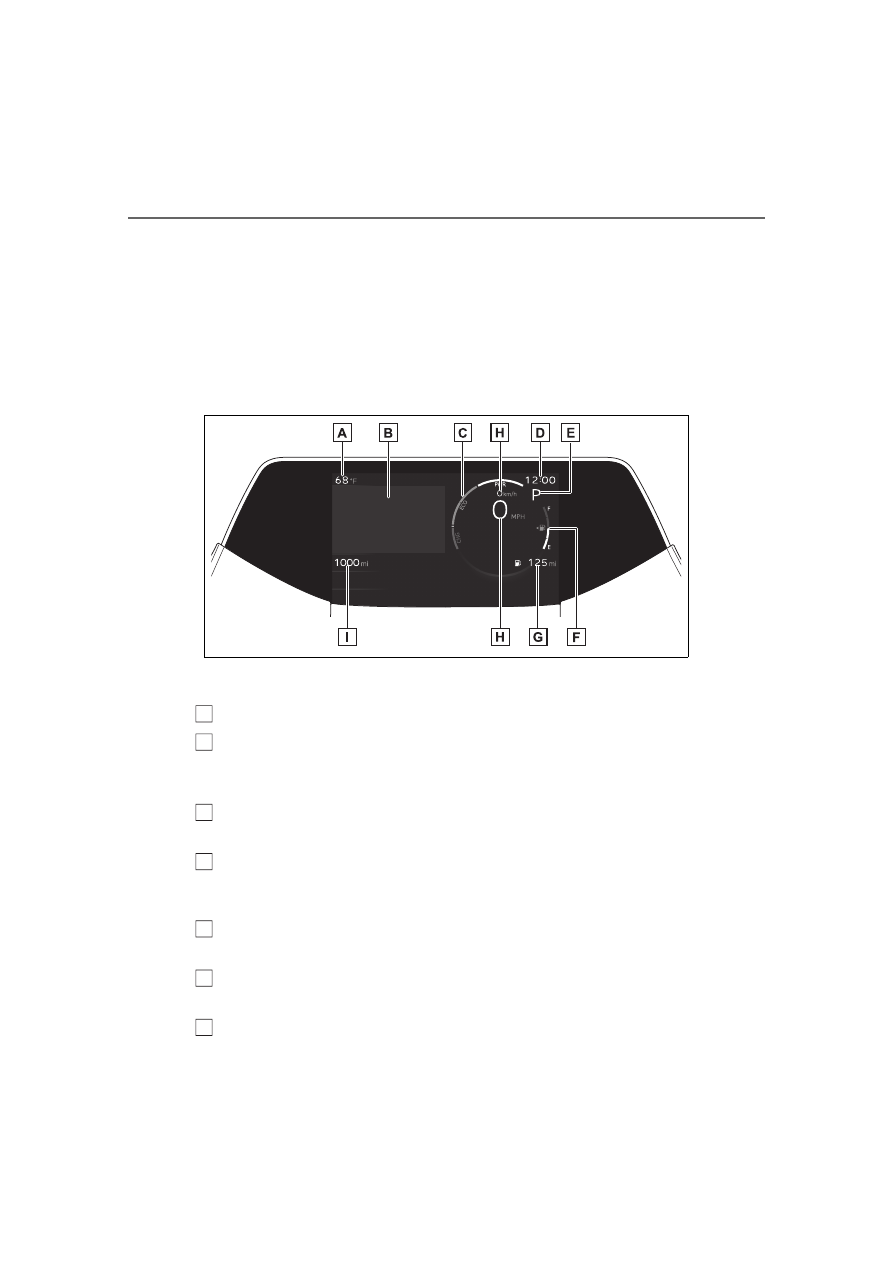

Main meter moved to the right

The units used on the meter and display may differ depending on the target
region.

Outside temperature (

P.90)

Multi-information display

Presents the driver with a variety of driving-related data. (

P.92)

Displays warning messages if a malfunction occurs. (

P.476)

Hybrid System Indicator

Displays hybrid system output or regeneration level. (

P.92)

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time infor-
mation. For details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Shift position indicator

Displays the selected shift position. (

P.187)

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Distance to empty

A

B

C

D

E

F

G

89

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

Displays driving range with remaining fuel. (

P.89)

Speedometer

Displays the vehicle speed.

Odometer, trip meter and oil maintenance

Odometer:
Displays the total distance that the vehicle has been driven.

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Oil maintenance:
Displays the distance until the next engine oil change.

The meters and display illumi-
nate when

The power switch is in ON.

Hybrid System Indicator

Charge area

Shows regeneration

*

 status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.

By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

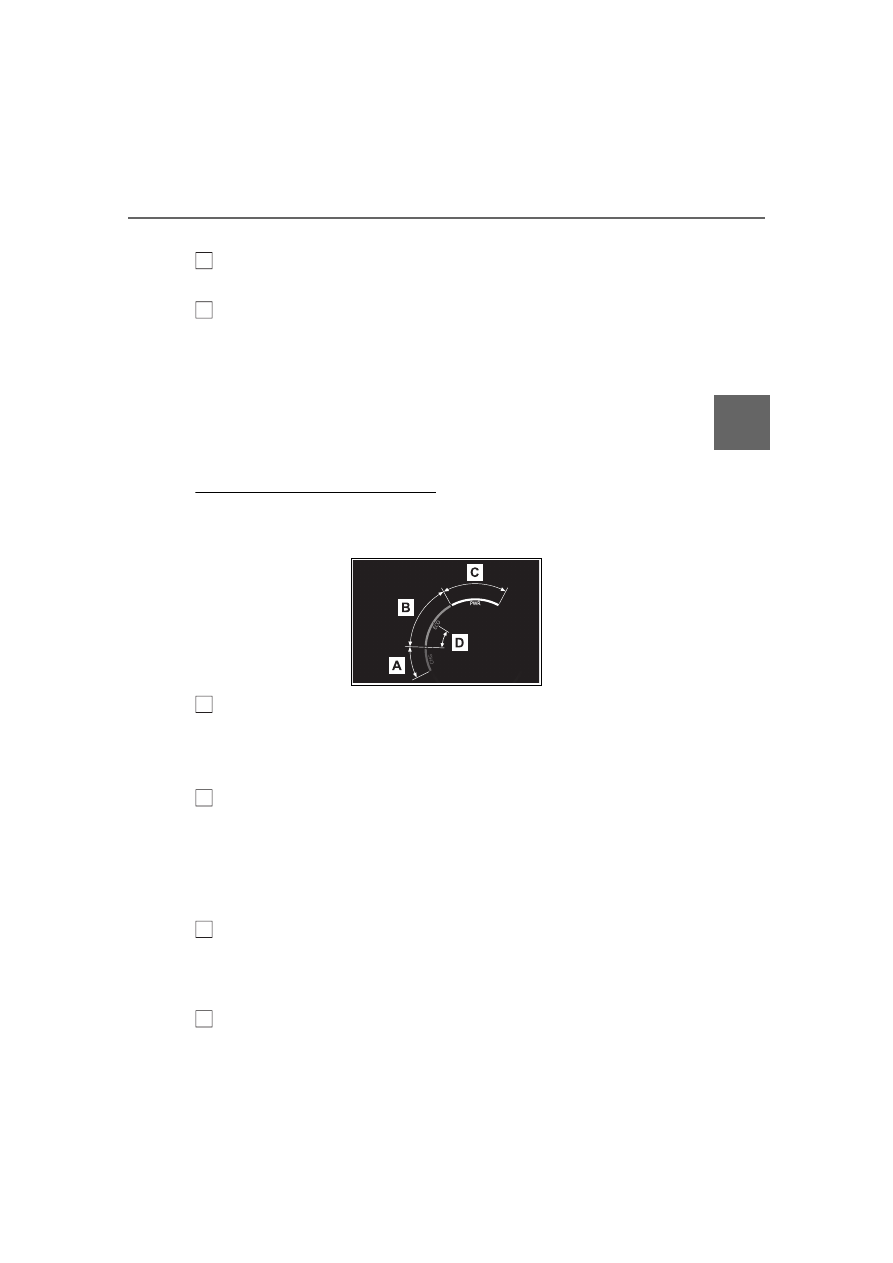

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.

The gasoline engine will automati-
cally stop and restart under various
conditions.

*

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid
System Indicator does not operate.

“READY” indicator is not illumi-
nated.

The shift position is in a range
other than D or B.

Distance to empty

This distance is computed based

H

I

A

B

C

D

90

2-1. Instrument cluster

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated. Refuel immediately.

Outside temperature display

Displays the outside temperature

within the range of -40°F (-40°C)

to 140°F (60°C).

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

Open Source Software Informa-

tion

ited.
Licensed under the Apache

License, Version 2.0 (the “License”);

you may not use this file except in

compliance with the License.
You may obtain a copy of the

License at
http://www.apache.org/licenses/

LICENSE-2.0
Unless required by applicable law or

agreed to in writing, software distrib-

uted under the License is distributed

on an “AS IS” BASIS, WITHOUT

WARRANTIES OR CONDITIONS

OF ANY KIND, either express or

implied. See the License for the

specific language governing permis-

sions and limitations under the

License.

WARNING

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.

NOTICE

To prevent damage to the

engine and its components

The engine may be overheating if

“Engine Coolant Temp High Stop

in a Safe Place See Owner’s

Manual” is shown on the multi-

information display. In this case,

immediately stop the vehicle in a

safe place, and check the engine

after it has cooled completely.

(

P.513)

91

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

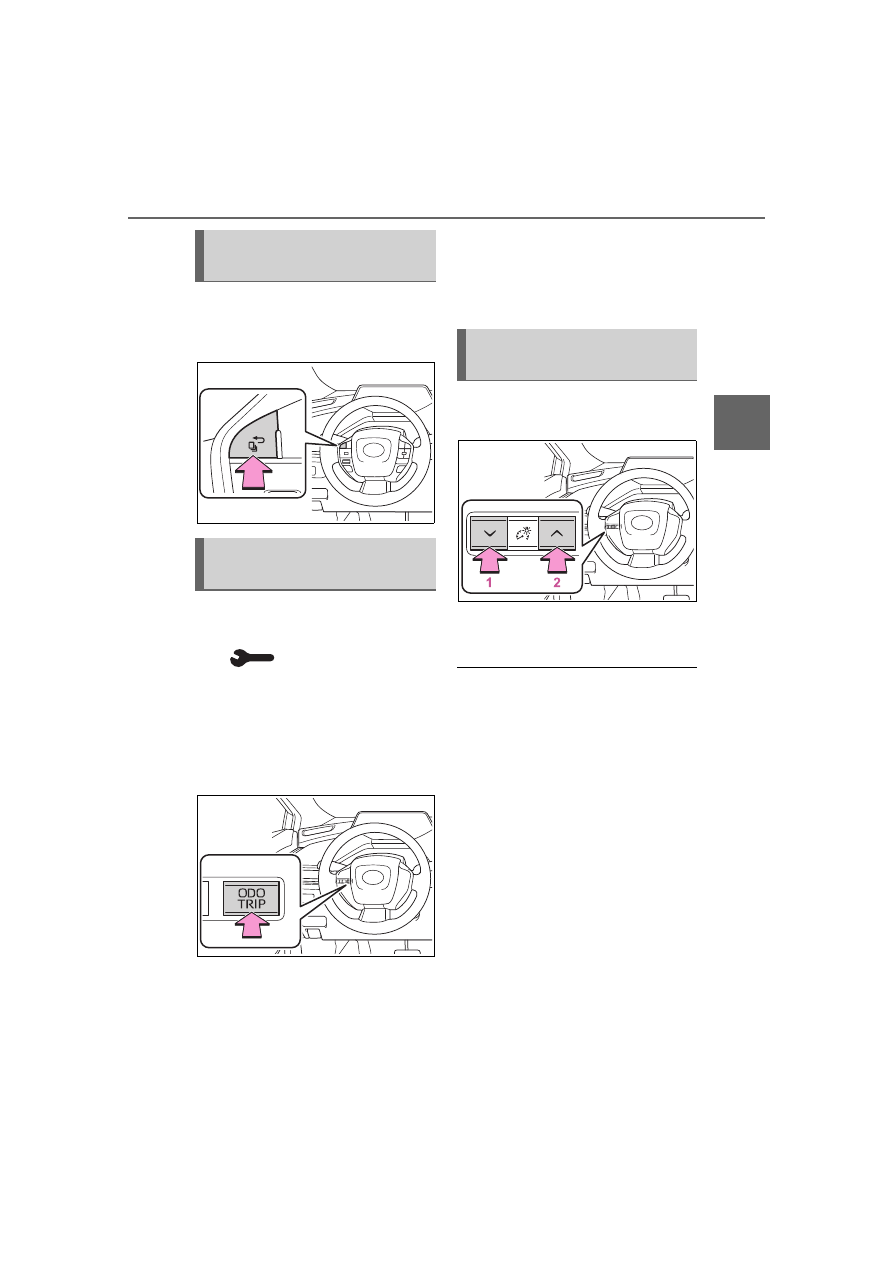

The multi-information display
can be switched between dis-
play and hidden.

Switches the items of the odom-
eter, trip meter A, trip meter B

and

 (oil maintenance) by

pressing the “ODO TRIP”
switch.

When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

Pop-up display

Distance until the next engine oil
change will be displayed when a

warning message indicating that
oil maintenance is required or
should be performed soon is
displayed.

The meter brightness can be
adjusted.

1

Darker

2

Brighter

Brightness of the meter lights
(day mode and night mode)

The brightness of the meter lights
can be adjusted individually.

In the following situations, the
meters changes between day mode
and night mode.

Day mode: When the tail lights are
off or when the tail lights are on
but the surrounding area is bright

Night mode: When the tail lights
are on and the surrounding area is
dark

Switching the meter dis-
play

Using the “ODO TRIP”
switch

Adjusting meter bright-
ness

92

2-1. Instrument cluster

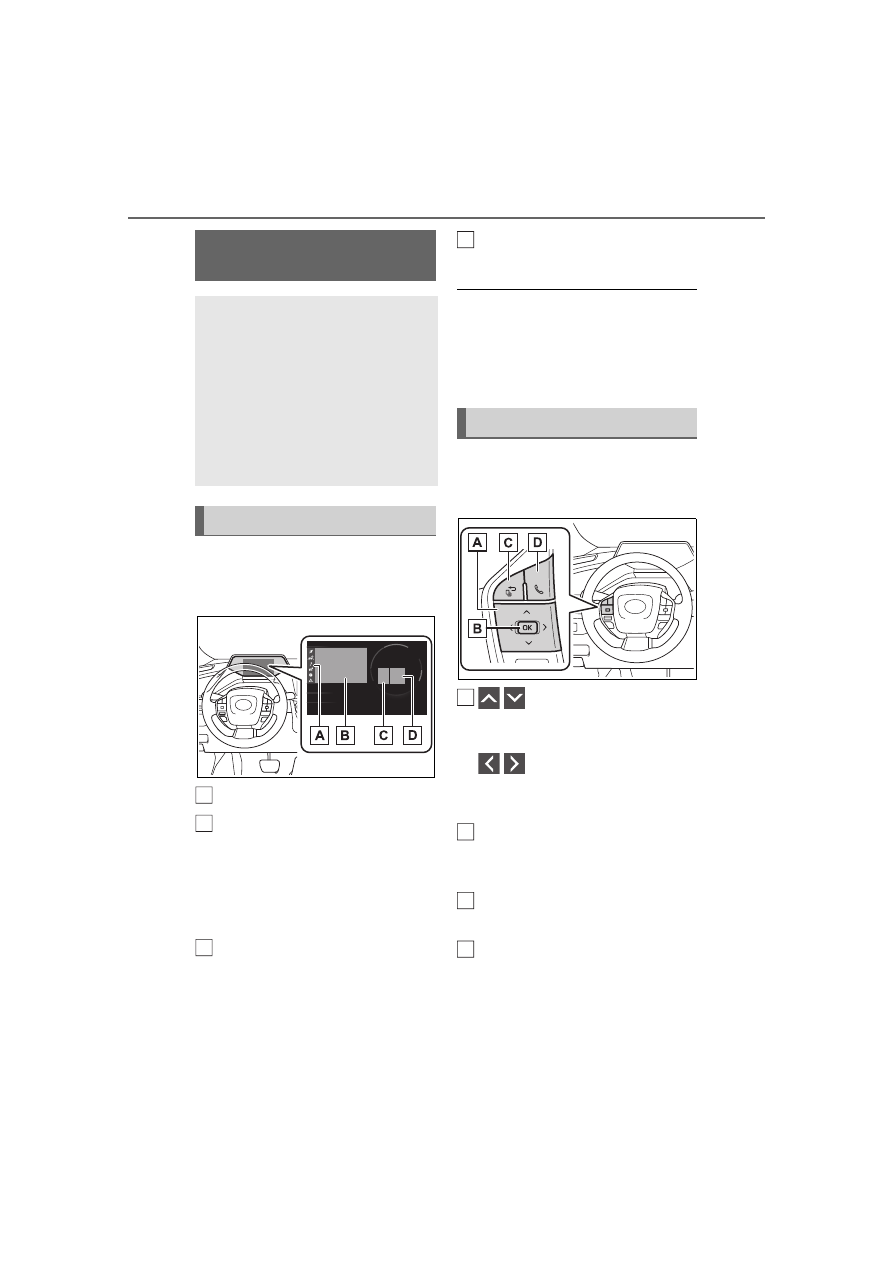

Following information is dis-
played on the multi-information
display.

Menu icons (

P.93)

Information display area

A variety of information can be dis-
played by selecting a menu icon.

Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

RSA (Road Sign Assist) (if
equipped)

Displays recognized signs while the
RSA (Road Sign Assist) is operat-
ing. (

P.257)

Driving support system infor-
mation (

P.95)

The multi-information display is
displayed when

The power switch is in ON.

Liquid crystal display

(

P.90)

The multi-information display is
operated using the meter control
switches.

/

: Select menu icons,

scroll the screen and move
the cursor

/

: Change displayed

content, scroll the screen and
move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous
screen/Move the main meter

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

A

B

C

Changing the display

D

A

B

C

D

93

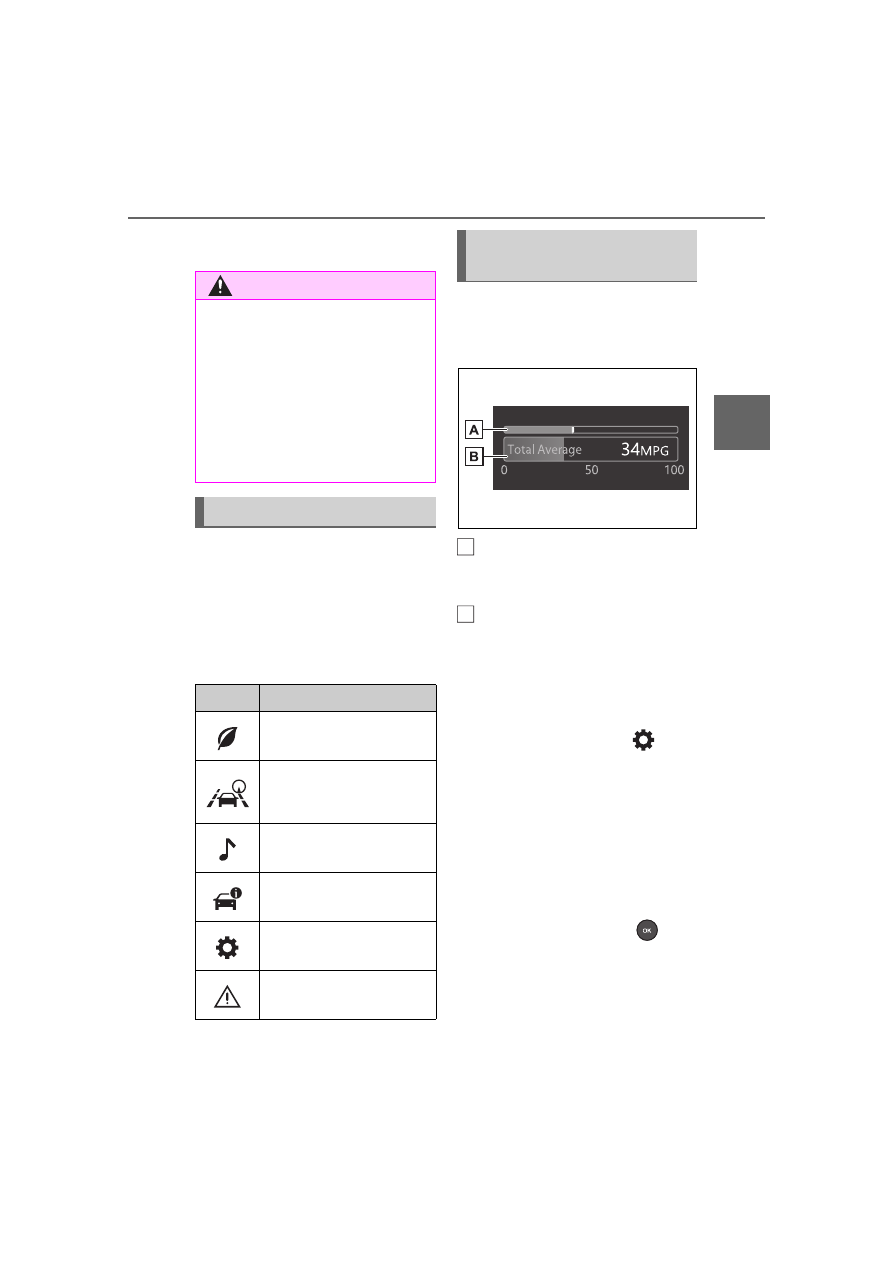

2-1. Instrument cluster

2

Vehicle

 statu
s information

an

in

dicator

s

hands-free system, refer to “MUL-

TIMEDIA OWNER’S MANUAL”.

Information related to each icon

can be displayed by selecting

the icon with the meter control

switches.

Some of the information may be

displayed automatically depending

on the situation.

Select to display fuel consump-

tion data in various forms.

Fuel Economy

Current fuel consumption

Displays the instantaneous current

fuel consumption.

Average fuel economy

Displays the average fuel economy

since the function was reset, the

average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the



screen is displayed.

*1

:Use the displayed fuel consump-

tion as a reference only.

*2

:Average fuel economy after

starting is reset each time the

hybrid system stops.

*3

:Average fuel economy since the

function was reset can be reset
by pressing and holding

.

ECO Accelerator Guid-

ance/“Eco Score”

Displays a reference operation

range for using the accelerator

WARNING

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

Icon

Display

Driving information dis-

play (

P.93)

Driving support system

information display

(

P.95)

Audio system-linked dis-

play (

P.96)

Vehicle information dis-

play (

P.96)

Settings display (

P.96)

Warning message dis-

play (

P.101)

Driving information dis-

play

A

B

94

2-1. Instrument cluster

pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

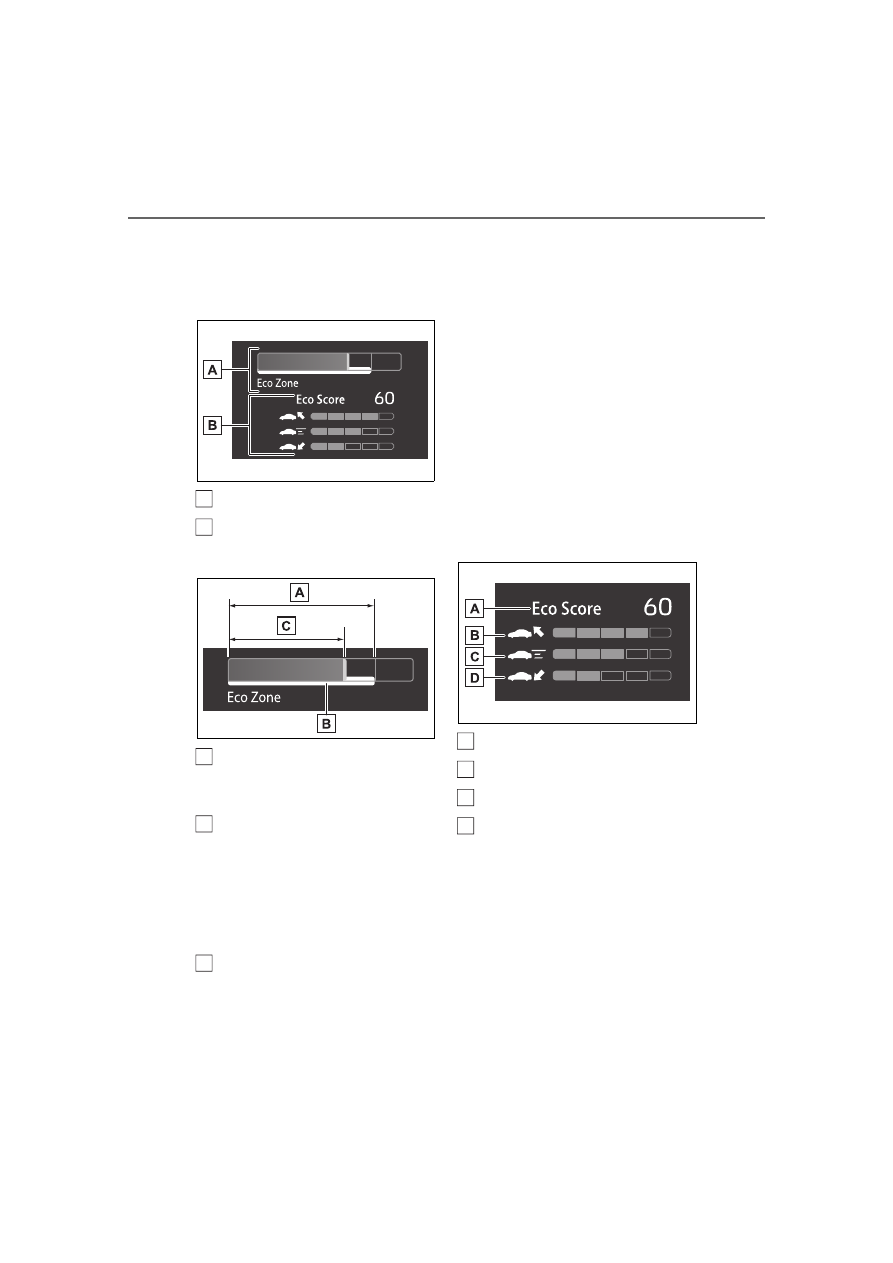

ECO Accelerator Guidance

“Eco Score”

ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.

Current acceleration

The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-

ing off or cruising.

It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.

“Eco Score”

The driving status for the following
3 situations are evaluated in 5 lev-
els: Smooth start-off acceleration
(“Start”), driving without sudden
acceleration (“Cruise”) and smooth
stopping (“Stop”). Each time the
vehicle is stopped, a score result is
displayed out of a perfect score of
100 points.

Score result

Eco start status

Eco cruise status

Eco stop status

3 situations are displayed with each
icon while driving.

How to read the bar display:

A

B

A

B

C

A

B

C

D

95

2-1. Instrument cluster

2

Vehicle

 statu

s

 information an

in

dicator

s

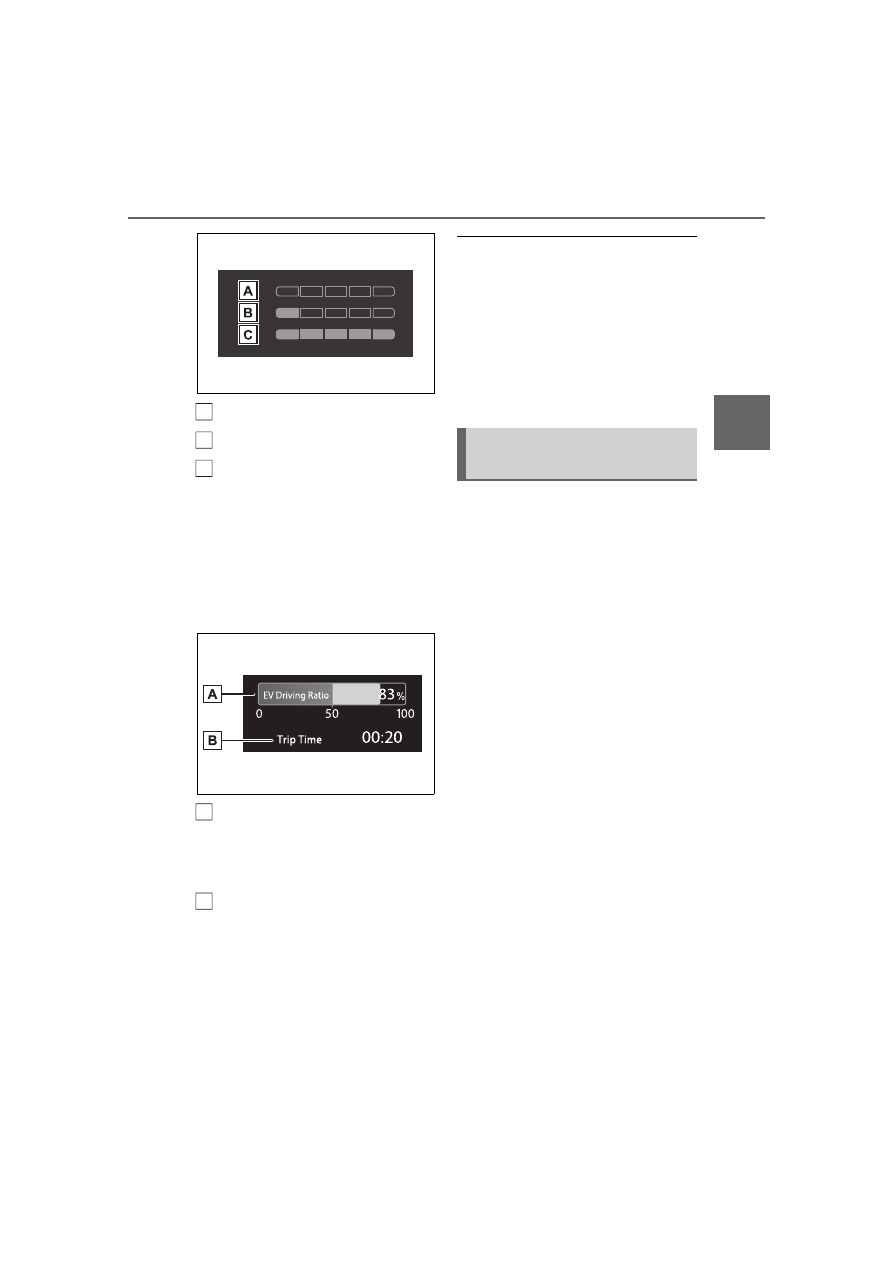

Not yet evaluated

Low

High

After the hybrid system is started,
the Eco score will not be displayed
until the vehicle speed exceeds
approximately 30 km/h (19 mph).

The Eco score will be reset each
time the hybrid system is started.

EV Ratio/EV Driving Ratio

EV driving ratio after starting

The percent traveled using only
electric motor power after starting

the hybrid system is displayed.

*

Elapsed time after starting

Displays the elapsed time since

hybrid system start.

*

*

: It is reset each time the hybrid

system stops.

ECO Accelerator Guid-
ance/“Eco Score” will not oper-
ate when

The ECO Accelerator Guid-
ance/“Eco Score” will not operate in
the following situations:

The Hybrid System Indicator is not
operating.

The vehicle is being driven using
the dynamic radar cruise control.

Select to display the operational
status of the following systems:

LTA (Lane Tracing Assist)
(

P.234)

LCA (Lane Change Assist) (if
equipped) (

P.239)

LDA (Lane Departure Alert)
(

P.242)

PDA (Proactive driving assist)
(

P.248)

Dynamic radar cruise control
(

P.259)

Cruise Control (

P.269)

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.

Route guidance to destination

Compass

A

B

C

A

B

Driving support system
information display

96

2-1. Instrument cluster

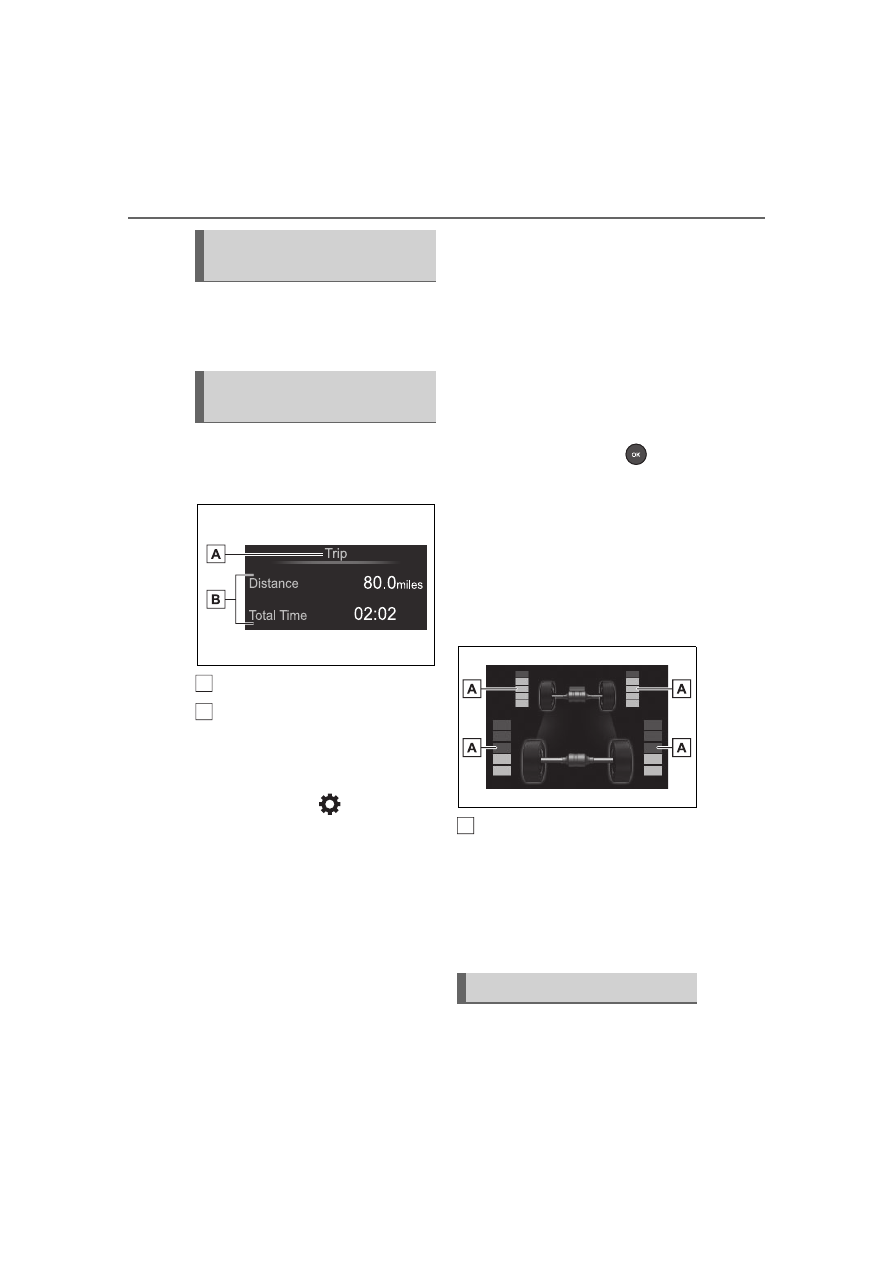

Select to enable selection of an
audio source or track on the dis-
play.

Drive information

Displays drive information such as
the following:

Drive information type

Drive information items

Displays the following depend-
ing on which drive information
type and drive information items

were selected in

. (

P.96)

After start

• Distance: Displays the distance

driven since hybrid system start

• Elapsed time: Displays the

elapsed time since hybrid system
start

• Average vehicle speed: Displays

the average vehicle speed since
hybrid system start

After reset

• Distance: Displays the distance

driven since the display was

reset

*

• Elapsed time: Displays the

elapsed time since the display

was reset

*

• Average vehicle speed: Displays

the average vehicle speed since

the display was reset

*

*

: To reset, display the desired item

and press and hold the

 meter

control switch.

Energy monitor

P.102

Tire pressure

P.427

AWD system display (AWD
models)

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

Vehicle settings and the content

Audio system-linked dis-
play

Vehicle information dis-
play

A

B

Settings display

A

















Content      ..     1      2      3      4      ..
