Toyota Prius Plug-in Hybrid (2023 year). Manual in english

714

9-1. Specifications

Maintenance data (fuel, oil level, etc.)

: Unladen vehicle

: Overall height may differ depending on the target region.

: Vehicles with 195/65R15 tires

: Vehicles with 215/45R17 tires

Dimensions and weights

Overall length

4645 mm (182.9 in.)

Overall width

1760 mm (69.3 in.)

Overall height

1470 mm (57.9 in.)

1490 mm (58.7 in.)

Wheelbase

2700 mm (106.3 in.)

Tread

Front

1530 mm (60.2 in.)

1510 mm (59.4 in.)

Rear

1540 mm (60.6 in.)

1520 mm (59.8 in.)

Gross vehicle mass

1930 kg (4255 lb.)

Maximum permissi-
ble axle capacity

Front

1060 kg (2337 lb.)

Rear

1020 kg (2249 lb.)

715

9-1. Specifications

icl

e s
pe

cif

■

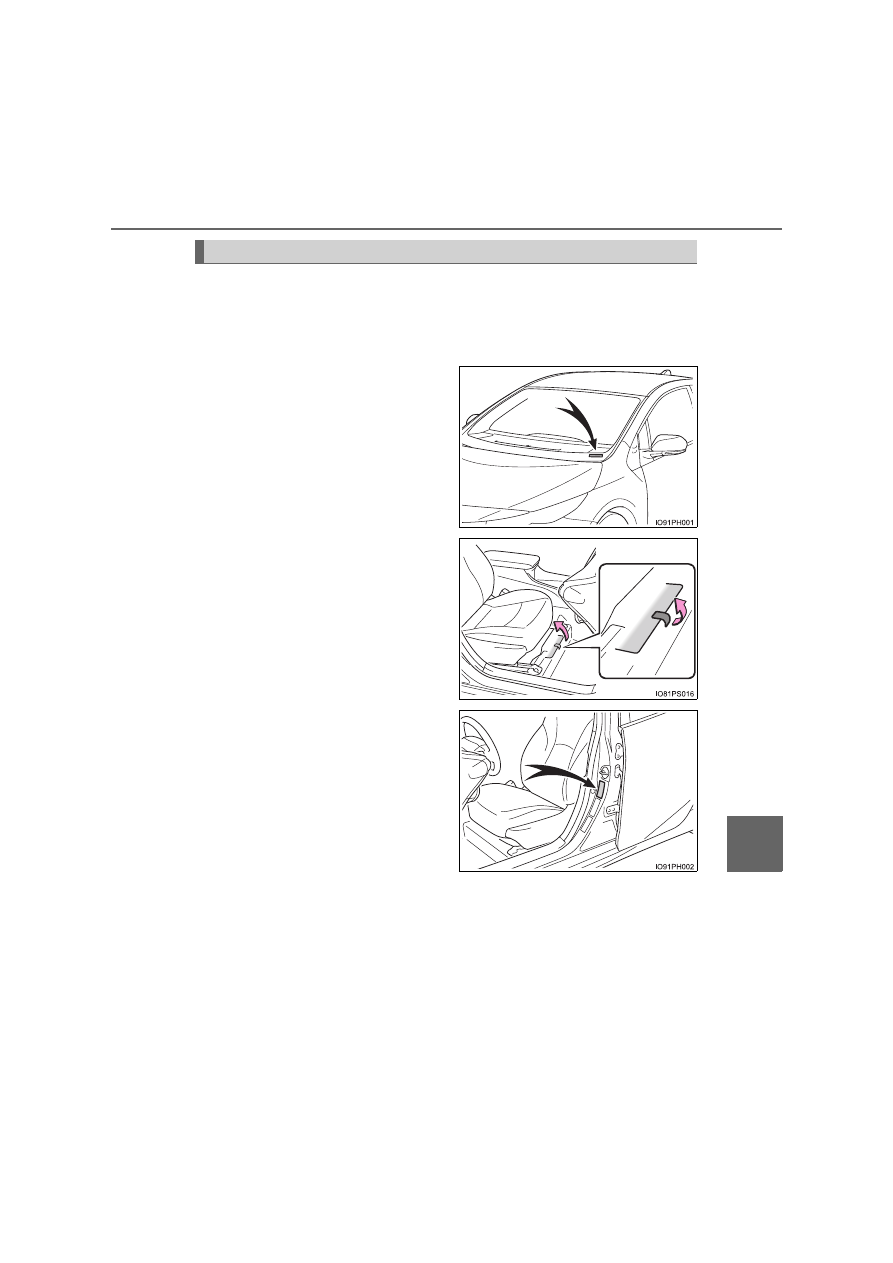

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

This number is on the top left of
the instrument panel.

This number is also stamped
under the right-hand front seat.

This number is also on the
manufacturer’s label.

Vehicle identification

716

9-1. Specifications

■

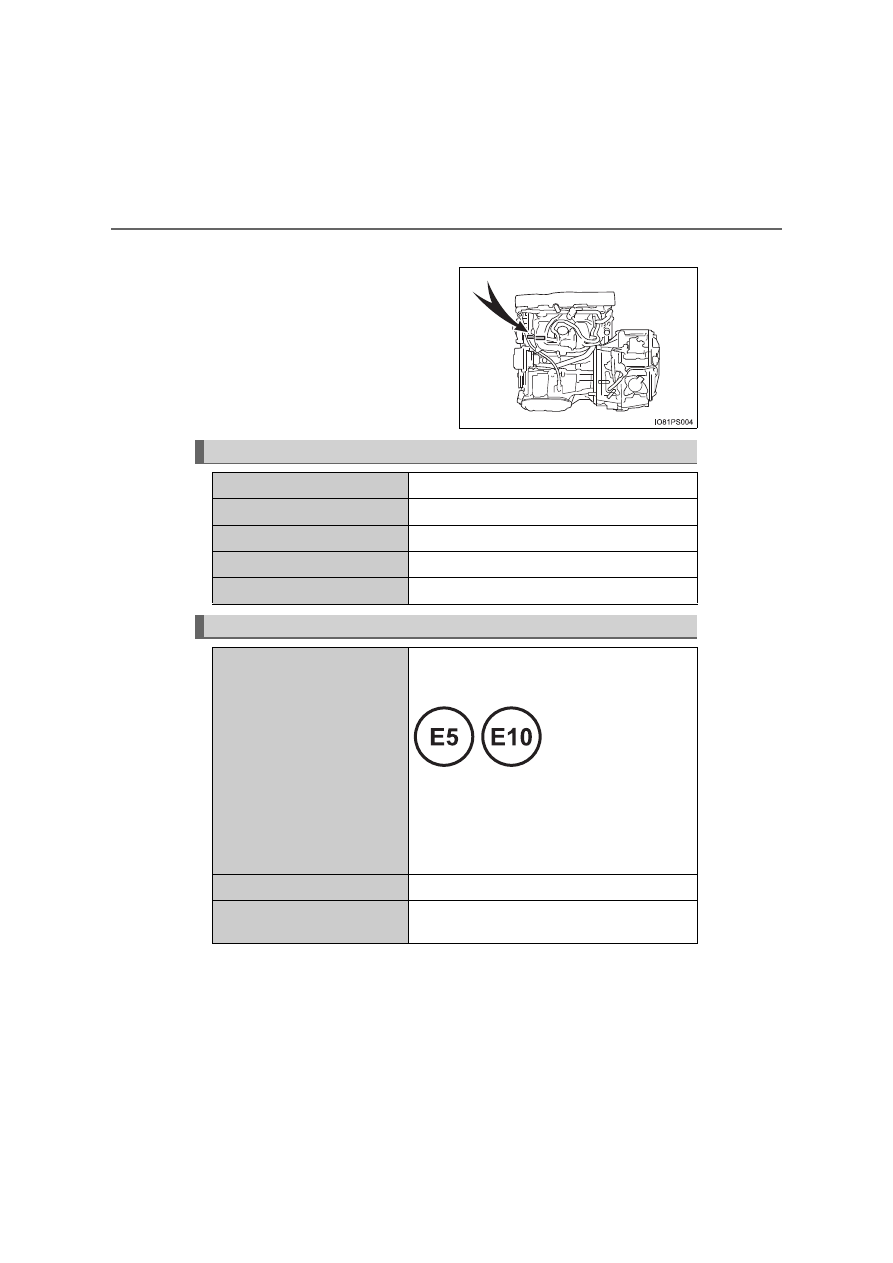

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

2ZR-FXE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

80.5



88.3 mm (3.17



3.48 in.)

Displacement

1798 cm

(109.7 cu.in.)

Valve clearance

Automatic adjustment

Fuel

Fuel type

When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only

Except EU area:
Unleaded gasoline only

Research Octane Number

95 or higher

Fuel tank capacity
(Reference)

43 L (11.4 gal., 9.5 lmp.gal.)

717

9-1. Specifications

icl

e s
pe

cif



Generation/traction motor



Traction motor

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.

Electric motor (generation motor/traction motor)

Type

Permanent magnet synchronous motor

Maximum output

22.5 kW

Maximum torque

40 N•m (4.1 kgf•m, 29.5 ft•lbf)

Type

Permanent magnet synchronous motor

Maximum output

53 kW

Maximum torque

163 N•m (16.6 kgf•m, 120.2 ft•lbf)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

25 Ah

Quantity

95 cells

Nominal voltage

351.5 V

Lubrication system

With filter

4.2 L (4.4 qt., 3.7 Imp.qt.)

Without filter

3.9 L (4.1 qt., 3.4 Imp.qt.)

718

9-1. Specifications

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil

Recommended viscosity (SAE):

SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.

Temperature range anticipated
before next oil change

Preferred

719

9-1. Specifications

icl

e s
pe

cif

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.

• The 16 in 0W-16 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

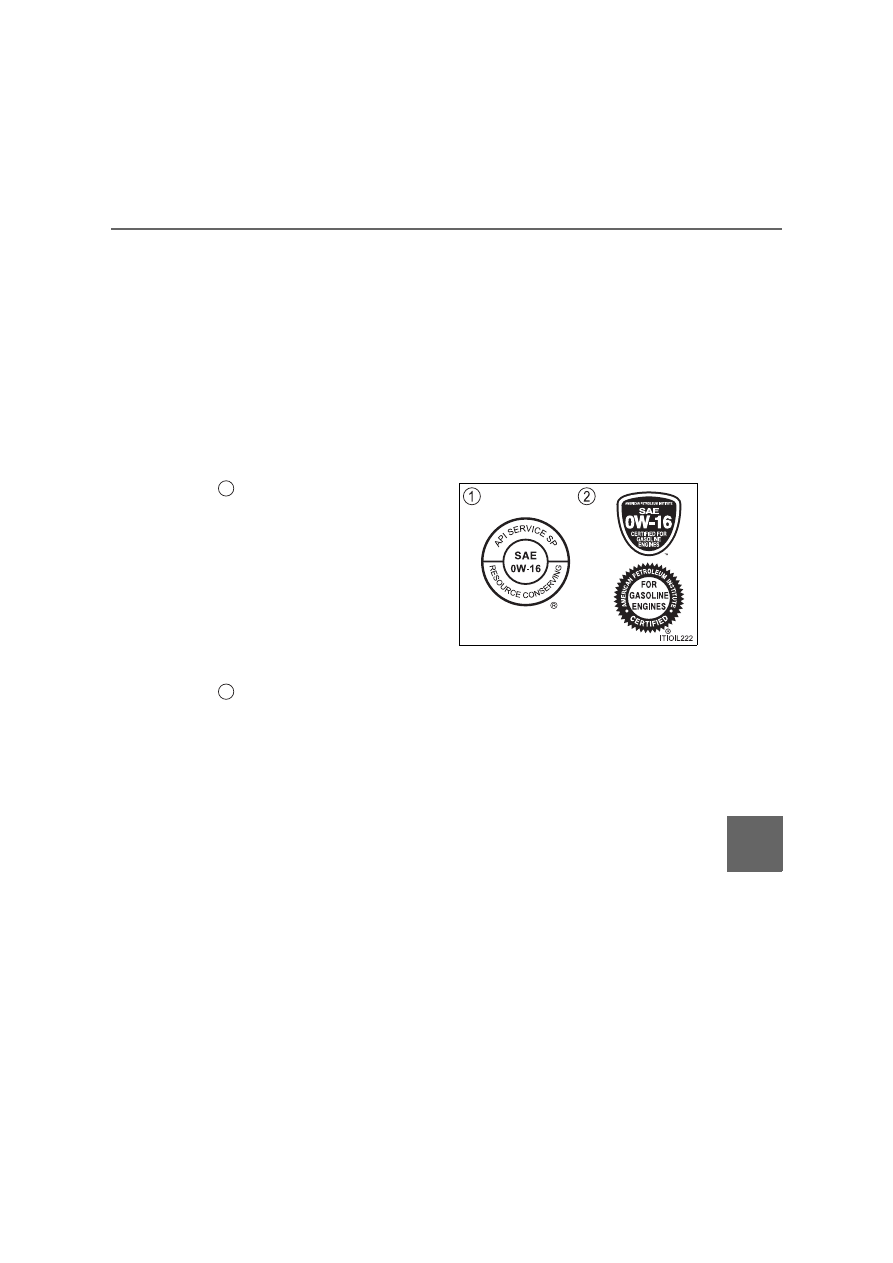

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.

720

9-1. Specifications

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

Cooling system

Capacity

Gasoline
engine

6.2 L (6.6 qt., 5.5 Imp.qt.)

Power
control unit

1.5 L (1.6 qt., 1.3 Imp.qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC16HR-CY9

Gap

0.9 mm (0.035 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

721

9-1. Specifications

icl

e s
pe

cif

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

Electrical system (12-volt battery)

Specific gravity
reading at 20



C (68



F):

1.25 or higher
If the specific gravity is lower than the
standard value, charge the 12-volt bat-
tery.

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

Transmission

Fluid capacity

3.7 L (3.9 qt., 3.3 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal
noise or vibration, or ultimately damage the transmission of your vehicle.

722

9-1. Specifications

: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,

67.4 lbf) while the hybrid system is operating.

: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,

67.4 lbf).

Brakes

Pedal clearance



Left-hand drive vehicles

119 mm (4.69 in.) Min.



Right-hand drive vehicles

117 mm (4.61 in.) Min.

Pedal free play

1.0 — 6.0 mm (0.04 — 0.24 in.)

Parking brake pedal travel

8 —



11 clicks

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 30 mm (1.2 in.)

723

9-1. Specifications

icl

e s
pe

cif



Type A



Type B

Tires and wheels

Tire size

195/65R15 91H

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front

250 kPa (2.5 kgf/cm

or bar, 36 psi)

Rear

240 kPa (2.4 kgf/cm

or bar, 35 psi)

Wheel size



6 1/2J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Tire size

215/45R17 87W

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front

230 kPa (2.3 kgf/cm

or bar, 33 psi)

Rear

220 kPa (2.2 kgf/cm

or bar, 32 psi)

Wheel size



Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Light bulbs

Light bulbs

Type

Exterior

Back-up lights

Interior

Vanity lights

Front interior/personal lights

Rear interior light

Door courtesy lights

Luggage compartment light

A: Wedge base bulbs (clear)

B: Double end bulbs

724

9-1. Specifications

Fuel information

■

Use of ethanol blended gasoline in a gasoline engine

Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.

■

If your engine knocks

●

Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

725

9-1. Specifications

icl

e s
pe

cif

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.

●

Do not add aftermarket fuel additives which contain metallic additives.

●

EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

●

Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.

●

Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

■

Notice about fuel



P. 104

726

9-2. Customization

Customizable features

When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.

■

Changing using the multi-information display

Press

of the meter control switches, select

Press

of the meter control switches, select

(“Vehicle Settings”), and then press

Press

of the meter control switches, select the item,

and then press

Press

of the meter control switches, select the desired

setting, and then press

To go back to the previous screen or exit the customize mode,

press .

Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation system, or at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.

Customizing vehicle features

727

9-2. Customization

icl

e s
pe

cif

■

Changing using the navigation system

Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.

Various settings can be changed. Refer to the list of settings that
can be changed for details.

Settings that can be changed using the multi-information display
Settings that can be changed using the navigation system
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer

Definition of symbols: O = Available, – = Not available

■

Instrument cluster (



P. 194)

Customizable features

1
2
3

Function

Default

setting

Customized

setting

Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depending
on the outside brightness

Standard

-2 to 2

–

Sensor sensitivity for returning
the brightness of the instru-
ment cluster to the original
level depending on the outside
brightness

Standard

-2 to 2

–

728

9-2. Customization

■

Smart entry & start system and wireless remote control
(



P. 273, 283)

■

Smart entry & start system (



P. 283)

: If equipped

■

Wireless remote control (



P. 273)

■

Rear seat reminder (



P. 276)

Function

Default

setting

Customized

setting

Operation signal
(emergency flashers)

Off

–

O O

Open door reminder buzzer
(When locking the vehicle)

Off

–

Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked

30 seconds

60 seconds

–

120 seconds

Function

Default

setting

Customized

setting

Smart entry & start system

Off

–

O O

Number of consecutive door
lock operations

2 times

As many as

desired

–

Function

Default

setting

Customized

setting

Wireless remote control

Off

–

Function

Default

setting

Customized

setting

Rear seat reminder function

Off

–

Toyota Prius Plug-in Hybrid (2023 year). Manual in english - page 43
