Toyota C-HR (2023 year). Manual in english - page 35

655

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

■

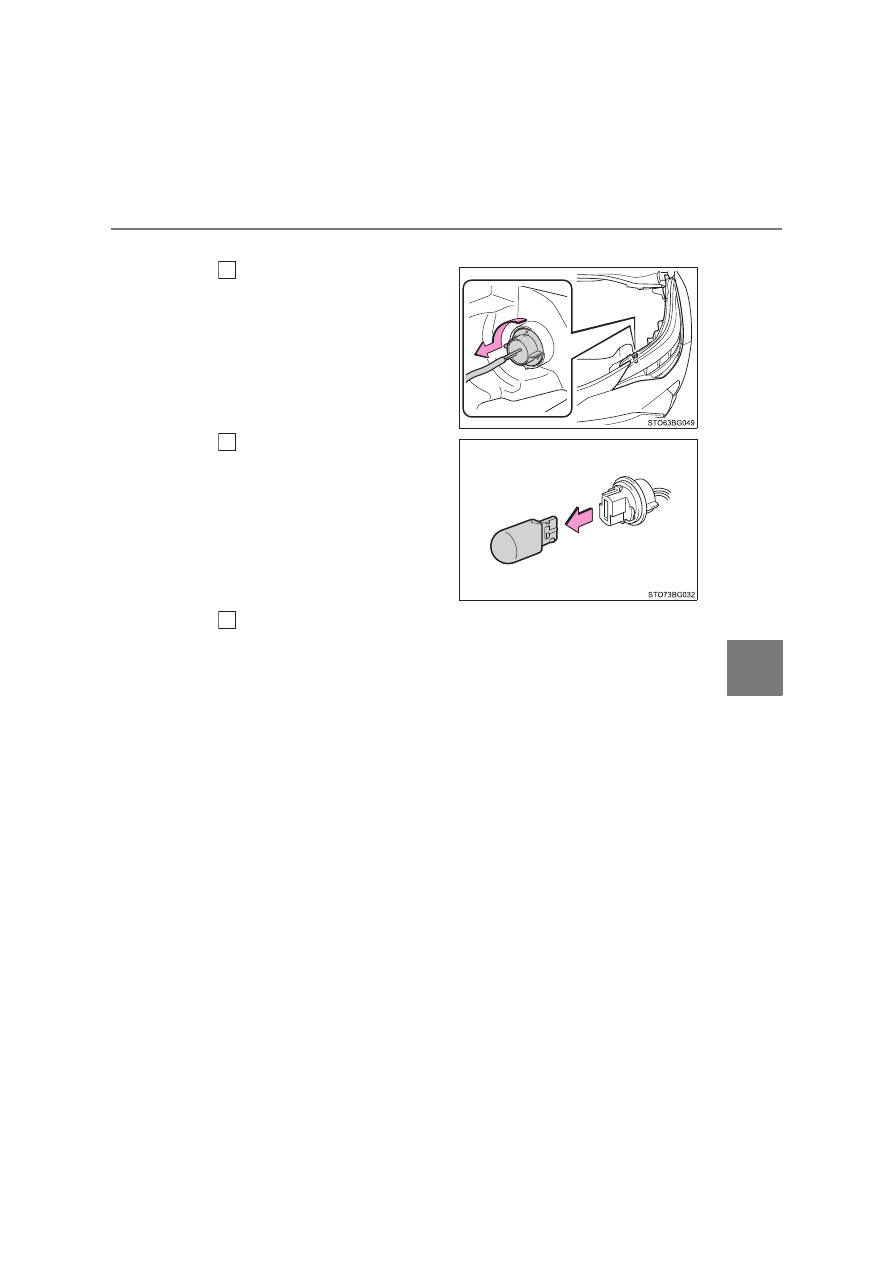

Front turn signal lights (bulb type)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

656

6-3. Do-it-yourself maintenance

■

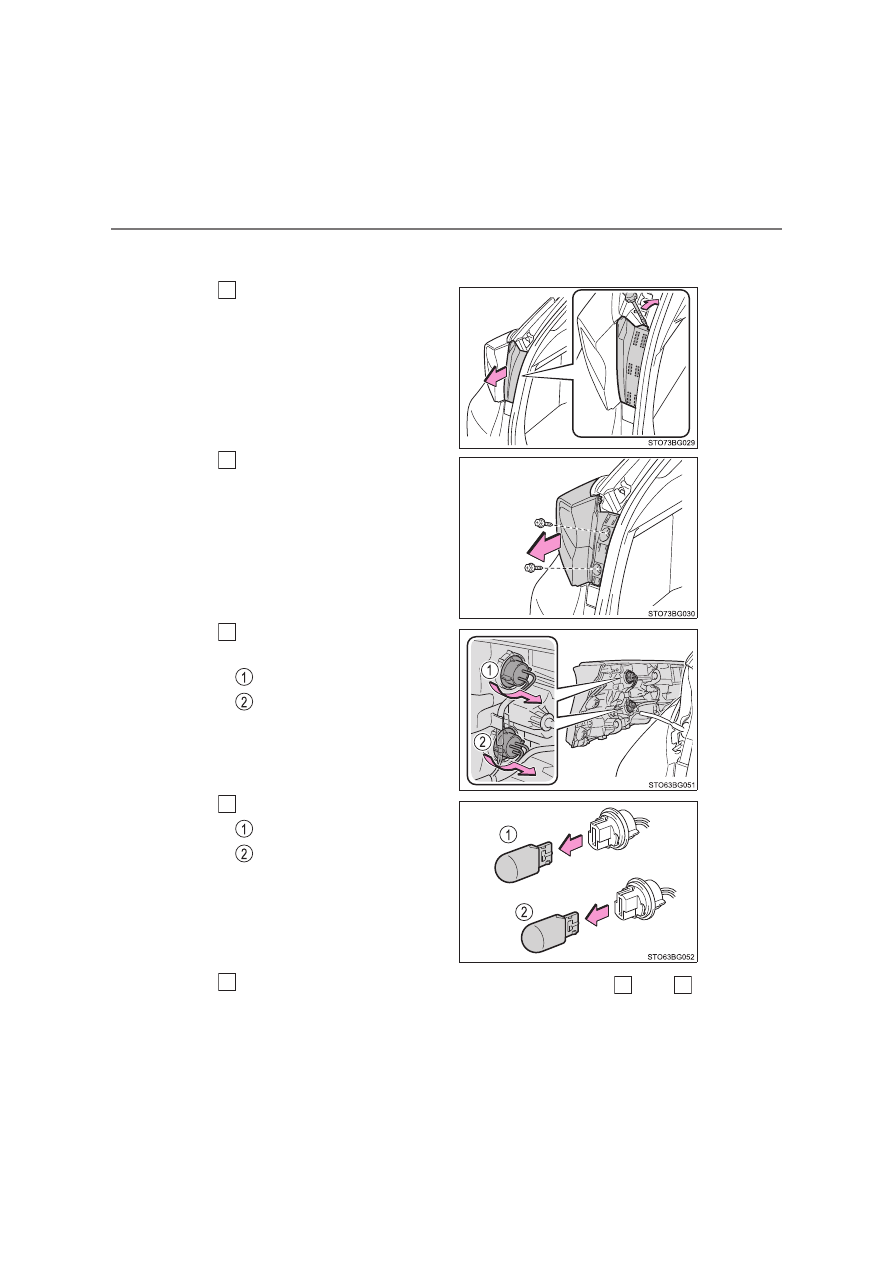

Rear turn signal lights (bulb type) and stop/tail lights (bulb
type)

Open the back door and
remove the cover.

To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Remove the 2 screws and
pull the light unit toward the
rear of the vehicle to remove
it.

Turn the bulb base counter-
clockwise.

Rear turn signal lights
Stop/tail lights

Remove the light bulb.

Rear turn signal lights
Stop/tail lights

When installing the light bulb, install by conducting

and

with the directions reversed.

657

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

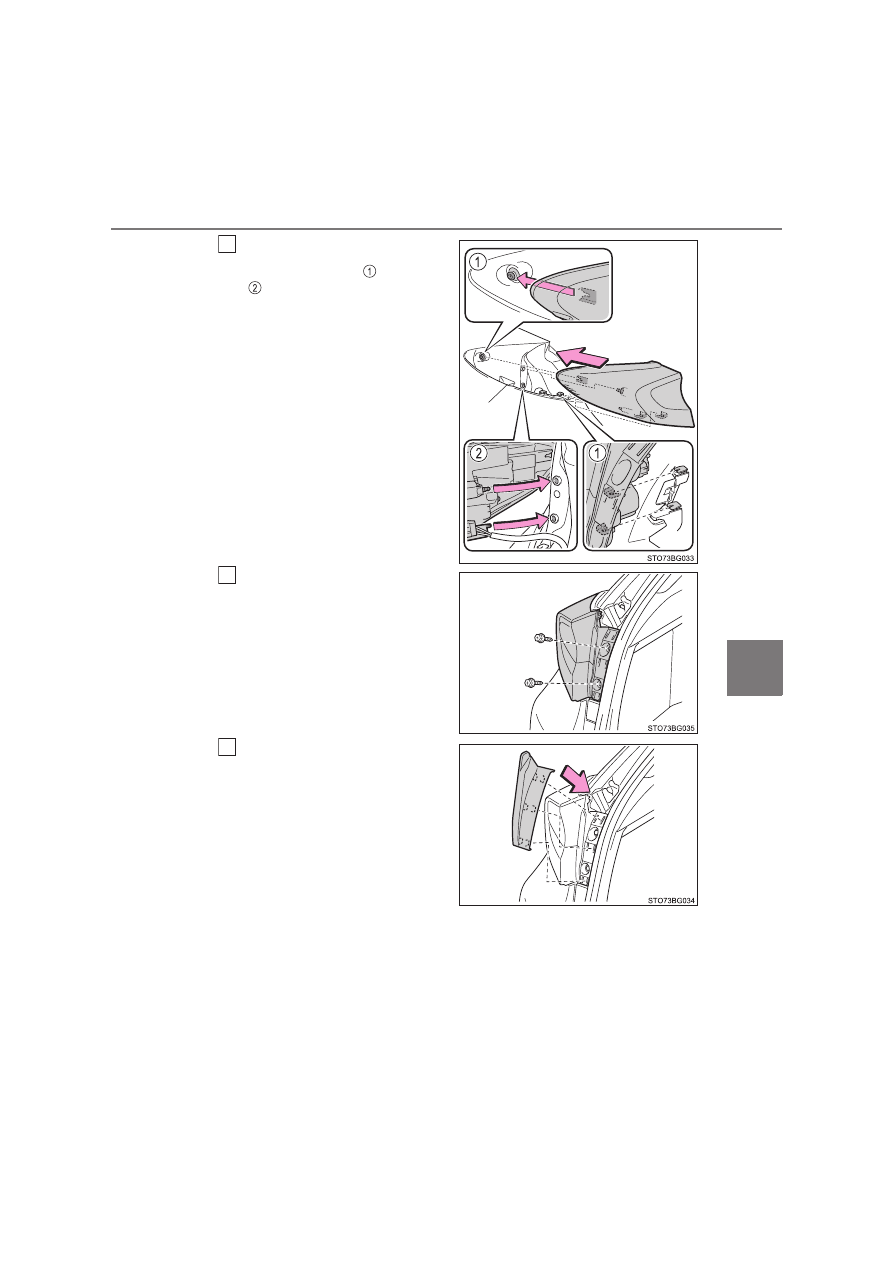

Install the lamp assembly.

Align the guides (

) and pins

( ) on the lamp assembly with
the mounting when installing it.

Install the 2 screws.

Install the cover.

658

6-3. Do-it-yourself maintenance

■

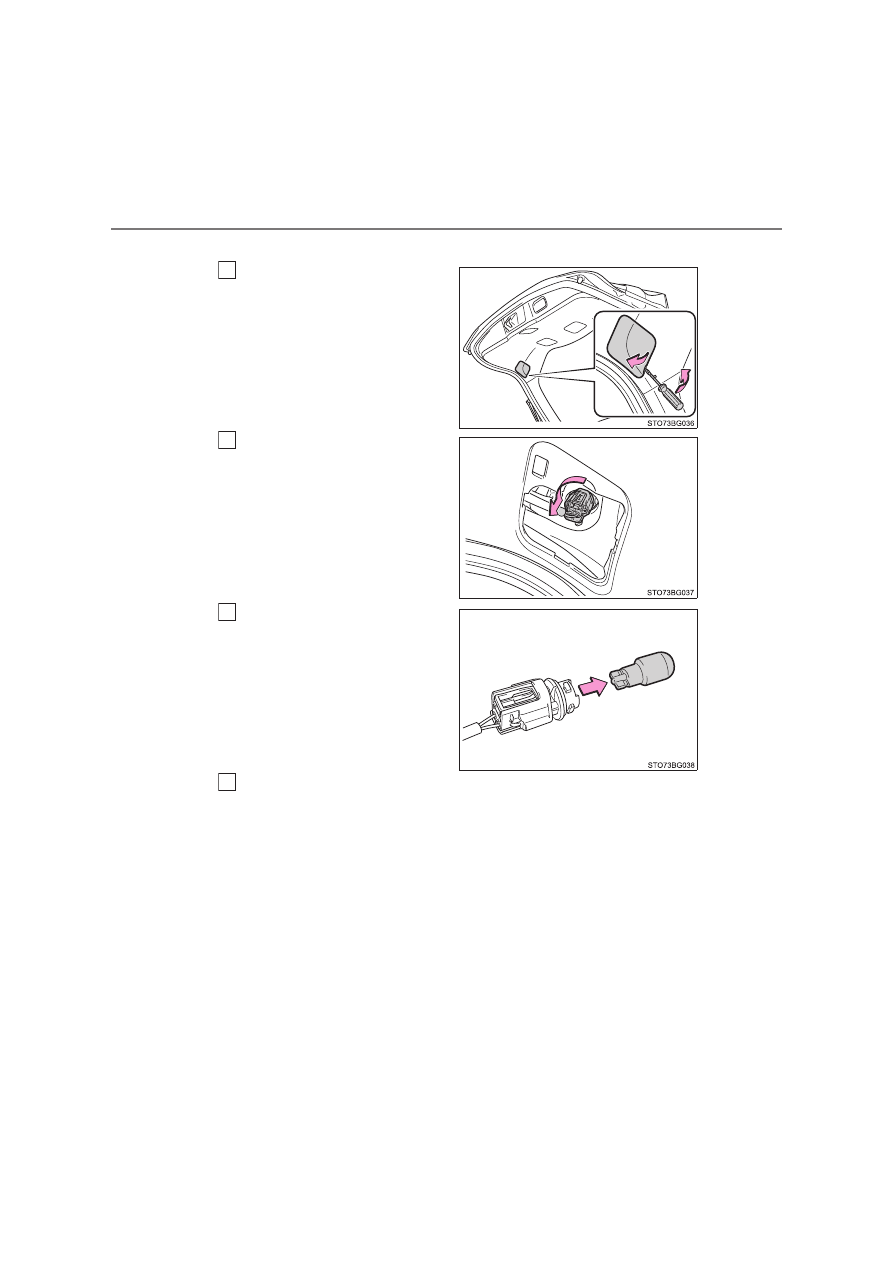

Back-up lights (bulb type)

Open the back door and
remove the cover.

To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

659

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

■

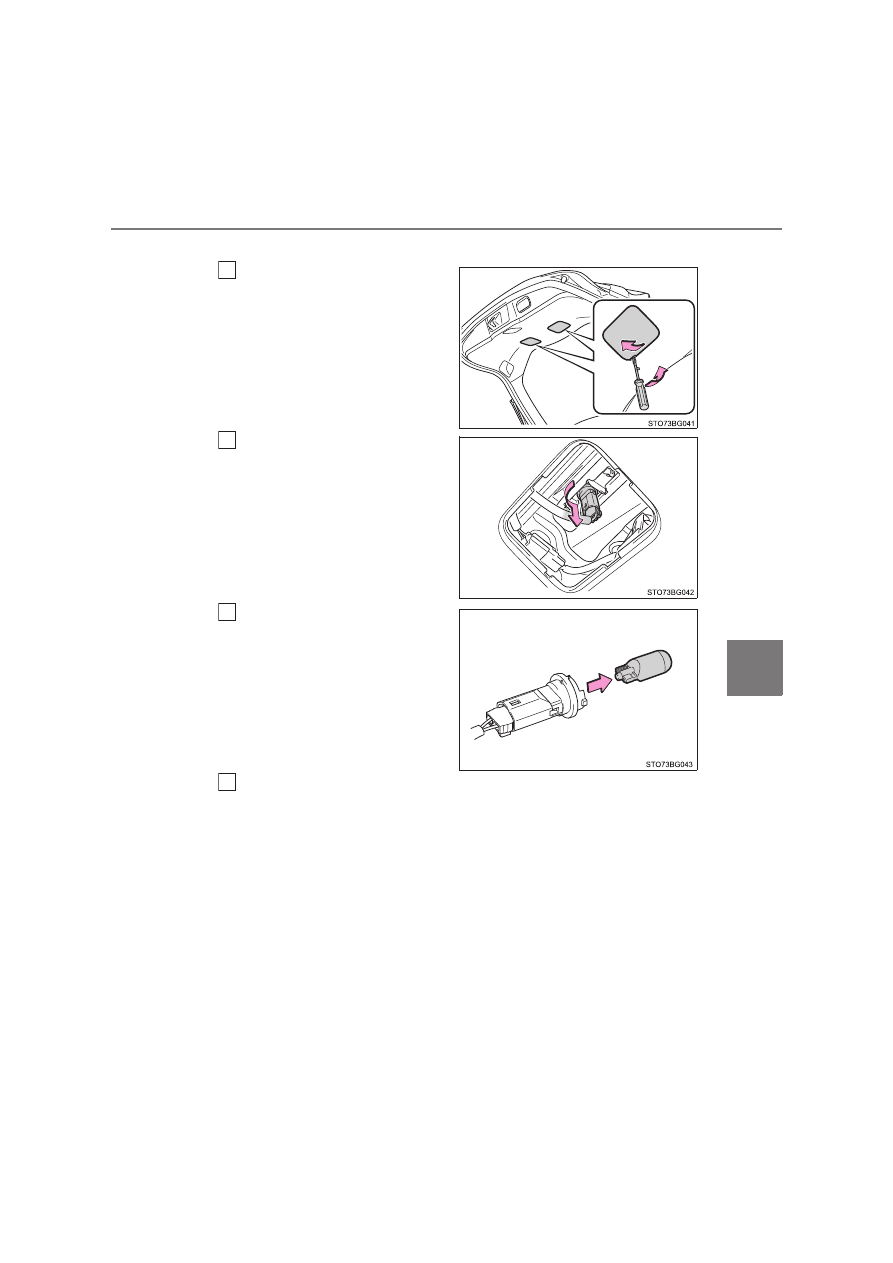

License plate lights

Open the back door and
remove the cover.

To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

660

6-3. Do-it-yourself maintenance

■

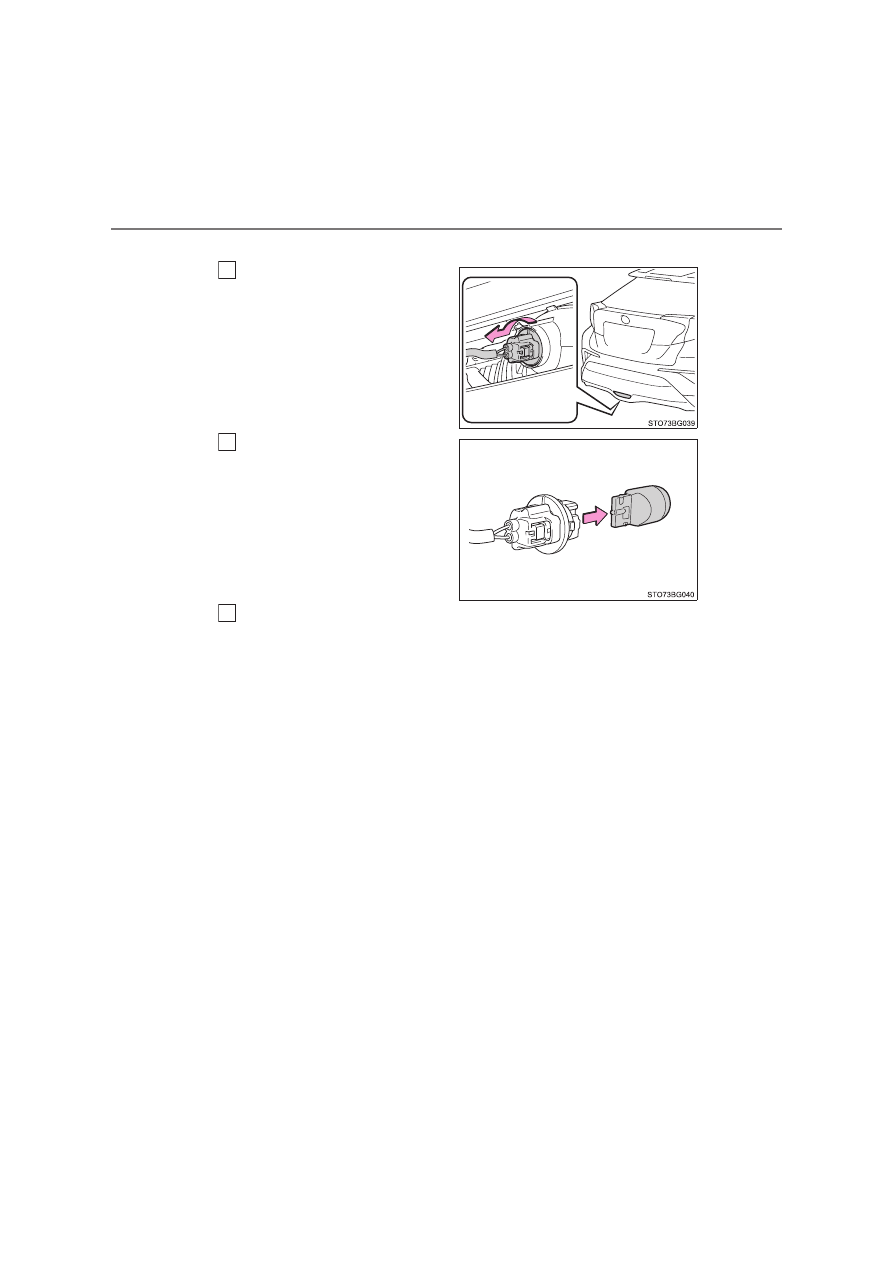

Rear fog light (bulb type)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

661

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

■

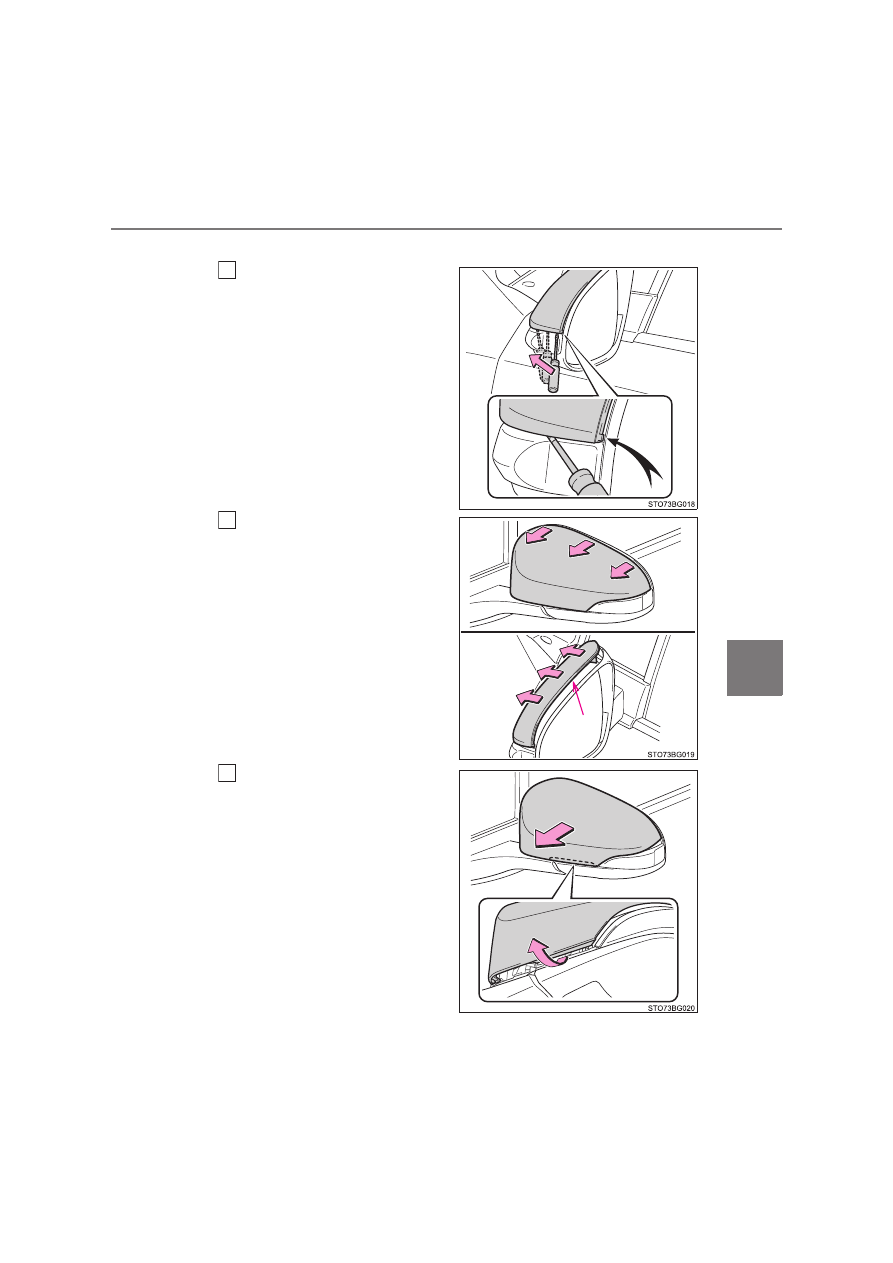

Side turn signal lights

Insert  a  flathead  screwdriver
and  release  the  claw  for  the
outside  rear  view  mirror
cover.

To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Release the cover claws
spanning over the entire
perimeter.

Release the claw of the bot-
tom part of the cover and
then remove the cover.

Claw

662

6-3. Do-it-yourself maintenance

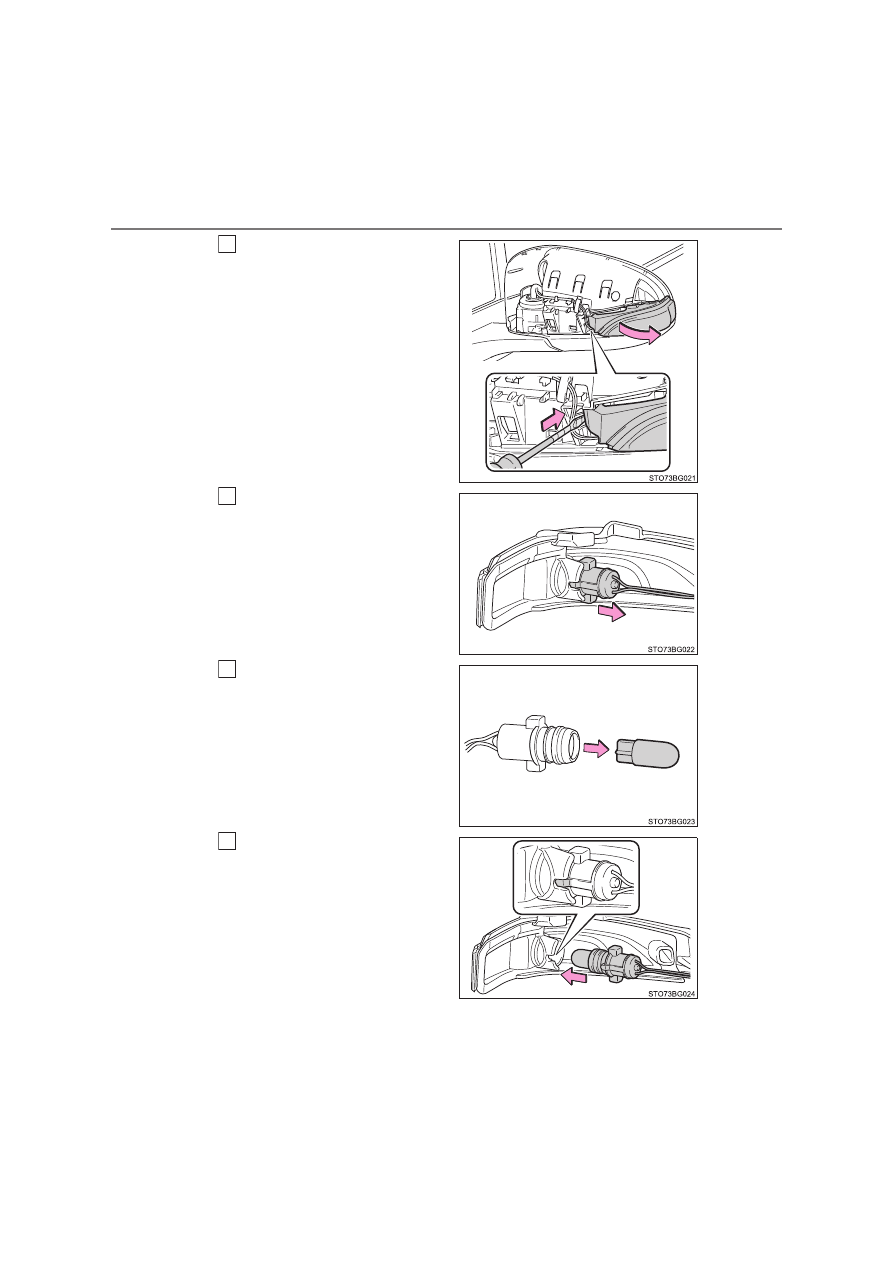

Insert a flathead screwdriver
and remove the lens to the
outside.

Remove the socket from the
side turn signal light housing.

Remove the bulb.

Replace the bulb and install
the socket to the side turn
signal light housing.

Align the grooves of the socket
to the side turn signal light hous-
ing.

663

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

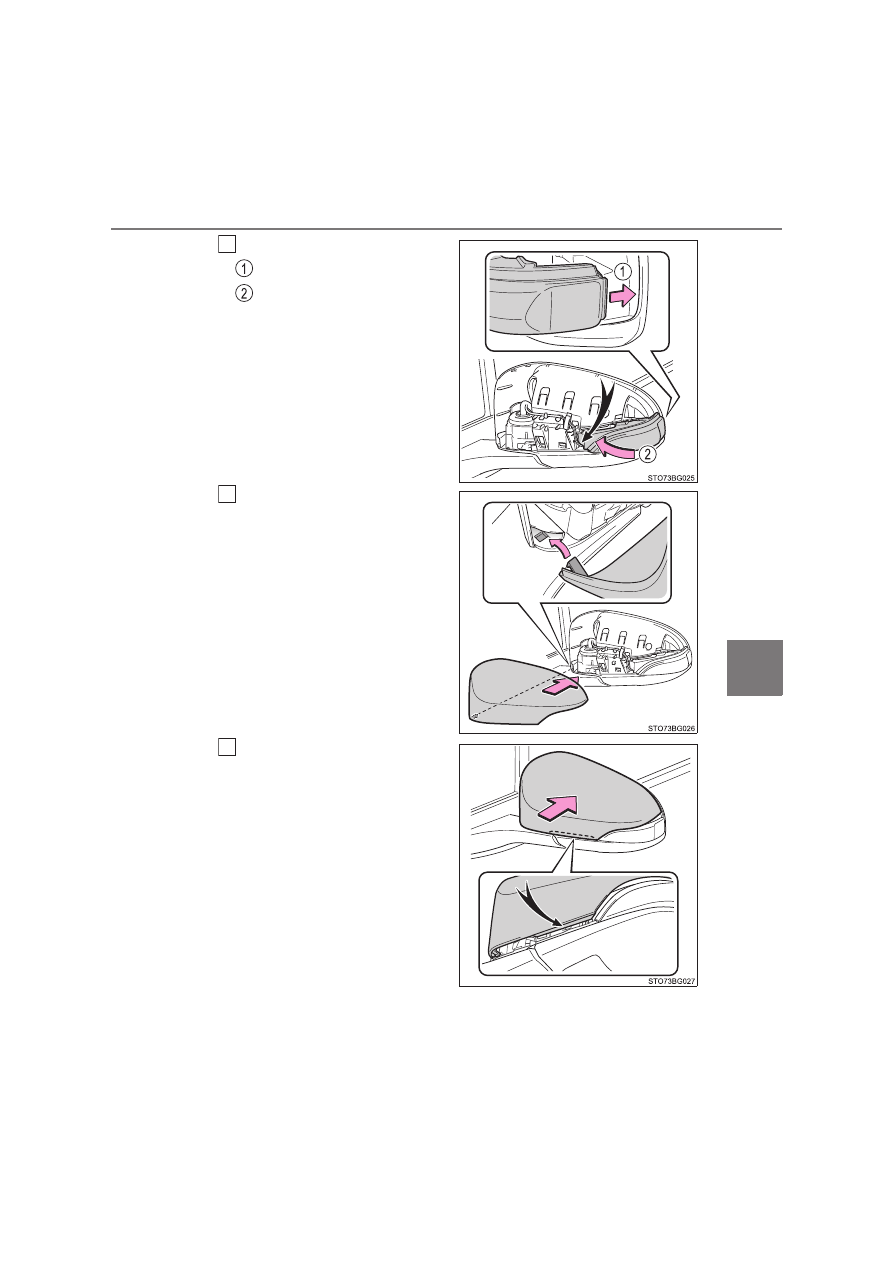

Install the lens.

Insert the claw of the lens.
Attach the lens.

Arrange the wire harness on
the back side of the lens.

Insert the claw of the cover.

Attach the claw on the bot-
tom part of the cover.

664

6-3. Do-it-yourself maintenance

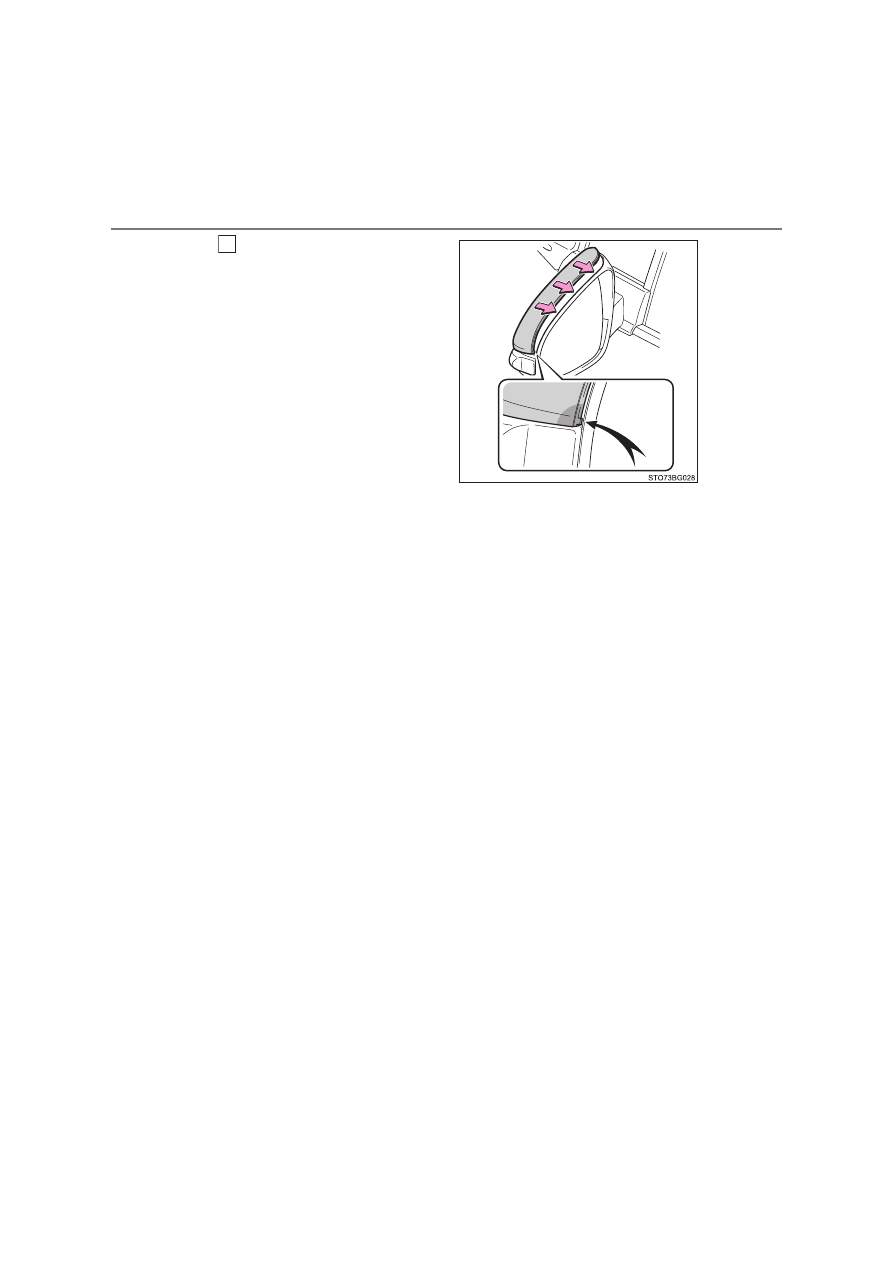

Attach the cover claws span-
ning over the entire perime-
ter.

Finally, confirm that the outside
claw is securely fitted.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

●

Headlights

●

Front position lights/daytime running lights

●

Front turn signal lights (vehicles with LED type)

●

Front fog lights (vehicles with LED type)

●

Stop/tail lights (vehicles with LED type)

●

Rear turn signal lights (vehicles with LED type)

●

Back-up lights (vehicles with LED type)

●

Rear fog light (vehicles with LED type)

●

High mounted stoplight

●

Outer mirror illumination (if equipped)

665

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

■

LED light bulbs

The following lights consist of a number of LEDs. If any of the LEDs burn out,
take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

●

Headlights

●

Front position lights/daytime running lights

●

Front turn signal lights (vehicles with LED type)

●

Front fog lights (vehicles with LED type)

●

Stop/tail lights (vehicles with LED type)

●

Rear turn signal lights (vehicles with LED type)

●

Back-up lights (vehicles with LED type)

●

Rear fog light (vehicles with LED type)

●

High mounted stoplight

●

Outer mirror illumination (if equipped)

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs



P. 650

666

6-3. Do-it-yourself maintenance

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

●

Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

667

When trouble arises

7-1. Essential information

Emergency flashers...........668
If your vehicle has to be

stopped in
an emergency..................669

If the vehicle is submerged

or water on the road is
rising................................670

7-2. Steps to

take in an emergency

If your vehicle needs to be

towed ...............................672

If you think

something is wrong..........678

If a warning light turns on or

a warning buzzer
sounds .............................679

If a warning message is

displayed .........................690

If you have a flat tire

(vehicles with an
emergency tire puncture
repair kit)..........................697

If you have a flat tire

(vehicles with a
spare tire) ........................727

If the hybrid system will not

start..................................742

If the electronic key does

not operate properly ........744

If the 12-volt battery is

discharged .......................747

If your vehicle overheats....755
If the vehicle becomes

stuck ................................760

668

7-1. Essential information

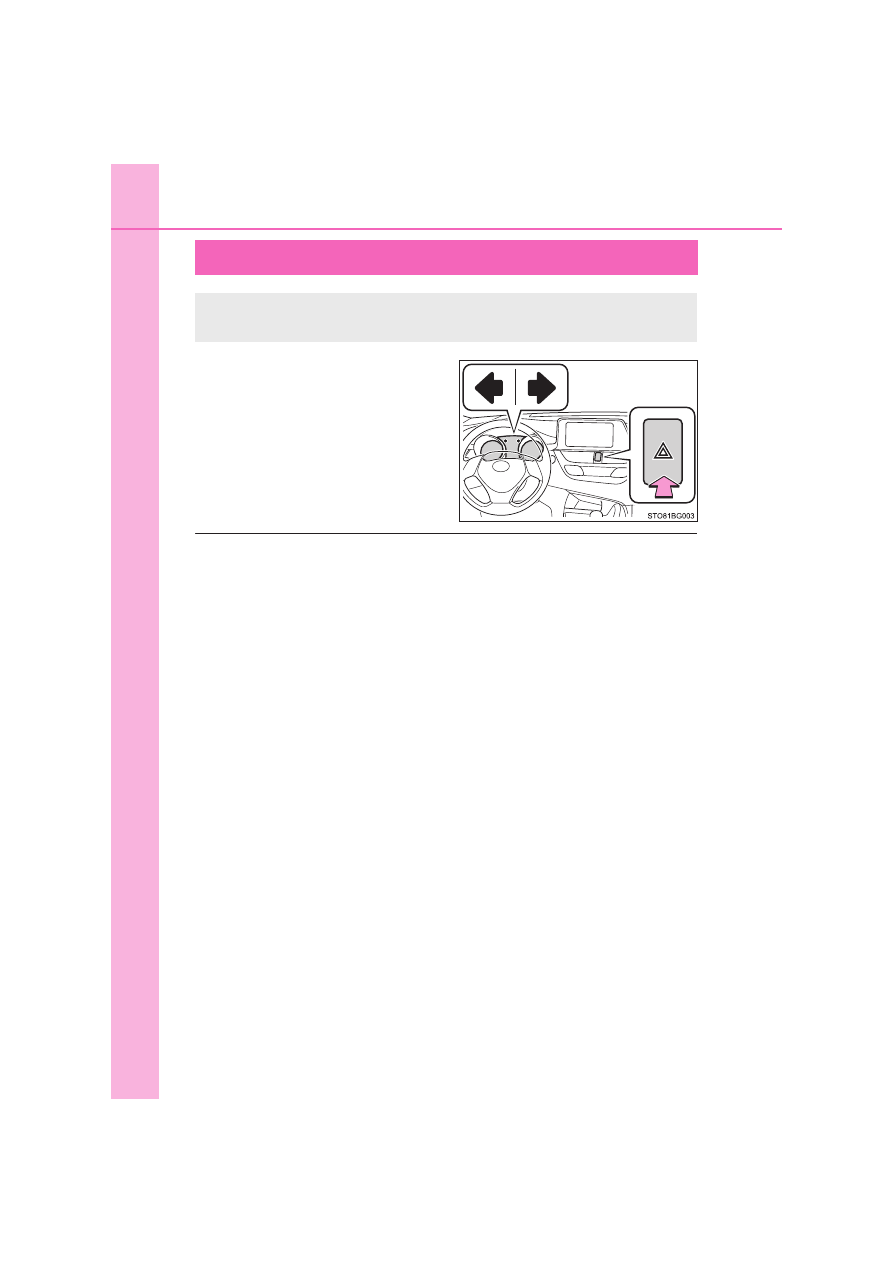

Emergency flashers

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

669

7-1. Essential information

hen
trou

e ari

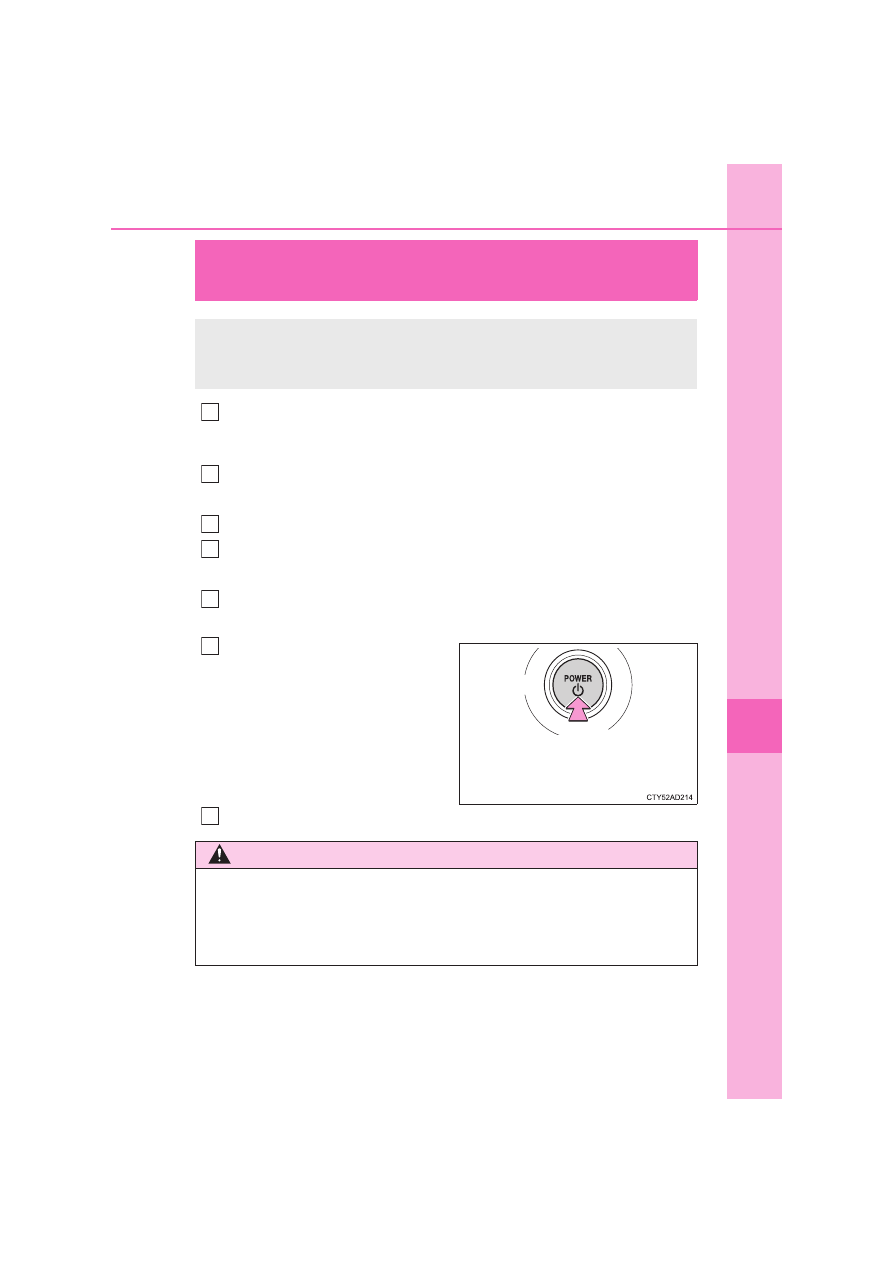

If your vehicle has to be stopped in an

emergency

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To  stop  the  hybrid  system,
press  and  hold  the  power
switch  for  2  consecutive  sec-
onds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by the road.

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

3
4

Press and hold for 2 seconds or
more, or press briefly 3 times or
more

WARNING

■

If the hybrid system has to be turned off while driving

Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.

670

7-1. Essential information

If the vehicle is submerged or water on the

road is rising

●

If the door can be opened, open the door and exit the vehicle.

●

If the door can not be opened, open the window using the power
window switch and ensure an escape route.

●

If the window can be opened, exit the vehicle through the window.

●

If the door and window cannot be opened due to the rising water,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle and then open the door after waiting
for the rising water to enter the vehicle, and exit the vehicle. When
the outside water level exceeds half the height of the door, the door
cannot be opened from the inside due to water pressure.

This vehicle is not designed to be able to drive on roads that are
deeply flooded with water. Do not drive on roads where the
roads may be submerged or the water may be rising. It is dan-
gerous to remain in the vehicle, if it anticipated that the vehicle
will be flooded or set a drift. Remain calm and follow the follow-
ing.
