1-2. Child safety

■

Detail information for child restraint systems installation

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.

Seating position

Seat position number

Seating position suitable for uni-
versal belted (Yes/No)

Yes

Forward

facing only

Yes

i-Size seating position (Yes/No)

Yes

Seating position suitable for
lateral fixture (L1/L2/No)

Suitable rearward facing fixture
(R1/R2X/R2/R3/No)

R1, R2X,

Suitable forward facing fixture
(F2X/F2/F3/No)

F2X, F2, F3 F2X, F2, F3

Suitable junior seat fixture
(B2/B3/No)

B2, B3

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoul-
der and low on your hips. If it does not, or if it interferes with the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.

Fixture

Description

Full-height, forward-facing child restraint systems

Reduced-height forward-facing child restraint systems

F2X

Reduced-height forward-facing child restraint systems

Full-size, rearward-facing child restraint systems

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

Rearward-facing infant seat

Left lateral-facing (carrycot) infant seat

Right lateral-facing (carrycot) infant seat

Junior seat

1-2. Child safety

●

When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system.

●

When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.

●

If  the  seat  belt  shoulder
anchor  is  ahead  of  the  child
seat  belt  guide,  move  the
seat cushion forward.

●

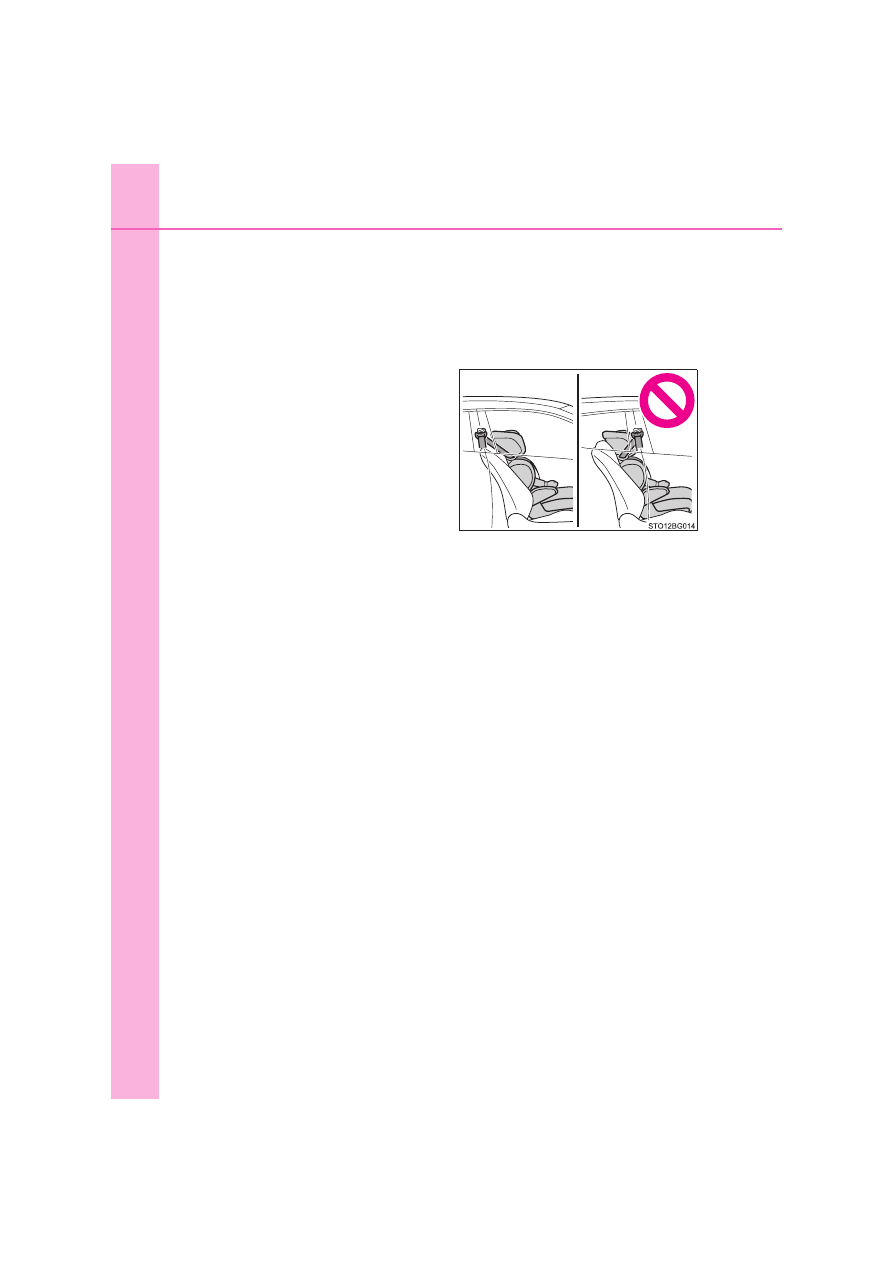

When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cush-
ion forward.

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

: Guadelope, Martinique and F. Guiana

■

Child restraint system compatibility for each seating position

Compatibility of each seating position with child restraint systems
(



P. 83) displays the type of child restraint systems that can be

used and possible seating positions for installation using symbols.
Also, the recommended child restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. (



P. 87)

Check the selected child restraint system together with the follow-
ing [Before confirming the compatibility of each seating position
with child restraint systems].

■

Before confirming the compatibility of each seating position
with child restraint systems

Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44

UN(ECE) R129

1, 2

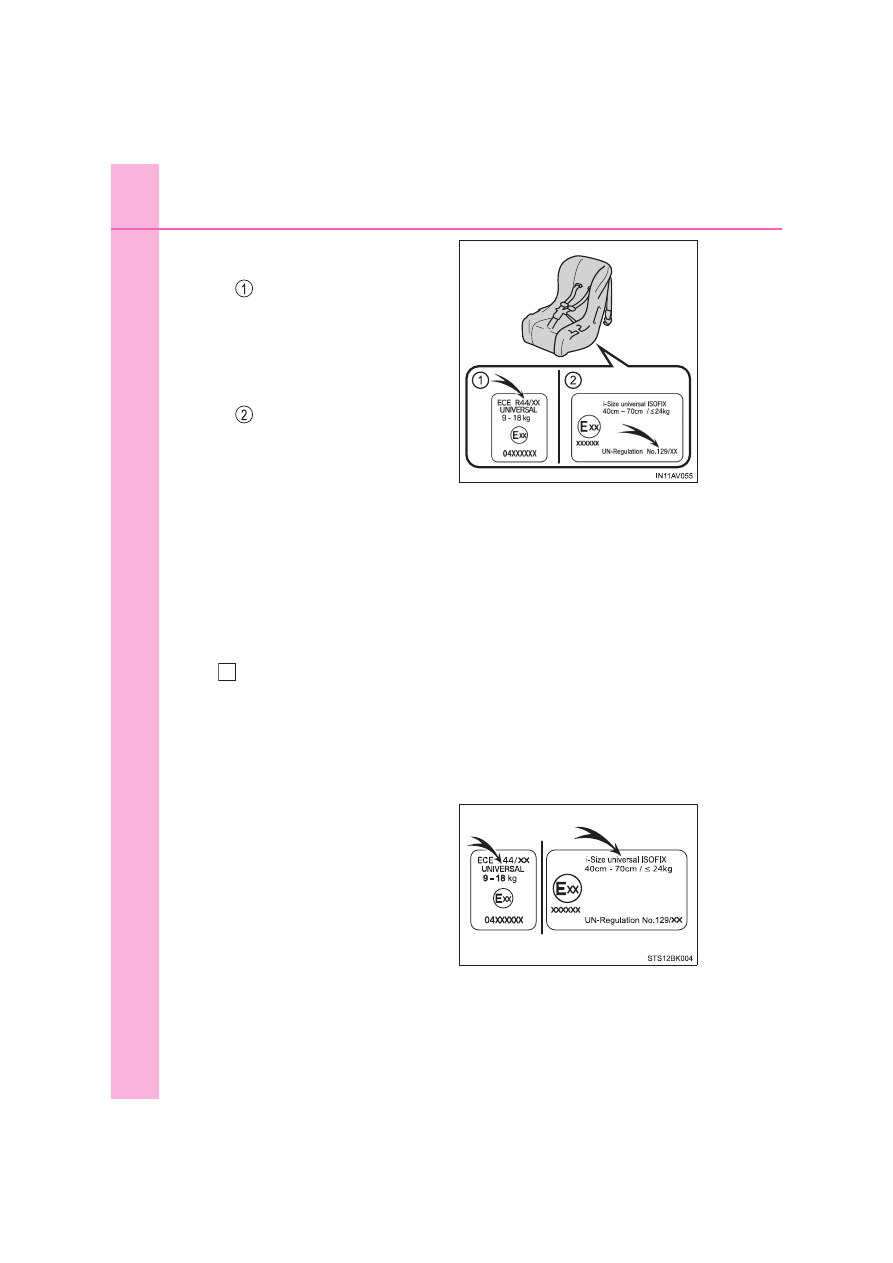

The following approval mark is displayed on child restraint sys-
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.

Child restraint system compatibility for each seating position
(For Latin American countries

)

1-2. Child safety

Example of the displayed
regulation number

UN(ECE) R44 approval
mark

The  weight  range  of  the
child  who  is  applicable  for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE)  R129  approval
mark

The  height  range  of  the
child  who  is  applicable  as
well  as  available  weights
for  an  UN(ECE)  R129
approval mark is indicated.

: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child

restraint systems.

: The child restraint systems mentioned in the table may not be avail-

able outside of the EU area.

: The displayed mark may differ depending on the product.

Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suitable.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retailer of
the child restraint system.

• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

■

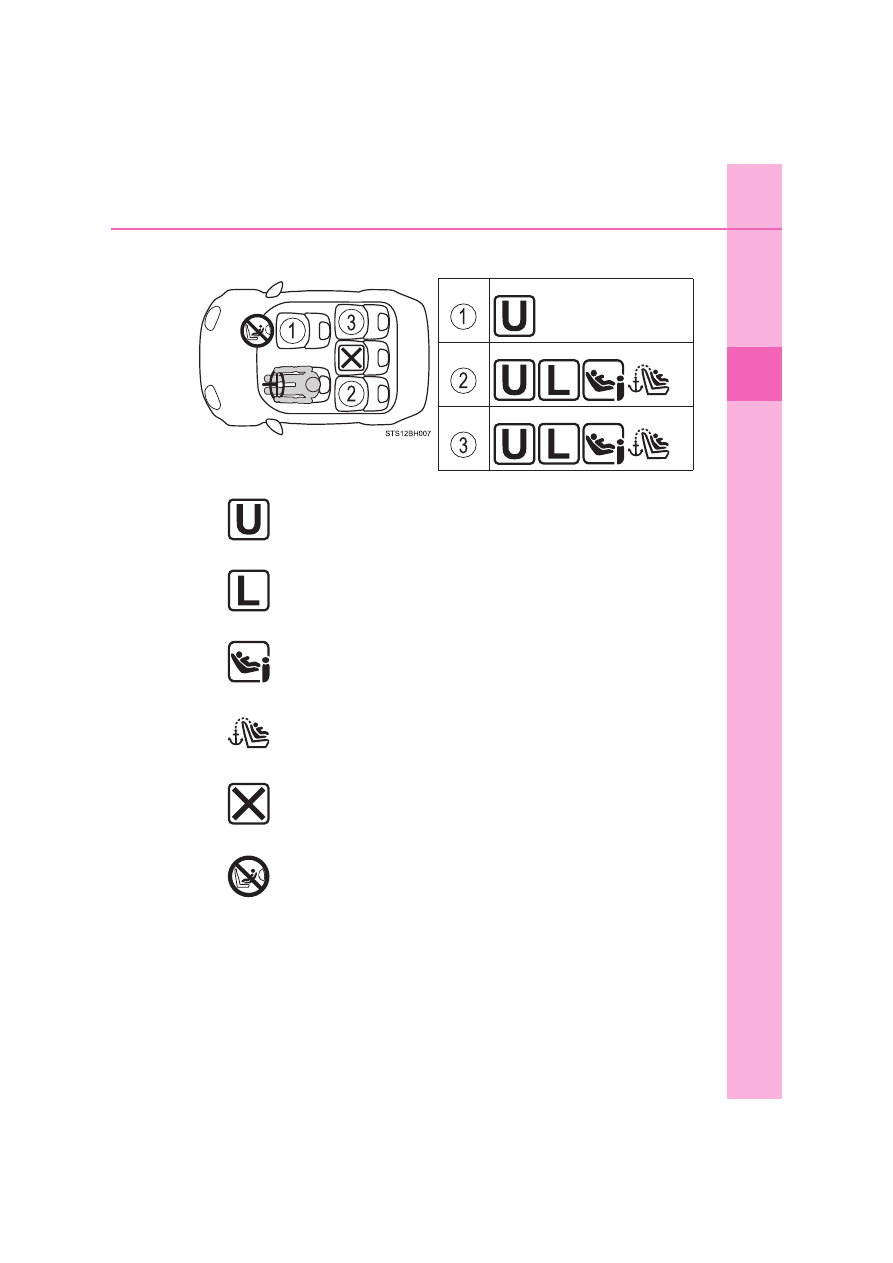

Compatibility of each seating position with child restraint sys-
tems

1, 2, 3

Suitable for “universal” category child restraint system
fixed with the seat belt.

Suitable for child restraint systems given on recom-
mended child restraint systems and compatibility table
(



P. 87).

Suitable for i-Size and ISOFIX child restraint system.

Includes a top tether anchorage point.

Not suitable for child restraint system.

Never use a rear-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is
on.

1-2. Child safety

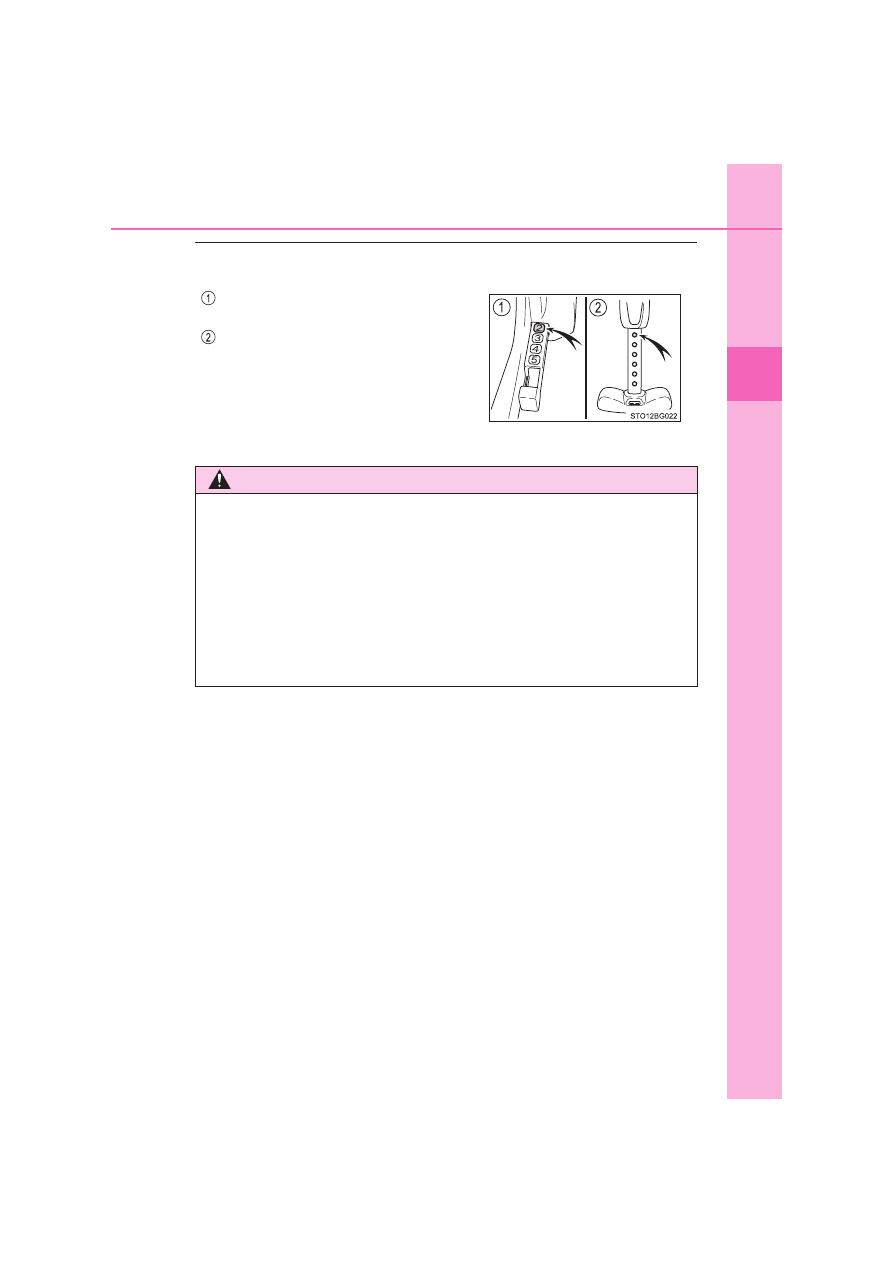

: Move the front seat fully rearward. If the passenger seat height can be

adjusted, move it to the upper most position.

: Adjust the seatback angle to the

most upright position.

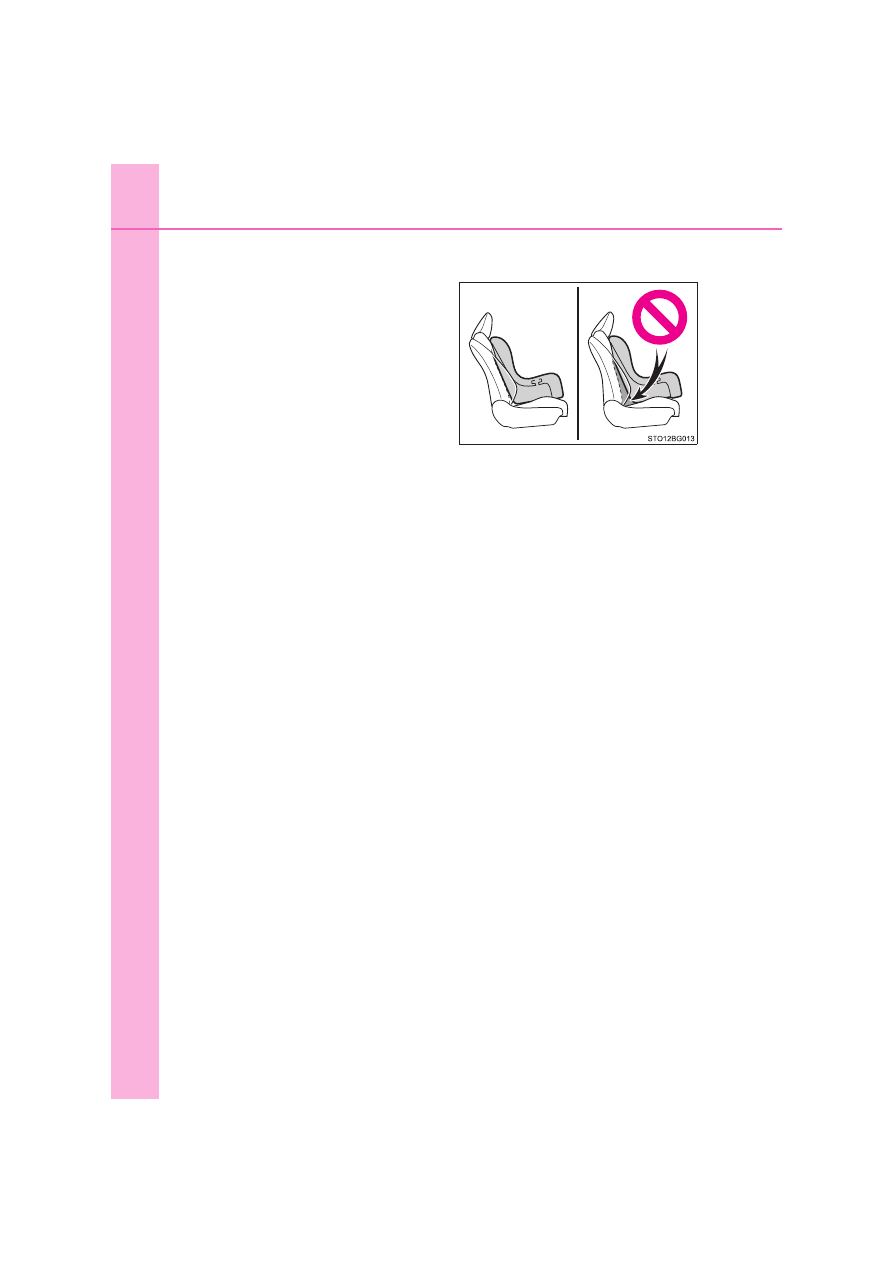

When  installing  a  forward-facing
child  seat,  if  there  is  a  gap
between  the  child  seat  and  the
seatback,  adjust  the  seatback
angle  until  good  contact  is
achieved.

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.

: Use only a front-facing child restraint system when the airbag manual

on-off switch is on.

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

■

Detail information for child restraint systems installation

Seating position

Seat position number

Airbag manual on-off

switch

OFF

Seating position suitable
for universal belted
(Yes/No)

Yes

Forward

facing only

Yes

i-Size seating position
(Yes/No)

Yes

Seating position suitable
for lateral fixture
(L1/L2/No)

Suitable rearward facing
fixture
(R1/R2X/R2/R3/No)

R1,

R2X,

R1,

R2X,

Suitable forward facing
fixture (F2X/F2/F3/No)

F2X,

F2, F3

F2X,

F2, F3

Suitable junior seat fixture
(B2/B3/No)

B2, B3

1-2. Child safety

Fixture

Description

Full-height, forward-facing child restraint systems

Reduced-height forward-facing child restraint systems

F2X

Reduced-height forward-facing child restraint systems

Full-size, rearward-facing child restraint systems

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

Rearward-facing infant seat

Left lateral-facing (carrycot) infant seat

Right lateral-facing (carrycot) infant seat

Junior seat

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

■

Recommended child restraint systems and Compatibility table

The child restraint systems mentioned in the table may not be avail-
able outside the LATIN area.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.

Mass groups

Recommended

Child Restraint System

Seating position

Airbag manual

on-off switch

OFF

0, 0+
Up to 13 kg
(28 lb.)

MIDI 2 (Yes/No)

Yes

I
9 to 18 kg
(20 to 39 lb.)

MIDI 2 (Yes/No)

Yes

1-2. Child safety

●

When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system.

●

When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.

●

If  the  seat  belt  shoulder
anchor  is  ahead  of  the  child
seat  belt  guide,  move  the
seat cushion forward.

●

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

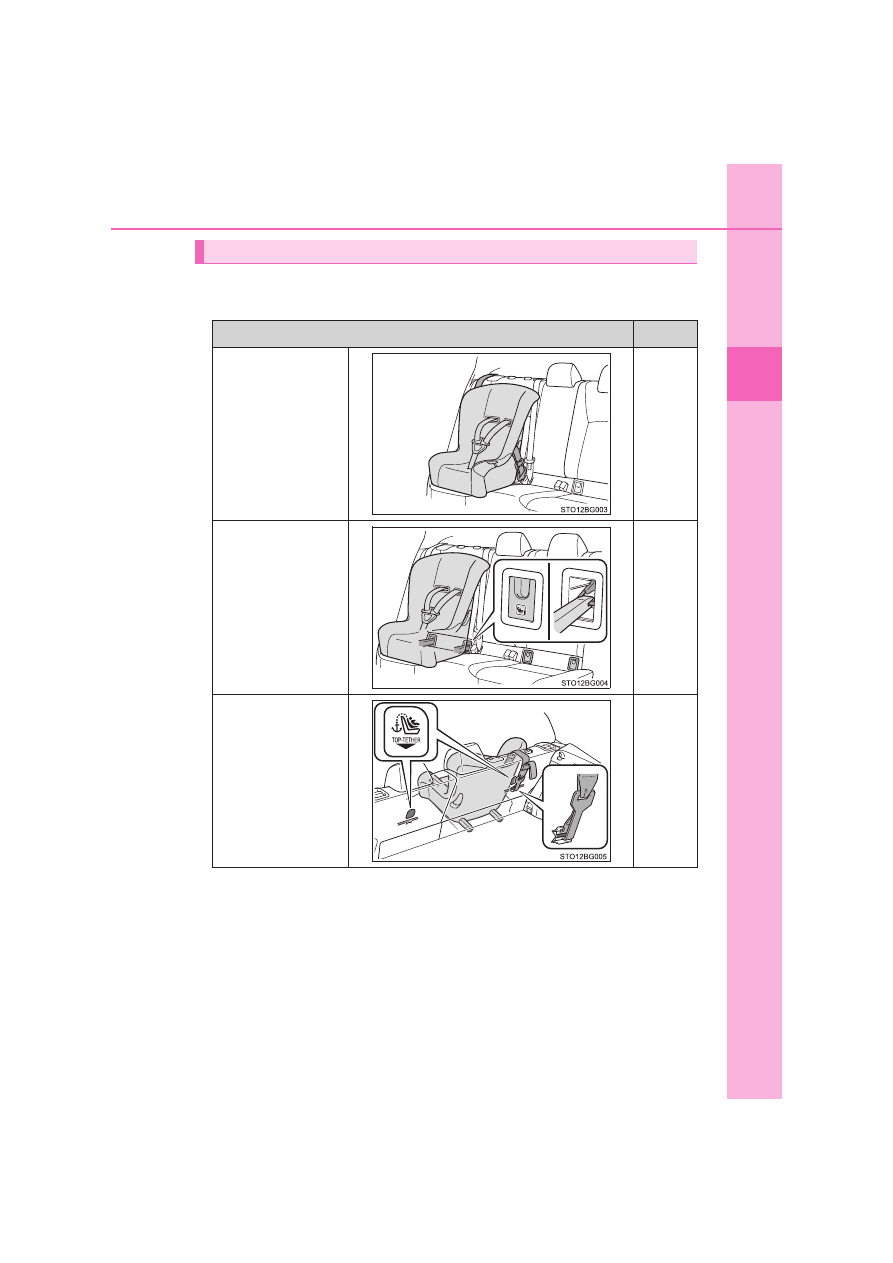

Child restraint system installation method

Installation method

Page

Seat belt

attachment

P. 90

ISOFIX

lower anchorage

attachment

P. 92

Top tether

anchorage

attachment

P. 94

1-2. Child safety

■

Installing child restraint system using a seat belt

Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. (



P. 67, 68, 75, 76, 82, 83)

If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 62 for front passenger seat adjustment.
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. (



P. 264)

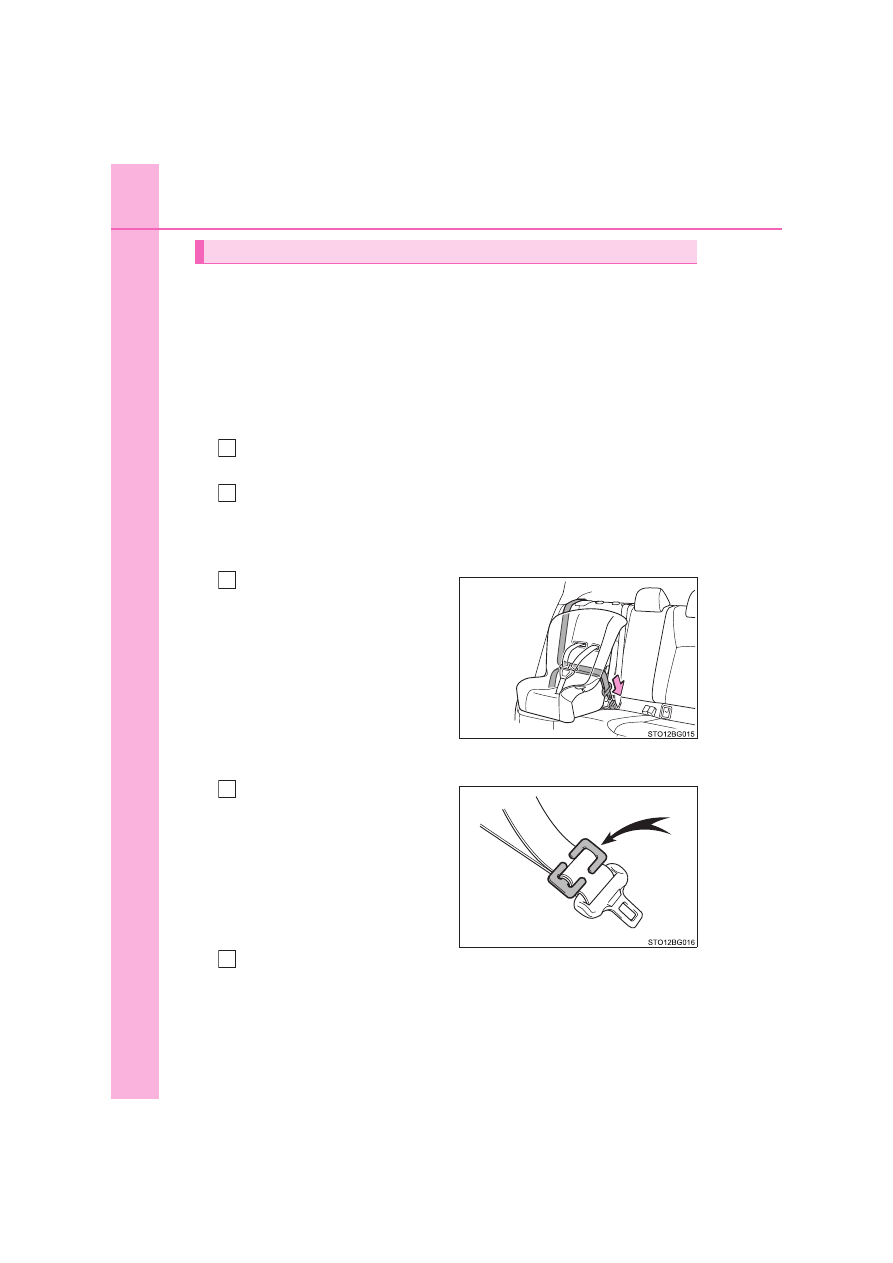

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt  is  not  twisted.  Securely
fix  the  seat  belt  to  the  child
restraint  system  in  accor-
dance  to  the  directions
enclosed  with  the  child
restraint system.

If  your  child  restraint  system
is  not  equipped  with  a  lock-
off  (a  seat  belt  locking  fea-
ture),

secure the

child

restraint system using a lock-
ing clip.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (



P. 91)

Child restraint system fixed with a seat belt

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

■

Removing a child restraint system installed with a seat belt

Press the buckle release button and fully retract the seat belt.

When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.

■

When installing a child restraint system

You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)

WARNING

■

When installing a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

1-2. Child safety

■

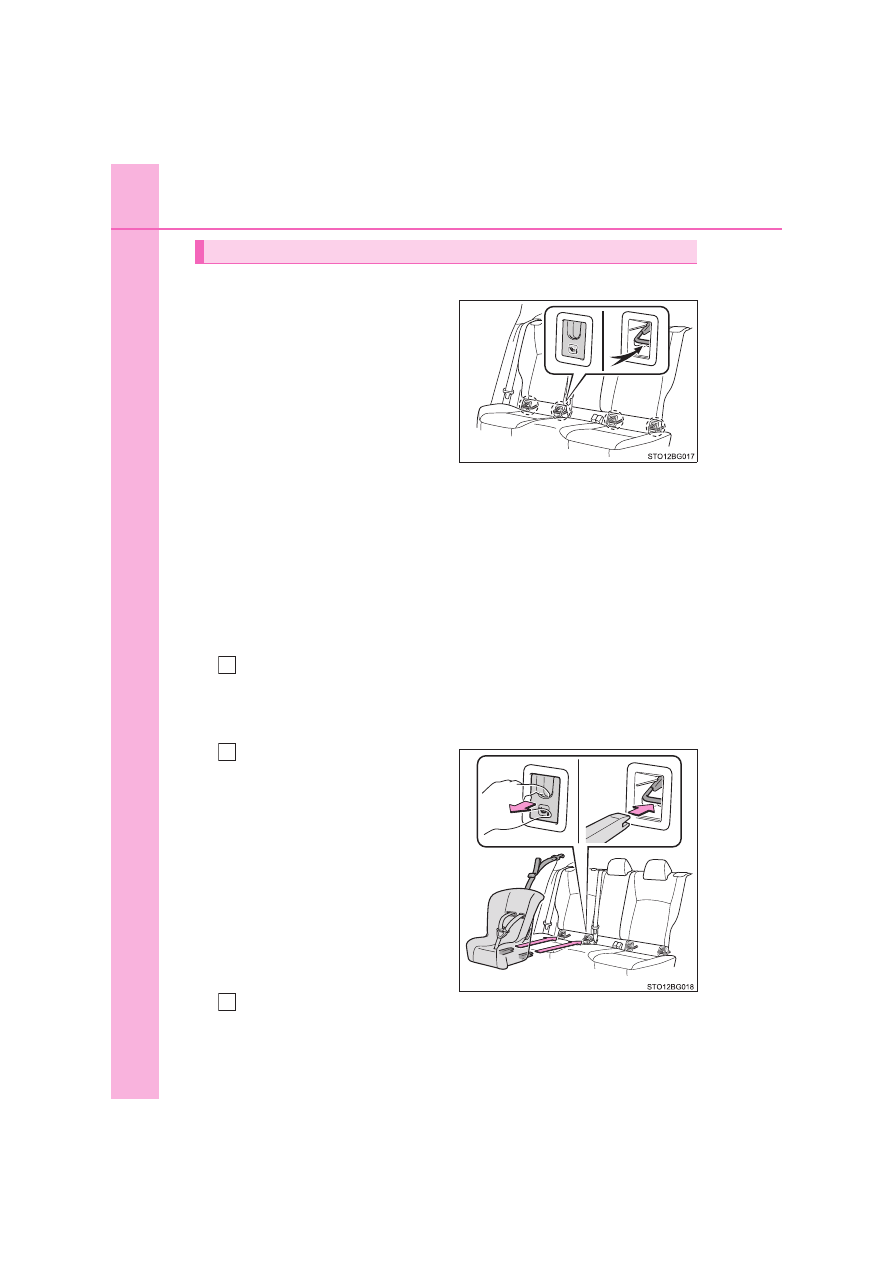

ISOFIX lower anchorages (ISOFIX child restraint system)

Lower anchorages are provided
for the rear outboard seats.
(Marks displaying the location
of the anchorages are attached
to the seats.)

■

Installation with ISOFIX lower anchorage (ISOFIX child
restraint system)



P. 67, 68, 75, 76, 82, 83)

If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. (



P. 264)

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind
the anchorage covers.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (



P. 91)

Child restraint system fixed with an ISOFIX lower anchorage

1-2. Child safety

Fo
r s

ty a
nd

se
cu

rity

■

When using an “MIDI 2” (For Latin American countries

)

Adjust the support leg and ISOFIX connectors as follows:

: Guadelope, Martinique and F. Guiana

Lock the ISOFIX connectors where
number 2 can be seen.
Lock the support leg where 6 holes can
be seen.

WARNING

■

When installing a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

After securing a child restraint system, never adjust the seat.

●

When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not caught behind
the child restraint system.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

Content .. 3 4 5 6 ..
