8-1. Specifications

8-1.Specifications

:Unladen vehicles

:Short Bed type

:Standard Bed type

:Long Bed type

:245/75R18 tires

:265/70R18 tires

:265/60R20 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Cab type

Double Cab

CrewMax

Overall length

233.6 in. (5932 mm)

252.5 in. (6412 mm)

233.6 in. (5932 mm)

245.6 in. (6237 mm)

Overall width

80.0 in. (2031 mm)

Overall height

2WD

77.2 in. (1960 mm)

77.4 in. (1966 mm)

*3, 5

77.5 in. (1968 mm)

*3, 6, 7

77.0 in. (1954 mm)

*3, 7

77.1 in. (1957 mm)

*3, 6

77.4 in. (1966 mm)

4WD

77.5 in. (1968 mm)

*4, 5, 7

77.6 in. (1969 mm)

*4, 6

78.0 in. (1981 mm)

77.7 in. (1973 mm)

*3, 6

77.8 in. (1975 mm)

*3, 7

78.0 in. (1981 mm)

*2, 5, 6

78.1 in. (1982 mm)

*2, 7

Wheelbase

145.7 in. (3700 mm)

164.6 in. (4180 mm)

145.7 in. (3700 mm)

157.7 in. (4005 mm)

Front tread

2WD

68.3 in. (1735 mm)

4WD

68.1 in. (1728 mm)

Rear tread

68.4 in. (1737 mm)

547

8-1. Specifications

Vehicle

specifications



Double Cab

: The model code is indicated on the Certification Label. (



P.548)



CrewMax

: The model code is indicated on the Certification Label. (



P.548)

Vehicle capacity weight

Model code

Driving system

Bed type

Vehicle capacityweight

(Occupants + luggage)

VXKA70L-CRULZA

2WD

Standard

1530 lb. (695 kg)

VXKA70L-CRUSZA

1555 lb. (705 kg)

VXKA72L-CHUSZA

Long

1580 lb. (715 kg)

VXKA75L-CRULZA

4WD

Standard

1490 lb. (675 kg)

VXKA75L-CRUSZA

1500 lb. (680 kg)

VXKA77L-CHUSZA

Long

1515 lb. (685 kg)

Model code

Driving system

Bed type

Vehicle capacityweight

(Occupants + luggage)

VXKA70L-PSULZA

2WD

Short

1420 lb. (645 kg)

VXKA70L-PSUZZA

1385 lb. (630 kg)

VXKA70L-PSUSZA

1400 lb. (635 kg)

VXKA71L-PRULZA

Standard

1445 lb. (655 kg)

VXKA71L-PRUZZA

1370 lb. (620 kg)

VXKA71L-PRUSZA

1440 lb. (655 kg)

VXKA75L-PSULZA

4WD

Short

1400 lb. (635 kg)

VXKA75L-PSUSZA

1395 lb. (635 kg)

VXKA75L-PSUZZA

1310 lb. (595 kg)

VXKA76L-PRULZA

Standard

1390 lb. (630 kg)

VXKA76L-PRUSZA

1355 lb. (615 kg)

VXKA76L-PRUZZA

1320 lb. (600 kg)

548

8-1. Specifications

■

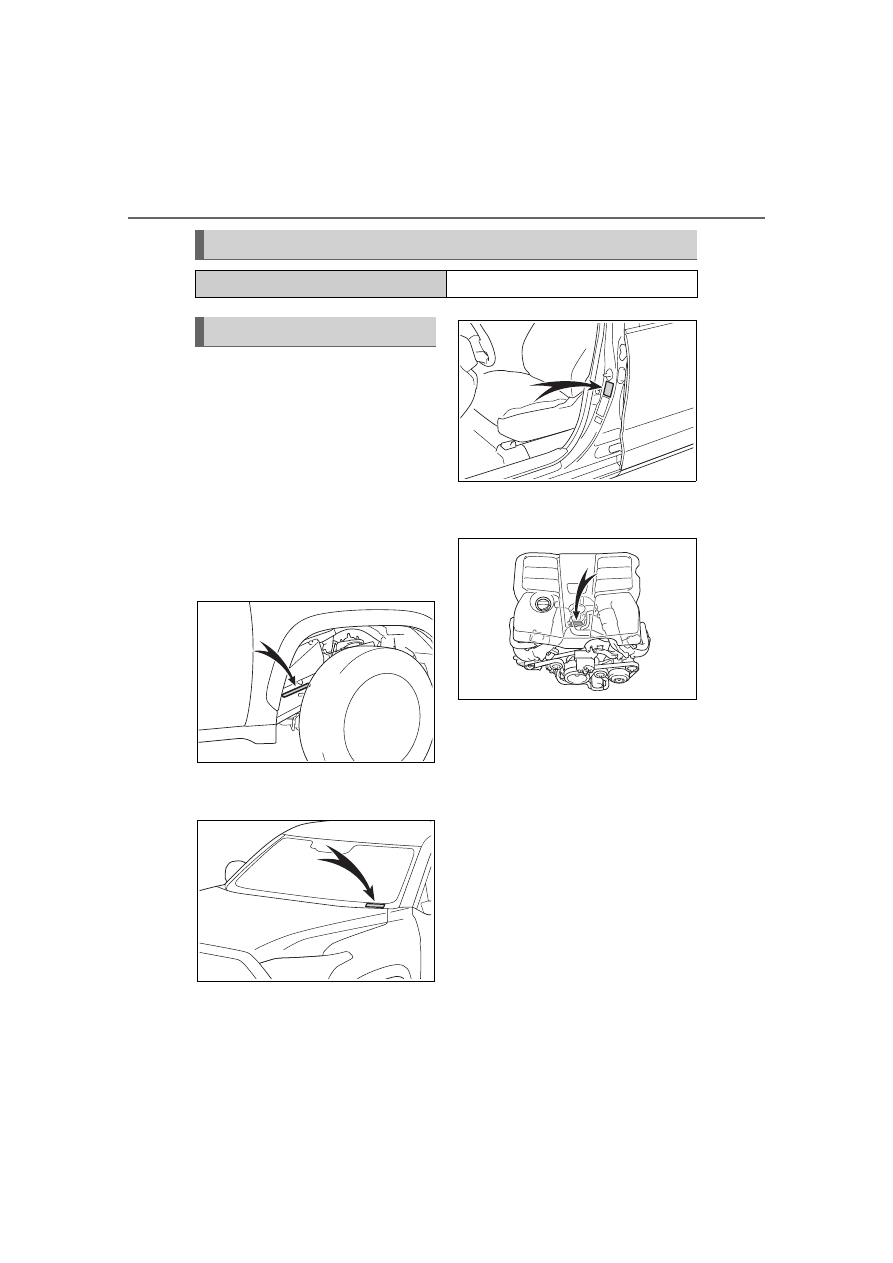

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped on the
front right frame.

This number is also on the top
left of the instrument panel.

This number is also stamped
under the right-hand front seat.

This number is also on the Certi-
fication Label.

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

549

8-1. Specifications

Vehicle

specifications

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 8 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade:
ILSAC GF-6A multigrade engine
oil
Recommended viscosity: SAE
0W-20

Engine

Model

V35A-FTS

Type

6-cylinder V type, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

3.37



3.94 in. (85.5



100.0 mm)

Displacement

210.2 cu.in. (3445 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Research Octane Number

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

Standard fuel tank:
22.5 gal. (85.0 L, 18.7 Imp.gal.)
Large fuel tank:
32.2 gal. (122.0 L, 26.8 Imp.gal.)

Lubrication system

With filter

7.7 qt. (7.3 L, 6.4 Imp.
qt.)

Without
filter

7.4 qt. (7.0 L, 6.2 Imp.
qt.)

550

8-1. Specifications

Outside temperature

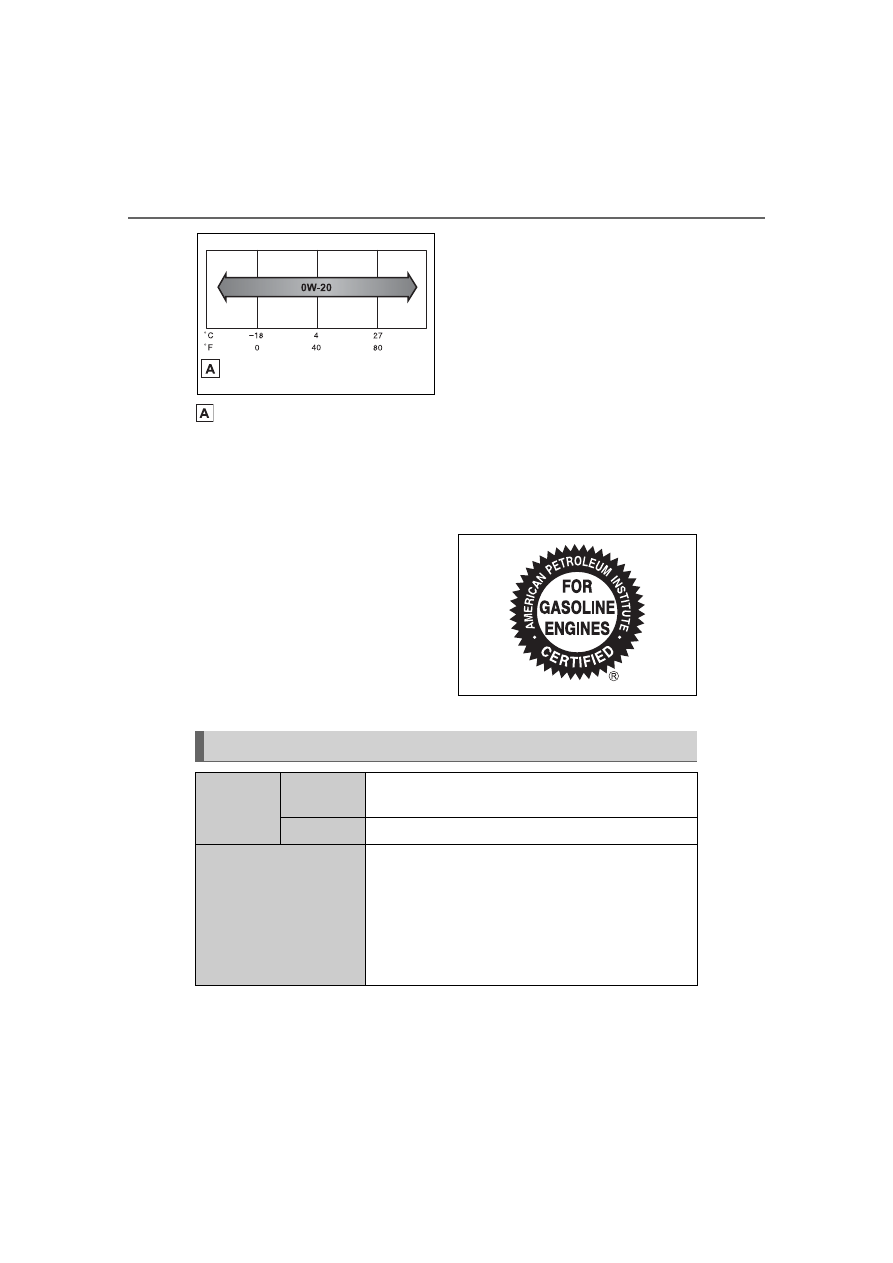

SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.

Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature.

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Cooling system

Capacity

Gasoline
engine

13.1 qt. (12.4 L, 10.9 Imp. qt.)

Intercooler 4.6 qt. (4.4 L, 3.9 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology

Do not use plain water alone.

551

8-1. Specifications

Vehicle

specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Your Toyota vehicle is filled with “Toyota Genuine ATF WS” at the
factory.
Use Toyota approved “Toyota Genuine ATF WS” or an equivalent of

Ignition system (spark plug)

Make

DENSO EC22HPR-D7

Gap

0.027 in. (0.7 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission

Fluid capacity

11.7 qt. (11.1 L, 9.8 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or damage the transmission of your vehicle.

Transfer (4WD models)

Oil capacity

2.17 qt. (2.05 L, 1.80 Imp.qt.)

Oil type and viscosity

Toyota Genuine ATF WS

552

8-1. Specifications

matching quality to satisfy the above specification. Please contact
your Toyota dealer for further details.

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear
Oil” at the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.

:Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the engine is running.

:Make sure to confirm that the brake warning light (yellow) does not illumi-

nate. (If the brake warning light illuminates, refer to P.510.)

Differential

Oil capacity

Front (4WD
models)

1.4 qt. (1.29 L, 1.1 Imp.qt.)

Rear



Without rear differential lock system
5.7 qt. (5.42 L, 4.8 Imp.qt.)



With rear differential lock system
5.6 qt. (5.34 L, 4.7 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

Brakes

Pedal clearance

3.6 in. (93.3 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake indicator

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type



FMVSS No.116 DOT 3 or SAE J1703



FMVSS No.116 DOT 4 or SAE J1704

553

8-1. Specifications

Vehicle

specifications



18-inch tires (type A)



18-inch tires (type B)



18-inch tires (type C)

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

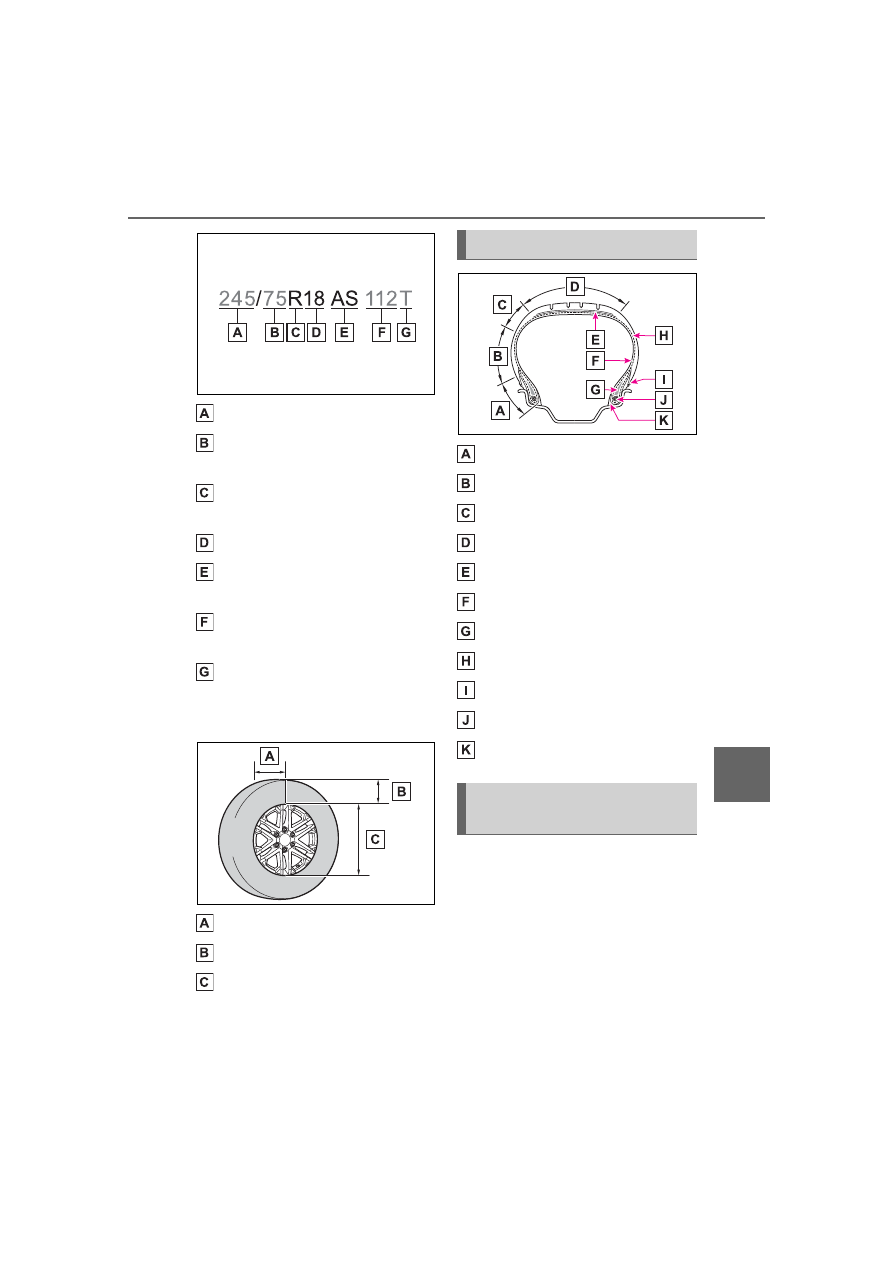

Tire size

245/75R18 112T, 245/75R18 112T (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

35 psi (240 kPa, 2.4 kgf/cm

or bar)

36 psi (250 kPa, 2.5 kgf/cm

or bar) (spare)

Wheel size



7 1/2 J, 18



7J (spare)

Wheel nut torque

154 ft·lbf (209 N·m, 21.3 kgf·m)

Tire size

265/70R18 116T, 245/75R18 112T (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

35 psi (240 kPa, 2.4 kgf/cm

or bar)

36 psi (250 kPa, 2.5 kgf/cm

or bar) (spare)

Wheel size



7 1/2 J, 18



7J (spare)

Wheel nut torque

Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)

Tire size

265/70R18 116T, 265/70R18 116T (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Wheel size



7 1/2 J, 18



7J (spare)

Wheel nut torque

Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)

554

8-1. Specifications



20-inch tires (type A)



20-inch tires (type B)

A: Wedge base bulbs (amber)

Tire size

265/60R20 112H, 245/75R18 112T (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

35 psi (240 kPa, 2.4 kgf/cm

or bar)

36 psi (250 kPa, 2.5 kgf/cm

or bar) (spare)

Wheel size



8J, 18



7J (spare)

Wheel nut torque

Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)

Tire size

265/60R20 112H, 265/70R18 116T (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Wheel size



8 1/2 J, 18



7J (spare)

Wheel nut torque

Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front turn signal/parking
lights

7444NA

28/8

555

8-1. Specifications

Vehicle

specifications

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to
15% ethanol.

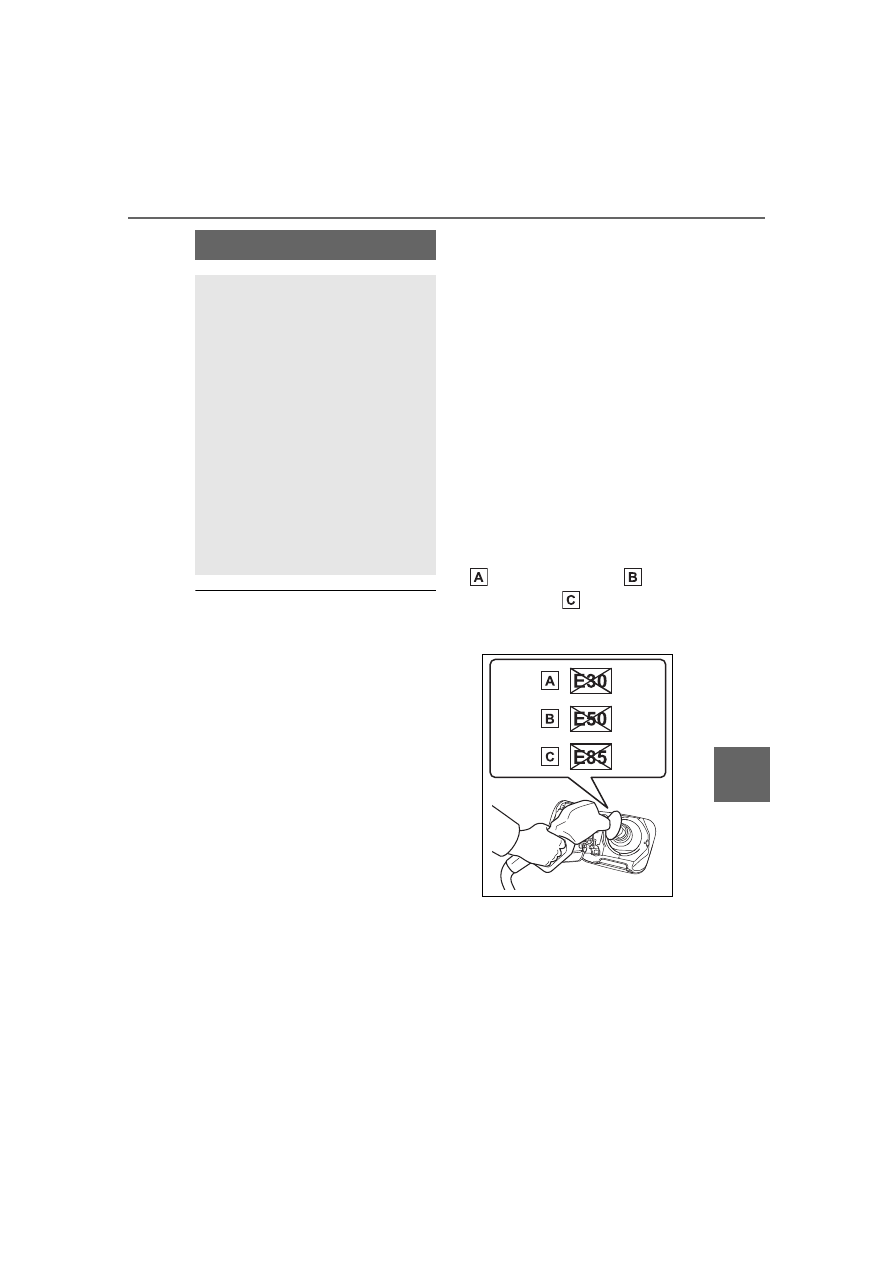

DO NOT use any flex-fuel or gas-
oline that could contain more than
15% ethanol, including from any
pump labeled E30 (30% ethanol

), E50 (50% ethanol

), E85

(85% ethanol

) (which are only

some examples of fuel containing
more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

Fuel information

You must only use unleaded
gasoline.
Select octane rating 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifi-
cations of ASTM D4814 in the
U.S.A.

556

8-1. Specifications

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s three-

way catalytic converters caus-

ing the emission control system

to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

557

8-1. Specifications

Vehicle

specifications

Tire size (



P.558)

DOT and Tire Identification Number (TIN) (



P.558)

Location of treadwear indicators (



P.477)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.478)

Maximum cold tire inflation pressure (



P.553)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.478)

Tire information

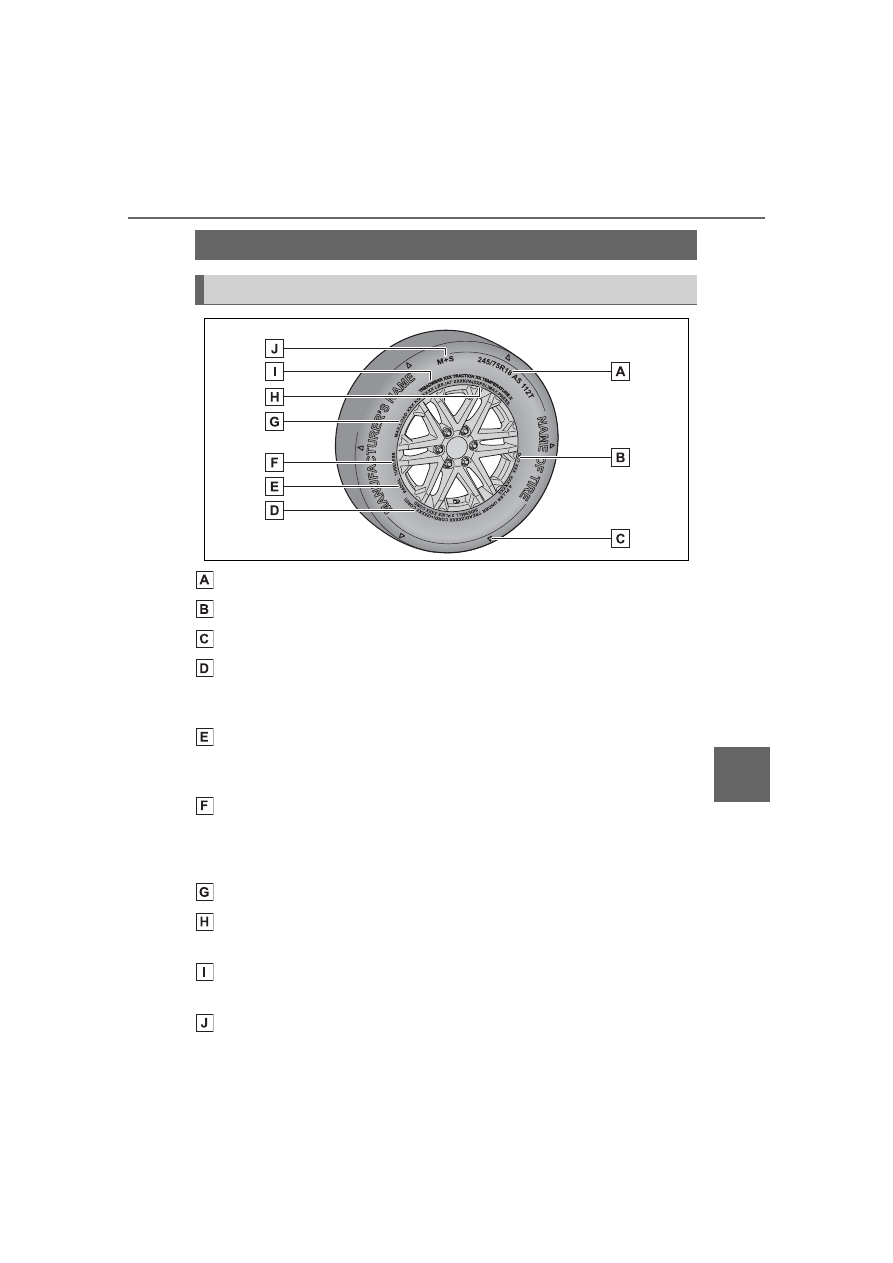

Typical tire symbols

558

8-1. Specifications

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.



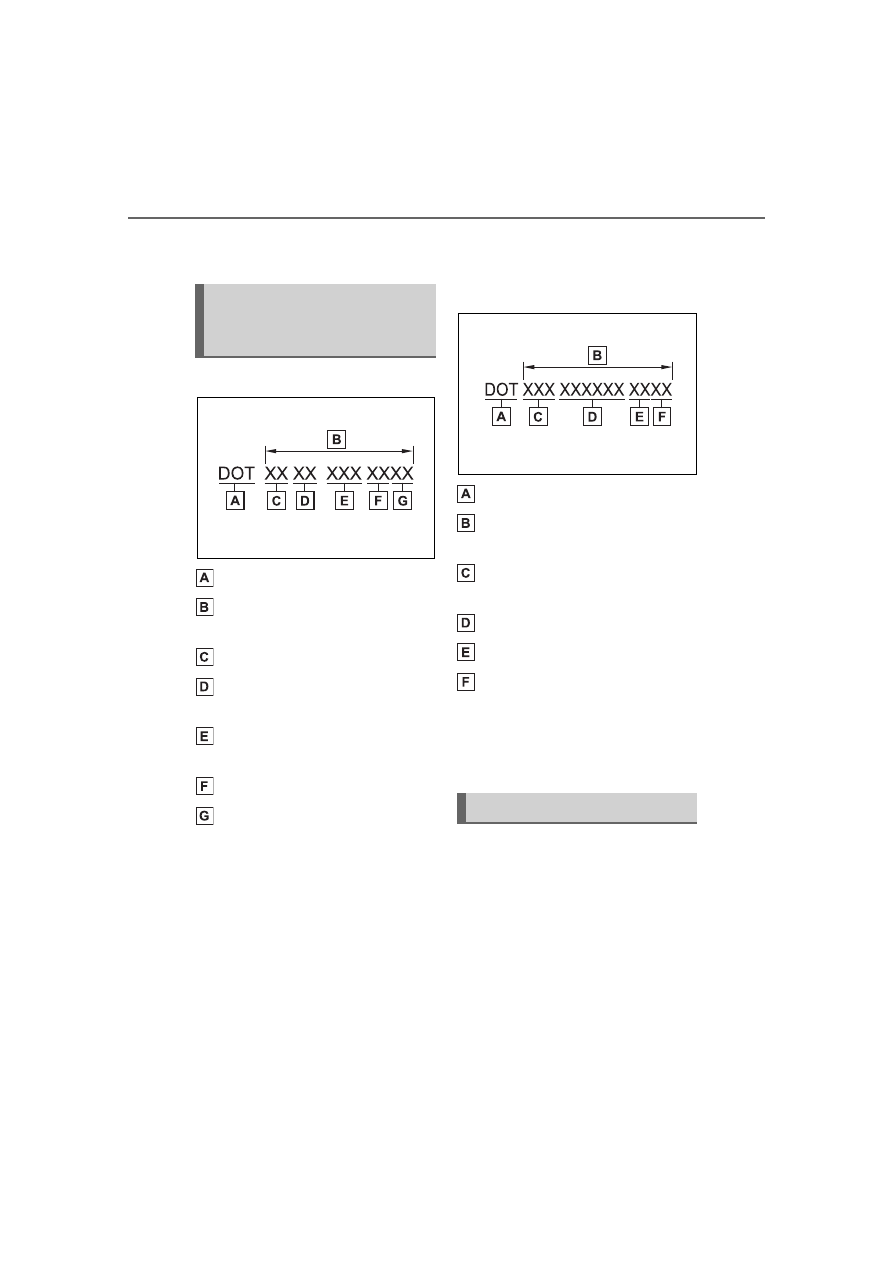

Type A

DOT symbol

Tire Identification Number
(TIN)

Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)

Tire manufacturer’s identifi-
cation mark

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Manufacturer’s code

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Typical DOT and Tire
Identification Number
(TIN)

Tire size

559

8-1. Specifications

Vehicle

specifications

Section width (millimeters)

Aspect ratio (tire height to
section width)

Tire construction code (R =
Radial, D = Diagonal)

Wheel diameter (inches)

Speed category (alphabet
with one letter)

Load index (2 digits or 3 dig-
its)

Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-

Tire section names

Uniform Tire Quality
Grading

560

8-1. Specifications

tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150
would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may differ
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement

as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

■

Temperature A, B, C

The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of
performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause

Content .. 32 33 34 35 ..
