Front passenger occupant classification

system

Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the devices for the
front passenger.

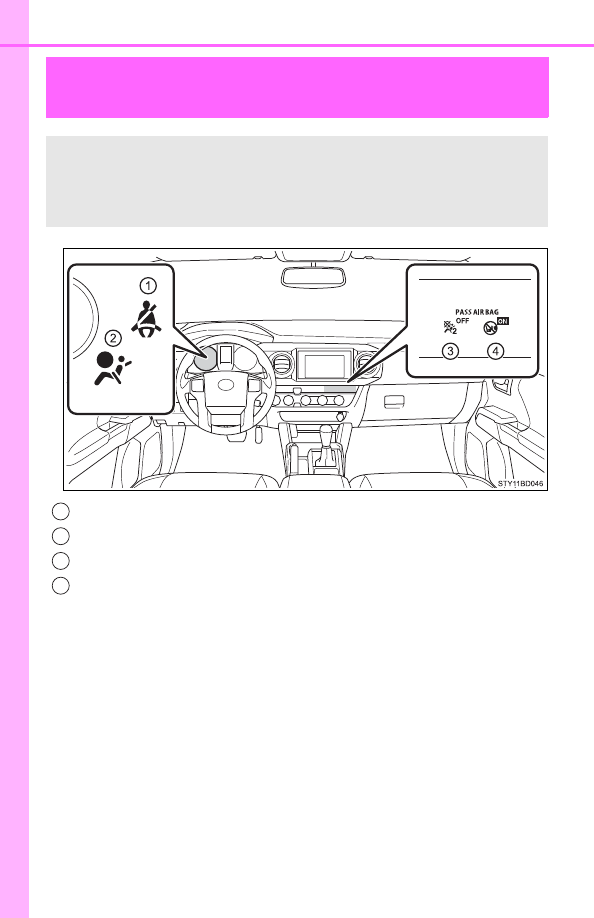

Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

1-1. For safe use

For safet

y and s

ecurity

■

Adult

■

Child

or child restraint system

Condition and operation in the front passenger occupant classi-
fication system

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG ON”

SRS warning light

Off

Front passenger’s seat belt reminder light

Off

flashing

Devices

Front passenger airbag

Activated

Front passenger knee airbag

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Front passenger’s seat belt pretensioner

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG

OFF”

SRS warning light

Off

Front passenger’s seat belt reminder light

Off

flashing

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Front passenger’s seat belt pretensioner

1-1. For safe use

■

Unoccupied

■

There is a malfunction in the system

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

Not illuminated

SRS warning light

Off

Front passenger’s seat belt reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Front passenger’s seat belt pretensioner

Deactivated

activated

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG OFF”

SRS warning light

Front passenger’s seat belt reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Front passenger’s seat belt pretensioner

1-1. For safe use

For safet

y and s

ecurity

: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may recognize him/her
as a child depending on his/her physique and posture.

: In the event the front passenger is wearing a seat belt.

: In the event the front passenger does not wear a seat belt.

: When a larger child who has outgrown a child restraint system sits in the

front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.

: Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (



P. 54)

: In case the indicator light is not illuminated, consult this manual on how

to install the child restraint system properly. (



P. 58)

: In the event of a frontal collision or rollover.

: In the event of a side collision.

WARNING

■

Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.

●

Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illumi-
nated, the SRS airbags for the front passenger will not activate, which
could cause death or serious injury in the event of a collision.

●

Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pockets).

●

Vehicles with rear seats: Do not put weight on the front passenger seat by
putting your hands or feet on the front passenger seat seatback from the
rear passenger seat.

●

Vehicles with rear seats: Do not let a rear passenger lift the front passen-
ger seat with their feet or press on the seatback with their legs.

●

Do not put objects under the front passenger seat.

1-1. For safe use

WARNING

■

Front passenger occupant classification system precautions

●

Do not recline the front passenger seatback so far that it touches a rear
seat or a back wall. This may cause the “AIR BAG OFF” indicator light to
be illuminated, which indicates that the SRS airbags for the front passen-
ger  will  not  activate  in  the  event  of  a  severe  accident.  If  the  seatback
touches the rear seat or back wall, return the seatback to a position where
it does not touch the rear seat or back wall. Keep the front passenger seat-
back  as  upright  as  possible  when  the  vehicle  is  moving.  Reclining  the
seatback  excessively  may  lessen  the  effectiveness  of  the  seat  belt  sys-
tem.

●

If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.

●

When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (



P. 58)

●

Do not modify or remove the front seats.

●

Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.

●

Vehicles with rear seats: Child restraint systems installed on the rear seat
should not contact the front seatbacks.

●

Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.

●

Do not attach a commercial seatback table or other heavy item to the back
of the front passenger seat.

●

Do not modify or replace the upholstery of the front seat.

1-1. For safe use

For safet

y and s

ecurity

Safety information for children

●

Vehicles with rear seats: It is recommended that children sit in the
rear seats to avoid accidental contact with the shift lever, wiper
switch, etc.

●

Use the rear door child-protector lock (Double Cab models only) or
the window lock switch to avoid children opening the door while
driving or operating the power window accidentally.

●

Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, tailgate, seats,
etc.

Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.

WARNING

Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.

1-1. For safe use

Child restraint systems

Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.

●

Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.

●

For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(



P. 58)

A child restraint system for a small child or baby must itself be
properly restrained on the seat with the lap portion of the lap/
shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
the use of child restraint systems.

Points to remember

1-1. For safe use

For safet

y and s

ecurity

Child restraint systems are classified into the following 3 types
according to the age and size of the child:

■

Selecting an appropriate child restraint system

●

Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.

●

If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (



P. 30)

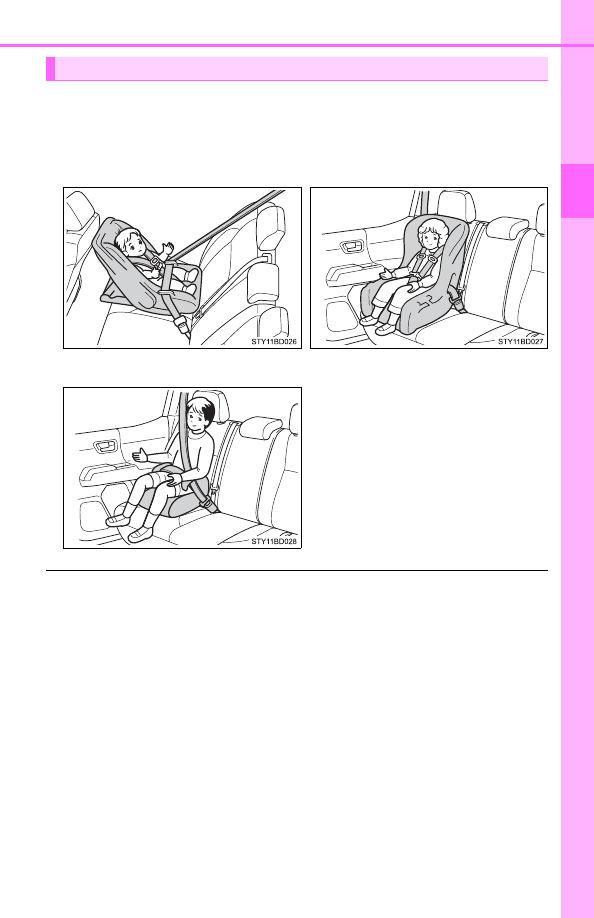

Types of child restraints



Rear facing



Infant seat/con-

vertible seat



Forward facing



Convertible

seat



Booster seat

1-1. For safe use

WARNING

■

Child restraint precautions

●

For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.

●

Vehicles without rear seats: Toyota strongly urges the use of a proper child
restraint system that conforms to the size of the child.

●

Vehicles with rear seats: Toyota strongly urges the use of a proper child
restraint system that conforms to the size of the child, installed on the rear
seat. According to accident statistics, the child is safer when properly
restrained in the rear seat than in the front seat.

●

Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.

●

Vehicles without rear seats: A forward-facing child restraint system may be
installed on the front passenger seat only when it is unavoidable. Adjust
the seatback as upright as possible and always move the seat as far back
as possible even if the “AIR BAG OFF” indicator light is illuminated,
because the front passenger airbag could inflate with considerable speed
and force. Otherwise, the child may be killed or seriously injured.

●

Vehicles with rear seats: A forward-facing child restraint system may be
installed on the front passenger seat only when it is unavoidable. A child
restraint system that requires a top tether strap should not be used in the
front passenger seat since there is no top tether strap anchor for the front
passenger seat. Adjust the seatback as upright as possible and always
move the seat as far back as possible even if the “AIR BAG OFF” indicator
light is illuminated, because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seri-
ously injured.

1-1. For safe use

For safet

y and s

ecurity

WARNING

■

Child restraint precautions

●

Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of an accident.

●

Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.

●

Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or an accident.

■

When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

■

When the child restraint system is not in use

●

Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.

●

If it is necessary to detach the child restraint system, remove it from the
vehicle. This will prevent it from injuring passengers in the event of a sud-
den stop or an accident.

1-1. For safe use

Installing child restraints



Access Cab models (vehicles with rear seats)

Child restraint LATCH anchors

LATCH anchors are provided for
each of rear seats.



Double Cab models

Child restraint LATCH anchors

LATCH anchors are provided for
the outer rear seats. (Buttons dis-
playing the location of the anchors
are attached to the seats.)

Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

Using the LATCH anchors (



For safet

Seat belts equipped with a child
restraint

locking

mechanism

(ALR/ELR belts except driver’s
seat belt) (



P. 32)



Access Cab models (vehicles without rear seats)

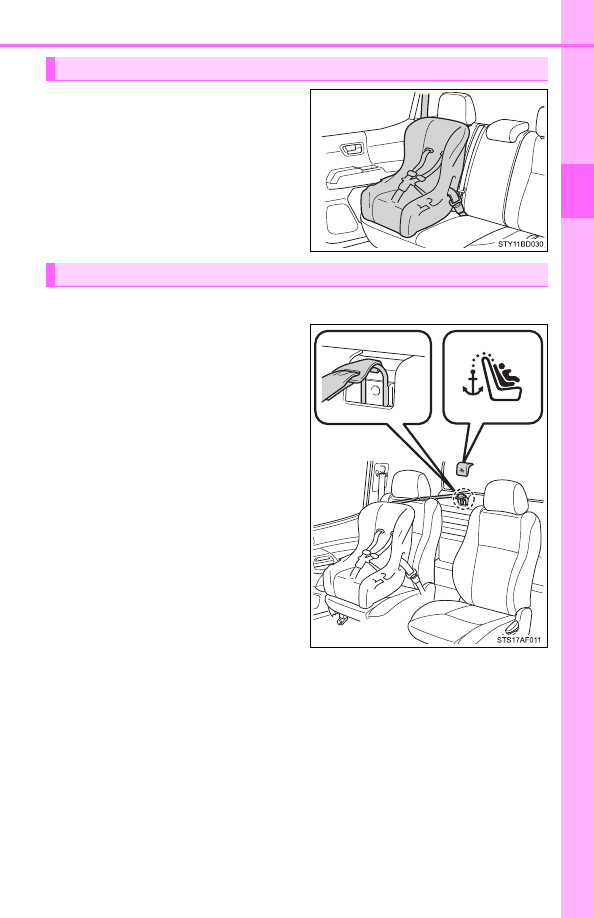

Anchor bracket (for top tether
strap)

Anchor bracket is provided for pas-
senger seat.

Using the seat belts (



P. 63)

Using the top tether strap (



P. 66, 68)

1-1. For safe use



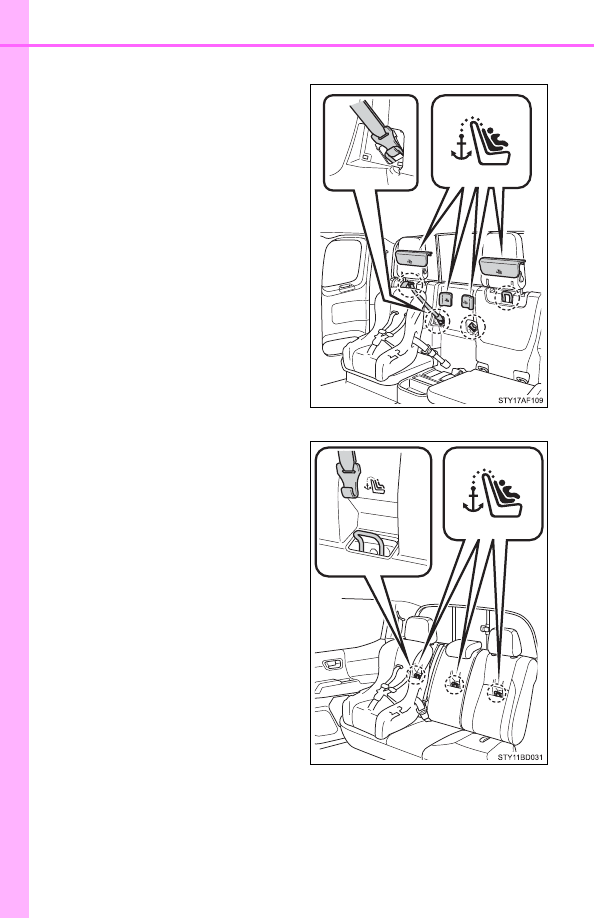

Access Cab models (vehicles with rear seats)

Anchor bracket (for top tether
strap)

Anchor bracket is provided for
each rear seat.



Double Cab models

Anchor bracket (for top tether
strap)

Anchor bracket is provided for
each rear seat.

1-1. For safe use

For safet

y and s

ecurity



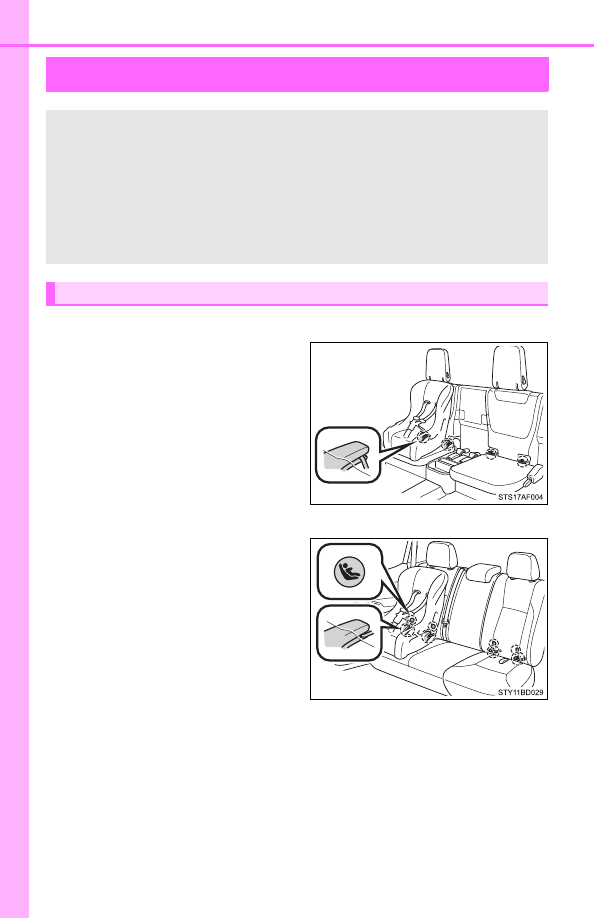

With flexible lower attachments

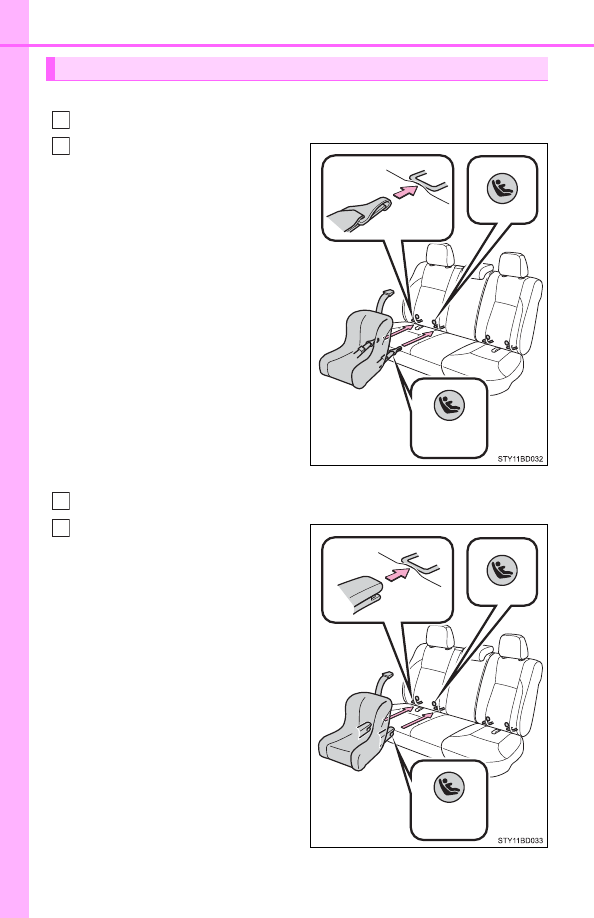

Latch  the  hooks  of  the  lower
attachments  onto  the  LATCH
anchors. If the child restraint has a
top  tether  strap,  the  top  tether
strap  should  be  latched  onto  the
top tether strap anchor.

For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a lower
connector system.



With rigid lower attachments

Latch the buckles onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor.

For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a lower
connector system.

When installing in the rear outboard seats (Access Cab models
[vehicles with rear seats])

Canada
only

1-1. For safe use



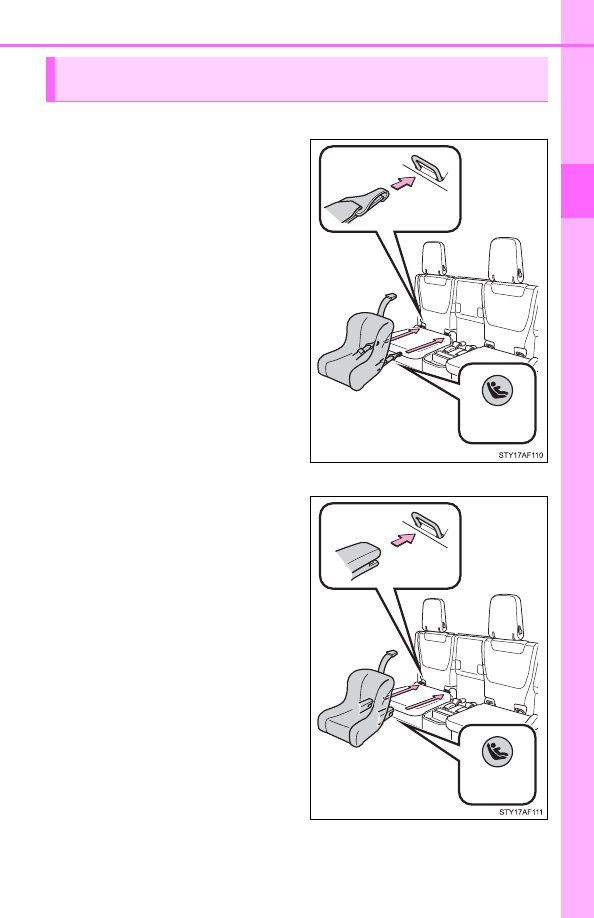

With flexible lower attachments
Widen the gap between the seat cushion and seatback slightly.
Latch  the  hooks  of  the  lower
attachments  onto  the  LATCH
anchors.  If  the  child  restraint
has  a  top  tether  strap,  the  top
tether  strap  should  be  latched
onto the top tether strap anchor.

For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.



With rigid lower attachments
Widen the gap between the seat cushion and seatback slightly.
Latch  the  buckles  onto  the
LATCH  anchors.  If  the  child
restraint has a top tether strap,
the  top  tether  strap  should  be
latched onto the top tether strap
anchor.

For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.

When installing in the rear outboard seats (Double Cab models)

Canada
only

Canada only

Canada
only

1-1. For safe use

For safet

y and s

ecurity

■

Rear-facing (vehicles without rear seats)



Infant seat/con-

vertible seat

Never install a rear-facing child restrain. Your vehicle is not
designed to carry and infant.

■

Rear-facing (vehicles with rear seats)



Infant seat/convertible

seat

Place the child restraint sys-
tem on the seat facing the
rear of the vehicle.

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

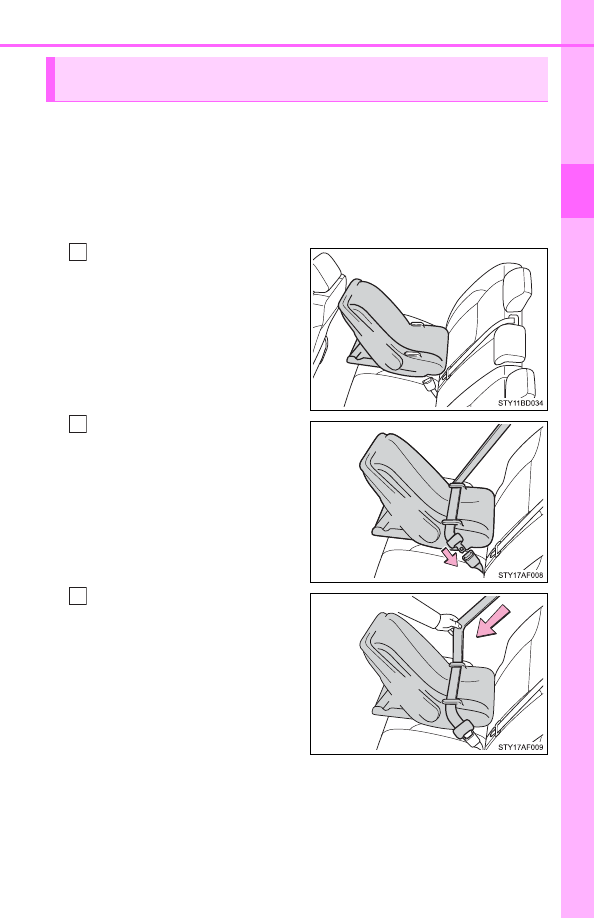

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

Installing child restraints using a seat belt (child restraint lock
function belt)

Content .. 1 2 3 4 ..
