566

8-2. Steps to take in an emergency

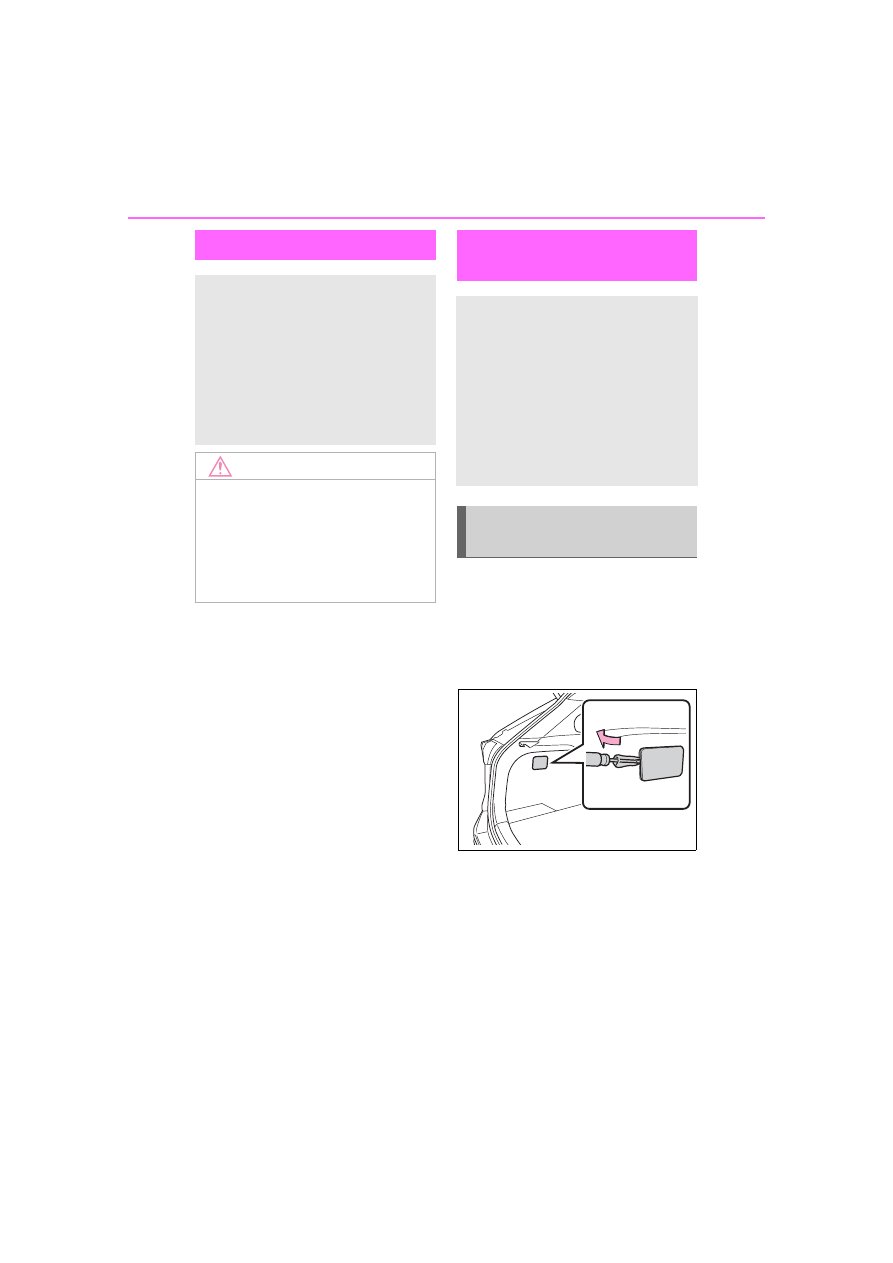

Remove the cover inside the
luggage compartment by
inserting a screwdriver.

When removing the cover, to pre-

vent damage, cover the tip of the

screwdriver with a rag.

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key and the
key number stamped on
your key number plate.
Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

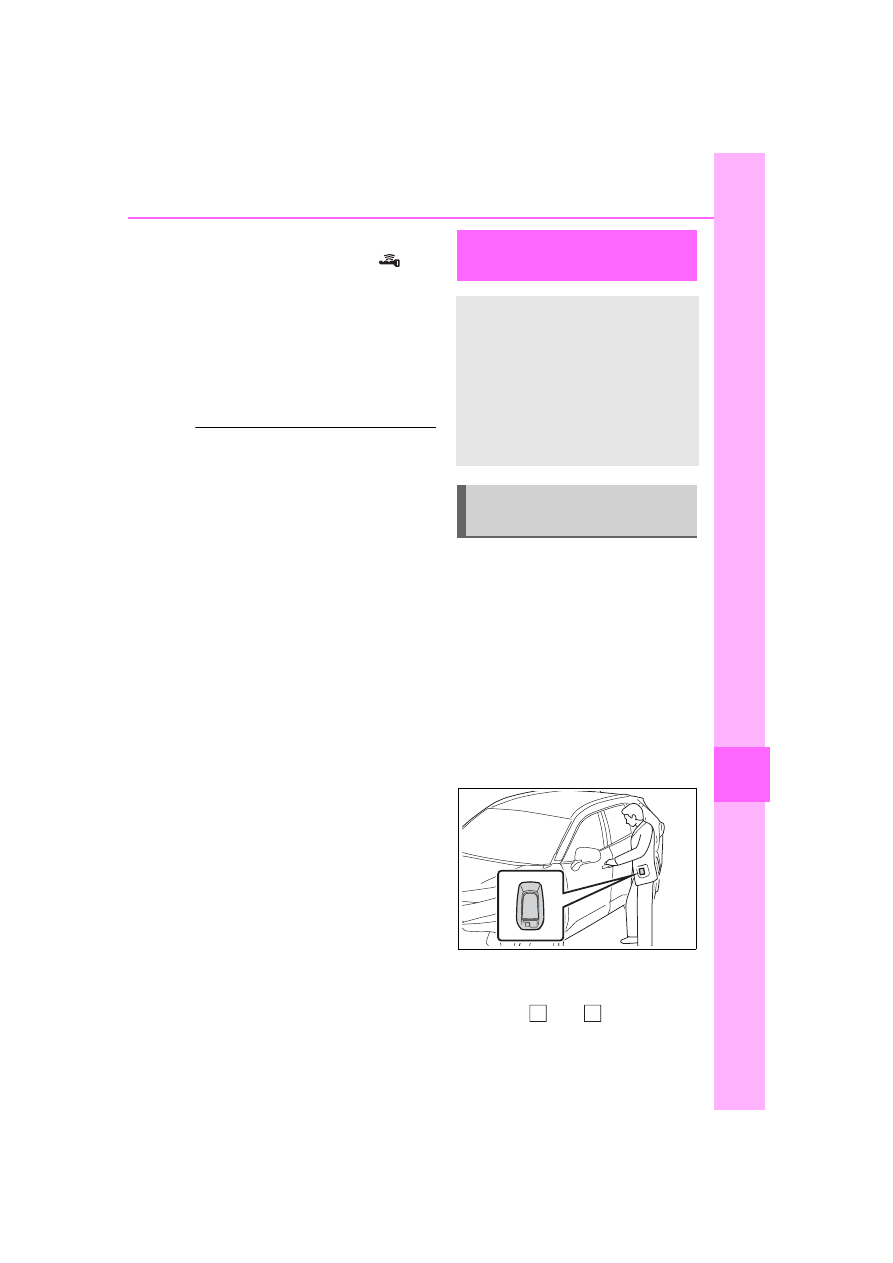

If the fuel filler door

cannot be opened

If the fuel filler door opener
switch cannot be operated,
contact your Toyota dealer
to service the vehicle. In
case where refueling is
urgently necessary, the fol-
lowing procedure can be
used to open the fuel filler
door.

Opening the fuel filler
door

567

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

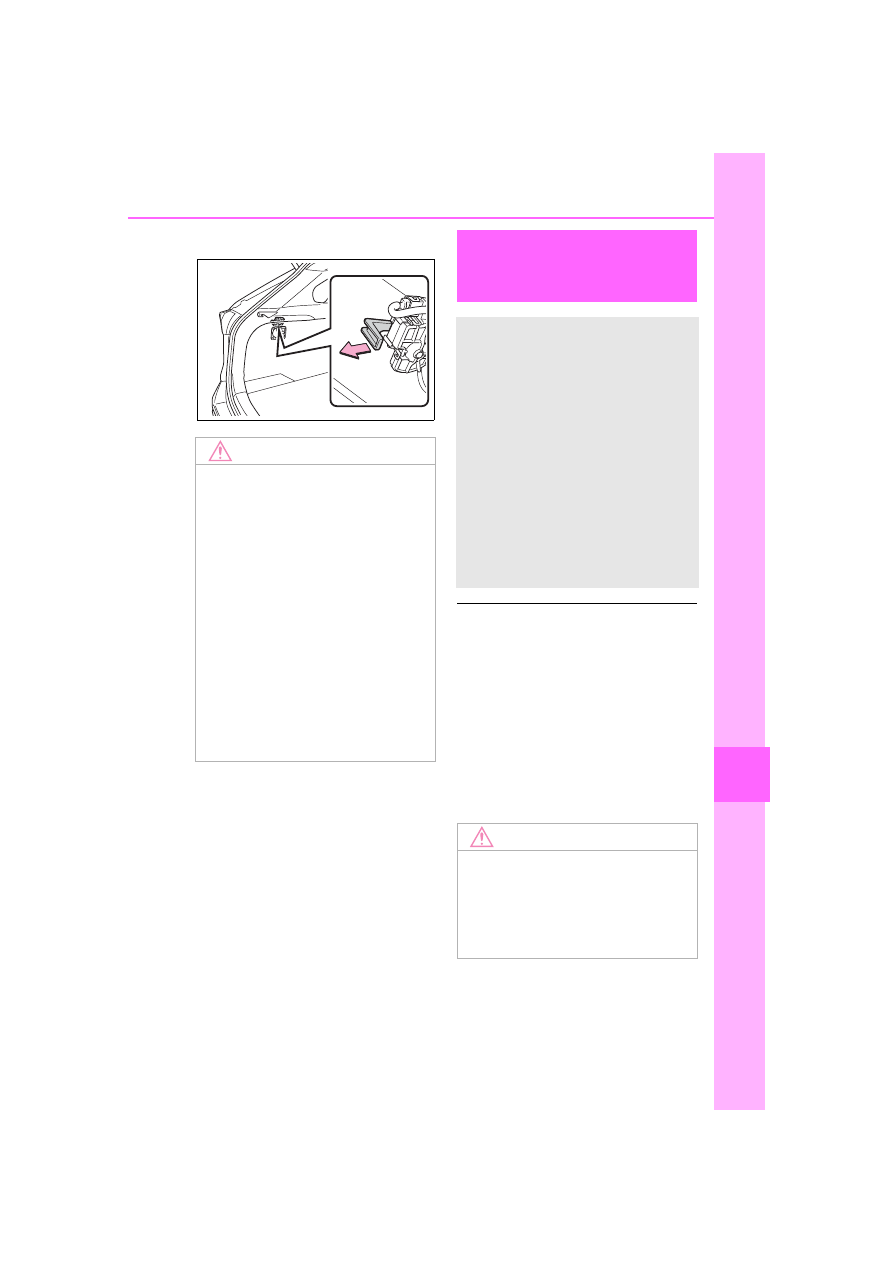

Pull the lever.

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:



P.606)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.243)

●

The electronic key function may

have stopped. (



P.243)

NOTICE

■

When opening the fuel filler

door manually

●

Do not open the fuel filler door

manually except in an emer-

gency. Fuel may overflow.

●

Using the lever to open the fuel

filler door may not allow for an

adequate reduction in fuel tank

pressure before refueling. To

prevent fuel from spilling out,

turn the cap slowly when remov-

ing it.

●

During refueling, fuel may spill

out from the filler opening due to

air being discharged from inside

the fuel tank. Therefore, fill the

fuel tank carefully and slowly.

If the electronic key

does not operate prop-

erly

If communication between
the electronic key and vehi-
cle is interrupted (



P.243)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the hybrid
system can be started by
following the procedure
below.

NOTICE

■

In case of a smart key system

malfunction, or other key

related problems

Take your vehicle with all the

electronic keys provided with your

vehicle to your Toyota dealer.

568

8-2. Steps to take in an emergency

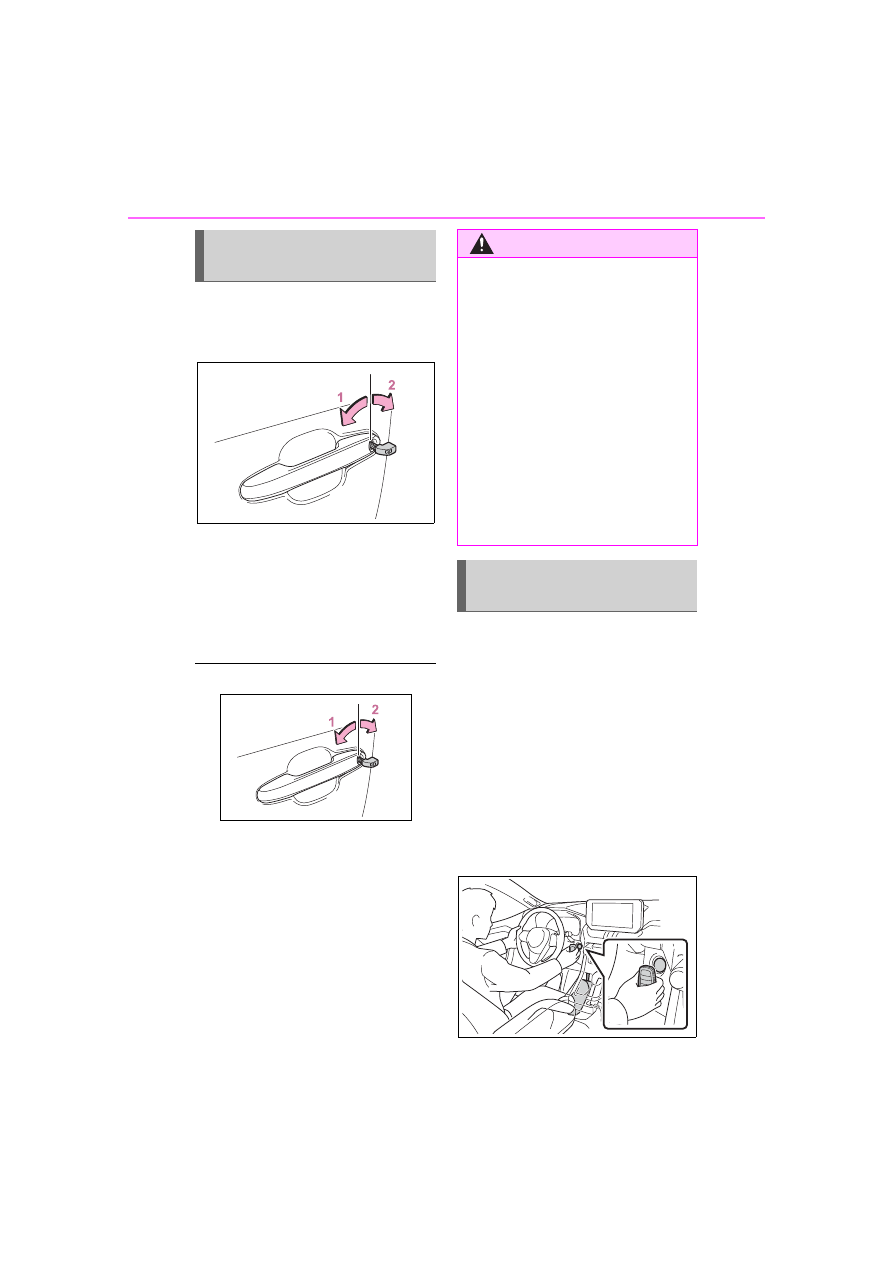

Use the mechanical key
(



P.220) in order to perform the

following operations.

Locks all the doors

Unlocks the door

Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.

■

Key linked functions

Closes the windows and the
moon roof

or panoramic moon

roof

(turn and hold)

Opens the windows and the
moon roof

or panoramic moon

roof

(turn and hold)

:If equipped

:These settings must be custom-

ized at your Toyota dealer.

Ensure that the shift lever is
in P and depress the brake
pedal.

Touch the area behind the
buttons on the electronic key
to the power switch.

When the electronic key is

detected, a buzzer sounds and the

power switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACC.

Locking and unlocking
the doors

WARNING

■

When using the mechanical

key and operating the power

windows or the moon roof (if

equipped) or panoramic

moon roof (if equipped)

Operate the power window or the

moon roof or panoramic moon

roof after checking to make sure

that there is no possibility of any

passenger having any of their

body parts caught in the window

or the moon roof or panoramic

moon roof. Also, do not allow chil-

dren to operate the mechanical

key. It is possible for children and

other passengers to get caught in

the power window or the moon

roof or panoramic moon roof.

Starting the hybrid sys-
tem

569

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Firmly depress the brake
pedal and check that

displayed on the multi-infor-
mation display.

Press the power switch
shortly and firmly.

In the event that the hybrid system

still cannot be started, contact your

Toyota dealer.

■

Stopping the hybrid system

Shift the shift lever to P, set the
parking brake and press the power
switch as you normally do when
stopping the hybrid system.

■

Replacing the key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.522)

■

Alarm (if equipped)

If a door is unlocked using the

mechanical key when the alarm sys-

tem is set, the alarm may be trig-

gered. (



P.71)

■

Changing power switch modes

Release the brake pedal and press
the power switch in step

above.

The hybrid system does not start
and modes will be changed each
time the switch is pressed.
(



P.307)

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

Vehicles with alarm system:
Confirm that the electronic
key is being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and the doors locked. (



P.72)

Open the hood (



P.486) and

fuse box cover.

Push claw

and

to com-

pletely release the lock, and then lift

If the 12-volt battery is

discharged

The following procedures
may be used to start the
hybrid system if the vehi-
cle’s 12-volt battery is dis-
charged.
You can also call your
Toyota dealer or a qualified
repair shop.

Restarting the hybrid sys-
tem

570

8-2. Steps to take in an emergency

up the cover.

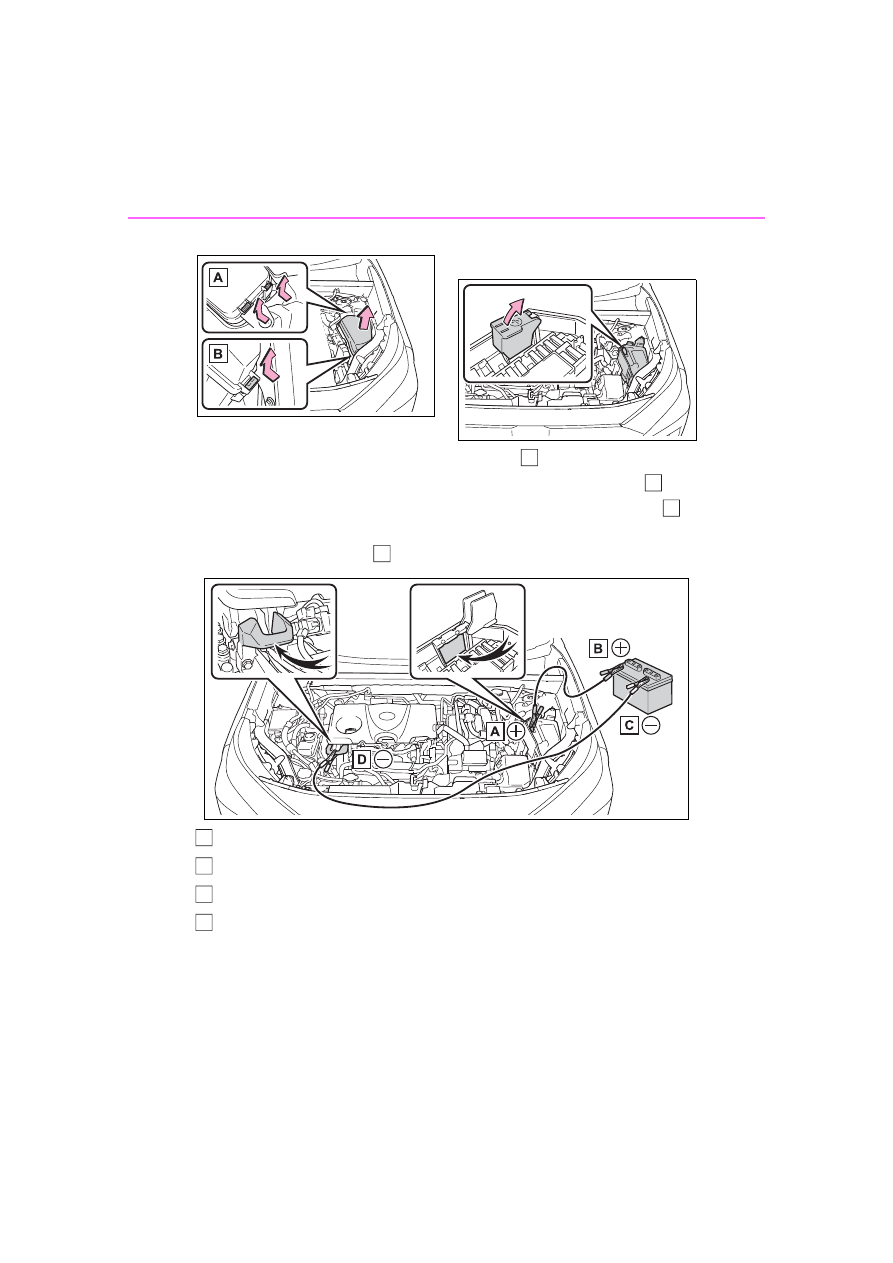

Open the exclusive jump
starting terminal cover.

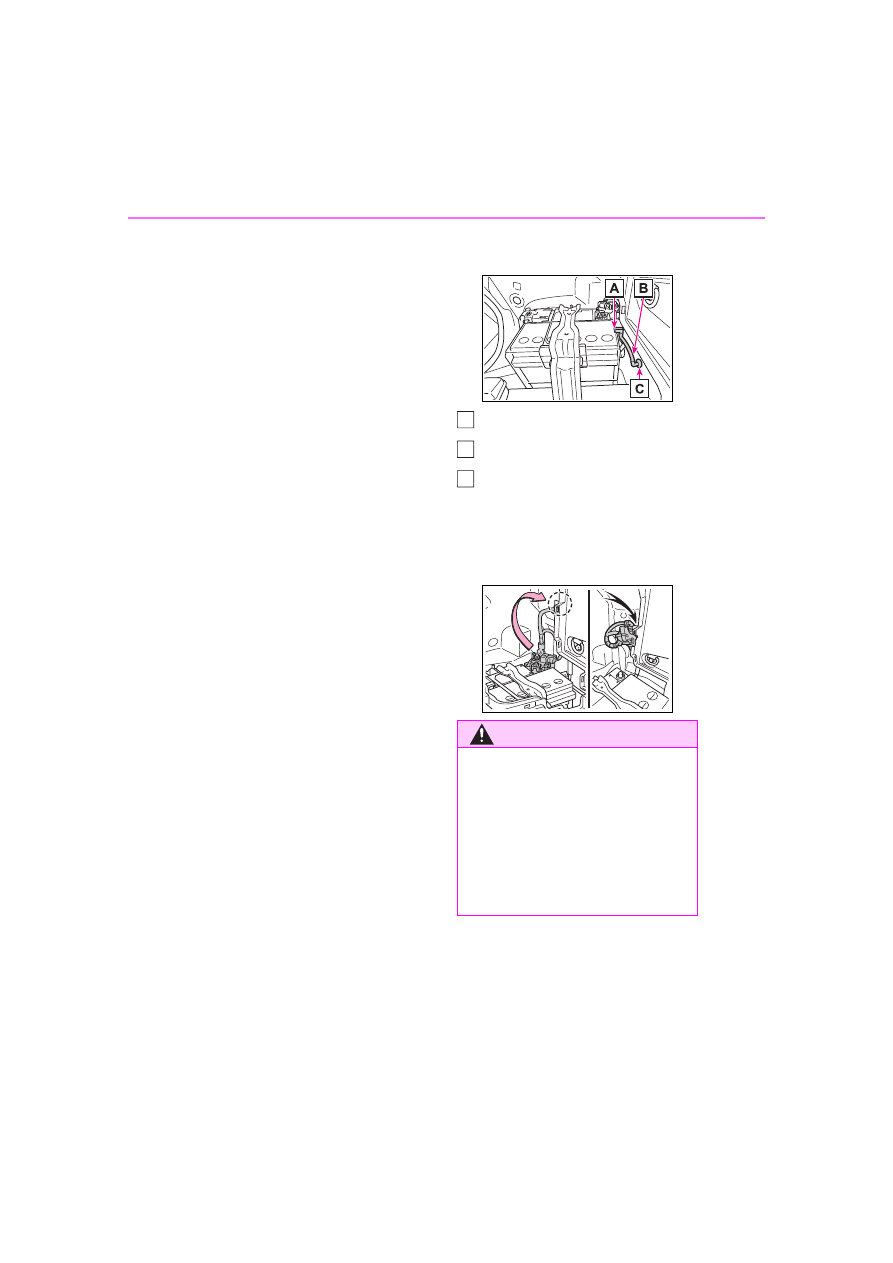

Connect a positive jumper cable clamp to

on your vehicle and

connect the clamp on the other end of the positive cable to

the second vehicle. Then, connect a negative cable clamp to

on the second vehicle and connect the clamp at the other end of
the negative cable to

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclu-
sive jump starting terminal and any moving parts as shown in the
illustration

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and

maintain at that level for
approximately 5 minutes to

571

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

recharge the 12-volt battery
of your vehicle.

Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.

Make sure the “READY” indi-
cator comes on. If the indica-
tor light does not come on,
contact your Toyota dealer.

Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were
connected.

Close the exclusive jump
starting terminal cover, and
reinstall the fuse box cover to
its original position.

Once the hybrid system starts,
have the vehicle inspected at
your Toyota dealer as soon as
possible.

■

Starting the hybrid system

when the 12-volt battery is dis-

charged

The hybrid system cannot be

started by push-starting.

■

To prevent 12-volt battery dis-

charge

●

Turn off the headlights and the

audio system while the hybrid sys-

tem is off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the 12-volt battery is

removed or discharged

●

Information stored in the ECU is

cleared. When the 12-volt battery

is depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.615)

■

When removing the 12-volt bat-

tery terminals

When the 12-volt battery terminals

are removed, the information stored

in the ECU is cleared. Before

removing the 12-volt battery termi-

nals, contact your Toyota dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt

battery will discharge gradually even

when the vehicle is not in use, due

to natural discharge and the drain-

ing effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the 12-volt battery may dis-

charge, and the hybrid system may

be unable to start. (The 12-volt bat-

tery recharges automatically while

the hybrid system is operating.)

■

When recharging or replacing

the 12-volt battery

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the 12-

volt battery is discharged. Use the

wireless remote control or the

mechanical key to lock or unlock

the doors.

●

The hybrid system may not start

on the first attempt after reinstall-

ing the 12-volt battery. In that

case, start the hybrid system in

the same manner as when the

electronic key does not operate

properly (



P.568). This is not a

malfunction, as the hybrid system

will start normally on the second

attempt.

●

The power switch mode is memo-

rized by the vehicle. When the 12-

volt battery is reconnected, the

system will return to the mode it

572

8-2. Steps to take in an emergency

was in before the 12-volt battery

was discharged. Before discon-

necting the 12-volt battery, turn

the power switch off.

If you are unsure what mode the

power switch was in before the

12-volt battery discharged, be

especially careful when recon-

necting the 12-volt battery.

■

When replacing the 12-volt bat-

tery

●

Use a 12-volt battery that con-

forms to European regulations.

●

Use a 12-volt battery that the case

size is same as the previous one

(LN2), 20 hours rate capacity

(20HR) is equivalent (55Ah) or

greater, and performance rating

(CCA) is equivalent (345A) or

greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the 12-volt battery may discharge

and hybrid system may not be

able to start.

●

Use a ventilation type calcium bat-

tery

●

Use a 12-volt battery with a han-

dle. If a 12-volt battery without a

handle is used, removal is more

difficult.

●

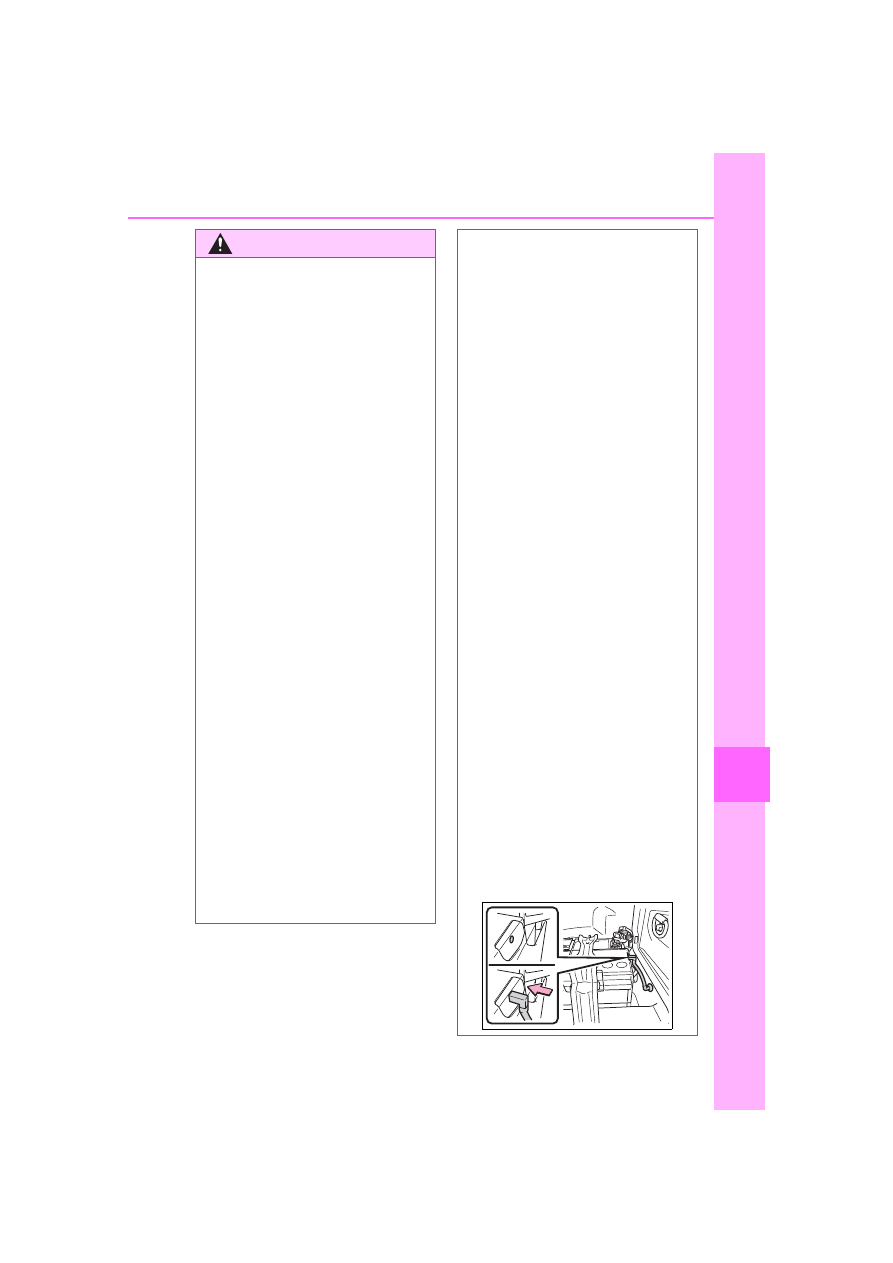

When removing the 12-volt bat-

tery:



P.496

●

After replacing, firmly attach the

following items to the exhaust hole

of the 12-volt battery.

• Use the exhaust hose that was

attached to the 12-volt battery

before replacing and confirm that

it is firmly connected to the hole

section of the vehicle.

• Use the exhaust hole plug

included with the new 12-volt bat-

tery or the one installed on the

battery prior to the replacement.

(Depending on the new 12-volt

battery installed, the exhaust hole

may be plugged.)

For details, consult your Toyota
dealer.

Exhaust hole

Exhaust hose

Hole section of the vehicle

●

The terminals can be connected

to the body side when the nega-

tive terminal of the 12-volt battery

is disconnected, as shown in the

illustration.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

573

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

WARNING

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any battery fluids (acid) to

come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt bat-

tery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention.

Place a wet sponge or cloth

over the affected area until

medical attention can be

received.

●

Always wash your hands after

handling the 12-volt battery sup-

port, terminals, and other bat-

tery-related parts.

●

Do not allow children near the

12-volt battery.

■

After recharging the 12-volt

battery

Have the 12-volt battery

inspected at your Toyota dealer

as soon as possible.

If the 12-volt battery is deteriorat-

ing, continued use may cause the

12-volt battery to emit a malodor-

ous gas, which may be detrimen-

tal to the health of passengers.

■

When replacing the 12-volt

battery

●

For information regarding 12-

volt battery replacement, con-

tact your Toyota dealer.

●

After replacing, securely attach

the exhaust hose and exhaust

hole plug to the exhaust hole of

the replaced 12-volt battery. If

not properly installed, gases

(hydrogen) may leak into the

vehicle interior, and there is the

possible danger of the gas ignit-

ing and exploding.

574

8-2. Steps to take in an emergency

■

If the high coolant tempera-
ture warning light comes
on, flashes or “Engine
Coolant Temp High Stop in
a Safe Place See Owner’s
Manual” is shown on the
multi-information display

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the hybrid system.

If you see steam:
Carefully lift the hood after

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan, etc.

■

To prevent damaging the

vehicle

The exclusive jump starting termi-

nal is to be used when charging

the 12-volt battery from another

vehicle in an emergency. It cannot

be used to jump start another

vehicle.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (



P.173,

178) shows the red zone or
a loss of hybrid system
power is experienced. (For
example, the vehicle speed
does not increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

575

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

the steam subsides.

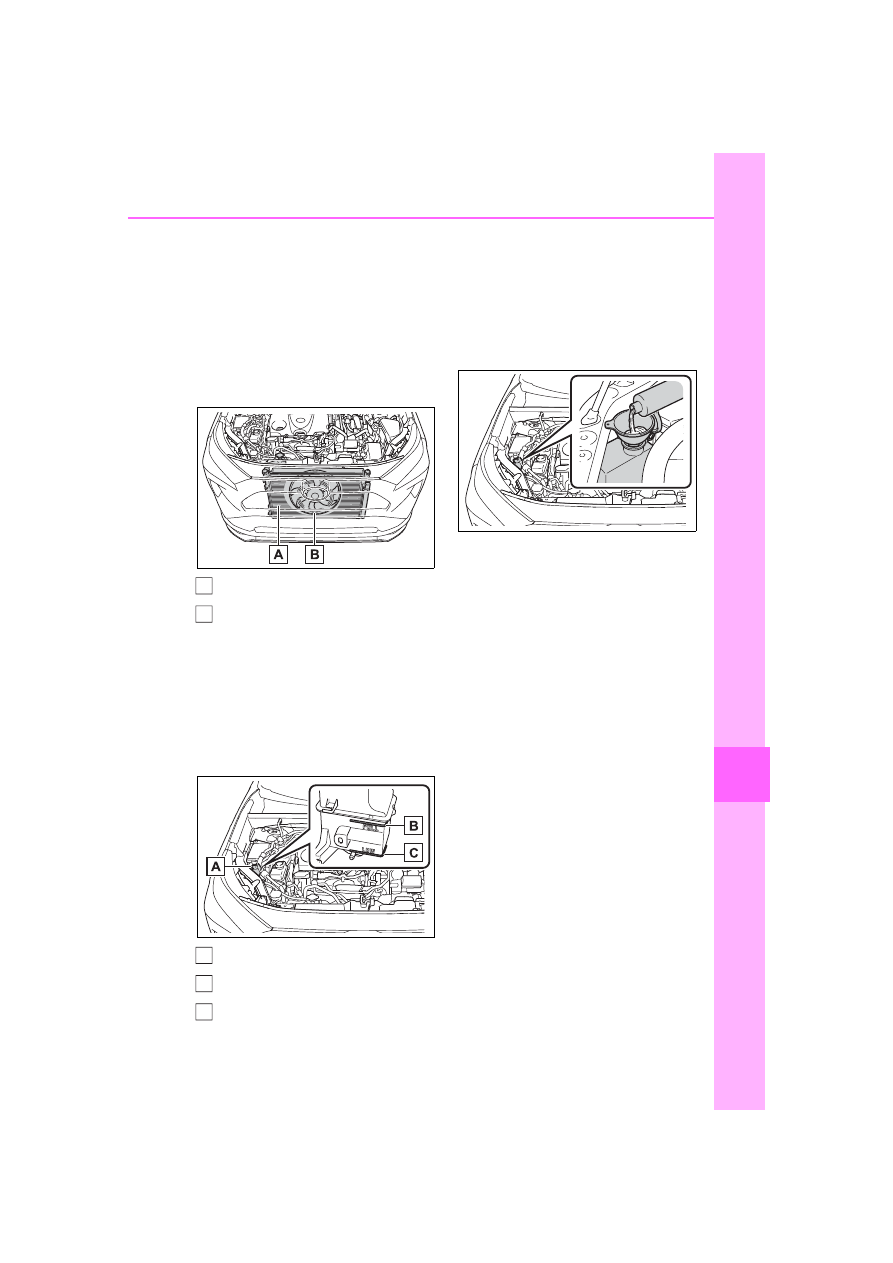

If you do not see steam:
Carefully lift the hood.

After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir

“FULL” line

“LOW” line

Add coolant if necessary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

Start the hybrid system and
turn the air conditioning sys-
tem on to check that the radi-
ator cooling fan operates and
to check for coolant leaks
from the radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, adjust the

temperature control switch to “LO”

and turn the “A/C” switch ON and

OFF. After this, turn the air condi-

tioning system on and off repeat-

edly. (The fan may not operate in

freezing temperatures.)

If the fan is not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

Check if “Engine Coolant
Temp High Stop in a Safe

576

8-2. Steps to take in an emergency

Place See Owner’s Manual”
is shown on the multi-infor-
mation display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

Have the vehicle inspected at the

nearest Toyota dealer.

■

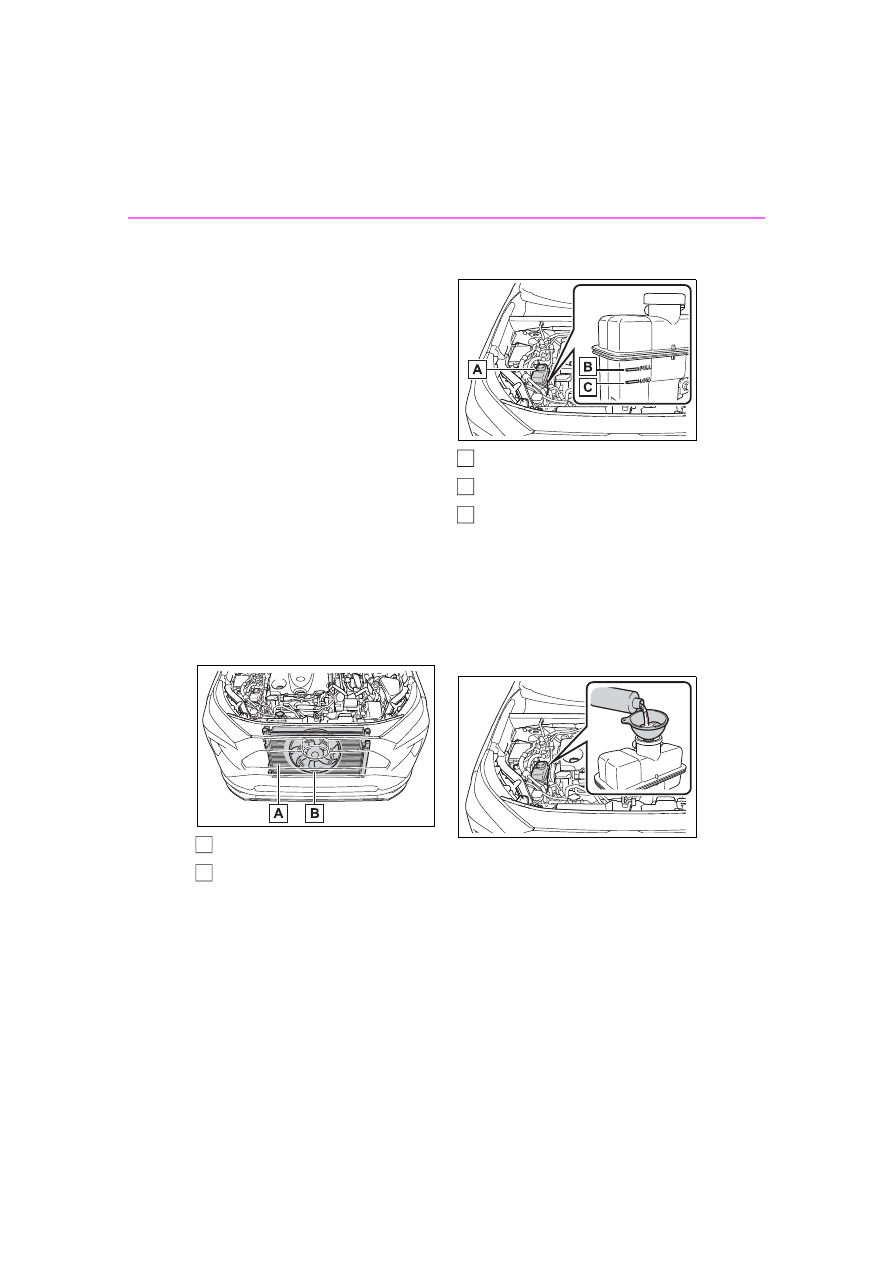

If “Hybrid System Over-
heated Output Power
Reduced” is shown on the
multi-information display

Stop the vehicle in a safe
place.

Stop the hybrid system and
carefully lift the hood.

After the hybrid system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

The coolant level is satisfac-
tory if it is between the

“FULL” and “LOW” lines on
the reservoir.

Reservoir

“FULL” line

“LOW” line

Add coolant if necessary.

Water can be used in an emer-

gency if power control unit coolant

is unavailable.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

After stopping the hybrid sys-
tem and waiting for 5 minutes
or more, start the hybrid sys-
tem again and check for the
multi-information display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

The hybrid system temperature has

577

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

dropped and the vehicle may be

driven normally.
However, if the message appears

again frequently, contact your

Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

After the hybrid system has

been turned off, check that the

“READY” indicator is off.

When the hybrid system is oper-

ating, the gasoline engine may

automatically start, or the cool-

ing fan may suddenly operate

even if the gasoline engine

stops. Do not touch or approach

rotating parts such as the fan,

which may lead to fingers or

clothing (especially a tie, a scarf

or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the hybrid system

and radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine/power

control unit coolant

Add coolant slowly after the

hybrid system has cooled down

sufficiently. Adding cool coolant to

a hot hybrid system too quickly

can cause damage to the hybrid

system.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.).

●

Do not use any coolant additive.

578

8-2. Steps to take in an emergency

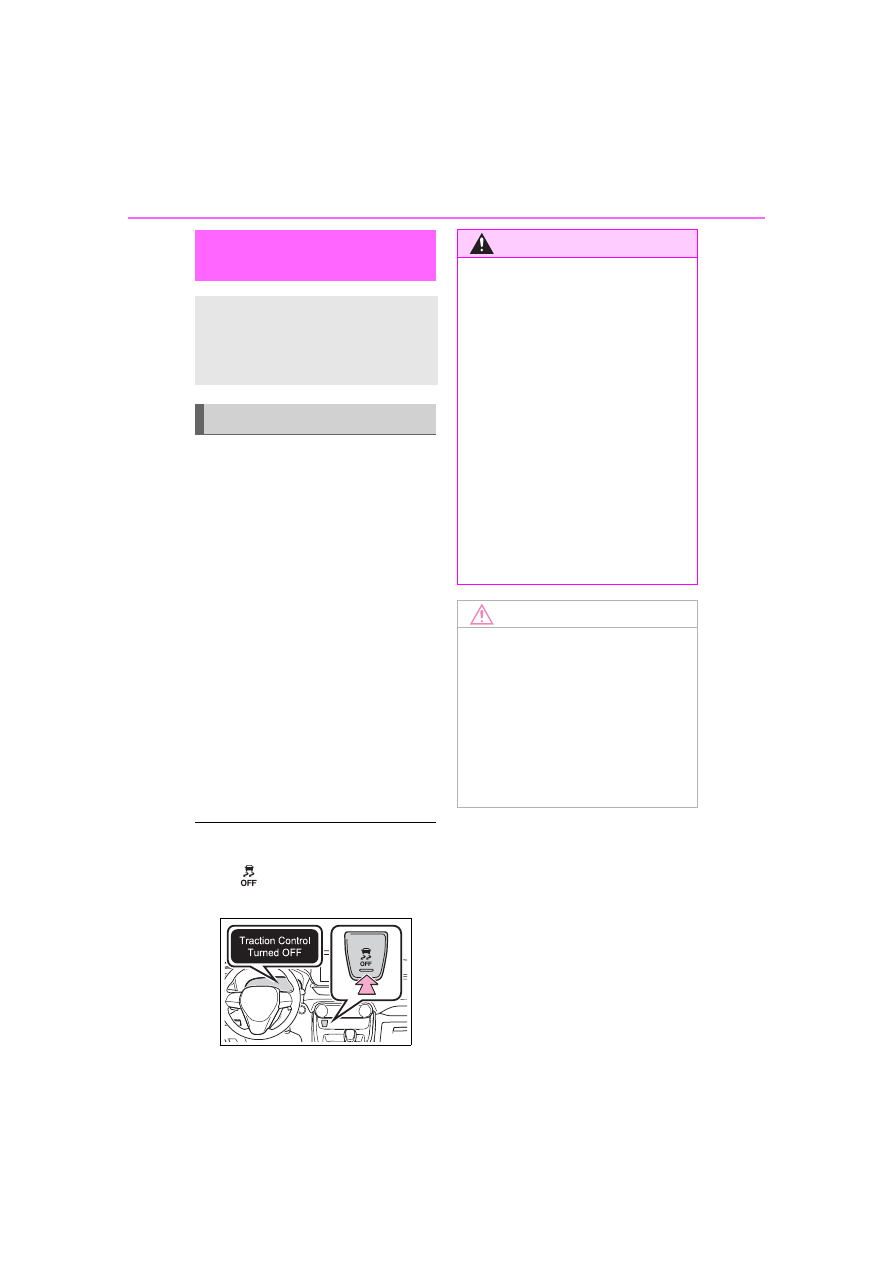

Stop the hybrid system. Set
the parking brake and shift
the shift lever to P.

Do not press the shift lever button

after shifting the shift lever to P.

Remove the mud, snow or
sand from around the stuck
tire.

Place wood, stones or some
other material to help provide
traction under the tires.

Restart the hybrid system

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

Press

to turn off TRAC.

(



P.408)

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.
This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious

injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the wheels and

depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

579

Vehicle

specifications

Vehicle specifications

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

580

Fuel information ..........

587

Tire information ...........

589

9-2. Customization

Customizable features

599

9-3. Initialization

Items to initialize .........

615

580

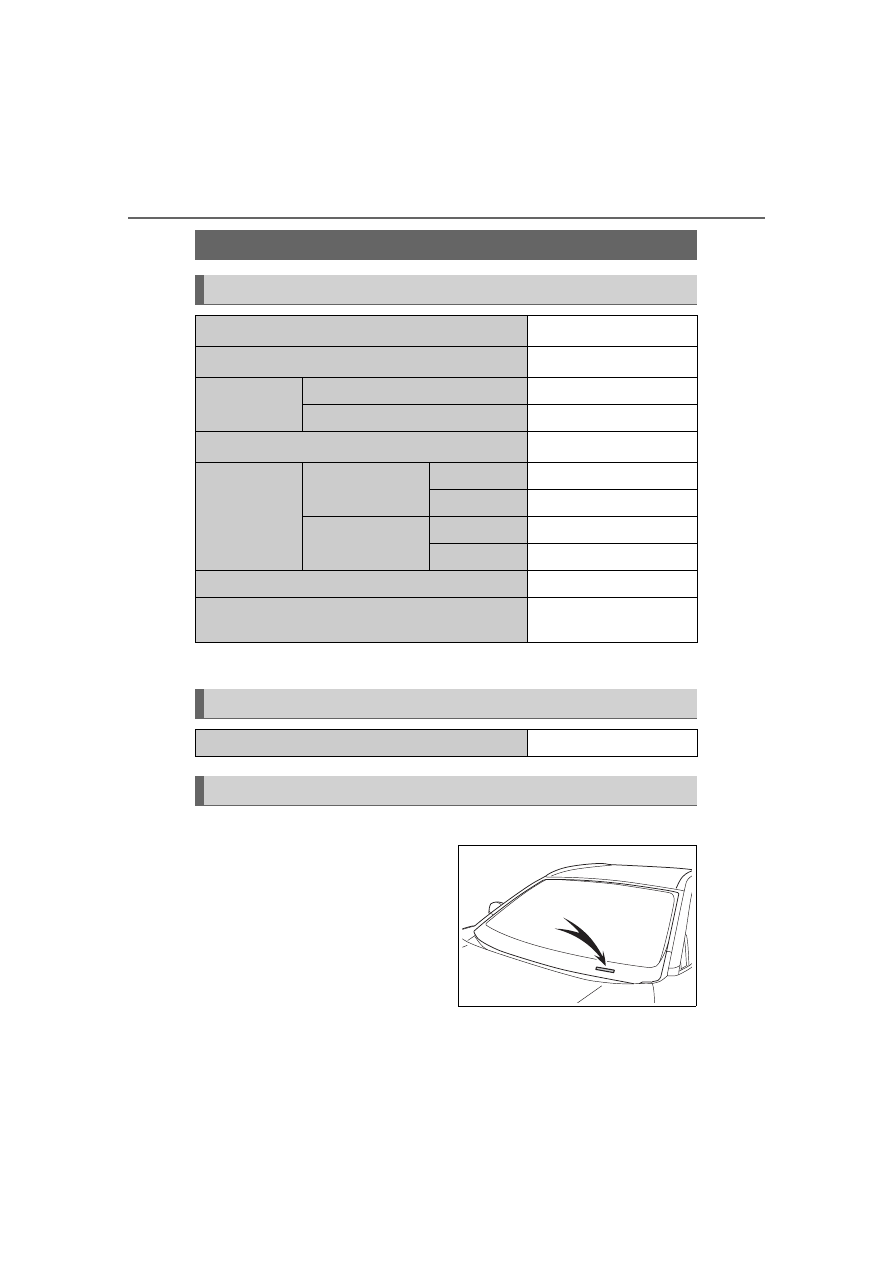

9-1. Specifications

9-1.Specifications

: Unladen vehicle

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

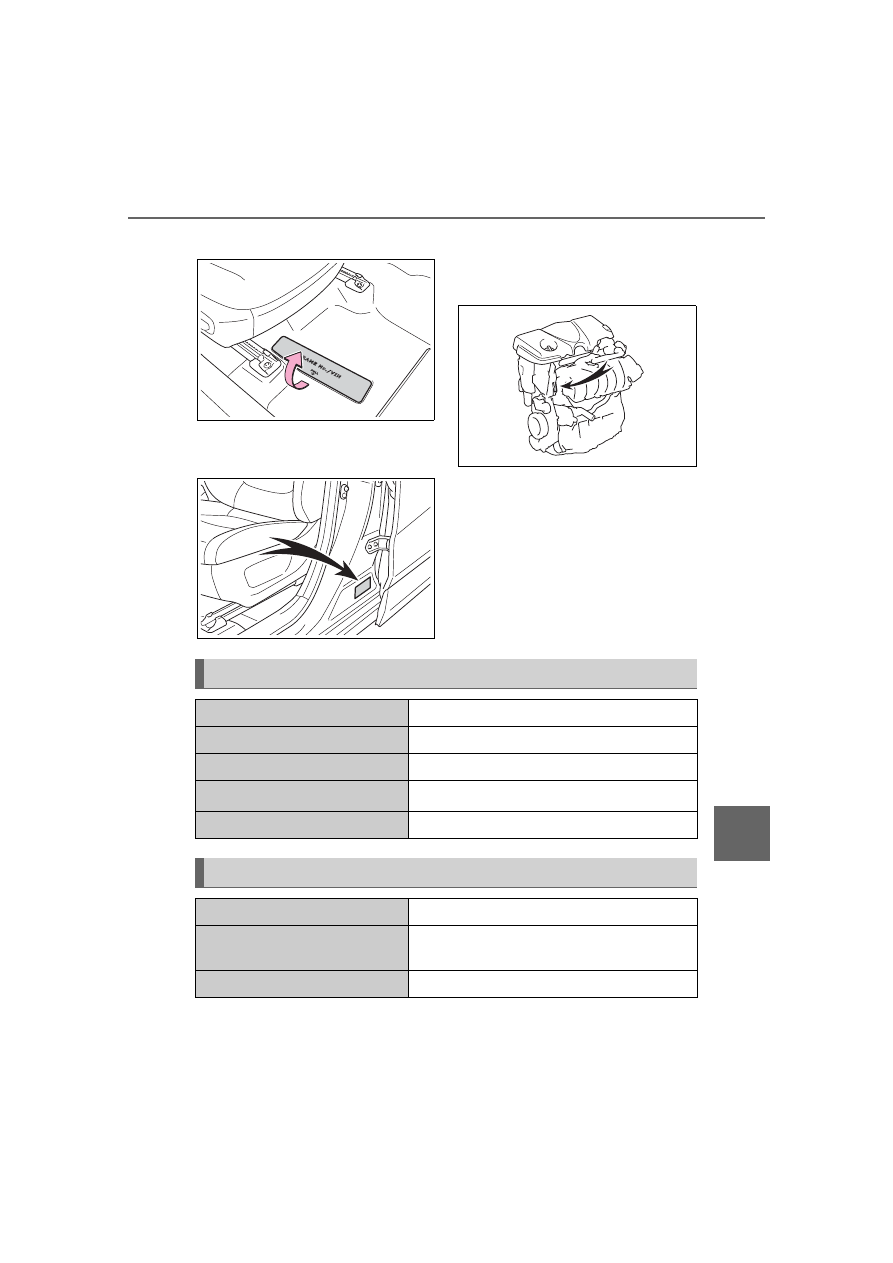

This number is on the top left of

the instrument panel.

This number is also stamped

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

180.9 in. (4595 mm)

Overall width

73.0 in. (1855 mm)

Overall height

With18-inch wheels

67.0 in. (1701 mm)

With19-inch wheels

67.2 in. (1706 mm)

Wheelbase

105.9 in. (2690 mm)

Tread

With18-inch
wheels

Front

63.0 in. (1600 mm)

Rear

63.7 in. (1619 mm)

With19-inch
wheels

Front

62.6 in. (1590 mm)

Rear

63.3 in. (1609 mm)

Vehicle capacity weight (Occupants + luggage)

970 lb. (440 kg)

Trailer Weight Rating (Trailer weight + cargo
weight)

2500 lb. (1135 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

581

9-1. Specifications

Vehicle

specifications

under the right-hand front seat.

This number is also on the Certi-
fication Regulation Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

2.5 L 4-cylinder (A25A-FXS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



4.07 in. (87.50



103.48 mm)

Displacement

151.8 cu. in. (2487 cm

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity (Reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

Content .. 33 34 35 36 ..
