Toyota RAV4 Hybrid (2023 year). Manual in english

112

2-1. Instrument cluster



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.293)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.294)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.298)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped)
(



P.307)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.312)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)
(



P.279)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



PBD (Power Back Door)

113

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

(if equipped) (



P.145)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with Hands Free Power

Back Door



“TPWS” (Tire Pressure Warn-
ing System) (if equipped)
(



P.412)

• “Set Pressure”
Select to initialize the tire pressure
warning system.
• “Change Wheel”
Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.138)

Select to enable/disable the rear
seat reminder function.



“Scheduled Maintenance”
(



P.391)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-

nance) after all maintenance is per-
formed.

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type”

Select to change the speedometer
display.



(EV indicator) (



P.71)

Select to enable/disable the EV
indicator.



(Driving information dis-

play settings)

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.107).

• “Fuel Economy”
Select to change the display on
Fuel Economy (



P.107).



(Audio settings)

Select to enable/disable

screen.



(Vehicle information dis-

play settings)

• “Display Contents”
Select to set up the following items.
“Energy monitor”:
Select to enable/disable the Energy
monitor (



P.125)

114

2-1. Instrument cluster

“AWD”:
Select to enable/disable the AWD
system display (



P.110).

• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.109).

• “Drive Info Items”
Select to set the items on the upper
and lower side of the drive informa-
tion screen from three items, aver-
age speed, distance and total time.



“Trip Summary”

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation
• Volume operation
• Voice control (if equipped)



“MID OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.466)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Convenience Services
(Suggestion function)

115

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion

function) can be turned on/off. (Cus-

tomizable features:



P.519)

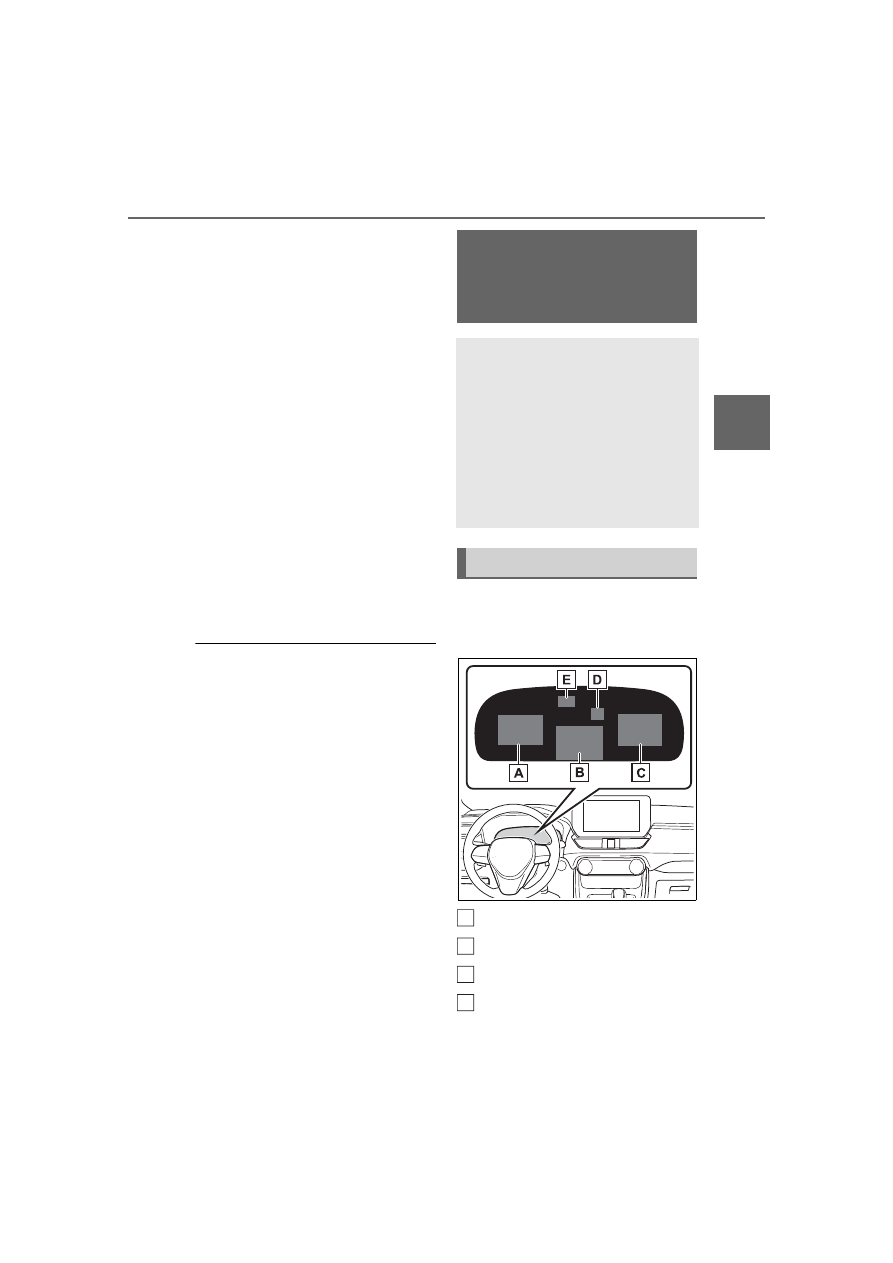

Following information is dis-
played on the multi-information
display.

Content display area (left)

Content display area (center)

Content display area (right)

Driving support system infor-
mation display area

Multi-information dis-

play (with 12.3-inch

multi-information dis-

play)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

116

2-1. Instrument cluster

When driving information support
system is displayed on the content
display area, the system operating
state will not be displayed in this
area.

RSA (Road Sign Assist) dis-
play area (if equipped)
(



P.279)

■

Content display area (cen-
ter)



Driving support system infor-
mation display



Settings display



Warning message display

■

Content display area (cen-
ter)



Fuel Economy (



P.117)



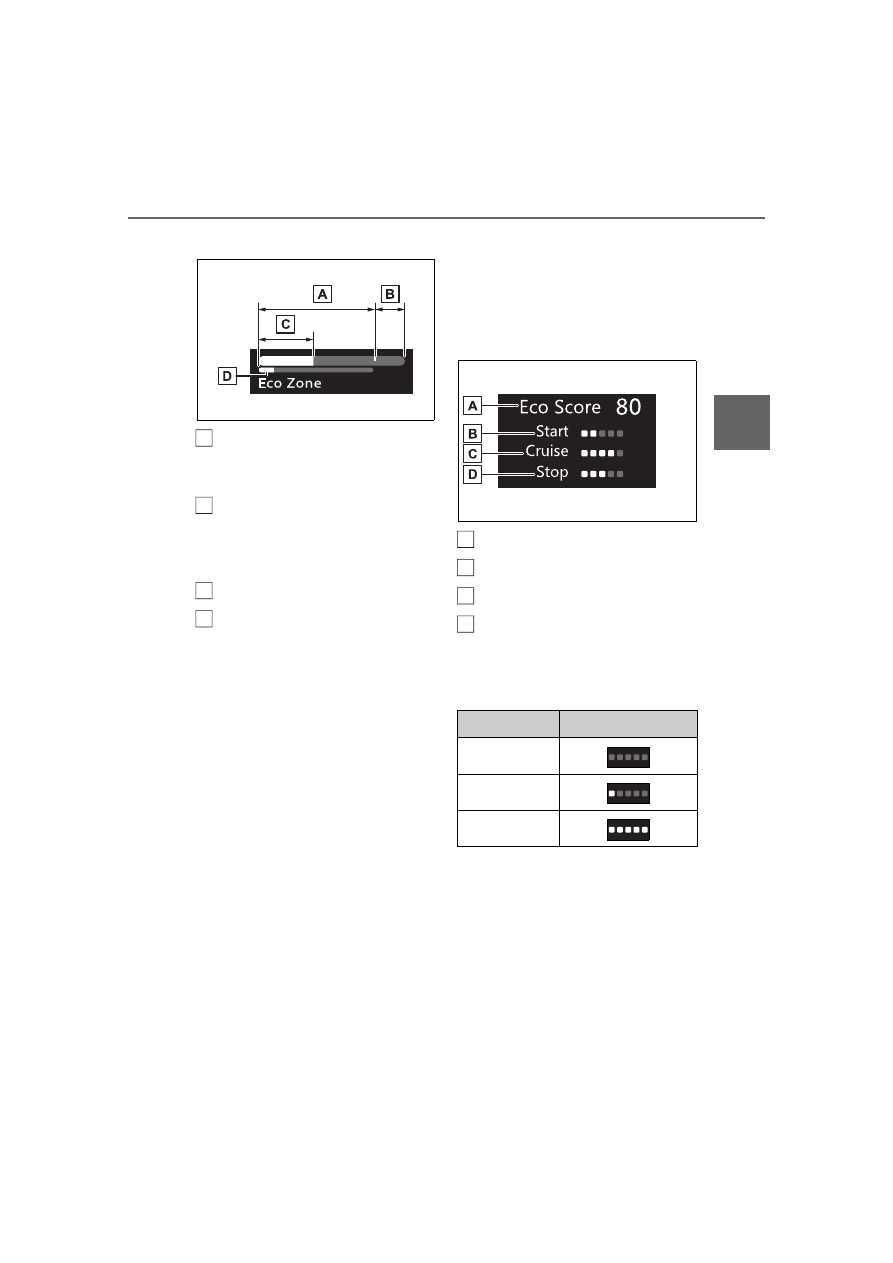

ECO Accelerator Guid-
ance/“Eco Score” (



P.118)



Driving time since starting/EV
Driving Ratio (



P.119)



Driving support system infor-
mation display



Navigation system-linked
information display (if
equipped) (



P.120)



Audio system-linked display
(



P.120)



Drive information (



P.120)



Energy monitor (



P.125)



AWD operation status display
(



P.121)

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(



P.324)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

: Change the screen

and move the cursor

: Change displayed

content and scroll up/down

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.103

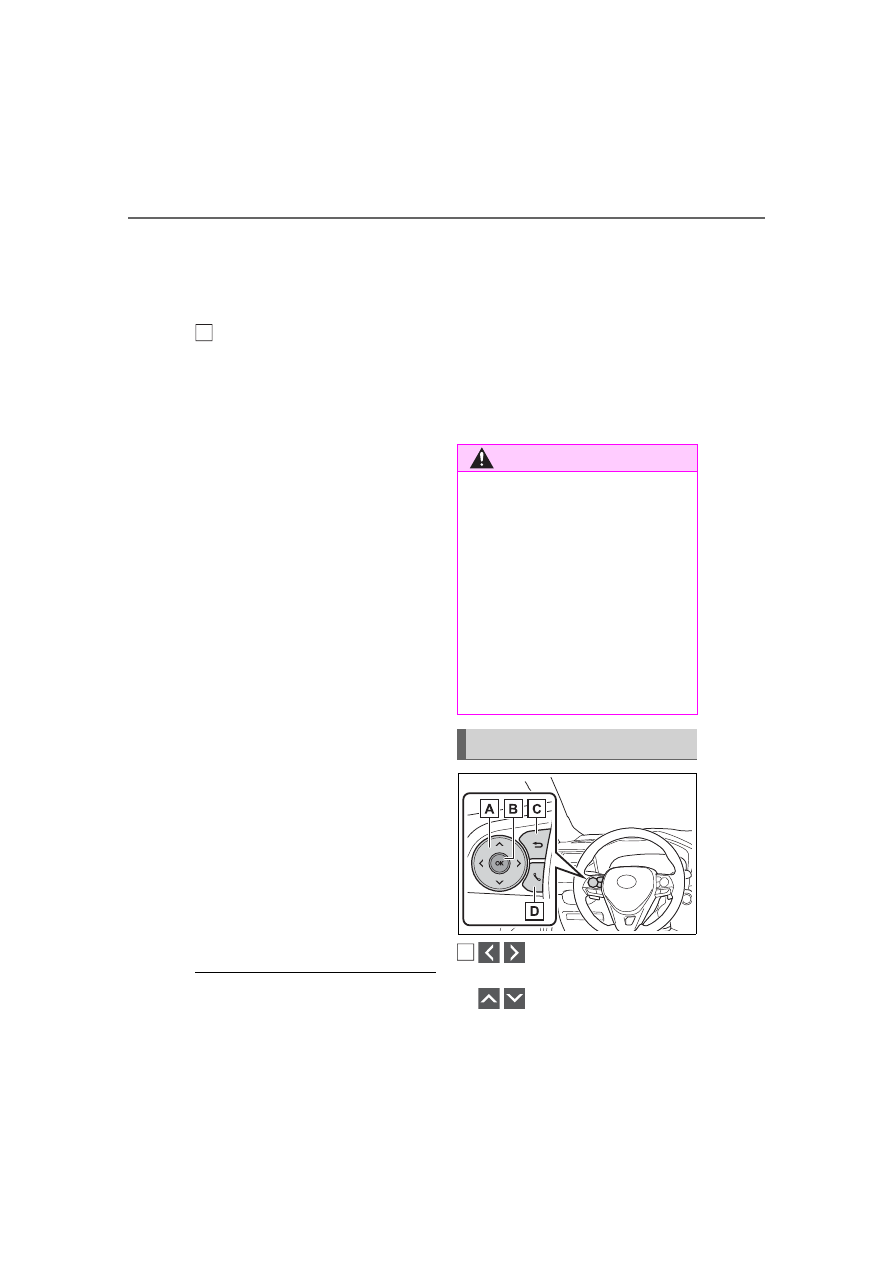

Meter control switches

117

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

the screen

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items/Dis-
play the cursor

Move the main meter and
return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

The multi-information display is
operated using the meter control
switches.

■

Changing the meter display
type setting

The meter display type setting
can be changed on

(



P.121)

■

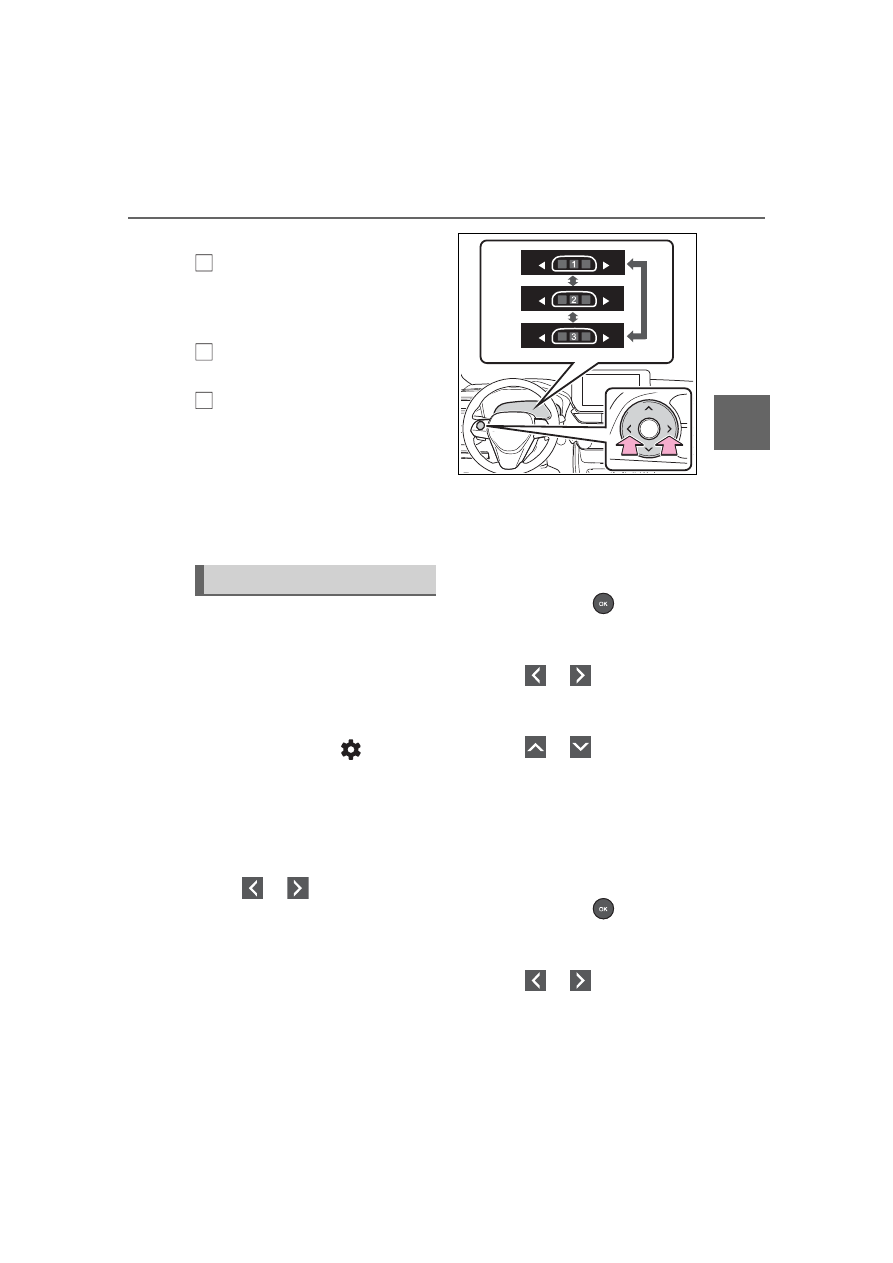

Changing the screen

Select items from the combina-
tion of 3 screens to display on
each 3 content display areas.
Press

of the meter

control switches to scroll the
screen.

■

Changing the display con-
tents

Switches items displayed on
each contents display area
(left/center/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Press

to select the

items.

■

Items displayed in the con-
tent display area

Select to enable/disable items
on the content display area
(left/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Changing the display

118

2-1. Instrument cluster

Contents display area (left):
Press

to display contents

list.
Contents display area (right):
Press

to display contents

list.

Press

to select the

items.

Press

to select

enable/disable items.

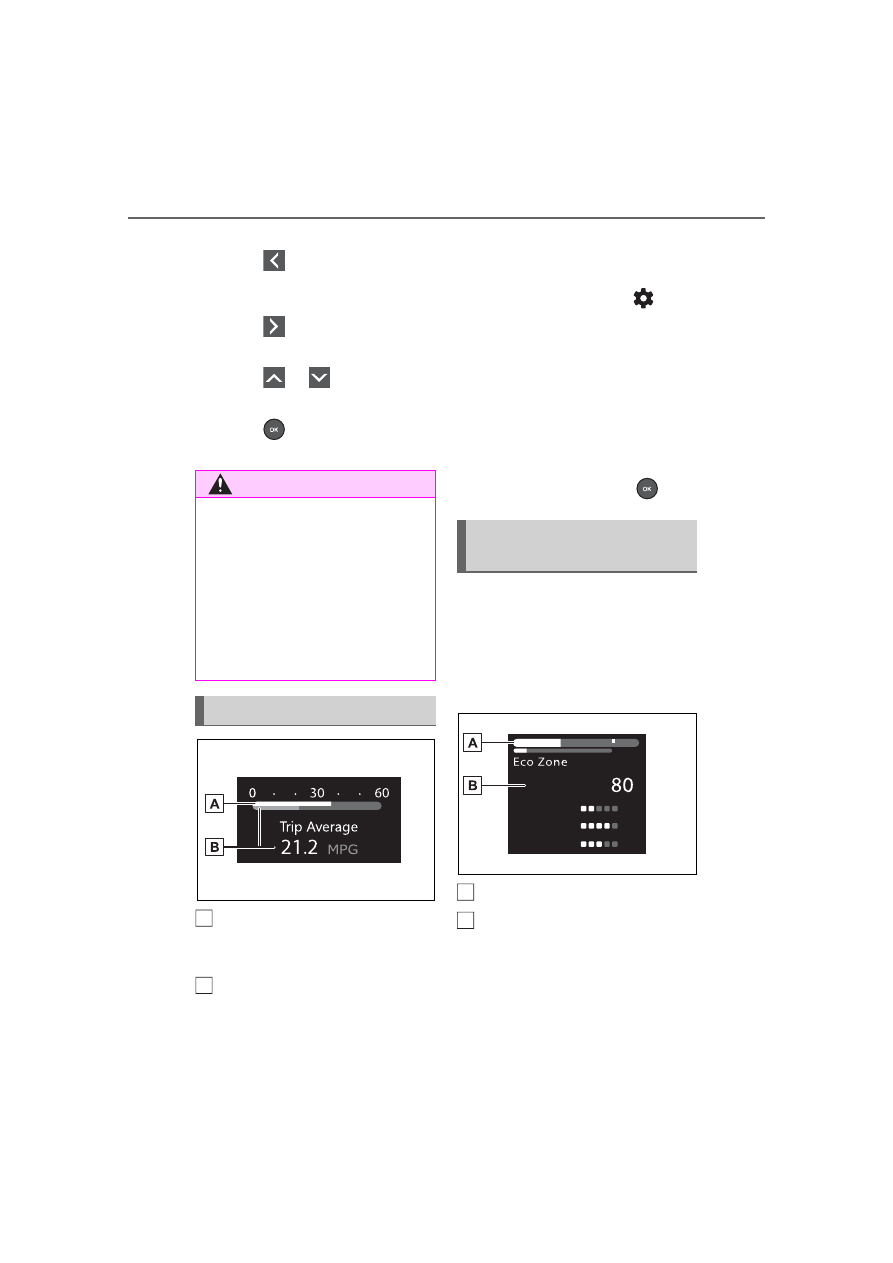

Current fuel economy

Displays the driving range with
remaining fuel.

Average fuel economy

Displays the average fuel economy
since the function was reset or the

average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed.

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy after

starting is reset each time the
hybrid system stops.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

ECO Accelerator Guidance

“Eco Score”

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Fuel Economy

ECO Accelerator Guid-
ance/“Eco Score”

守宦宲季宖宦宲宵宨

宖宷室宵宷

宖宷宲害

宆宵宸宬家宨

119

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.

■

“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without

sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

“Start”

“Cruise”

“Stop”

3 situations are displayed with each
icon while driving.

How to read the bar display:

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately
19mph (30km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.

Score

Bar display

Unrated

Low

High

120

2-1. Instrument cluster

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was
started.

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

: It is reset each time the hybrid

system stops.

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.268)



RSA (Road Sign Assist)

(



P.279)



Dynamic radar cruise control
with full-speed range
(



P.282)

: If equipped

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Street name



Compass

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since hybrid system start

• “Distance”: Displays the dis-

EV Ratio/EV Driving Ratio

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Driving information dis-
play

121

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

tance driven since hybrid sys-
tem start

• “Total Time”: Displays

elapsed time since hybrid sys-
tem start

: These items are reset each time

the hybrid system stops.

■

Trip information

2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since the display was reset

• “Distance”: Displays the dis-

tance driven since the display
was reset

• “Total Time”: Displays the

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold



P.125

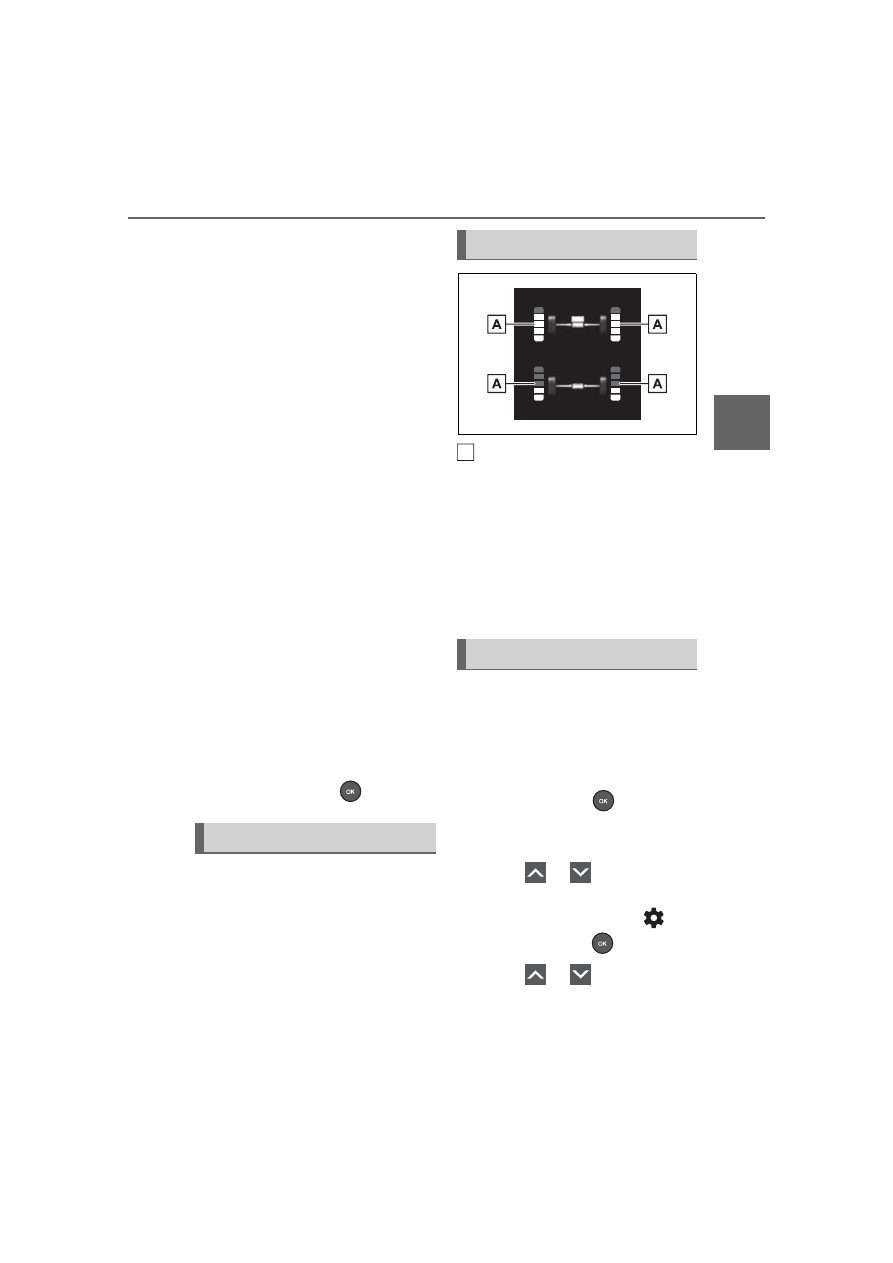

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.
The illustration used is intended
as an example, and may differ
from the image that is actually
displayed on the multi-informa-
tion display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Press and hold

of the

meter control switches to dis-
play the cursor.

Press

with the cur-

sor on the content display
area (center) to select

and then press

Press

of the meter

control switches and move

Energy monitor

AWD system display

Settings display

122

2-1. Instrument cluster

the cursor to select the item
for changing settings.

If the function is turned on and off

or the volume, etc. is changed on

the setting screen, the setting is
changed each time is pressed

For functions that allow operation

contents, display contents, etc., of

function to be selected, the setting

screen is displayed by pressing and
holding

. When the setting

screen is displayed, select the set-

ting or desired value (time, etc.)
with

After changing the settings,
press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (



P.268)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.293)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.



“Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.



“Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. (



P.294)

■

PCS (Pre-Collision Sys-

tem) (



P.257)

Select to set up the following
items.



PCS on/off
Select to enable/disable the
pre-collision system.



“Sensitivity”
Select to change the pre-colli-
sion warning timing.

■

(Intuitive parking

assist) (if equipped)
(



P.298)

Select to set up the following
items.



Intuitive parking assist on/off
Select to enable/disable the
Intuitive parking assist.



“Volume”
Select to set the volume of the
buzzer which sounds when
the Intuitive parking assist is
operated.

123

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

RCTA (Rear Cross Traffic

Alert) (if equipped)
(



P.307)

Select to set up the following
items.



RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.



“Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA is operated.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.312)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign Assist)

(if equipped)

Select to set up the following
items.



Road Sign Assist on/off
Select to enable/disable the
RSA system.



“Notification Method”
Select to change each notifi-
cation method used to notify
the driver when the system
recognizes excess speed and
Do Not Enter sign.



“Notification Level”
Select to change each notifi-
cation level used to notify the
driver when the system recog-
nizes a speed limit sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (



P.154)

Select to set up the following items.
• System settings

Select to enable/disable the
power back door system.

• “Hands Free”

Select to enable/disable the
Hands Free Power Back Door.

• “Opening Adjustment”

Select the open position when
power back door is fully open.

• “Volume”

Select to set the volume of the
buzzer which sounds when the
power back door system oper-
ates.

: Vehicles with Hands Free Power

Back Door



“Scheduled Maintenance”
Select to reset the scheduled
maintenance information
(message indicating mainte-
nance is required and dis-
tance until the next
maintenance) after all mainte-
nance is performed.



“TPWS” (Tire Pressure Warn-
ing System) (



P.412)

• “Set Pressure”

Select to initialize the tire pres-
sure warning system.

• “Change Wheel”

Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must

124

2-1. Instrument cluster

be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,
contact your Toyota dealer.



Rear Seat Reminder
(



P.138)

Select to enable/disable the
rear seat reminder function.

■

Settings



“Language”
Select to change the lan-
guage on the multi-informa-
tion display.



“Units”
Select to change the unit of
measure for fuel consump-
tion.



Meter Type
Select to change the meter
type setting.



Meter Style
Select to change the meter
style.



Dial Type
Select to change dial type.
(



P.99)

Depending on the selected dial
type, this item will not be displayed.



(EV indicator)

Select to enable/disable the EV
indicator. (



P.71)



Fuel Economy
Select to change the display
on Fuel Economy. (



P.117)



“Hybrid System”
Select to enable/disable the
ECO Accelerator Guidance

(



P.118)



Drive Info
Select to change displayed
items on drive information dis-
play. (



P.120)



Pop-Up Display
Select to enable/disable the
pop-up displays, which may
appear in some situations.



Default Settings
Select to reset the meter dis-
play settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

125

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.466)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Convenience Services (Suggestion

function) can be turned on/off. (Cus-

tomizable features:



P.517

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Convenience Services
(Suggestion function)

126

2-1. Instrument cluster

Multimedia Display

Multi-information display

Meter control switches

The energy monitor can be used
to check the vehicle drive status,
hybrid system operation status
and energy regeneration status.

■

Display procedure



Multi-information display

Use the meter control switches,
display the energy monitor on
the multi-information display.

For detail regarding the multi-infor-
mation display, refer to P.109, 120.



Multimedia Display

Press

from the main menu,

then press “Energy flow”.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows
Blue: When the hybrid battery (trac-
tion battery) is regenerated or
charged.
Orange: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.



Multi-information display (7-
inch display)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tires

Rear tires

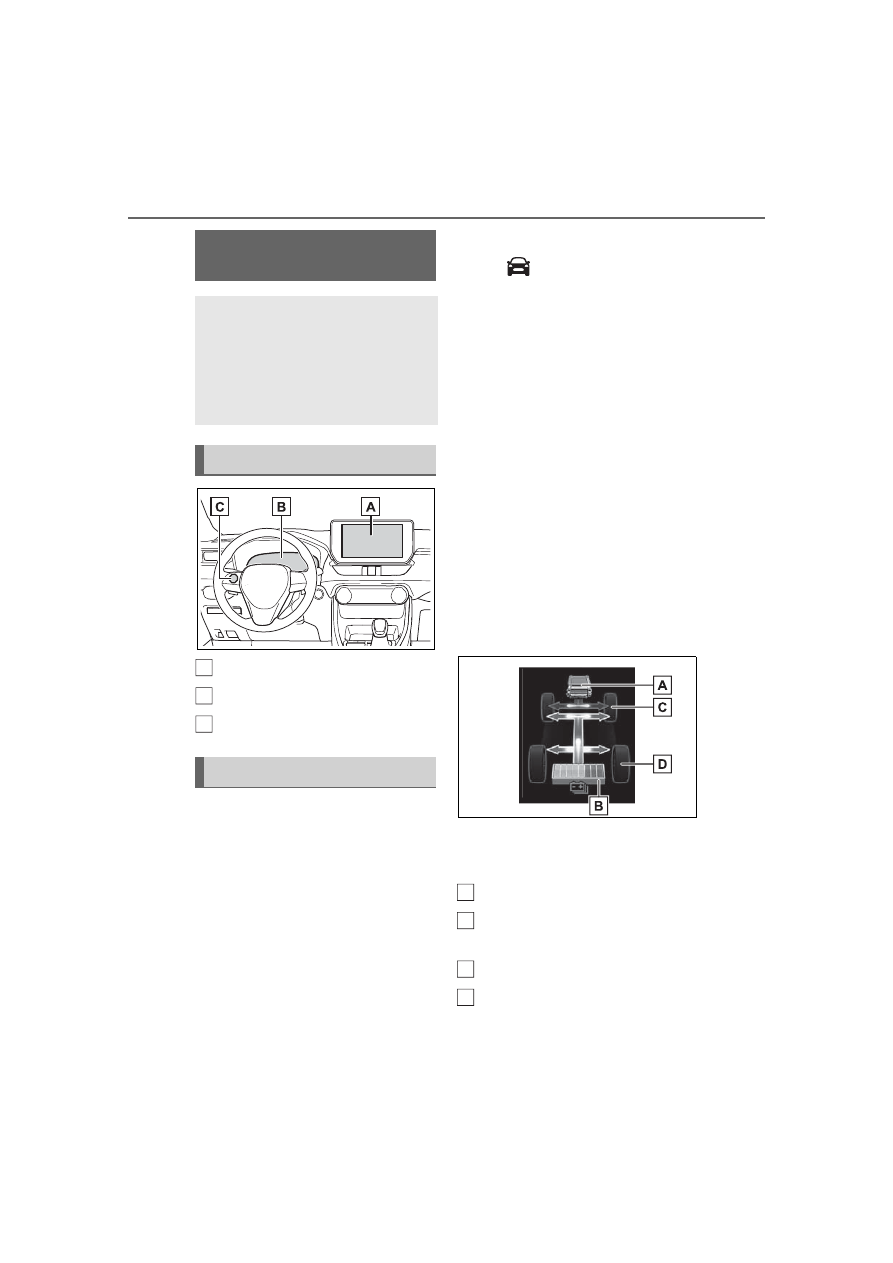

Energy monitor/con-

sumption screen

You can view the status of
your hybrid system and fuel
consumption information
on the multi-information
display and Multimedia Dis-
play.

System components

Energy monitor

127

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



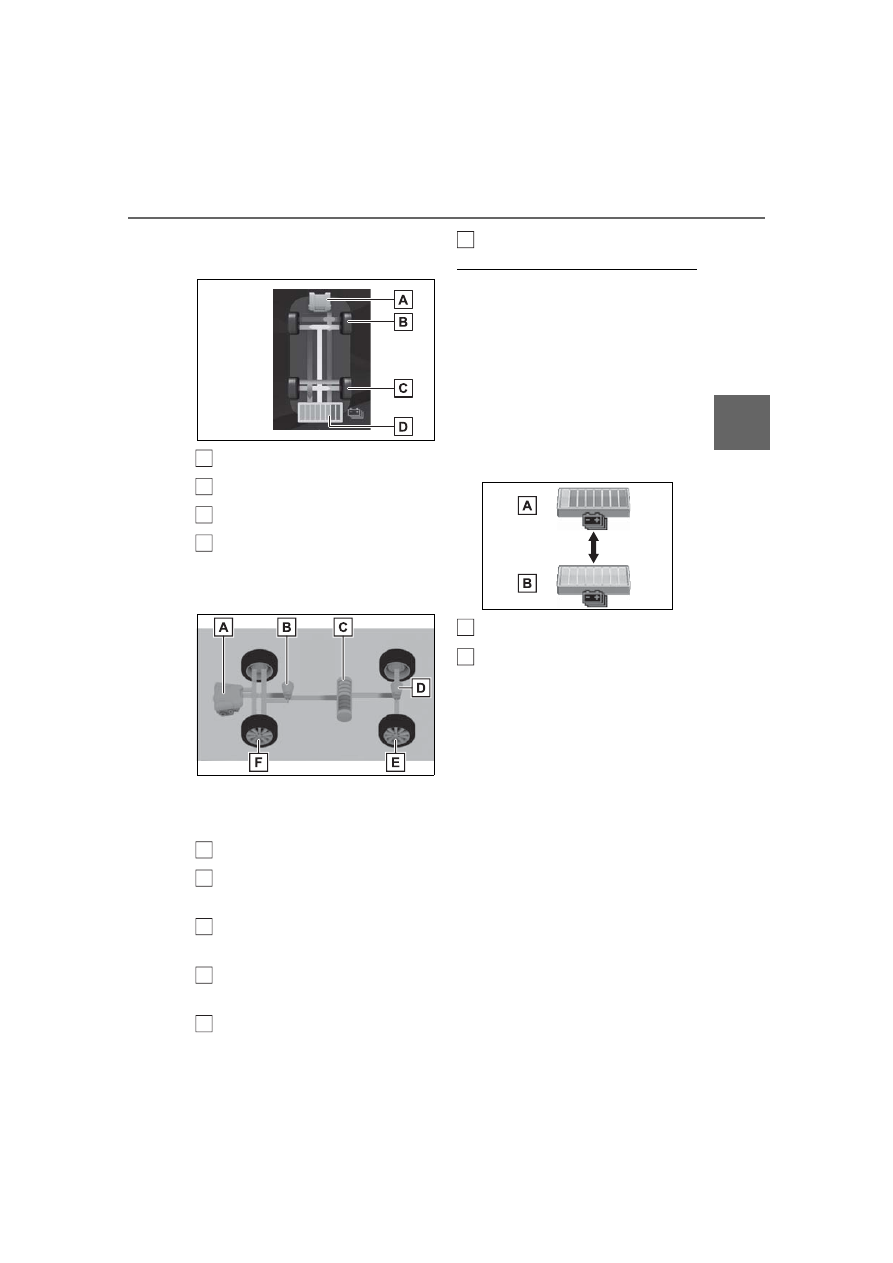

Multi-information dis-
play(12.3-inch display)

Gasoline engine

Front tires

Rear tires

Hybrid battery (traction bat-
tery)



Multimedia Display

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

Rear electric motor (traction
motor)

Rear tires

Front tires

■

Hybrid battery (traction battery)

status

The display changes in 8 levels

according to the remaining charge

amount of the hybrid battery (trac-

tion battery).

●

The figure shows the multi-infor-

mation display as an example for

explanation.

●

These images are examples only,

and may vary slightly from actual

conditions.

Low

High

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

Toyota RAV4 Hybrid (2023 year). Manual in english - page 7
