3-3. Adjusting the seats

3-3.Adjusting the seats



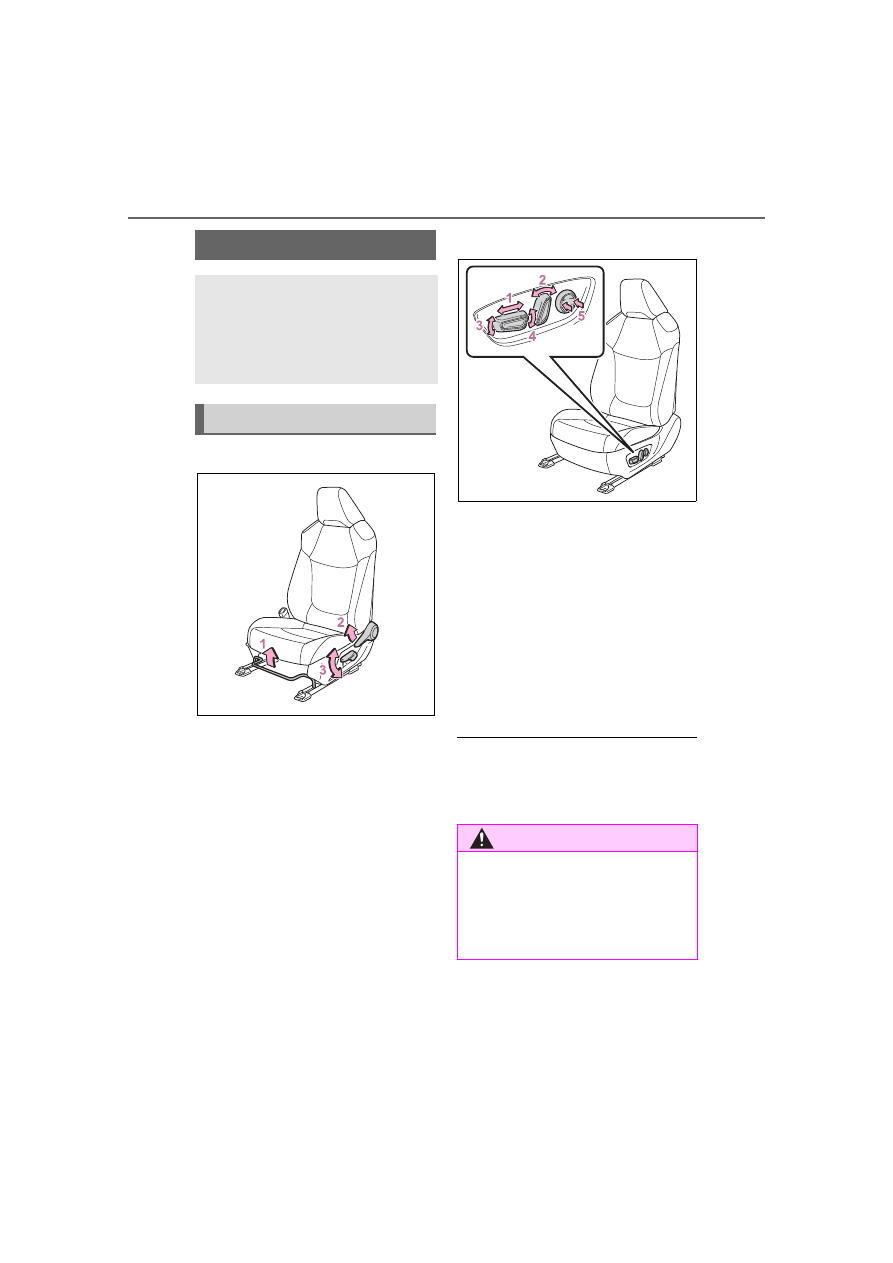

Manual seat

Seat position adjustment
lever

Seatback angle adjustment
lever

Vertical height adjustment
lever (driver’s side only)



Power seat

Seat position adjustment
switch

Seatback angle adjustment
switch

Seat cushion (front) angle
adjustment switch

Vertical height adjustment
switch

Lumbar support adjustment
switch (driver’s side only)

■

When adjusting the seat

Take care when adjusting the seat

so that the head restraint does not

touch the ceiling and sun visor.

Front seats

The seats can be adjusted
(longitudinally, vertically,
etc.). Adjust the seat to
ensure the correct driving
posture.

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

145

3-3. Adjusting the seats

Before

driving

Pull the seatback angle adjust-
ment lever

, and adjust the

seatback angle.

WARNING

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

●

Manual seat only: After adjust-

ing the seat, make sure that the

seat is locked in position.

■

Seat adjustment

To reduce the risk of sliding under

the lap belt during a collision, do

not recline the seat more than

necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt, increas-

ing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made

while driving as the seat may

unexpectedly move and cause

the driver to lose control of the

vehicle.

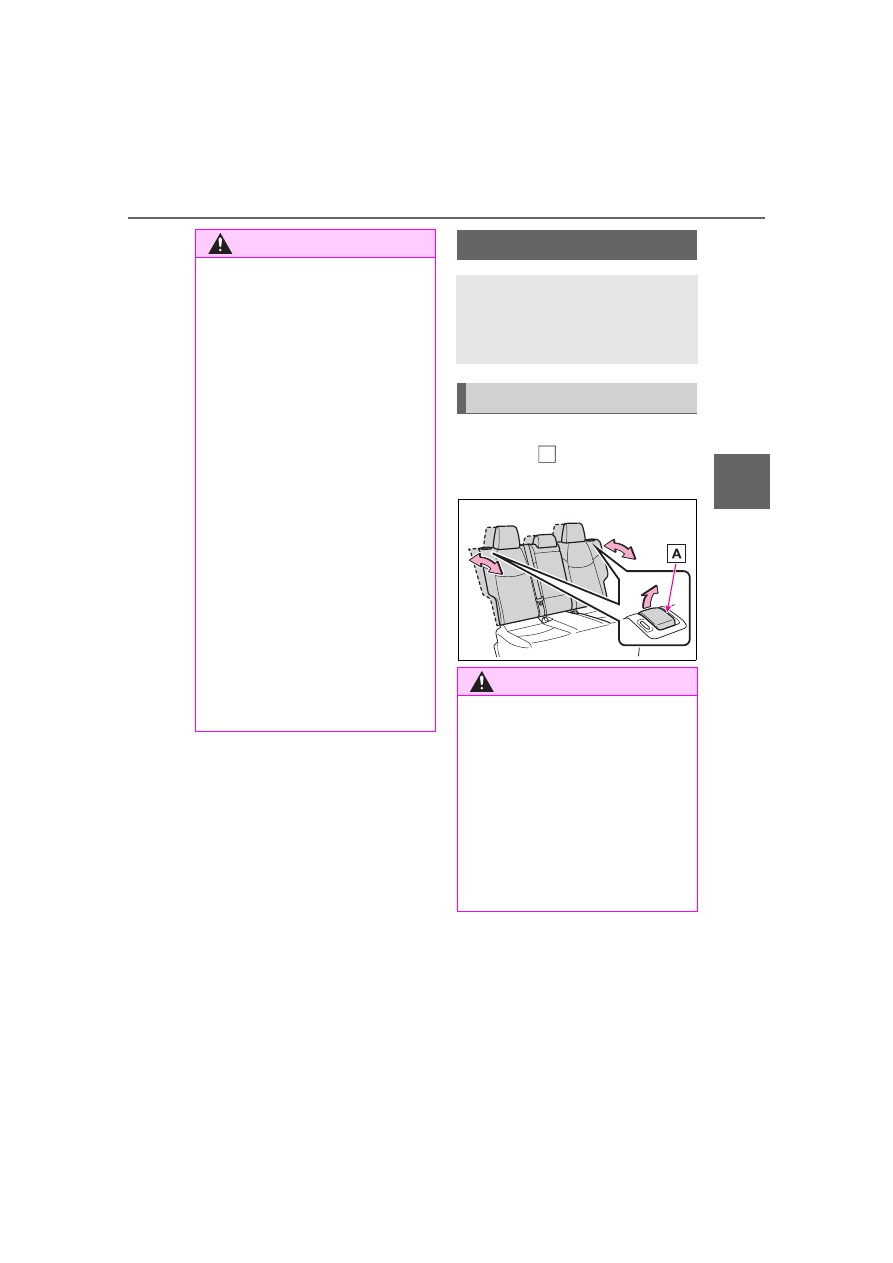

Rear seats

Reclining adjustments and
folding the seatbacks can
be done with lever opera-
tion.

Adjustment procedure

WARNING

■

When operating the seatback

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

●

Keep other passengers from

being hit with the seatback.

●

Do not bring your hands close

to the moving parts or between

the seats, as well as do not let

any part of your body get

caught.

146

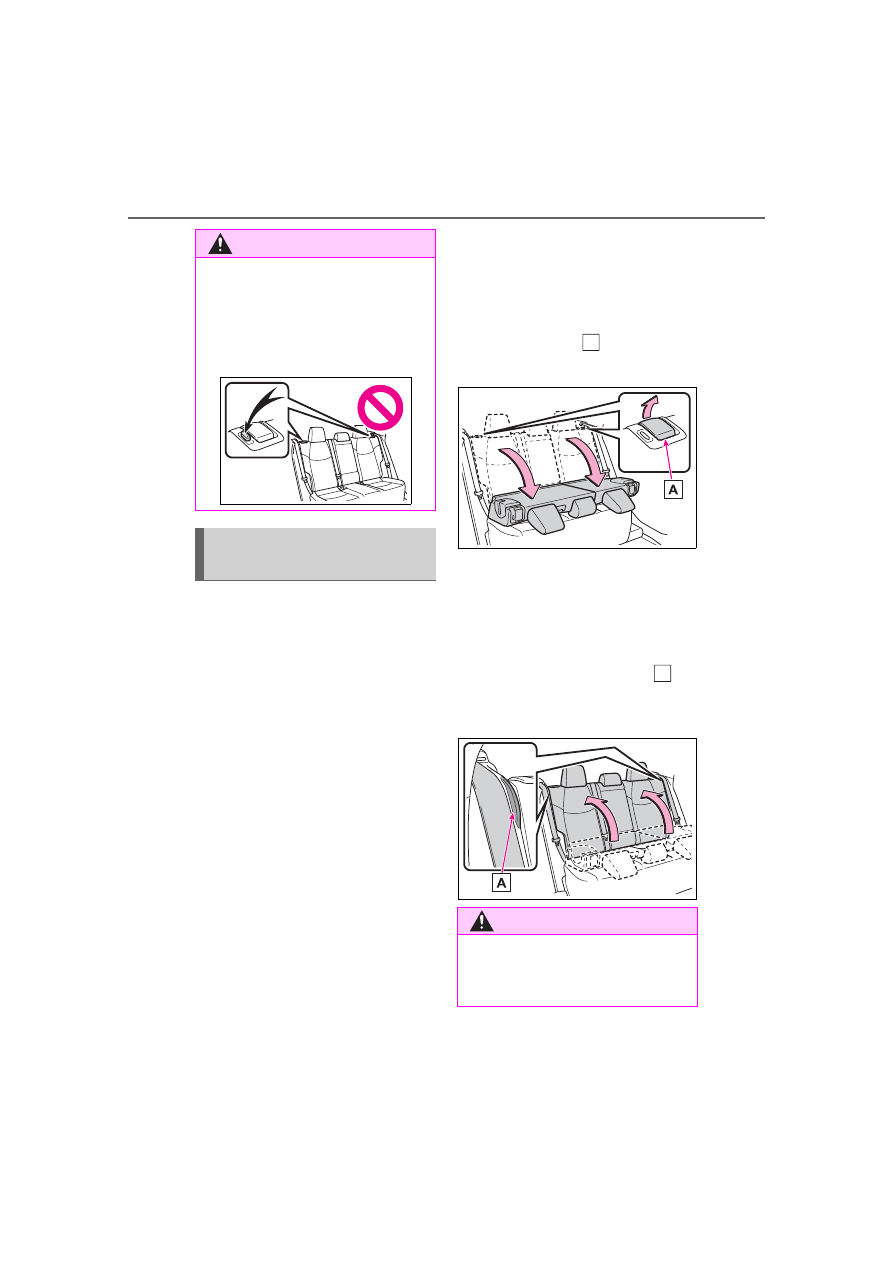

3-3. Adjusting the seats

■

Before folding down the
seatbacks

Park the vehicle in a safe
place.

Apply the parking brake (



P.213)

and shift the shift lever to P.

(



P.210)

Adjust the position of the
front seat and the angle of
the seatback. (



P.144)

Depending on the position of the

front seat, if the seatback is folded

backward, it may interfere with the

operation of the rear seat.

Lift up and push down the
head restraints of the rear
outboard seats, and lower
the head restraint of the rear
center seat. (



P.150)

Stow the armrest of the rear
seat if it is pulled out.
(



P.369)

This step is not necessary when

operating the left side seat only.

■

Folding down the seat-
backs

While pulling the seatback angle
adjustment lever

, fold the

seatback down.

■

Returning the rear seat-
backs

To avoid trapping the seat belt
between the seat and the inside
of the vehicle, pass the seat belt
outside the seat belt guide

and then return the seatback
securely to the locked position.

WARNING

●

After adjusting the seat, make

sure that the seat is locked in

position.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

Folding down the rear
seatbacks

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

147

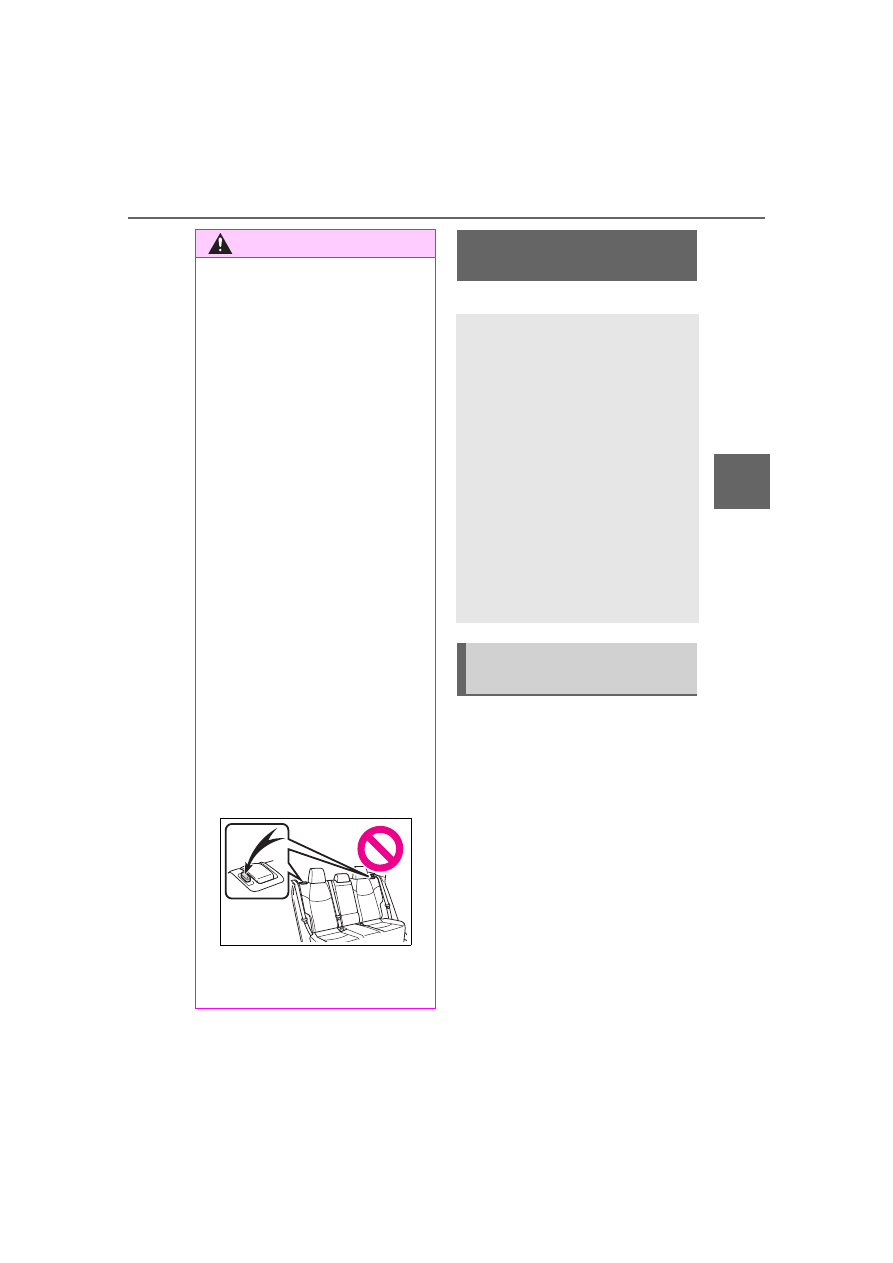

3-3. Adjusting the seats

Before

driving

: If equipped

■

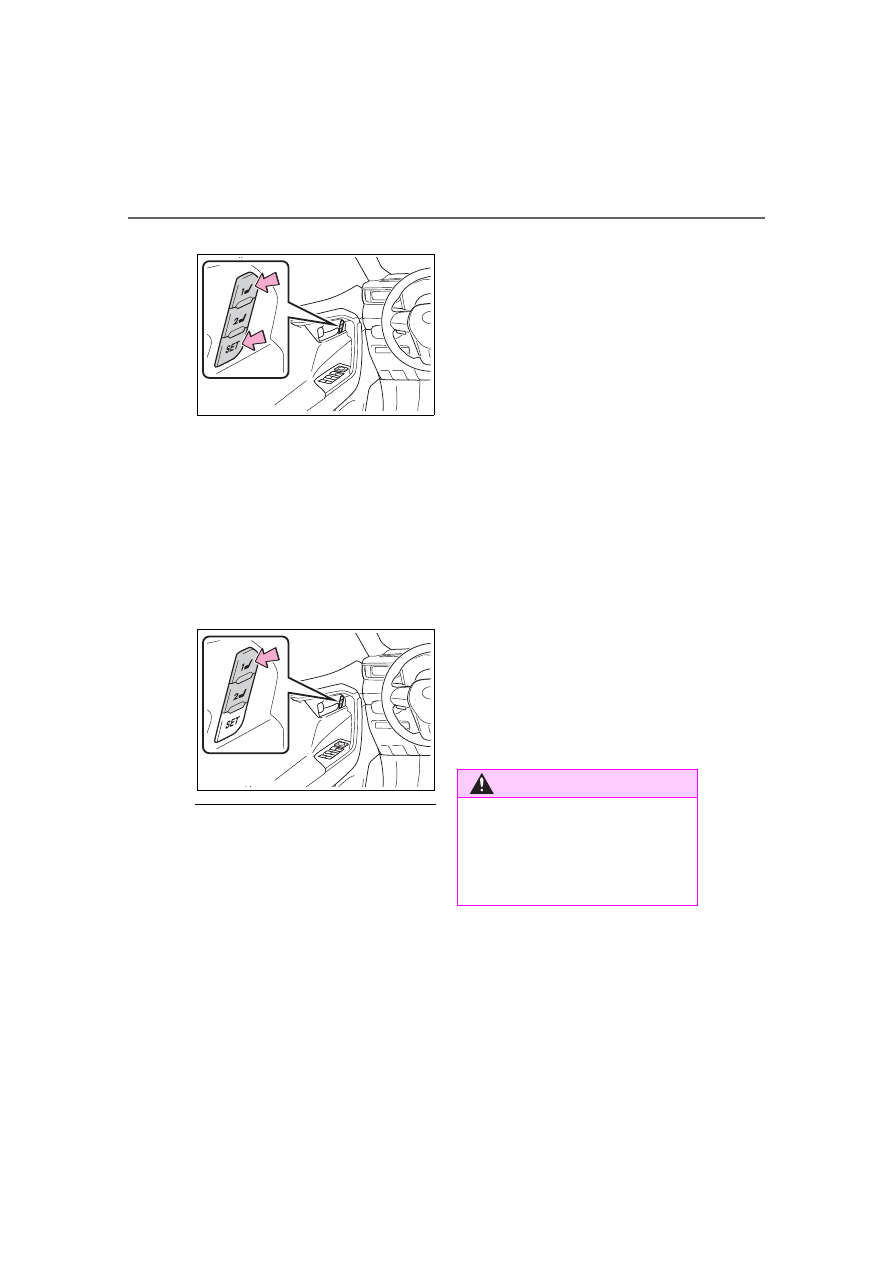

Recording procedure

Check that the shift lever is in
P.

Turn the engine switch to
ON.

Adjust the driver’s seat to the
desired positions.

While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1” or “2” until
the buzzer sounds.

If the selected button has already

been preset, the previously

recorded position will be overwrit-

WARNING

■

When folding the rear seat-

backs down

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to P.

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Do not operate the rear seat if it

is occupied.

●

Be careful not to get feet or

hands caught in the moving

parts or joints of the seats

during operation.

●

Do not allow children to operate

the seat.

■

After returning the rear seat-

back to the upright position

●

Make sure that the seatback is

securely locked in position by

lightly pushing it back and forth.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

●

Check that the seat belts are

not twisted or caught in the

seatback.

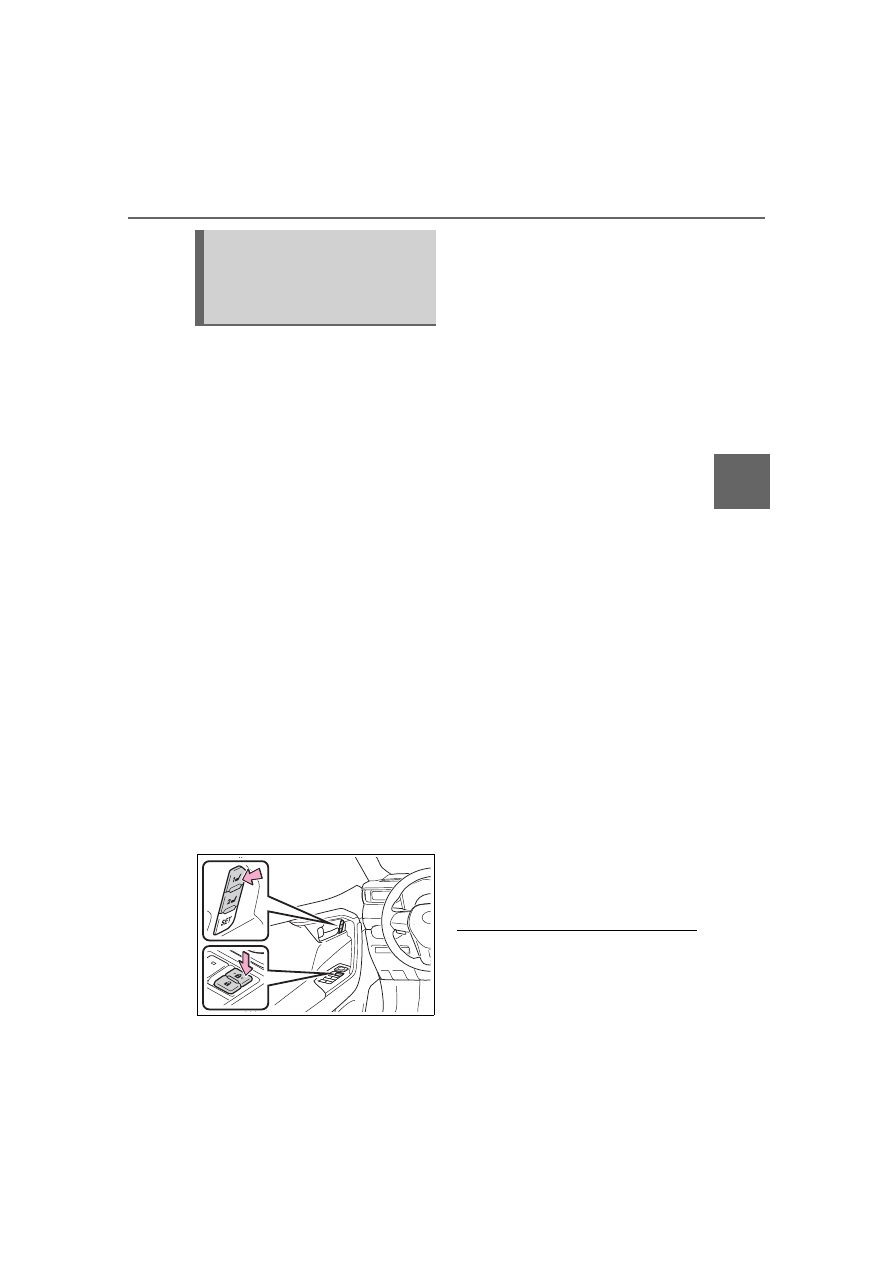

Driving position mem-

ory

This feature automatically
adjusts the driver’s seat to
suit your preferences.
Your preferred driving posi-
tion (the position of the
driver’s seat) can be
recorded and recalled by
pressing a button.
Two different driving posi-
tions can be recorded into
memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.

Recording/recalling a
driving position

148

3-3. Adjusting the seats

ten.

■

Recall procedure

Check that the shift lever is in
P.

Turn the engine switch to
ON.

Press one of the buttons for
the driving position you want
to recall until the buzzer
sounds.

■

To stop the position recall oper-

ation part-way through

Perform any of the following:

●

Press the “SET” button.

●

Press button “1” or “2”.

●

Operate any of the seat adjust-

ment switches.

■

Seat positions that can be

memorized (



P.144)

The adjusted positions other than

the position adjusted by lumbar sup-

port switch can be recorded.

■

Operating the driving position

memory after turning the

engine switch to OFF

Recorded seat positions can be

activated up to 180 seconds after

the driver’s door is opened and

another 60 seconds after it is closed

again.

■

In order to correctly use the

driving position memory func-

tion

If a seat position is already in the

furthest possible position and the

seat is operated in the same direc-

tion, the recorded position may be

slightly different when it is recalled.

■

When recalling the driving posi-

tion

Take care when recalling the driving

position so that the head restraint

does not touch the ceiling.

■

If the battery is disconnected

The memorized positions are

erased.

■

When the recorded seat posi-

tion cannot be recalled

The seat position may not be

recalled in some situations when the

seat position is recorded in a certain

range. For details, contact your

Toyota dealer.

WARNING

■

Seat adjustment caution

Take care during seat adjustment

so that the seat does not strike

the rear passenger or squeeze

your body against the steering

wheel.

149

3-3. Adjusting the seats

Before

driving

■

Registering procedure

Record your driving position to
button “1” or “2” before perform-
ing the following:
Carry only the key you want to
register, and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be recorded properly.

Check that the shift lever is in
P.

Turn the engine switch to
ON.

Recall the driving position
that you want to record.

While pressing the recalled
button, press and hold the
door lock switch (either lock
or unlock) until the buzzer
sounds.

If the button could not be regis-

tered, the buzzer sounds continu-

ously for approximately 3 seconds.

■

Recall procedure

Make sure that the doors are
locked before recalling the driv-
ing position. Carry the electronic
key that has been registered to
the driving position, and then
unlock and open the driver’s
door using the smart key system
or wireless remote control.

The driving position will move to the
recorded position.
If the driving position is in a position
that has already been recorded, the
seat will not move.

■

Cancelation procedure

Carry only the key you want to
cancel and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be canceled properly.

Check that the shift lever is in
P.

Turn the engine switch to
ON.

While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds twice.

If the button could not be canceled,

the buzzer sounds continuously for

approximately 3 seconds.

■

Recalling the driving position

using the memory recall func-

tion

●

Different driving positions can be

registered for each electronic key.

Therefore, the driving position that

Registering/recall/cancel-
ing a driving position to
an electronic key (mem-
ory recall function)

150

3-3. Adjusting the seats

is recalled may be different

depending on the key being car-

ried.

●

If a door other than the driver’s

door is unlocked with smart key

system, the driving position can-

not be recalled. In this case, press

the driving position button which

has been set.

■

Customization

Settings (e.g. the unlock door set-

tings of the memory recall function)

can be customized. (Customizable

features:



P.517)

■

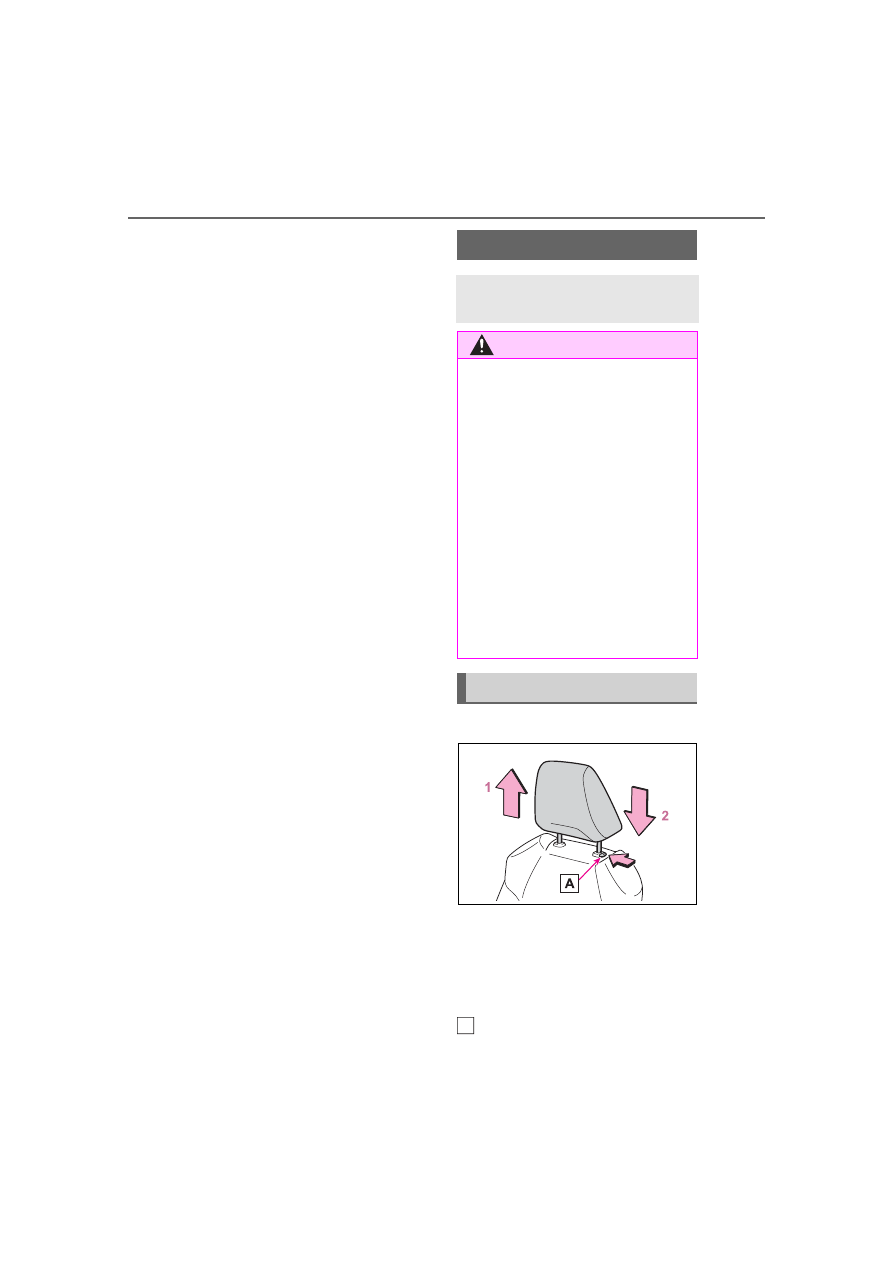

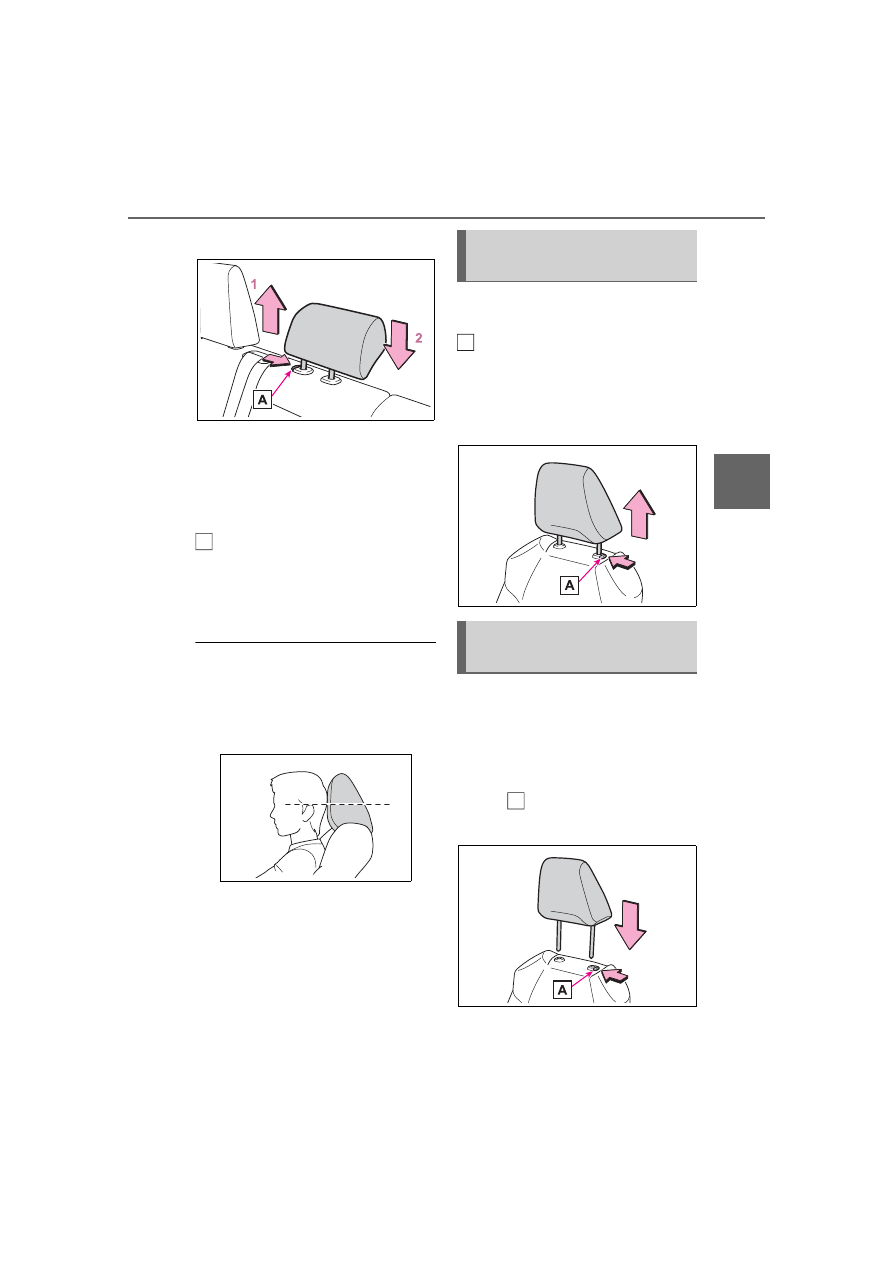

Front seats

Pull the head restraints up.

Down

Push the head restraint down while
pressing the lock release button

Head restraints

Head restraints are pro-
vided for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Vertical adjustment

151

3-3. Adjusting the seats

Before

driving

■

Center rear seat

Pull the head restraints up.

Down

Push the head restraint down while
pressing the lock release button

■

Outboard rear seats

Head restraints cannot be
adjusted.

■

Adjusting the height of the head

restraints (front seats)

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

top of your ears.

■

Adjusting the center rear seat

head restraint

Always raise the head restraint one

level from the stowed position when

using.

Pull the head restraint up while
pressing the lock release button

If the head restraint touches the
ceiling, making the removal difficult,
change the seat height or angle.
(



P.144)

■

Front and center rear seats

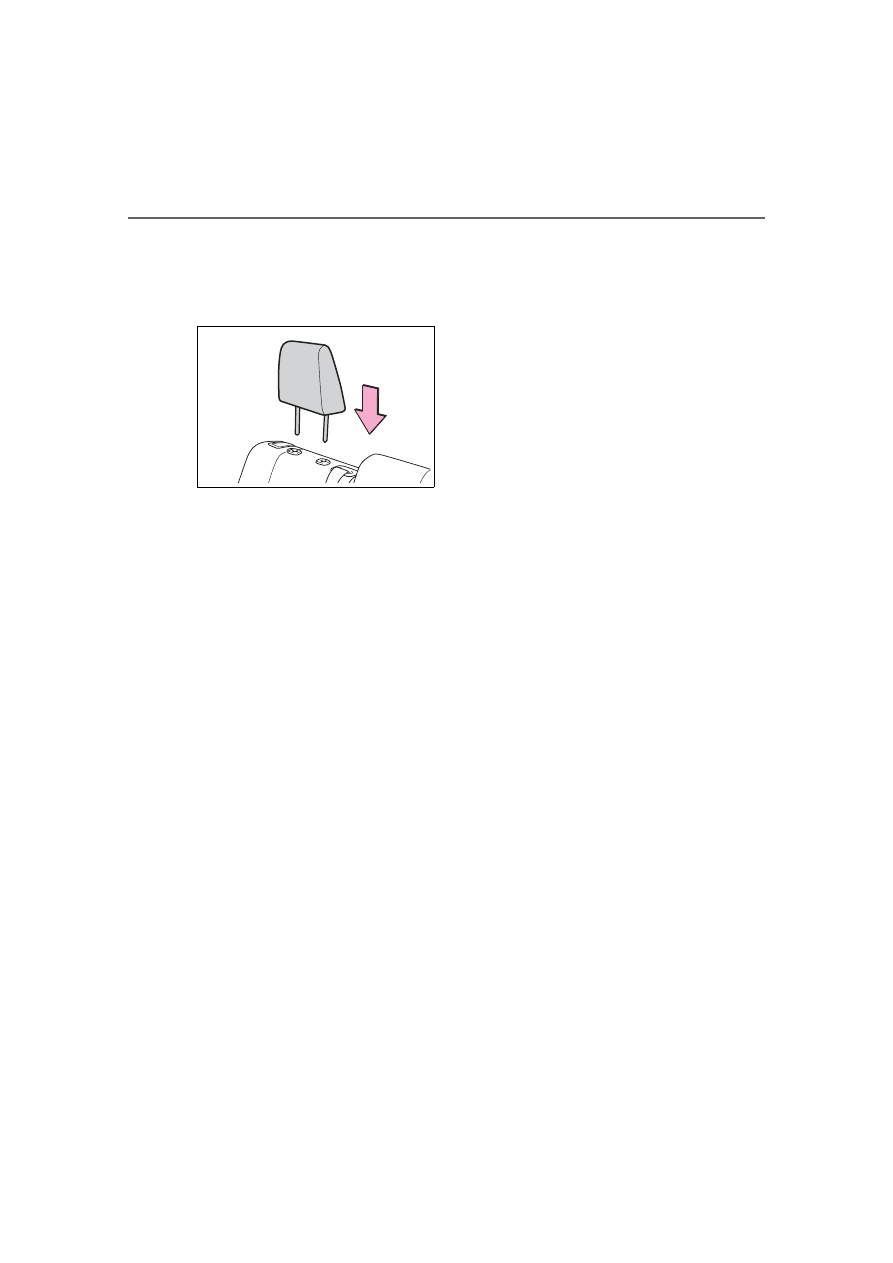

Align the head restraint with the
installation holes and push it
down to the lock position.
Press and hold the lock release
button

when lowering the

head restraint.

Removing the head
restraints

Installing the head
restraints

152

3-3. Adjusting the seats

■

Outboard rear seats

Align the head restraint with the
installation holes and push it
down to the lowest lock position.

153

3-4. Adjusting the steering wheel and mirrors

Before

driving

3-4.Adjusting the steering wheel and mirrors

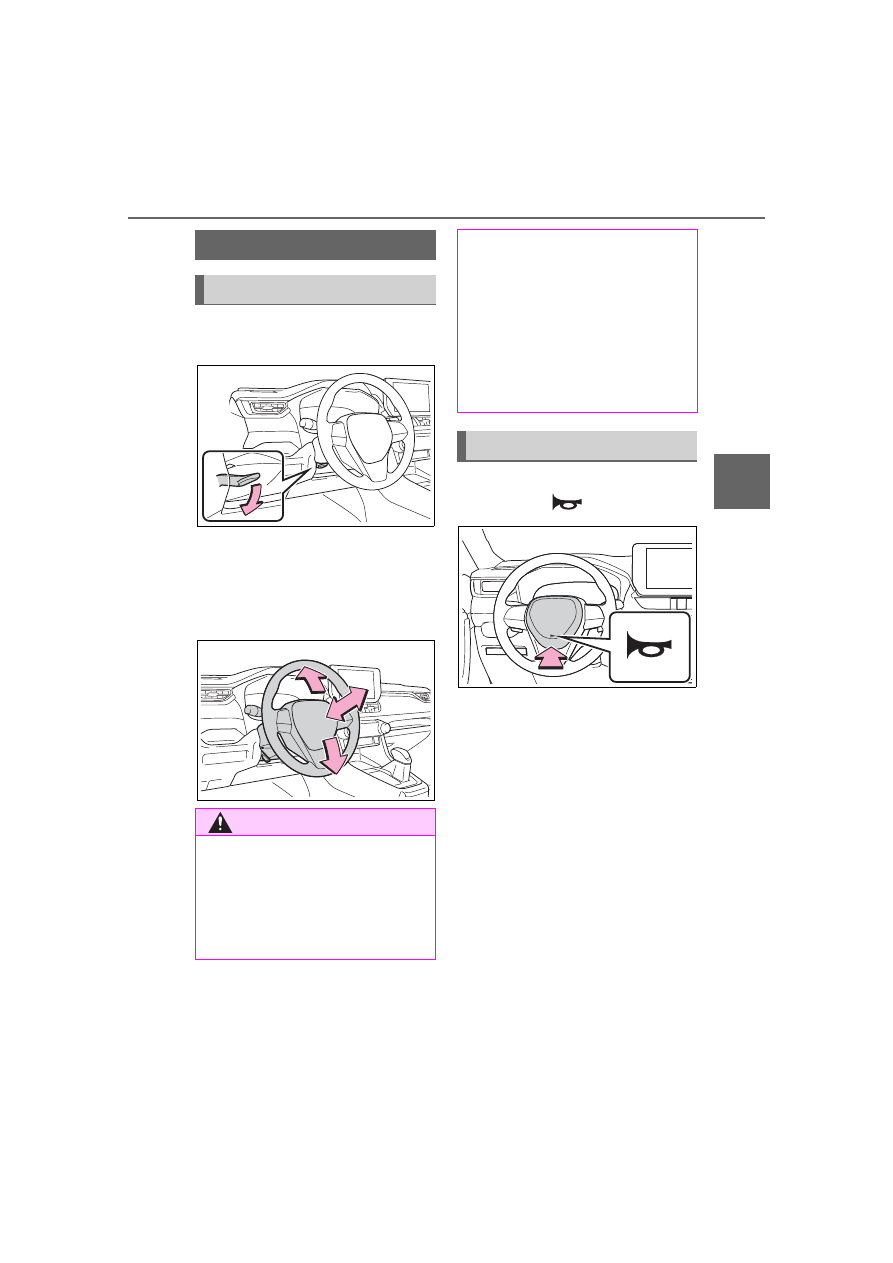

Hold the steering wheel and
push the lever down.

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.

To sound the horn, press on or
close to the

mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Sounding the horn

154

3-4. Adjusting the steering wheel and mirrors

: If equipped

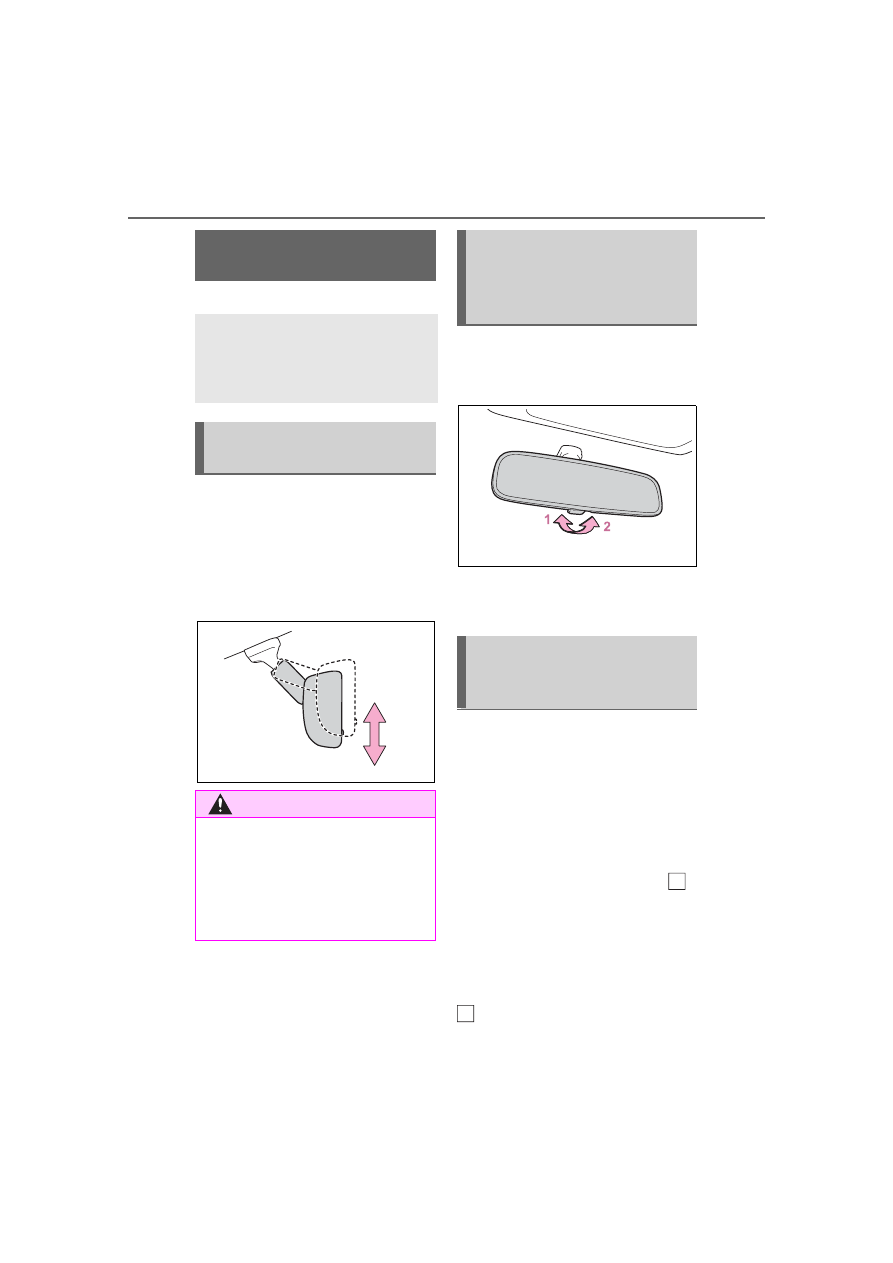

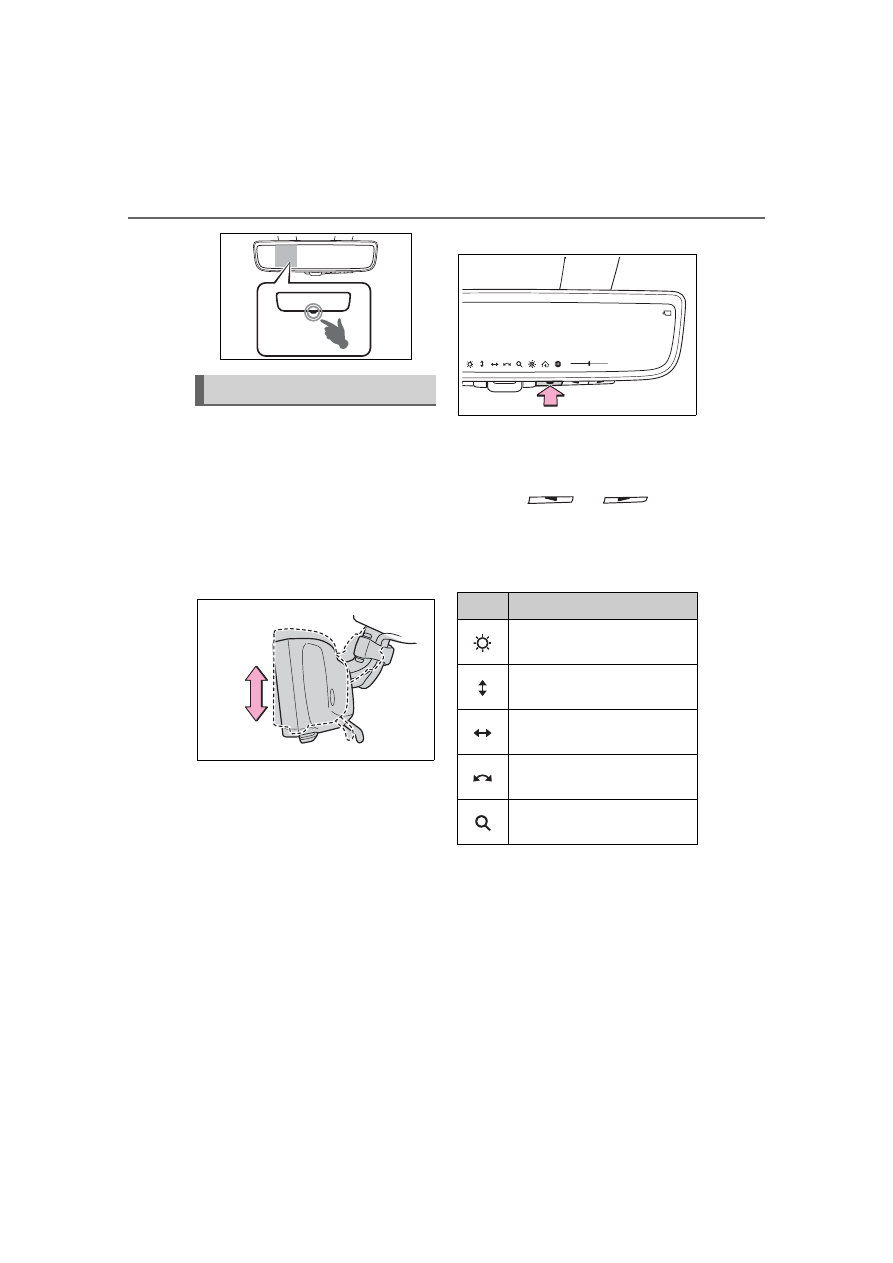

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Adjust the height of the rear
view mirror by moving it up and
down.

Reflected light from the head-
lights of vehicles behind can be
reduced by operating the lever.

Normal position

Anti-glare position

Responding to the level of
brightness of the headlights of
vehicles behind, the reflected
light is automatically reduced.
Changing automatic anti-glare
function mode on/off

When the automatic anti-glare func-
tion is in ON mode, the indicator

illuminates.
The function will set to ON mode
each time the engine switch is
turned to ON.
Pressing the button turns the func-
tion to OFF mode. (The indicator

also turns off.)

Inside rear view mir-

ror

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

Adjusting the height of
rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

Anti-glare function (vehi-
cles with manual anti-
glare inside rear view mir-
ror)

Anti-glare function (vehi-
cles with auto anti-glare
inside rear view mirror)

155

3-4. Adjusting the steering wheel and mirrors

Before

driving



Vehicles without garage door
opener



Vehicles with garage door
opener

■

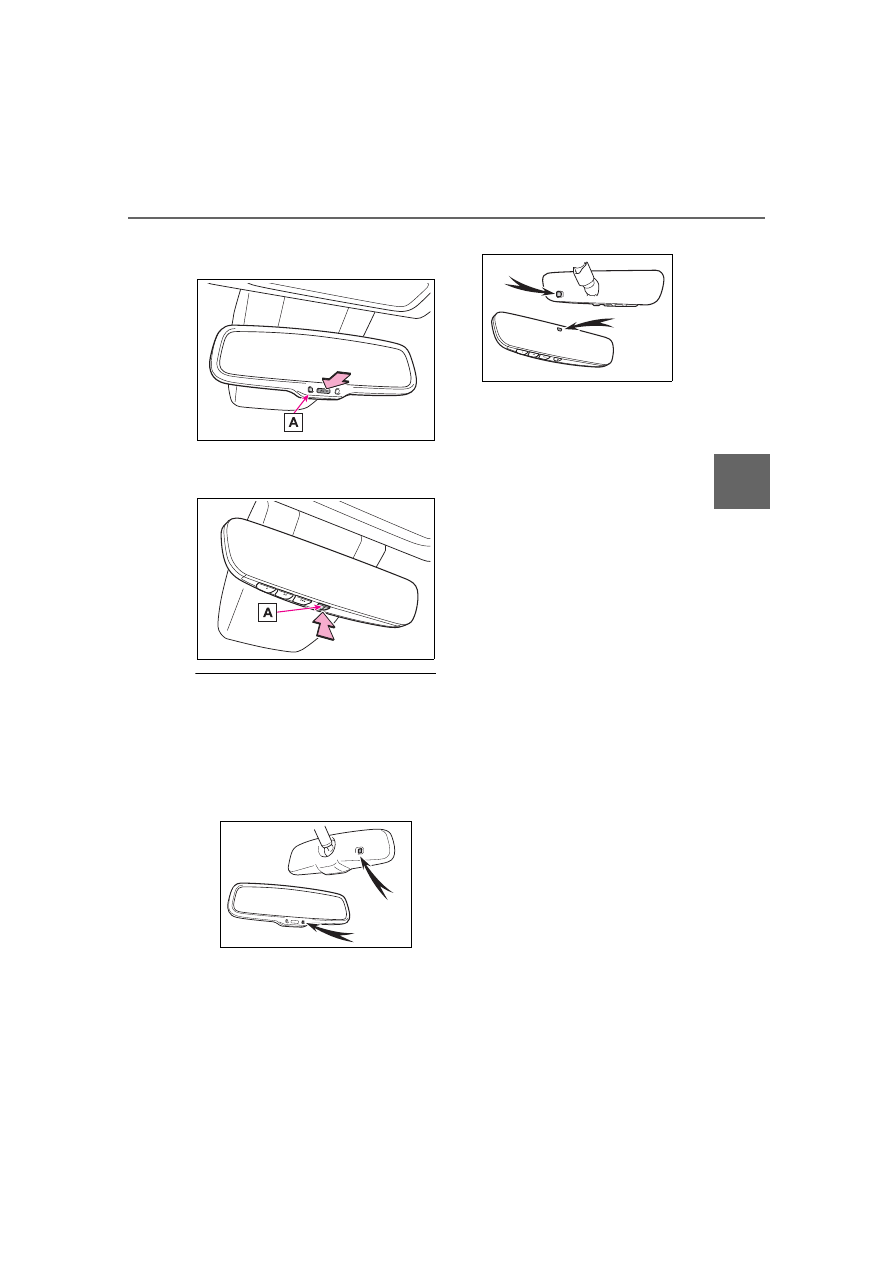

To prevent sensor error (vehi-

cles with auto anti-glare inside

rear view mirror)

To ensure that the sensors operate

properly, do not touch or cover

them.



Vehicles without garage door

opener



Vehicles with garage door opener

156

3-4. Adjusting the steering wheel and mirrors

: If equipped

Icon display area

Displays icons, adjusting gauge,
etc. (



P.158)

Lever

Operate to change between digital
mirror mode and optical mirror
mode.

Menu button

Press to display the icon display
area and select the item you want
to adjust.

Select/adjust button

Press to change the setting of the
item you want to adjust.

Camera indicator

Indicates that the camera is operat-
ing normally.

Digital Rear-view Mir-

ror

The Digital Rear-view Mirror
is a system that uses the
camera on the rear of the
vehicle and displays its
image on the display of the
Digital Rear-view Mirror.

The Digital Rear-view Mirror
can be changed between
optical mirror mode and dig-
ital mirror mode by operat-
ing the lever.

The Digital Rear-view Mirror
allows the driver to see the
rear view despite obstruc-
tions, such as the head
restraints or luggage,
ensuring rear visibility.
Also, the rear seats are not
displayed and privacy of the
passengers is enhanced.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before using the Digital Rear-

view Mirror

●

Make sure to adjust the mirror

before driving. (



P.158)

• Change to optical mirror mode

and adjust the position of the

Digital Rear-view Mirror so that

the area behind your vehicle

can be viewed properly.

• Change to digital mirror mode

and adjust the display settings.

●

As the range of the image dis-

played by the Digital Rear-view

Mirror is different from that of

the optical mirror, make sure to

check this difference before

driving.

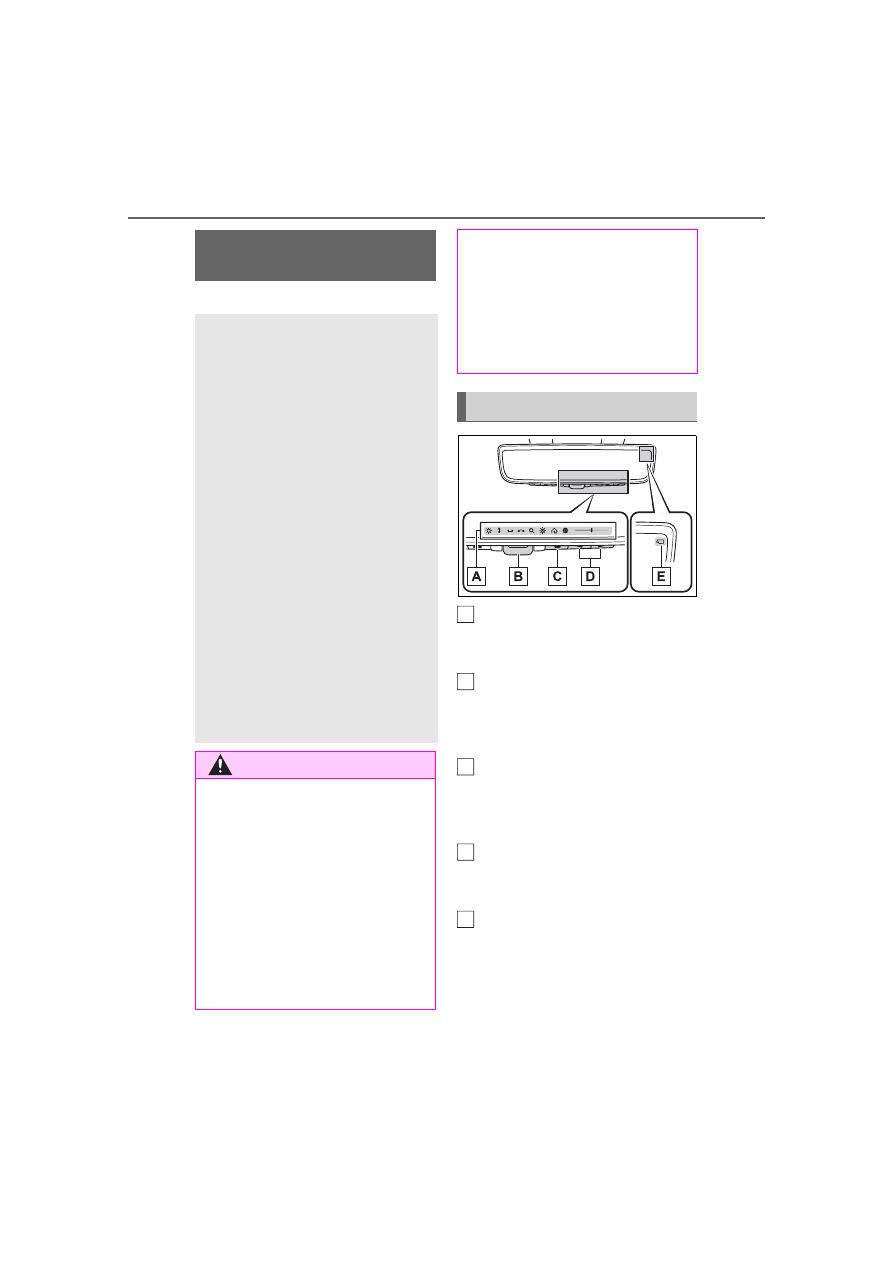

System components

157

3-4. Adjusting the steering wheel and mirrors

Before

driving

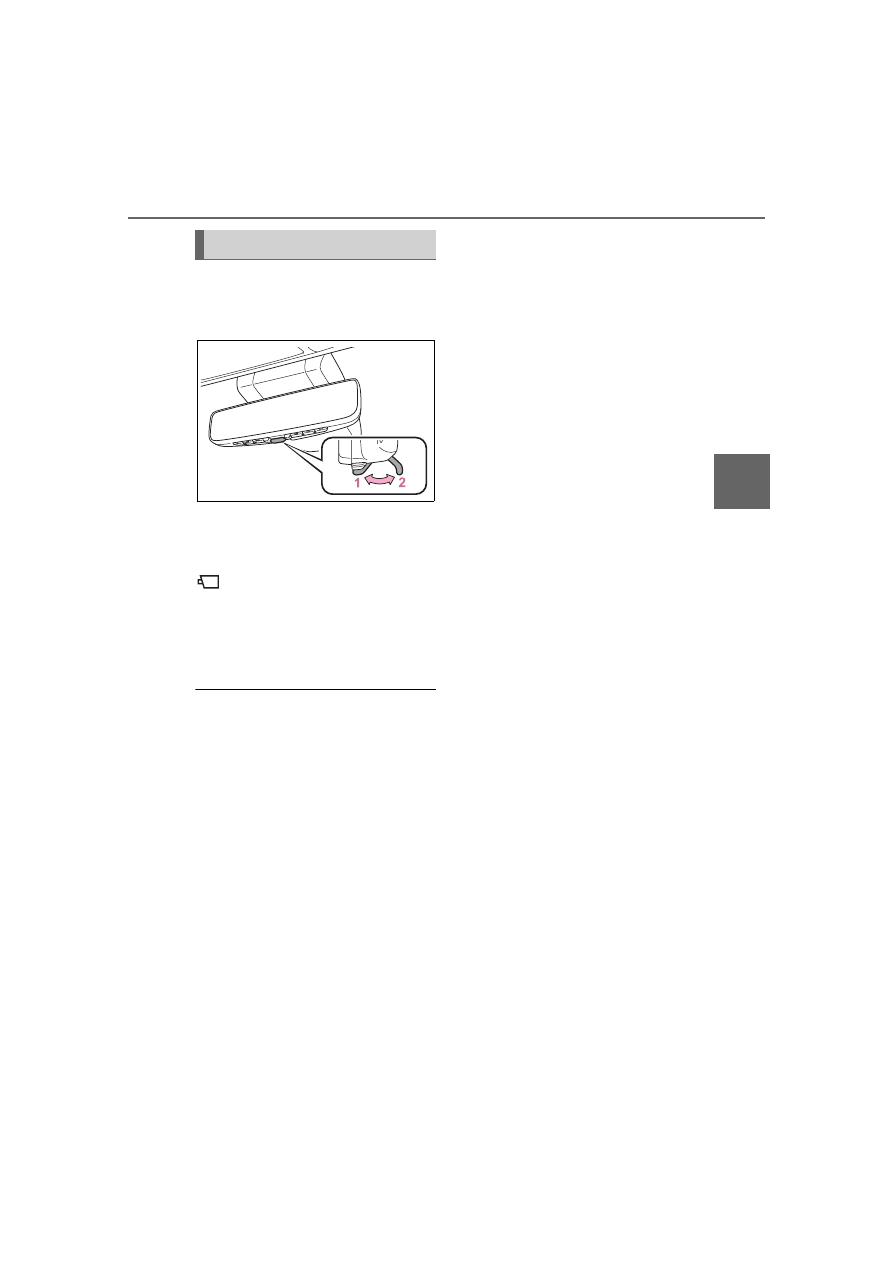

Operate the lever to change
between digital mirror mode and
optical mirror mode.

Digital mirror mode

Displays an image of the area
behind the vehicle.

will illuminate in this mode.

Optical mirror mode

Turns off the display of the Digital
Rear-view Mirror allows it to be
used as an optical mirror.

■

Digital mirror mode operating

condition

The engine switch is turned to ON.
When the engine switch is changed

from ON to OFF or ACC, the image

will disappear after several seconds.

■

When using the Digital Rear-

view Mirror in digital mirror

mode

●

If it is difficult to see the displayed

image due to light reflected off the

Digital Rear-view Mirror, the cam-

era being dirty or covered with

water droplets, or if lights of a

vehicle behind your vehicle or the

displayed image are bothering

you, change to optical mirror

mode.

●

When the back door is open, the

Digital Rear-view Mirror image

may not display properly. Before

driving, make sure the back door

is closed.

●

If the display is difficult to see due

to reflected light, close the sun-

shade for the moon roof (if

equipped) or the electronic sun-

shade for the panoramic moon

roof (if equipped).

●

Any of the following conditions

may occur when driving in the

dark, such as at night. None of

them indicates that a malfunction

has occurred.

• Colors of objects in the displayed

image may differ from their actual

color.

• Depending on the height of the

lights of the vehicle behind, the

area around the vehicle may

appear white and blurry.

• Automatic image adjustment for

brighter surrounding image may

cause flickering.

If it is difficult to see the displayed

image or flickering bothers you,

change to optical mirror mode.

●

The Digital Rear-view Mirror may

become hot while it is in digital

mirror mode.

This is not a malfunction.

●

Depending on your physical con-

dition or age, it may take longer

than usual to focus on the dis-

played image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the

displayed image when the vehicle

is being driven, as doing so may

cause motion sickness.

■

When the system malfunctions

If the symbol shown in the illustra-

tion is displayed when using the

Digital Rear-view Mirror in digital

mirror mode, the system may be

malfunctioning. The symbol will dis-

appear in a few seconds. Operate

the lever, change to optical mirror

mode and have the vehicle

inspected by your Toyota dealer.

Changing modes

158

3-4. Adjusting the steering wheel and mirrors

■

Adjusting the mirror height

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Change to optical mirror mode,
adjusting the height of the rear
view mirror by moving it up and
down.

■

Display settings (digital
mirror mode)

Settings of the display in the dig-
ital mirror mode, on/off opera-
tion of the automatic anti-glare
function, etc. can be changed.

Press the menu button.

The icons will be displayed.

Press the menu button
repeatedly and select the
item you want to adjust.

Press

change the setting.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

Adjusting the mirror

Icons

Settings

Select to adjust the bright-
ness of the display.

Select to adjust the area
displayed up/down.

Select to adjust the area
displayed to the left/right.

Select to adjust the angle of
the displayed image.

Select to zoom in/out the
displayed image.

159

3-4. Adjusting the steering wheel and mirrors

Before

driving

: This is a function for the optical

mirror mode, however, the setting
can also be changed while using
the digital mirror mode.

■

Enabling/disabling the
automatic anti-glare func-
tion (optical mirror mode)

The automatic anti-glare func-
tion in the optical mirror mode
can be enabled/disabled. The
setting can be changed in both
the digital mirror mode and the
optical mirror mode.



When using the digital mirror
mode



P.158



When using the optical mirror
mode

Press the menu button.

The icons will be displayed.

Press the menu button
repeatedly and select

The setting display will be dis-

played.

Press

enable (ON)/disable (OFF)
the automatic anti-glare func-
tion.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

■

Adjusting the display (digital

mirror mode)

●

If the displayed image is adjusted,

it may appear distorted. This is not

a malfunction.

●

If the brightness of the Digital

Rear-view Mirror is set too high, it

may cause eye strain. Adjust the

Digital Rear-view Mirror to an

appropriate brightness. If your

eyes become tired, change to

optical mirror mode.

●

The brightness of the Digital Rear-

view Mirror will change automati-

cally according to the brightness

of the area in front of your vehicle.

Select to enable/disable the
automatic anti-glare func-
tion.

Responding to the bright-
ness of the headlights of
vehicles behind, the
reflected light is automati-
cally adjusted.

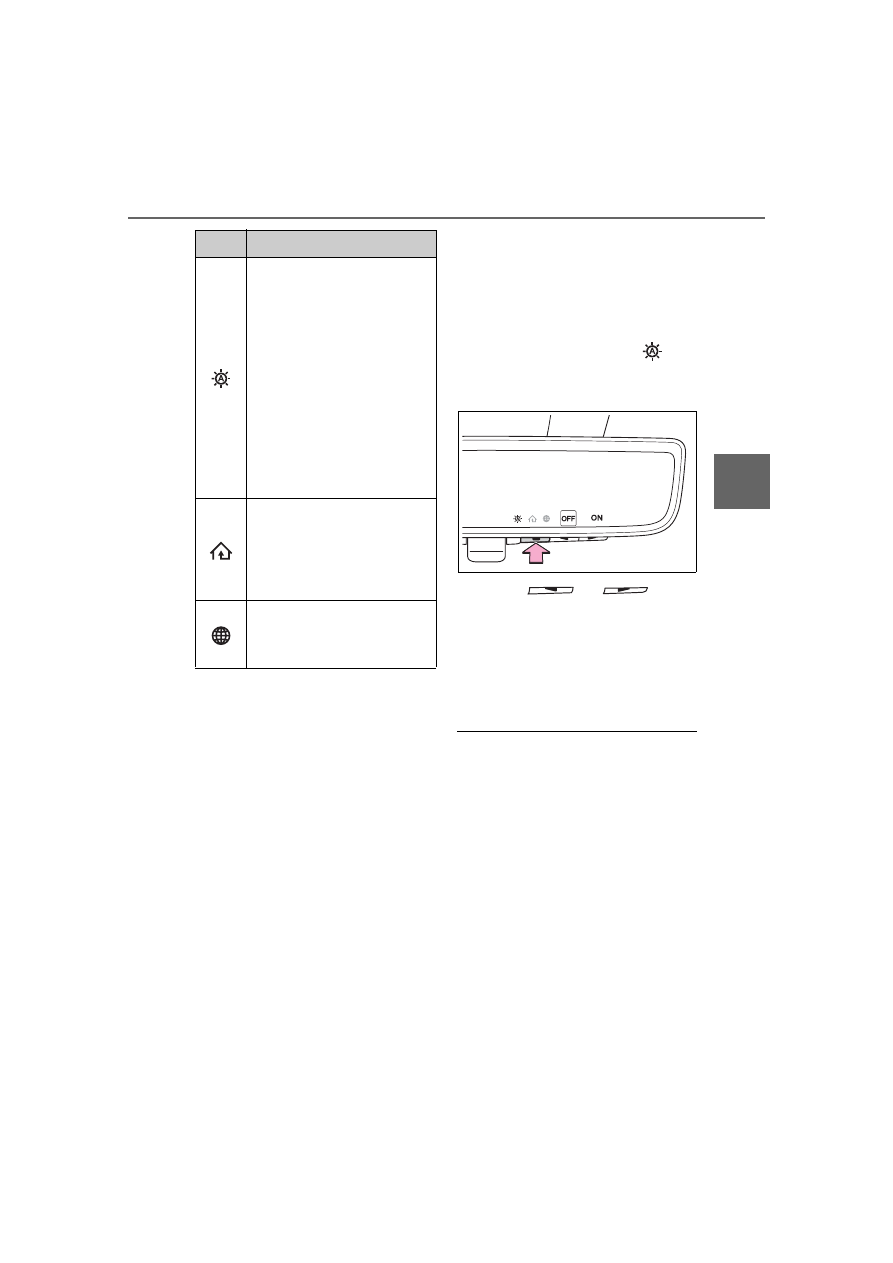

The automatic anti-glare
function is enabled each
time the engine switch is
changed to ON.

Select to display
HomeLink

Training Tuto-

rial to assist customers to
train their Garage Door
Opener System. (



P.372)

Select to change the lan-
guage of the Homelink

Training Tutorial.

Icons

Settings

Content .. 7 8 9 10 ..
