7-2. Steps to take in an emergency

Check the tire inflation pres-
sure.

If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm

or bar, 19 psi): The puncture
cannot be repaired. Contact
any

authorized

Toyota

retailer or Toyota authorized
repairer, or any reliable
repairer.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm

or bar, 19 psi)

or higher, but less than the specified air pressure: Proceed to

If the tire inflation pressure is the specified air pressure (



P. 774):

Proceed to

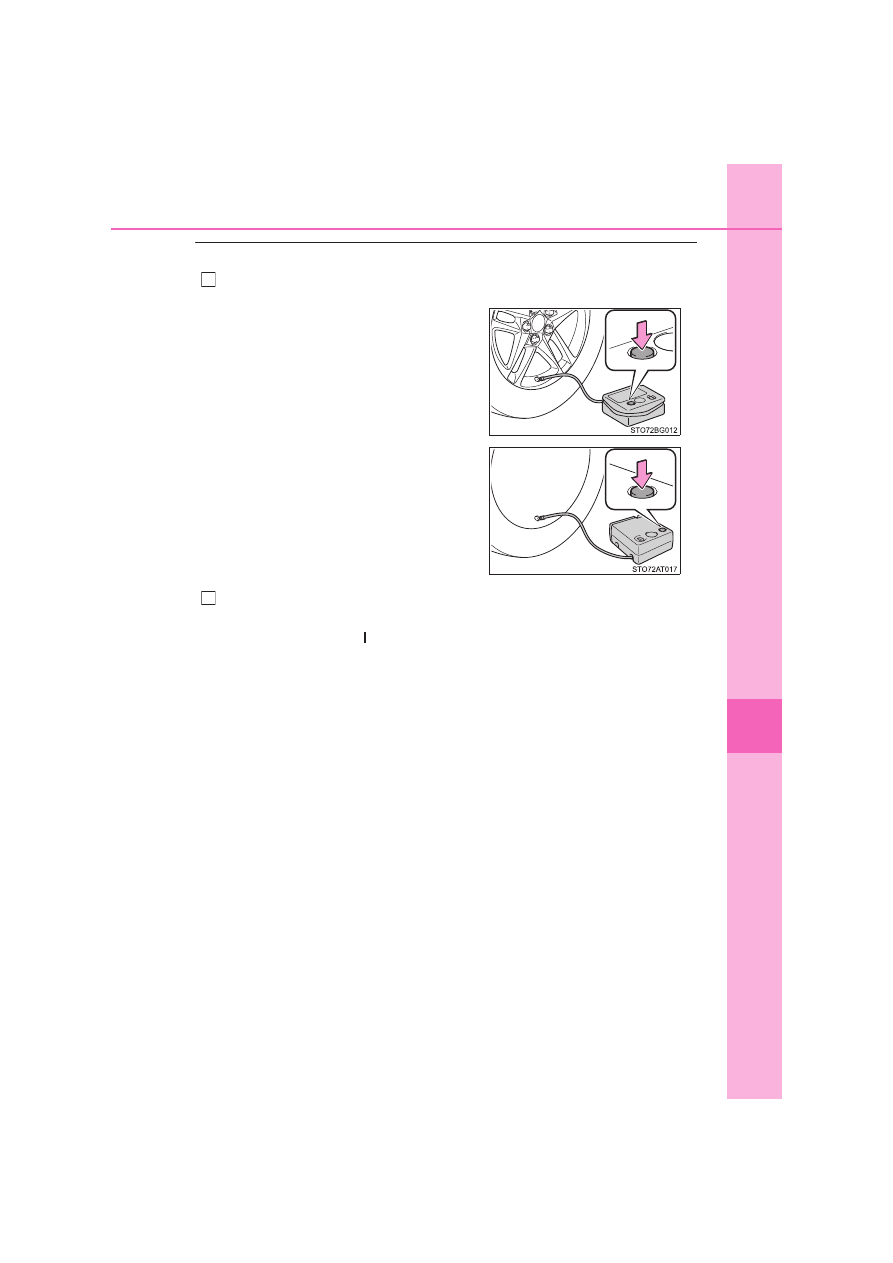

Turn the compressor switch is

(on) to inflate the tire until the

specified air pressure is reached. Drive for about 5 km (3 miles) and
then perform

Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer for tire repair or replacement.

27
28

721

7-2. Steps to take in an emergency

hen
trou

e ari

■

If the tire is inflated to more than the specified air pressure

Press the button to let some air out.

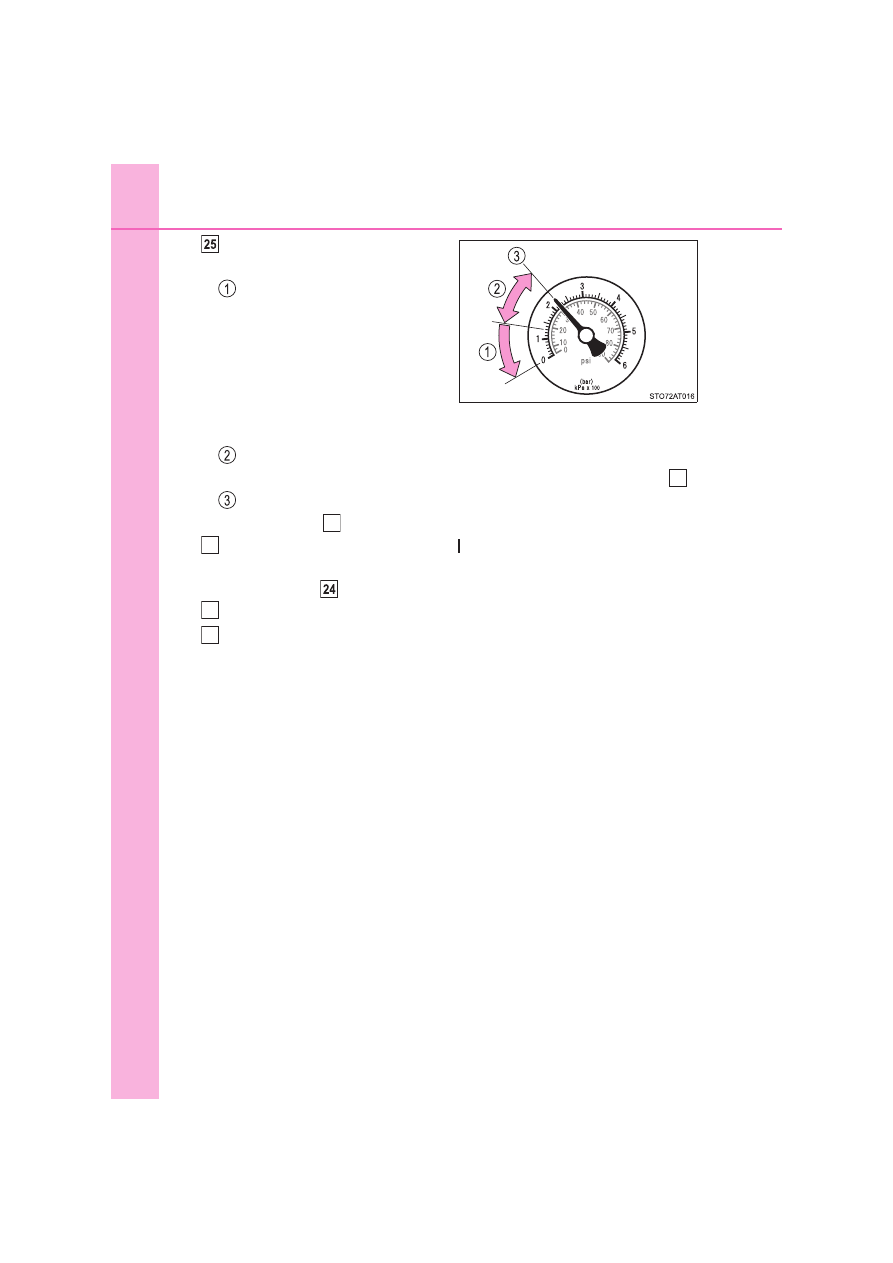

Check that the air pressure indicator shows the specified air pressure.
If the air pressure is under the designated pressure, turn the compressor
switch on (type A) or

(

on) (type B) again and repeat the inflation proce-

dure until the specified air pressure is reached.

■

The valve of a tire that has been repaired

After a tire is repaired with the emergency tire puncture repair kit, the valve
should be replaced.

■

After a tire is repaired with the emergency tire puncture repair kit

●

The tire pressure warning valve and transmitter should be replaced.

●

Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.

■

Note for checking the emergency tire puncture repair kit

Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date
has already passed. Otherwise, repairs conducted using the emergency tire
puncture repair kit may not be performed properly.



Type A



Type B

722

7-2. Steps to take in an emergency

■

Emergency tire puncture repair kit

●

The sealant has a limited lifespan. The expiry date is marked on the bottle.
The bottle of sealant should be replaced with a new bottle before the expiry
date. Contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer for replacement.

●

The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer. The compres-
sor is reusable.

●

The sealant can be used when the outside temperature is from -30°C (-22°F)
to 60°C (140°F).

●

The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than the
original ones, or for any other purposes.

●

If the sealant gets on your clothes, it may stain.

●

If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.

●

During operation of the repair kit, a loud operation noise is produced. This
does not indicate a malfunction.

●

Do not use to check or to adjust the tire pressure.

723

7-2. Steps to take in an emergency

hen
trou

e ari

WARNING

■

Do not drive the vehicle with a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall.
In such a case, the tire may explode when using a repair kit.

■

Caution while driving

●

Store the repair kit in the luggage compartment.
Injuries may result in the event of an accident or sudden braking.

●

The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.

●

Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.

■

Precautions for use of the sealant

●

Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.

●

If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.

724

7-2. Steps to take in an emergency

WARNING

■

When fixing the flat tire

●

Stop your vehicle in a safe and flat area.

●

Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.

●

To avoid risk of burst or severe leakage, do not drop or damage the bottle.
Visually inspect the bottle before use. Do not use a bottle with shock,
crack, scratch, leakage or any other damage. In such case, immediately
replace.

●

Connect the valve and hose securely with the wheel installed to the vehi-
cle. If the hose is not properly connected to the valve, air leakage may
occur and sealant may be sprayed out.

●

If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.

●

After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.

●

Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.

●

Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off (type A) or

(off) (type B) the

compressor switch and stop the repair operation immediately.

●

The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.

●

Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
around the connecting area between the bottle and the compressor. It will
be extremely hot.

●

Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS
airbag from operating properly.

725

7-2. Steps to take in an emergency

hen
trou

e ari

WARNING

■

Driving to spread the liquid sealant evenly

Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.

●

Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.

●

If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3 kgf/cm

or bar, 19 psi) or less, the tire may be severely damaged.

726

7-2. Steps to take in an emergency

NOTICE

■

When performing an emergency repair

●

A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.

●

The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.

●

Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust, etc., a malfunction may
occur.

●

Do not turn the bottle upside down when using it, as doing so may cause
damage to the compressor.

■

Precautions for the emergency tire puncture repair kit

●

The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.

●

If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.

●

Place the repair kit in a storage to prevent it from being exposed to dirt or
water.

●

Store the repair kit in the tool tray under the deck mat out of reach of chil-
dren.

●

Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.

■

To avoid damage to the tire pressure warning valves and transmitters

When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer or other qualified service shop as soon as possible. After use of liq-
uid sealant, make sure to replace the tire pressure warning valve and trans-
mitter when repairing or replacing the tire. (



P. 616)

727

7-2. Steps to take in an emergency

hen
trou

e ari

If you have a flat tire (vehicles with a spare tire)

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the hybrid system.

●

Turn on the emergency flashers. (



P. 668)

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:



P. 614

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

728

7-2. Steps to take in an emergency



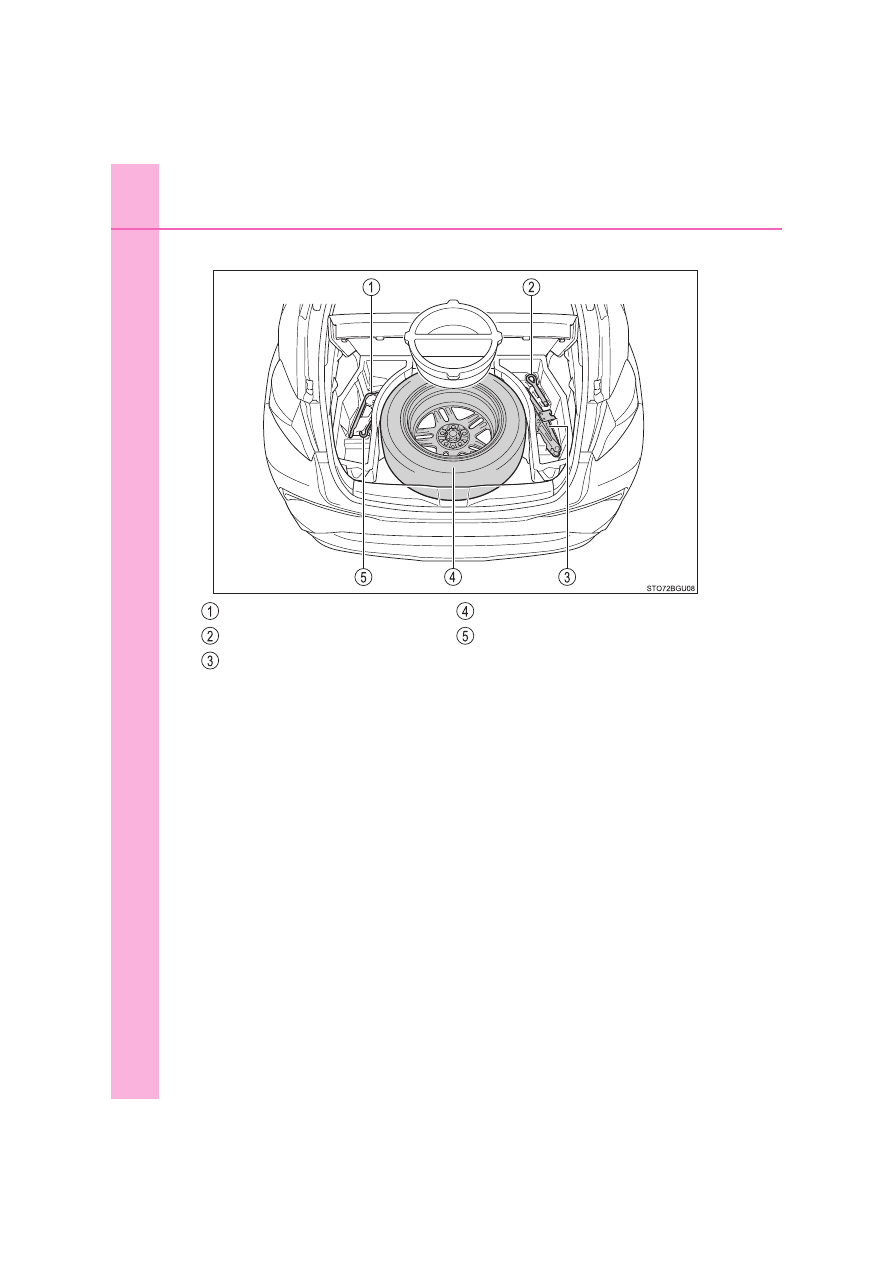

Vehicles with compact spare tire (type A)

Location of the spare tire, jack and tools

Towing eyelet
Wheel nut wrench
Jack

Jack handle
Spare tire

729

7-2. Steps to take in an emergency

hen
trou

e ari



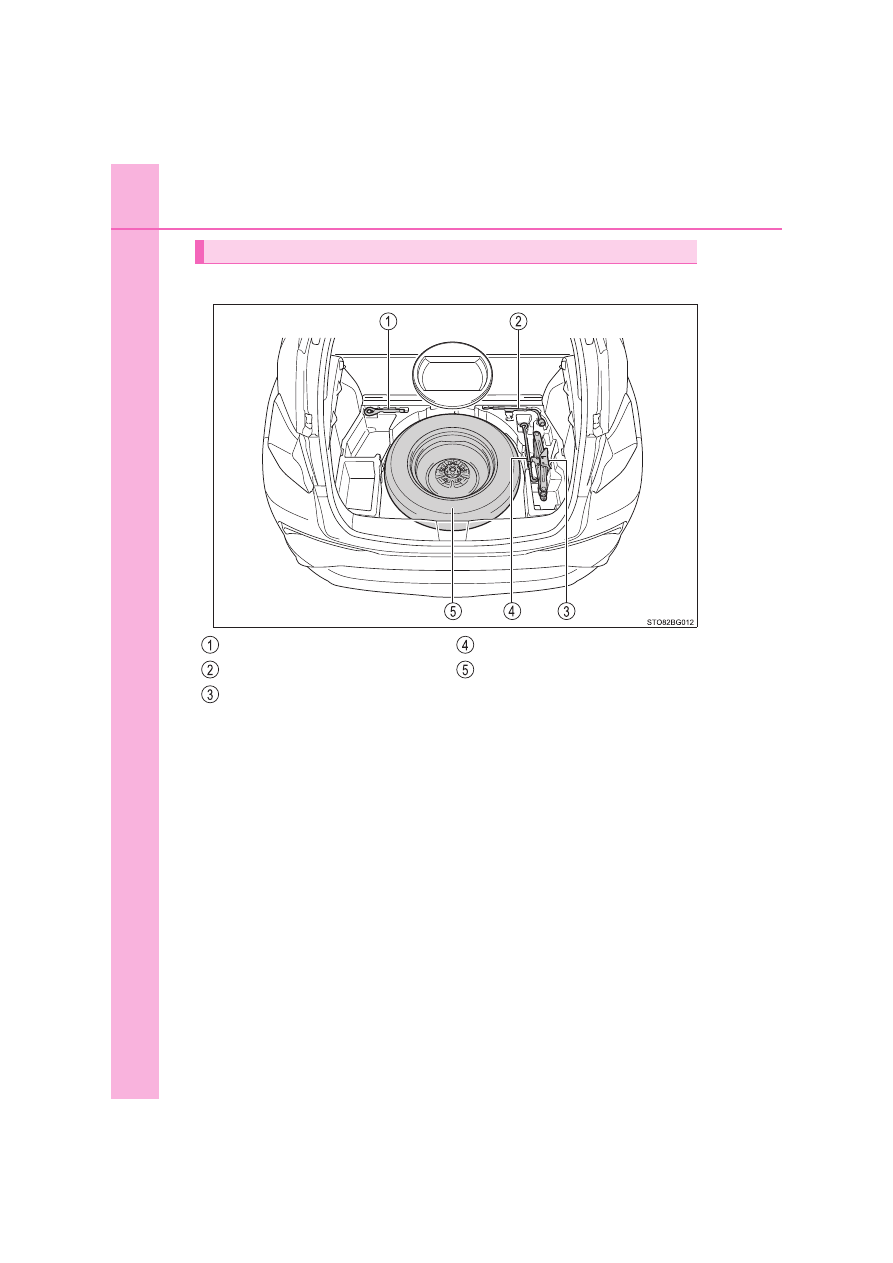

Vehicles with compact spare tire (type B)

Spare tire
Jack
Wheel nut wrench

Jack handle
Towing eyelet

730

7-2. Steps to take in an emergency



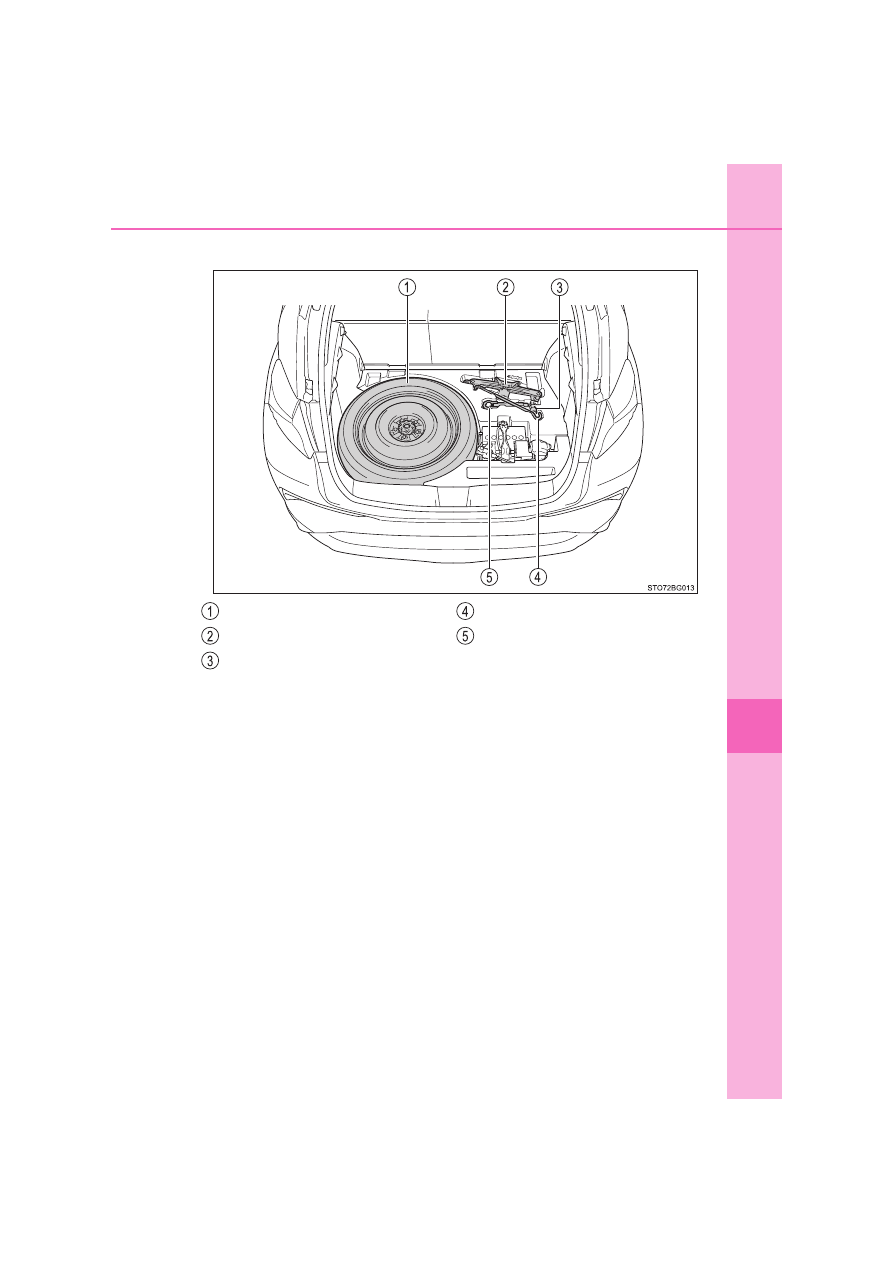

Vehicles with full-size spare tire

Wheel nut wrench
Towing eyelet
Jack

Spare tire
Jack handle

731

7-2. Steps to take in an emergency

hen
trou

e ari

WARNING

■

Using the tire jack

Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.

●

Do not put any part of your body under the vehicle while it is supported by
the jack.

●

Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to replace
the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.

●

Put the jack properly in its jack point.
(



P. 733)

732

7-2. Steps to take in an emergency

Remove the deck board. (



P. 565)

Take out the jack.

Remove the deck board. (



P. 565)

Remove the cushion.

Loosen the center fastener that
secures the spare tire.

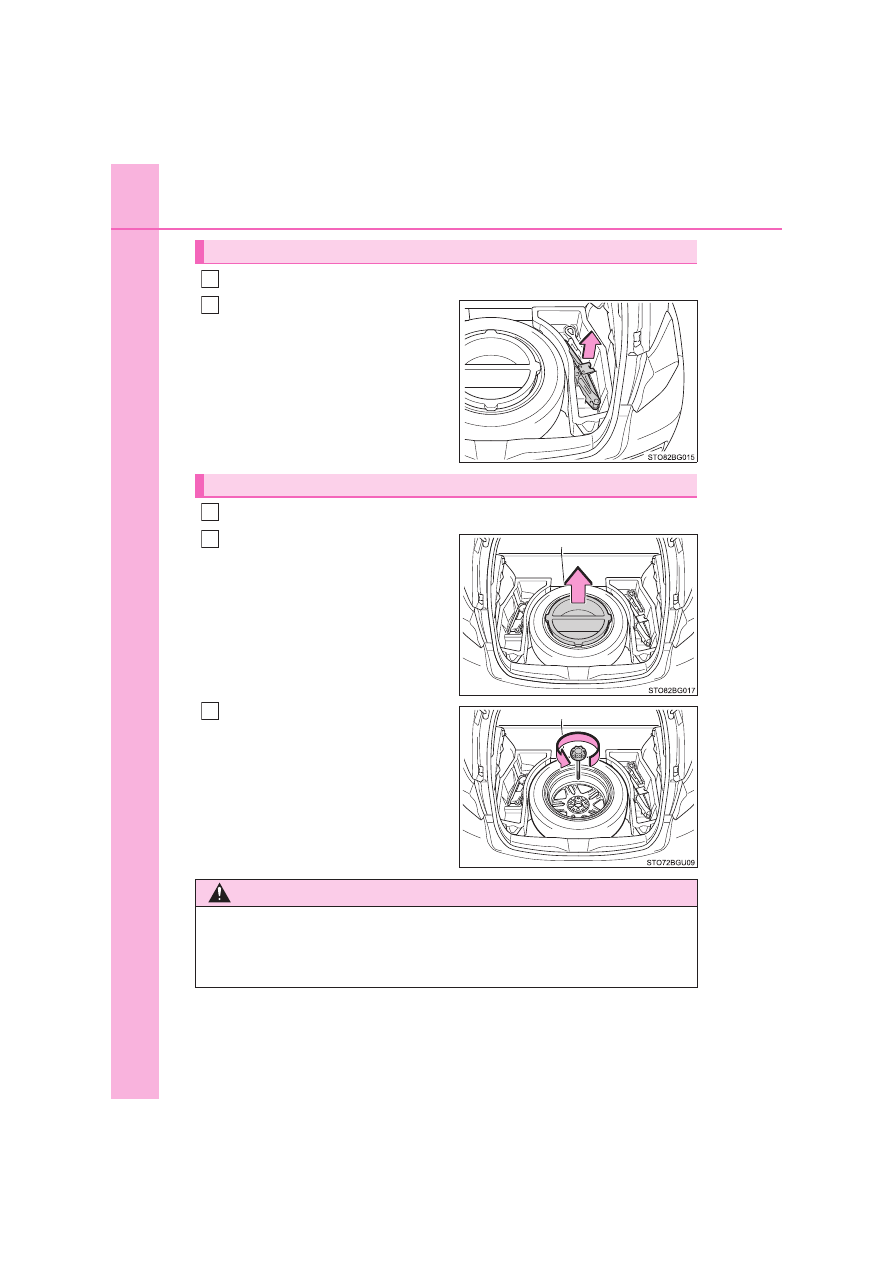

Taking out the jack

1
2

Taking out the spare tire

1
2

WARNING

■

When storing the spare tire

Be careful not to get fingers or other body parts caught between the spare
tire and the body of the vehicle.

733

7-2. Steps to take in an emergency

hen
trou

e ari

Chock the tires.

Slightly loosen the wheel nuts
(one turn).

Turn the tire jack portion

hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.

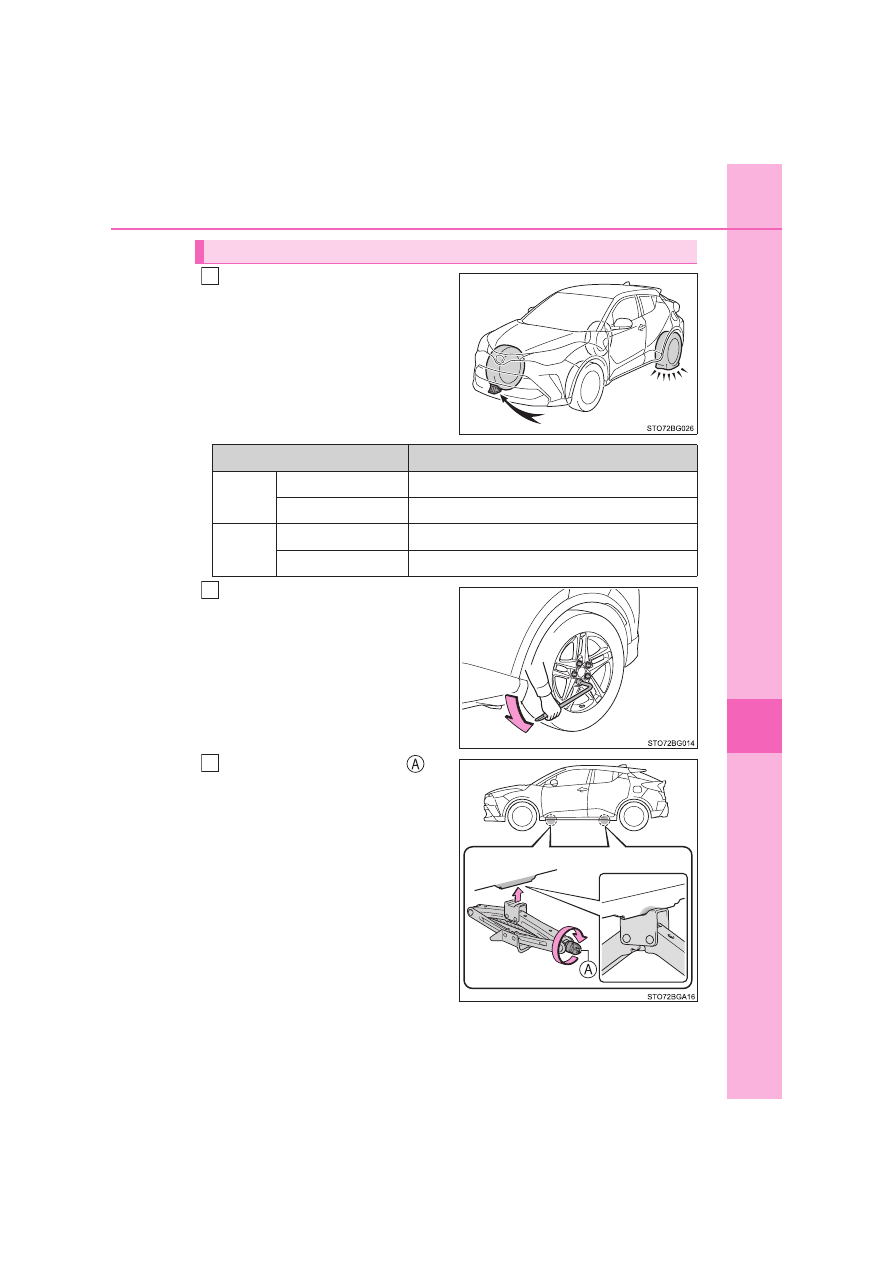

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

734

7-2. Steps to take in an emergency

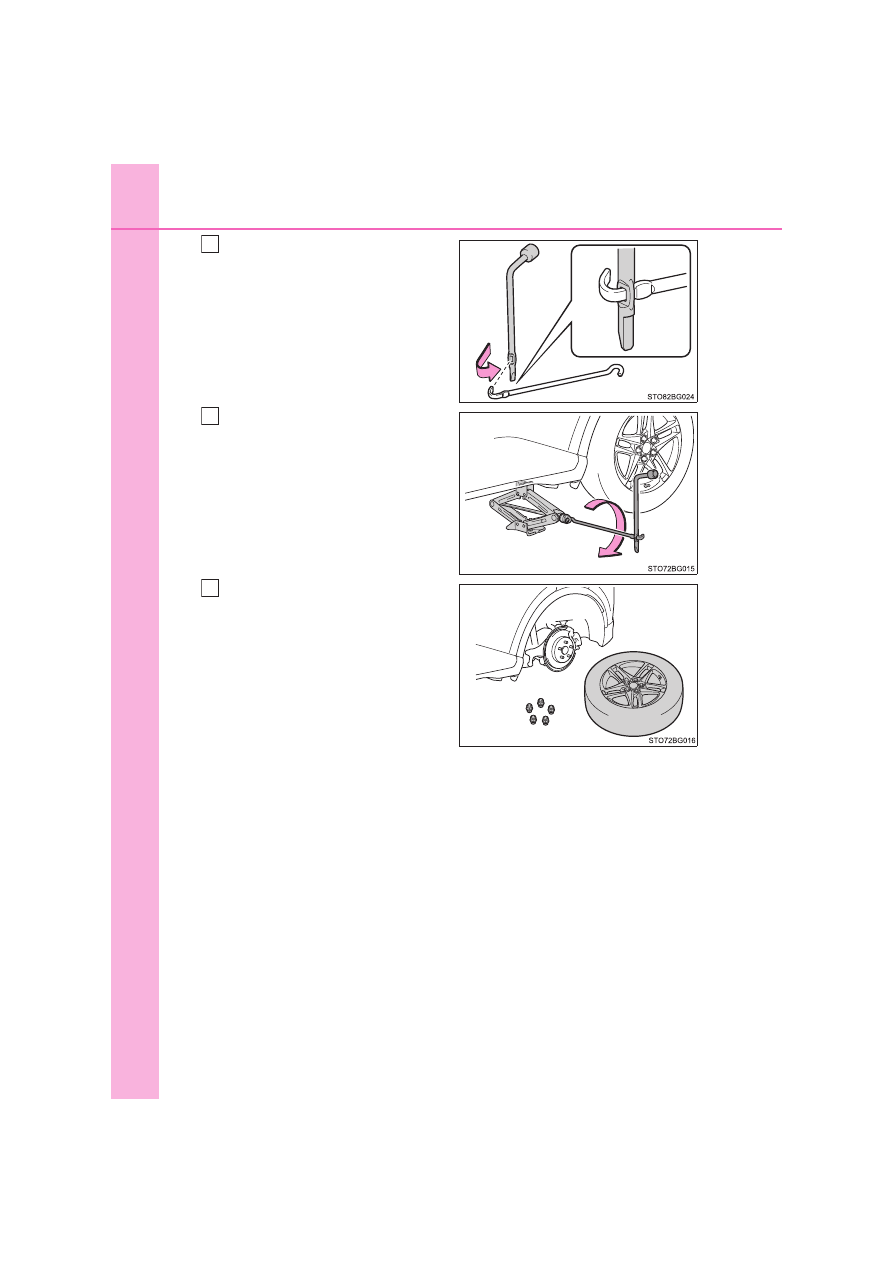

Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the
ground,  place  the  tire  so  that  the
wheel  design  faces  up  to  avoid
scratching the wheel surface.

735

7-2. Steps to take in an emergency

hen
trou

e ari

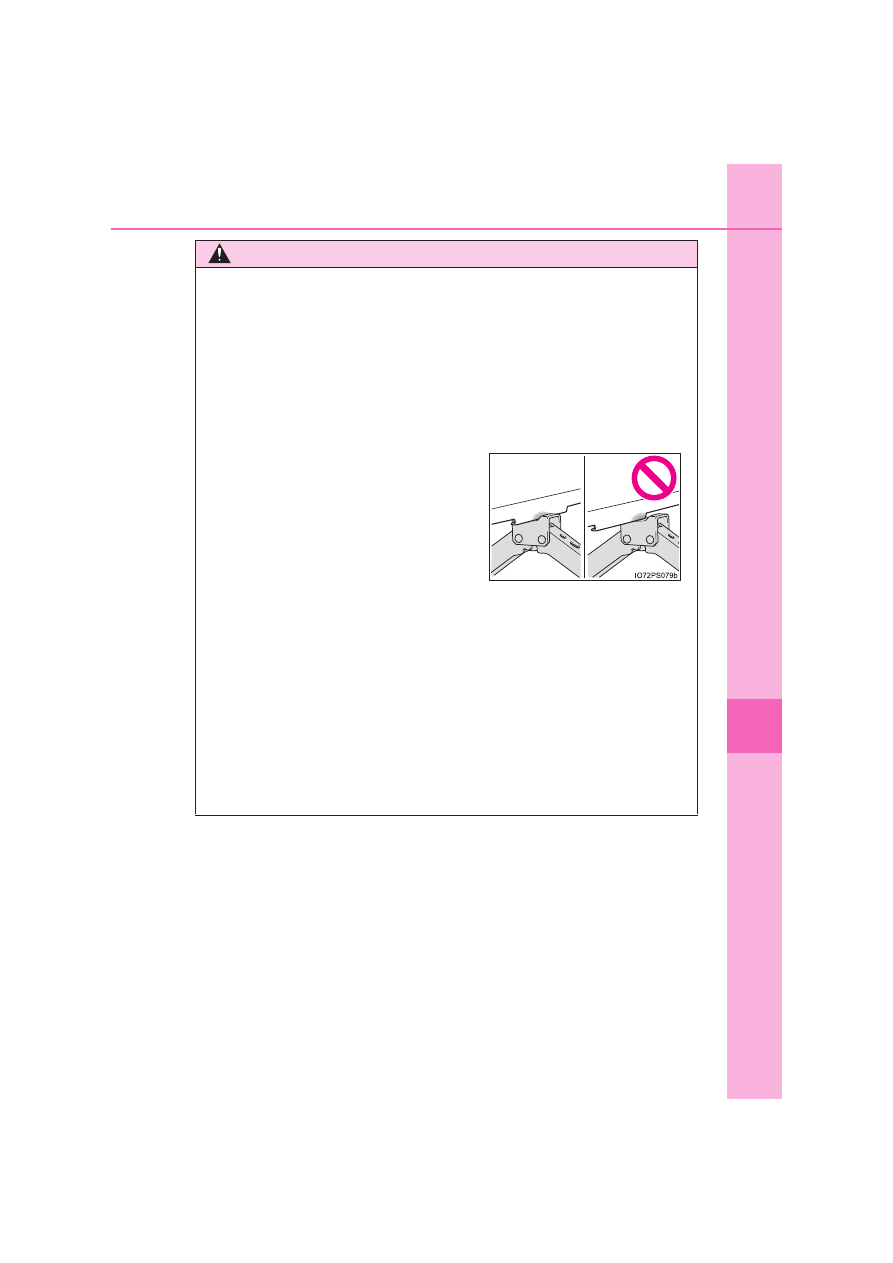

WARNING

■

Replacing a flat tire

●

Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immediately

after the vehicle has been driven.
After the vehicle has been driven, the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc., may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m

(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off the

wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifically

designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or

bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

• When installing the wheel nuts, be sure to install the wheel nuts with the

tapered ends facing inward.

Content .. 37 38 39 40 ..
