Brush the surfaces using a soft brush.
Do not brush hard as doing so may cause damage.

●

Wipe the surfaces clean with a soft cloth that has been dampened
in cold or lukewarm water and squeezed out.

●

Allow the artificial leather (Alcantara

) to dry in a shaded and ven-

tilated area.

: “Alcantara

” is a registered trademark of Alcantara S.p.A.

■

Caring for leather areas

Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.

■

Shampooing the carpets

There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.

■

Seat belts

Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.

Cleaning the artificial leather (Alcantara

) areas (if equipped)

586

6-1. Maintenance and care

WARNING

■

To prevent vehicle damage or vehicle fire

●

Do not splash or spill liquid in the vehicle, such as on the floor, in the
hybrid battery (traction battery) air intake vent, and in the luggage com-
partment.
Doing so may cause the hybrid battery (traction battery), electrical compo-
nents, etc., to malfunction or catch fire.

●

Do not get any of the SRS components or wiring in the vehicle interior wet.
(



P. 42)

An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.

●

Vehicles with nanoe™: When using combustible sprays (such as deter-
gents, deodorizers, lubricants) within the vehicle, do not get any one elec-
trical parts. Doing so may lead to damage or vehicle fires.

■

Cleaning the interior (especially instrument panel)

Do not use a polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,

alkaline or acidic solutions, dye, and bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

●

Do not use a polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.

587

6-1. Maintenance and care

nan
ce
and
ca
re

NOTICE

■

Preventing damage to leather surfaces

Observe the following precautions to avoid damage to and deterioration of
leather surfaces:

●

Remove any dust or dirt from leather surfaces immediately.

●

Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.

●

Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.

■

Water on the floor

Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

■

When cleaning the inside of the windshield (vehicles with Toyota
Safety Sense)

Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
(



P. 355)

■

Cleaning the inside of the rear window

●

Do not use a glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.

●

Be careful not to scratch or damage the heater wires.

588

6-2. Maintenance

Maintenance requirements

Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.

For full details of your maintenance schedule, refer to the “Toyota Service
Booklet” or “Toyota Warranty Booklet”.

What about do-it-yourself maintenance?

Many  maintenance  items  are  easy  to  do  yourself  if  you  have  a  little
mechanical ability and a few basic automotive tools.
Note,  however,  that  some  maintenance  tasks  require  special  tools  and
skills. These are best performed by qualified technicians. Even if you’re an
experienced  do-it-yourself  mechanic,  we  recommend  that  repairs  and
maintenance  be  conducted  by  any  authorized  Toyota  retailer  or  Toyota
authorized repairer, or any reliable repairer. Any authorized Toyota retailers
or repairer will keep a record of maintenance, which could be useful should
you ever require Warranty Service. Should you choose to select a qualified
and equipped professional other than an authorized Toyota repairer to ser-
vice  or  maintain  your  vehicle,  we  recommend  that  you  request  that  a
record of maintenance be kept.

To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. Toyota recommends the follow-
ing maintenance:

Scheduled maintenance

Do-it-yourself maintenance

589

6-2. Maintenance

nan
ce
and
ca
re

■

Where to go for maintenance service?

In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota retailers or repairers or other duly
qualified  and  equipped  professionals.  For  repairs  and  services  covered  by
your warranty, please visit an authorized Toyota retailers or repairer, who will
use  genuine  Toyota  parts  in  repairing  any  difficulties  you  may  encounter.
There  can  also  be  advantages  in  utilizing  authorized  Toyota  retailers  or
repairers  for  non-warranty  repairs  and  services,  as  members  of  the Toyota
network  will  be  able  to  expertly  assist  you  with  any  difficulties  you  may
encounter.
Your authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.

■

Does your vehicle need repairs?

Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:

●

Engine misses, stumbling or pinging

●

Appreciable loss of power

●

Strange engine noises

●

A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)

●

Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)

●

Flat-looking tires, excessive tire squeal when cornering, uneven tire wear

●

Vehicle pulls to one side when driven straight on a level road

●

Strange noises related to suspension movement

●

Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking

●

Engine coolant temperature continually higher than normal (



P. 684, 755)

If you notice any of these clues, take your vehicle to any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as soon as pos-
sible. Your vehicle may need adjustment or repair.

590

6-2. Maintenance

WARNING

■

If your vehicle is not properly maintained

Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.

■

Handling of the 12-volt battery

12-volt battery posts, terminals and related accessories contain lead and
lead compounds which are known to cause brain damage. Wash your
hands after handling. (



P. 604)

591

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.

Items

Parts and tools

12-volt battery
condition
(



P. 604)



2ZR-FXE engine

• Warm water

• Baking soda

• Grease

• Conventional wrench (for terminal clamp bolts)



M20A-FXS engine

• Grease
• Conventional wrench (for terminal clamp bolts)

Engine/power
control unit
coolant level
(



P. 602)

• “Toyota Super Long Life Coolant” or a similar high

quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.

• Funnel (used only for adding coolant)

Engine oil level
(



P. 599)

• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

Fuses (



P. 646)

• Fuse with same amperage rating as original

Hybrid

battery

(traction battery)
air intake vent
(



P. 638)

• Vacuum cleaner, etc.

• Phillips screwdriver

Light bulbs
(



P. 651)

• Bulb with same number and wattage rating as origi-

nal

• Phillips-head screwdriver
• Flathead screwdriver

• Wrench

Radiator and
condenser
(



P. 604)



592

6-3. Do-it-yourself maintenance

Tire inflation
pressure
(



P. 630)

• Tire pressure gauge

• Compressed air source

Washer fluid
(



P. 609)

• Water or washer fluid containing antifreeze (for win-

ter use)

• Funnel (used only for adding water or washer fluid)

WARNING

The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

■

When working on the engine compartment

●

Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-infor-
mation display and the “READY” indicator are both off.

●

Keep hands, clothing and tools away from the moving fan.

●

Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc., right after driving as they may be hot. Oil and other fluids
may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel or the 12-volt
battery. Fuel and 12-volt battery fumes are flammable.

●

Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.

●

Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately. If you still experience discom-
fort, consult a doctor.

■

When working near the electric cooling fans or radiator grille

Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. (



P. 604)

■

Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc.,
from getting in your eyes.

Items

Parts and tools

593

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

■

If the brake fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

594

6-3. Do-it-yourself maintenance

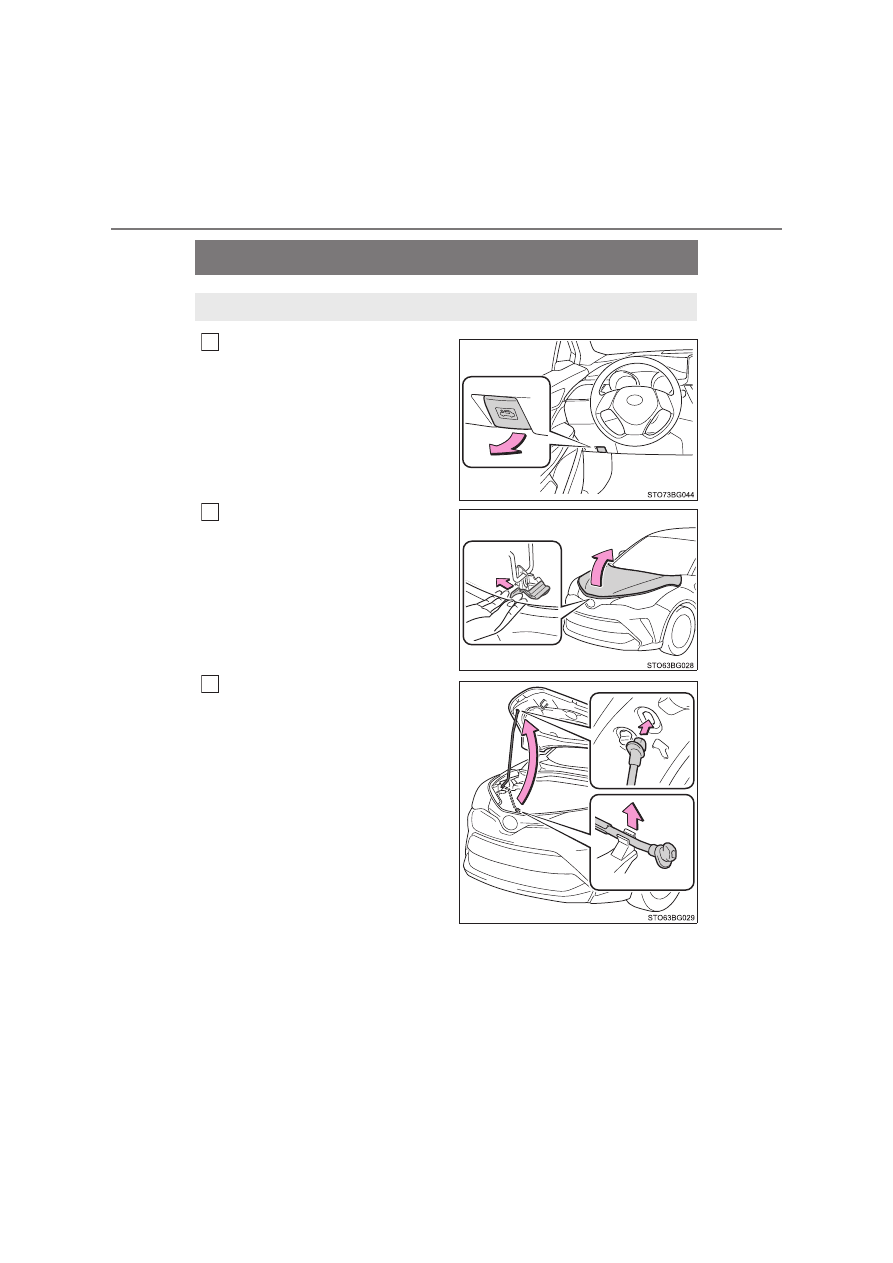

Hood

Pull the hood lock release lever.

The hood will pop up slightly.

Pull the auxiliary catch lever to
side direction and lift the hood.

Hold the hood open by inserting
the support rod into the slot.

Release the lock from the inside of the vehicle to open the hood.

595

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

WARNING

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

■

After installing the support rod into the slot

Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.

NOTICE

■

When closing the hood

Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

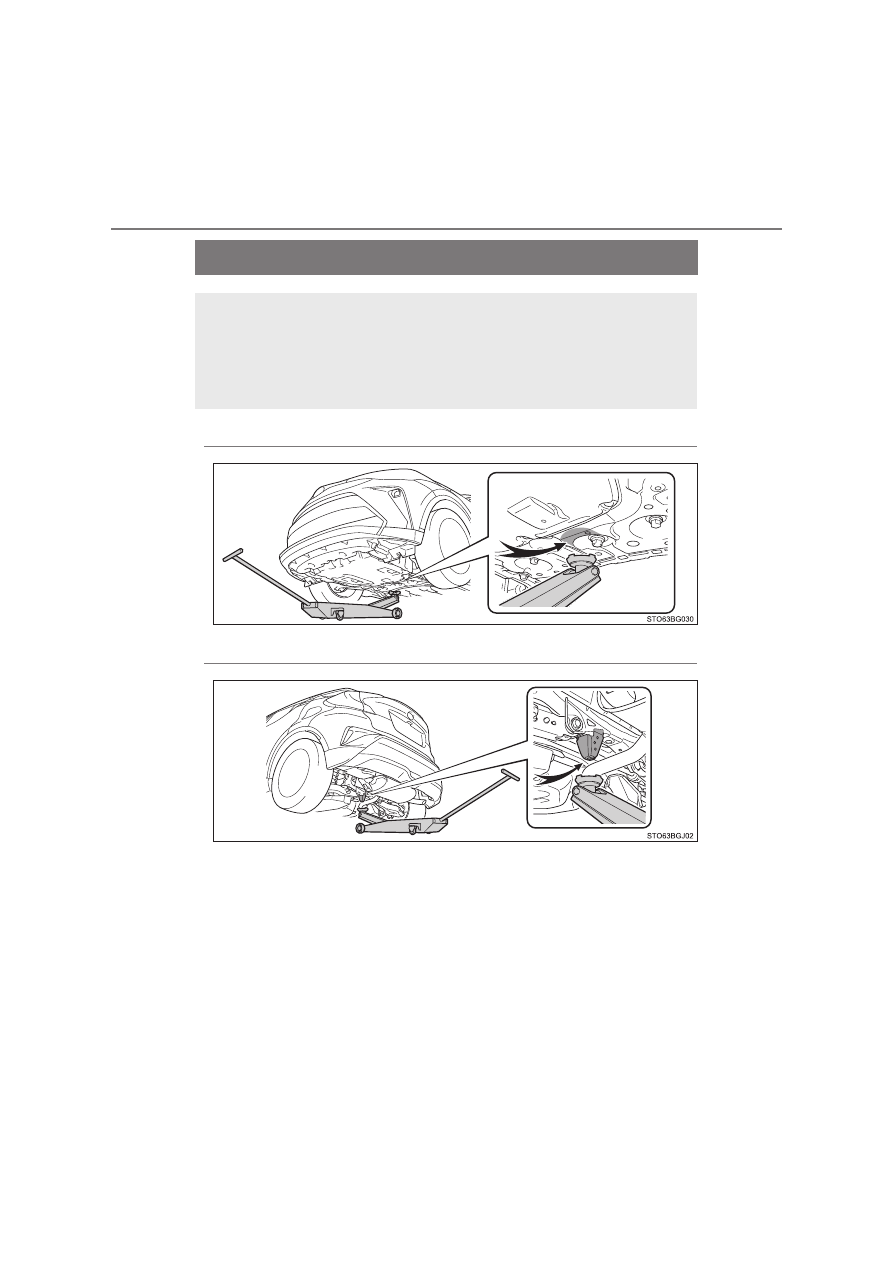

597

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

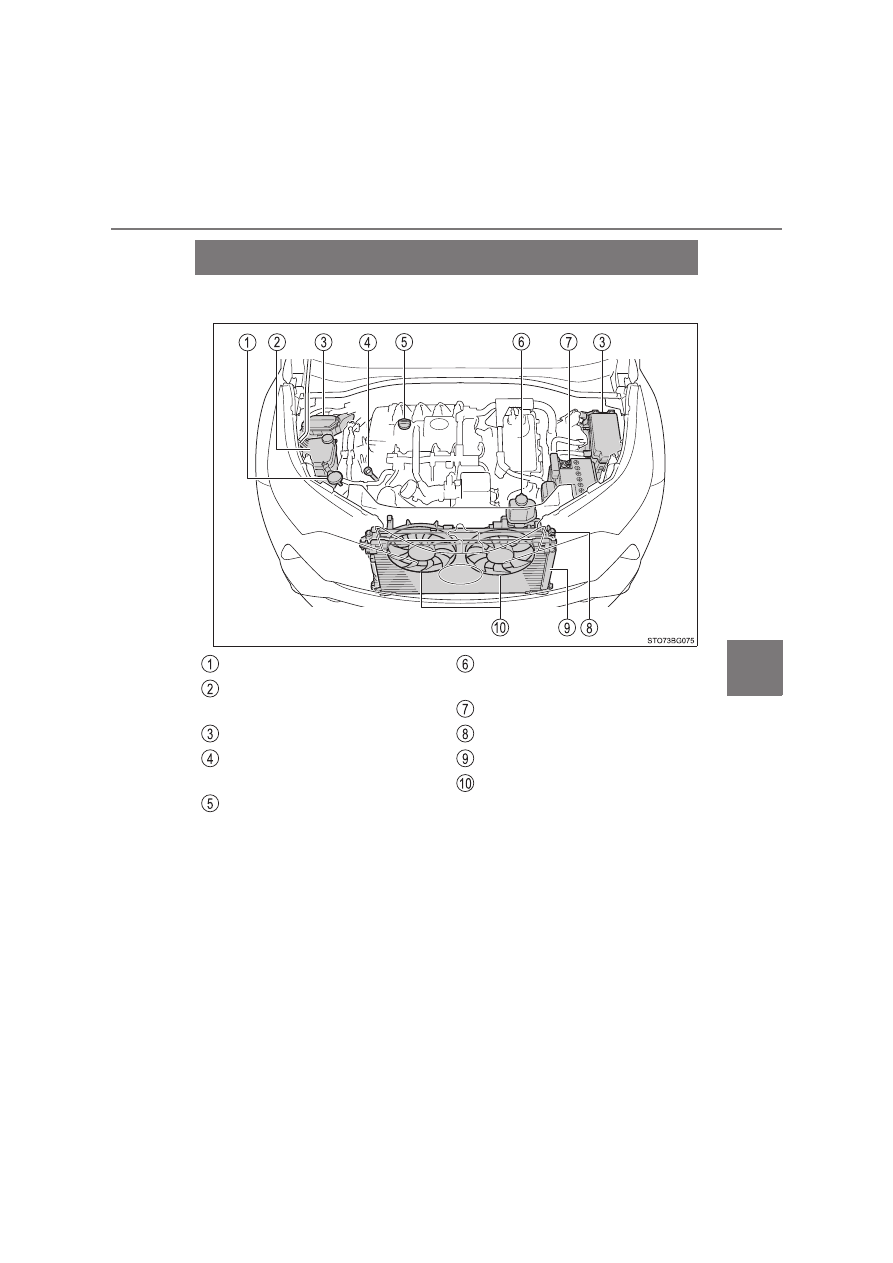

Engine compartment



2ZR-FXE engine

Washer fluid tank

(



P. 609)

Engine coolant reservoir

(



P. 602)

Fuse boxes

(



P. 646)

Engine oil level dipstick

(



P. 599)

Engine oil filler cap (



P. 600)

Power control unit coolant
reservoir

(



P. 602)

12-volt battery

(



P. 604)

Radiator

(



P. 604)

Condenser

(



P. 604)

Electric cooling fans

598

6-3. Do-it-yourself maintenance



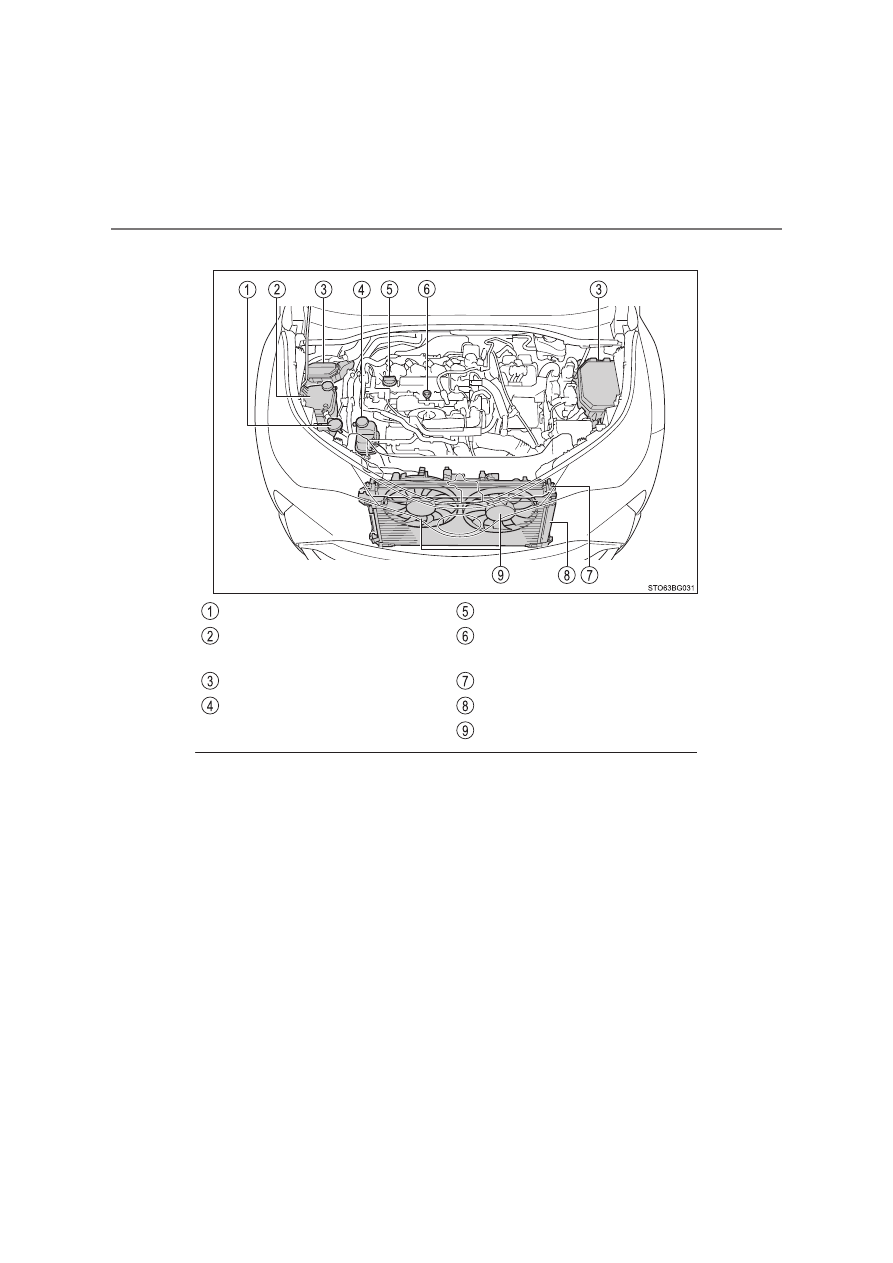

M20A-FXS engine

■

12-volt battery (M20A-FXS engine)



P. 610

Washer fluid tank

(



P. 609)

Engine coolant reservoir

(



P. 602)

Fuse boxes

(



P. 646)

Power control unit coolant res-
ervoir

(



P. 602)

Engine oil filler cap (



P. 600)

Engine oil level dipstick

(



P. 599)

Radiator

(



P. 604)

Condenser

(



P. 604)

Electric cooling fans

599

6-3. Do-it-yourself maintenance

nan
ce
and
ca
re

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

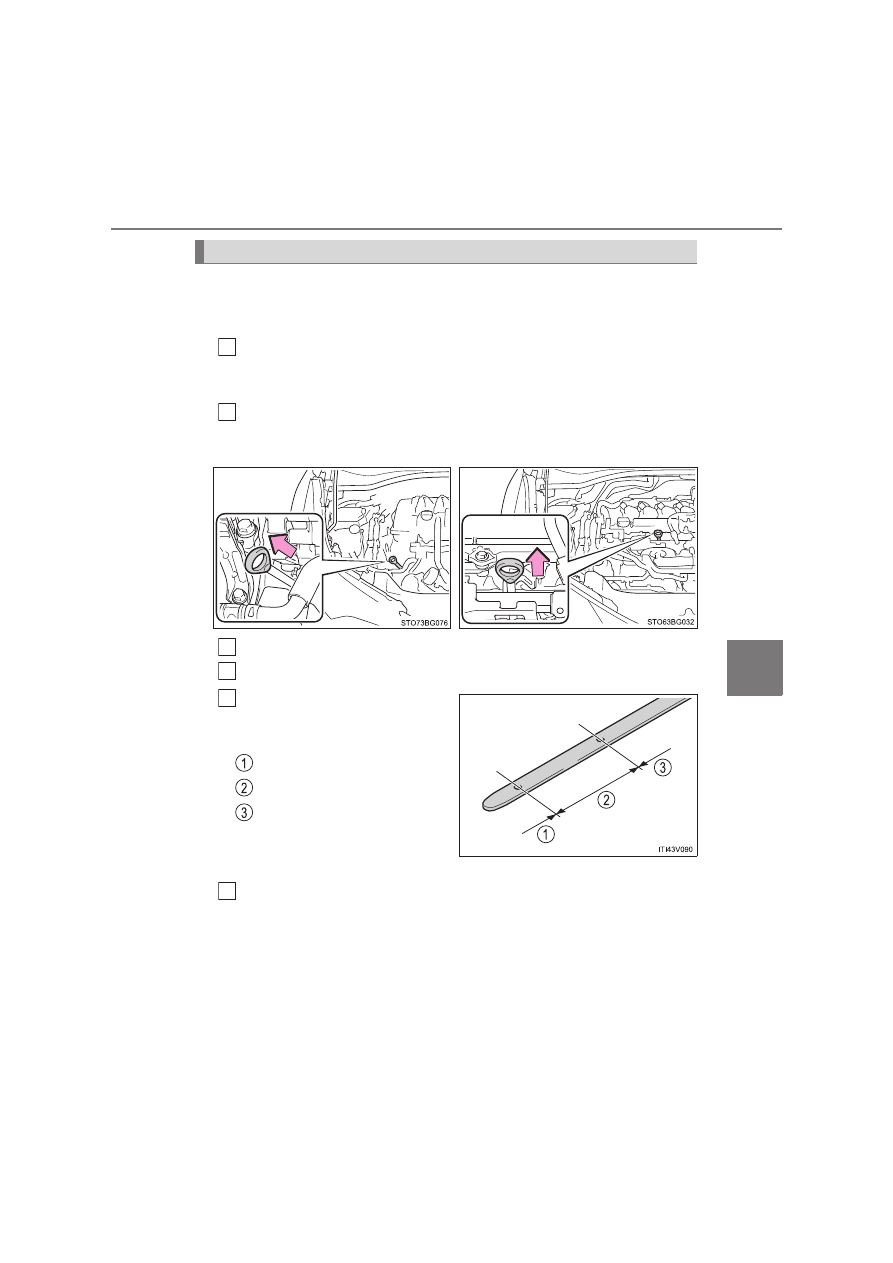

Checking the engine oil

Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.

Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low
Normal
Excessive

The shape of the dipstick may
differ depending on the type of
vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil



2ZR-FXE engine



M20A-FXS engine

3
4
5

600

6-3. Do-it-yourself maintenance

■

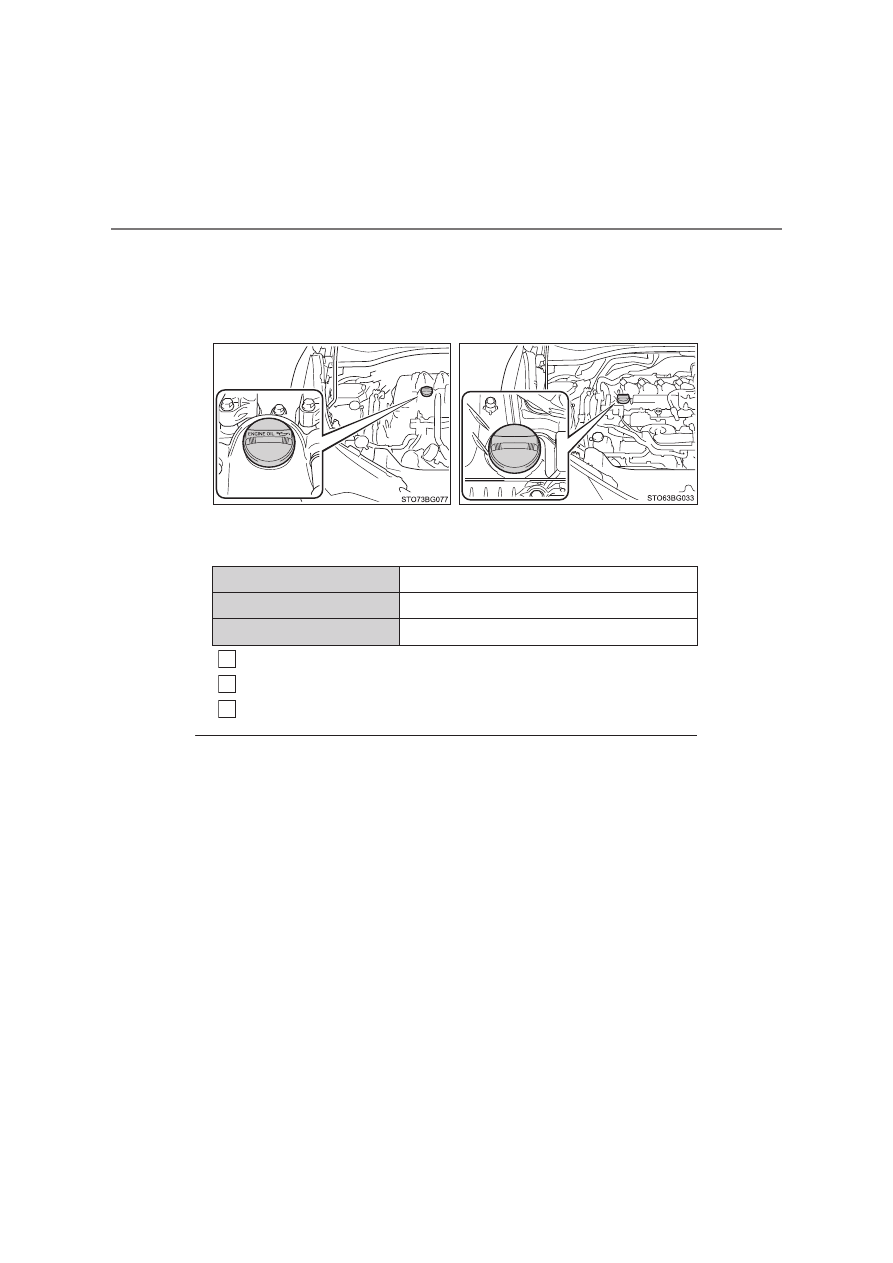

Adding engine oil

If the oil level is below or near the low level mark, add engine oil of the
same type as that already in the engine.

Make sure to check the oil type and prepare the items needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic



2ZR-FXE engine



M20A-FXS engine

Engine oil selection



P. 768

Oil quantity (Low



Full)

1.5 L (1.6 qt., 1.3 lmp.qt.)

Items

Clean funnel

1
2
3

Toyota C-HR (2023 year). Manual in english - page 31
