6-3. Do-it-yourself maintenance

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

417

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.409)

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively tight-

ened, leading to bolt or disc wheel

damage. In addition, the oil or

grease can cause the wheel nuts

to loosen and the wheel may fall

off, causing an accident and

resulting in death or serious injury.

Remove any oil or grease from

the wheel bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

418

6-3. Do-it-yourself maintenance



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

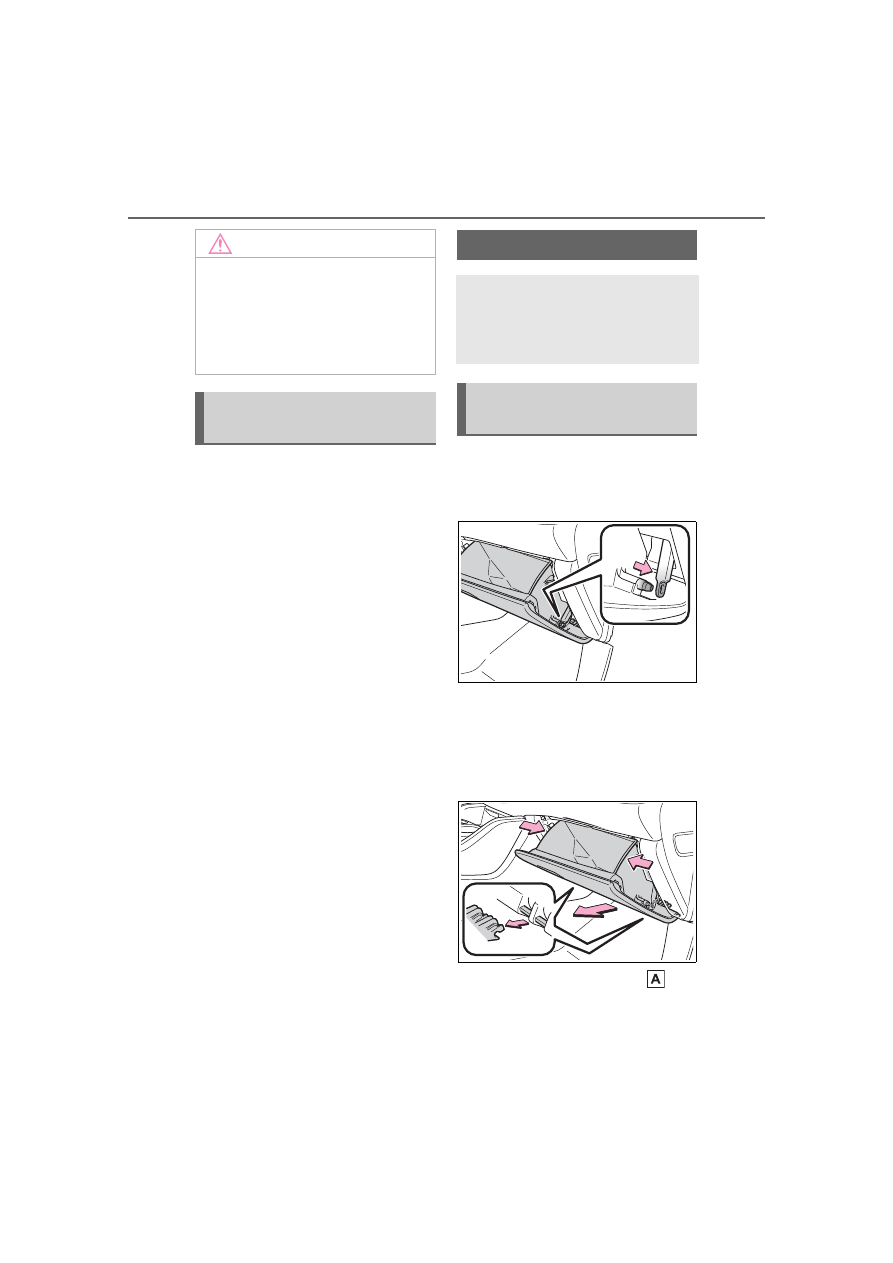

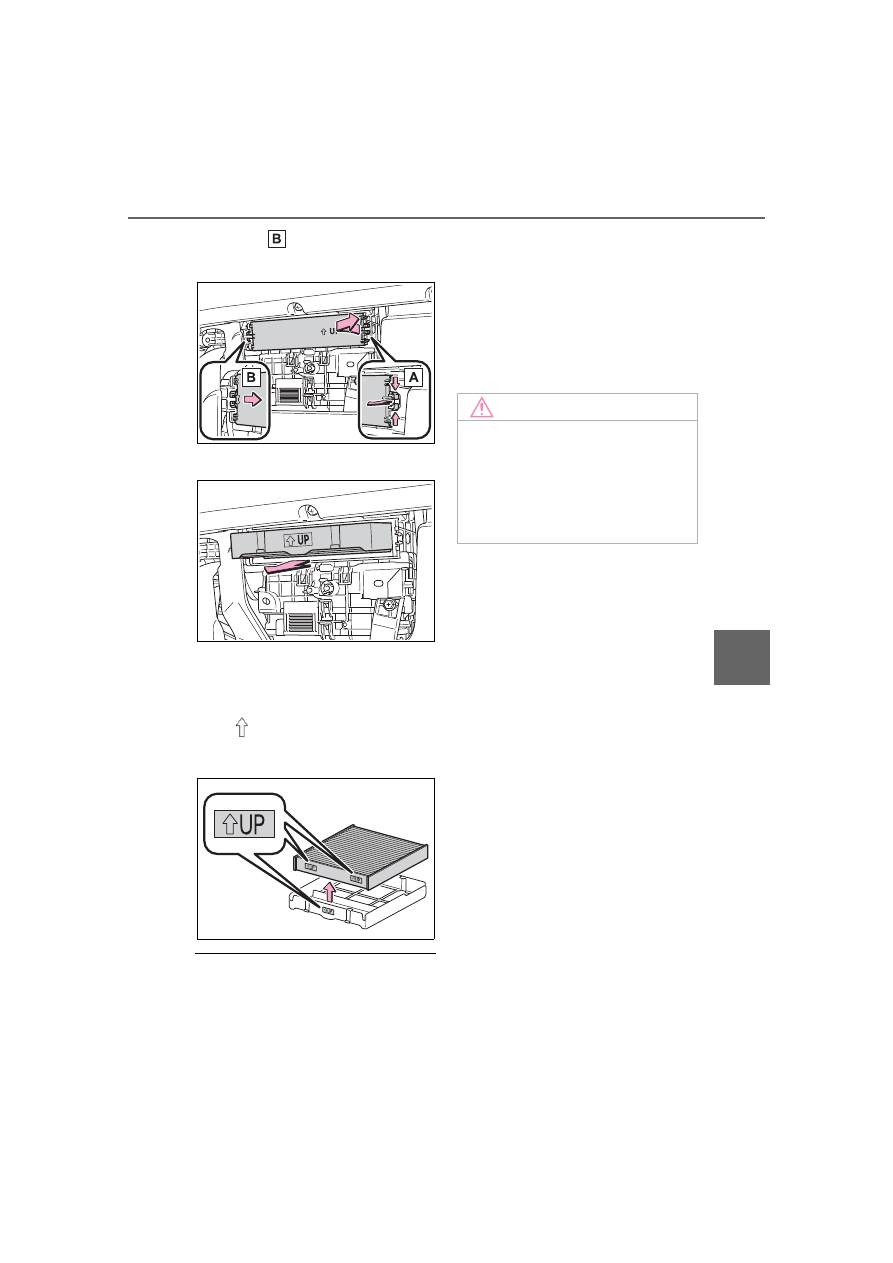

1

Turn the power switch off.

2

Open the glove box. Slide off
the damper.

3

Push in the glove box on the
vehicle’s outer side to discon-
nect the claws. Then pull out
the glove box and disconnect
the lower claws.

4

Unlock the filter cover ( ),
pull the filter cover out of the

NOTICE

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

419

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

claws ( ), and remove the
filter cover.

5

Remove the filter case.

6

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be

pointing up.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance Guide”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

420

6-3. Do-it-yourself maintenance

■

Scheduled maintenance of the

air intake vent is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vent may need to be cleaned

more regularly.

For details, refer to “Scheduled

Maintenance Guide”.

■

Cleaning the air intake vent

Improper handling of the air intake

vent cover and filter may result in

damage to them. If you have any

concerns about cleaning the filter,

contact your Toyota dealer.

1

Turn the power switch off.

2

Remove the air intake vent
cover.

Pull the cover as shown in the illus-

tration to disengage the 6 claws,

starting from the claw in the upper

right corner and pull the cover

toward the front of the vehicle to

remove it.

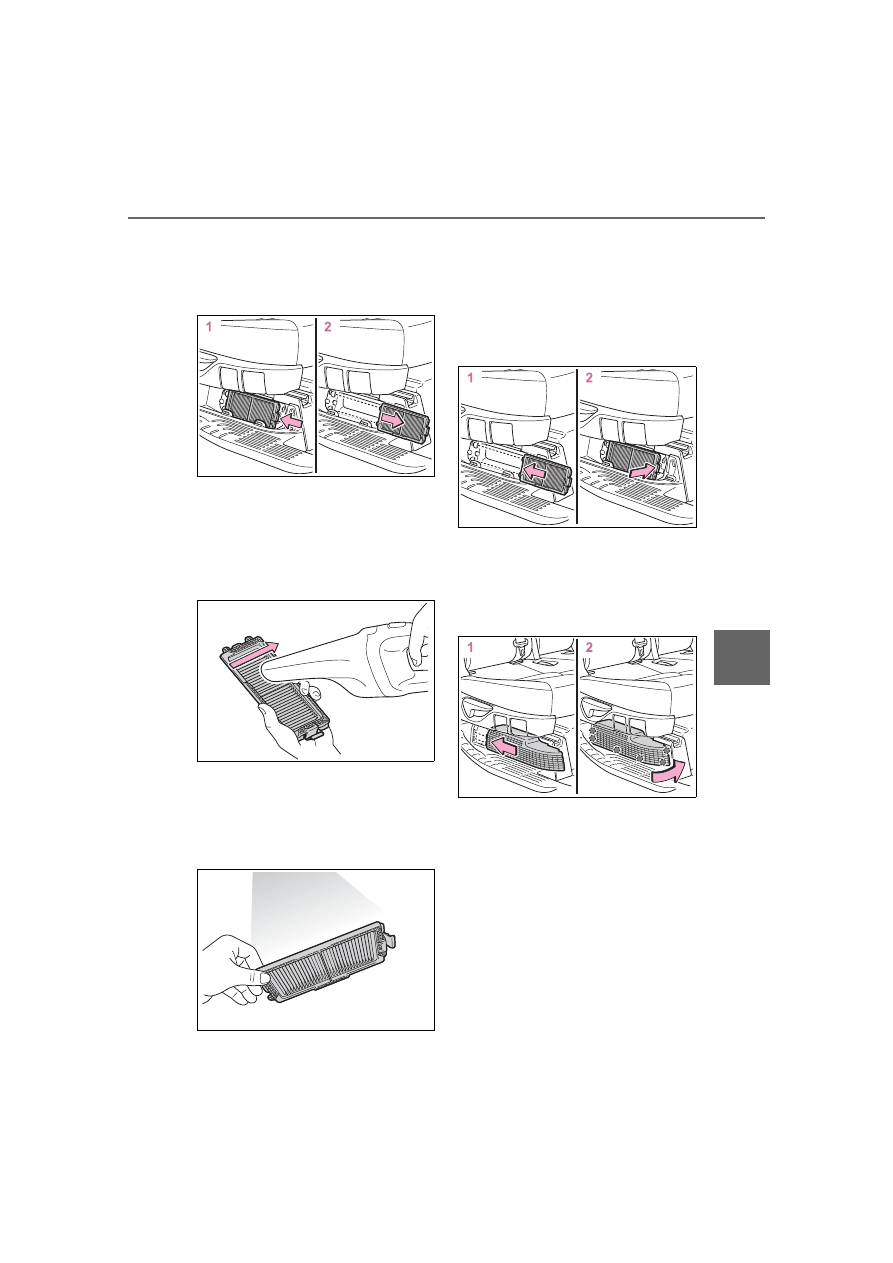

Cleaning the hybrid

battery (traction bat-

tery) air intake vents

To prevent the fuel economy
from being affected, visually
inspect the hybrid battery
(traction battery) air intake
vents periodically for clogs.
If it is dusty or clogged or if
“Maintenance Required for
Traction Battery Cooling
Parts See Owner’s Manual”
is shown on the multi-infor-
mation display, clean the air
intake vent using the follow-
ing procedures:

NOTICE

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

displayed on the multi-infor-

mation display

Clean the air intake vent immedi-

ately.

If the vehicle is continuously

driven with the warning message

displayed, it may cause a mal-

function or output restriction of the

hybrid battery (traction battery).

Cleaning procedure

421

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

3

Remove the air intake vent
filter.

Disengage the claw to remove the

filter from the rear scuff plate.

4

Remove the dust and sand
from the filter.

Using a vacuum cleaner, etc.,

absorb dust and sand from the filter

by profiling the nozzle lightly along

the fold.

5

Hold the filter to the light and
check if it is not clogged.

If the dust or sand cannot be

removed completely, contact your

Toyota dealer.

6

Reinstall the filter to the
cover.

Engage the 3 claw to install the fil-

ter.
Make sure that the filter is not

crooked or deformed when install-

ing it.

7

Install the air intake vent
cover.

Insert the tab of the cover as shown

in the illustration and push the

cover to engage the 6 claws.



If “Maintenance Required for
Traction Battery Cooling Parts
See Owner’s Manual” is dis-
played on the multi-informa-
tion display

8

Start the hybrid system and
check that the warning mes-
sage is no longer displayed.

It may be necessary to drive the

vehicle for approximately 20 min-

utes before the warning message is

displayed again then disappears.

422

6-3. Do-it-yourself maintenance

If the warning message does not

disappear after some time, have

the vehicle inspected by your Toy-

ota dealer.

■

If the dust or sand on the filter

cannot be removed

It is recommended to use a vacuum

cleaner with plastic brushes.

WARNING

■

When cleaning the air intake

vent

●

Do not use water or other liq-

uids to clean the air intake vent.

If water is applied to the hybrid

battery (traction battery) or

other components, a malfunc-

tion or fire may occur.

●

Before cleaning the air intake

vents, make sure to turn the

power switch off to stop the

hybrid system.

●

Do not put a hand or leg in the

air intake vent. If it is caught in a

cooling fan, or if it touches a

high voltage part that results in

an electric shock, death or seri-

ous injuries may result.

NOTICE

■

When cleaning the air intake

vent

Do not use an air blow gun, etc.

Dust may be blown out, possibly

causing a malfunction or output

restriction of the hybrid battery

(traction battery).

■

To prevent damage to the

vehicle

Observe the following precau-

tions.

●

Do not allow liquid or foreign

matter to enter the air intake

vent.

●

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

■

To prevent damage to the fil-

ter

Observe the following precau-

tions.

If the filter is damaged, have it

replaced with a new filter by your

Toyota dealer.

●

Do not use an air blow gun, etc.

●

Do not press hard a vacuum

cleaner, etc. against the filter.

●

Do not use a hard brush, such

as a metal brush.

●

Do not break the fold of the fil-

ter.

423

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to the local laws.

1

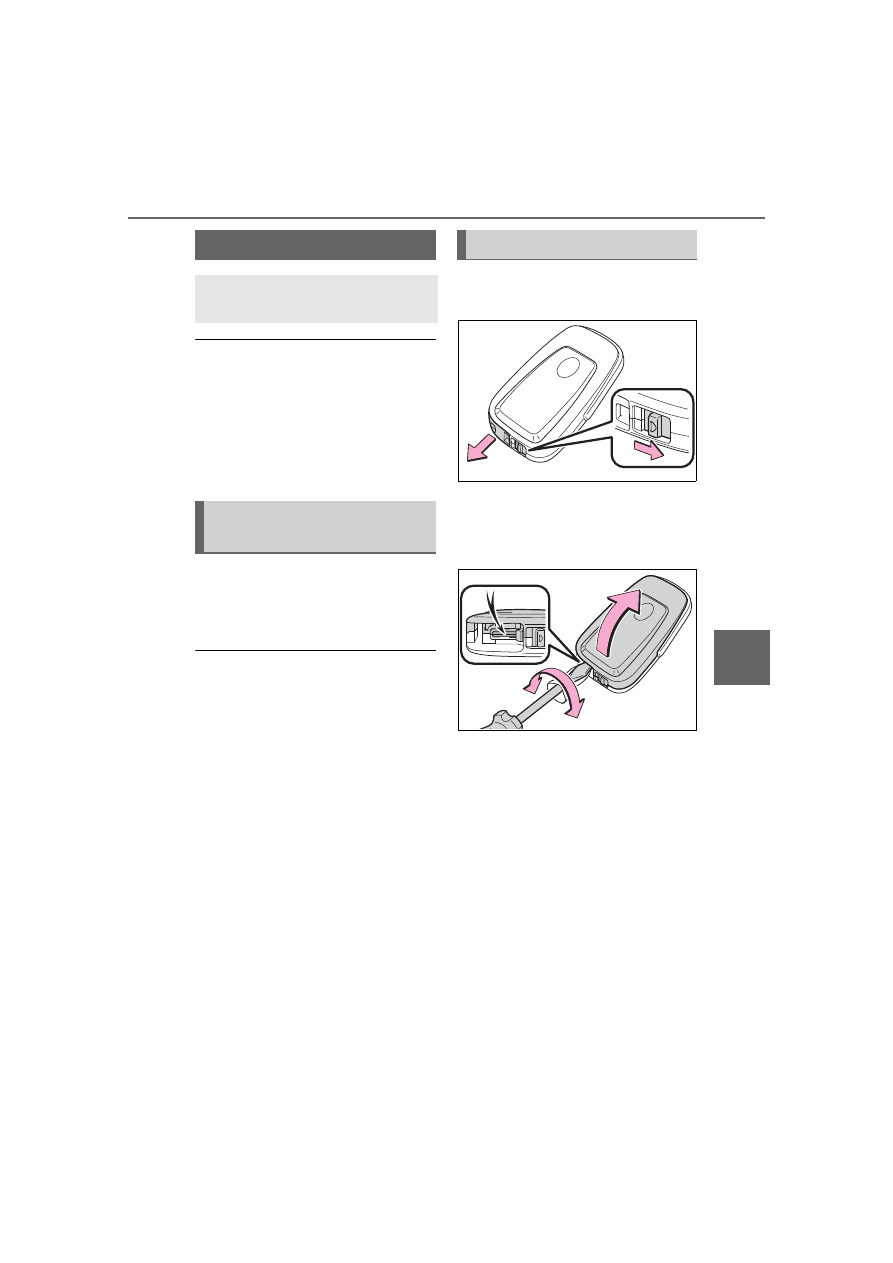

Release the lock and remove
the mechanical key.

2

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

3

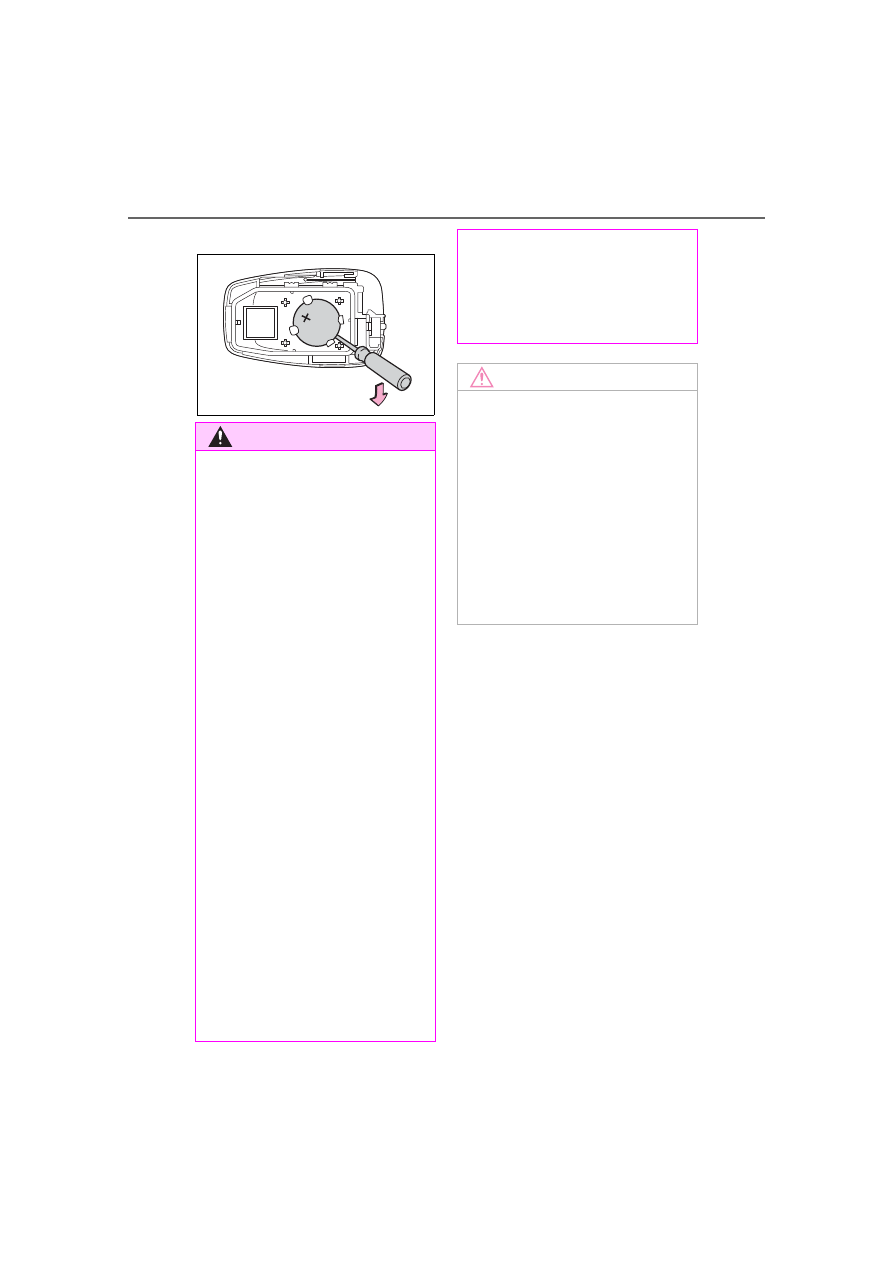

Remove the depleted battery.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.

Insert a new battery with the “+” ter-

Electronic key battery

Replace the battery with a
new one if it is depleted.

You will need the follow-
ing items:

Replacing the battery

424

6-3. Do-it-yourself maintenance

minal facing up.

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

425

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

1

Turn the power switch off.

2

Open the fuse box cover.



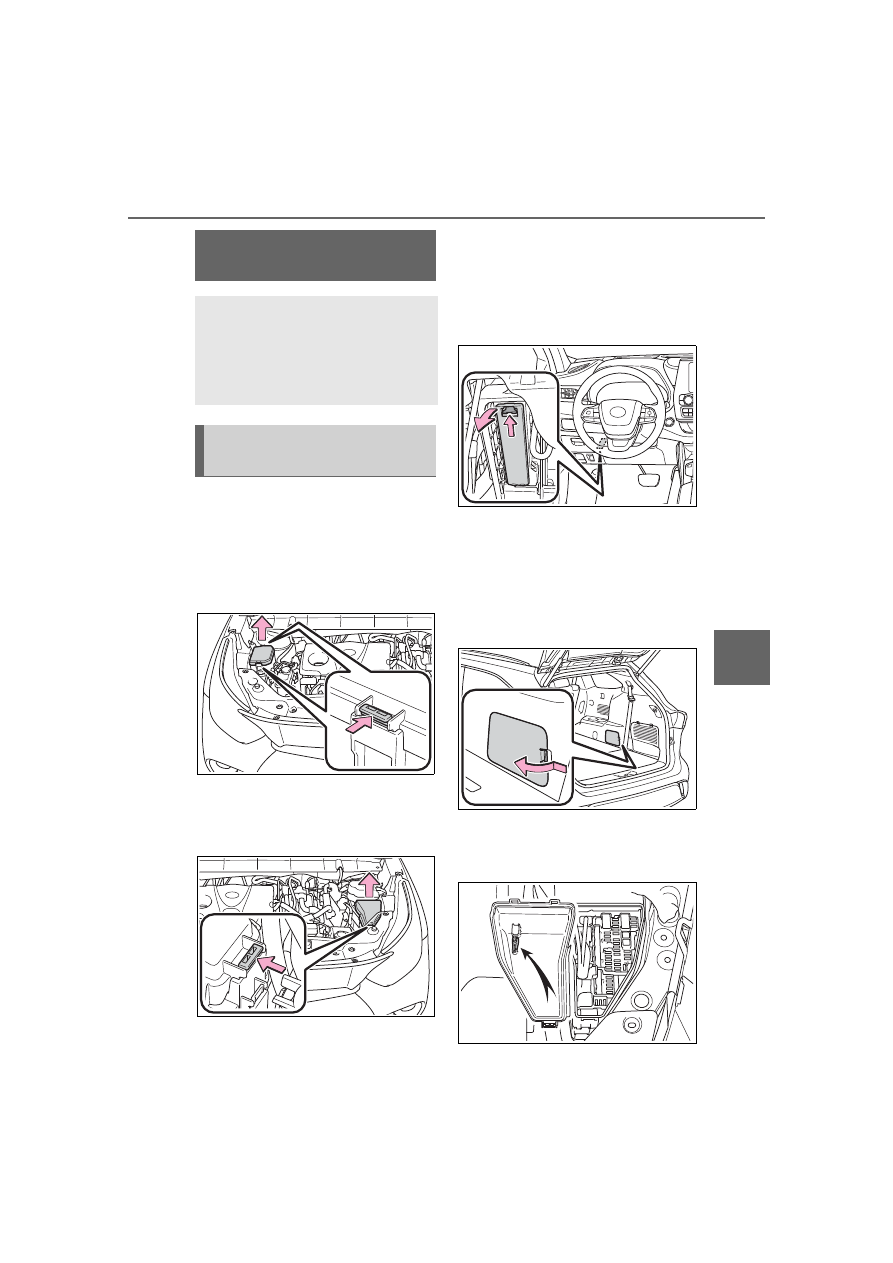

Engine compartment: type A
fuse box (if equipped)

Push the tab in and lift the lid off.



Engine compartment: type B
fuse box

Push the tab in and lift the lid off.



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.



Right side luggage compart-
ment

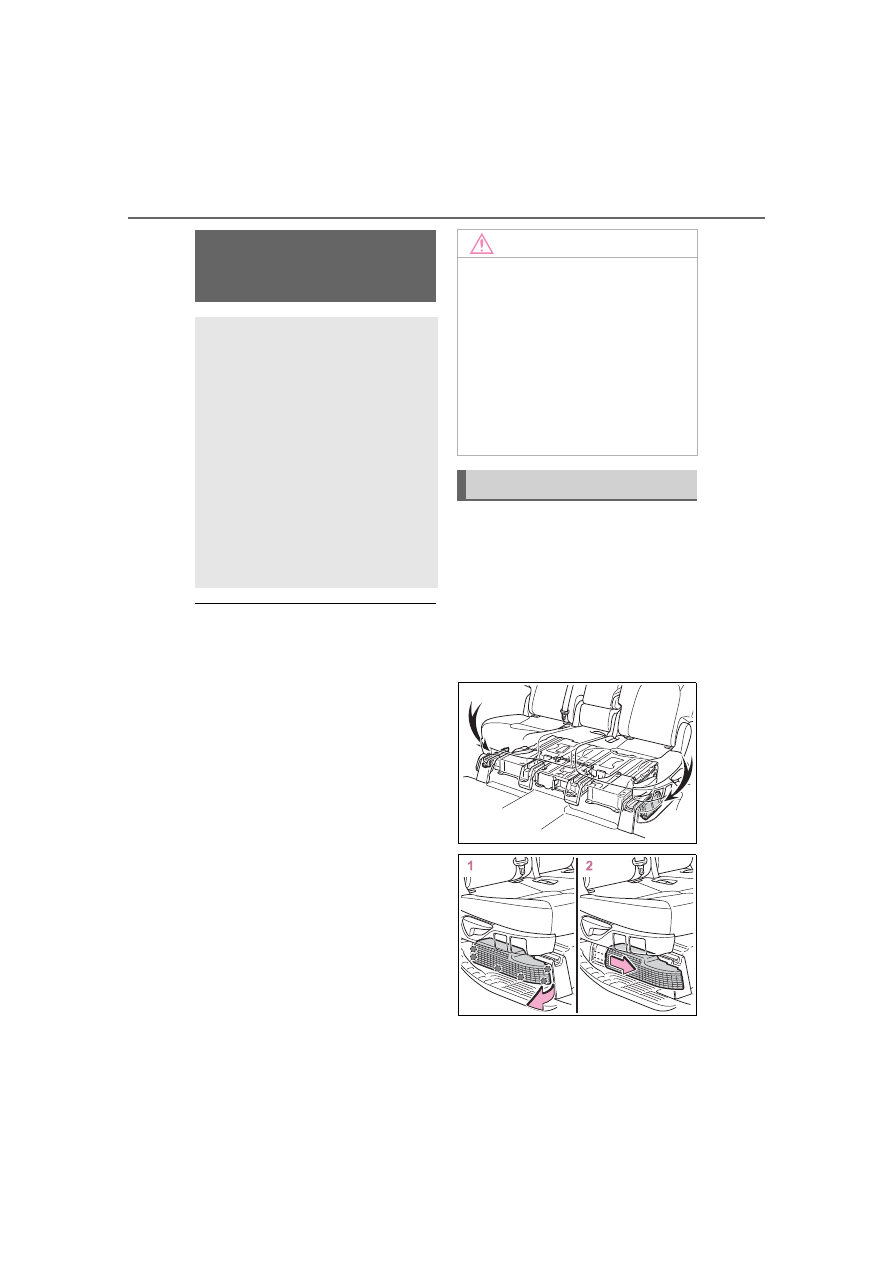

Folding down the third seats.
(



P.152)

Disengage the claw and open the
cover.

3

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

426

6-3. Do-it-yourself maintenance

4

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



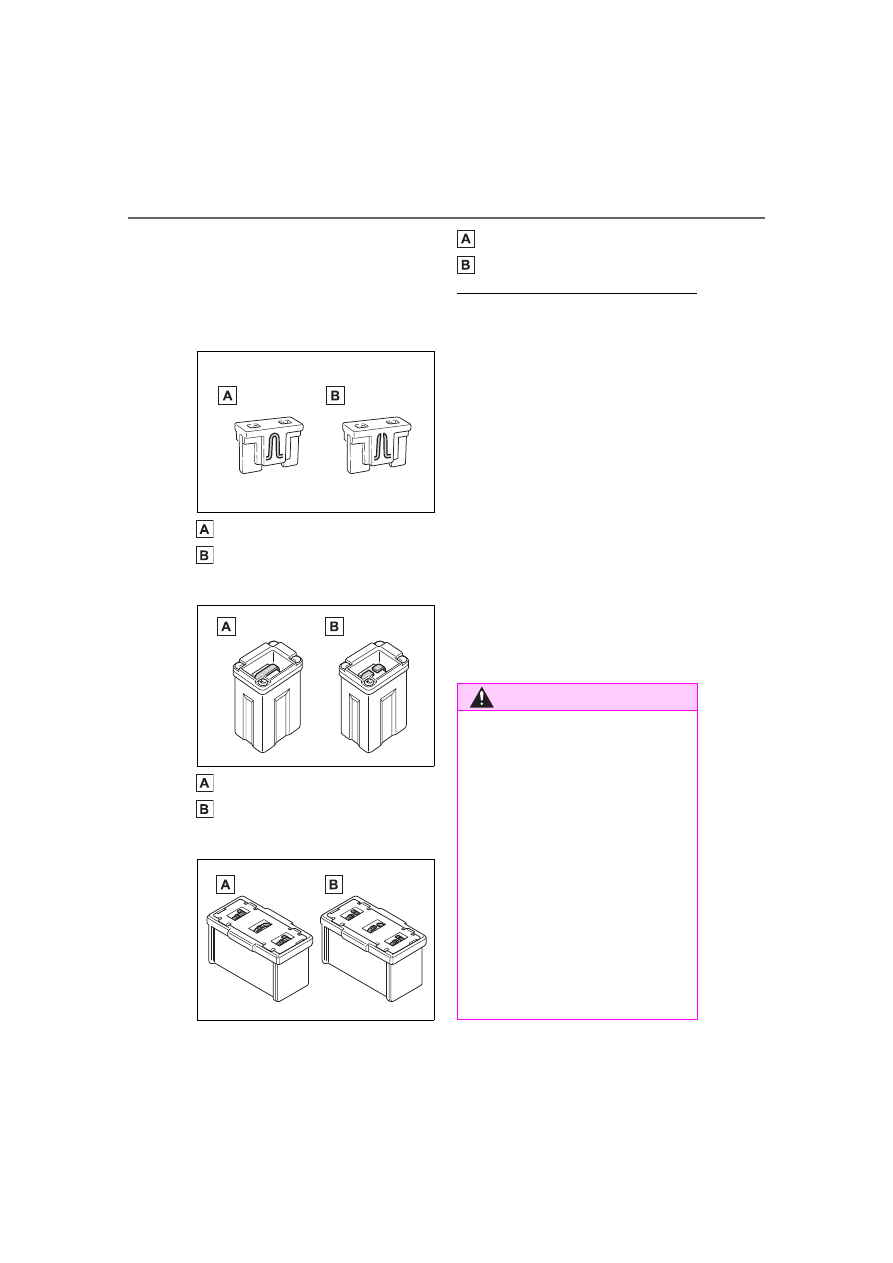

Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse

■

After a fuse is replaced

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.428)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle. Because certain

bulbs are connected to circuits

designed to prevent overload,

non-genuine parts or parts not

designed for this vehicle may be

unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

427

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

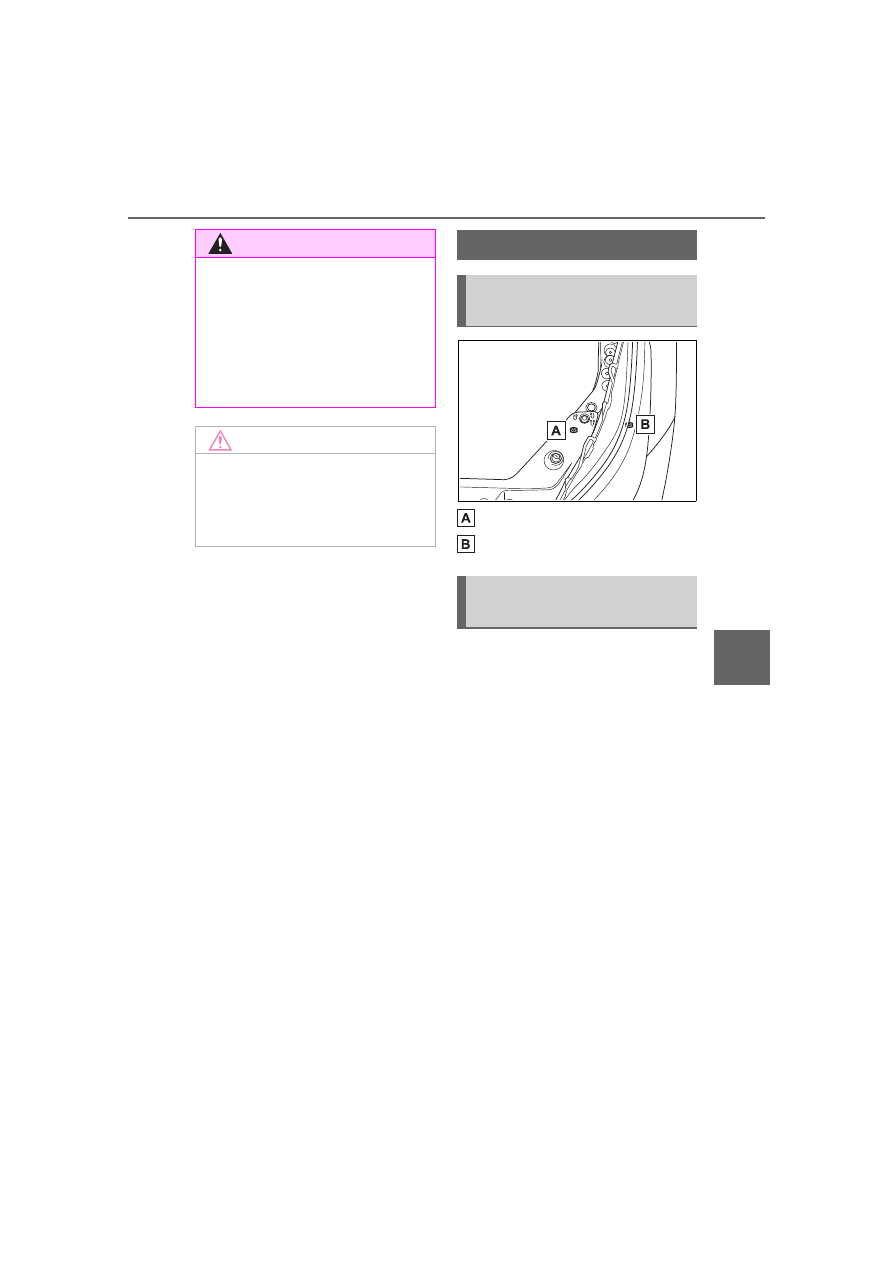

Adjustment bolt A
Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

WARNING

■

Fuse box near the power con-

trol unit

Never check or replace the fuses

as there are high voltage parts

and wiring near the fuse box.

Doing so may cause electric

shock, resulting in death or seri-

ous injury.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

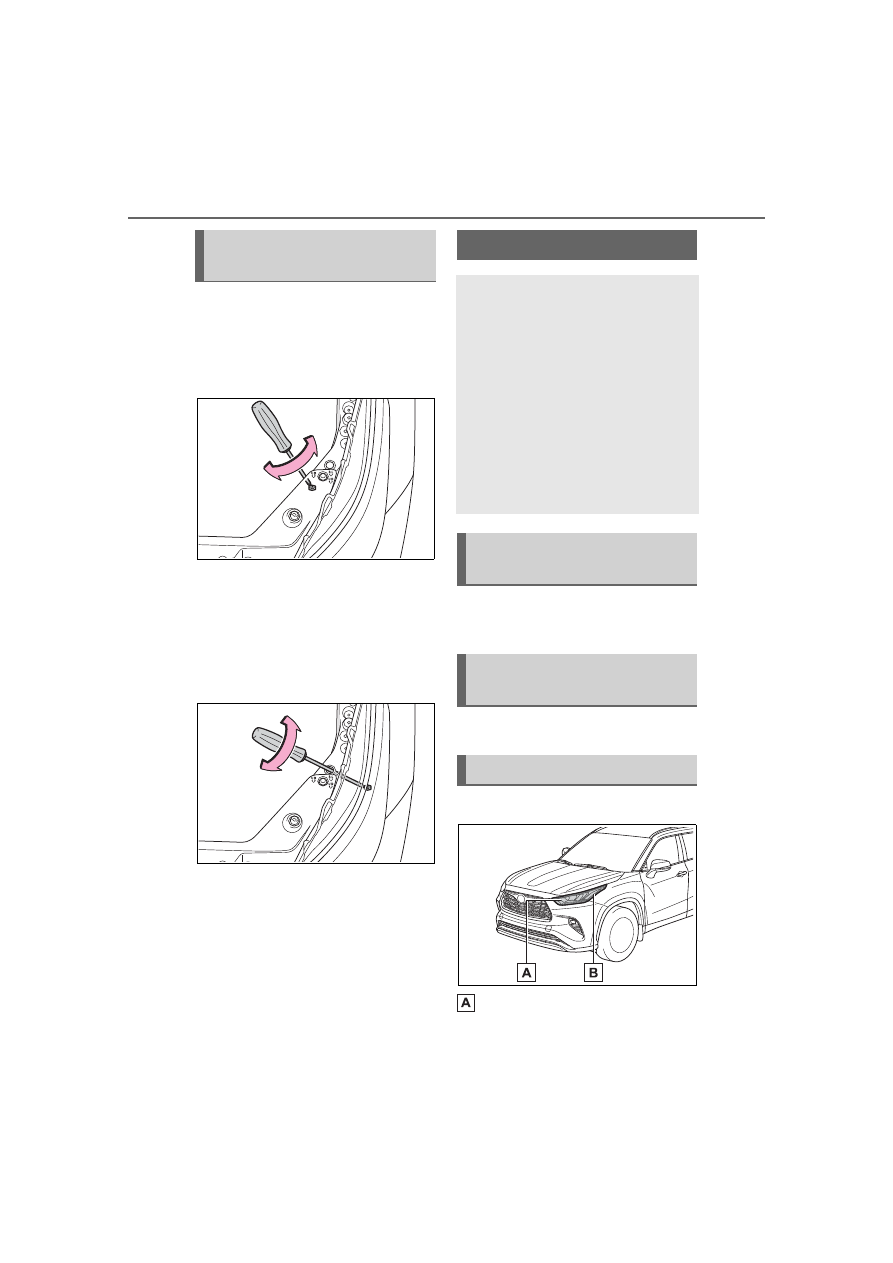

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

428

6-3. Do-it-yourself maintenance

1

Using a Phillips-head screw-
driver, turn bolt A in either
direction.

Remember the turning direction

and the number of turns.

2

Turn bolt B the same number
of turns and in the same
direction as step

1

.

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

Check the wattage of the light
bulb to be replaced. (



P.496)



P.516



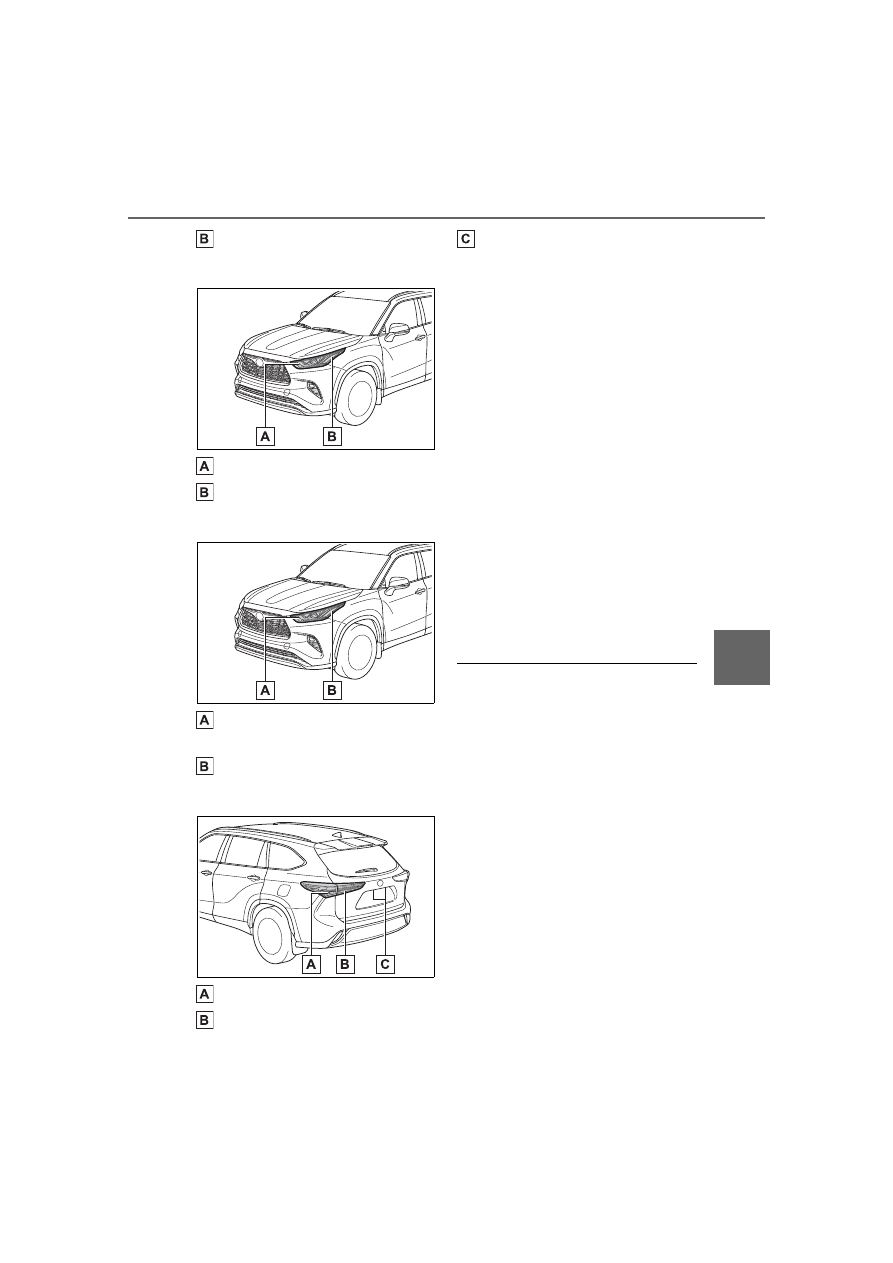

Front (type A)

Front turn signal lights/park-
ing lights

Adjusting the headlight
aim

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Turning off the power
back door main switch

Bulb locations

429

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Front side marker lights



Front (type B)

Front turn signal lights
Front side marker lights



Front (type C)

Front turn signal lights/park-
ing lights
Front side marker lights



Rear

Rear turn signal lights
Back-up lights

License plate lights

■

Lights that need to be
replaced by your Toyota
dealer



Headlight low beams



Headlight high beams



Daytime running lights (types
A and C)



Daytime running lights/park-
ing lights (type B)



Front fog lights



Side turn signal lights



Tail lights/stop lights



Rear side marker lights



Tail lights



High mounted stoplight



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Front turn signal lights/parking

lights (types A and C)

●

Front turn signal lights (type B)

●

Front side marker lights

●

Rear turn signal lights

●

Back-up lights

●

License plate lights

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more informa-

tion in the following situations:

●

Large drops of water have built up

430

6-3. Do-it-yourself maintenance

on the inside of the lens.

●

Water has built up inside the light.

■

When replacing light bulbs



P.426

■

Front turn signal
lights/parking lights (types
A and C) and front turn sig-
nal lights (type B)

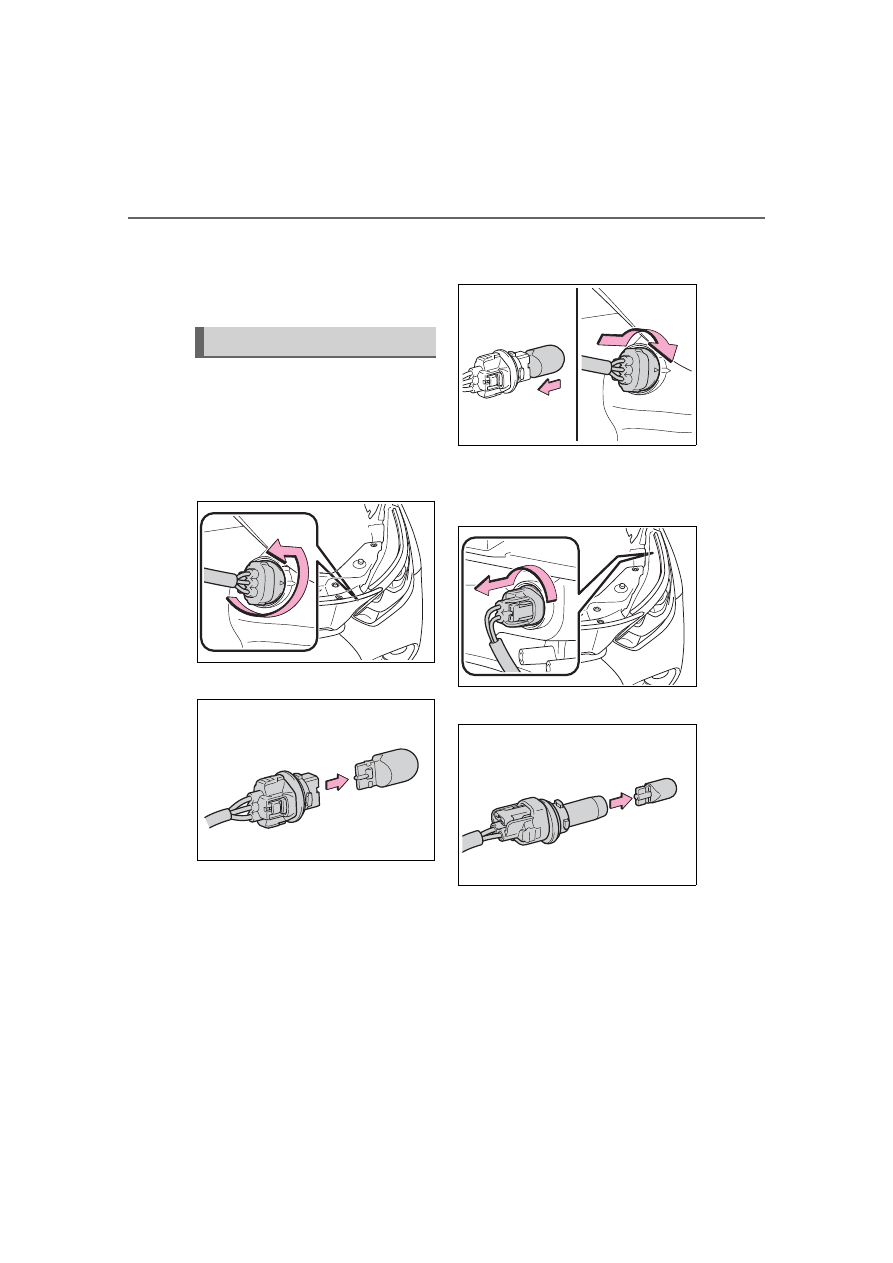

1

Turn the bulb base counter-
clockwise and remove it.

2

Remove the light bulb.

3

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn the lights

and turn signal lights on to visually

check that there is no light leaking

from between the bulb base and

light unit.

■

Front side marker lights

1

Turn the bulb base counter-
clockwise and remove it.

2

Remove the light bulb.

3

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn the lights

Replacing light bulbs

431

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

on to visually check that there is no

light leaking from between the bulb

base and light unit.

■

Rear turn signal lights

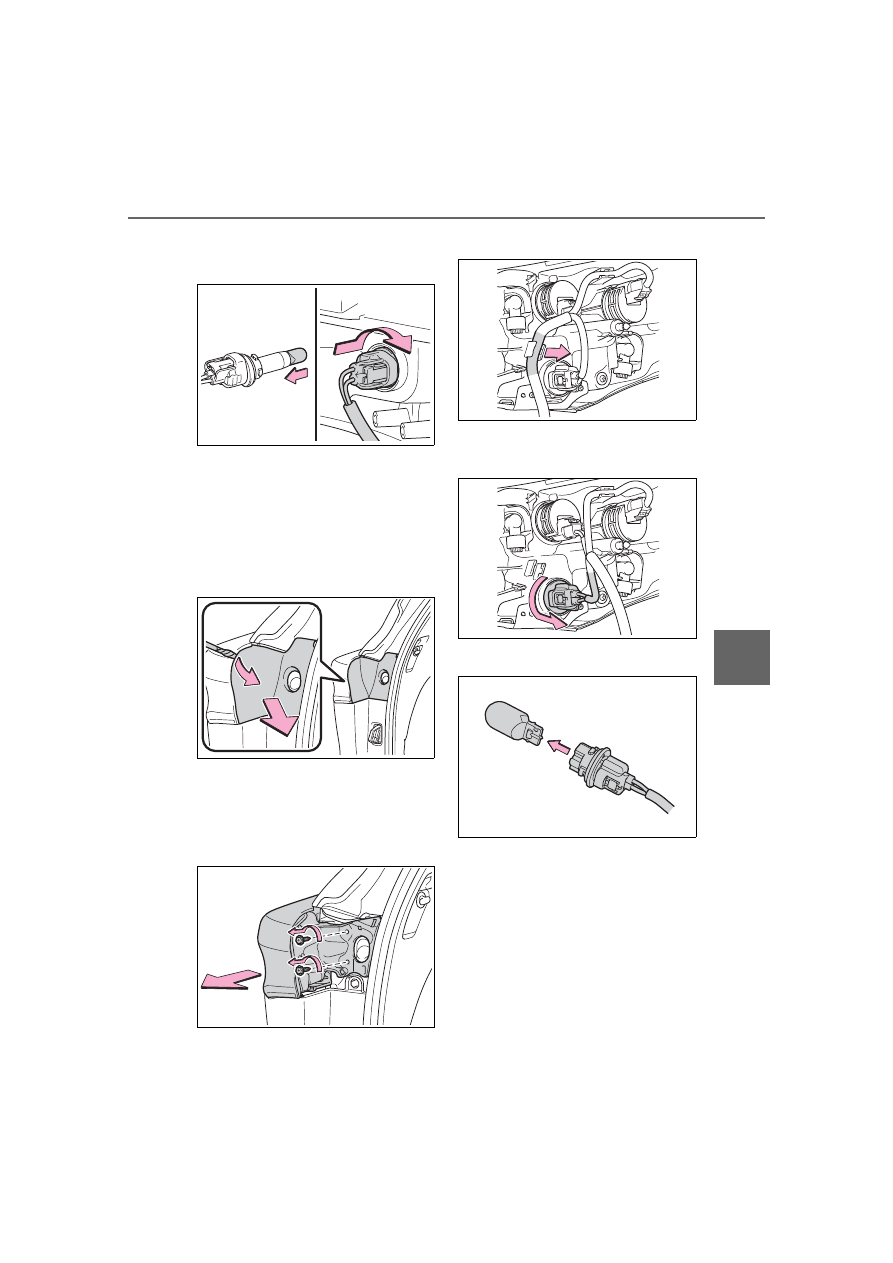

1

Open the back door and
using a flathead screwdriver,
remove the cover.

To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

2

Remove the securing 2
screws and light unit.

Remove the light unit by pulling it

straight back from the rear of the

vehicle.

3

Disconnect the wire harness.

4

Turn the bulb base counter-
clockwise and remove it.

5

Remove the light bulb.

6

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn on the

turn signal lights to visually check

that there is no light leaking from

between the bulb base and light
