Toyota Highlander Hybrid (2023 year). Manual in english - page 5





77

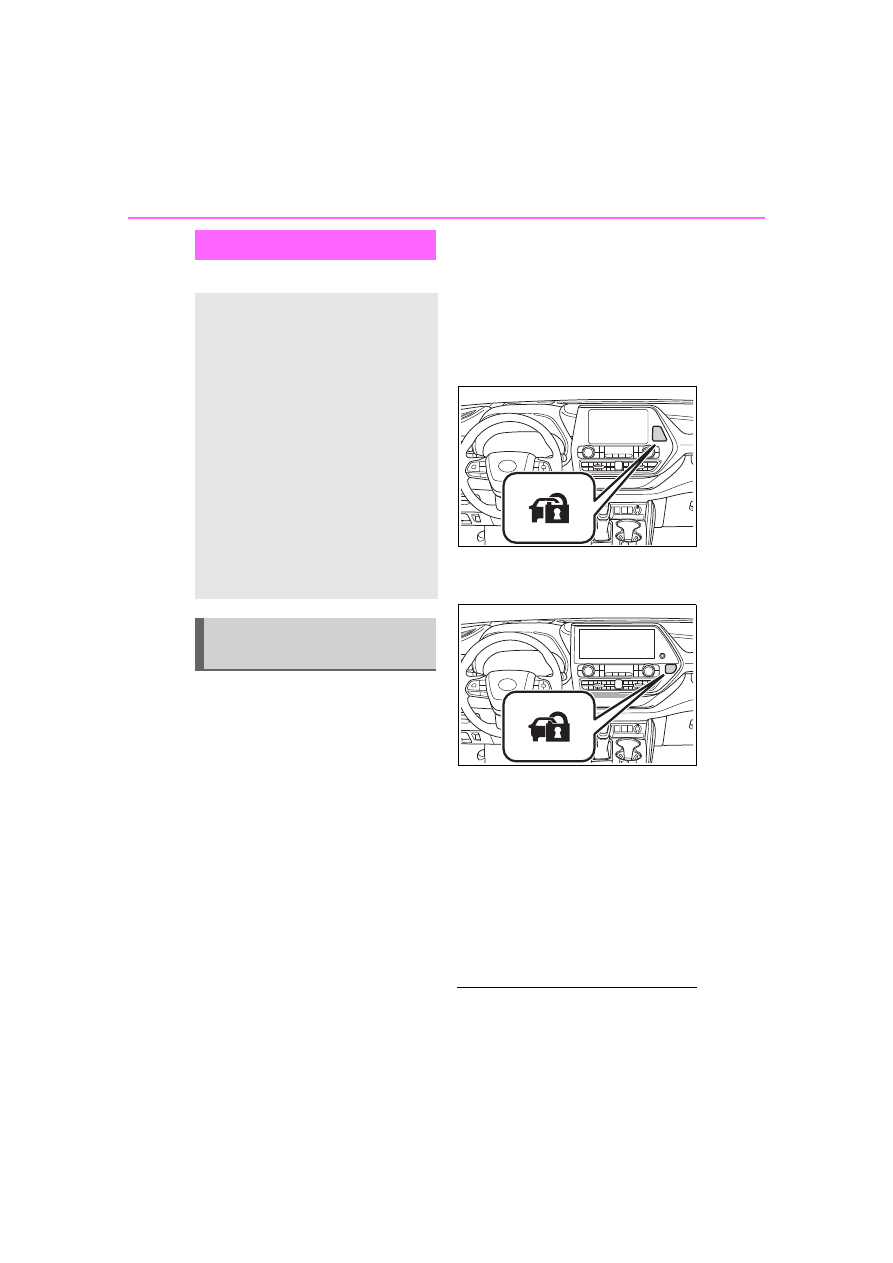

1-5. Theft deterrent system

1

For safety and secu

rity

1-5.Theft deterrent system

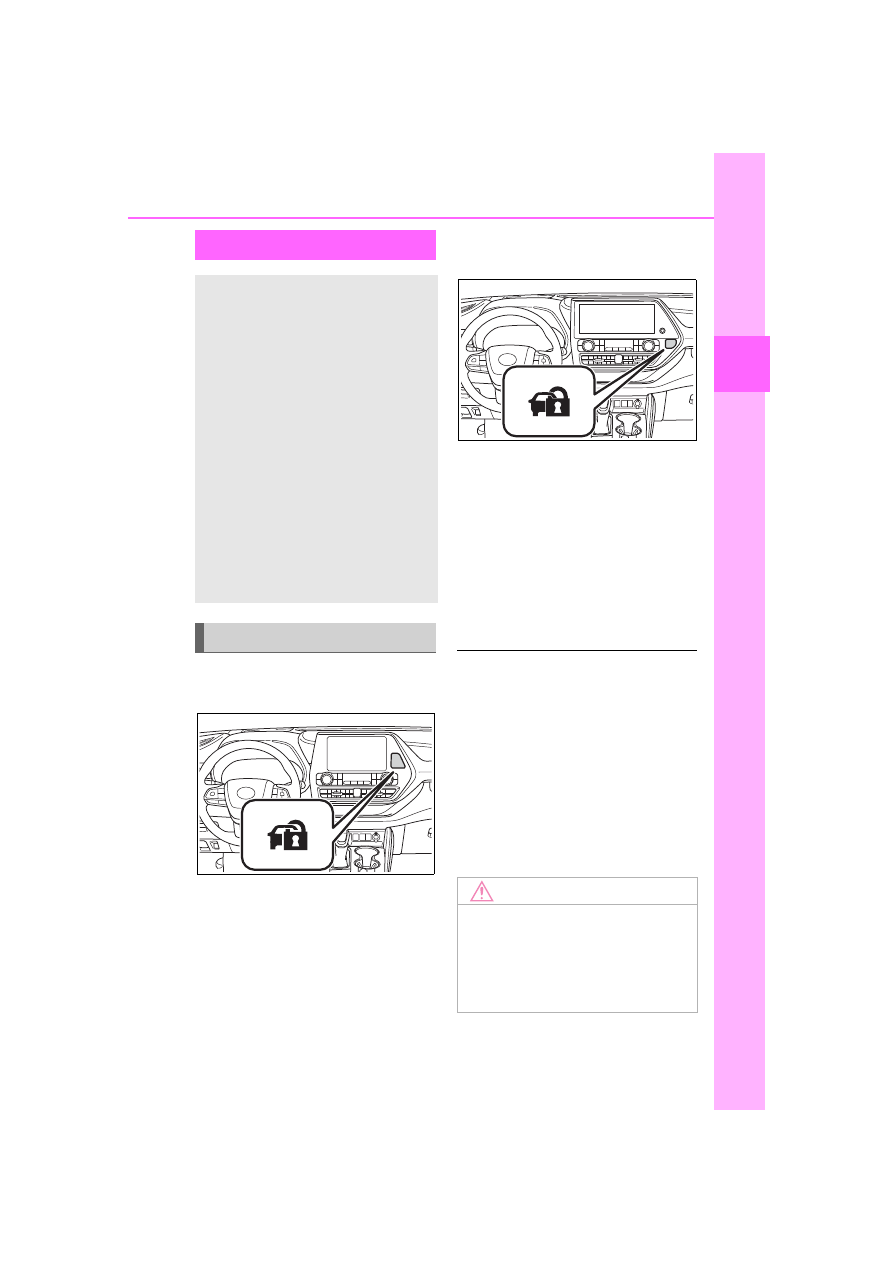

Vehicles with 8-inch audio
system screen

Vehicles with 12.3-inch audio
system screen

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key registered to the

security system (key with a built-in

transponder chip) of another vehi-

cle

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

78

1-5. Theft deterrent system

*

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:

Nobody is in the vehicle.

The windows, moon roof (if
equipped) and panoramic
moon roof (if equipped) are
closed before the alarm is set.

No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system

will be set automatically after 30
seconds.

The security indicator changes from
being on to flashing when the sys-
tem is set.

Vehicles with 8-inch audio
system screen

Vehicles with 12.3-inch audio
system screen

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarms:

Unlock the doors.

Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

Alarm

*

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:

A locked door is unlocked or
opened in any way other
than using the entry func-
tion, wireless remote control
or mechanical key. (The
doors will lock again auto-
matically.)

The hood is opened.

Setting/canceling/stop-
ping the alarm system

79

1-5. Theft deterrent system

1

For safety and secu

rity

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (

P.481)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

81

2

2

Vehicle

 statu

s information an

d in
dicator

s

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

82

Gauges and meters (7-inch

display).........................

87

Gauges and meters

(12.3-inch display)........

91

Multi-information display

(7-inch display).............

96

Multi-information display

(12.3-inch display).....

106

Head-up display ..........

114

Energy monitor/consump-

tion screen.................

119

82

2-1. Instrument cluster

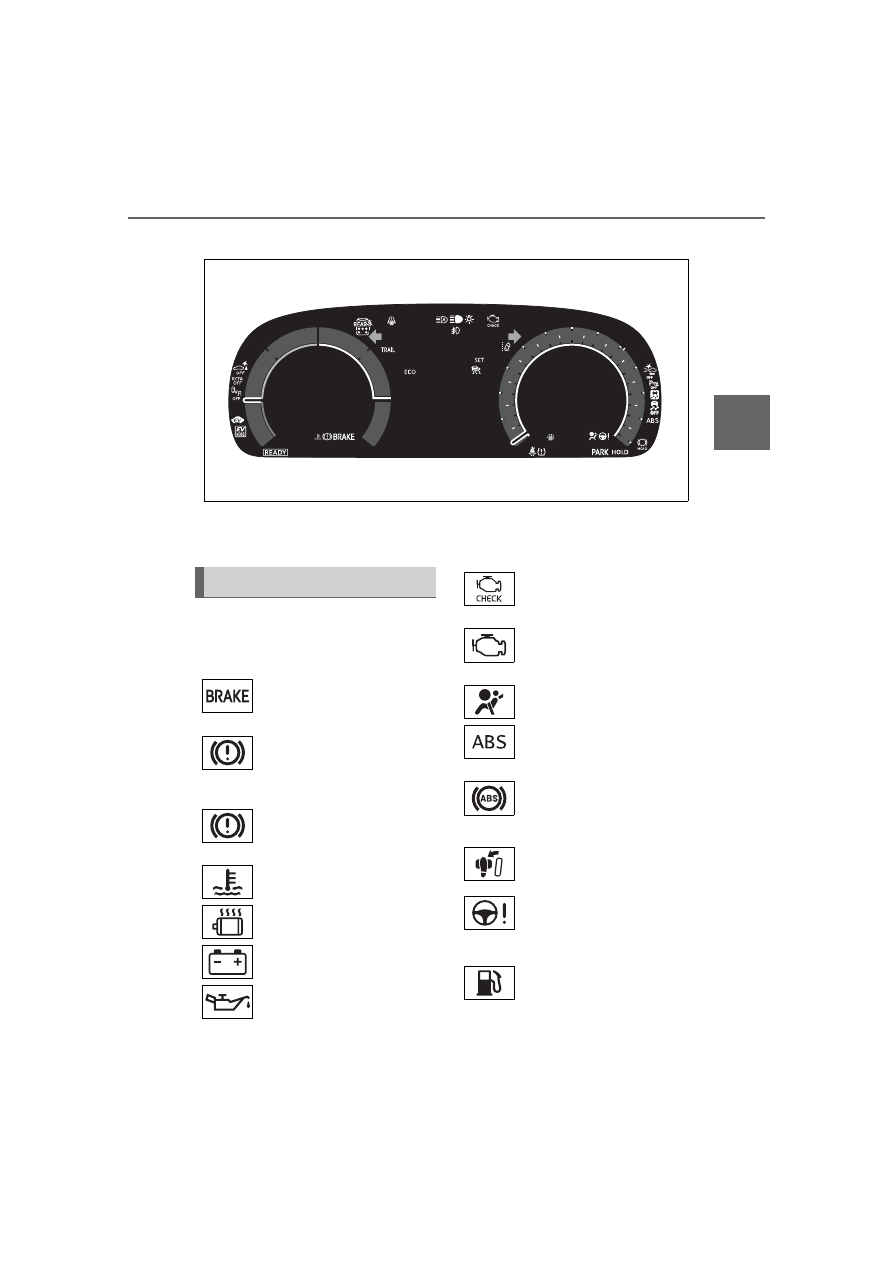

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.

7-inch display

The units used on the meters and some indicators may differ
depending on the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instru-
ment cluster

83

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

12.3-inch display

The units used on the meters and some indicators may differ
depending on the target region.

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light

*1

 (

P.445)

(red)

(Canada)

Brake system warning
light

*1

 (

P.445)

(yellow)

Brake system warning
light

*1

 (

P.445)

High coolant temperature
warning light

*2

 (

P.445)

Hybrid system overheat
warning light

*2

 (

P.446)

Charging system warning
light

*2

 (

P.446)

Low engine oil pressure
warning light

*2

 (

P.446)

(U.S.A.)

Malfunction indicator
lamp

*1

 (

P.446)

(Canada)

Malfunction indicator
lamp

*1

 (

P.446)

SRS warning light

*1



(

P.447)

(U.S.A.)

ABS warning light

*1



(

P.447)

(Canada)

ABS warning light

*1



(

P.447)

Inappropriate pedal opera-
tion warning light

*2



(

P.447)

(red/yel-

low)

Electric power steering
system warning light
(

P.448)

Low fuel level warning
light

*1

(

P.448)

84

2-1. Instrument cluster

*1

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if a light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display.

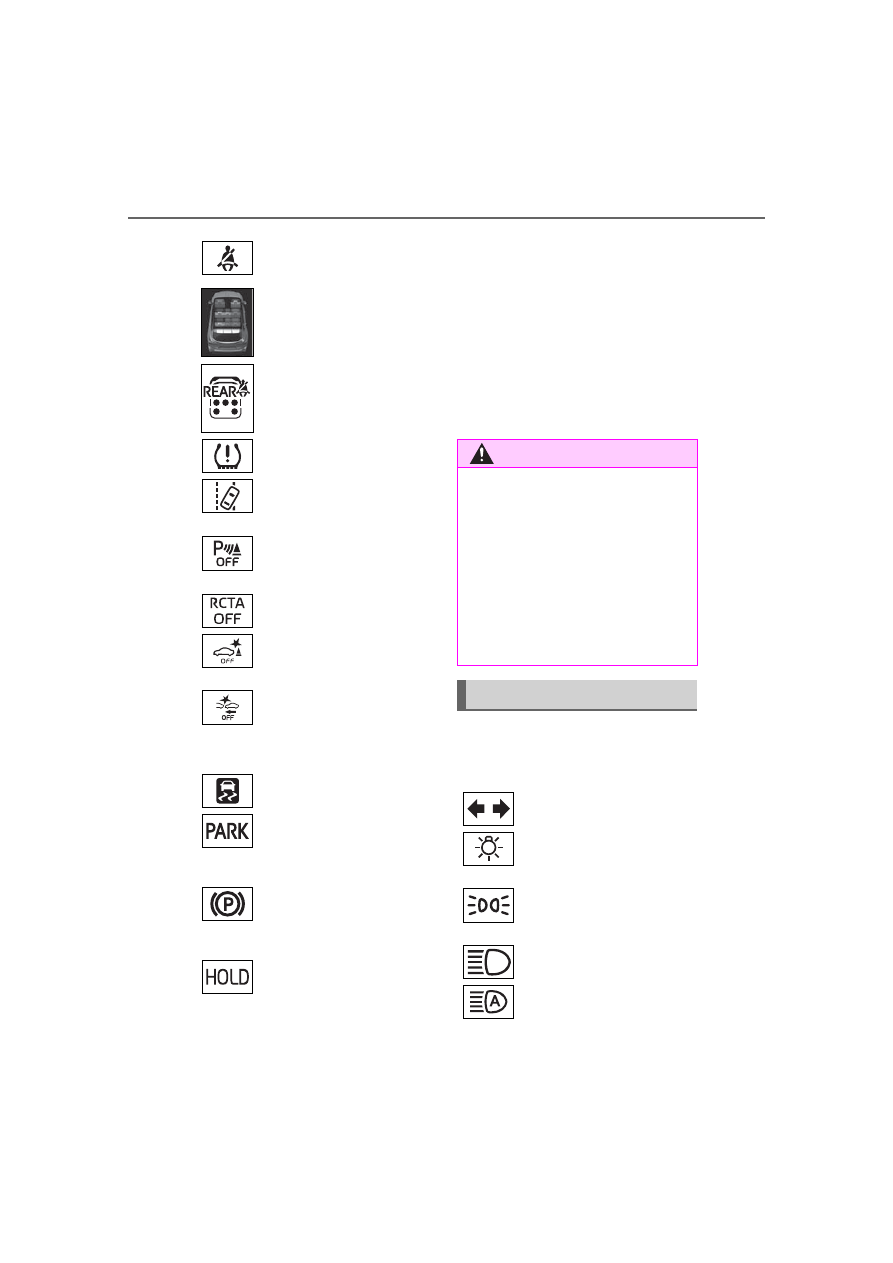

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Driver’s and front passen-
ger’s seat belt reminder
light (

P.448)

Rear passengers’ seat
belt reminder light (7-inch
display)

*2

 (

P.449)

Rear passengers’ seat
belt reminder light
(12.3-inch display)

*2



(

P.449)

Tire pressure warning
light

*1

 (

P.449)

(orange)

LTA indicator (

P.450)

(flashes)

Intuitive parking assist
OFF indicator

*1

 (if

equipped) (

P.450)

“RCTA OFF” indicator

*1



(

P.450)

(flashes)

PKSB OFF indicator

*1

 (if

equipped) (

P.451)

(flashes or

illumi-

nates)

PCS warning light

*1



(

P.451)

Slip indicator

*1

 (

P.452)

(flashes)

(U.S.A.)

Parking brake indicator

*1



(

P.452)

(flashes)

(Canada)

Parking brake indicator

*1



(

P.452)

(flashes)

Brake hold operated indi-
cator

*1

 (

P.452)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning

lights not come on when you start

the hybrid system, this could

mean that these systems are not

available to help protect you in an

accident, which could result in

death or serious injury. Have the

vehicle inspected by your Toyota

dealer immediately if this occurs.

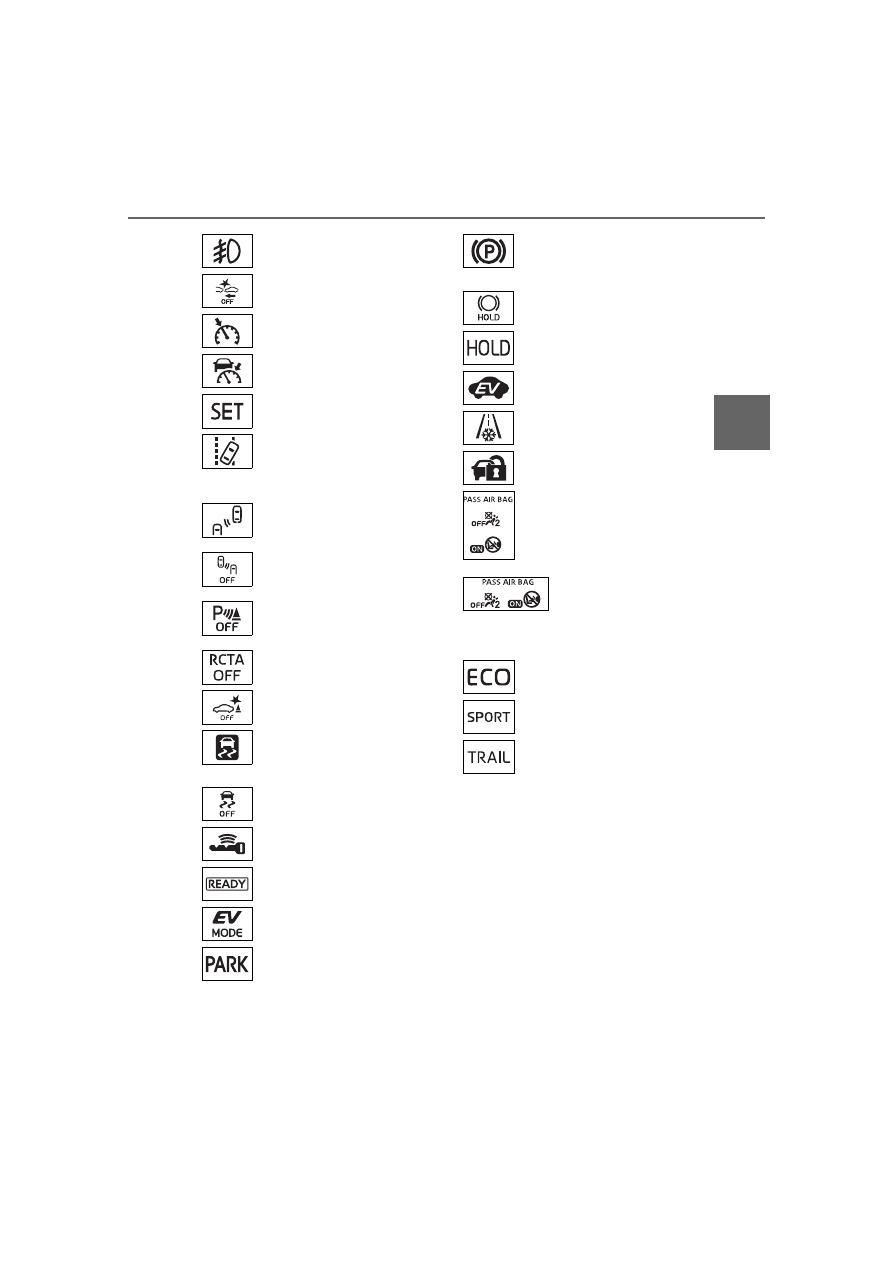

Indicators

Turn signal indicator
(

P.216)

(U.S.A.)

Headlight indicator
(

P.223)

(Canada)

Tail light indicator
(

P.223)

Headlight high beam indi-
cator (

P.225)

Automatic High Beam indi-
cator (

P.226)

85

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Drive mode indicators

*1

:This light comes on when the

system is turned off.

*2

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if a light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

*3

:This light illuminates on the out-

side rear view mirrors.

Front fog light indicator
(

P.229)

PCS warning light

*1, 2



(

P.242)

Cruise control indicator
(

P.263)

Dynamic radar cruise con-
trol indicator (

P.263)

Cruise control “SET” indi-
cator (

P.263)

*7

LTA indicator (

P.242,

259)

BSM outside rear view
mirror indicators

*2, 3



(

P.278, 291)

BSM OFF indicator

*1, 2



(

P.278)

Intuitive parking assist
OFF indicator

*1, 2

(if

equipped) (

P.284)

“RCTA OFF” indicator

*1, 2



(

P.292)

PKSB OFF indicator

*1, 2

(if

equipped) (

P.299)

(flashes)

Slip indicator

*2

 (

P.312)

VSC OFF indicator

*1, 2



(

P.313)

Smart key system indica-
tor

*4

 (

P.207)

“READY” indicator
(

P.207)

EV drive mode indicator
(

P.211)

(U.S.A.)

Parking brake indicator

*2



(

P.217)

(Canada)

Parking brake indicator

*2



(

P.217)

Brake hold standby indica-
tor

*2

 (

P.220)

Brake hold operated indi-
cator

*2

 (

P.220)

EV indicator (

P.70)

Low outside temperature
indicator

*6

 (

P.87)

Security indicator

*5



(

P.77, 78)

“PASS AIR BAG ON/OFF”
indicator

*2, 5

 (

P.43)

“PASS AIR BAG
ON/OFF” indicator

*2,

5

 (

P.43)

Eco drive mode indicator
(

P.308)

Sport mode indicator
(

P.308)

Trail Mode indicator (if
equipped) (

P.309)

86

2-1. Instrument cluster

*4

:This light illuminates on the

multi-information display.

*5

:This light illuminates on the cen-

ter panel.

*6

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

*7

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

87

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

■

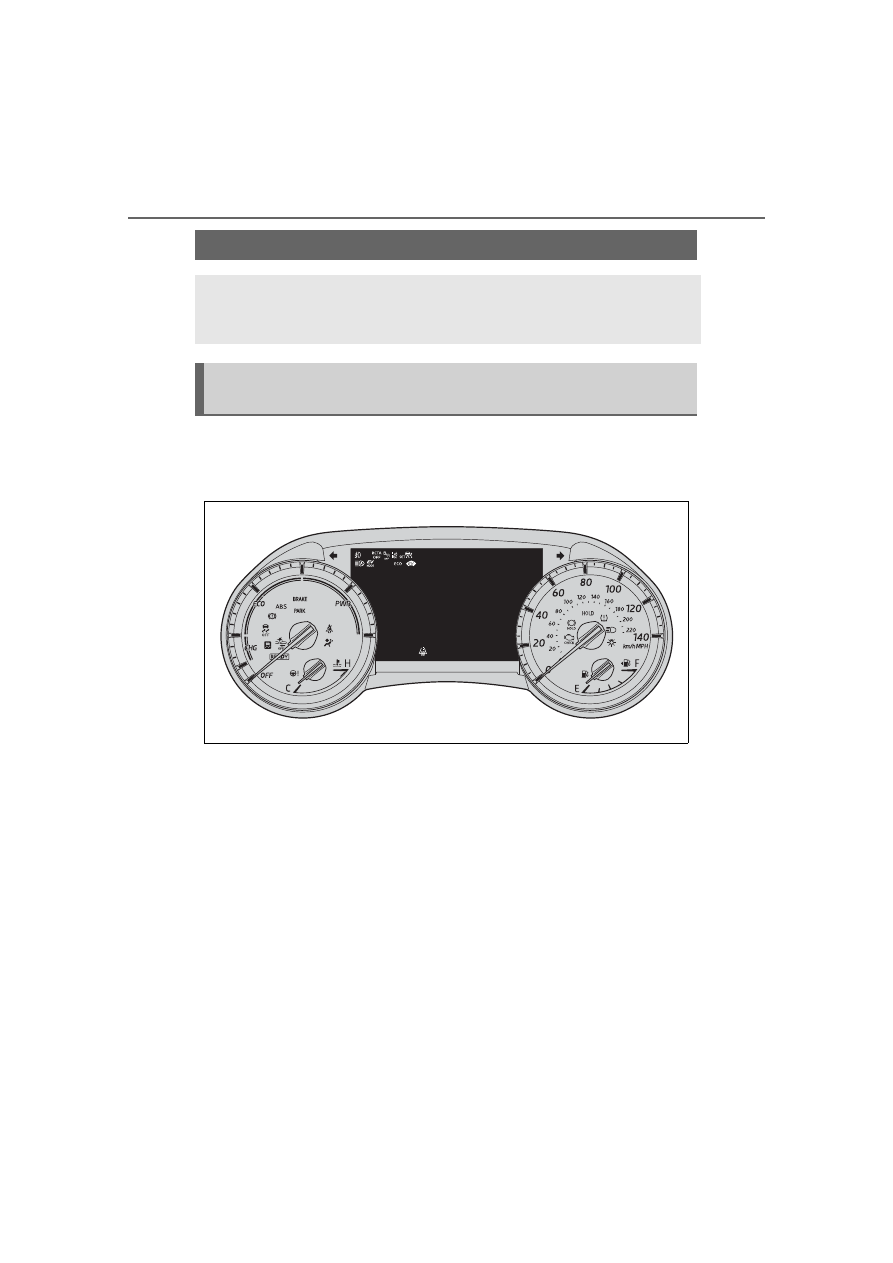

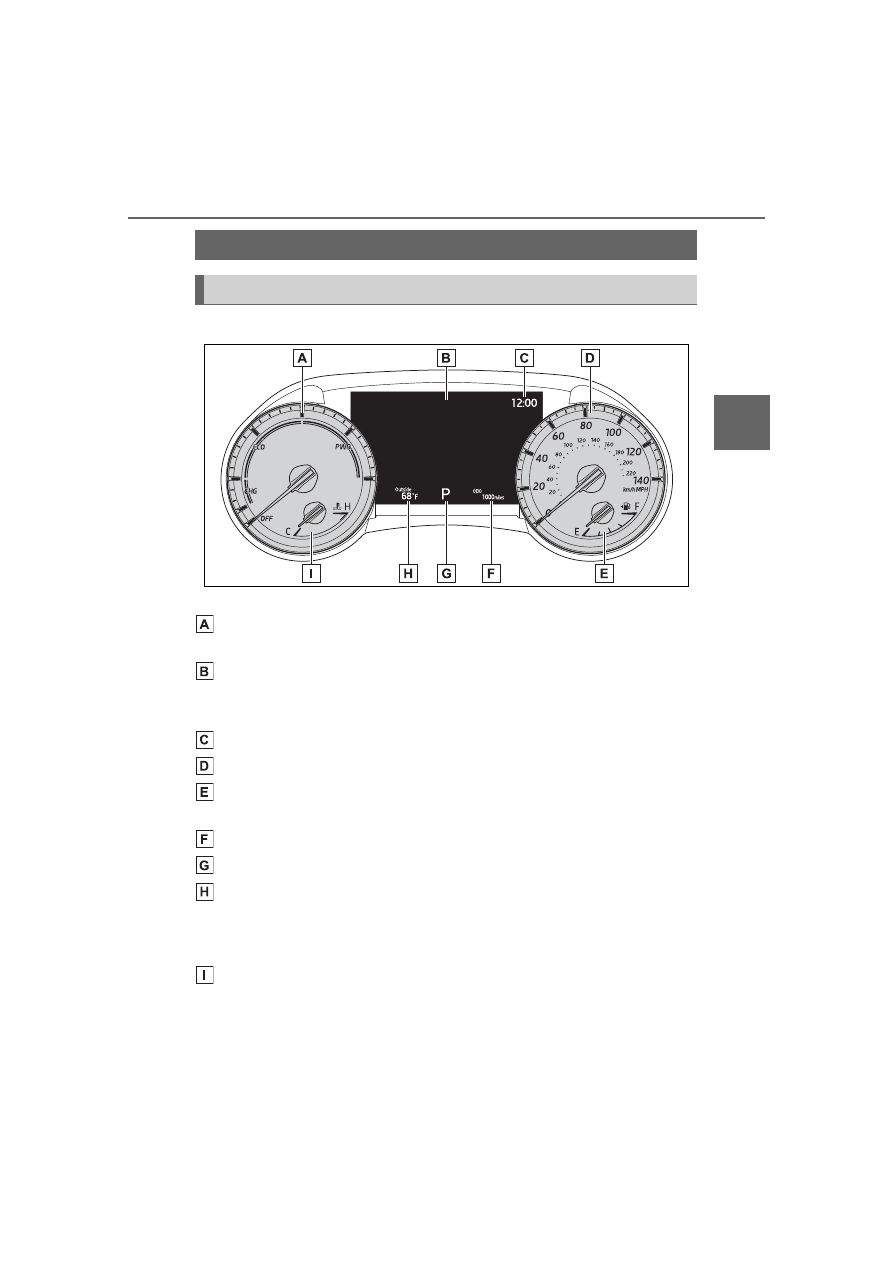

Locations of gauges and meters

The units used on the meters may differ depending on the target region.

Hybrid System Indicator

Displays hybrid system output or regeneration level (

P.88)

Multi-information display

Presents the driver with a variety of vehicle data (

P.96)

Displays warning messages in case of a malfunction (

P.456)

Clock (

P.90)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (

P.89)

Shift position display (

P.213)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient
temperature is 37°F (3°C) or lower.

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters (7-inch display)

Meter display

88

2-1. Instrument cluster

■

The meters and display illumi-

nate when

The power switch is in ON.

■

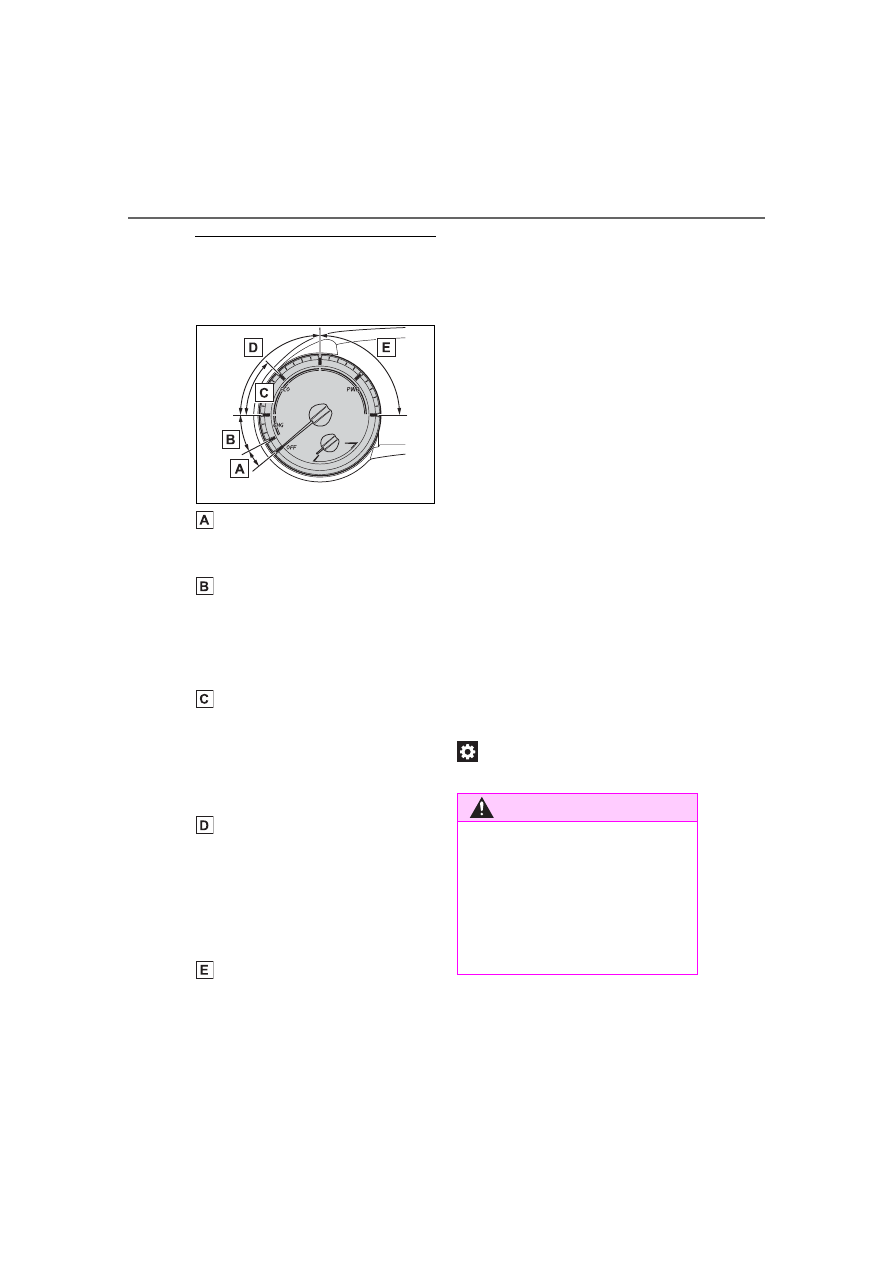

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within the Eco area, more
Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

*

: When used in this manual, regen-

eration refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

■

Customization

The meters can be customized on

 of the multi-information display.

(

P.104)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

89

2-1. Instrument cluster

2

Vehicle

 s

ta

tu

s information an

d in
dicat

or

s

■

Display items

Odometer

Displays the total distance the vehi-
cle has been driven.

Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.

■

Changing the display

Each time the “ODO TRIP”

switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

The brightness of the instrument
panel lights can be adjusted.

This image is for example only, and
may differ from the actual vehicle.

1

Darker

2

Brighter

■

Brightness of the meters (day

mode and night mode)

The brightness of the meters is

changed between day mode and

night mode.

●

Day mode: When the surrounding

area is bright

●

Night mode: When the surround-

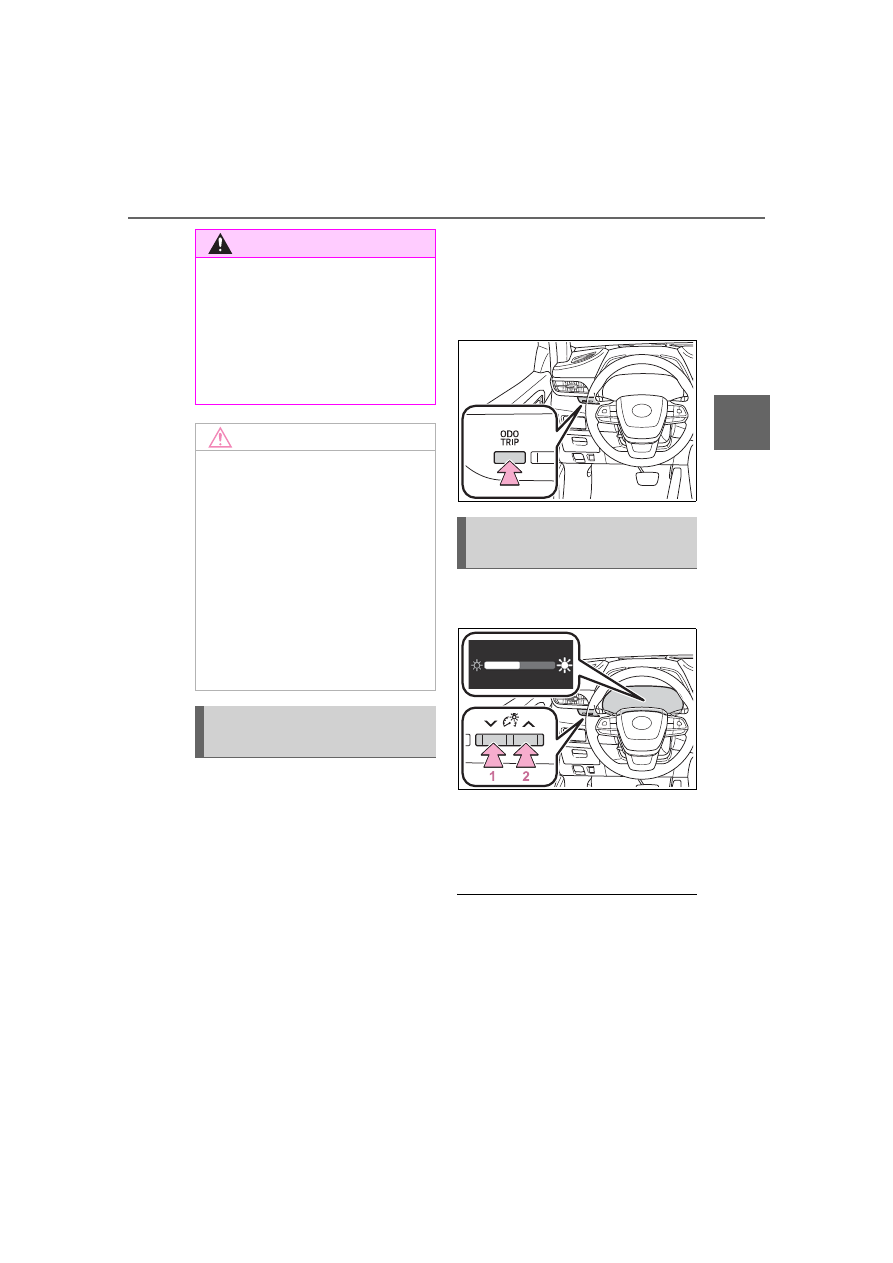

WARNING

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(

P.484)

Odometer and trip meter
display

Changing the instrument
panel light brightness

90

2-1. Instrument cluster

ing area is dark

The clocks can be adjusted on
the audio system screen.
Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Adjusting the clock

91

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

■

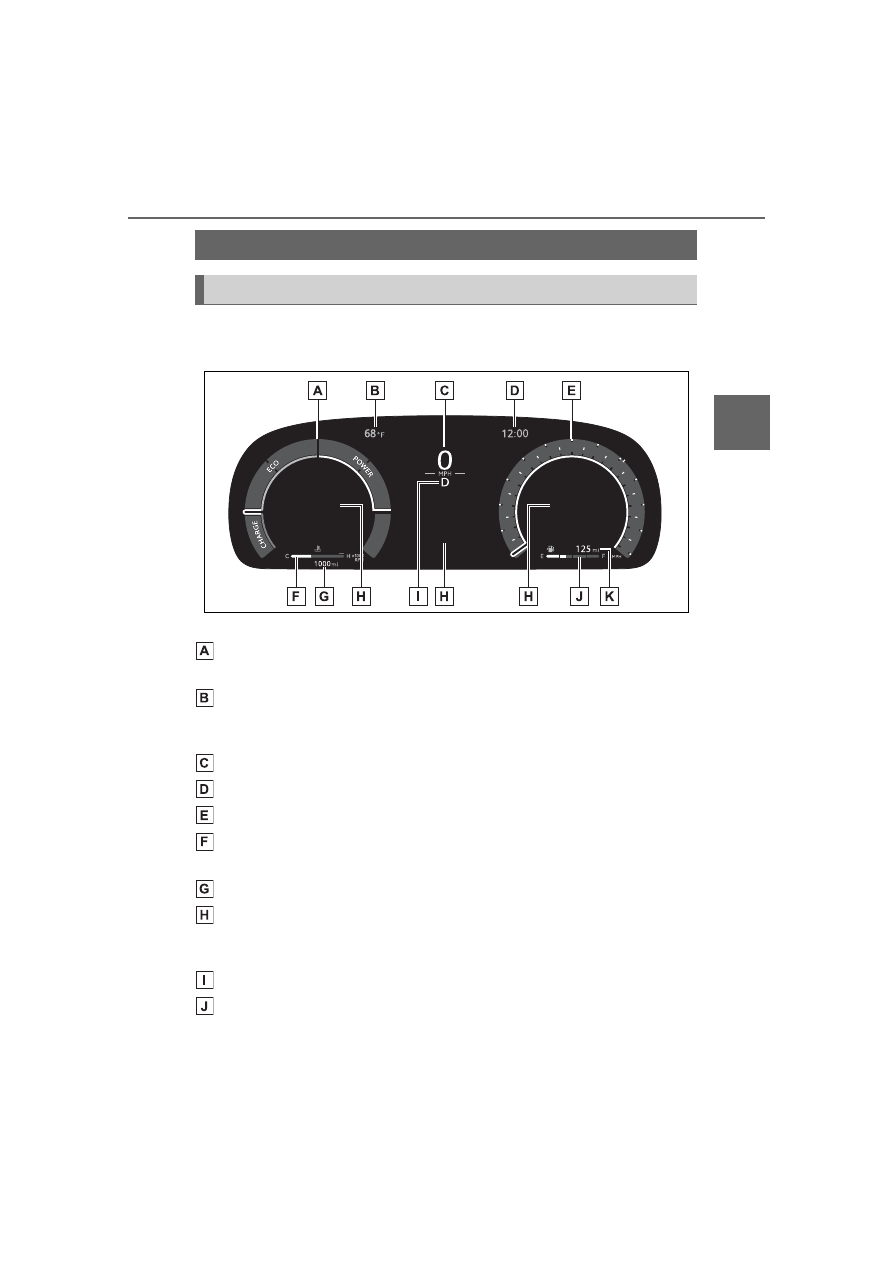

Locations of gauges and meters

2-dial display

The units used on the meters may differ depending on the target region.

Hybrid System Indicator

Displays hybrid system output or regeneration level (

P.94)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Speedometer
Clock (

P.96)

Speedometer
Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.95)

Multi-information display

Presents the driver with a variety of vehicle data (

P.106)

Displays warning messages if a malfunction occurs (

P.456)

Shift position indicator (

P.213)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Gauges and meters (12.3-inch display)

Meter display

92

2-1. Instrument cluster

Driving range

Displays driving range with remaining fuel.

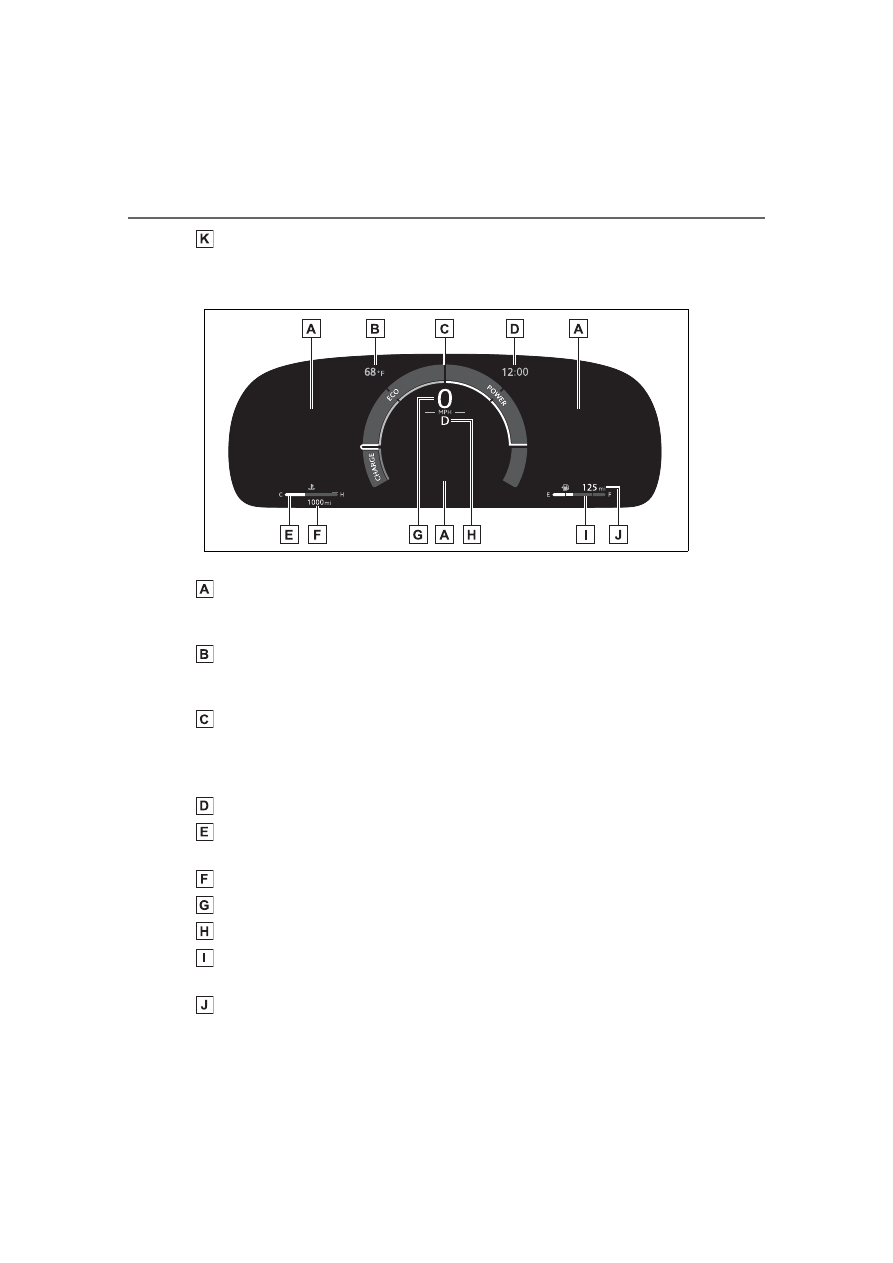

1-dial display

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (

P.106)

Displays warning messages if a malfunction occurs (

P.456)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Hybrid System Indicator/Speedometer

Hybrid System Indicator: Displays hybrid system output or regeneration
level (

P.94)

This setting can be changed on the setting screen. (

P.108)

Clock (

P.96)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.95)

Speedometer
Shift position indicator (

P.213)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

93

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

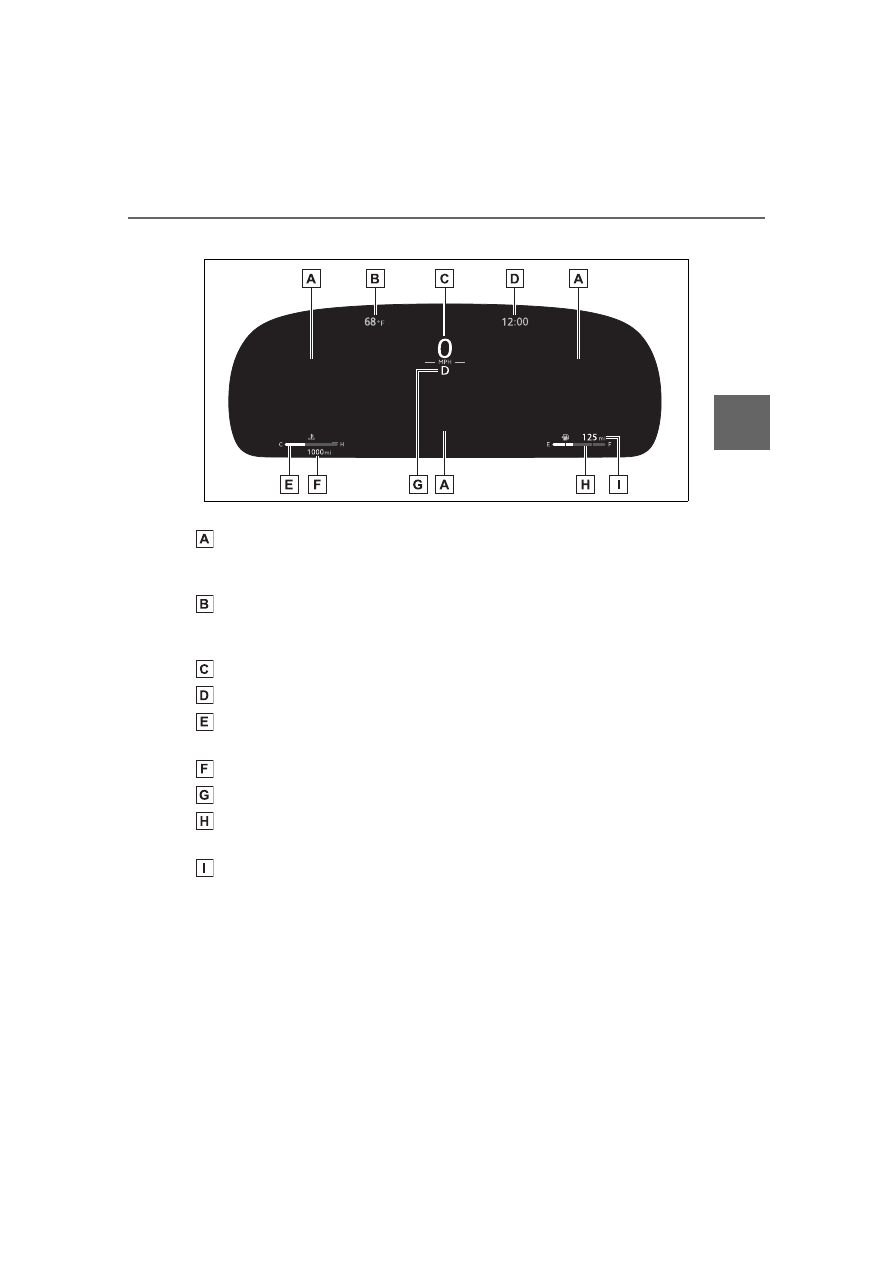

Non-dial display

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (

P.106)

Displays warning messages if a malfunction occurs (

P.456)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Speedometer
Clock (

P.96)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.95)

Shift position indicator (

P.213)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.















Content      ..     3      4      5      6     ..
