7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

traffic.

■

When the battery is removed or

discharged

●

Information stored in the ECU is

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.507)

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

After jump starting the vehicle

(Vehicles with Stop & Start sys-

tem)

Be sure to disable the Stop & Start

system so that the battery can be

charged. (



P.265)

■

When recharging or replacing

the battery

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch off.

If you are unsure what mode the

engine switch was in before the

battery discharged, be especially

careful when reconnecting the

battery.

●

Vehicles with power back door:

The power back door must be ini-

tialized. (



P.127)

●

Vehicles with Stop & Start system:

The Stop & Start system may not

automatically stop the engine for

up to an hour.

■

When replacing the battery

●

Use a Central Degassing type bat-

tery (European Regulations).

●

Vehicles with Stop & Start system:

Use a genuine battery specifically

designed for use with the Stop &

Start system or a battery with

equivalent specifications to a gen-

uine battery. If an unsupported

battery is used, Stop & Start sys-

tem functions may be restricted to

protect the battery.

Also, battery performance may

decrease and the engine may not

be able to restart. Contact your

Toyota dealer for details.

●

Vehicles without Stop & Start sys-

tem: Use a battery that the case

size is same as the previous one

(LN3), 20 hour rate capacity

(20HR) is equivalent (70Ah) or

greater, and performance rating

(CCA) is equivalent (603A) or

greater.

Vehicles with Stop & Start system:

Use a battery that the case size is

same as the previous one (LN3), 20

hour rate capacity (20HR) is equiva-

lent (65Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(603A) or greater.

• If the sizes differ, the battery can-

not be properly secured.

468

7-2. Steps to take in an emergency

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and the

engine may not be able to start.

For details, consult your Toyota

dealer.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

When disconnecting the bat-

tery

Do not disconnect the negative (-)

terminal on the body side. The

disconnected negative (-) terminal

may touch the positive (+) termi-

nal, which may cause a short and

result in death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

■

When replacing the battery

●

When the vent plug and indica-

tor are close to the hold down

clamp, the battery fluid (sulfuric

acid) may leak.

●

For information regarding bat-

tery replacement, contact your

Toyota dealer.

469

7-2. Steps to take in an emergency

tro

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

If you see steam:
Carefully lift the hood after
the steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled
down sufficiently, inspect the

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The needle of the engine
coolant temperature gauge
(



P.79) enters the red zone

or a loss of engine power is
experienced. (For example,
the vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

470

7-2. Steps to take in an emergency

hoses and radiator core (radi-
ator) for any leaks.

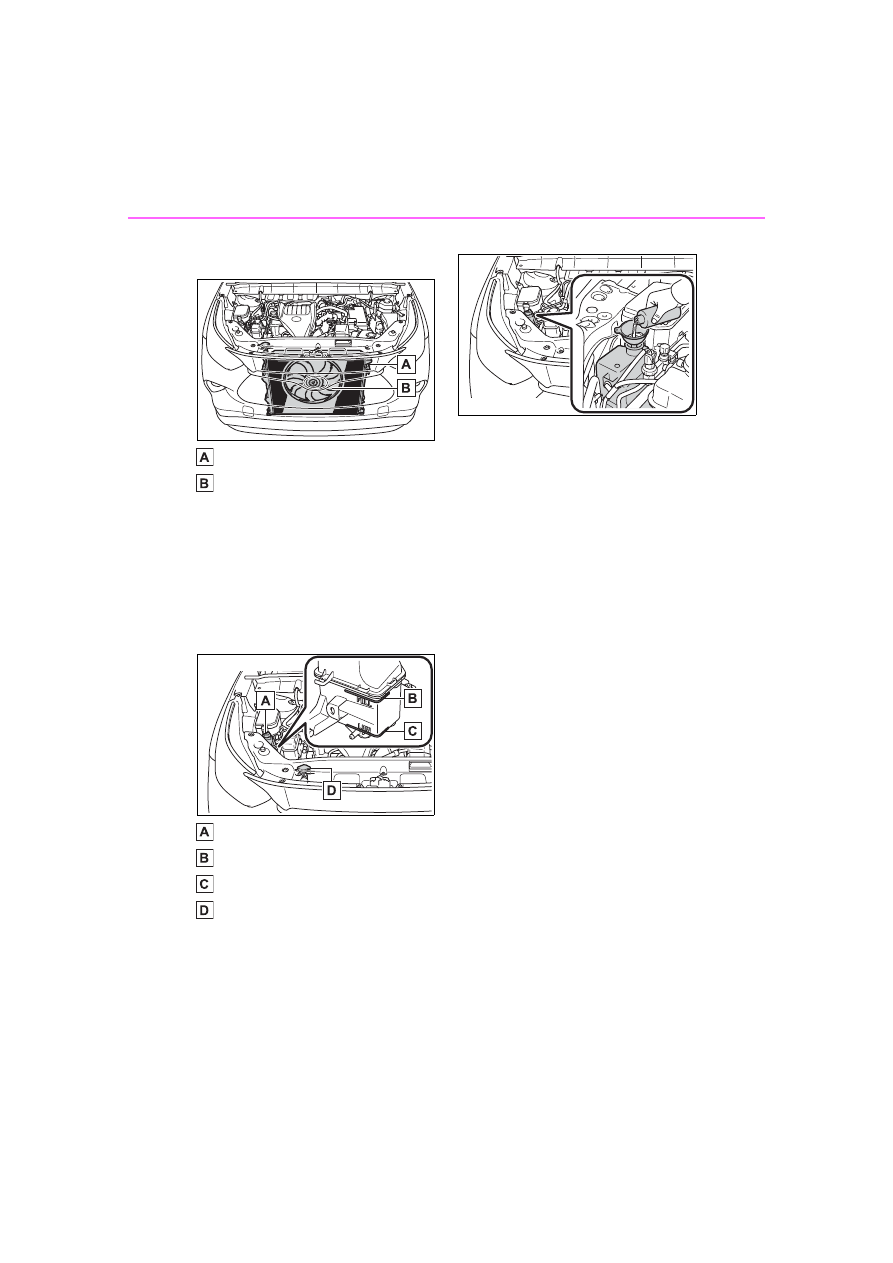

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir
“FULL” line
“LOW” line
Radiator cap

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner's Manual”
is shown on the multi-infor-
mation display.

If the message does not disappear:

Stop the engine and contact your

Toyota dealer.

If the message is not displayed:

Have the vehicle inspected at the

nearest Toyota dealer.

471

7-2. Steps to take in an emergency

tro

Stop the engine. Shift the
shift lever to P and set the
parking brake.

Remove the mud, snow or
sand from around the front
wheels.

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

Restart the engine.

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

Press

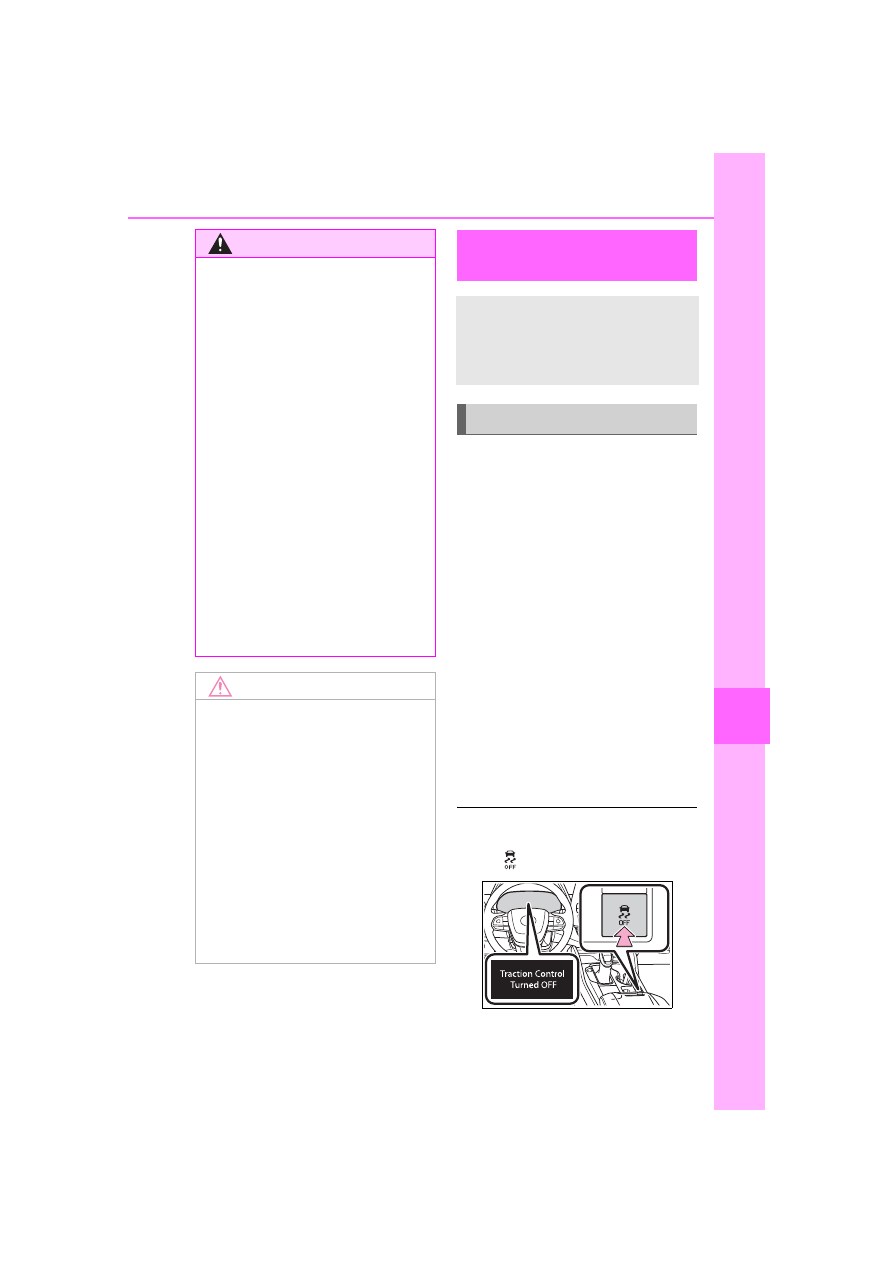

to turn off TRAC.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the radiator cap

and the coolant reservoir cap

while the engine and radiator

are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

472

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damage to the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

473

Vehicle

specificatio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

474

Fuel information ..........

482

Tire information ...........

484

8-2. Customization

Customizable features

..................................

494

8-3. Initialization

Items to initialize .........

507

474

8-1. Specifications

8-1.Specifications

:Unladen vehicle

:For TXUA70L-ARZSTA, TXUA75L-ARZSTA models

:For 7-seat models

:For 8-seat models

:For TXUA75L-ARZGTA models

:Except for TXUA75L-ARZGTA models

:The model code is indicated on the Certification Label. (



P.474)

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

194.9 in. (4950 mm)

197.3 in. (5012 mm)

Overall width

76 in. (1930 mm)

Overall height

68.1 in. (1730 mm)

Wheelbase

112.2 in. (2850 mm)

Tread

Front

65.3 in. (1659 mm)

Rear

65.4 in. (1662 mm)

Vehicle capacity weight
(Occupants + luggage)

1225 lb. (555 kg)

1330 lb. (605 kg)

*4,5

1390 lb. (630 kg)

*4,6

Trailer Weight Rating
(Trailer weight + cargo weight)

5000 lb. (2200 kg)

Seating capacity

Seating capacity

7-seat models

8-seat models

7 (Front 2, Rear 5)

8 (Front 2, Rear 6)

Vehicle identification

475

8-1. Specifications

Vehicle

specificatio

mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.



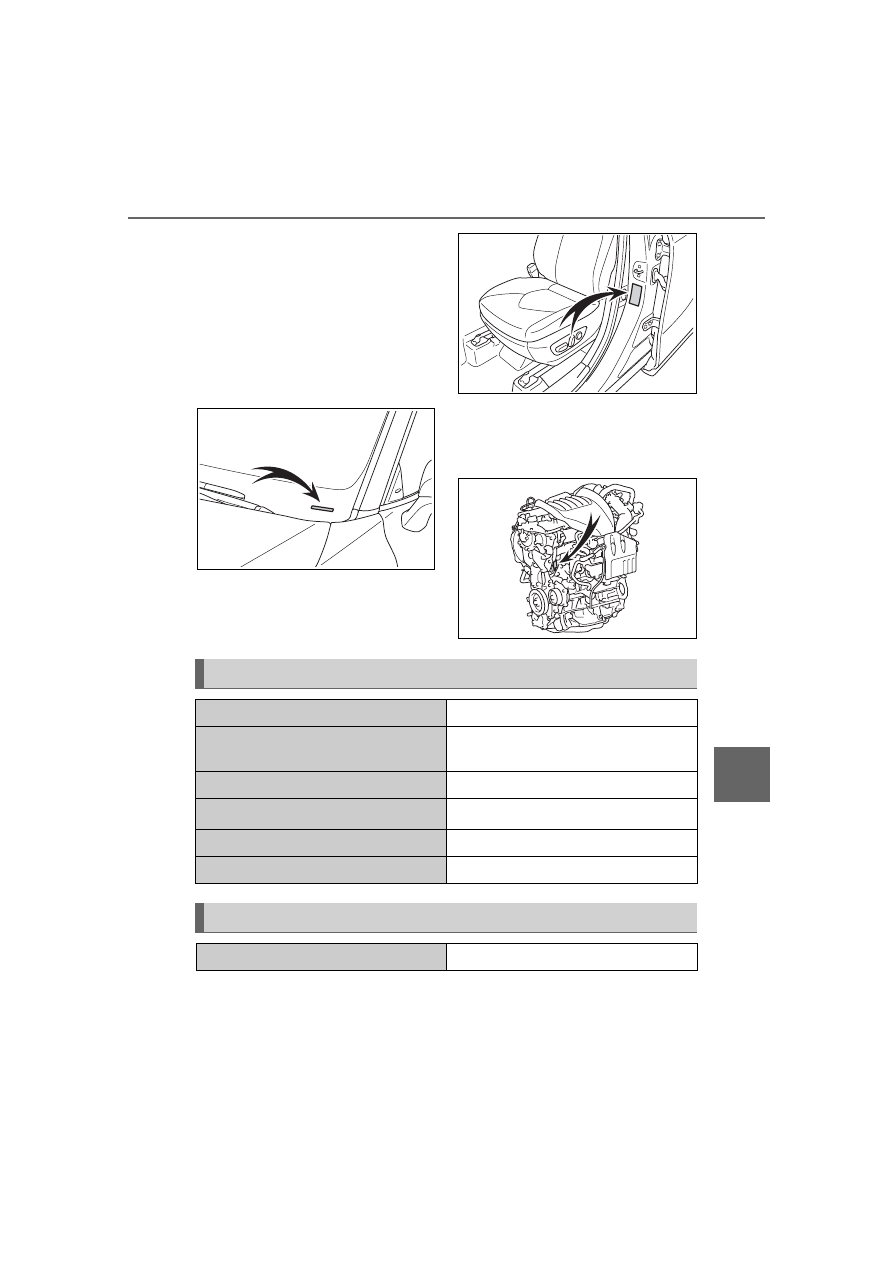

Top left of the instrument
panel

The vehicle identification number is
stamped.



Left-hand side center pillar

This number is also on the Certifi-
cation Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

T24A-FTS

Type

4-cylinder in line, 4-cycle, gasoline
(with turbocharger)

Bore and stroke

3.44



3.91 in. (87.5



99.5 mm)

Displacement

146.0 cu. in. (2393 cm

)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

476

8-1. Specifications

■

Oil capacity (Drain and
refill



reference

)

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity: SAE
0W-20

Outside temperature

SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

17.9 gal. (68 L, 14.9 Imp. gal.)

Lubrication system

With filter

5.6 qt. (5.3 L, 4.7 Imp.
qt.)

Without
filter

5.3 qt. (5.0 L, 4.4 Imp.
qt.)

477

8-1. Specifications

Vehicle

specificatio

the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you

should use.

Cooling system

Capacity

Gasoline
engine



Vehicles with Stop & Start system

12.3 qt. (11.6 L, 10.2 Imp. qt.)



Vehicles without Stop & Start system

11.7 qt. (11.1 L, 9.8 Imp. qt.)

Intercooler 3.3 qt. (3.1 L, 2.7 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

NGK DILZKAR8E7H

Gap

0.028 in. (0.7 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

478

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates

5 A max.

Automatic transmission

Fluid capacity

7.5 qt. (7.1 L, 6.2 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.41 qt. (0.39 L, 0.35 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LX

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise

or vibration, or damage the transfer of your vehicle.

Rear differential (AWD models)

Oil capacity

0.56 qt. (0.53 L, 0.47 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LX

479

8-1. Specifications

Vehicle

specificatio

: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N,

30.6 kgf) while the engine is running.



Type A

NOTICE

■

Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal

noise or vibration, or damage the differential gear of your vehicle.

Brakes

Pedal clearance

3.7 in. (94 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

235/65R18 106V, T165/90D18 107M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160
km/h]) (in countries where such speeds are per-
mitted by law)

Add 4 psi (30 kPa, 0.3 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold
tire inflation pressure indicated on the tire side-
wall.

480

8-1. Specifications



Type B



Type C

Wheel size



8 J, 18



4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/55R20 102V, T165/90D18 107M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160
km/h]) (in countries where such speeds are per-
mitted by law)

Add 4 psi (30 kPa, 0.3 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold
tire inflation pressure indicated on the tire side-
wall.

Wheel size



8 J, 18



4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/65R18 106V

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160
km/h]) (in countries where such speeds are per-
mitted by law)

Add 4 psi (30 kPa, 0.3 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold
tire inflation pressure indicated on the tire side-
wall.

481

8-1. Specifications

Vehicle

specificatio

A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
C: Double end bulbs (clear)

Wheel size



8 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front side marker lights



Front turn signal lights

7444NA

Rear turn signal lights



Back-up lights



License plate lights



Parking lights

7444NA

Interior

Door courtesy lights

168

Vanity lights



Rear personal light



Rear interior light



482

8-1. Specifications

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

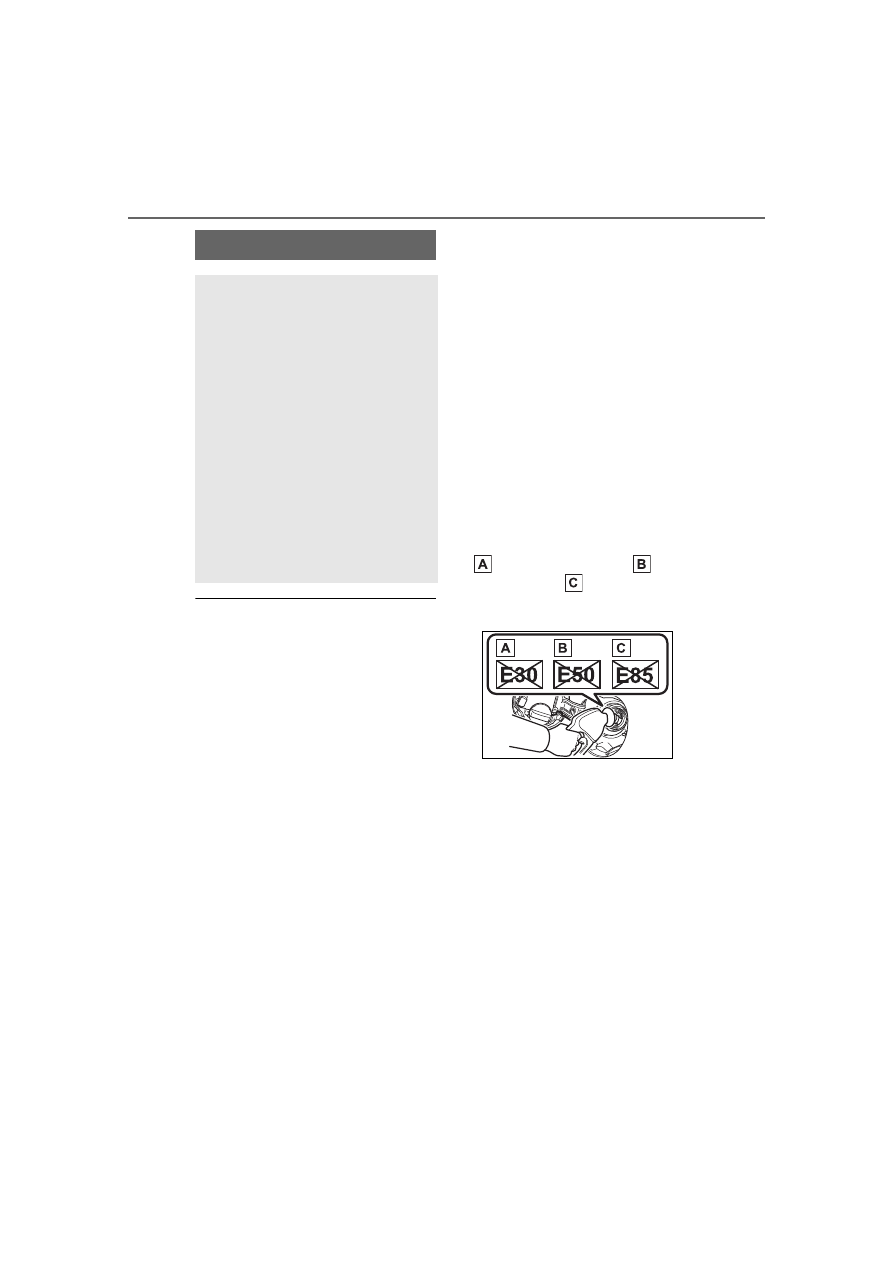

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

Fuel information

You must only use unleaded
gasoline.

Select octane rating 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

Content .. 27 28 29 30 ..
