6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

more than 5 minutes for the
oil to drain back into the bot-
tom of the engine.

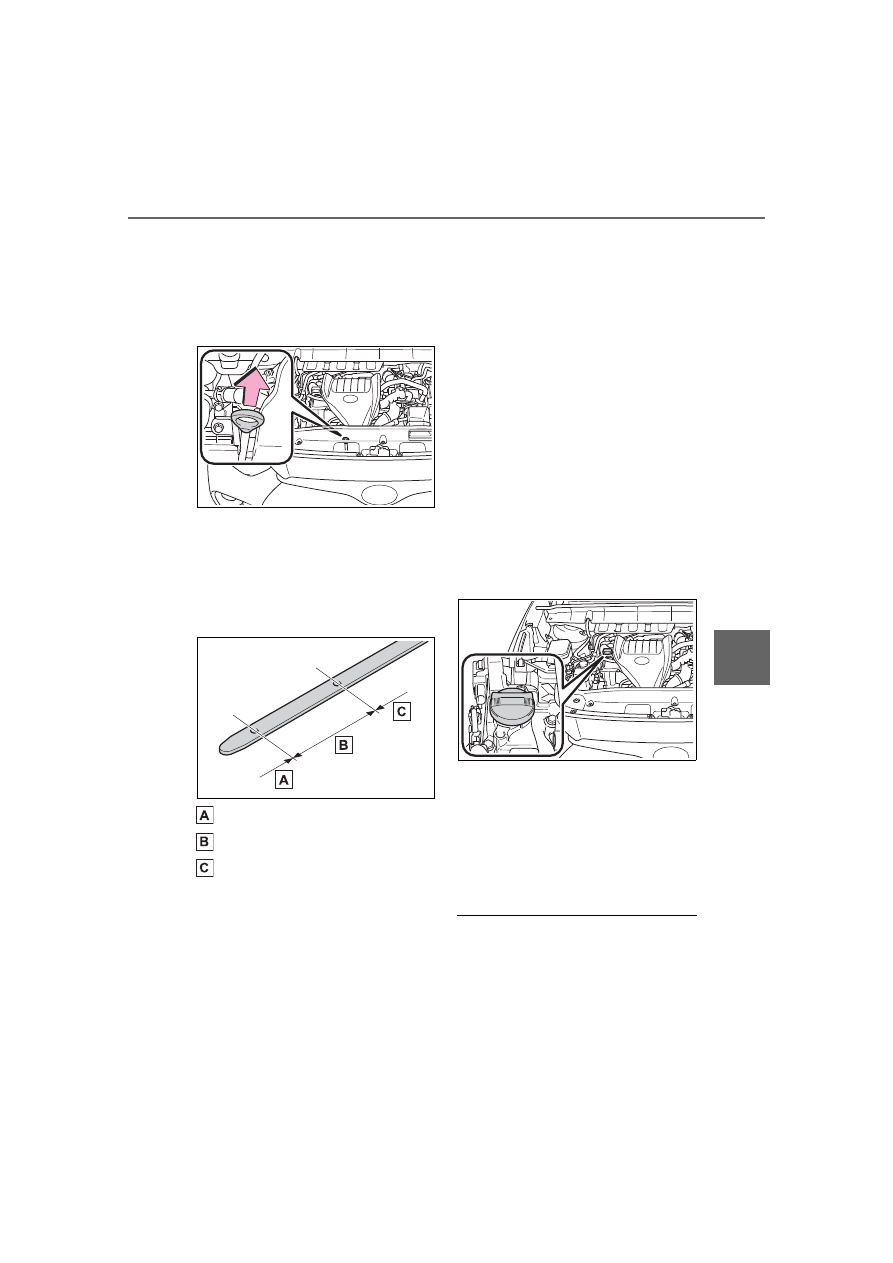

Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.

Reinsert the dipstick fully.

Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low
Normal
Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

Wipe the dipstick and reinsert
it fully.

■

Checking the oil type and
preparing the item needed

Make sure to check the oil type
and prepare the items needed
before adding oil.



Engine oil selection



P.476



Oil quantity (Low



Full)

1.9 qt. (1.8 L, 1.6 Imp. qt.)



Item
Clean funnel

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

Remove the oil filler cap by
turning it counterclockwise.

Add engine oil slowly, check-
ing the dipstick.

Install the oil filler cap by
turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

388

6-3. Do-it-yourself maintenance

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load,

when towing, or when driving

while accelerating or decelerating

frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

■

If the oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any engine

oil from the engine cover as soon as

possible using a neutral detergent.

Do not use an organic solvent such

as brake cleaner.

■

After changing the engine oil

The engine oil maintenance data

should be reset. Perform the follow-

ing procedures:



7-inch display

Select

of the multi-informa-

tion display.

Press

of the meter

control switch, select

and

then press and hold

Press

of the meter

control switch, select “Oil Mainte-
nance” and then press

Select “Yes” and press

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.



12.3-inch display

Select

of the multi-informa-

tion display.

Press

of the meter

control switch, select

and

then press and hold

Press

of the meter

control switch, select “Oil Mainte-
nance” and then press

Select “Yes” and press

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.

389

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

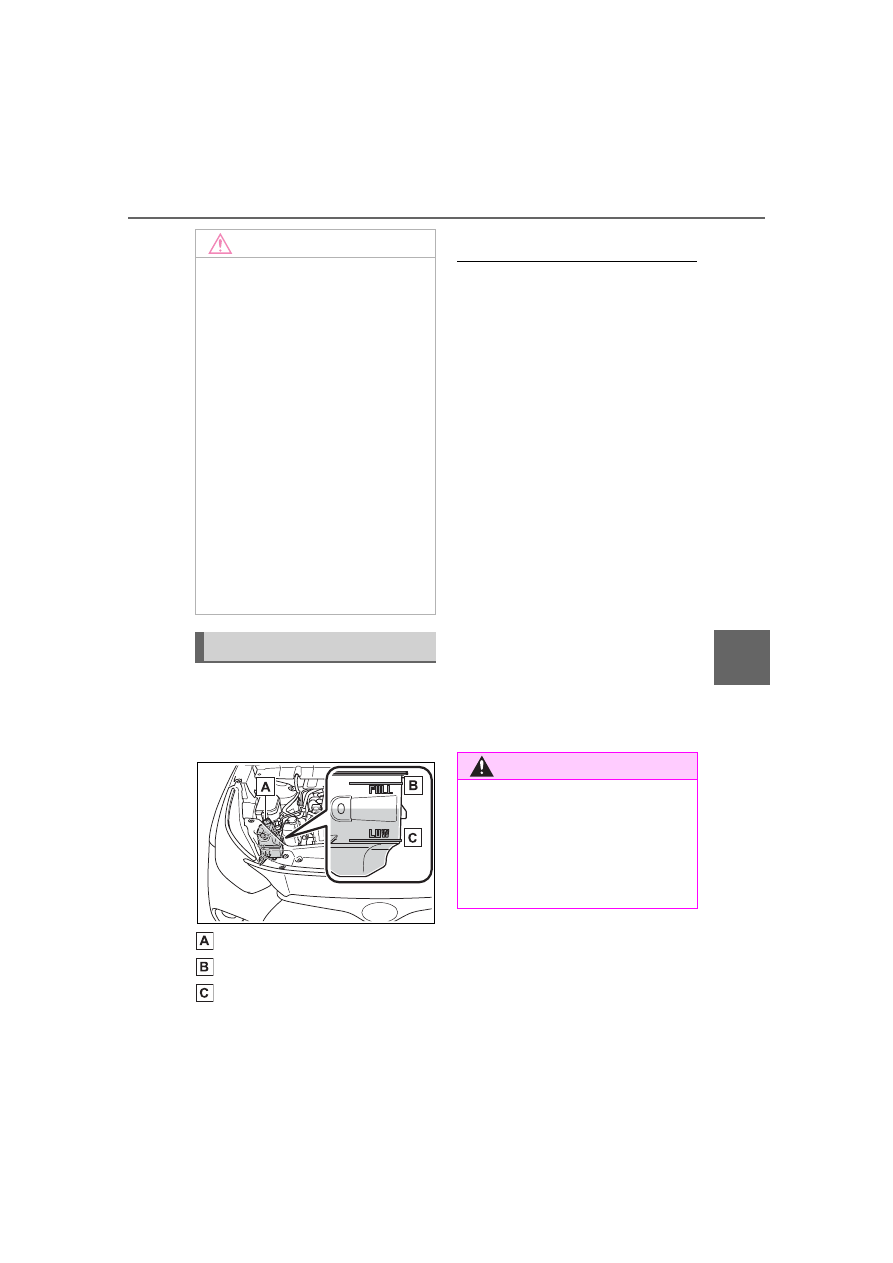

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir
when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”

line. (



P.469)

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and

non-borate coolant with long-life

hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])
Canada:
“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])
For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiator, hoses,

engine coolant reservoir cap, drain

cock and water pump.

If you cannot find a leak, have your

Toyota dealer test the cap and

check for leaks in the cooling sys-

tem.

NOTICE

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

●

Be sure the engine oil filler cap

is properly tightened.

■

If oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any

engine oil from the engine cover

as soon as possible using a neu-

tral detergent. Do not use an

organic solvent such as brake

cleaner.

Checking the coolant

WARNING

■

When the engine is hot

Do not remove the engine coolant

reservoir cap and radiator cap.
The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

390

6-3. Do-it-yourself maintenance

Check the radiator and con-
denser and clear away any for-
eign objects. If either of the
above parts is extremely dirty or
you are not sure of their condi-
tion, have your vehicle
inspected by your Toyota dealer.

■

Checking fluid level

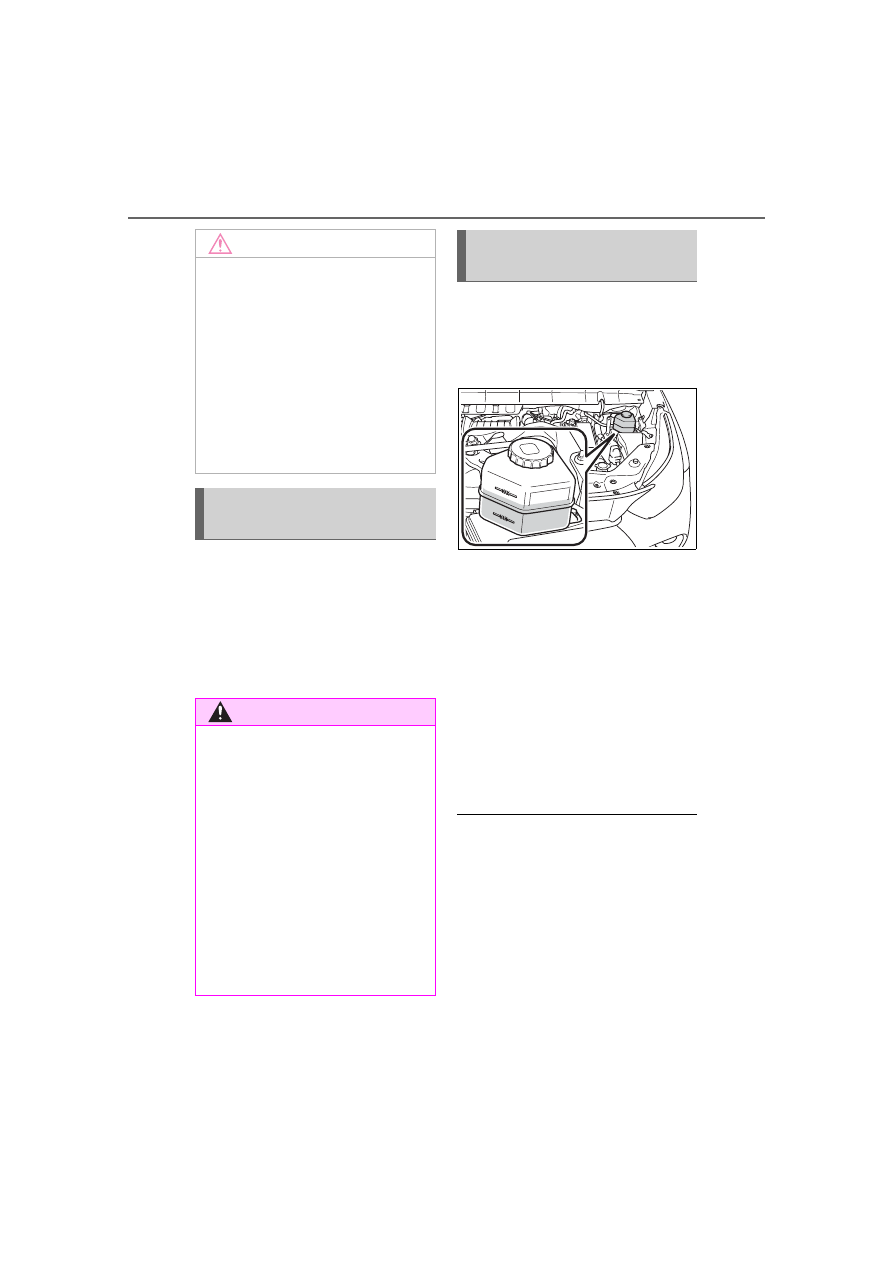

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

■

Adding fluid

Make sure to check the fluid
type and prepare the necessary
item.



Fluid type

SAE J1703 or FMVSS No.116 DOT
3 brake fluid
SAE J1704 or FMVSS No.116 DOT
4 brake fluid



Item
Clean funnel

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Checking the radiator and
condenser

WARNING

■

When the engine is hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

■

When the electric cooling fan

are operating

Do not touch the engine compart-

ment. With the engine switch in

ON, the electric cooling fan may

automatically start to run if the air

conditioning is on and/or the cool-

ant temperature is high. Be sure

the engine switch is OFF when

working near the electric cooling

fan or radiator grille.

Checking and adding the
brake fluid

391

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

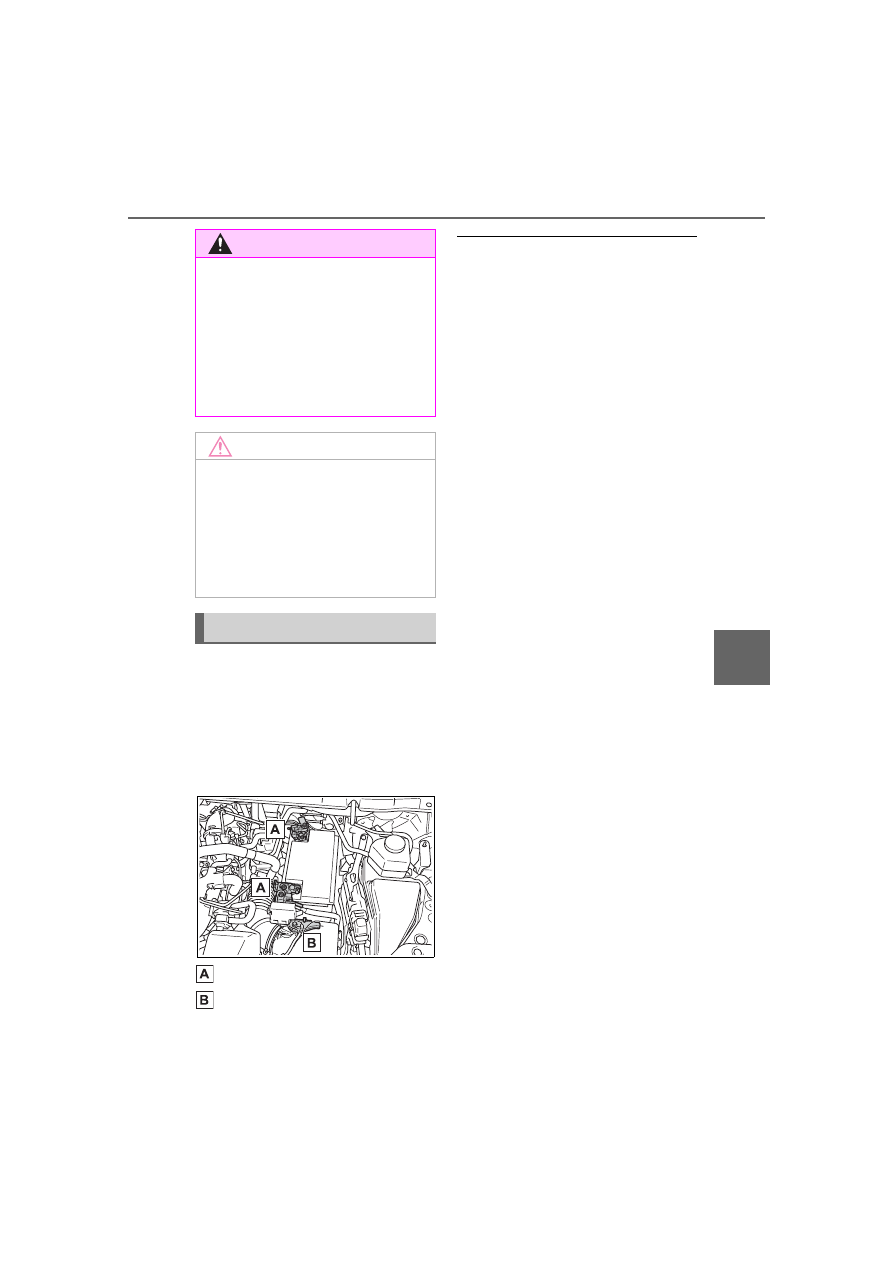

Check the battery as follows.

■

Battery exterior

Make sure that the battery termi-
nals are not corroded and that
there are no loose connections,
cracks, or loose clamps.

Terminals
Hold-down clamp

■

Before recharging

When recharging, the battery pro-

duces hydrogen gas which is flam-

mable and explosive. Therefore,

observe the following precautions

before recharging:

●

If recharging with the battery

installed on the vehicle, be sure to

disconnect the ground cable.

●

Make sure the power switch on

the charger is off when connecting

and disconnecting the charger

cables to the battery.

■

After recharging/reconnecting

the battery

The engine may not start. Follow the

procedure below to initialize the sys-

tem.

Shift the shift lever to P.

Open and close any of the doors.

Restart the engine.

●

Unlocking the doors using the

smart key system may not be pos-

sible immediately after reconnect-

ing the battery. If this happens,

use the wireless remote control or

the mechanical key to lock/unlock

the doors.

●

Start the engine with the engine

switch in ACC. The engine may

not start with the engine switch

turned off. However, the engine

will operate normally from the sec-

ond attempt.

●

The engine switch mode is

recorded by the vehicle. If the bat-

tery is disconnected and recon-

nected, the vehicle will return the

engine switch mode to the status it

was in before the battery was dis-

connected. Make sure to turn off

the engine before disconnecting

the battery. Take extra care when

connecting the battery if the

engine switch mode prior to the

battery being disconnected is

unknown.

If the system will not start even after

multiple attempts, contact your Toy-

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.

If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level

to go down slightly as the brake

pads wear out or when the fluid

level in the accumulator is high.

If the reservoir needs frequent

refilling, there may be a serious

problem.

Battery

392

6-3. Do-it-yourself maintenance

ota dealer.

If any washer does not work or
the warning message appears
on the multi-information display,
the washer tank may be empty.
Add washer fluid.

WARNING

■

Chemicals in the battery

Batteries contain poisonous and

corrosive sulfuric acid and may

produce hydrogen gas which is

flammable and explosive. To

reduce the risk of death or serious

injury, take the following precau-

tions while working on or near the

battery:

●

Do not cause sparks by touch-

ing the battery terminals with

tools.

●

Do not smoke or light a match

near the battery.

●

Avoid contact with eyes, skin

and clothes.

●

Never inhale or swallow electro-

lyte.

●

Wear protective safety glasses

when working near the battery.

●

Keep children away from the

battery.

■

Where to safely charge the

battery

Always charge the battery in an

open area. Do not charge the bat-

tery in a garage or closed room

where there is insufficient ventila-

tion.

■

How to recharge the battery

Only perform a slow charge (5 A

or less). The battery may explode

if charged at a quicker rate.

■

Emergency measures regard-

ing electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean

water for at least 15 minutes

and get immediate medical

attention. If possible, continue

to apply water with a sponge or

cloth while traveling to the near-

est medical facility.

●

If electrolyte gets on your skin

Wash the affected area thor-

oughly. If you feel pain or burn-

ing, get medical attention

immediately.

●

If electrolyte gets on your

clothes

It can soak through clothing on

to your skin. Immediately take

off the clothing and follow the

procedure above if necessary.

●

If you accidentally swallow elec-

trolyte

Drink a large quantity of water

or milk. Get emergency medical

attention immediately.

NOTICE

■

When recharging the battery

Never recharge the battery while

the engine is running. Also, be

sure all accessories are turned

off.

Washer fluid

393

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Check if the treadwear indica-
tors are showing on the tires.
Also check the tires for uneven
wear, such as excessive wear
on one side of the tread.
Check the spare tire condition
and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

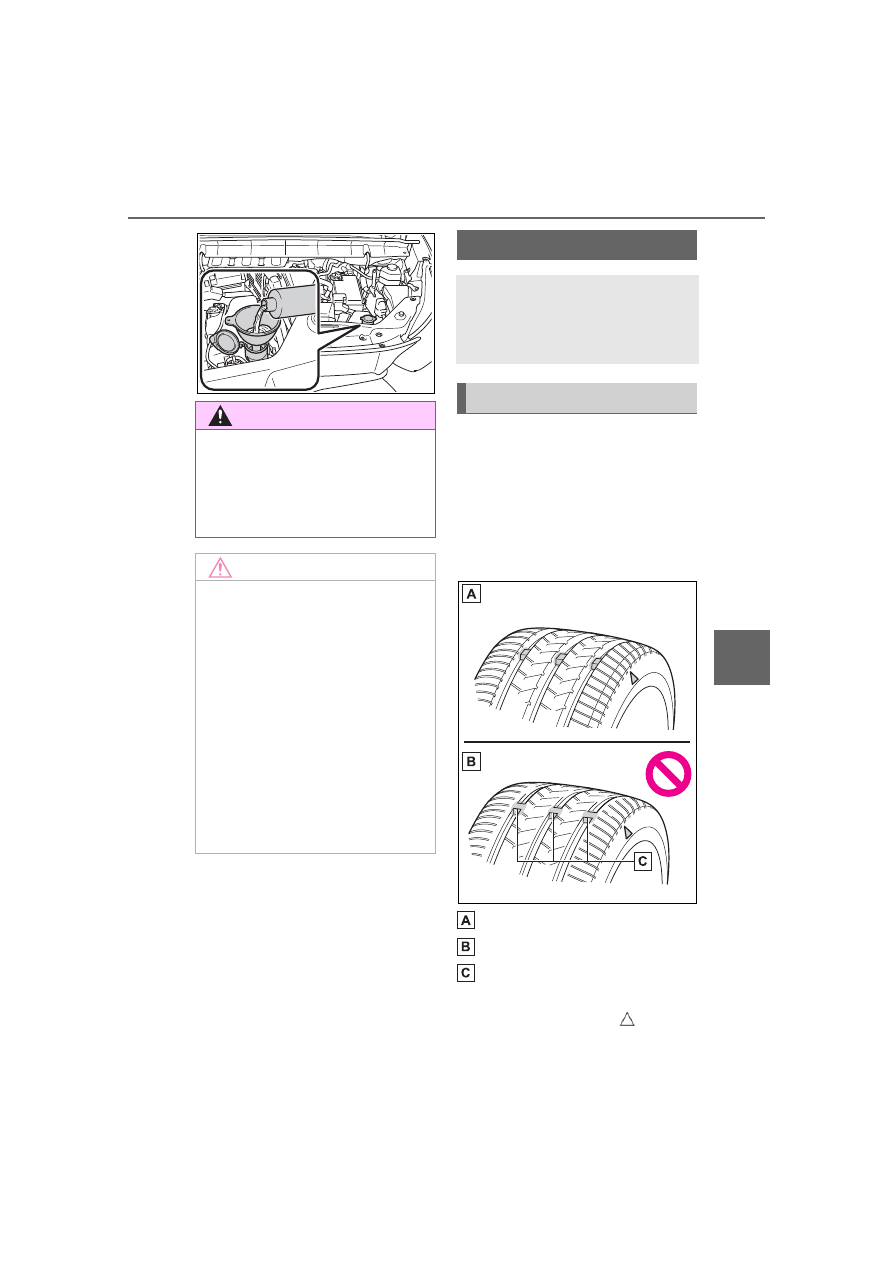

The location of treadwear indicators
is shown by a “TWI” or “

” mark,

WARNING

■

When adding washer fluid

Do not add washer fluid when the

engine is hot or running as

washer fluid contains alcohol and

may catch fire if spilled on the

engine, etc.

NOTICE

■

Do not use any fluid other

than washer fluid

Do not use soapy water or engine

antifreeze instead of washer fluid.
Doing so may cause streaking on

the vehicle’s painted surfaces, as

well as damaging the pump lead-

ing to problems of the washer

fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as

necessary.
Refer to the freezing tempera-

tures listed on the label of the

washer fluid bottle.

Tires

Replace or rotate tires in
accordance with mainte-
nance schedules and tread-
wear.

Checking tires

394

6-3. Do-it-yourself maintenance

etc., molded into the sidewall of
each tire.
Replace the tires if the treadwear
indicators are showing on a tire.

■

When to replace your vehicle’s

tires

Tires should be replaced if:

●

The treadwear indicators are

showing on a tire.

●

You have tire damage such as

cuts, splits, cracks deep enough

to expose the fabric, and bulges

indicating internal damage.

●

A tire goes flat repeatedly or can-

not be properly repaired due to the

size or location of a cut or other

damage.

If you are not sure, consult with your

Toyota dealer.

■

Tire life

Any tire over 6 years old must be

checked by a qualified technician

even if it has seldom or never been

used or damage is not obvious.

■

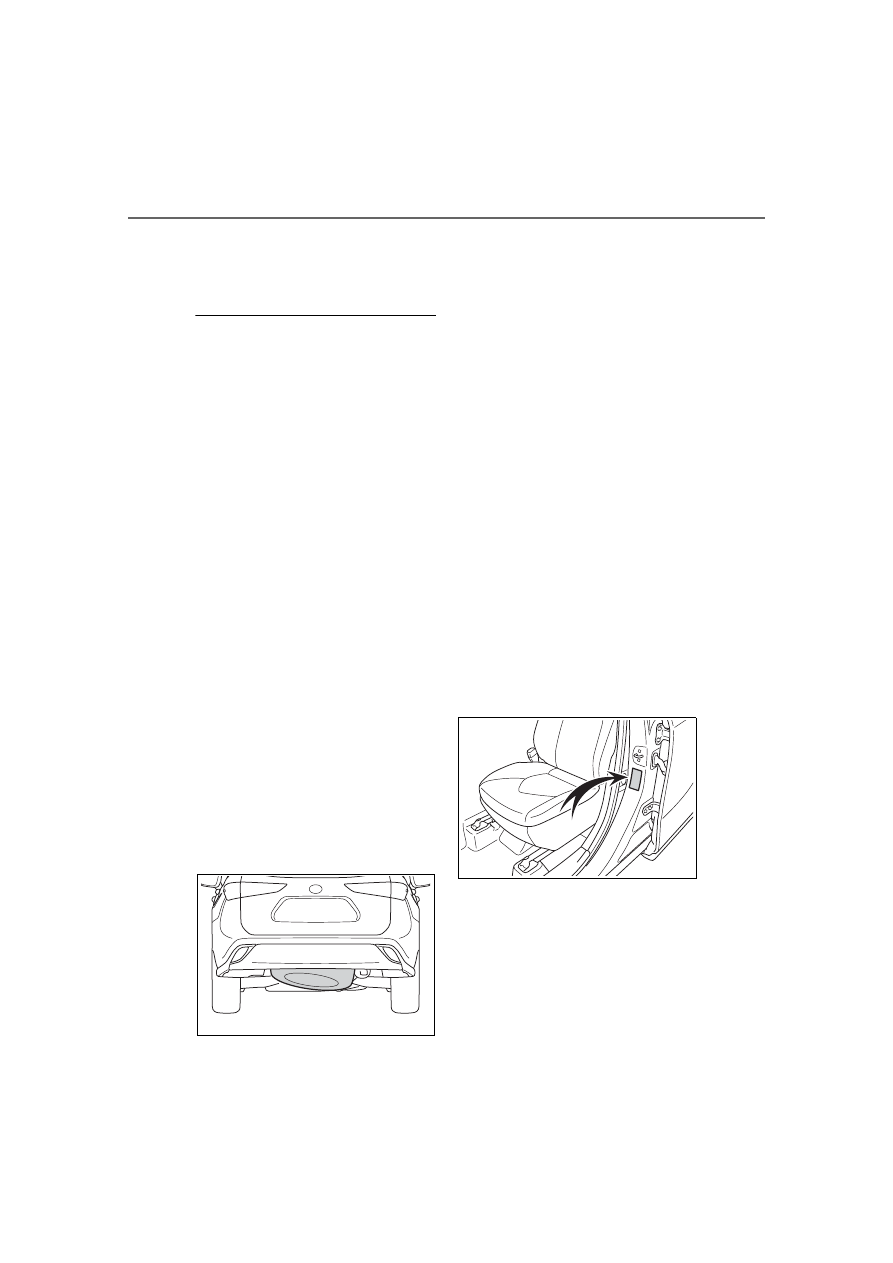

Proper storage of the spare tire

As an improperly stored spare tire

may cause damage to the wire

cable that holds it, check that the

spare tire is stored properly on a

daily basis.

●

If the stored spare tire appears to

be slanted or rattles while driving,

the spare tire may not be properly

stored. Store the spare tire again

by performing the following tire

change procedure correctly:

If the spare tire is slanted, the

hoist assembly may be stuck in

the wheel opening. If the spare

tire rattles while driving, it may

not be fully raised. Lower the

spare tire to the ground and

make sure that the hoist assem-

bly is perpendicular to the wheel

opening.

Raise the tire slowly and steadily

until a click is heard and the jack

handle skips.

If the spare tire cannot be lowered,

the wire cable may be severed.

Have the vehicle inspected at your

Toyota dealer.

■

Maximum load of tire

Check that the number given by

dividing the maximum load by 1.10

of the replacement tire is greater

than 1/2 of the Gross Axle Weight

Ratings (GAWR) of either the front

axle or the rear axle, whichever is

greater.
For the GAWR, see the Certification

Label.

For the maximum load of the tire,

see the load limit at maximum cold

tire inflation pressure mentioned on

the sidewall of the tire. (



P.484)

■

Tire types

●

Summer tires

Summer tires are high-speed perfor-
mance tires best suited to highway
driving under dry conditions. Since
summer tires do not have the same
traction performance as snow tires,
summer tires are inadequate for

395

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

driving on snow-covered or icy
roads. For driving on snow-covered
roads or icy roads, the use of snow
tires is recommended. When install-
ing snow tires, be sure to replace all
four tires.

●

All season tires

All season tires are designed to pro-
vide better traction in snow and to
be adequate for driving in most win-
ter conditions as well as for use
year-round. All season tires, how-
ever, do not have adequate traction
performance compared with snow
tires in heavy or loose snow. Also,
all season tires fall short in accelera-
tion and handling performance com-
pared with summer tires in highway
driving.

●

Snow tires

For driving on snow-covered roads
or icy roads, we recommend using
snow tires. If you need snow tires,
select tires of the same size, con-
struction and load capacity as the
originally installed tires. Since your
vehicle has radial tires as original
equipment, make sure your snow
tires also have radial construction.
Do not install studded tires without
first checking local regulations for
possible restrictions. Snow tires
should be installed on all wheels.
(



P.314)

■

If the tread on snow tires wears

down below 0.16 in. (4 mm)

The effectiveness of the tires as

snow tires is lost.

WARNING

■

When inspecting or replacing

tires

Observe the following precautions

to prevent accidents.

Failure to do so may cause dam-

age to parts of the drive train as

well as dangerous handling char-

acteristics, which may lead to an

accident resulting in death or seri-

ous injury.

●

Do not mix tires of different

makes, models or tread pat-

terns.

Also, do not mix tires of remark-

ably different treadwear.

●

Do not use tire sizes other than

those recommended by Toyota.

●

Do not mix differently con-

structed tires (radial, bias-belted

or bias-ply tires).

●

Do not mix summer, all season

and snow tires.

●

Do not use tires that have been

used on another vehicle.

Do not use tires if you do not

know how they were used previ-

ously.

●

Vehicles with a compact spare

tire: Do not tow if your vehicle

has a compact spare tire

installed.

NOTICE

■

Driving on rough roads

Take particular care when driving

on roads with loose surfaces or

potholes.

These conditions may cause

losses in tire inflation pressure,

reducing the cushioning ability of

the tires. In addition, driving on

rough roads may cause damage

to the tires themselves, as well as

the vehicle’s wheels and body.

396

6-3. Do-it-yourself maintenance

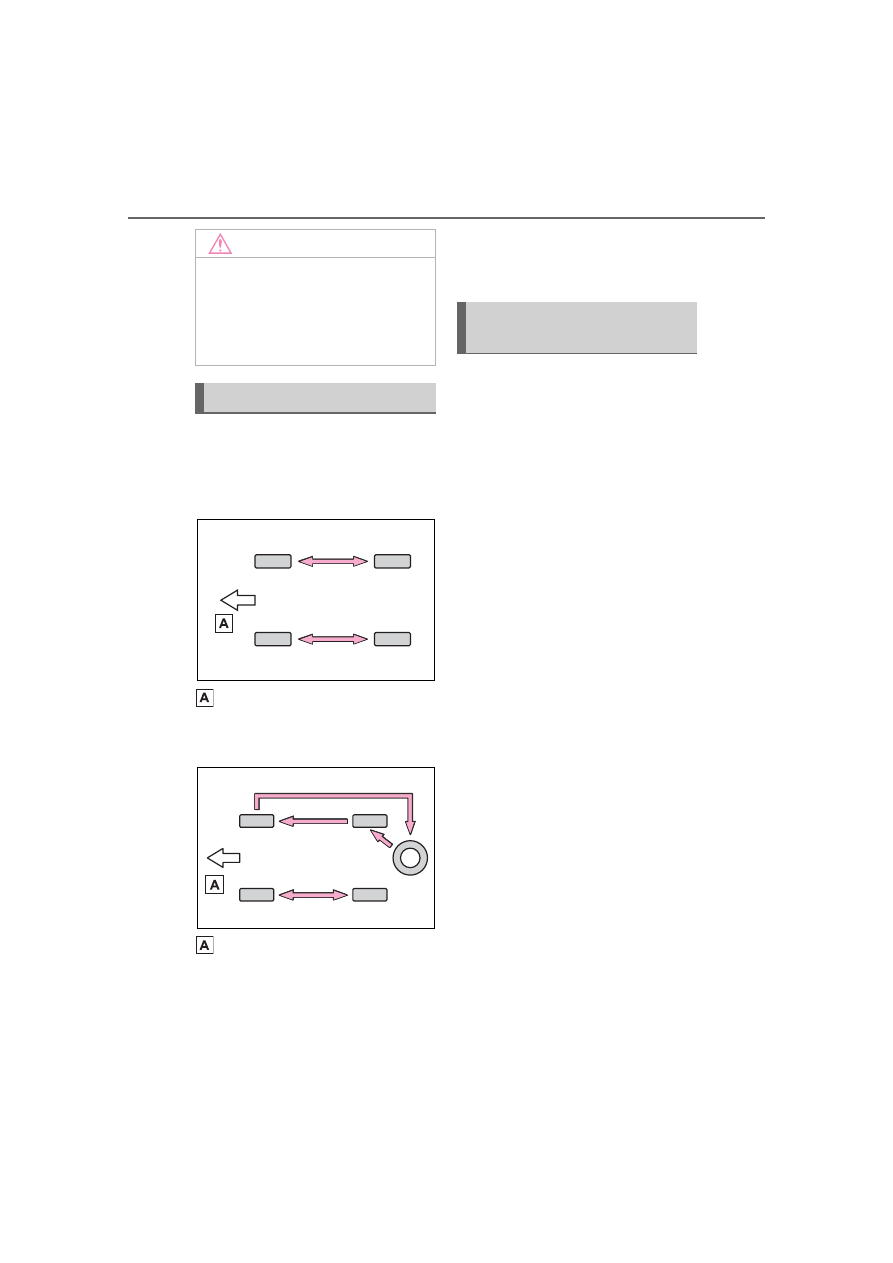

Rotate the tires in the order
shown.



Vehicles with a compact
spare tire

Front



Vehicles with a full-size spare
tire

Front

To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.

Do not fail to initialize the tire pres-
sure warning system after tire rota-
tion.

Your vehicle is equipped with a
tire pressure warning system
that uses tire pressure warning
valves and transmitters to detect
low tire inflation pressure before
serious problems arise.



The tire pressure detected by
the tire pressure warning sys-
tem can be displayed on the
multi-information display.
(



P.87, 96)

NOTICE

■

If tire inflation pressure of

each tire becomes low while

driving

Do not continue driving, or your

tires and/or wheels may be

ruined.

Tire rotation

Tire pressure warning
system

397

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.



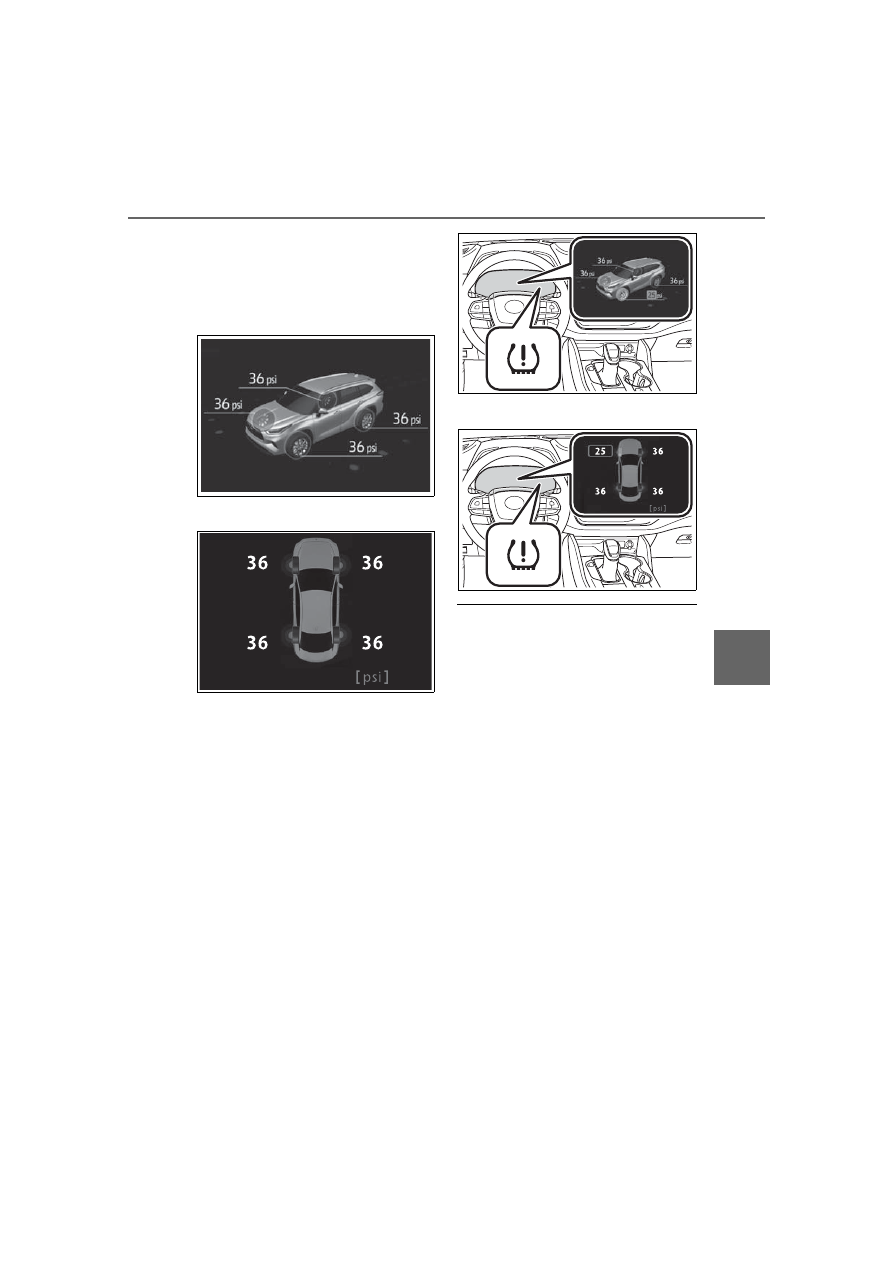

7-inch display



12.3-inch display



If the tire pressure drops
below a predetermined level,
the driver is warned by a
screen display and a warning
light. (



P.435)

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.



7-inch display



12.3-inch display

■

Routine tire inflation pressure

checks

The tire pressure warning system

does not replace routine tire inflation

pressure checks. Make sure to

check tire inflation pressure as part

of your routine of daily vehicle

checks.

■

Situations in which the tire

pressure warning system may

not operate properly

●

In the following cases, the tire

pressure warning system may not

operate properly.

• If non-genuine Toyota wheels are

used.

• A tire has been replaced with a

tire that is not an OE (Original

Equipment) tire.

• A tire has been replaced with a

tire that is not of the specified size.

• Tire chains, etc. are equipped.

• An auxiliary-supported run-flat tire

is equipped.

• If a window tint that affects the

radio wave signals is installed.

• If there is a lot of snow or ice on

398

6-3. Do-it-yourself maintenance

the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is

extremely higher than the speci-

fied level.

• If the spare tire is in a location

subject to poor radio wave signal
reception.

• If wheel without the tire pressure

warning valve and transmitter is

used.

• If the ID code on the tire pressure

warning valves and transmitters is

not registered in the tire pressure

warning computer.

: Vehicles with full-size spare tire

only

●

Performance may be affected in

the following situations.

• Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

• When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

●

If tire position information is not

correctly displayed due to the

radio wave conditions, the display

may be corrected by driving and

changing the radio wave condi-

tions.

●

When the vehicle is parked, the

time taken for the warning to start

or go off could be extended.

●

When tire inflation pressure

declines rapidly for example when

a tire has burst, the warning may

not function.

■

Warning performance of the tire

pressure warning system

The warning of the tire pressure

warning system will change in

accordance with the conditions

under which it was initialized. For

this reason, the system may give a

warning even if the tire pressure

does not reach a low enough level,

or if the pressure is higher than the

pressure that was adjusted to when

the system was initialized.

When replacing tires or wheels,
tire pressure warning valves and
transmitters must also be
installed.
When new tire pressure warning
valves and transmitters are
installed, new ID codes must be
registered in the tire pressure
warning computer and the tire
pressure warning system must
be initialized. Have tire pressure
warning valves and transmitter
ID codes registered by your Toy-
ota dealer. (



P.401)

■

Replacing tires and wheels

If the ID code of the tire pressure

warning valve and transmitter is not

registered, the tire pressure warning

system will not work properly. After

driving for about 20 minutes, the tire

pressure warning light blinks for 1

minute and stays on to indicate a

system malfunction.

Installing tire pressure
warning valves and trans-
mitters

399

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

The tire pressure warning
system must be initialized
in the following circum-
stances:



When the tire inflation pres-
sure is changed such as

when changing traveling
speed.



When the tire inflation pres-
sure is changed such as
when the tire size is changed.



When rotating the tires.



After registering the ID codes.
(



P.401)

When the tire pressure warning
system is initialized, the current
tire inflation pressure is set as
the benchmark pressure.

■

How to initialize the tire
pressure warning system



7-inch display

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.479)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

Turn the engine switch to
ON.

Select

of the multi-infor-

mation display.

Press

of the meter

control switch, select

and

then press and hold

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps

●

When removing or fitting the

wheels, tires or the tire pressure

warning valves and transmit-

ters, contact your Toyota dealer

as the tire pressure warning

valves and transmitters may be

damaged if not handled cor-

rectly.

●

Make sure to install the tire

valve caps. If the tire valve caps

are not installed, water could

enter the tire pressure warning

valves and the tire pressure

warning valves could be bound.

●

When replacing tire valve caps,

do not use tire valve caps other

than those specified. The cap

may become stuck.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire. (



P.398)

Initializing the tire pres-
sure warning system

400

6-3. Do-it-yourself maintenance

Press

of the meter

control switch, select “TPWS”
and then press

Press

of the meter

control switch, select “Set
Pressure” and then press
and hold



12.3-inch display

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.479)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

Turn the engine switch to
ON.

Select

of the multi-infor-

mation display.

Press

of the meter

control switch, select

and

then press and hold

Press

of the meter

control switch, select “TPWS”
and then press

Press

of the meter

control switch, select “Set

Pressure” and then press
and hold

“Setting Tire Pressure Warning
System” will be displayed on the
multi-information display and the
tire pressure warning light will
blink 3 times.
When the message disappears,
initialization is complete.
A message is displayed on the
multi-information display. Also,
“--” is displayed for inflation
pressure of each tire on the
multi-information display while
the tire pressure warning sys-
tem determines the position.
Drive the vehicle at approxi-
mately 25 mph (40 km/h) or
more for approximately 10 to 30
minutes until the inflation pres-
sure of each tire is displayed on
the multi-information display.
When initialization is complete,
the inflation pressure of each
tire will be displayed on the
multi-information display.
Even if the vehicle is not driven
at approximately 25 mph (40
km/h) or more, initialization can
be completed by driving for a
long time. However, if initializa-
tion does not complete after
driving for 1 hour or more, park
the vehicle in a safe place for
approximately 20 minutes and
then drive the vehicle again.

401

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Initializing the tire pressure

warning system

Initialize the system with the tire

inflation pressure adjusted to the

specified level.

■

Initialization procedure

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure.

Also, make sure the tires are cold

before carrying out initialization or

tire inflation pressure adjustment.

●

If you have accidentally turned the

engine switch off during initializa-

tion, it is not necessary to restart

the initialization again as initializa-

tion will restart automatically when

the engine switch has been turned

to ON for the next time.

●

If you accidentally restart the ini-

tialization when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

●

While the position of each tire is

being determined and the inflation

pressures are not being displayed

on the multi-information display, if

the inflation pressure of a tire

drops, the tire pressure warning

light will come on.

■

When initialization of the tire

pressure warning system has

failed

Initialization may take longer to

complete if the vehicle is driven on

an unpaved road. When performing

initialization, drive on a paved road if

possible. Depending on the driving

environment and condition of the

tires, initialization will be completed

in approximately 10 to 30 minutes. If

initialization is not complete after

driving approximately 10 to 30 min-

utes, continue driving for a while.
If the inflation pressure of each tire

is not displayed after driving for

approximately 1 hour, perform the

following procedure.

●

Park the vehicle in a safe place for

approximately 20 minutes. Then

drive straight (with occasional left

and right turns) at approximately

25 mph (40 km/h) or more for

approximately 10 to 30 minutes.

However, in the following situations,

the tire inflation pressure will not be

recorded and the system will not

operate properly. Perform initializa-

tion again.

●

If the vehicle is reversed during

initialization, the data up to that

point is reset, so perform the ini-

tialization procedure again from

the beginning.

●

When operating the tire pressure

warning reset switch, the tire pres-

sure warning light does not blink 3

times.

●

After performing initialization, the

tire pressure warning light blinks

for 1 minute then stays on while

driving.

If the inflation pressure of each tire

is still not displayed, have the vehi-

cle inspected by your Toyota dealer.

Every tire pressure warning
valve and transmitter has a
unique ID code. When replacing
a tire pressure warning valve

WARNING

■

When initializing the tire pres-

sure warning system

Do not initializing tire inflation

pressure without first adjusting

the tire inflation pressure to the

specified level. Otherwise, the tire

pressure warning light may not

come on even if the tire inflation

pressure is low, or it may come on

when the tire inflation pressure is

actually normal.

Registering ID codes

402

6-3. Do-it-yourself maintenance

and transmitter, it is necessary
to register the ID code. When
registering the ID codes, per-
form the following procedure.



7-inch display

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.479)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

Turn the engine switch to
ON.

Select

of the multi-infor-

mation display.

Press

of the meter

control switch, select

and

then press and hold

Press

of the meter

control switch, select “TPWS”
and then press

Press

of the meter

control switch, select
“Change Wheel” and then
press

until the tire pres-

sure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.

Then a message will be displayed

on the multi-information display.

When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

Drive the vehicle at approxi-
mately 25 mph (40 km/h) or
more for approximately 10 to
30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the

multi-information display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

Initialize the tire pressure
warning system. (



P.399)



12.3-inch display

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.479)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

Turn the engine switch to
ON.

Toyota Highlander (2023 year). Manual in english - page 24
