Clock (

P.81)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.80)

Shift position display (

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient
temperature is 37°F (3°C) or lower.

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters (7-inch display)

Meter display

2-1. Instrument cluster

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

■

Customization

The meters can be customized on

of the multi-information display.

(

P.94)

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.469)

Odometer and trip meter
display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

necessary.

■

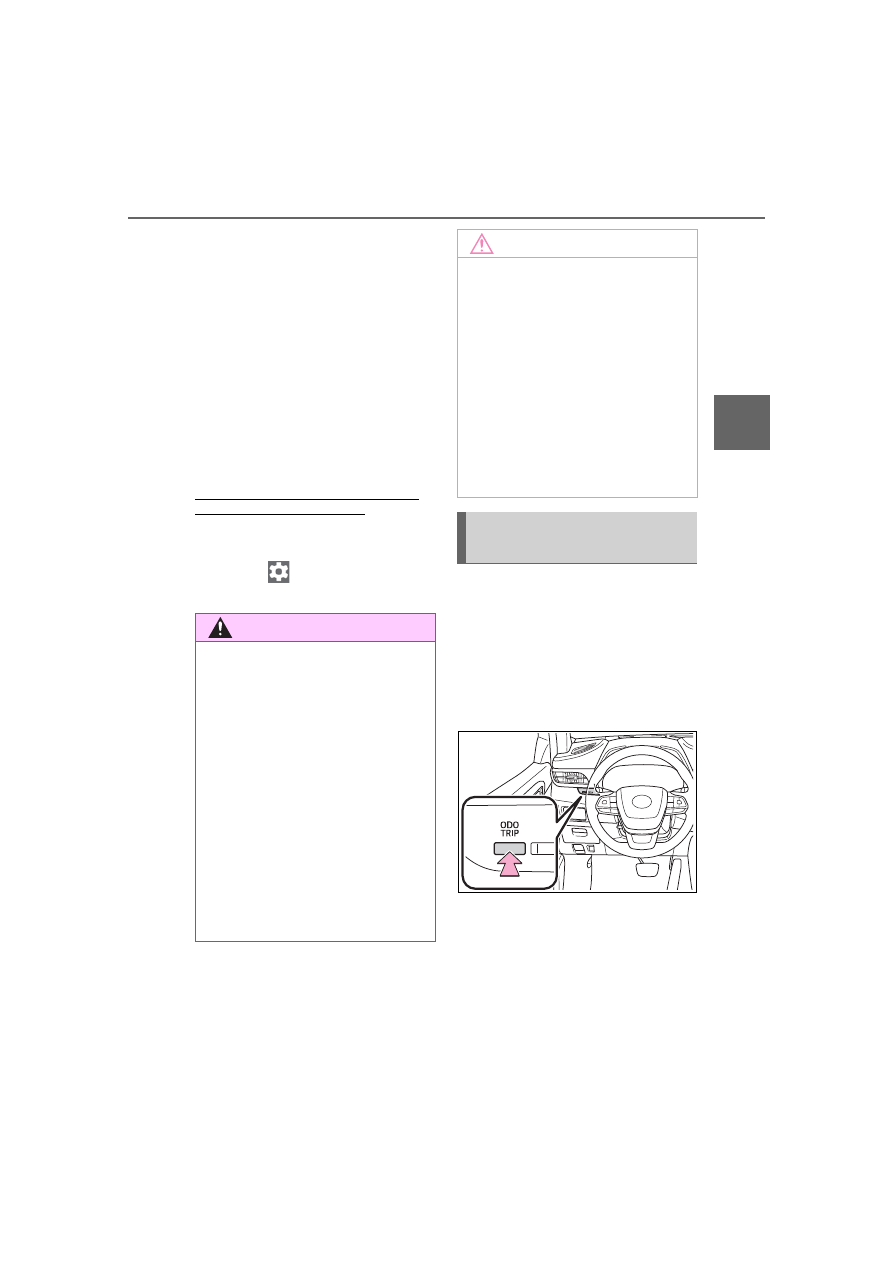

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

■

Pop-up display

In some situations the following
will be temporarily displayed:
Distance until next engine oil
change

Displays the distance until the next
engine oil change. This display will
be displayed in the following situa-
tions:



When the engine switch is
turned to ON.



When a warning message
indicating that oil mainte-
nance should be performed
soon or is required is dis-
played.

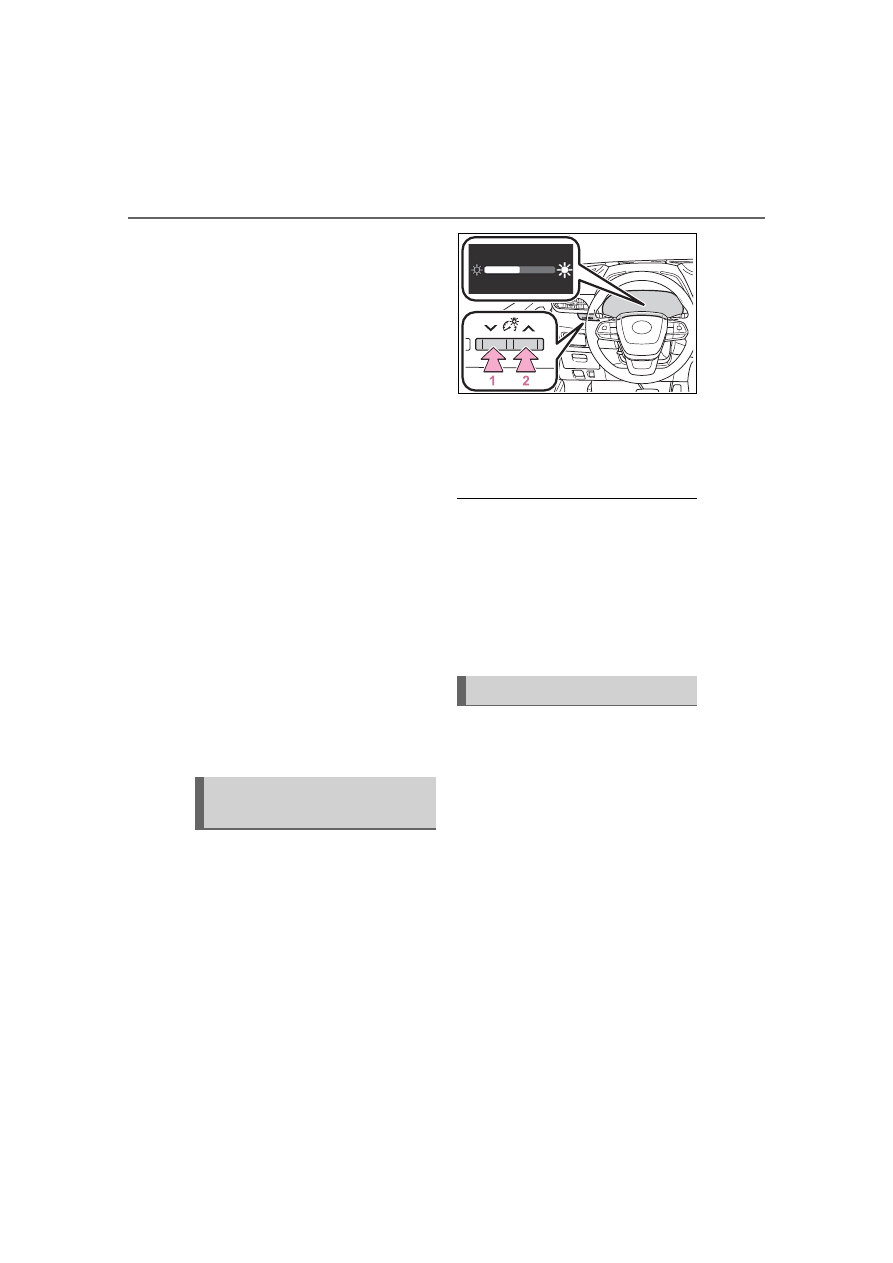

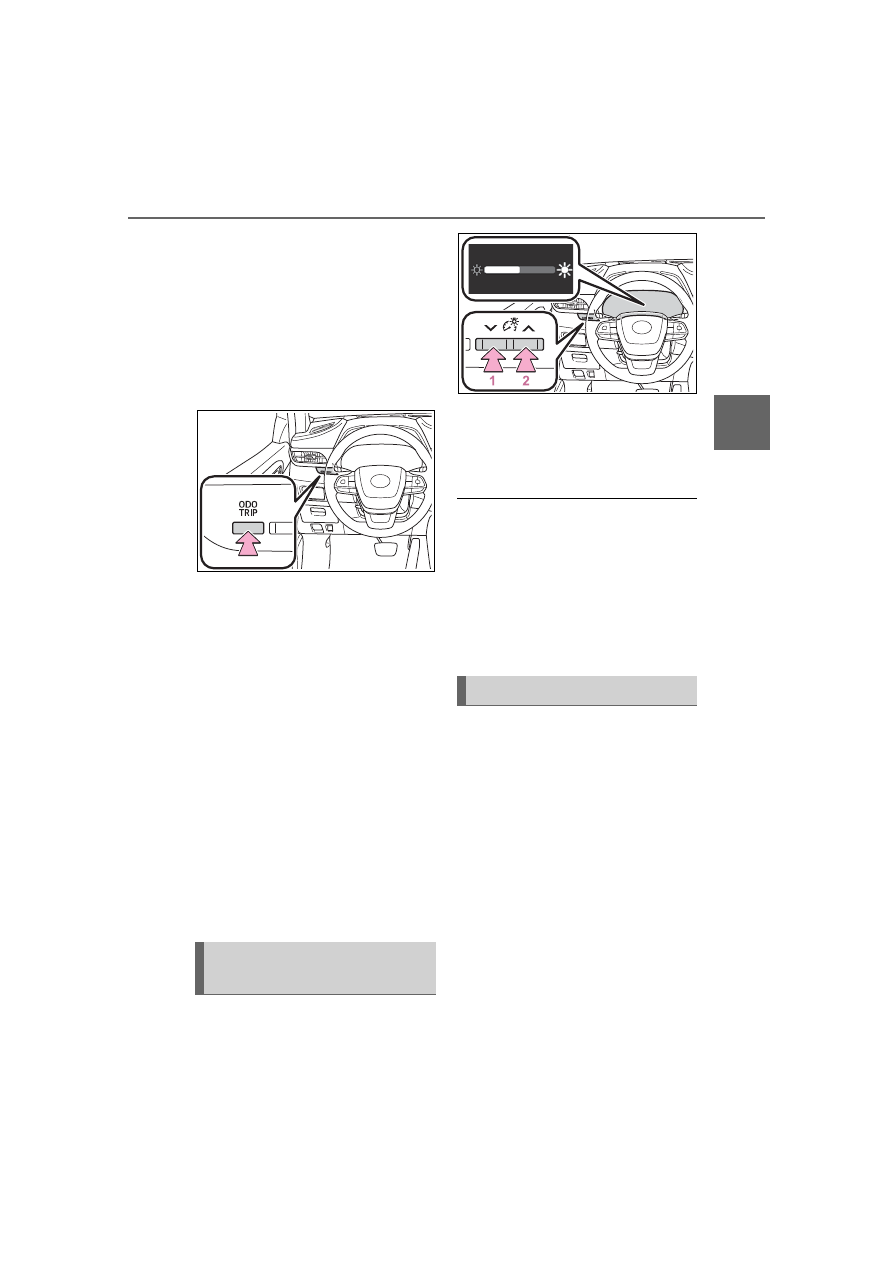

The brightness of the instrument
panel lights can be adjusted.

This image is for example only, and
may differ from the actual vehicle.

Darker

Brighter

■

Brightness of the meters (day

mode and night mode)

The brightness of the meters is

changed between day mode and

night mode.

●

Day mode: When the surrounding

area is bright

●

Night mode: When the surround-

ing area is dark

The clocks can be adjusted on
the audio system screen.
Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

2-1. Instrument cluster

■

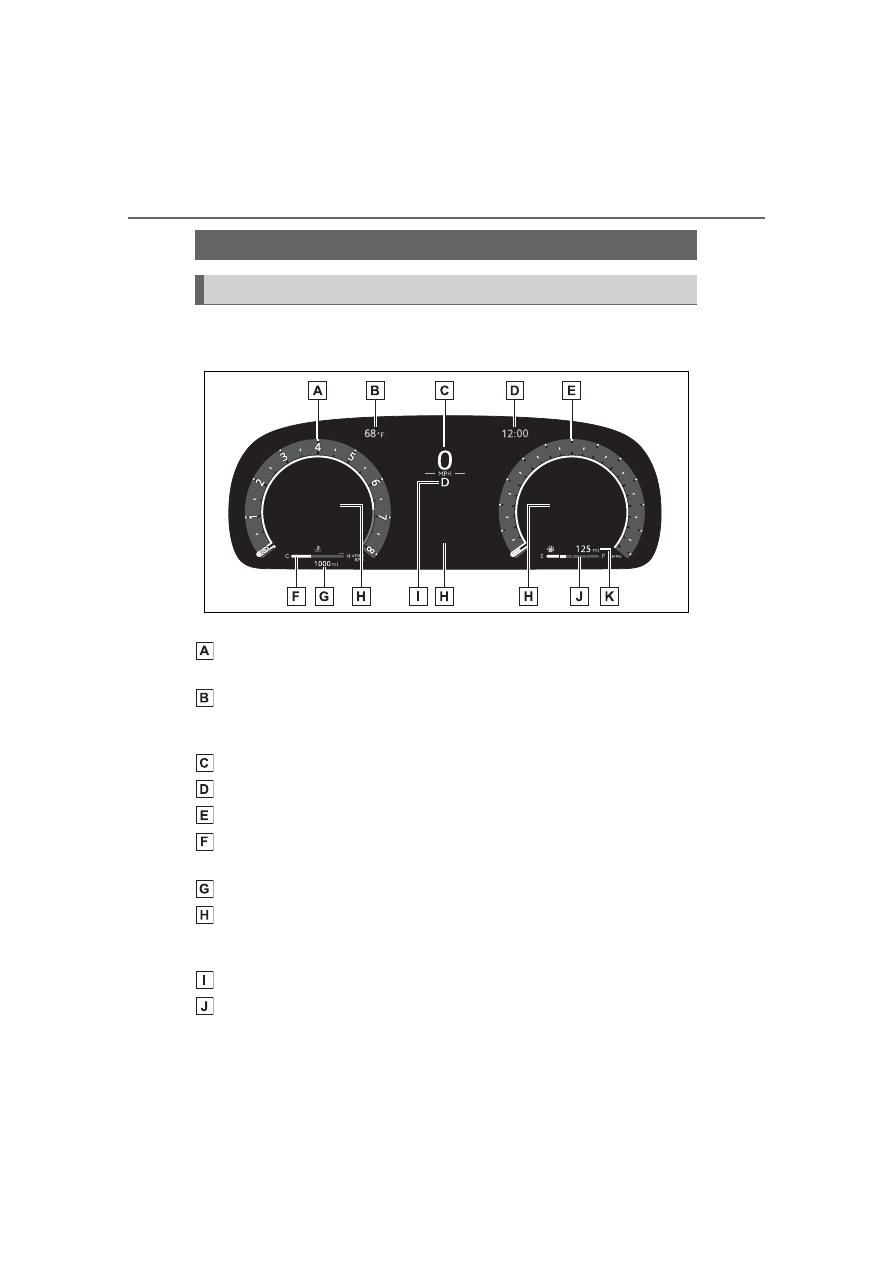

Locations of gauges and meters



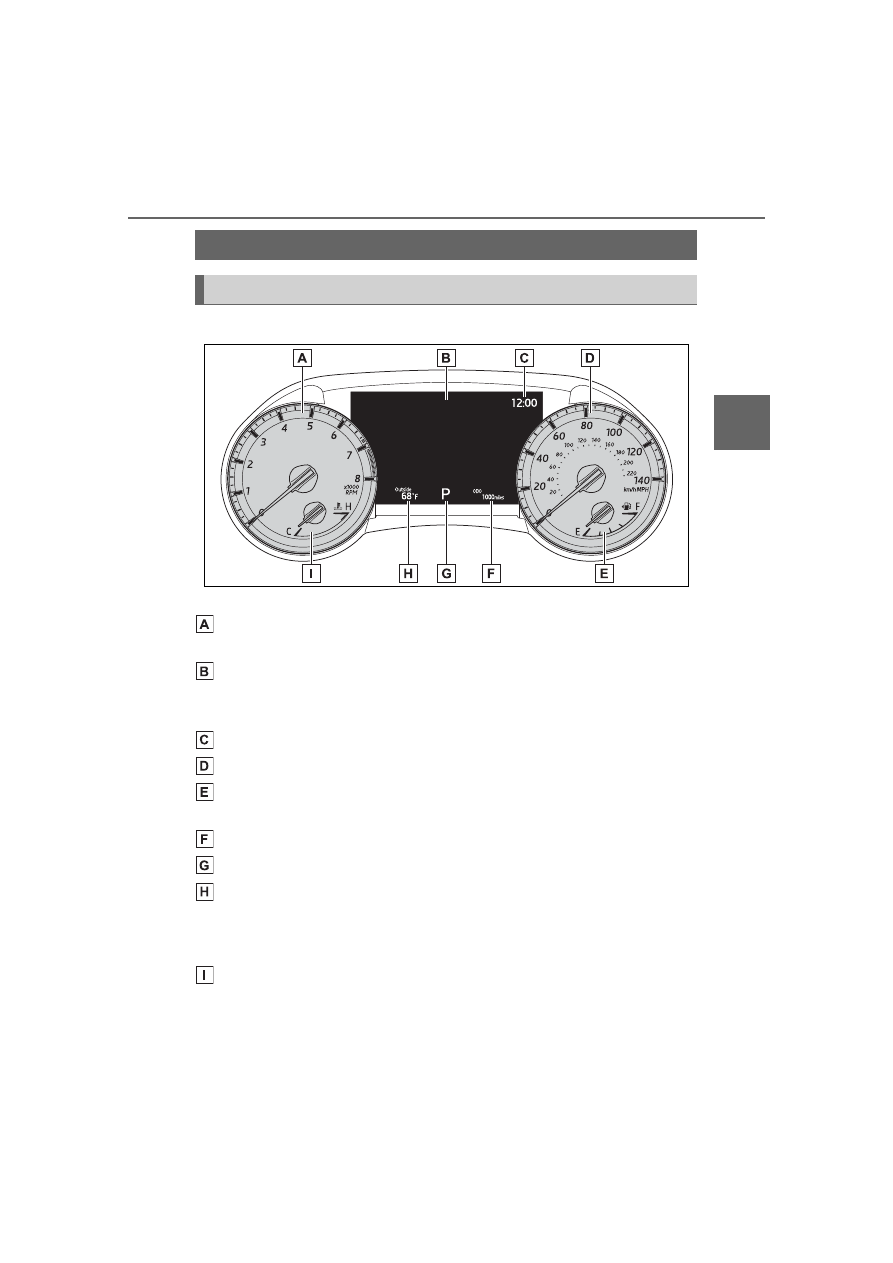

2-dial type

The units used on the meters may differ depending on the target region.

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Speedometer
Clock (

P.86)

Speedometer
Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.85)

Multi-information display

Presents the driver with a variety of vehicle data (



P.96)

Displays warning messages if a malfunction occurs (



Shift position and gear position indicator (

Fuel gauge

Displays the quantity of fuel remaining in the tank

Gauges and meters (12.3-inch display)

Meter display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Driving range

Displays driving range with remaining fuel.



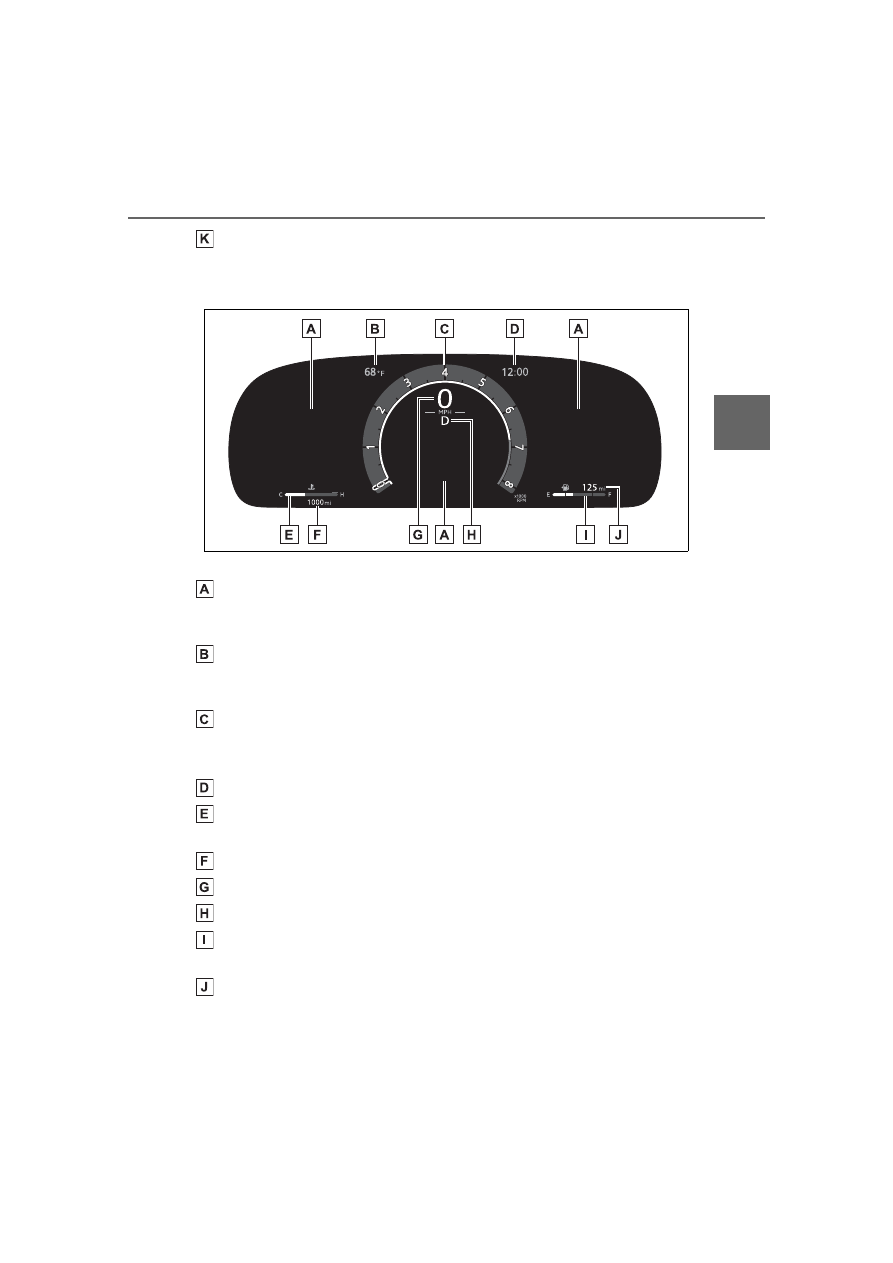

1-dial display

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (



P.96)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Speedometer/Tachometer

Tachometer: Displays the engine speed in revolutions per minute
This setting can be changed on the setting screen. (

Clock (

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.85)

Speedometer
Shift position and gear position indicator (

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

2-1. Instrument cluster



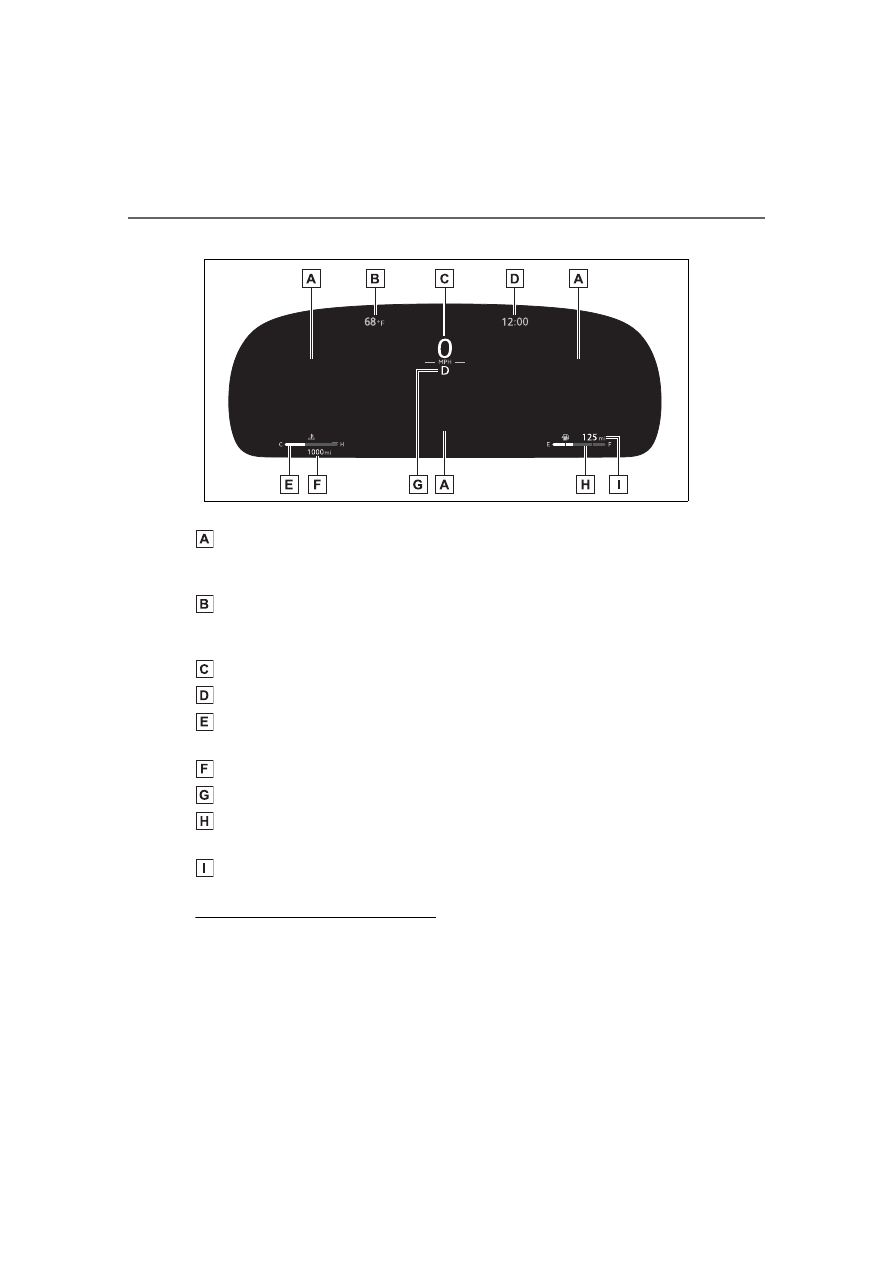

Non-dial display

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (



P.96)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Speedometer
Clock (

P.86)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.85)

Shift position indicator (

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

■

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS). The

license information and/or the

source code of such FOSS can be

found at the following URL.
https://www.denso.com/global/en/

opensource/meter/toyota/

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



P.494)

■

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.469)

Odometer and trip meter
display

2-1. Instrument cluster

has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

Pop-up display

In some situations the following
will be temporarily displayed:
Distance until next engine oil
change

Displays the distance until the next
engine oil change. This display will
be displayed in the following situa-
tions:



When the engine switch is
turned to ON.



When a warning message
indicating that oil mainte-
nance should be performed
soon or is required is dis-
played.

The brightness of the instrument
panel lights can be adjusted.

This image is for example only, and
may differ from the actual vehicle.

Darker

Brighter

■

Brightness of the meters (day

mode and night mode)

The brightness of the meters is

changed between day mode and

night mode.

●

Day mode: When the surrounding

area is bright

●

Night mode: When the surround-

ing area is dark

■

The clocks can be adjusted
on the audio system
screen.

Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

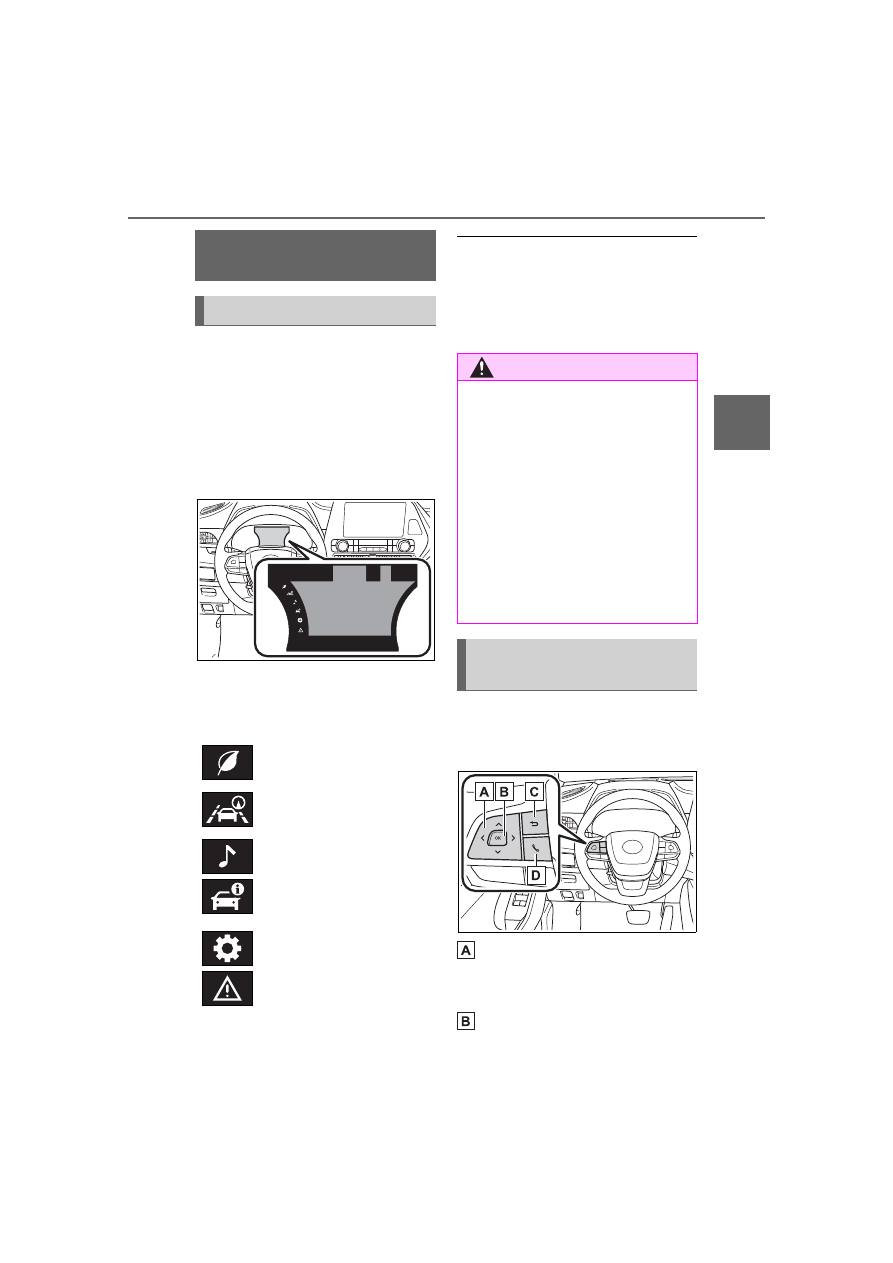

Display

The multi-information display
presents the driver with a variety
of driving-related information.
Warning or suggestion/advice
pop-up displays are also dis-
played in certain situations.

■

Menu icons

Select a menu icon to display its
content.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor
Press: Enter/Set

Multi-information dis-

play (7-inch display)

Display and menu icons

Driving information display
(

P.88)

Driving support system
information display
(

P.90)

Audio system-linked dis-
play (



P.91)

Vehicle information dis-
play (



P.91)

Settings display (

P.92)

Warning message display
(

P.95)

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.80

Changing the meter dis-
play

2-1. Instrument cluster

Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

■

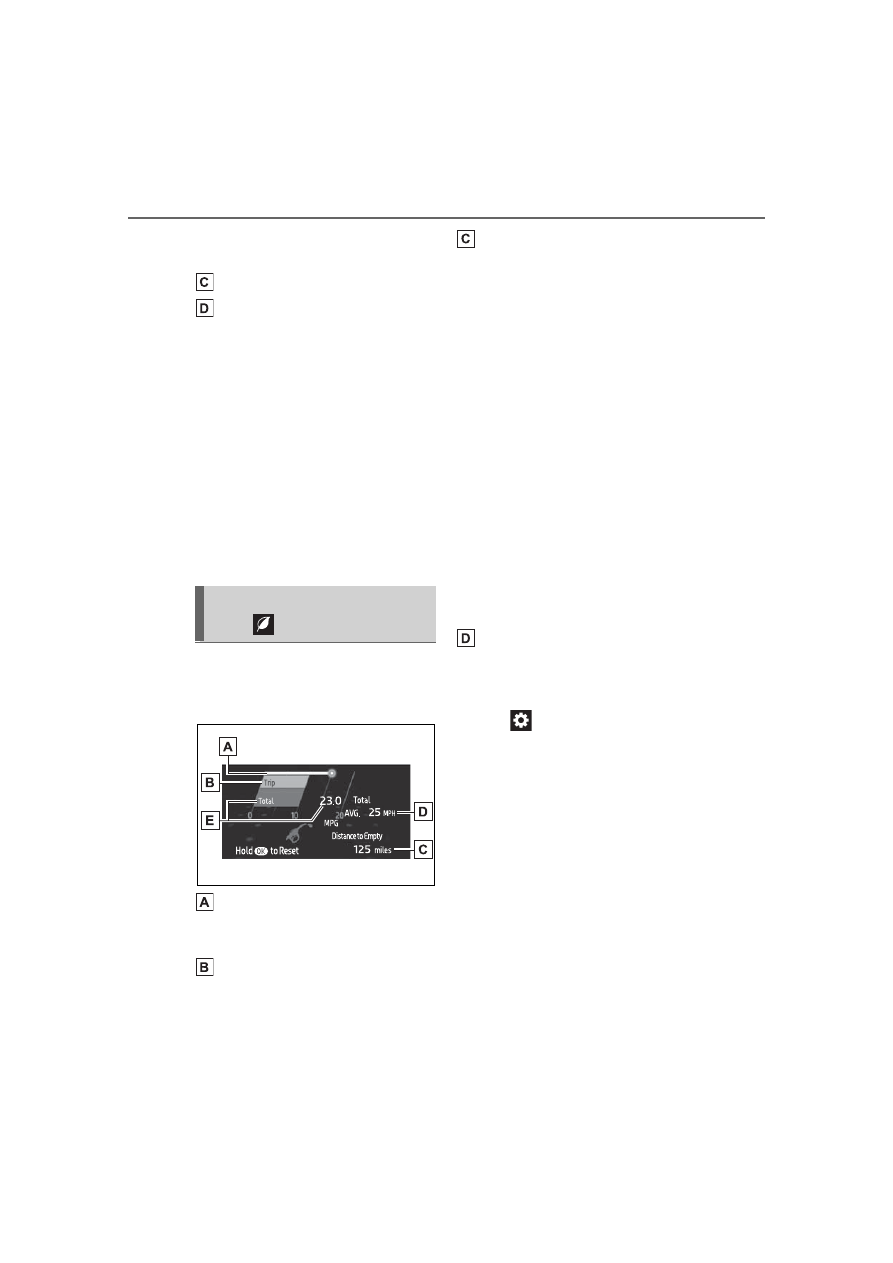

Fuel economy

Use the displayed values as a ref-
erence only.

Current fuel consumption

Displays the instantaneous current
fuel consumption.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.

Driving range

Displays the driving range with
remaining fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

Gadget

The following items can be dis-
played by changing the settings for
gadget content and fuel economy
type on

. (



P.92)

• Other
Blank: No item
• Average vehicle speed
After start: Displays average vehi-
cle speed since engine start
After reset: Displays average vehi-
cle speed since the display was
reset

• Distance
After start: Displays the distance
driven since vehicle start.
After reset: Displays the distance
driven since the display was reset

• Elapsed time
After start: Displays elapsed time

Driving information dis-
play (

)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

since engine start
After reset: Displays elapsed time
since the display was reset

Average fuel economy

Displayed item (listed below) can
be changed on the fuel economy
type screen of

. (



P.92)



Total (after reset)

Displays the average fuel con-
sumption since the display was
reset.

*1, 3



Tank (after refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

:Use the displayed fuel consump-

tion as a reference only.

:The default setting is no display.

:This display can be reset by

pressing and holding

while it

is displayed.

■

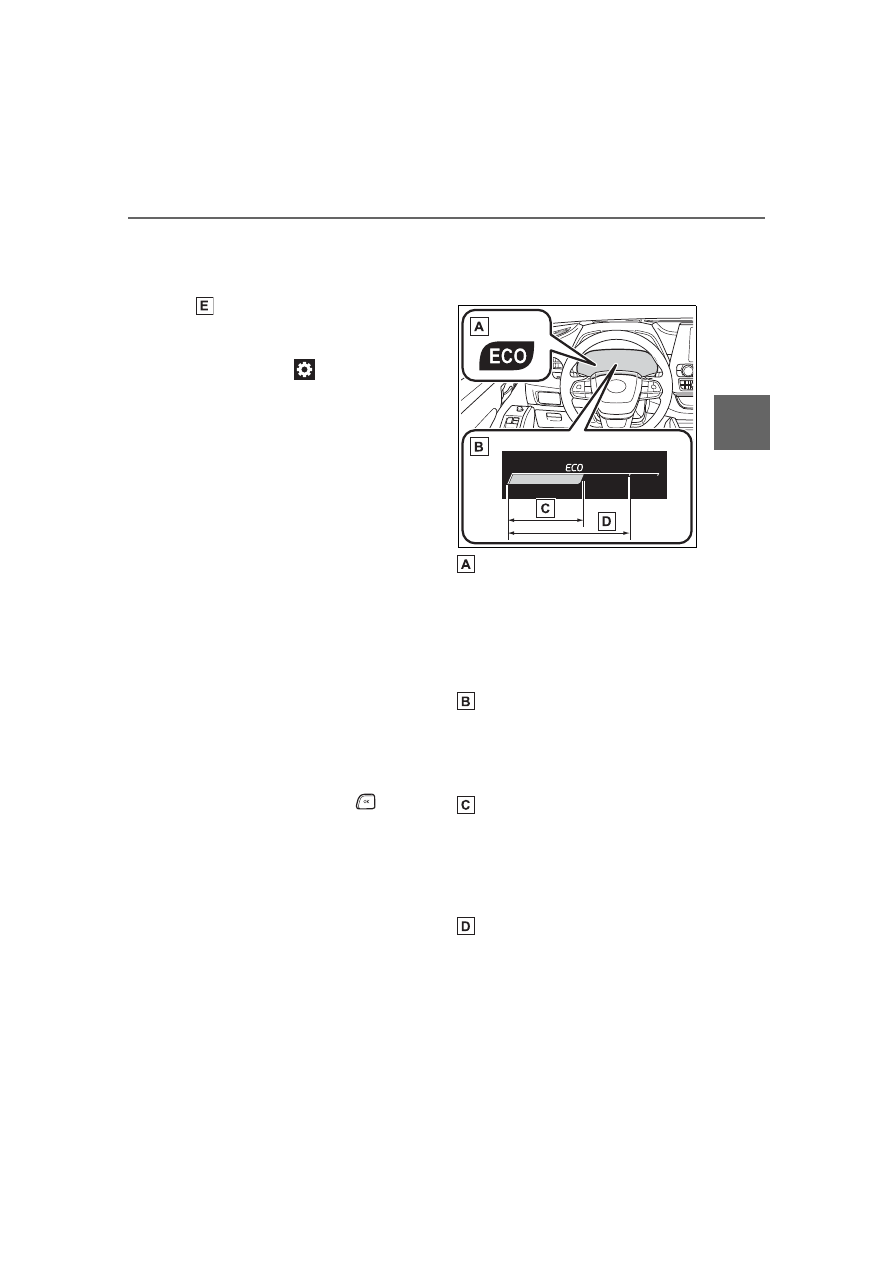

Eco Driving Indicator/Driv-
ing range



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.

Zone of Eco driving

2-1. Instrument cluster



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

■

Speedometer display (digi-
tal speed)/Driving range



Speedometer display (digital
speed)

P.94



Driving range

switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

●

The driving mode is set to sport

mode.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.239)



RSA (Road Sign Assist) (if
equipped) (



P.261)



Dynamic radar cruise control
with full-speed range
(



P.249)

Driving support system
information display (

)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Navigation system-linked

display (if equipped)

Select to display the following

navigation system-linked infor-

mation:



Route guidance to destination



Compass display (head-

ing-up display)

Select to enable selection of an

audio source or track on the

meter using the meter control

switches.

This menu icon can be set to be
displayed/not displayed in

■

Tire pressure



P.396

■

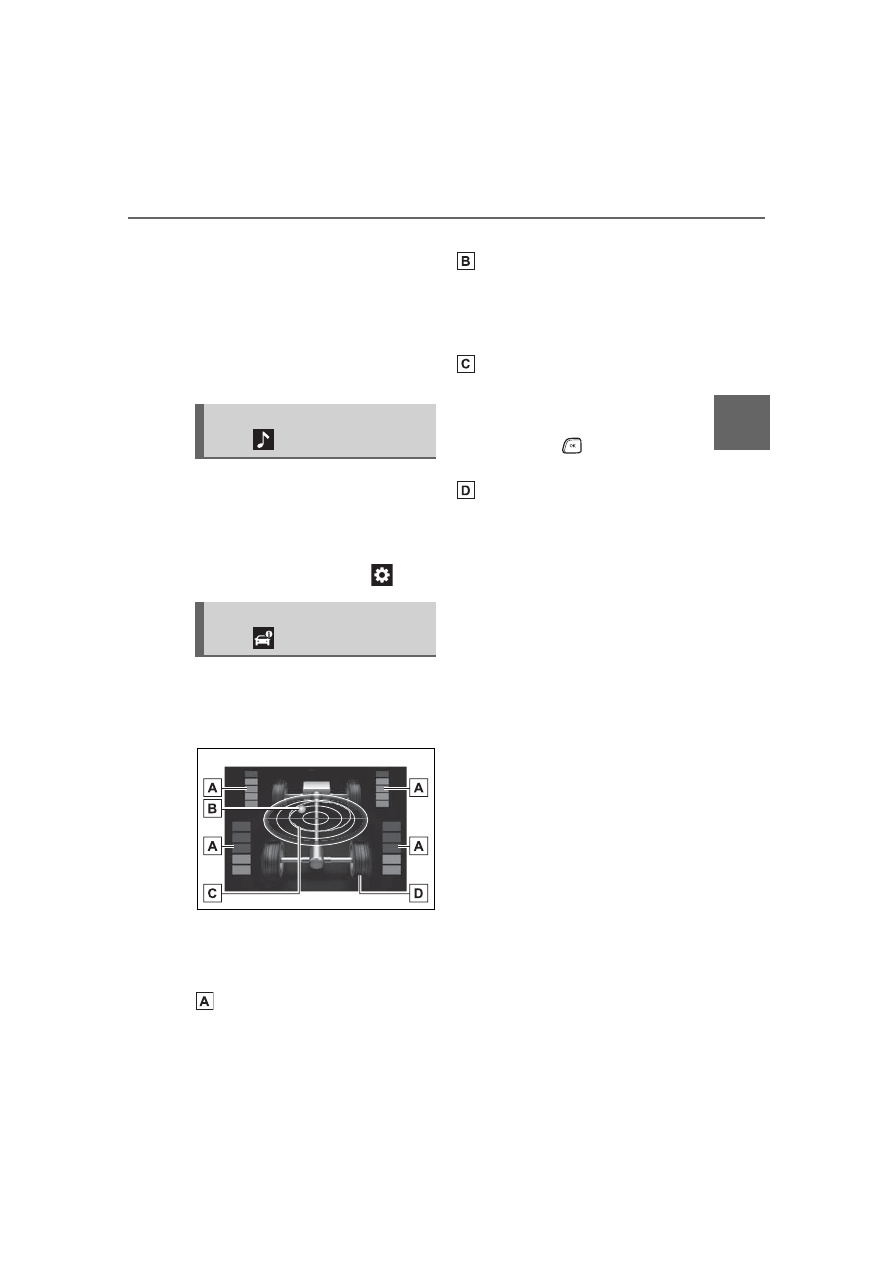

AWD Control (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

Torque distribution display

Displays the drive status of each

wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

■

Safety system status

Enable/Disable the following
systems:



PCS (Pre-Collision system)
(



P.228)



BSM (Blind Spot Monitor) (if
equipped) (



P.270)



RCTA (Rear Cross Traffic
Alert) (if equipped) (



P.283)

Audio system-linked dis-
play (

)

Vehicle information dis-
play (

)

2-1. Instrument cluster

■

Tire pressure

• It may take a few minutes to dis-

play the tire inflation pressure

after the engine switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

• “---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

• Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

■

Changing settings

Use the meter control switches
on the steering wheel to change
settings.

Press

of the meter

control switch to select

Press

of the meter

control switch to select the
desired item to be custom-
ized.

Press or press and hold

The available settings will differ
depending on if

is pressed or

pressed and held. Follow the

instructions on the display.

■

Setting items



LTA (Lane Tracing Assist)

(

P.239)

Press and hold

to change the

settings of the following items:

• “Lane Center”
Select to enable/disable the lane
centering function.
• “Sensitivity”
Select to set the warning sensitivity.
• “Sway Warning”
Select to enable/disable the vehicle
sway warning.
• “Sway Sensitivity”
Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (

P.228)

Press

to enable/disable the

pre-collision system.
• PCS (Pre-Collision System)

on/off

Select to enable/disable the
pre-collision system.

Press and hold

to change the

settings of the following item:
• “Sensitivity”
Select to change the pre-collision
warning timing.



DRCC (Dynamic Radar

Cruise Control with full-speed
range) (



P.249)

Press and hold

to change the

settings of the following items:
• “Curve Speed Reduction”

(



P.256)

Select to set the curve speed
reduction function strength.

Settings display (

)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



BSM (Blind Spot Monitor)

(if equipped) (

P.270)

Press

to enable/disable the

Blind Spot Monitor function.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the Blind
Spot Monitor function.

Press and hold

to change the

settings of the following items:
• “Brightness”
Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.270)

• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



RCTA (Rear Cross Traffic

Alert) (if equipped) (

P.283)

Press

to enable/disable the

RCTA function.
• RCTA on/off
Select to enable/disable the RCTA
function.

Press and hold

to change the

settings of the following item:
• “Volume”
Select to change the volume of the
RCTA buzzer.



RSA (Road Sign Assist) (if

equipped) (

P.261)

Press

to enable/disable the

Road Sign Assist.
• RSA (Road Sign Assist) on/off
Select to enable/disable the Road
Sign Assist.

Press and hold

to change the

settings of the following items:
• “Notification Method”
Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and no-entry sign.
• “Notification Level”
Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle settings

Press and hold

to change

the settings of the following
items:



PBD (Power Back Door)

(if equipped) (



P.119)

• “System Settings”
Select to enable/disable the power
back door system.

• “Kick Sensor”

Select to enable/disable the kick
sensor.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with a hands free power

back door

2-1. Instrument cluster



(Stop & Start) (if

equipped) (

P.264)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-
ing System) (



P.396)

• “Set Pressure” (tire pressure

warning system initialization)

Select to initialize the tire pressure
warning system.
• “Change Wheel” (register tire

pressure warning system sensor
ID codes)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(

P.117)

Select to enable/disable the rear
seat reminder.



“Scheduled Maintenance”
(
