Toyota Camry Hybrid (2023 year). Manual in english - page 32

515

7-2. Steps to take in an emergency

hen
troub

le arises

When replacing tires on a vehicle with wheel lock nuts, use the follow-
ing procedures to remove and install the wheel lock nuts. The wheel
lock key is stored in the tray inside the luggage compartment. Always
return the wheel lock key to its original position after use, so that it
does not get lost. (



P. 513)

■

Removal

For ease of removal, the wheel lock nut should always be the first
one loosened.

Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, loosen the wheel lock
nut.

■

Installation

For ease of installation, the wheel lock nut should always be the
last one tightened.

By hand, install a wheel lock nut on the wheel to be installed.
Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, tighten the wheel lock
nut to the recommended torque.

Wheel lock nut (if equipped)

NOTICE

■

When using a wheel lock key

Do not use an impact wrench. Using an impact wrench may cause perma-
nent damage to wheel lock nut and wheel lock key. If in doubt about wheel
lock application, contact your Toyota dealer.

516

7-2. Steps to take in an emergency

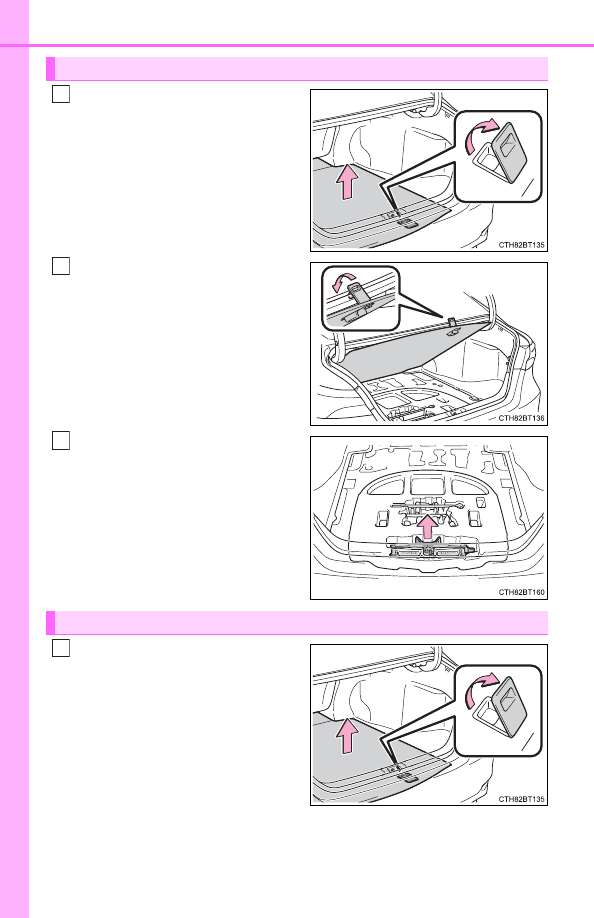

Lift up the hook of the luggage
floor cover on the trunk floor.

Secure the luggage floor cover
using the hook provided.

Remove the jack.

Lift up the hook of the luggage
floor cover on the trunk floor.

Taking out the jack

Taking out the spare tire

517

7-2. Steps to take in an emergency

hen
troub

le arises

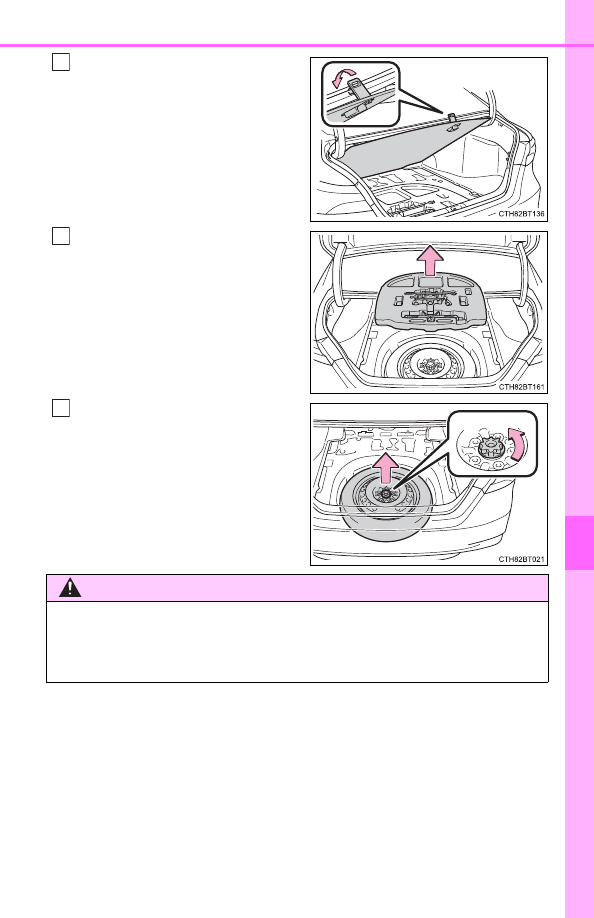

Secure the luggage floor cover
using the hook provided.

Remove the tool tray.

Loosen the center fastener that
secures the spare tire.

When taking out or stowing the

spare tire, make sure to firmly

hold opposite end of the tire.

WARNING

■

When storing the spare tire

Be careful not to catch fingers or other body parts between the spare

tire and the body of the vehicle.

518

7-2. Steps to take in an emergency

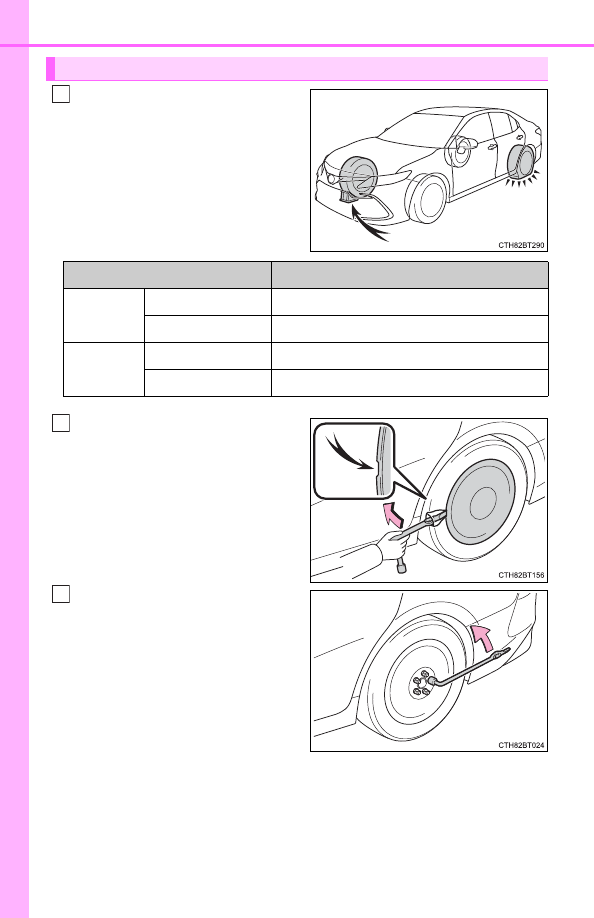

Chock the tires.

For vehicles with steel wheels,
remove the wheel ornament
using the wrench.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament, as

shown in the illustration.

Slightly loosen the wheel nuts
(one turn).

Vehicles with wheel locks: Use

the wheel lock key to loosen the

wheel lock.

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

519

7-2. Steps to take in an emergency

hen
troub

le arises

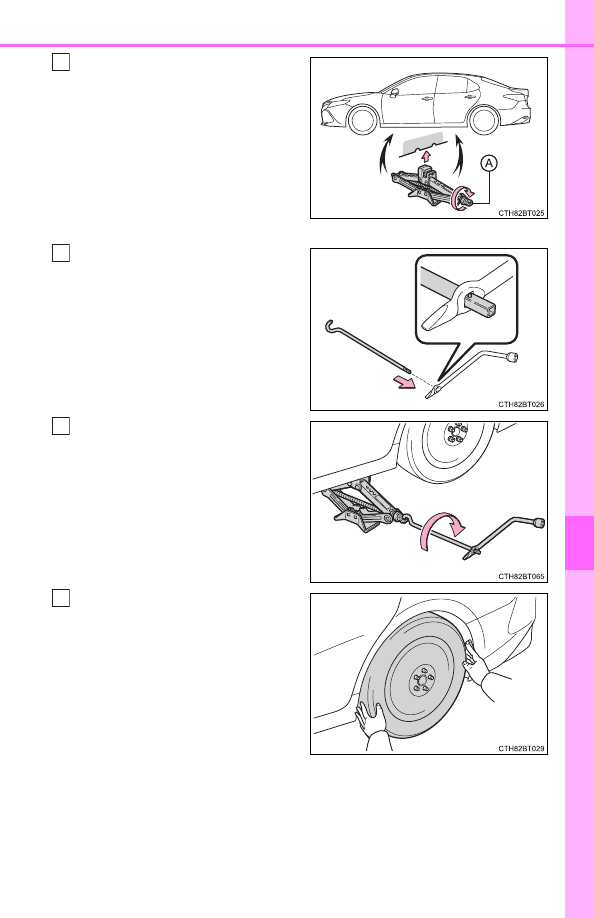

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.

To prevent damage to the vehicle

when using the jack, position the

jack in the correct location.

(



P. 514)

The jack point guides are located

under the rocker panel. They

indicate the jack point positions.

Assemble the jack handle.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

520

7-2. Steps to take in an emergency

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103

N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward.

521

7-2. Steps to take in an emergency

hen
troub

le arises

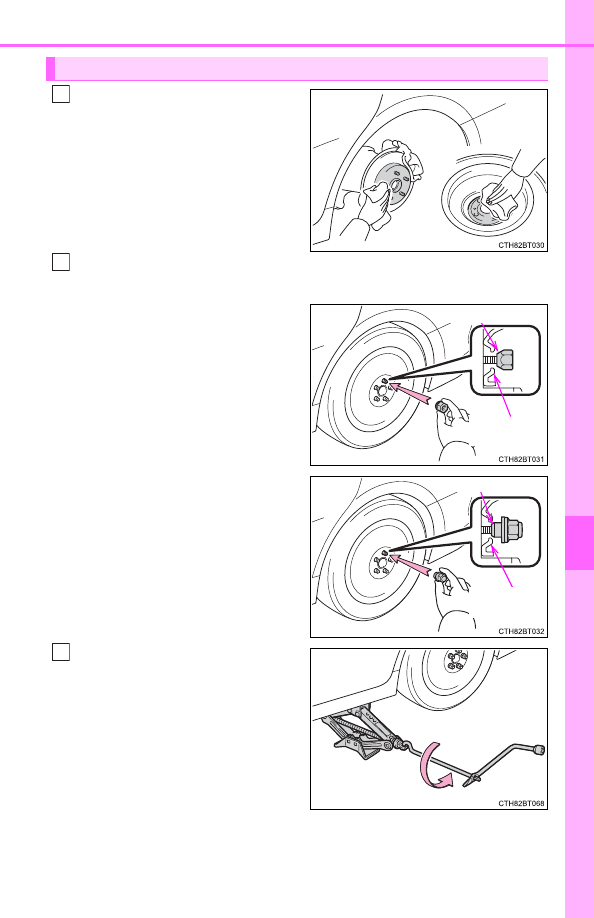

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  steel  wheel,  tighten  the
wheel  nuts  until  the  tapered
portion  comes  into  loose  con-
tact with the disc wheel seat.

When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

Tapered portion

Disc wheel

seat

Tapered portion

Disc wheel

seat

522

7-2. Steps to take in an emergency

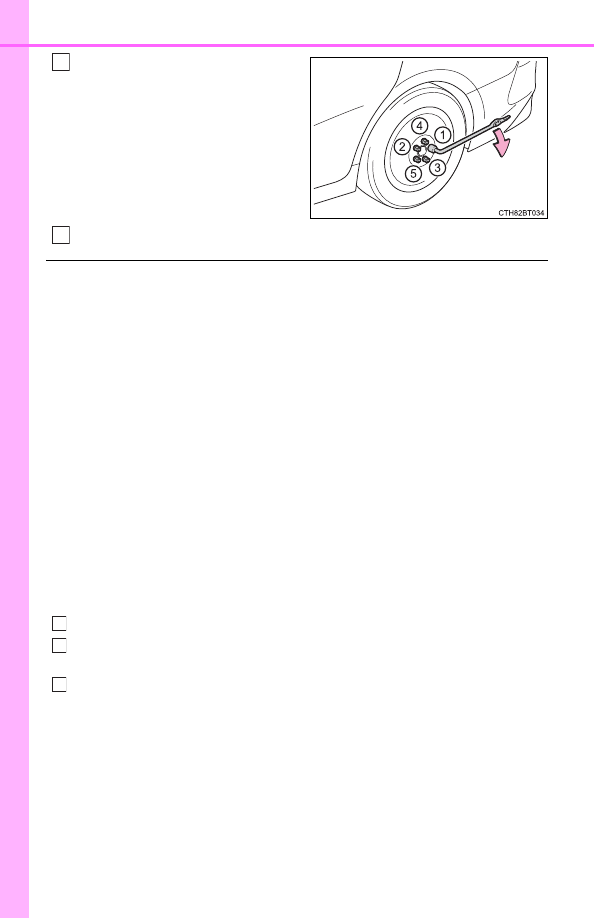

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Vehicles with wheel locks:

Tighten the wheel lock using the

wheel lock key after tightening

the other wheel nuts.
Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

■

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(



P. 550)

■

When using the compact spare tire

As the compact spare tire is not equipped with a tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

When the compact spare tire is equipped

When driving with the compact spare tire installed, the vehicle height will

be different than when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice (vehi-

cles with 16 or 17-inch wheels)

Install the compact spare tire on one of the rear wheels of the vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

523

7-2. Steps to take in an emergency

hen
troub

le arises

WARNING

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

If equipped

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• EPS

• AHB (Automatic High Beam)
•

AFS (Adaptive Front-lighting

System)

• Dynamic radar cruise control

with full-speed range

• LTA (Lane Tracing Assist)

• PCS (Pre-Collision System)

• Tire pressure warning system

• BSM (Blind Spot Monitor)

• Intuitive parking assist

• PKSB

(Parking

Support

Brake)

• Rear view monitor system

• Toyota parking assist monitor

• Panoramic view monitor

• Navigation system

524

7-2. Steps to take in an emergency

NOTICE

■

Be careful when driving over bumps with the compact spare tire

installed on the vehicle.

The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valve and transmit-

ters

When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 446)

525

7-2. Steps to take in an emergency

hen
troub

le arises

One of the following may be the cause of the problem:

●

The electronic key may not be functioning properly. (



P. 528)

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.

●

There may be a malfunction in the immobilizer system.
(



P. 89)

●

The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. (



P. 526)

●

AXVH70 model

only: The temperature of the hybrid battery (traction

battery) may be extremely low (below approximately -22°F [-30°C]).
(



P. 84, 209)

:The model code is indicated on the Certification Label. (



P. 545)

One of the following may be the cause of the problem:

●

The 12-volt battery may be discharged. (



P. 530)

●

The 12-volt battery terminal connections may be loose or corroded.
(



P. 440)

If the hybrid system will not start

Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:

The hybrid system will not start even though the correct starting
procedure is being followed. (



P. 206)

The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

526

7-2. Steps to take in an emergency

One of the following may be the cause of the problem:

●

The 12-volt battery may be discharged. (



P. 530)

●

One or both of the 12-volt battery terminals may be disconnected.
(



P. 440)

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the power
switch is functioning normally.
Do not use this starting procedure except in case of emergency.

Set the parking brake.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.

Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer.

The interior lights and headlights do not turn on, or the horn
does not sound.

Emergency start function

527

7-2. Steps to take in an emergency

hen
troub

le arises

■

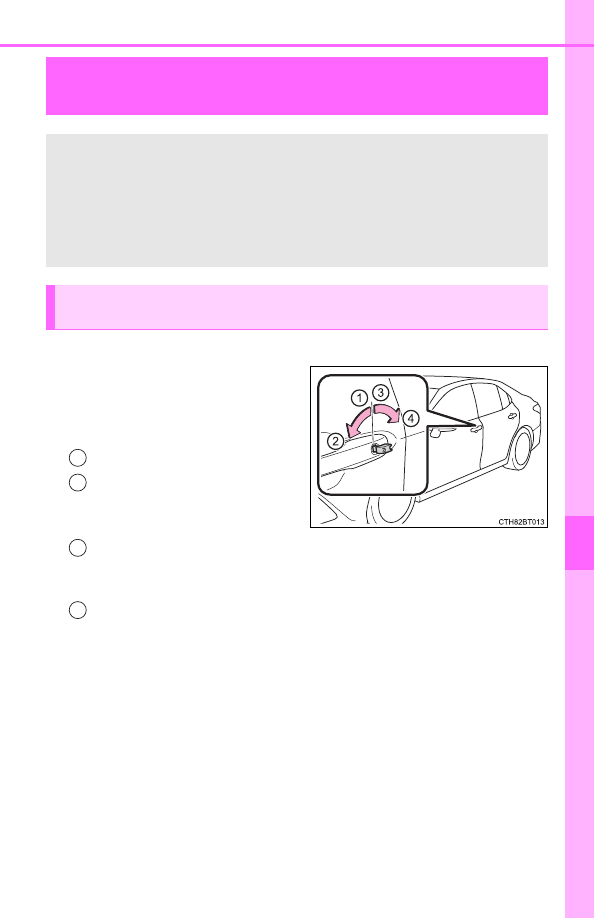

Doors

Using the mechanical key (



151) in order to perform the fol-
lowing operations (driver’s door
only):

Locks all doors
Closes the windows and the
moon roof

(turn and

hold)

Unlocks the door

Turning the key rearward unlocks the driver's door. Turning the key once
again unlocks the other doors.

Opens the windows and the moon roof

(turn and hold)

: If equipped

: This setting must be customized at your Toyota dealer.

If the electronic key does not operate

properly

If communication between the electronic key and vehicle is
interrupted (



P. 167) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
and trunk can be opened and the hybrid system can be started
by following the procedure below.

Locking and unlocking the doors, unlocking the trunk and key
linked functions

528

7-2. Steps to take in an emergency

■

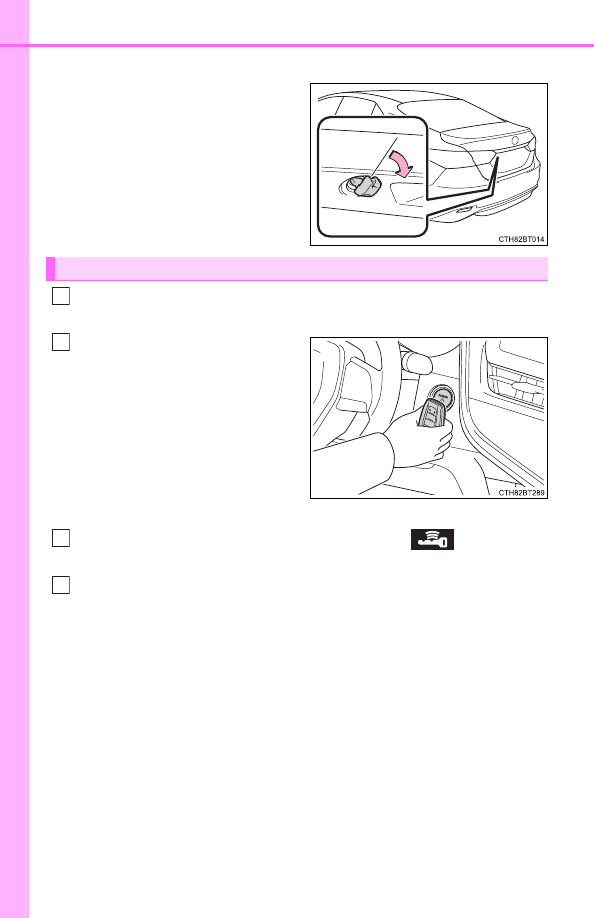

Trunk

Turn the mechanical key clock-
wise to open.

Ensure  that  the  shift  lever  is  in  P  and  firmly  depress  the  brake
pedal.
Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
power switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  power  switch  will  turn  to
ACCESSORY mode.

Firmly depress the brake pedal and check that

is displayed

on the multi-information display.
Press the power switch shortly and firmly.

In the event that the power switch still cannot be started, contact your
Toyota dealer.

Starting the hybrid system

529

7-2. Steps to take in an emergency

hen
troub

le arises

■

Stopping the hybrid system

Shift the shift lever to P and press the power switch as you normally do when
stopping the hybrid system.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 470)

■

Alarm (for Canada only)

Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.

■

Changing power switch modes

Release the brake pedal and press the power switch in step

above.

The hybrid system does not start and modes will be changed each time the
switch is pressed. (



P. 208)

■

When the electronic key does not work properly

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features:



P. 569)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 166)

WARNING

■

When using the mechanical key and operating the power windows or
moon roof

Operate the power window or moon roof after checking to make sure that
there is no possibility of any passenger having any of their body parts
caught in the window or moon roof. Also, do not allow children to operate
the mechanical key. It is possible for children and other passengers to get
caught in the power window or moon roof.

530

7-2. Steps to take in an emergency

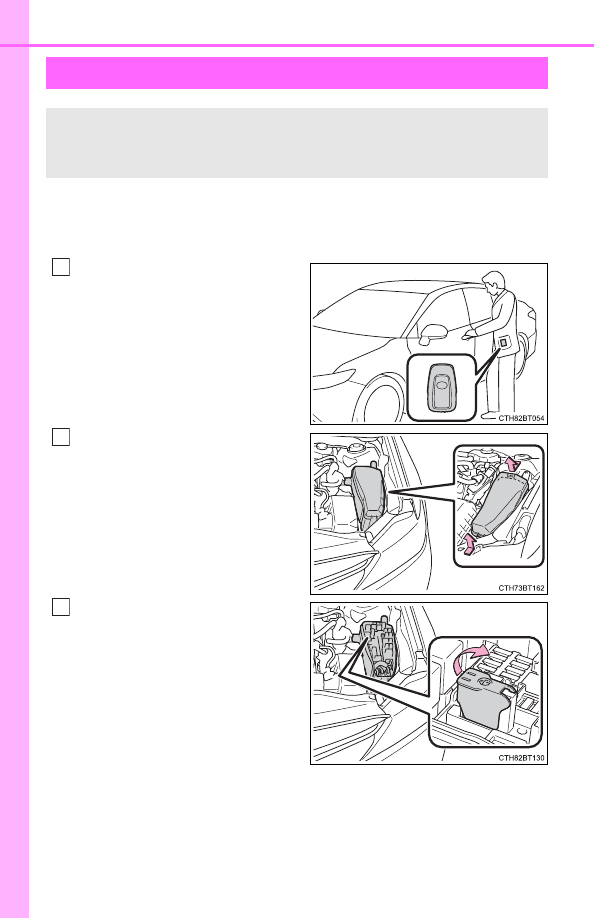

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Confirm that the electronic key
is being carried.

When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (



P. 92)

Open the hood and remove the
fuse box cover.

Push the tabs in and lift the lid off.

Open the exclusive jump start-
ing terminal cover.

If the 12-volt battery is discharged

The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

Content .. 30 31 32 33 ..
