Toyota Corolla Cross (2023 year). Manual in english - page 19

303

5-2. Using the interior lights

Interior

featur

Turns the lights on/off

■

Rear

Turns the lights on/off
When the door position is on for
the front interior lights, the rear
interior light will turn on when a
door is open and turn off when
all of them are closed.
When the rear interior light is on
linked to the door position for
the front interior lights, it will not
turn off even though the switch
is pressed.

Turns the lights on/off

■

Illuminated entry system

The lights automatically turn on/off

according to the engine switch

mode (position), the presence of the

electronic key (vehicles with a smart

key system), whether the doors are

locked/unlocked, and whether the

doors are opened/closed.

■

To prevent the battery from

being discharged

If the interior lights remain on when

the engine switch is turned off, the

lights will go off automatically after

20 minutes.

■

Battery-saving function

In the following situations, the illumi-

nated entry system may not operate

properly.
The electronic key has been left in
an area of approximately 11 ft. (3.5
m) of the outside of the vehicle for
40 seconds or longer.

■

Automatic illumination of the

interior lights

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically. The interior

lights will turn off automatically after

approximately 20 minutes.

The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured. (The interior

lights may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

■

Customization

Some functions can be customized.

(



P.449)

Operating the personal
lights

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer

than necessary when the engine

is not running.

304

5-3. Using the storage features

5-3.Using the storage features

Bottle holders (



P.305)

Open tray (if equipped) (



P.306)

Glove box (



P.305)

Cup holders (



P.305)

Console box (



P.306)

List of storage features

Location of the storage features

WARNING

■

Items that should not be left

in the storage spaces

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

●

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

●

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

305

5-3. Using the storage features

Interior

featur

Pull up the lever to open the
glove box.

■

Glove box light (if equipped)

The glove box light turns on when

the tail lights are on.



Front



Rear (if equipped)

Pull the armrest down.



Front



Rear

Glove box

WARNING

■

Caution while driving

Keep the glove box closed. In the

event of sudden braking or sud-

den swerving, an accident may

occur due to an occupant being

struck by the open glove box or

the items stored inside.

Cup holders

WARNING

■

Items unsuitable for the cup

holder

Do not place anything other than

cups or beverage cans in the cup

holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury. If possible, cover hot

drinks to prevent burns.

Bottle holders

306

5-3. Using the storage features

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.

Lift the lid while pulling up the
knob.

WARNING

■

Items unsuitable for the bottle

holders

Do not place anything other than

a bottle in the bottle holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury.

Console box

WARNING

■

Caution while driving

Keep the console box closed.

Injuries may result in the event of

an accident or sudden braking.

Open tray (if equipped)

WARNING

■

Caution while driving

Observe the following precautions

when putting items in the open

tray. Failure to do so may cause

items to be thrown out of the tray

in the event of sudden braking or

steering. In these cases, the items

may interfere with pedal operation

or cause driver distraction, result-

ing in an accident.

●

Do not store items in the tray

that can easily shift or roll out.

●

Do not stack items in the tray

higher than the tray’s edge.

●

Do not put items in the tray that

may protrude over the tray’s

edge.

307

5-3. Using the storage features

Interior

featur

The cargo hooks are provided
for securing loose items.

■

Using the luggage cover

Pull out the luggage cover
and hook it onto the anchors.

Release the cover from the
left and right anchors and
allow it to retract.

Luggage compart-

ment features

Cargo hooks

WARNING

■

When cargo hooks are not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the gro-

cery bag hooks

Do not hang any object heavier

than 4.4 lb. (2 kg) on the grocery

bag hooks.

Luggage cover (if
equipped)

WARNING

■

Luggage cover

●

Do not place anything on the

luggage cover. In the event of

sudden braking or turning, the

item may go flying and strike an

occupant. This could lead to an

unexpected accident, resulting

in death or serious injury.

●

Do not allow children to climb

on the luggage cover. Climbing

on the luggage cover could

result in damage to the luggage

cover, possibly causing death or

serious injury to the child.

308

5-3. Using the storage features

Lift the deck mat.



2WD



AWD

Auxiliary boxes

WARNING

■

Caution while driving

Keep the deck mat closed. In the

event of sudden braking, an acci-

dent may occur due to an occu-

pant being struck by the deck mat

or the items stored under the deck

mat.

309

5-4. Other interior features

Interior

featur

5-4.Other interior features

The USB charging port are used
to supply 3.0 A of electricity at 5
V to external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
ports



Front

Open the console box lid.



Rear (if equipped)

■

The USB charging port can be

used when

The engine switch is in ACC or ON.

■

Situations in which the USB

charging port may not operate

correctly

●

If a device which consumes more

than 3.0 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

●

If the connected device or cable is

damaged

■

About connected external

device

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging port

WARNING

■

Attention while driving

For security, the driver, please do

not operate the portable device

body while driving.

NOTICE

■

To prevent damage to the

USB charging port

●

Do not insert foreign objects into

the port.

●

Do not spill water or other liq-

uids into the port.

●

Do not apply excessive force to

or impact the USB charging

port.

310

5-4. Other interior features

The power outlet can be used
for 12 V accessories that run on
less than 10 A.
Lift the lid while pulling up the
knob and open the power outlet
lid.

■

The power outlet can be used

when

The engine switch is in ACC or ON.

■

Using the power outlet

When the engine restarts after hav-

ing been stopped by the Stop &

Start system, the power outlets may

be temporarily unusable, but this is

not a malfunction.

■

When turning the engine switch

off

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the engine switch may not be turned

off normally.

A portable device, such as a
smartphone or mobile battery,
can be charged by just placing it
on the charging area, provided
the device is compatible with the

NOTICE

●

Do not disassemble or modify

the USB charging port.

●

Do not use broken harness and

device.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent battery discharge

Do not use the USB charging port

for a long period of time with the

engine stopped.

Power outlet

NOTICE

■

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent the battery from

being discharged

Do not use the power outlet lon-

ger than necessary when the

engine is not running.

Wireless charger (if
equipped)

311

5-4. Other interior features

Interior

featur

Qi wireless charging standard
created by the Wireless Power
Consortium.
The wireless charger cannot be
used with a portable device that
is larger than the charging area.
Additionally, depending on the
portable device, the wireless
charger may not operate prop-
erly. Refer to the operation man-
ual of the portable device.

■

The “Qi” logo

The “Qi” logo is a trademark of
the Wireless Power Consortium.

■

Name for all parts

Power supply switch
Operation indicator light
Charging tray

Charge area

: Compatible portable devices and

the wireless charger contain

charging coils. The charging coil
inside the wireless charger can
move within the area around the
center of the charging tray.

When the charging coil inside a

portable device is detected within
the charging area, the charging
coil in the wireless charger will
move near the other coil and
charging will begin. If the
charging coil inside the portable
device is moved out of the
charging area, charging will be
stopped automatically.

Additionally, if 2 or more portable

devices are placed on the
charging tray at the same time,
each charging coil may not be
detected correctly and charging
may not be possible.

■

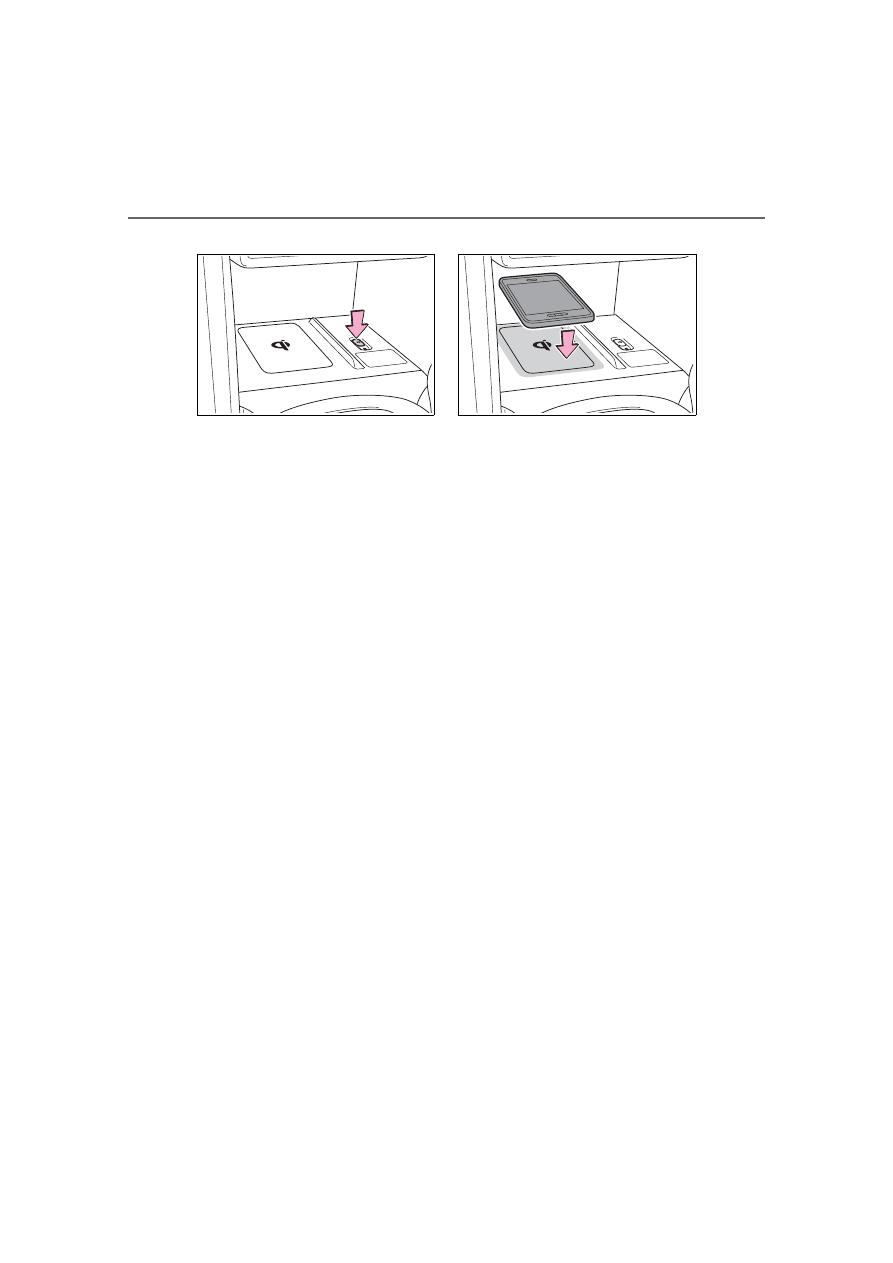

Using the wireless charger

Press the power supply
switch of the wireless char-
ger.

Pressing the switch again turns the

wireless charger off.
When turned on, the operation indi-

cator light (green) comes on.
When the engine switch is turned

off, the on/off state of the wireless

charger will be memorized.
If the power supply switch is

pressed 3 times while charging is

being performed, the rapid charging

function will turn on. To turn the

wireless charger off, press the

power supply switch when a porta-

312

5-4. Other interior features

ble device is not being charged.

Place a portable device on
the charging tray.

Place the portable device so that it

is centered in the charging area

with its charging surface facing the

portable charger.
Depending on the portable device,

its charging coil may not be in the

center of the device. In this case,

place the portable device so that its

charging coil is centered in the

charging area.
While charging, the operation indi-

cator light (orange) will be illumi-

nated.
If charging does not begin, move

the portable device as close to the

center of the charging area as pos-

sible.
If charging is not performed, the

operation indicator light will slowly

illuminate in green and orange

alternatively and a sound of

charging coil operation may be

heard repeatedly.
When charging is complete, the

operation indicator light (green) will

illuminate.

■

Recharging function



If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the
wireless charger will restart
charging.



If a portable device is moved
significantly within the
charging area, the charging
coil may disconnect and
charging may temporarily be
stopped. However, if a
charging coil is detected
within the charging area, the
charging coil inside the wire-
less charger will move near
the other coil and charging
will resume.

■

Rapid charging function



Portable devices, such as the
following, can be rapidly
charged.

• Rapid charging capable devices

which conform to WPC Ver 1.2.4.

• 7.5 W charging capable iPhones

(iPhone 8 and later)



To turn the rapid charging
function on, press the power

313

5-4. Other interior features

Interior

featur

supply switch 3 times while
charging is being performed.
If rapid charging is possible,
the operation indicator will
change from illuminated
(orange) to alternating
between (green) and

(orange).



When charging is finished, the
rapid charging function will
turn off. To perform rapid
charging again, turn the rapid
charging function back on.

■

Operation indicator light status

:While in standby, charging power is not output. If a metal object is placed

on the charging tray in this state, the object will not heat up.

:Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.



If the operation indicator light blinks

If an error is detected, the operation indicator light will blink (orange). Take
the appropriate measures according to the table below.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

Orange (illuminated)

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

Illuminated between green and
orange alternately

A portable device, such as the following, is
being rapidly charged



Rapid charging capable device which
conforms to WPC Ver 1.2.4.



7.5 W charging capable iPhone (iPhone
8 and later)

314

5-4. Other interior features

■

The wireless charger can be

operated when

The engine switch is in ACC or ON.

■

Portable devices that can be

charged

●

Portable devices compatible with

the Qi wireless charging standard

can be charged by the wireless

charger. However, compatibility

with all devices which meet the Qi

wireless charging standard is not

guaranteed.

●

The wireless charger is designed

to supply low power electricity (5

Operation indicator light Suspected cause

Measure

Continuously blinks 1
time per second

Communication mal-
function between the
wireless charger and
smart key system

If the engine is running,
stop the engine and
then restart it.
If the engine switch is in
ACC, start the engine.
(



P.163)

Continuously flashes 3
times (orange)

Foreign matter detected
If a metallic foreign
object is detected in the
charge area, the over-
heat prevention func-
tion of the metallic
foreign object will oper-
ate

Remove the foreign
object from the charge
area.

Portable device not
aligned correctly
If the charging coil of a
portable device is not
properly positioned on
the charging area, the
overheat prevention
function will operate

Remove the portable
device from the
charging tray, check that
the operation indicator
light changes back to
green, and then place
the portable device so
that it is near the center
of the charging tray.
Also, if a case or cover
is installed to the porta-
ble device, remove it.

Continuously flashes 4
times (orange)

Temperature inside
wireless charger
exceeded a certain
amount

Stop charging, remove
the portable device from
the charging tray, and
wait for the temperature
to decrease before
attempting to begin
charging again.

315

5-4. Other interior features

Interior

featur

W or less) to a cellular phone,

smartphone, or other portable

device.

●

However, portable devices, such

as the following, can be charged

with more than 5 W.

• 7.5 W charging compatible

iPhones can be charged at 7.5 W

or less.

• Portable devices compliant with

EPP output as defined by WPC

standard Ver1.2.4. can be

charged at 10 W or less.

■

Using the smart key system

During charging, when the smart

key system searches for an elec-

tronic key, charging may be tempo-

rarily suspended.

■

If a cover or accessory is

attached to the portable device

Do not charge a portable device if a

cover or accessory which is not Qi

compatible is attached. Depending

on the type of cover (including the

certain genuine manufacture parts)

and/or accessory attached, it may

not be possible to charge the porta-

ble device. If the portable device is

placed on the charging area and

does not charge, remove the cover

and/or accessories.

■

If interference is heard in AM

radio broadcasts while

charging

●

Turn off the wireless charger and

check if the noise is reduced. If

noise is reduced, press and hold

the power supply switch of the

wireless charger for 2 seconds.

The frequency of the wireless

charger is changed and noise may

be reduced. When the frequency

is changed, the operation indica-

tor light will blink (orange) 2 times.

●

Rapid charging for iPhones is per-

formed using a specific radio

wave frequency.

Depending on the version of iOS
installed, while the frequency is
being changed, rapid charging may

not be performed.

■

Charging precautions

While charging, the wireless charger

and the portable device will become

warm. This is not a malfunction.
If a portable device becomes warm

while charging and charging stops

due to the protection function of the

portable device, wait until the porta-

ble device cools down and charge it

again.
Also, to decrease the temperature

inside the wireless charger, a fan

may operate. This does not indicate

a malfunction.

■

Sound generated during opera-

tion

Operation sounds may be heard

when the power supply switch is

pressed to turn the wireless charger

on, when the engine switch is

pressed to change to ACC or ON

while the wireless charger is on, or

when a portable device is being

detected. This does not indicate a

malfunction.

■

Situations in which the wireless

charger may not operate cor-

rectly

In the following situations, the wire-

less charger may not operate cor-

rectly:

●

When a portable device is fully

charged

●

When a portable device is being

charged by a wired connection

●

When there is a foreign object

between the charging area and

portable device

●

When the temperature of a porta-

ble device becomes high while

charging

●

When the temperature near the

charging tray is 95°F (35°C) or

more due to being in direct sun-

light, etc.

●

When a portable device is placed

with its charging surface facing up

316

5-4. Other interior features

●

When a portable device is not

centered on the charging area

●

When a portable device is larger

than the charging tray

●

When a foldable portable device is

placed outside of the charging

area

●

When the vehicle is near a TV

tower, electric power plant, fuel

station, radio station, large dis-

play, airport, or other facility that

generates strong radio waves or

electrical noise

●

When the any of the following

objects, with a thickness of 0.08

in. (2 mm) or more, are between

the charging surface of a portable

device and the charging are:

• Cases or covers attached with an

uneven or tilted surface, so that

the charging side is not flat

• Thick cases or covers

• Thick decorations

• Accessories, such as finger rings,

straps, etc.

●

When the portable device is in

contact with, or is covered by any

of the following metallic objects:

• Cases which have magnet in it on

the charging side of the portable

device

• Cards covered with metal, such as

aluminum foil

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Heat packs

• Recorded media such as CDs and

DVDs

• Metallic decorations

• Metallic cases or covers

●

When wireless keys (that emit

radio waves) other than those of

your vehicle are being used

nearby

●

When 2 or more portable devices

are placed on the charging tray at

the same time

In situations other than above, if the
wireless charger does not operate

properly or the operation indicator
light blinks continuously, the wire-
less charger may be malfunctioning.
Contact your Toyota dealer.

■

Cleaning the wireless charger



P.331

WARNING

■

Caution while driving

When charging a portable device

while driving, for safety reasons,

the driver should not operate the

portable device.

■

Precautions for when driving

Do not charge small, lightweight

portable devices, such as wireless

earbuds, while driving. Light-

weight devices may fly off of the

charging tray, possibly leading to

an accident.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger.

Operations of the wireless char-

ger may have an affect on medi-

cal devices.

■

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in the

possibility of fire, equipment fail-

ure or damage, or burns due to

heat.

●

Do not put any metallic objects

between the charging area and

the portable device while

charging.

317

5-4. Other interior features

Interior

featur

WARNING

●

Do not attach metallic objects,

such as aluminum stickers, to

the charging area.

●

Do not charge portable devices

with aluminum stickers or other

metallic objects attached to the

side which touches the charging

area.

●

Do not store items on the wire-

less charger instead of in an

auxiliary box.

●

Do not apply force or impact to

the wireless charger.

●

Do not disassemble, modify or

remove the wireless charger.

●

Do not attempt to charge porta-

ble devices which are not com-

patible with the Qi wireless

charging standard.

●

Do not allow magnetic objects

to come near the wireless char-

ger.

●

Do not perform charging if the

charging area is dirty.

●

When not using the wireless

charger, to prevent foreign mat-

ter or liquids from contacting it,

make sure to close the lid.

●

Do not cover the wireless char-

ger with a cloth or other object

while charging.

NOTICE

■

To prevent failure or damage

to data

●

Do not place magnetic cards,

such as a credit card, or mag-

netic recording media, close to

the wireless charger while

charging. Otherwise, data may

be erased due to the influence

of magnetism.

Additionally, do not bring preci-

sion instruments such as wrist

watches, close to the wireless

charger, as such objects may

malfunction.

●

Do not perform charging with a

contactless smart card, such as

a credit card, between the

charging surface of a portable

device and the charging area.

The IC chip in the card may

become extremely hot, possibly

damaging the portable device or

smart card.

Be extra careful to not charge a

portable device with a case or

cover which a contactless smart

card can be inserted.

●

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high when parked in the sun,

and cause damage to the

device.

■

When the OS of a smartphone

has been updated

When the OS version of a smart-

phone has been changed, the

charging specifications may have

changed. If the WPC compatibility

version is changed, the rapid

charging function may no longer

be able to be used. For details,

check for information on the web-

site for the smartphone manufac-

turer.

318

5-4. Other interior features

To set the visor in the forward
position, flip it down.

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

To use the side extender,
place the visor in the side
position, then slide it back-
ward. (if equipped)

Slide the cover to open.

The vanity light turns on. (if
equipped)

■

To prevent battery discharge

(vehicles with vanity lights)

If the vanity lights remain on when

the engine switch is OFF, the lights

will go off automatically after 20 min-

utes.

Fold down the armrest for use.

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

NOTICE

■

To prevent battery discharge

Do not use the wireless charger

for a long period of time with the

engine stopped.

Sun visors

Vanity mirrors

NOTICE

■

To prevent the battery from

being discharged (vehicles

with vanity lights)

Do not leave the vanity lights on

for extended periods while the

engine is stopped.

Armrest (if equipped)

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

Content .. 17 18 19 20 ..
