Toyota Corolla Cross (2023 year). Manual in english - page 15





238

4-5. Using the driving support systems

When the brake hold sys-
tem is operating

When the engine is stopped
by the Stop & Start system, if
the brake pedal is released
the engine will remain
stopped.

If the accelerator pedal is
depressed while the engine is
stopped by the Stop & Start
system, the engine will
restart.

While the engine is stopped
by the Stop & Start system, if
the engine is restarted, the
brake hold system will con-
tinue to apply the brakes,
unless the operation condi-
tions of the brake hold system
are no longer met. (

P.175)

When the dynamic radar
cruise control with
full-speed range is operat-
ing

When the vehicle is stopped
by the dynamic radar cruise
control with full-speed range,
the engine will stop automati-
cally even though the brake
pedal is not depressed.

When the preceding vehicle
starts off, the engine will
restart automatically.

If the engine is restarted by
the Stop & Start system while
the vehicle is stopped by the
dynamic radar cruise control
with full-speed range, the

vehicle will remain stopped.

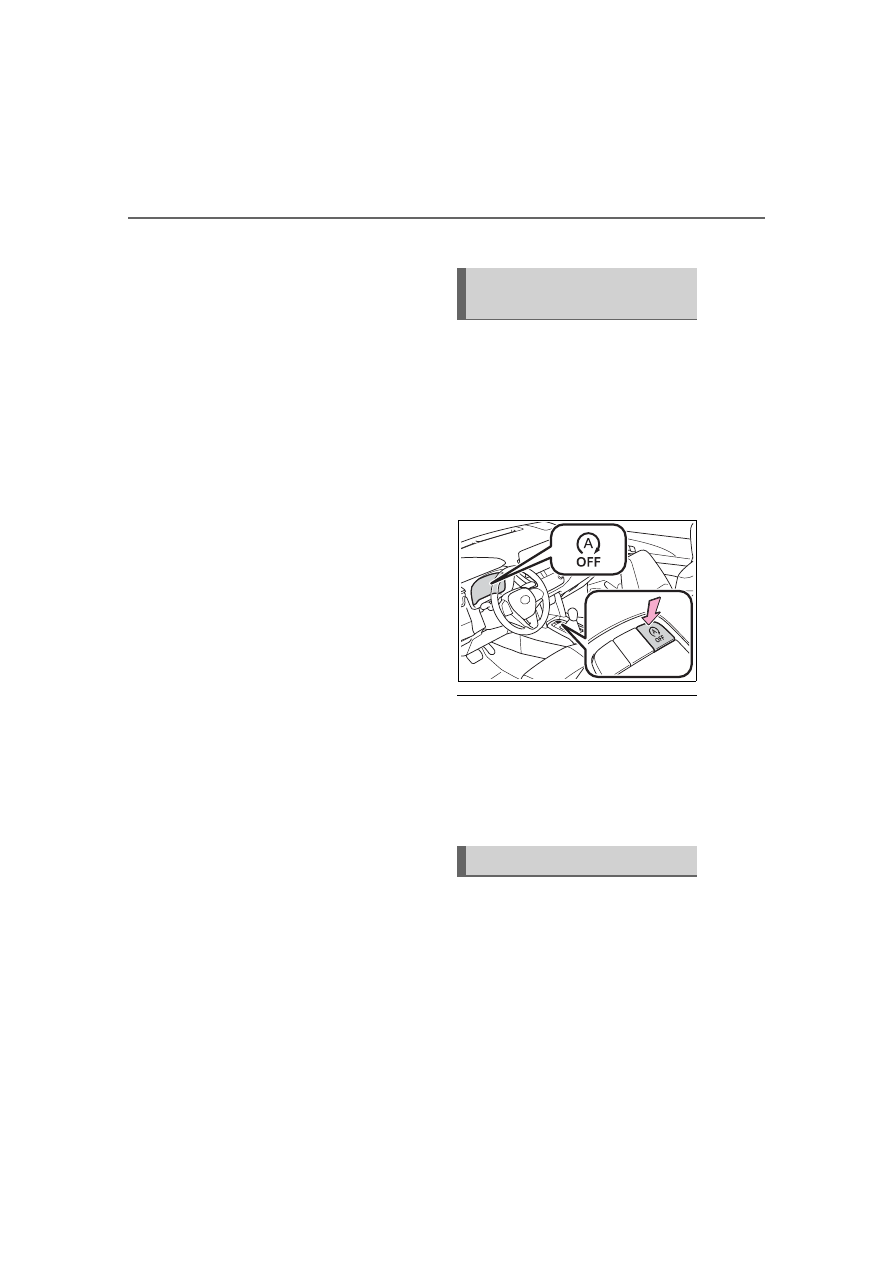

Press the Stop & Start cancel
switch to disable the Stop &
Start system.

The Stop & Start cancel indicator
will illuminate.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator will
turn off.

Automatic enabling of the Stop

& Start system

If the Stop & Start system is dis-

abled using the Stop & Start cancel

switch, it will be automatically

re-enabled once the engine switch

is turned off and then the engine is

started.

When the engine is stopped by
the Stop & Start system when
the vehicle is on an incline,
when the brake pedal is
released, brake force is tempo-
rarily maintained to prevent the
vehicle from rolling backwards
before the engine is restarted

Disabling the Stop & Start
system

Hill-start assist control

239

4-5. Using the driving support systems

4

Dr

iv

ing

and drive force is generated.
When drive force is generated,
the maintained brake force is
automatically canceled.

This function operates on flat
surfaces as well as steep
inclines.

Sound may be generated
from the brake system, but
this does not indicate a mal-
function.

Brake pedal response may
change and vibration may
occur, but this does not indi-
cate a malfunction.

Points for use

If the engine switch is pressed

when the engine is stopped by the

Stop & Start system, the engine

will not be able to be restarted by

the automatic engine start func-

tion. In this case, restart the

engine using the normal engine

starting procedure. (

P.162, 163)

When the engine is being

restarted by the Stop & Start sys-

tem, the power outlets may be

temporarily unusable, but this

does not indicate a malfunction.

Installation and removal of electri-

cal components and wireless

devices may affect the Stop &

Start system. Contact your Toyota

dealer for details.

When stopping the vehicle for a

longer period of time, turn the

engine switch off to stop the

engine completely.

Operating conditions

The Stop & Start system is opera-

tional when all of the following

conditions are met:

• The vehicle has been driven a cer-

tain amount of time.

• The brake pedal is being

depressed firmly. (Except when

the vehicle is stopped by the

dynamic radar cruise control with

full-speed range when in vehi-

cle-to-vehicle distance control

mode)

• The D or P shift position is

selected.

• The driver’s seat belt is fastened.

• The driver’s door is closed.

• The windshield defogger is off.

(vehicles without a manual air

conditioning system)

• The accelerator pedal is not being

depressed.

• The engine is adequately warmed

up.

• The hood is closed. (

P.240)

In the following situations the

engine may not be stopped by the

Stop & Start system. This is not a

malfunction of the Stop & Start

system.

• When the air conditioning system

is being used.

• When the battery is undergoing a

periodic recharge.

• When the battery is not sufficiently

charged, such as if the vehicle

has been parked for a long time

and the battery charge has

decreased, the electric load is

large, the battery fluid tempera-

ture is excessively low or the bat-
tery has deteriorated.

*

• When the brake booster vacuum

is low.

• When the elapsed time since the

engine was restarted is short.

• When the vehicle is stopped fre-

quently, such as when in a traffic

jam.

• When the engine coolant tem-

perature or transmission fluid tem-

perature is extremely low or high.

• When the vehicle is stopped on a

steep incline.

• When the vehicle is being driven

in a high altitude area.

• When the battery fluid tempera-

ture is extremely low or high.

• For a while after the battery termi-

240

4-5. Using the driving support systems

nals have been disconnected and

reconnected.

*

: The state that the engine is not

stopped may continue.

When the engine is stopped by

the Stop & Start system, the

engine will be restarted automati-

cally if any of the following condi-

tions are met: (To enable the

engine to be stopped by the Stop

& Start system again, drive the

vehicle.)

• The air conditioning system is

being used. (vehicles without a

manual air conditioning system)

• The windshield defogger is turned

on. (vehicles without a manual air

conditioning system)

• The shift lever is shifted from D or

P.

• The shift lever is shifted from P.

(When the engine is stopped by

the Stop & Start system when the

shift lever is in P.)

• The driver’s seat belt is unfas-

tened.

• The driver’s door is opened.

• The Stop & Start cancel switch is

pressed.

• The accelerator pedal is

depressed.

• The vehicle starts to roll on an

incline.

When the engine is stopped by

the Stop & Start system, the

engine may restart automatically

in the following situations: (To

enable the engine to be stopped

by the Stop & Start system again,

drive the vehicle.)

• When the brake pedal is pumped

or strongly depressed.

• When the air conditioning system

is being used.

• When a switch of the air condition-

ing system is operated (windshield

defogger switch, etc.).

• If the battery charge becomes low.

When the hood is opened

If the hood is opened while the

engine is stopped by the Stop &

Start system, the engine will stall

and will not be able to be restarted

by the automatic engine start

function. In this case, restart the

engine using the normal engine

starting procedure. (

P.162, 163)

If the hood is closed after the

engine is started with the hood

open, the Stop & Start system will

not operate. Close the hood, turn

the engine switch off, wait 30 sec-

onds or more, and then start the

engine.

Air conditioning system opera-

tion while the engine is stopped

by the Stop & Start system

Vehicles with an automatic air con-

ditioning system: When the air con-

ditioning is in automatic mode and

the engine is stopped by the Stop &

Start system, the fan may operate at

a low speed in order to prevent the

temperature in the cabin from

increasing or decreasing or may be

stopped.
To prioritize air conditioning system

performance when the vehicle is

stopped, disable the Stop & Start

system by pressing the Stop & Start

cancel switch.

If the windshield is fogged up

Turn the windshield defogger on.
(

P.286, 292)

If the windshield fogs up frequently,
press the Stop & Start cancel switch
to disable the Stop & Start system.

If an odor is emitted from the air

conditioning system

• Vehicles with a manual air condi-

tioning system

If the idling stop time setting is set to
“Extended” change it to “Standard”.
If an odor is emitted when the idling
stop time setting is set to “Stan-
dard”, press the Stop & Start cancel
switch to deactivate the Stop & Start
system.
• Vehicles with an automatic air

241

4-5. Using the driving support systems

4

Dr

iv

ing

conditioning system

Press the Stop & Start cancel switch
to deactivate the Stop & Start sys-
tem.

Changing the idling stop time

with the air conditioning system

on

The length of time the Stop & Start

system will operate when the air

conditioning system is on can be
changed in

 or

 of the

multi-information display (

P.82,

89). (The length of time the Stop &

Start system will operate when the

air conditioning system is off cannot

be changed.)

Displaying the Stop & Start sys-

tem status

P.7781

Multi-information display mes-

sages

If the following situations,

 and a

message may be displayed on the

multi-information display.

When the engine cannot be

stopped by the Stop & Start sys-

tem

 “Press Brake More to Activate”

• The brake pedal is not sufficiently

depressed.

 If the brake pedal is depressed

further, the system will operate.

 “Non-Dedicated Battery”

• A battery not designed for use

with a Stop & Start system may

have been installed.

 Have the vehicle inspected by

your Toyota dealer.

 “Battery Charging”

• The battery charge may be low.

 Stopping of the engine is tempo-

rarily prohibited to prioritize charging
of the battery. After the engine runs

for a certain amount of time, the sys-
tem will be enabled.
• A refresh charge may be occur-

ring

 After a refresh charge for up to

an hour completes, the system can
be operated.
• If displayed continuously for a

long time (more than an hour)

 The battery may be deteriorated.

Contact your Toyota dealer for
details.

 “Stop & Start System Unavail-

able”
• The Stop & Start system is tempo-

rarily disabled.

 Allow the engine to run for some

time.
• The engine may have been

started with the hood open.

 Close the hood, turn the engine

switch off, wait for 30 seconds or
more, and then start the engine.

 “In Preparation”

• The vehicle is being driven in a

high altitude area.

• The brake booster vacuum is low.

 When the brake booster vacuum

reaches a predetermined level, the
system will be enabled.

 “For Climate Control”

• The air conditioning system is

being used when the ambient

temperature is high or low.

 If the difference between the set

temperature and cabin temperature
becomes small, the system will be
enabled.
• The windshield defogger is on.

When the engine automatically

restarts while stopped by the Stop

242

4-5. Using the driving support systems

& Start system

 “In Preparation”

• The brake pedal has been

depressed further or pumped.

 The system will be enabled after

the engine runs and the brake
booster vacuum reaches a predeter-
mined level.

 “For Climate Control”

• The air conditioning system has

been turned on or is being used.

• The windshield defogger has

been turned on.

 “Battery Charging”

• The battery charge may be low.

 The system will be enabled after

the engine runs to sufficiently
charge the battery.

When the buzzer sounds

If the driver’s door is opened when

the engine is stopped by the Stop &

Start system and the shift lever is in

D, a buzzer will sound and the Stop

& Start system indicator will flash. To

stop the buzzer, close the driver’s

door.

The Stop & Start system protec-

tion function

When the volume of the audio

system is excessively high, sound

output from the audio system may

suddenly be cut off in order to

reduce battery consumption. To

prevent the audio system from

being cut off, keep the volume of

audio system at a moderate level.

If the audio system has been cut

off, turn the engine switch off, wait

for 3 seconds or more and then

turn it to ACC or ON to re-enable

the audio system.

The audio system may not be acti-

vated if the battery terminals are

disconnected and then recon-

nected. If this occurs, turn the

engine switch off and then repeat

the following operation twice to

activate the audio system nor-

mally.

• Turn the engine switch to ON and

then to OFF.

Replacing the battery

P.421

If the malfunction indicator

lamp comes on

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

If “Stop & Start System Mal-

function Visit Your Dealer” is

displayed on the multi-informa-

tion display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

WARNING

When the Stop & Start system

is operating

Make sure to disable the Stop &

Start system while the vehicle is in

a poorly ventilated area. If not dis-

abled, the engine may be auto-

matically restarted unexpectedly,

causing exhaust gases to collect

and enter the vehicle, possibly

resulting in death or a serious

health hazard.

Do not leave the vehicle while

the engine is stopped by the

Stop & Start system (while the

Stop & Start indicator is on). An

accident may occur due to the

automatic engine start function.

Depress the brake pedal and

apply the parking brake when

necessary while the engine is

stopped by the Stop & Start sys-

tem (while the Stop & Start indi-

cator is on).

243

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

NOTICE

To ensure the system oper-

ates correctly

If any of the following situations

occur, the Stop & Start system

may not operate correctly. Have

your vehicle inspected by your

Toyota dealer.

While the driver’s seat belt is

fastened, the driver’s and front

passenger’s seat belt reminder

light flashes.

Even though the driver’s seat

belt is not fastened, the driver’s

and front passenger’s seat belt

reminder light does not illumi-

nate.

Even though the driver’s door is

closed, the open door warning

light is illuminated or the interior

light is illuminated when the

interior light switch is in the door

position.

Even though the driver’s door is

open, the open door warning

light does not illuminate or the

interior light does not illuminate

when the interior light switch is

in the door position.

BSM (Blind Spot Moni-

tor)

*

The Blind Spot Monitor is a
system that uses rear side
radar sensors installed on
the inner side of the rear
bumper on the left and right
side to assist the driver in
confirming safety when
changing lanes.

WARNING

Cautions regarding the use of

the system

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear

view mirrors or is approaching

rapidly from behind into a blind

spot. Do not overly rely on the

Blind Spot Monitor. As the func-

tion cannot judge if it is safe to

change lanes, over reliance

could lead to an accident result-

ing in death or serious injury. As

the system may not function

correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary.

244

4-5. Using the driving support systems

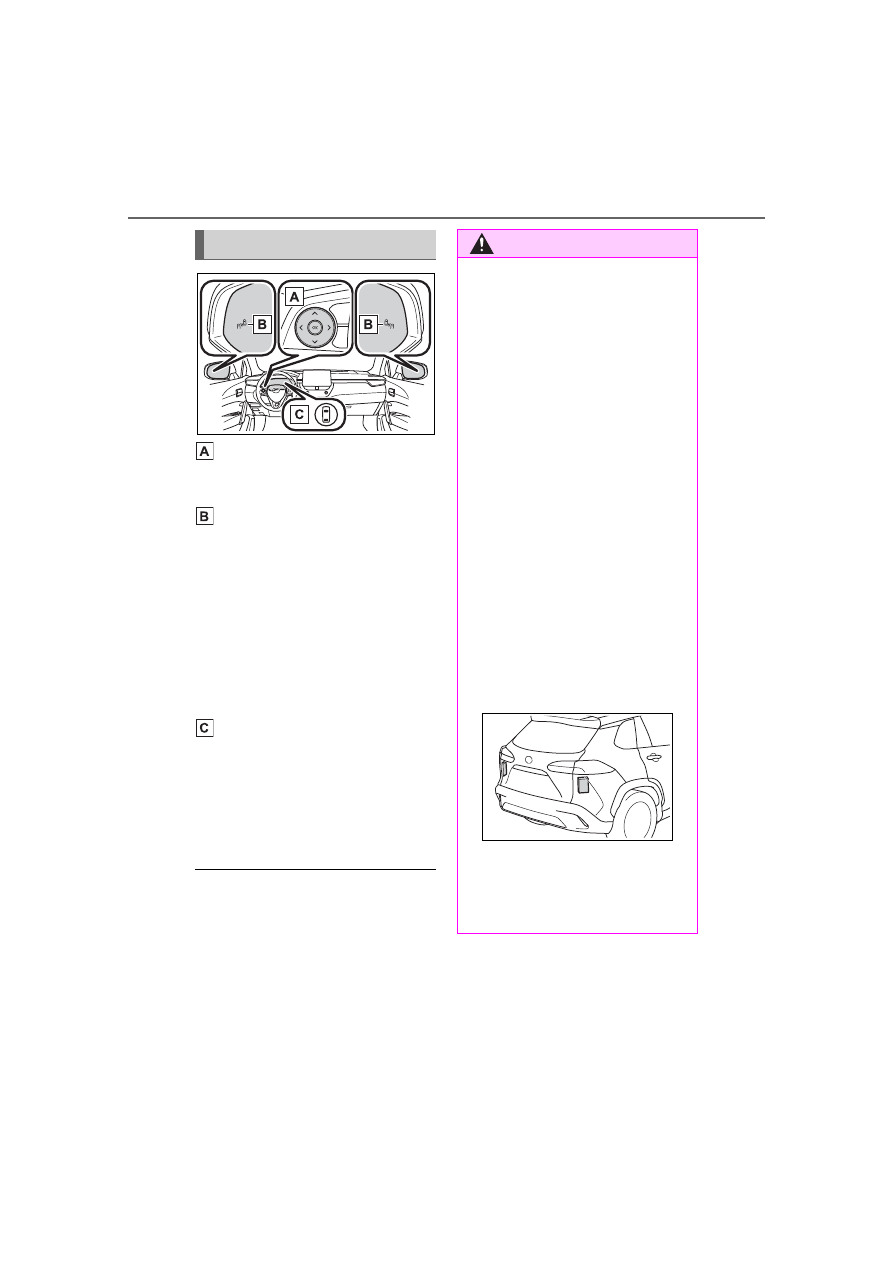

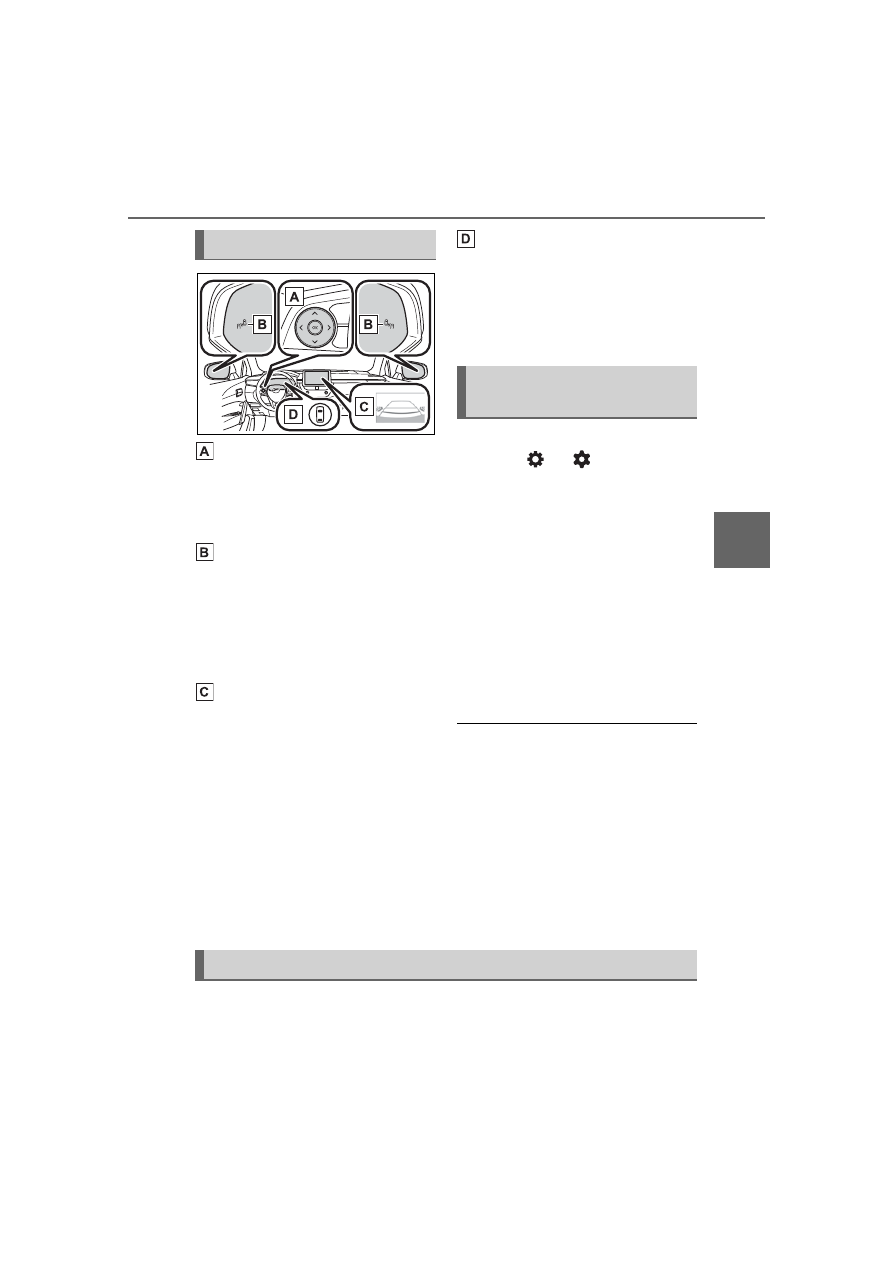

Meter control switches

Turning the Blind Spot Monitor
on/off.

Outside rear view mirror indi-
cators

When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator flashes.

Driving assist information
indicator

Illuminates when the Blind Spot
Monitor is turned off. At this time,
“Blind Spot Monitor OFF” will be
displayed on the multi-information
display.

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

Customization

Some functions can be customized.

(

P.449)

System components

WARNING

To ensure the system can

operate properly

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding area
on the rear bumper is dirty or cov-
ered with snow, the Blind Spot
Monitor may not operate and a
warning message will be dis-
played. In this situation, clear off
the dirt or snow and drive the
vehicle with the operation condi-
tions of the BSM function
(

P.247) satisfied for approxi-

mately 10 minutes. If the warning
message does not disappear,
have the vehicle inspected by
your Toyota dealer.

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

245

4-5. Using the driving support systems

4

Dr

iv

ing

The Blind Spot Monitor can be
enabled/disabled on

 or



of the multi-information display.
(

P.449)

When the Blind Spot Monitor
function is off, the driving assist
information indicator (

P.74)

will illuminate. At this time,
“Blind Spot Monitor OFF” will be
displayed on the multi-informa-
tion display.
Each time the engine switch is
turned to ON, the Blind Spot
Monitor is enabled.

Objects that can be detected while driving

The Blind Spot Monitor uses rear side radar sensors to detect the fol-
lowing vehicles traveling in adjacent lanes and advises the driver of
the presence of such vehicles via the indicators on the outside rear
view mirrors.

WARNING

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

Do not disassemble the sensor.

Do not modify the sensor or sur-

rounding area on the rear

bumper.

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your Toyota

dealer.

Do not paint the rear bumper

any color other than an official

Toyota color.

Turning the Blind Spot
Monitor on/off

Blind Spot Monitor operation

246

4-5. Using the driving support systems

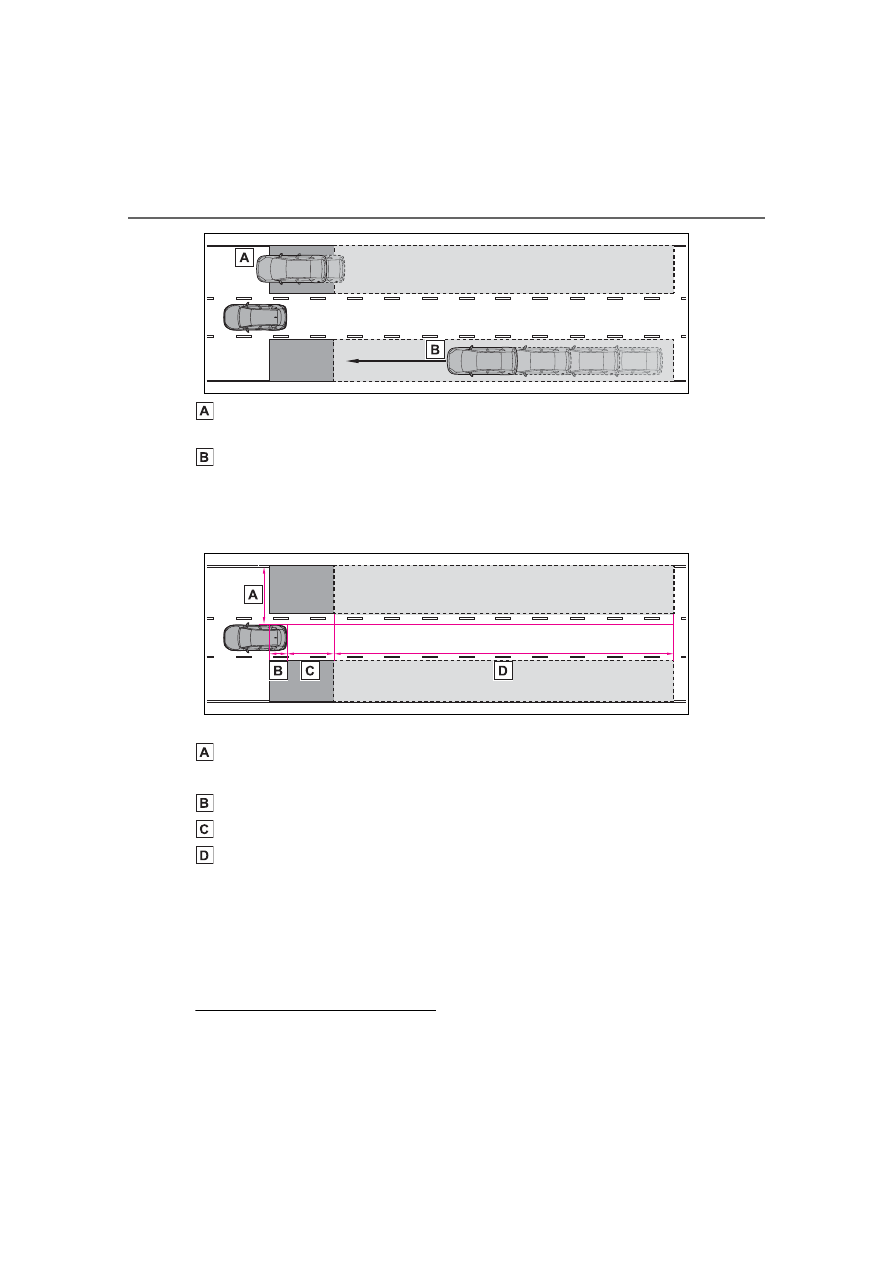

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

Detection range while driving

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear
bumper

*2

*1

:The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

*2

:The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

The Blind Spot Monitor is oper-

ational when

The Blind Spot Monitor is opera-

247

4-5. Using the driving support systems

4

Dr

iv

ing

tional when all of the following con-

ditions are met:

The engine switch is in ON.

The Blind Spot Monitor is on.

The shift lever is in a position

other than R.

The vehicle speed is approxi-

mately 7 mph (10 km/h) or more.

The Blind Spot Monitor will

detect a vehicle when

The Blind Spot Monitor will detect a

vehicle present in the detection area

in the following situations:

A vehicle in an adjacent lane over-

takes your vehicle.

You overtake a vehicle in adjacent

lane slowly.

Another vehicle enters the detec-

tion area when it changes lanes.

Situations in which the Blind

Spot Monitor cannot detect

vehicles

The Blind Spot Monitor cannot

detect the following vehicles and

other objects:

Small motorcycles, bicycles,
pedestrians, etc.

*

Vehicles traveling in the opposite

direction

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

Following vehicles that are in the
same lane

*

Vehicles traveling 2 lanes away
from your vehicle

*

Vehicles which are being over-
taken rapidly by your vehicle

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

Conditions under which the

system may not function cor-

rectly

The Blind Spot Monitor may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the Blind Spot

248

4-5. Using the driving support systems

Monitor is turned on

• When towing with the vehicle

Instances of the Blind Spot Moni-

tor unnecessarily detecting a vehi-

cle and/or object may increase in

the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When towing with the vehicle

*

: If equipped

RCTA (Rear Cross Traf-

fic Alert)

*

The RCTA function uses the
BSM rear side radar sensors
installed behind the rear
bumper. This function is
intended to assist the driver
in checking areas that are
not easily visible when
backing up.

WARNING

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings. The RCTA function is

only a supplementary function

which alerts the driver that a vehi-

cle is approaching from the right

or left at the rear of the vehicle. As

the RCTA function may not func-

tion correctly under certain condi-

tions, the driver’s own visual

confirmation of safety is neces-

sary. Over reliance on this func-

tion may lead to an accident

resulting death or serious injury.

To ensure the system can

operate properly

P.244

249

4-5. Using the driving support systems

4

Dr

iv

ing

Meter control switches

Operate the meter control switches
to enable/disable the RCTA func-
tion on the multi-information dis-
play.

Outside rear view mirror indi-
cators

If a vehicle is detected as
approaching from the left or right
behind the vehicle, both outside
rear view mirror indicators will blink
and a buzzer will sound.

Audio system screen

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(

P.250) for the detected side will

be displayed on the audio system
screen. This illustration

*

 shows an

example of a vehicle approaching
from both sides of the vehicle.

*

: Depending on the vehicle grade

and equipped options, the actual
screen may be different from this
illustration.

Driving assist information
indicator

Illuminates when the RCTA is
turned off. At this time, “Rear Cross
Traffic Alert OFF” will be displayed
on the multi-information display.

The RCTA can be enabled/dis-
abled on

 or

 of the

multi-information display.
(

P.449)

When the RCTA function is off,
the driving assist information
indicator (

P.74) will illuminate.

At this time, “Rear Cross Traffic
Alert OFF” will be displayed on
the multi-information display.
Each time the engine switch is
turned to ON, the RCTA is
enabled.

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as if the

audio system volume is high.

Rear side radar sensors

P.244

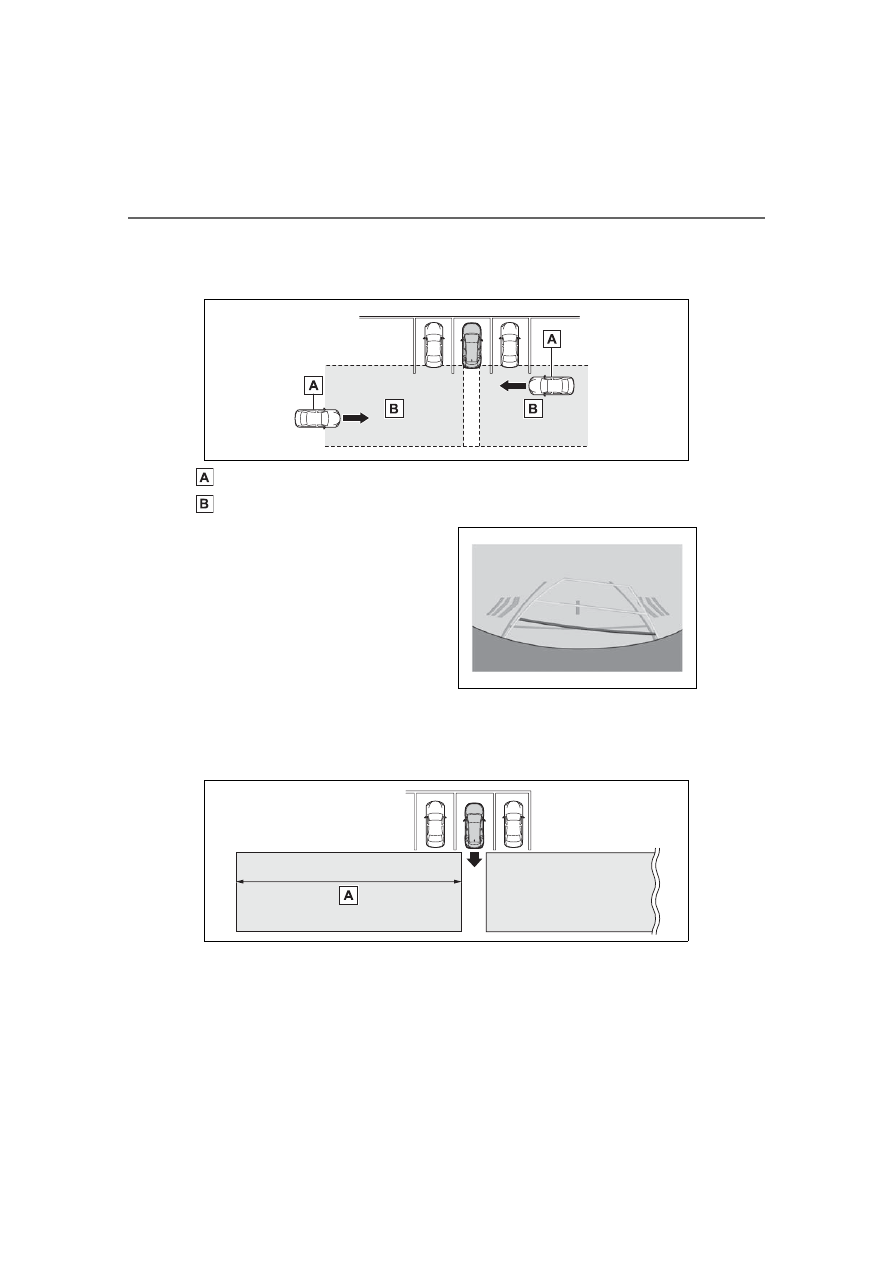

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles

System components

Turning the RCTA func-
tion on/off

 RCTA function

250

4-5. Using the driving support systems

approaching from the right or left at the rear of the vehicle and alerts
the driver of the presence of such vehicles by flashing the outside
rear view mirror indicators and sounding a buzzer.

Approaching vehicles
Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the audio system screen.
Example: Vehicles are
approaching from both sides of
the vehicle

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver
of faster vehicles approaching
from farther away.
Example:

251

4-5. Using the driving support systems

4

Dr

iv

ing

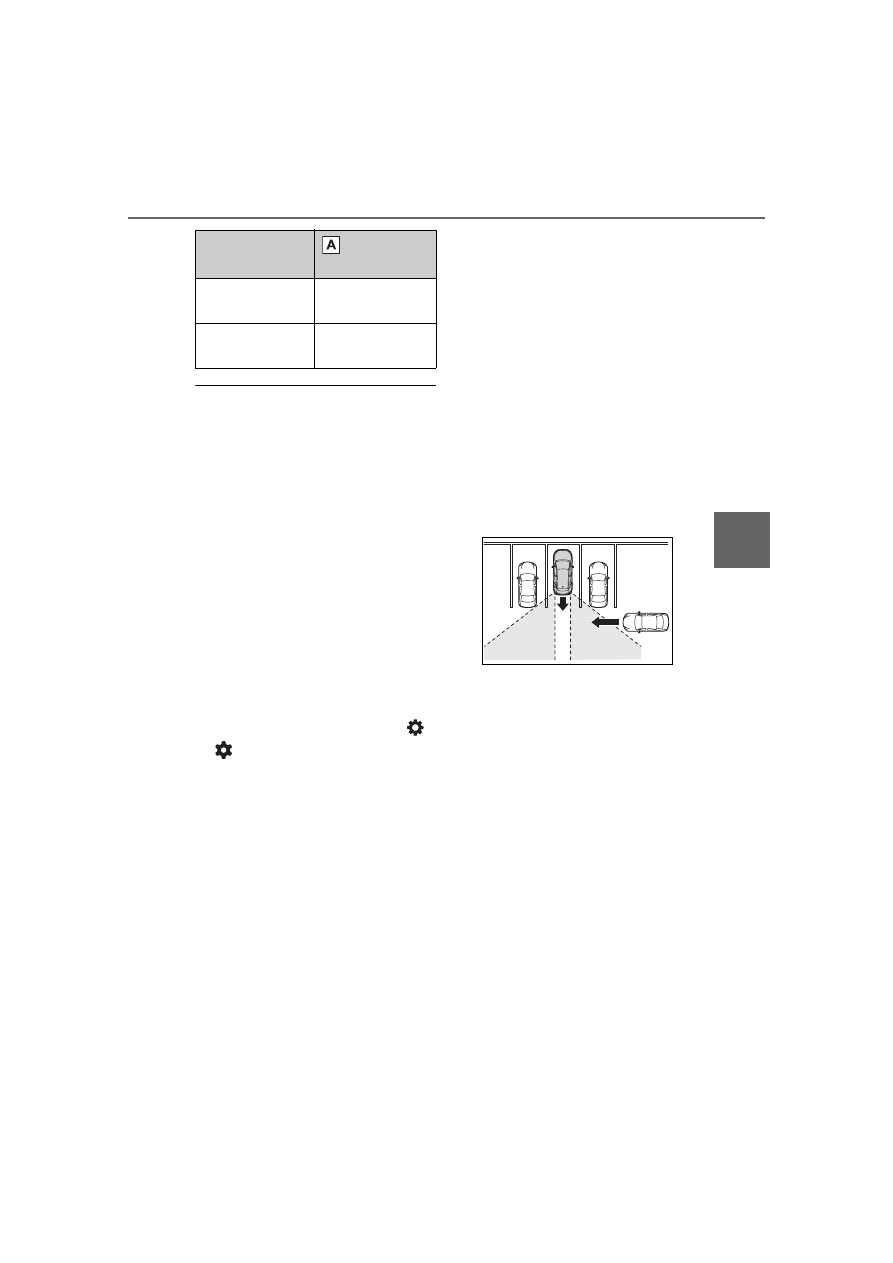

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

The engine switch is in ON.

The RCTA function is on.

The shift position is in R.

The vehicle speed is less than

approximately 9 mph (15 km/h).

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 34 mph (56 km/h).

Setting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.
The buzzer volume of the RCTA and

intuitive parking assist (if equipped)
can be adjusted all together on



or

 of the multi-information dis-

play. (

P.449)

Muting a buzzer temporarily (if

equipped)

When an object is detected, the

temporary mute switch is displayed

on the audio system screen.

Select the switch to mute the buzzer

of the intuitive parking assist (if

equipped) and RCTA all together.
Mute will be canceled automatically

in the following situations:

When the shift lever is changed.

When the vehicle speed exceeds

a certain speed.

When there is a malfunction in a

sensor or the system is temporar-

ily unavailable.

When the operating function is

disabled manually.

When the engine switch is turned

off.

Conditions under which the

system will not detect a vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects:

Vehicles approaching from directly

behind

Vehicles backing up in a parking

space next to your vehicle

Vehicles that the sensors cannot

detect due to obstructions

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

Small motorcycles, bicycles,
pedestrians, etc.

*

Vehicles moving away from your

vehicle

Vehicles approaching from the

parking spaces next to your vehi-
cle

*

The distance between the sensor

and approaching vehicle gets too

close

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

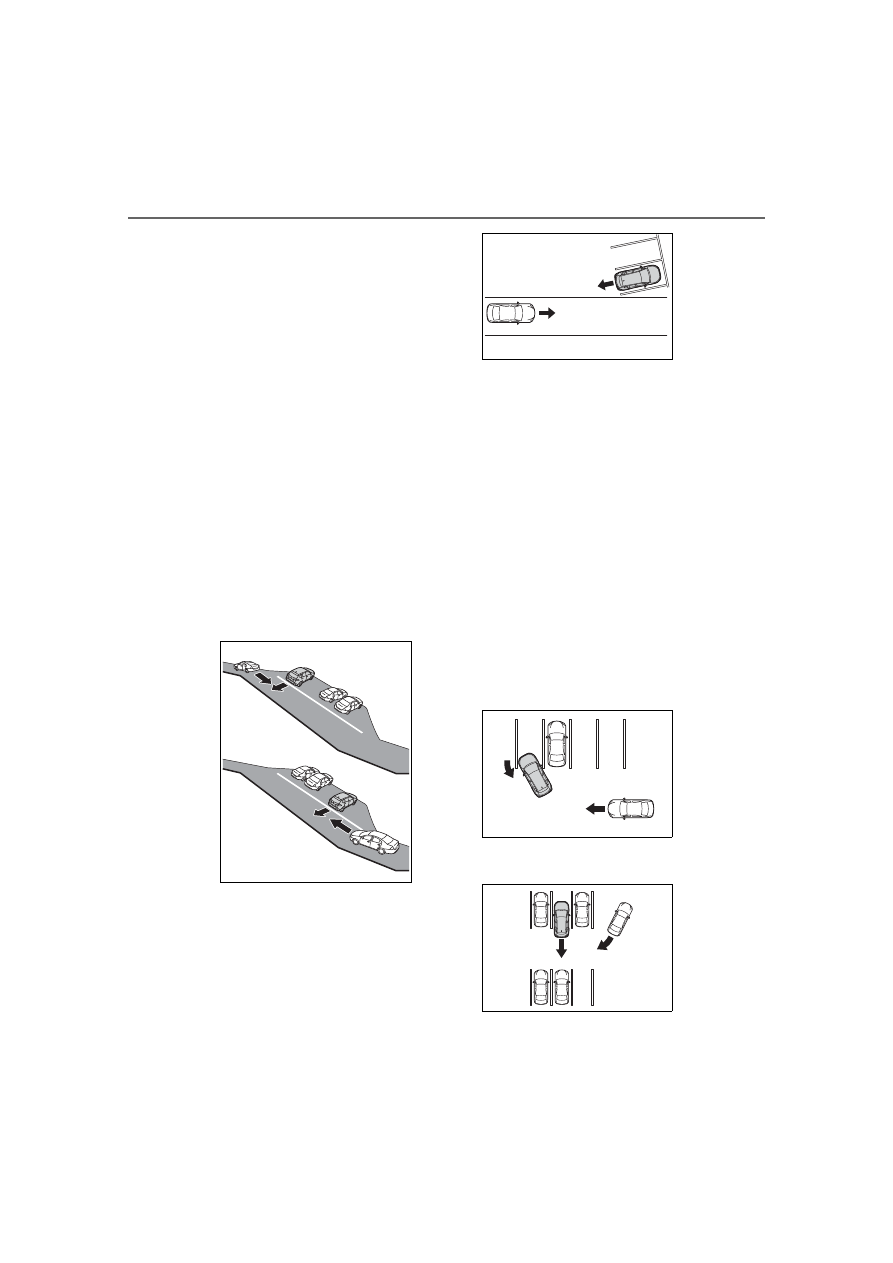

Situations in which the system

may not operate properly

The RCTA function may not detect

vehicles correctly in the following

Approaching

vehicle speed

 Approximate

alert distance

34 mph (56
km/h) (fast)

131 ft. (40 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

252

4-5. Using the driving support systems

situations:

When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

When mud, snow, ice, a sticker,

etc., is covering the sensor or sur-

rounding area on the position

above the rear bumper

When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

When multiple vehicles are

approaching with only a small gap

between each vehicle

When a vehicle is approaching at

high speed

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

When backing up on a slope with

a sharp change in grade

When backing out of a sharp

angle parking spot

Immediately after the RCTA func-

tion is turned on

Immediately after the engine is

started with the RCTA function on

When the sensors cannot detect a

vehicle due to obstructions

When towing a trailer

When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

When a sensor or the area around

a sensor is extremely hot or cold

If the suspension has been modi-

fied or tires of a size other than

specified are installed

If the front of the vehicle is raised

or lowered due to the carried load

When turning while backing up

When a vehicle turns into the

detection area

253

4-5. Using the driving support systems

4

Dr

iv

ing

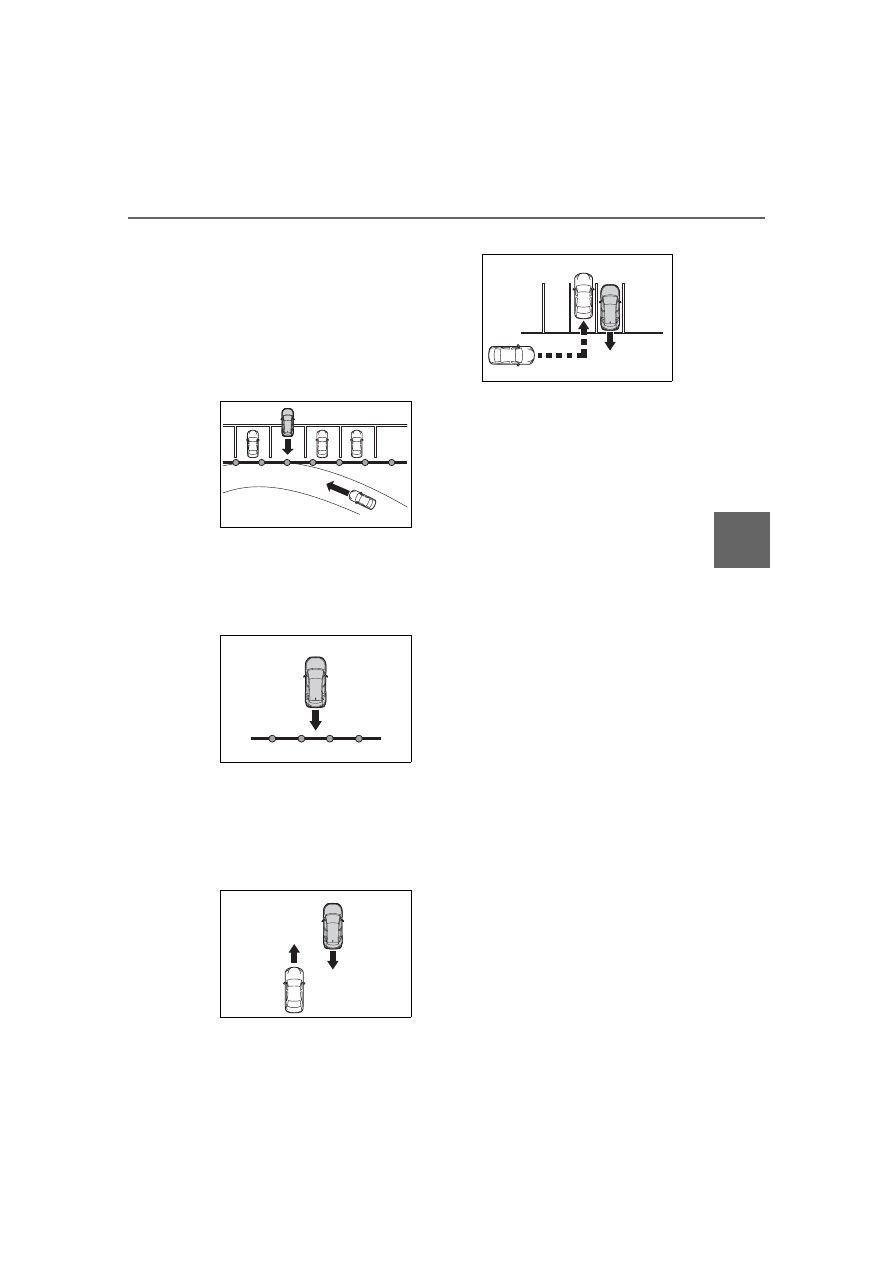

Situations in which the system

may operate even if there is no

possibility of a collision

Instances of the RCTA function

unnecessary detecting a vehicle

and/or object may increase in the

following situations:

When the parking space faces a

street and vehicles are being

driven on the street

When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

When a vehicle passes by the

side of your vehicle

When a detected vehicle turns

while approaching the vehicle

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

Moving objects (flags, exhaust

fumes, large rain droplets or

snowflakes, rain water on the road

surface, etc.)

When the distance between your

vehicle and a guardrail, wall, etc.,

that enters the detection area is

short

Gratings and gutters

When a sensor or the area around

a sensor is extremely hot or cold

If the suspension has been modi-

fied or tires of a size other than

specified are installed

If the front of the vehicle is raised

or lowered due to the carried load















Content      ..     13      14      15      16     ..
