7-3. Do-it-yourself maintenance

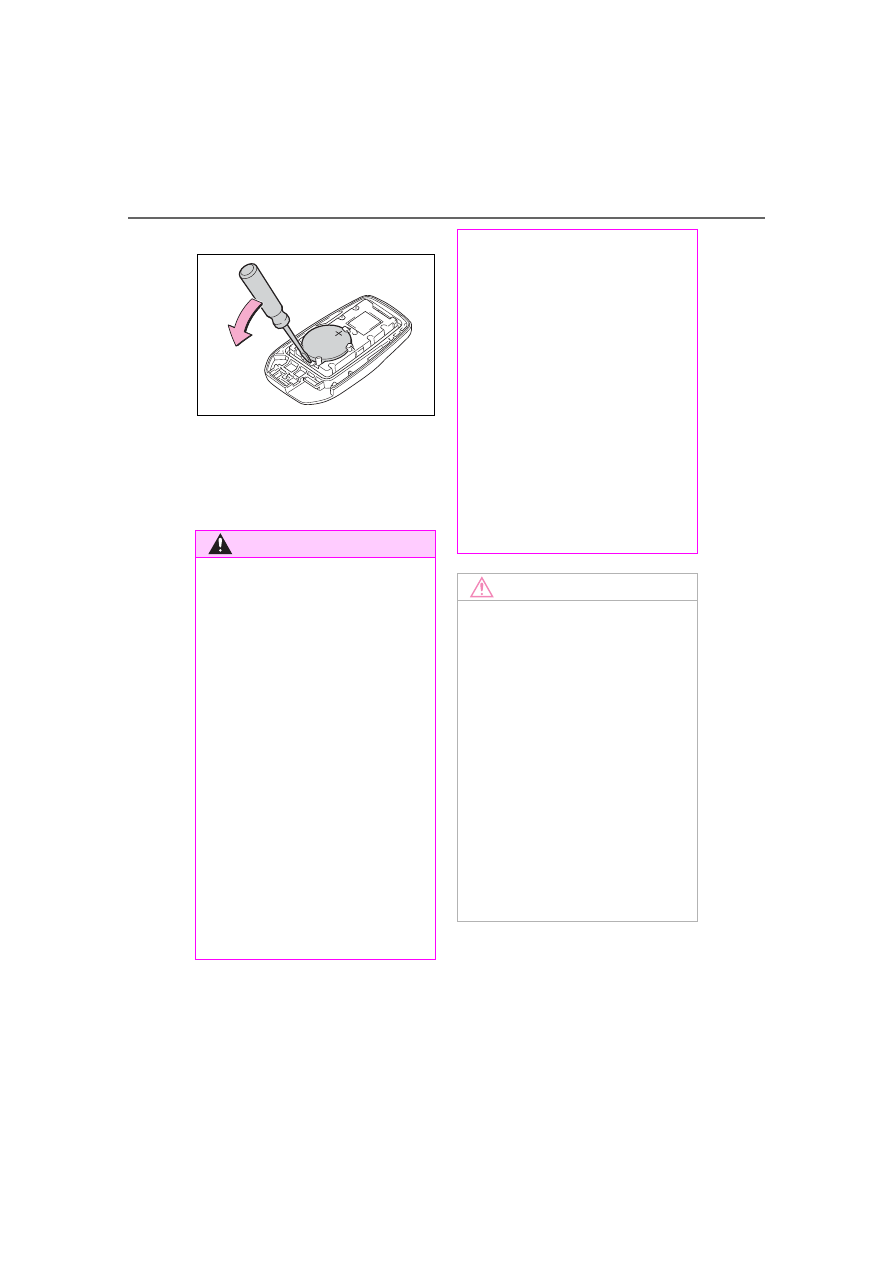

minal facing up.

When installing the key cover
and mechanical key, install
by conducting step 2 and
step 1 with the directions
reversed.

WARNING

■

Battery precautions

Observe the following precau-

tions.
Failure to do so may result in

death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

499

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Turn the power switch off.

Confirm that the charging connec-

tor is not connected. Also, do not

use the Remote Air Conditioning

System during the procedure.

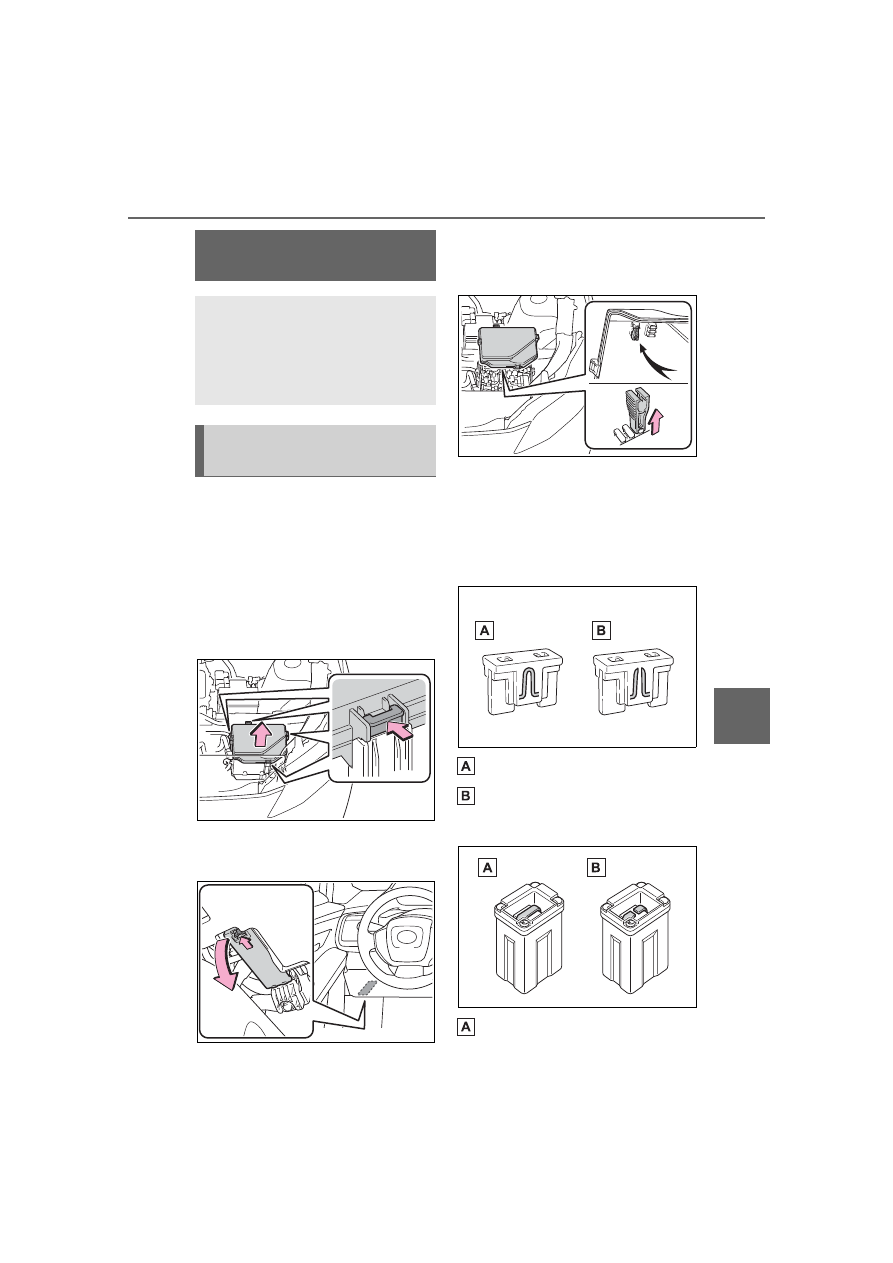

Open the fuse box cover.



Motor compartment

Push the tab in and lift the lid off.



Left side instrument panel

Remove the lid.

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



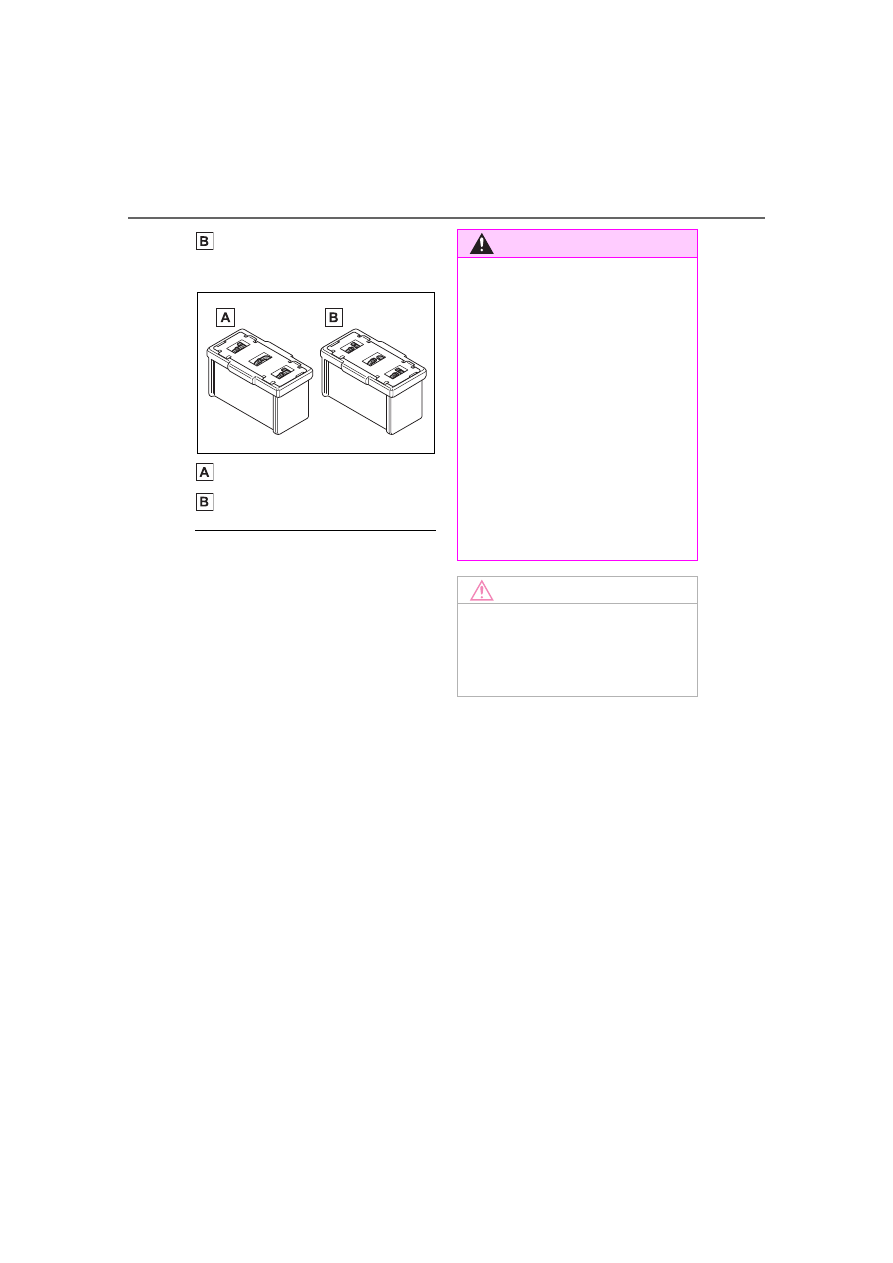

Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

500

7-3. Do-it-yourself maintenance

Blown fuse



Type C

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected Toyota

dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing an electronic

component, such as a lights,

etc.

Toyota recommends that you use

genuine Toyota products designed

for this vehicle. Because certain

bulbs are connected to circuits

designed to prevent overload, non-

genuine parts or parts not designed

for this vehicle may be unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired

Toyota dealer as soon as possi-

ble.

501

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

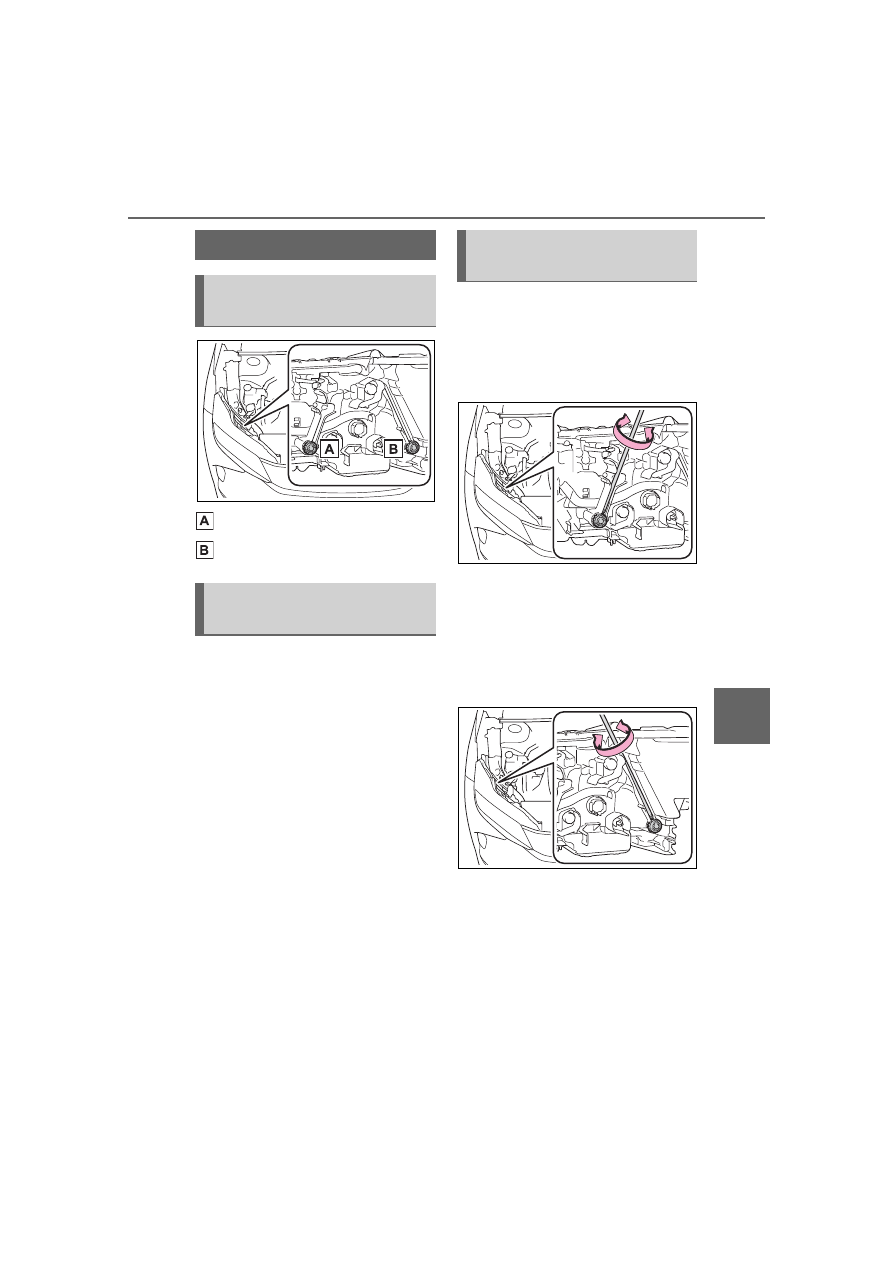

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.

Turn bolt B the same number
of turns and in the same
direction as step

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

Adjusting the headlight
aim

502

7-3. Do-it-yourself maintenance

■

LED lights

The lights consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the headlight lens

does not indicate a malfunction.

Contact your Toyota dealer for more

information in the following situa-

tions:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the

headlight.

■

When replacing an electronic

component, such as a lights,

etc.



P.500

Light bulbs

If any exterior light does not
turn on, have it replaced by
your Toyota dealer.

503

Whe

n tr

ouble

rises

When trouble arises

8-1. Essential information

Emergency flashers ....

504

If your vehicle has to be

stopped in an emergency

..................................

505

If the vehicle is submerged

or water on the road is ris-
ing .............................

506

8-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

507

If you think something is

wrong ........................

511

If a warning light turns on or

a warning buzzer sounds

..................................

513

If a warning message is dis-

played........................

522

If you have a flat tire....

527

If the EV system will not

start ...........................

537

If you lose your keys ...

539

If the electronic key does

not operate properly ..

539

If the 12-volt battery is dis-

charged .....................

541

If your vehicle overheats

..................................

545

If the vehicle becomes stuck

..................................

547

504

8-1. Essential information

8-1.Essential information

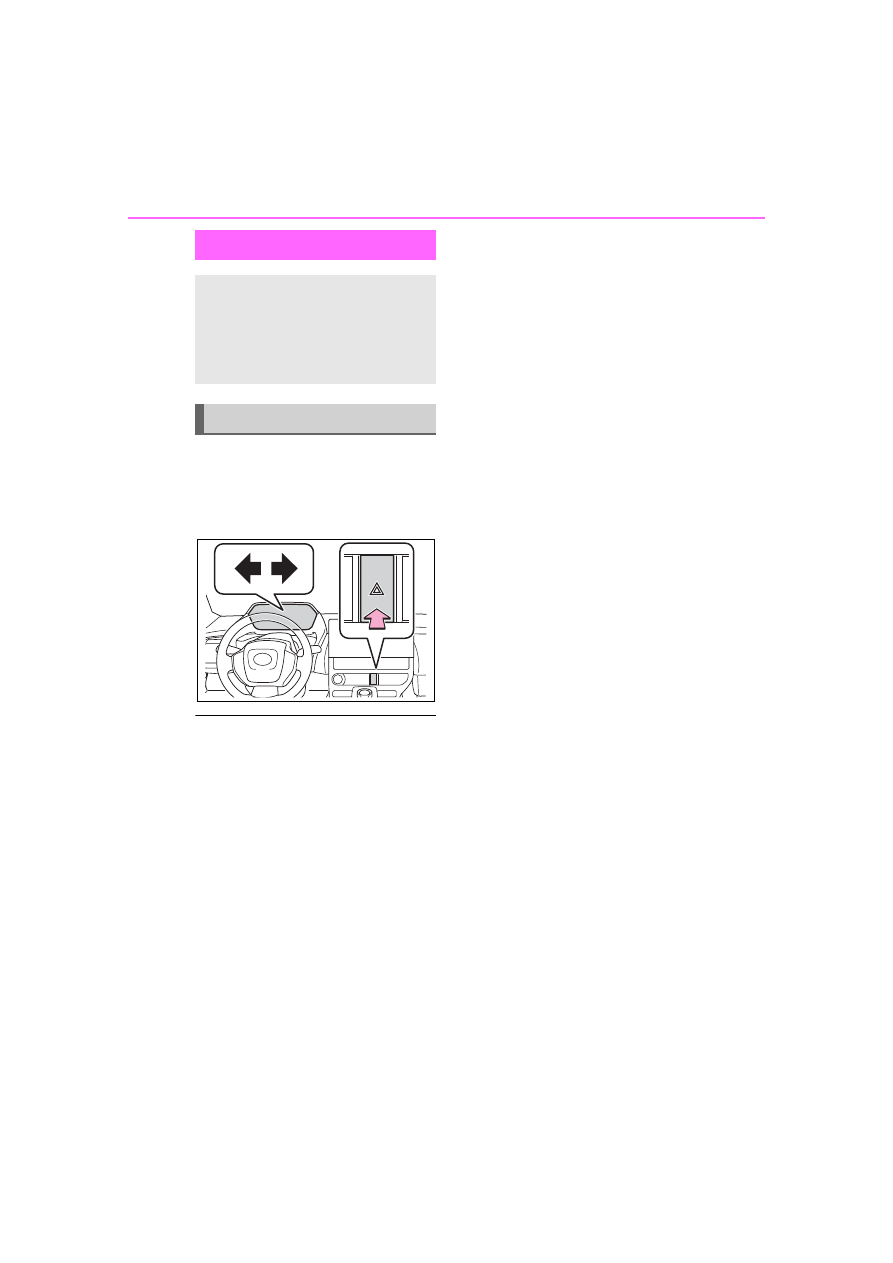

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the EV

system is not operating (while the

“READY” indicator is not illumi-

nated), the 12-volt battery may

discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice. (The emergency flashers

may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.

Operating instructions

505

8-1. Essential information

Whe

n tr

ouble

rises

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift position to N.



If the shift position is shifted to
N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the EV system.



If the shift position cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

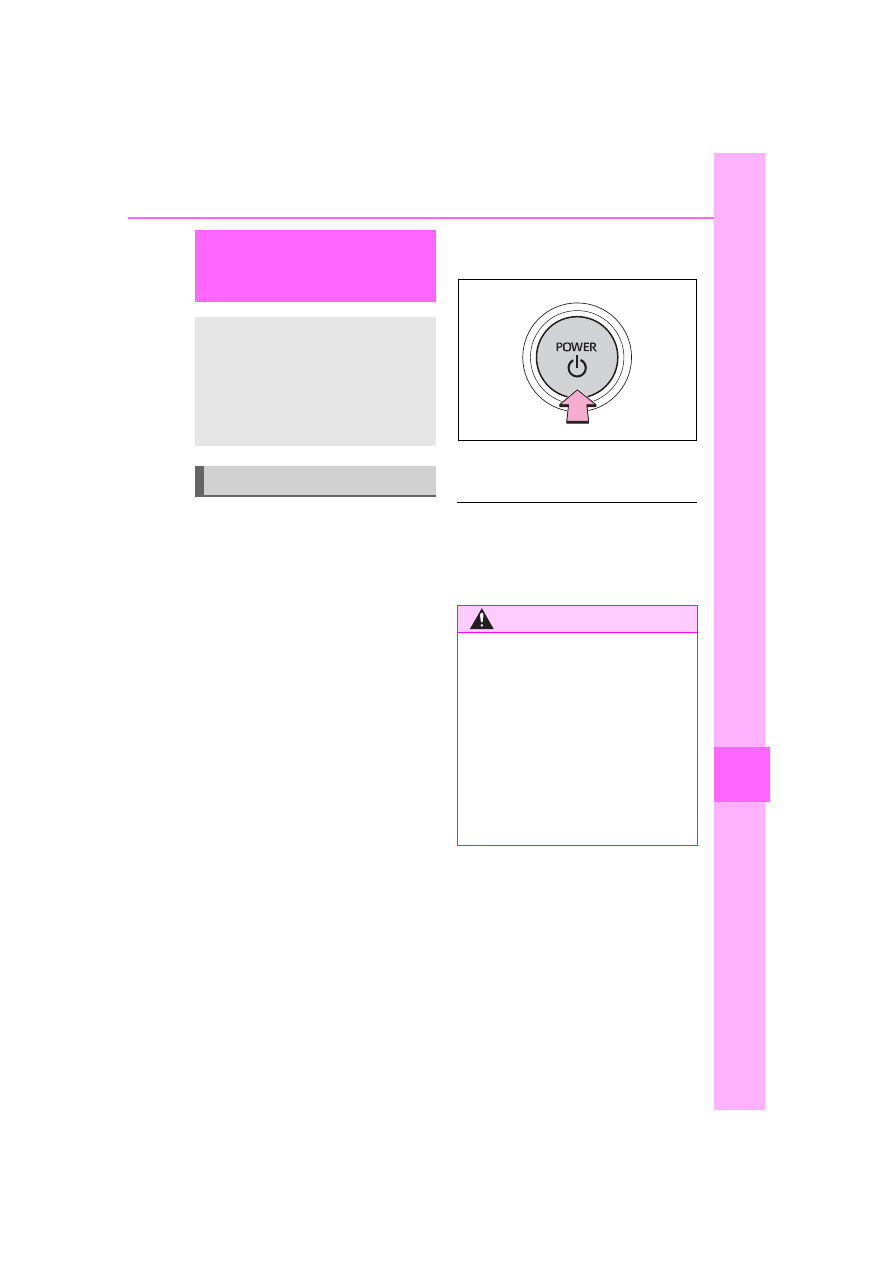

To stop the EV system: Press
and hold the power switch for
2 consecutive seconds or

more, or press it briefly 3
times or more in succession.

Stop the vehicle in a safe
place by the road.

■

If emergency stopped

The functions of the air conditioning,

etc., may be partially limited in order

to reduce the power consumption of

the 12-volt battery.

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehi-
cle using the following pro-
cedure:

Stopping the vehicle

WARNING

■

If the EV system has to be

turned off while driving

Turning the EV system off while

driving will not cause a loss of

steering or braking control. How-

ever, power assist for the steering

wheel may be lost making it diffi-

cult to steer smoothly before stop-

ping the vehicle depending on the

remaining charge in the 12-volt

battery or usage conditions.

Decelerate as much as possible

before turning off the EV system.

506

8-1. Essential information



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.

■

Water level exceeds the floor

When the water level exceeds the

floor and time has passed, the elec-

trical equipment will get damaged,

the power windows will not operate,

the motor stop, and the vehicle may

not be able to get moving.

■

Using an emergency escape
hammer

Laminated glass is used in the wind-

shield on this vehicle.
Laminated glass cannot be shat-
tered with an emergency hammer

Tempered glass is used in the win-

dows on this vehicle.

: Contact your Toyota dealer or

aftermarket accessory manufac-
turer for further information about
an emergency hammer.

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the
vehicle will be flooded or
set a drift. Remain calm and
follow the following.

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the

water may be rising. Otherwise

the vehicle may be damaged and

cannot move, as well as become

flooded and set a drift, which may

lead to death.

507

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

8-2.Steps to take in an emergency

In the following situations, it is
not possible to be towed by
another vehicle using cables or
chains, as the front wheels may
be locked due to the parking
lock. Contact your Toyota dealer
or commercial towing service.



There is a malfunction in the
shift control system. (



P.233,

525)



There is a malfunction in the
immobilizer system. (



P.68)



There is a malfunction in the
smart key system. (



P.539)



The 12-volt battery is dis-
charged. (



P.541)

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The EV system warning mes-
sage is shown on the multi-
information display and the
vehicle does not move.



The vehicle makes an abnor-
mal sound.



From the front (2WD models)

Release the parking brake.
Turn automatic mode off.
(



P.244)

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

Situations when it is not
possible to be towed by
another vehicle

Situations when it is nec-
essary to contact dealers
before towing

Towing with a wheel-lift
type truck

508

8-2. Steps to take in an emergency



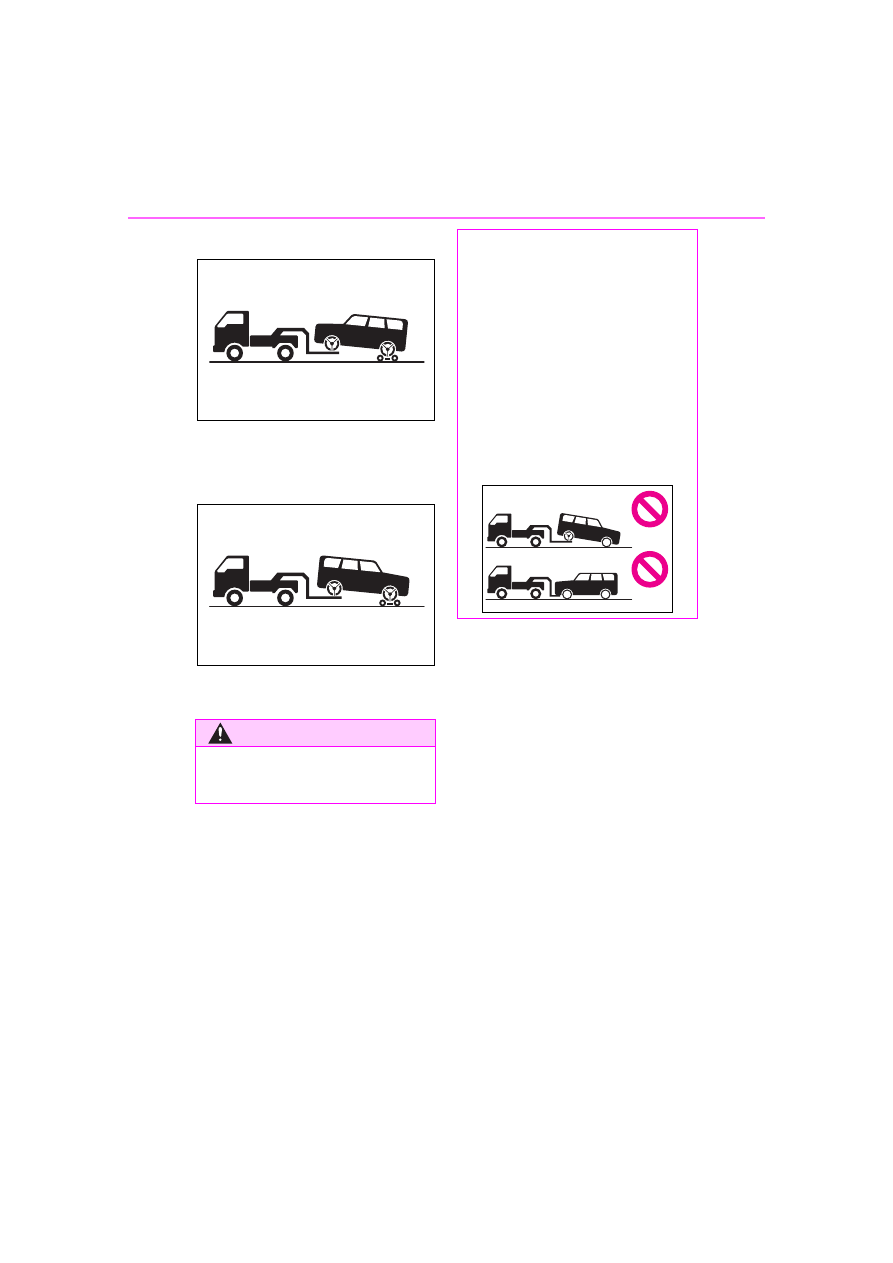

From the front (AWD models)

Use a towing dolly under the
rear wheels.



From the rear

Use a towing dolly under the
front wheels.

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

■

When towing the vehicle



2WD models

Be sure to transport the vehicle
with the front wheels raised or
with all four wheels raised off the
ground. If the vehicle is towed
with the front wheels contacting
the ground, the drivetrain and
related parts may be damaged or
electricity generated by the opera-
tion of the motor may cause a fire
to occur depending on the nature
of the damage or malfunction.

509

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner’s manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the power switch off.

If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using
cables or chains secured to the
emergency towing eyelets. This
should only be attempted on
hard surfaced roads for short
distances at under 18 mph (30
km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

WARNING



AWD models

Be sure to transport the vehicle
with all four wheels raised off the
ground. If the vehicle is towed
with the tires contacting the
ground, the drivetrain or related
parts may be damaged, the vehi-
cle may fly off the truck, or elec-
tricity generated by the operation
of the motor may cause a fire to
occur depending on the nature of
the damage or malfunction.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

When raising the vehicle, ensure

adequate ground clearance for

towing at the opposite end of the

raised vehicle. Without adequate

clearance, the vehicle could be

damaged while being towed.

■

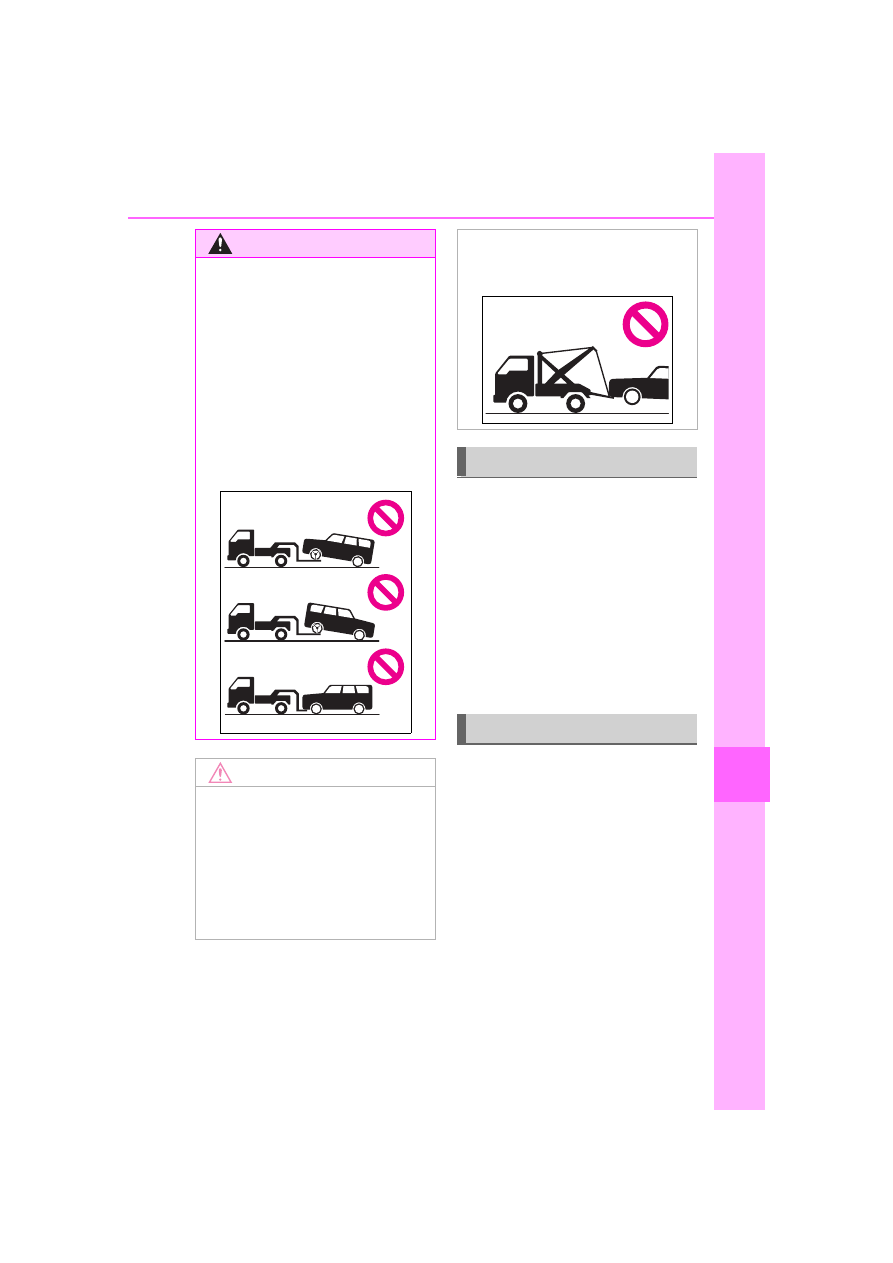

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

Using a flatbed truck

Emergency towing

510

8-2. Steps to take in an emergency

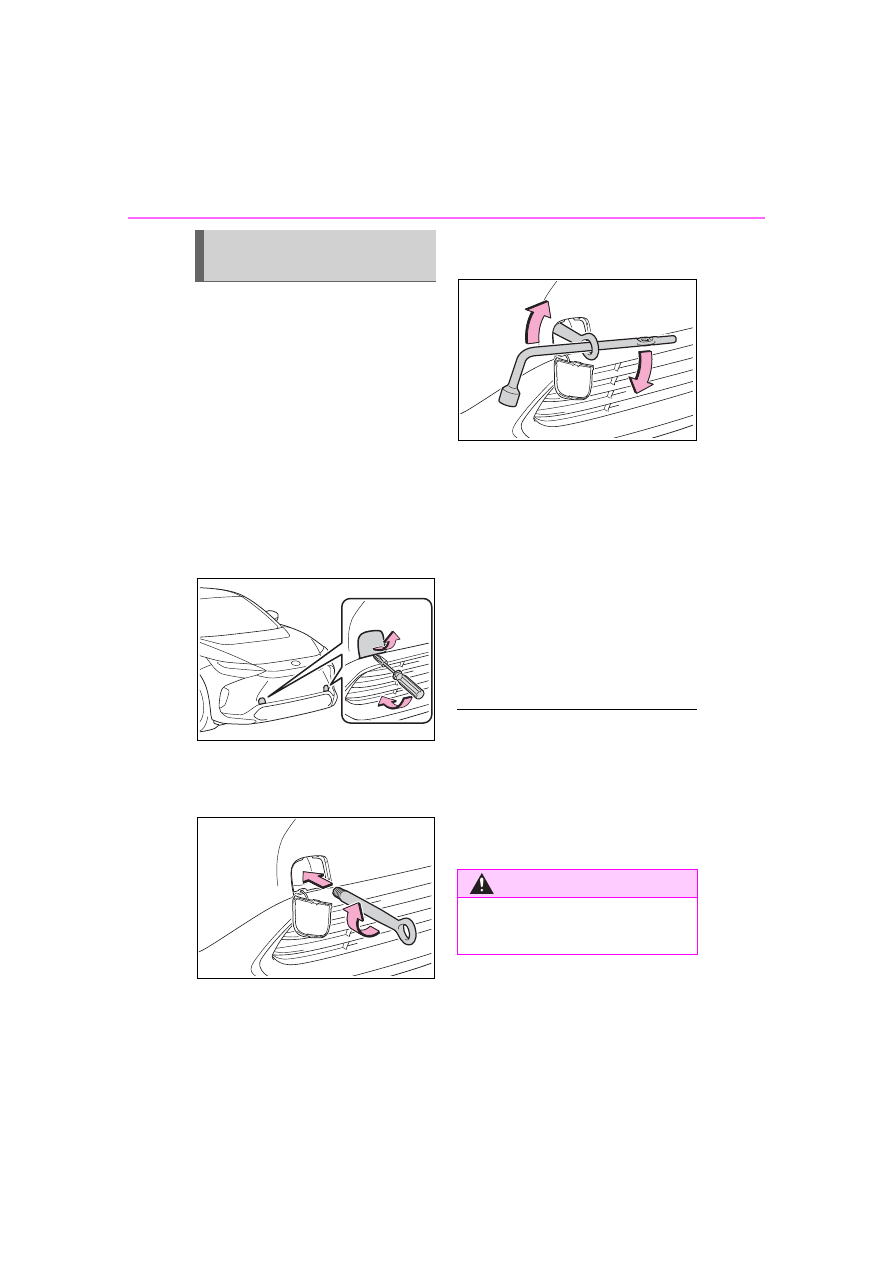

To have your vehicle towed by
another vehicle, the towing eye-
let must be installed to your
vehicle. Install the towing eyelet
using the following procedure.

Take out the wheel bolt
wrench and towing eyelet.
(



P.486, 528)

Remove the eyelet cover
using a flathead screwdriver.

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.

Insert the towing eyelet into
the hole and tighten partially
by hand.

Tighten down the towing eye-
let securely using a wheel

bolt wrench or hard metal
bar.

Securely attach cables or
chains to the towing eyelet.

Take care not to damage the vehi-

cle body.

Enter the vehicle being towed
and start the EV system.

If the EV system does not start, turn

the power switch to ON.

Shift the shift position to N
and release the parking
brake.

Turn automatic mode off. (



P.244)

■

While towing

If the EV system is off, the power

assist for the brakes and steering

will not function, making steering

and braking more difficult.

■

Wheel bolt wrench

Wheel bolt wrench is installed in lug-

gage compartment. (



P.486, 528)

Emergency towing proce-
dure

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

511

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises



Fluid leaks under the vehicle
(Water dripping from the air
conditioning after use is nor-
mal.)



Flat-looking tires or uneven
tire wear



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Other noises related to the EV
system



Stumbling or running roughly



Appreciable loss of power



Vehicle pulls heavily to one
side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,

WARNING

■

While towing

●

When towing using cables or

chains, avoid sudden starts,

etc., which place excessive

stress on the towing eyelets,

cables or chains. The towing

eyelets, cables or chains may

become damaged, broken

debris may hit people, and

cause serious damage.

●

Do not perform any of the fol-

lowing as doing so may cause

the parking lock mechanism to

engage, locking the front

wheels and possibly leading to

an accident resulting in death or

serious injury:

• Unfasten the driver’s seat belt

and open the driver’s door.

• Turn the power switch off.

■

Installing towing eyelets to

the vehicle

Make sure that towing eyelets are

installed securely. If not securely

installed, towing eyelets may

come loose during towing.

NOTICE

■

To prevent damage to the

vehicle during emergency

towing

Do not secure cables or chains to

the suspension components.

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

513

8-2. Steps to take in an emergency

Whe

n tr

ouble

rises

■

Brake system warning light (warning buzzer)

■

Brake system warning light

■

Charging system warning light

: This light illuminates on the multi-information display with a message.

If a warning light turns on or a warning buzzer

sounds

Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunc-
tion in the system. However, if this continues to occur, have
the vehicle inspected by your Toyota dealer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

(U.S.A.)

(Canada)

(Red)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

Warning light

Details/Actions

(Yellow)

Indicates a malfunction in:



The regenerative braking system;



The electronically controlled brake system; or



The parking brake system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

514

8-2. Steps to take in an emergency

■

SRS warning light (warning buzzer)

■

ABS warning light

■

Inappropriate pedal operation warning light

(warning buzzer)

: This light illuminates on the multi-information display with a message.

Warning light

Details/Actions

Indicates a malfunction in:



The SRS airbag system; or



The seat belt pretensioner system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

(U.S.A.)

(Canada)

Indicates a malfunction in:



The ABS; or



The brake assist system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

When a buzzer sounds:
Indicates a malfunction in:



The Brake Override System;



The Drive-Start Control



Have the vehicle inspected by your Toyota dealer
immediately.

Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelerator
pedal.



Momentarily release the accelerator pedal.

When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.



Release the accelerator pedal and depress the brake
pedal.

Toyota bZ4X (2023 year). Manual in english - page 31
