2-1. Electric vehicle system

Elec

tric
V

ehi
cle s
ys

tem

WARNING

●

If your vehicle needs to be

towed, be sure to transport the

vehicle with the front wheels

(2WD models) or four wheels

(AWD models) raised. If the

vehicle is towed with the wheels

which are connected to the

electric motor (traction motor)

contacting the ground, electric-

ity generated by the operation of

the motor may cause a fire to

occur depending on the nature

of the damage or malfunction.

(



P.507)

●

Carefully inspect the ground

under the vehicle. If leaked liq-

uid (other than water from the

air conditioning) is found on the

ground, the traction battery may

have been damaged. Leave the

vehicle as soon as possible.

In addition, contact your Toyota

dealer with regard to the leak-

age found on the ground.

Even in the event of a minor

accident, the traction battery

and surrounding parts may be

damaged. In case of an acci-

dent, have the traction battery

inspected at a Toyota dealer.

■

Traction battery

●

Your vehicle contains a sealed

lithium-ion battery.

●

Never resell, hand over or mod-

ify the traction battery. To pre-

vent accidents, traction

batteries that have been

removed from a disposed vehi-

cle are collected through your

Toyota dealer. Do not dispose of

the battery yourself. Unless the

battery is properly collected, the

following may occur, resulting in

death or serious injury:

• Do not illegally dispose of or

dump the traction battery, and it

is hazardous to the environment

or someone may touch a high

voltage part, resulting in an

electric shock.

• The traction battery is intended

to be used exclusively with your

battery electric vehicle. If the

traction battery is used outside

of your vehicle or modified in

any way, accidents such as

electric shock, heat generation,

smoke generation, an explo-

sion and electrolyte leakage

may occur. When reselling or

handing over your vehicle, the

possibility of an accident is

extremely high because the per-

son receiving the vehicle may

not be aware of the dangers

from these modifications.

●

If your vehicle is disposed of

without the traction battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the traction bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the traction bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

●

For information about traction

battery collection locations, con-

tact information, or the recycling

process, contact your Toyota

dealer.

2-1. Electric vehicle system

When a certain level of impact is
detected by the impact sensors,
the emergency shut off system

turns off the EV system and
blocks the high voltage current.
If the emergency shut off system
activates, your vehicle will not
restart. To restart the EV sys-
tem, contact your Toyota dealer.

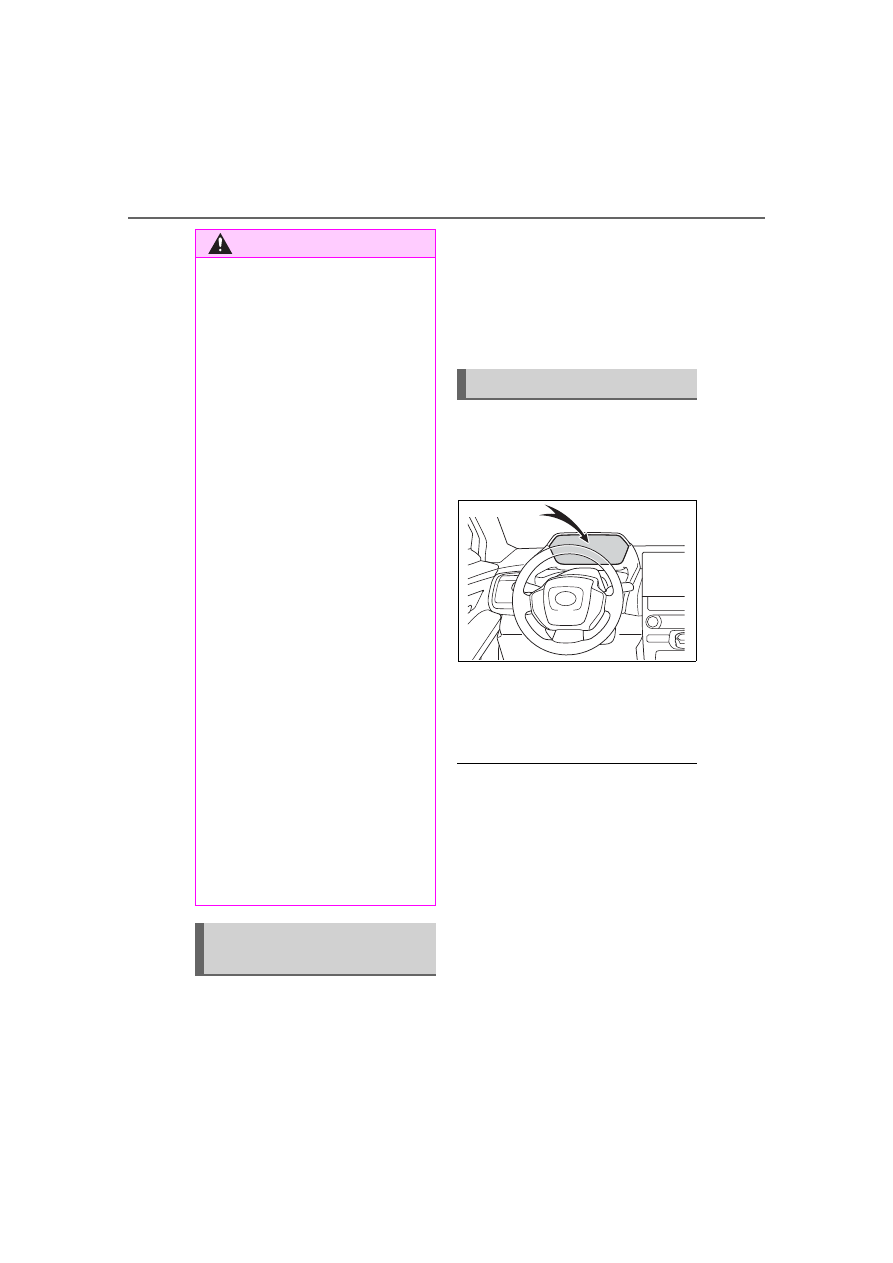

A message is automatically dis-
played when a malfunction
occurs in the EV system or an
improper operation is attempted.

If a warning message is shown
on the multi-information display,
read the message and follow the
instructions. (



P.140, 522)

■

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The EV system may not start.
In that case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

■

When the traction battery is

completely discharged

When the EV system cannot be

started due to the traction battery

being completely discharged, restart

the system after AC charging or DC

charging. When charging, it is rec-

WARNING

■

Caution while driving

●

Pay special attention to the area

around the vehicle. Because

there is no engine noise, pedes-

trians, people riding bicycles or

other people and vehicles in the

area may not be aware of the

vehicle starting off or approach-

ing them, so take extra care

while driving. Therefore, take

extra care while driving even if

the Acoustic Vehicle Alerting

System is active.

●

If the vehicle under floor area

receives strong shock or impact

while driving, stop the vehicle in

a safe place and check around

the bottom of the vehicle. If

there is damage to the traction

battery or liquid leakage, it may

lead to a vehicle fire, etc. Do not

touch the vehicle and immedi-

ately contact your Toyota dealer.

Even if no damage can be seen

under the floor, the traction bat-

tery may be damaged. If the

vehicle received an impact

under the floor, have the traction

battery inspected at a Toyota

dealer.

■

Modifications

Do not make modifications that

lower the height of the vehicle.

The traction battery in the under

floor area may come into contact

with the ground when the height

of vehicle is lowered. If the trac-

tion battery is damaged, a vehicle

fire may occur, possibly resulting

in death or serious injury.

Emergency shut off sys-
tem

Warning message

2-1. Electric vehicle system

Elec

tric
V

ehi
cle s
ys

tem

ommended to charge the traction

battery until the traction battery

charge warning light turns off in

order to ensure sufficient driving dis-

tance.

Shift the shift position to D when
stopped at a traffic light, or driv-
ing in heavy traffic, etc. Shift the
shift position to P when parking.
When shifting the shift position
to N while driving, there is no
positive effect on electricity con-
sumption. In the N, the traction

Battery Electric Vehi-

cle driving tips

Unlike the conventional
vehicles, the electricity con-
sumption efficiency of bat-
tery electric vehicles will
decline if they continue
driving on highways (or
freeways) or at high aver-
age speeds, causing the
possible driving distance to
reduce. Therefore, if the
remaining charge of the
traction battery is low, avoid
relying on the displayed
possible driving distance
too much as well as driving
on highways (or freeways).
Driving the vehicle at mod-
erate speeds, the traction
battery’s electricity con-
sumption can be controlled.

The following driving tips
will contribute to reduction
in the battery consumption
and increase in the driving
range.

Shift position operation

2-1. Electric vehicle system

battery cannot be charged. Also,
when using the air conditioning
system, etc., the traction battery
electricity is consumed.
(



P.237)

Repeated acceleration and
deceleration due to traffic con-
gestion, long waits at traffic
lights, and driving on steep
inclines will lead to poor electric-
ity consumption. In order to
avoid those situations as much
as possible, check traffic reports
before leaving. If the vehicle is
driven in traffic congestion, gen-
tly release the brake pedal to
allow the vehicle to move for-
ward slightly, avoid overuse of
the accelerator pedal. Doing so
can help minimize unnecessary
electricity consumption.

Make sure to operate the brakes
gently and a timely manner. A
greater amount of electrical
energy can be regenerated
when slowing down.

Control and maintain the vehicle
at a constant speed. Before
stopping at a toll booth or simi-
lar, allow plenty of time to

release the accelerator and gen-
tly apply the brakes. A greater
amount of electrical energy can
be regenerated when slowing
down.



Use the air conditioning only
when necessary. Doing so
can help reduce excessive
electricity consumption.

In summer: When the ambient tem-
perature is high, use the recircu-
lated air mode. Doing so will help to
reduce the burden on the air condi-
tioning system and reduce electric-
ity consumption as well.
In winter: Excessive or unneces-
sary heating should be avoided.
Also, electricity consumption can
be improved by avoiding overuse of
the heater.



When using the Remote Air
Conditioning System
(



P.409) while the AC

charging cable is connected
to the vehicle, electricity con-
sumption immediately after
starting off will be reduced
because air conditioning is
operated mainly using elec-
tricity from an external power
source.

Make sure to check the tire infla-
tion pressure frequently.

Delays

When braking

Highway (or freeways)
driving

Air conditioning

Checking tire inflation
pressure

2-1. Electric vehicle system

Elec

tric
V

ehi
cle s
ys

tem

Improper tire inflation pressure
can cause poor electricity con-
sumption.
Also, as snow tires can cause
large amounts of friction, their
use on dry roads will lead to
poor electricity consumption.
Use tires that are appropriate for
the season.

Carrying heavy luggage will lead
to poor electricity consumption.
Avoid carrying unnecessary lug-
gage.

A value for which a sufficient
level of driving performance can
be provided is estimated based
on the remaining charge of the
traction battery, the state of the
traction battery, the outside tem-
perature, etc., and is displayed
on the multi-information display.
(



P.152)

When the outside temperature
is low, the traction battery output
may be decreased, causing the
possible driving distance to be
shorter. However, this is not a
malfunction. Charge the trac-
tion battery earlier than usual.

Possible driving distance varies
significantly depending on how
the vehicle is driven, road condi-
tions, the weather, the outside
temperature, usage conditions
of electrical components and the

Luggage

Driving range

The driving range dis-
played on the multi-informa-
tion display, etc., shows the
reference distance that driv-
ing is possible, and the
actual distance that can be
driven may differ from that
displayed.

Displayed value

Tips for extending the
driving range

2-1. Electric vehicle system

number of occupants.
Possible driving distance could
be extended if the followings are
performed:



Maintain a safe distance from
the vehicle in front and avoid
unnecessary acceleration and
deceleration



Accelerate and decelerate the
vehicle as smoothly as possi-
ble



Drive at moderate speeds as
much as possible and main-
tain a constant speed



Set the air conditioning sys-
tem to a moderate tempera-
ture and avoid using the
heating and cooling functions
excessively.



Use tires of the specified size
and maintain the specified tire
pressure



Do not add unnecessary
weight to the vehicle

The followings indicate that
charging has been carried out
properly.



The AC charging indicator
turns off



“Charging complete” is dis-
played on the multi-informa-
tion display when a door is
opened while the power

switch is off. (



P.101)

Regardless of the type of power
source or whether the charging
schedule function is used,
charging is completed if the
above can be confirmed.
Charging-related messages:



P.140

Display when charging is
completed

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

2-2.Charging

AC charging inlet

Charging indicator (



P.86) and Charging inlet light

DC charging inlet

Charging port lid (



P.85)

AC charging cable (



P.87)

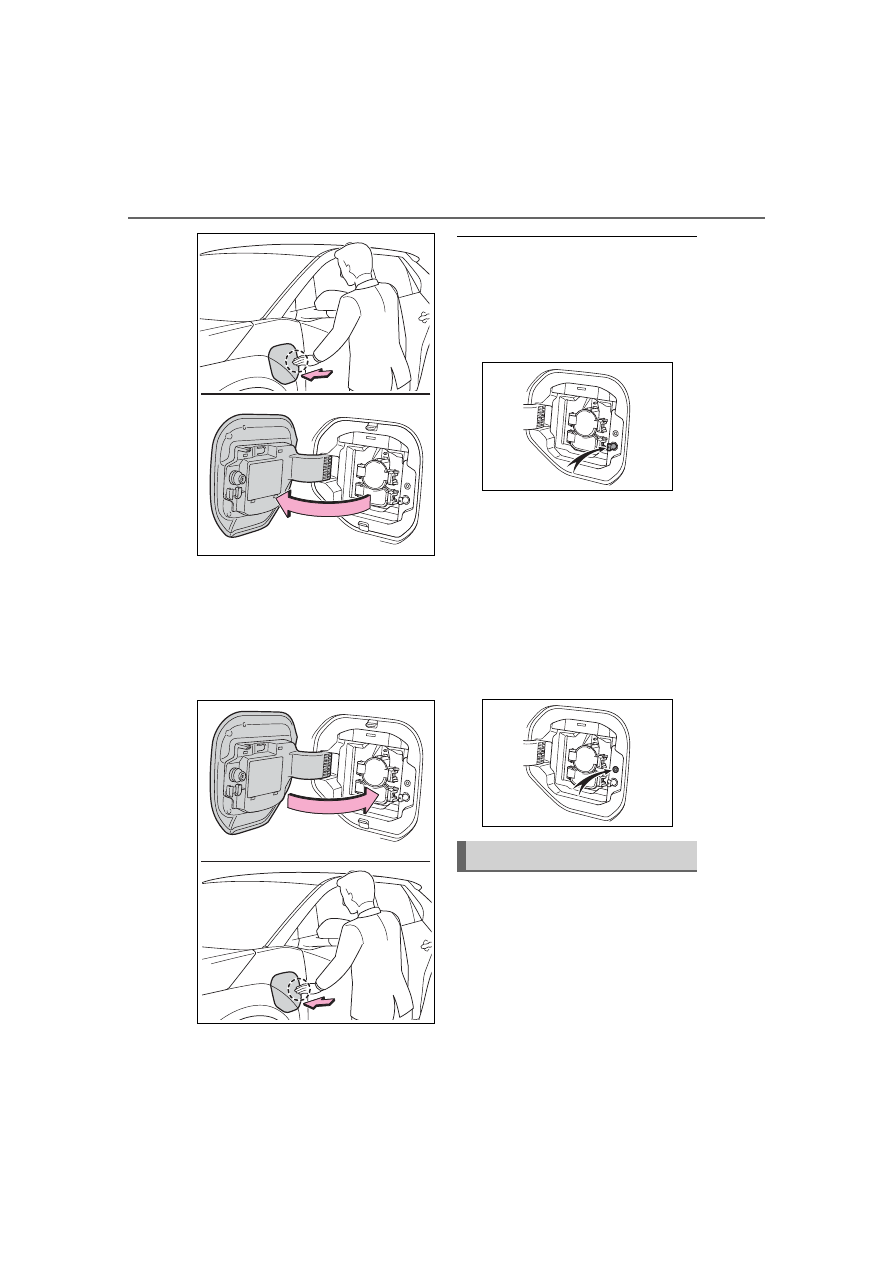

Charging port

■

Open

Slightly open the charging port
lid by pressing the rear edge of it
(the position shown in the illus-
tration)
Fully open the charging port lid

by hand.

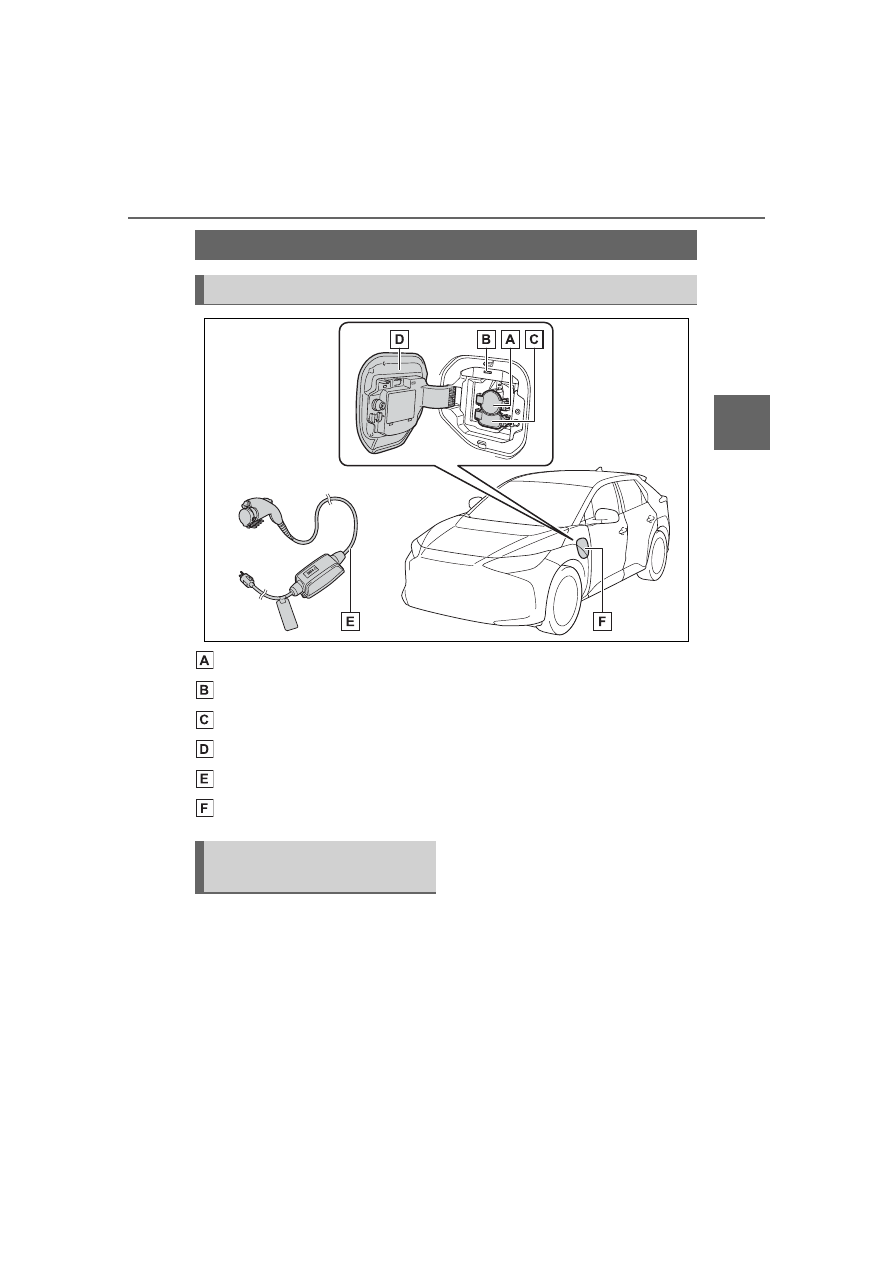

Charging equipment

Charging equipment and names

Opening/closing the
charging port lid

2-2. Charging

■

Close

Move the charging port lid to the
slightly open position and then
press the rear edge (the position
shown in the illustration) to close
it.

■

Lid lifter

●

The charging lid is not closed if

the lifter is pushing in before clos-

ing the charging lid. In that case,

while unlocking the door, push

again and release the lid lifter, and

close the charging lid again.

■

Charging port lid open/close

detection switch

When the charging port lid is open,

do not touch the charging port lid

open/close detection switch (Posi-

tion shown in the figure).
If you touch it by mistake, the vehi-

cle may incorrectly display the

opened/closed status of the

charging port lid, or the charging

connector may not be able to

lock/unlock normally.

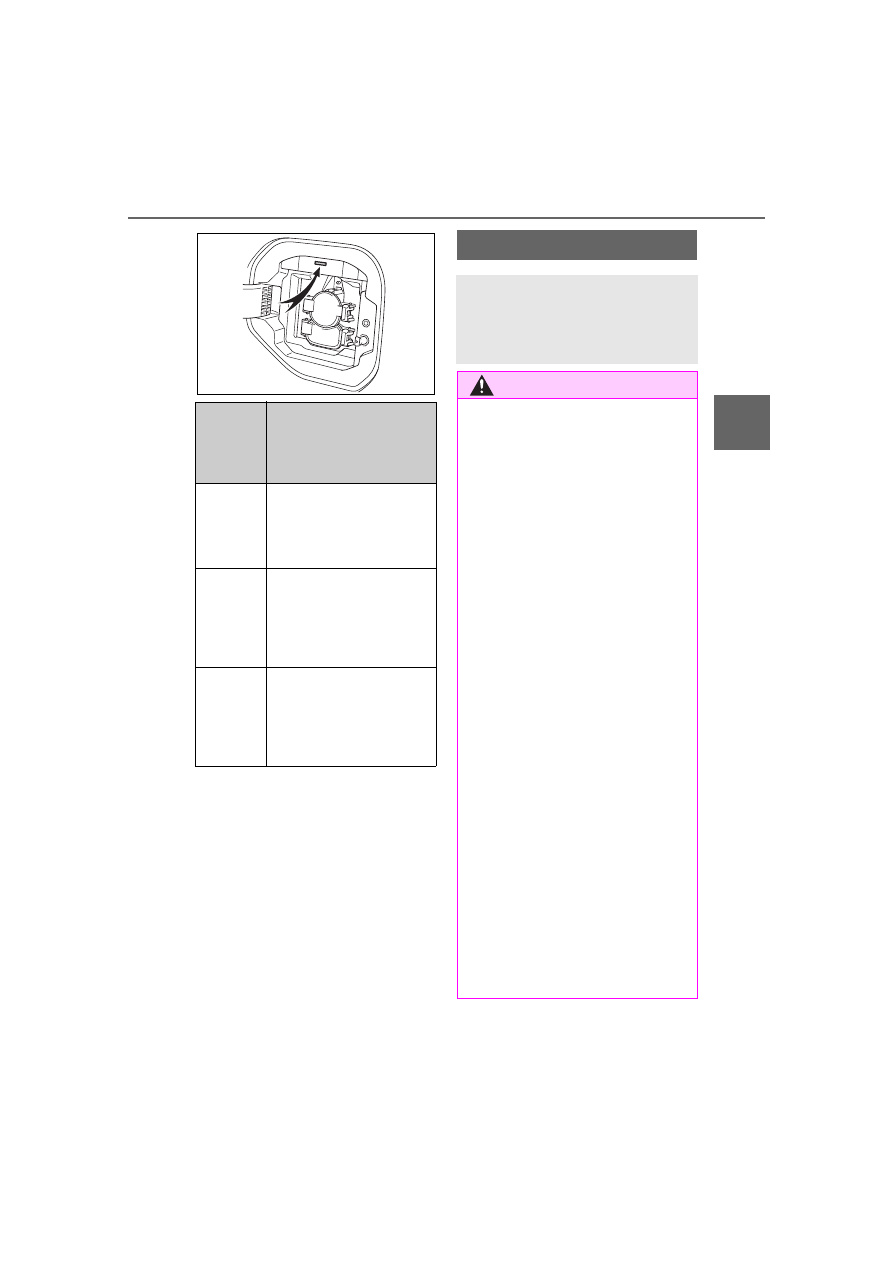

The illumination/flashing pattern
changes to inform the user of
the charging status in the follow-
ing ways.

Charging indicator

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

:The indicator is dimmed when

the charging is done

:Flashes for a certain period of

time, and then turns off.

Illumina-

tion/flashi

ng pat-

tern

Vehicle condition

Illumi-
nated



Charging is in prog-
ress



Battery heater (



P.99)

is operating

Flashes
nor-
mally

When charging sched-
ule is registered
(



P.118) and AC

charging cable is con-
nected to vehicle

Flashes
rapidly

When charging cannot
be carried out due to
malfunction in a power
source or the vehicle,
etc. (



P.135)

AC charging cable

The function, correct oper-
ating procedure, etc., of the
AC charging cable are
explained.

WARNING

■

When using the AC charging

cable and CCID (Charging

Circuit Interrupting Device)

Observe the following precau-

tions.
Failure to do so may cause an

unexpected accident, resulting in

death or serious injury.

●

Do not attempt to disassemble

or repair the AC charging cable,

charging connector, plug or

CCID (Charging Circuit Inter-

rupting Device). If a problem

arises with the AC charging

cable or the CCID (Charging

Circuit Interrupting Device), stop

charging immediately and con-

tact your Toyota dealer.

●

Do not subject the AC charging

cable, charging connector, plug

or CCID (Charging Circuit Inter-

rupting Device) to strong force

or impact.

●

Do not apply excessive force to

the AC charging cable by force-

fully folding, twisting, pulling or

dragging the AC charging cable.

●

Do not damage the AC charging

cable with sharp objects.

●

Do not fold the charging con-

nector or plug or insert foreign

objects into them.

●

Do not put the charging connec-

tor and plug into water.

2-2. Charging

WARNING

●

Do not bring the AC charging

cable to a high-temperature

item such as a heating device.

●

Do not apply a load to the AC

charging cable and plug-cord

(such as wrapping the AC

charging cable around the CCID

(Charging Circuit Interrupting

Device) and the charging con-

nector).

●

Do not use or leave the AC

charging cable in situations

where a load is applied to the

outlet and the plug (such as

when the CCID (Charging Cir-

cuit Interrupting Device) is

hanging in the air without con-

tacting the ground).

NOTICE

■

Precautions when handling

AC charging cable

Make sure to observe the follow-

ing precautions. Failure to

observe these precautions may

result in damage to the AC

charging cable and AC charging

inlet.

●

Insert the charging connector

straight into the AC charging

inlet.

●

After inserting the charging con-

nector, do not apply excessive

force to or twist the connector.

Also, do not lean on the connec-

tor or hang any objects from it.

●

Do not step on or trip over the

AC charging cable.

●

Before removing the charging

connector, make sure that it is

unlocked. (



P.93)

●

After removing the AC charging

cable, promptly return it to its

proper location.

●

After removing the charging

connector, securely install the

AC charging inlet cap.

■

When using the AC charging

cable and related parts



P.105

■

Precautions for low tempera-

tures

In low temperatures, the AC

charging cable and plug-cord may

become hard. Therefore, make

sure to not apply excessive force

when they are hard. If excessive

force is applied to the hardened

AC charging cable and plug-cord,

they may be damaged.

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

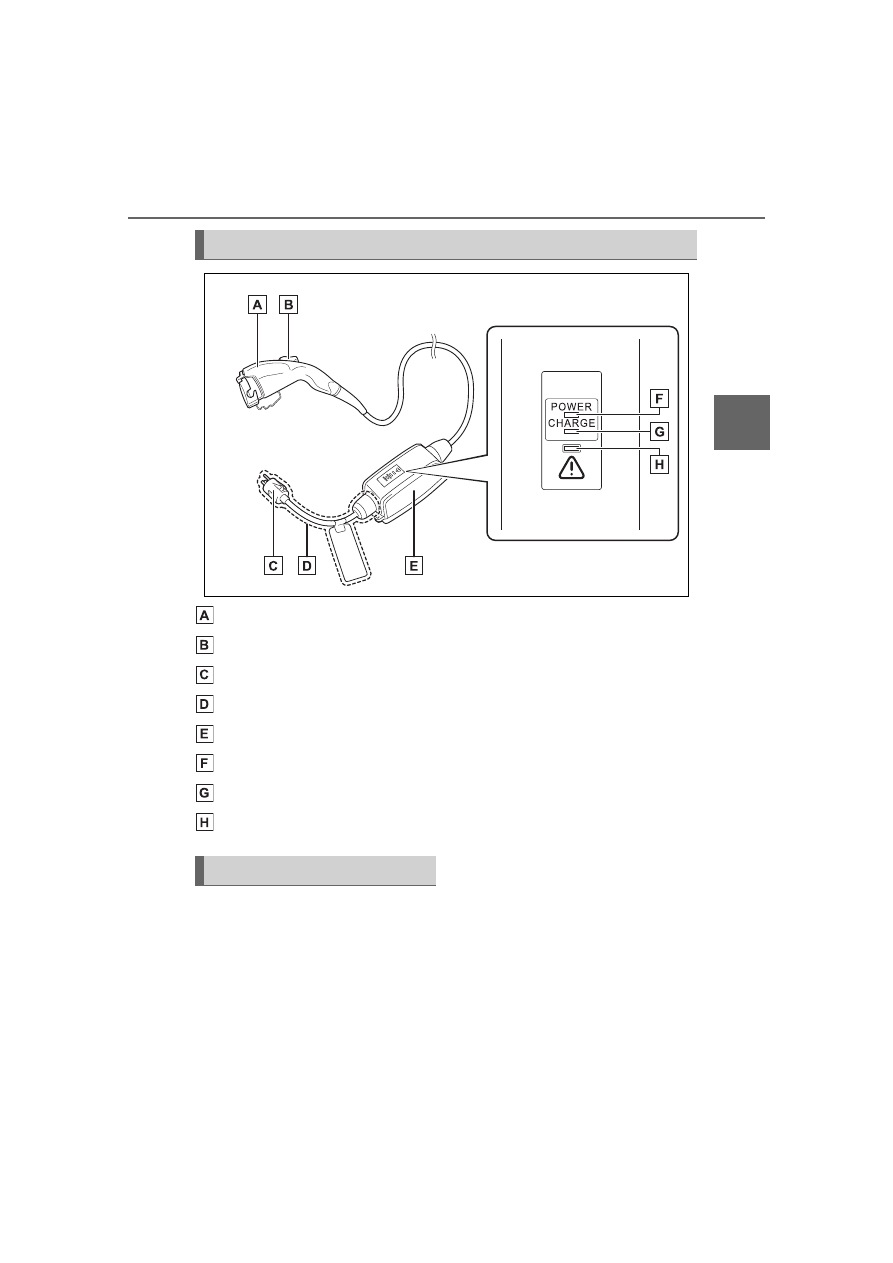

Charging connector

Latch release button

Plug

Plug-cord

CCID (Charging Circuit Interrupting Device)

Power indicator (



P.90)

Charging indicator (CCID) (



P.90)

Error warning indicator (



P.90)

The CCID (Charging Circuit
Interrupting Device) has the fol-
lowing safety features.

■

Electrical leakage detec-
tion function

If an electrical leakage is
detected during charging, the

power source will be automati-
cally interrupted, thus prevent-
ing fires or electrical shocks
caused by electrical leakage.

If the power source is interrupted,
the error warning indicator flashes.
If the power source is interrupted:



P.90

The names of each part of the AC charging cable

Safety functions

2-2. Charging

■

Automatic check function

This is an automatic system
check that is run before
charging begins to check for
problems in the operation of the
electrical leakage detection
function.

If a malfunction is found in the elec-
trical leakage detection function as
a result of the check, the error
warning indicator flashes to inform
the user. (



P.90)

■

Temperature detection
function

A temperature detection func-
tion is equipped to the plug.
While charging, if heat is gener-
ated due to looseness on the
outlet side etc., this function
suppresses heat by controlling
the charging current.

■

Conditions for supplying
current to the vehicle

The CCID (Charging Circuit
Interrupting Device) is designed
to prevent electrical current from
being supplied to the charging
connector when it is not con-
nected to the vehicle, even if the

plug is inserted into the outlet.

■

Indicator operation

3 indicators are used to indicate
the following conditions.

Power indicator

Illuminates when electricity is flow-
ing to the CCID (Charging Circuit
Interrupting Device).

Charging indicator

Illuminates when charging is in
progress.

Error warning indicator

Flashes when there is an electrical
leakage or when a malfunction
occurs in the CCID (Charging Cir-
cuit Interrupting Device).

■

When a malfunction occurs during charging

The indicators on the CCID (Charging Circuit Interrupting Device)
use a combination of different statuses (not illuminated, illuminated
or flashing) to inform the user of internal malfunctions.

When the error warning indicator is illuminated or flashing, temporarily
remove the plug from the outlet and then reconnect it to check if the error
indicator turns off.
If the error warning indicator turns off, charging is now possible.

CCID (Charging Circuit
Interrupting Device) indi-
cators

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

If it does not turn off, perform the correction procedure in the following
chart.

Status

Power indica-

tor

Error warning

indicator

Details/Correction procedure

Charging sys-
tem error

Not illumi-
nated

Not illumi-
nated or illu-
minated

An electrical leakage is
detected and charging is
canceled, or there is a mal-
function in the AC
charging cable.



Consult your Toyota
dealer

Illuminated

Flashes

Plug tempera-
ture detection
malfunction

Flashes

There is a malfunction in
the plug temperature
detection part.



Consult your Toyota
dealer

Plug tempera-
ture increase
detection

Flashes

Not illumi-
nated

An increase in the tem-
perature of the plug is
detected due to an
improper connection
between the outlet and
plug.



Check that the plug is
securely connected to
the outlet

AC charging
cable life
span notice

Illuminated

Flashes

The number of charges
using the AC charging
cable is nearing the end of
its usable life span.



Consult your Toyota
dealer

AC charging
cable life
span

Illuminated

The number of charges
using the AC charging
cable has exceeded its
usable number of charges.



Consult your Toyota
dealer

2-2. Charging

For safety, inspect the AC
charging cable on a routine
basis.

Inspecting the AC
charging cable

WARNING

■

Routine inspection

Check the following points regu-

larly.
Failure to do so may cause an

unexpected accident, resulting in

death or serious injury.

●

The AC charging cable, plug,

charging connector, CCID

(Charging Circuit Interrupting

Device), etc., have not been

damaged

●

The outlet has not been dam-

aged.

●

The plug can be securely

inserted into the outlet.

●

The plug does not get extremely

hot during use

●

The tip of the plug has not been

deformed.

●

The plug is not dirtied by dust,

etc.

Remove the plug from the outlet

before inspecting it. If any abnor-

malities are found in the AC

charging cable as a result of the

inspection, immediately stop use

and consult your Toyota dealer.

■

Maintaining the AC charging

cable

When the AC charging cable is

dirty, first remove the dirt with a

hard, wringed cloth, and then

wipe the cable with a dry cloth.
However, never wash it with

water. If the AC charging cable is

washed with water, fire or electric

shock may occur during charging,

possibly resulting in death or seri-

ous injury.

■

When not using the AC

charging cable for a long time

Remove the plug from the outlet.

Dust could accumulate on the

plug or in the outlet, possibly

causing overheating which could

lead to a fire.
Also, keep the cable in a place

free from moisture.

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

■

Locking the charging con-
nector

The AC charging connector will
be automatically locked when
inserting it into the AC charging
inlet.
(The setting can be
changed:



P.93)

■

Unlocking the charging
connector

The AC charging connector will
be unlocked when the doors are
unlocked using the smart key
system or wireless remote con-
trol.
The AC charging connector
locks when connected and
unlocks when the door is
unlocked, so locking/unlocking
the AC charging connector does
not necessarily correspond to
locking/unlocking the door.

If the door is unlocked and the
AC charging connector is
locked, you can unlock it by
doing the following:
• When using the smart key

system, lock the door once
and then unlock it again.
(



P.167)

• When using the wireless

remote control, press the
unlock button to unlock the
door. (



P.167)

■

Changing the AC charging
connector lock settings

The method for locking and
unlocking the AC charging con-
nector can be changed on the
multi-information display or mul-
timedia.
The charging connector lock
settings cannot be changed
when the AC charging cable is
connected to the vehicle.
The settings cannot be changed
when the power switch is in
ACC.



Multi-information display
operation

Press

of the meter

control switches to select

Press

of the meter

control switches to select
“Vehicle Settings”, and then

press and hold

Locking and unlock-

ing AC charging con-

nector

The AC charging connector
will be locked when it is
connected to the AC
charging inlet, preventing
the AC charging cable from
being disconnected while
charging.

Locking and unlocking
the AC charging connec-
tor

2-2. Charging

Press

of the meter

control switches to select
“Charging Settings”, and then

press

The “Charging Settings” screen will

be displayed.

Press

of the meter

control switches to select
“Connector Lock”, and then

press

The “Connector Lock” screen will

be displayed.



Multimedia operation

Select

on the main menu.

Select “Vehicle customize”.

Select “Charging”.

Select “Connector lock”.

AC charging connector lock-
ing/unlocking settings can be
changed as follows.

:The AC charging connector will

be unlocked if power supply is
interrupted due to a power out-
age, etc., after the AC charging
connector is automatically
locked.

:The AC charging connector can

be unlocked by similar opera-
tions to that of “Auto Lock”
(Default setting).

:When the stop time of the

charging schedule “Start-Stop”
setting is reached, the AC
charging connector is unlocked
even if it is not fully charged.

Setting

Operation

description

“Auto Lock”

(Default setting)

The AC charging
connector is
automatically
locked when the
AC charging
connector is con-
nected.

“Auto Lock &

Unlock”

The AC charging
connector is
automatically
locked when the
AC charging
connector is con-
nected and auto-
matically
unlocked when
charging is com-
pleted.

*1, 2, 3

“OFF”

Not using the AC
charging con-
nector locking
system

Content .. 3 4 5 6 ..
