2. Instrument cluster

◆

Changing settings

Use the meter control switches on the steering wheel to change
settings.

Press

to select

Operate the switches to select a desired item.
Press or press and hold

The available settings will differ depending on if

is pressed or

pressed and held. Follow the instructions on the display.

◆

Setting items

■

LTA (Lane Tracing Assist) (



P. 267)

Press and hold

to change the settings of the following items:

Settings display (

)

1
2
3

Item

Settings

Details

Lane center

Select to enable/disable the lane
centering function.

Off

Alert sensitivity

High

Select to set the warning sensi-
tivity.

Std.

Sway warning

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select to set the vehicle sway
warning sensitivity.

Std.

Low

127

2. Instrument cluster

Instrument cluster

■

PCS (Pre-Collision System) (



P. 252)

Press and hold

to change the settings of the following items:

■

DRCC (Dynamic radar cruise control) (



P. 287)

Press and hold

to change the settings of the following item:

■

BSM (Blind Spot Monitor) (



P. 310)

Press

to enable/disable the Blind Spot Monitor function.

Press and hold

to change the settings of the following item:

Item

Settings

Details

PCS

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

Early

Select to change the warning
timing.

Middle

Late

Item

Settings

Details

Curve

speed

reduction

Strong

Select to change the vehicle
speed reduction strength.

Weak

Off

Item

Settings

Details

BSM

Select to enable/disable the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside rear view
mirror

indicator

brightness

Bright

Select to change the brightness
of the outside rear view mirror
indicators.

Dim

Notification  timing
for  presence  of
approaching  vehi-
cle (sensitivity)

Early

Select to change the notification
timing for an approaching vehi-
cle.

Middle

Late

Only when vehicle
detected in blind
spot

128

2. Instrument cluster

■

RCTA (Rear Cross Traffic Alert) (



P. 326)

Press

to enable/disable the Rear Cross Traffic Alert function.

Press and hold

to change the settings of the following item:

■

RCD (Rear Camera Detection) function (



P. 335)

Press

to enable/disable the rear camera detection function.

■

PKSB (Parking Support Brake) (if equipped) (



P. 340)

Press

to enable/disable the Parking Support Brake.

■

Intuitive parking assist (if equipped) (



P. 317)

Press

to enable/disable the Intuitive parking assist.

Item

Settings

Details

RCTA

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA buzzer vol-
ume

1 (Low)

Select to change the volume of
the RCTA buzzer.

2 (Medium)

3 (Loud)

Item

Settings

Details

RCD

Select to enable/disable the rear
camera detection.

Off

Item

Settings

Details

PKSB

Select to enable/disable the
Parking Support Brake system.

Off

Item

Settings

Details

Intuitive

parking

assist

Select to enable/disable the intui-
tive parking assist.

Off

129

2. Instrument cluster

Instrument cluster

Press and hold

to change the settings of the following item:

■

HUD (Head-up display) (if equipped) (



P. 136)

Press

to enable/disable the head-up display.

Press and hold

to change the settings of the following items:

Item

Settings

Details

Volume

1 (Low)

Select to change the volume of
the intuitive parking assist
buzzer.

2 (Medium)

3 (Loud)

Item

Settings

Details

HUD

Select to enable/disable the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select to adjust the brightness/
position of the head-up display.
• Press the

switch to

adjust the display brightness.

• Press the

switch to

adjust the display position.

HUD Driving sup-
port

Tachometer set-
tings

Select to change the display
between the following:
• Hybrid System Indicator
• Tachometer
• No content

Navigation

sys-

tem (if equipped)

Select to enable/disable head-up
display content.

Driving Assist

Compass
(if equipped)

Rotation

Select to adjust the angle of the
head-up display.
Press the

switch to

adjust the display angle.

130

2. Instrument cluster

■

RSA (Road Sign Assist) (if equipped) (



P. 282)

Press and hold

to change the settings of the following items:

Item

Settings

Details

RSA

Select to enable/disable the
RSA.

Off

Notification method

Excess

speed

notification

Select a notification method used
to warn the driver if the vehicle
speed exceeds the speed dis-
played on the speed limit sign on
the multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Other notifications

Select a notification method used
to  warn  the  driver  if  the  system
detects  the  vehicle  approaching
to  the  no-entry  road  when  a  do
not enter sign is displayed on the
multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Excess speed noti-
fication level

5 mph (10 km/h)

Select  a  speed  threshold  over
which the excess speed notifica-
tion  will  start  to  operate  when  a
speed  limit  sign  is  displayed  on
the multi-information display.

3 mph (5 km/h)

1 mph (2 km/h)

131

2. Instrument cluster

Instrument cluster

■

Vehicle settings

Press and hold

to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (



P. 445)

Set pressure (tire pressure warning sys-
tem initialization)

Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold
the

switch.

Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 446)

Change wheel (register tire pressure
warning system sensor ID codes)

Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system. To
register the ID codes, press and
hold the

switch.

(



P. 448)

Rear seat reminder
(



P. 159)

Select to enable/disable the rear
seat reminder.

Off

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. (



P. 420)

132

2. Instrument cluster

■

Meter settings

Press and hold

to change the settings of the following items:

: Selecting this item will only change the gadget.

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select to change the language
displayed.

Units

Select to change the units of
measure displayed.

(EV indicator)

Select to enable/disable the EV
indicator. (



P. 80)

Off

Speedometer

Select to enable/disable the
speedometer display.

Off

Gadget content

Off

No display

Average vehicle
speed

Select to turn the display of a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

Select to change the average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

Multi-information display off

Select to turn the multi-informa-
tion display off.
To turn the multi-information dis-
play on again, press any direc-
tion switch (

Pop-up display

Intersection guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

133

2. Instrument cluster

Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 569)

■

Suggestion to turn off the headlights

If the headlights are left on for a certain amount of time after the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.

Odometer/trip meter

Suggestion function

134

2. Instrument cluster

■

The Eco guide will not operate when

The Eco guide will not operate in the following situations:

●

The Hybrid System Indicator is not operating.

●

The vehicle is being driven using the dynamic radar cruise control with full-
speed range.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 126, 569)

135

2. Instrument cluster

Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

136

2. Instrument cluster

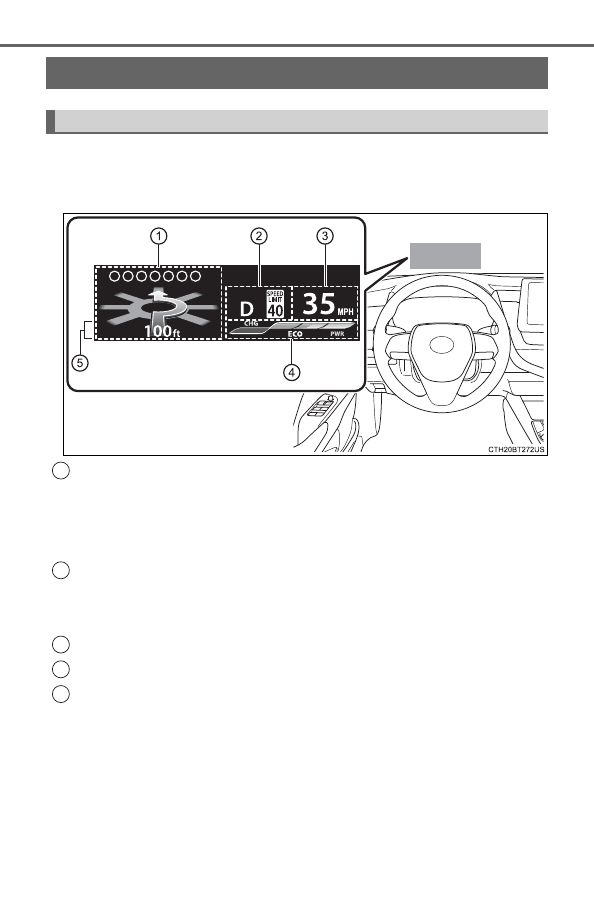

The head-up display is linked to the meters and navigation system (if
equipped) and projects a variety of information in front of the driver,
such as the current vehicle speed.

Driving assist system status/navigation system-linked display area
(if equipped) (



P. 138)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Parking Support Brake system (if equipped)

Shift position/speed limit/RSA (Road Sign Assist) display area

• Shift position (



P. 216)

• Speed limit (vehicles with a navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P. 282)

Vehicle speed display
Hybrid System Indicator/Tachometer (



P. 138)

Information display area (



P. 139)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display



: If equipped

Summary of functions

3
4
5

137

2. Instrument cluster

Instrument cluster

Select

on the multi-information display (



P. 126) and then

◆

Enabling/disabling the head-up display

Press

to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

to change the following settings:

■

Hybrid System Indicator/Tachometer

Select to display Hybrid System Indicator/tachometer/no content.

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination (if equipped)
• Driving assist system status
• Compass (if equipped)

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

138

2. Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 287)

• LTA (Lane Tracing Assist) (



P. 267)

• RSA (Road Sign Assist) (if equipped) (



P. 282)

• Intuitive parking assist (if equipped) (



P. 317)

◆

Navigation system-linked display area (if equipped)

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed when the navigation system is performing route guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed  content  is  the  same
as  that  displayed  on  the  meter
(Hybrid  System  Indicator).  For
details, refer to P. 102.

■

Tachometer

Displays the engine speed in revolutions per minute.

Driving assist system status/navigation system-linked display
area (if equipped)

Hybrid System Indicator/Tachometer

1
2
3
4

139

2. Instrument cluster

Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message

●

Alert from the LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with full-speed range

●

Brake Override System/Drive-Start Control

●

message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 133)

●

message

Displayed when a warning message is displayed on the multi-informa-
tion display. (



P. 507)

●

Outside temperature

Displayed in the following situations:

• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (



P. 100)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

140

2. Instrument cluster

■

Head-up display

The head-up display may seem dark or hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can be adjusted on

of the multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display

If the head-up display is disabled, it will remain disabled when the power
switch is turned off then back to ON mode.

■

Street name display (vehicles with a navigation system)

Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the hybrid system needs to be operating while changing the settings of
the head-up display, ensure that the vehicle is parked in a place with ade-
quate ventilation. In a closed area such as a garage, exhaust gases includ-
ing harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.

141

2. Instrument cluster

Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

●

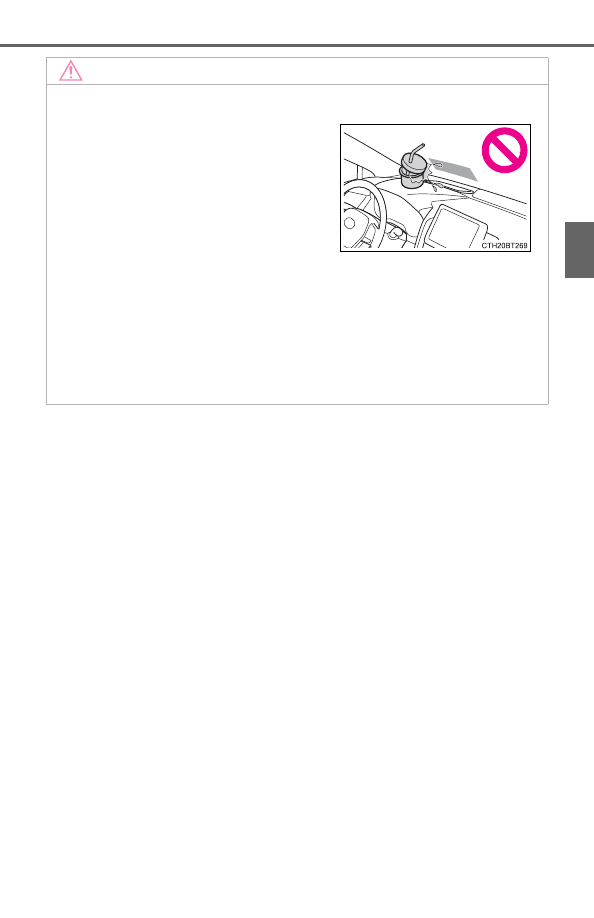

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

Toyota Camry Hybrid (2022 year). Manual in english - page 8
