6-3. Do-it-yourself maintenance

Check the wattage of the light bulb
to be replaced. (



P.455)



Front

Headlights (bulb type)

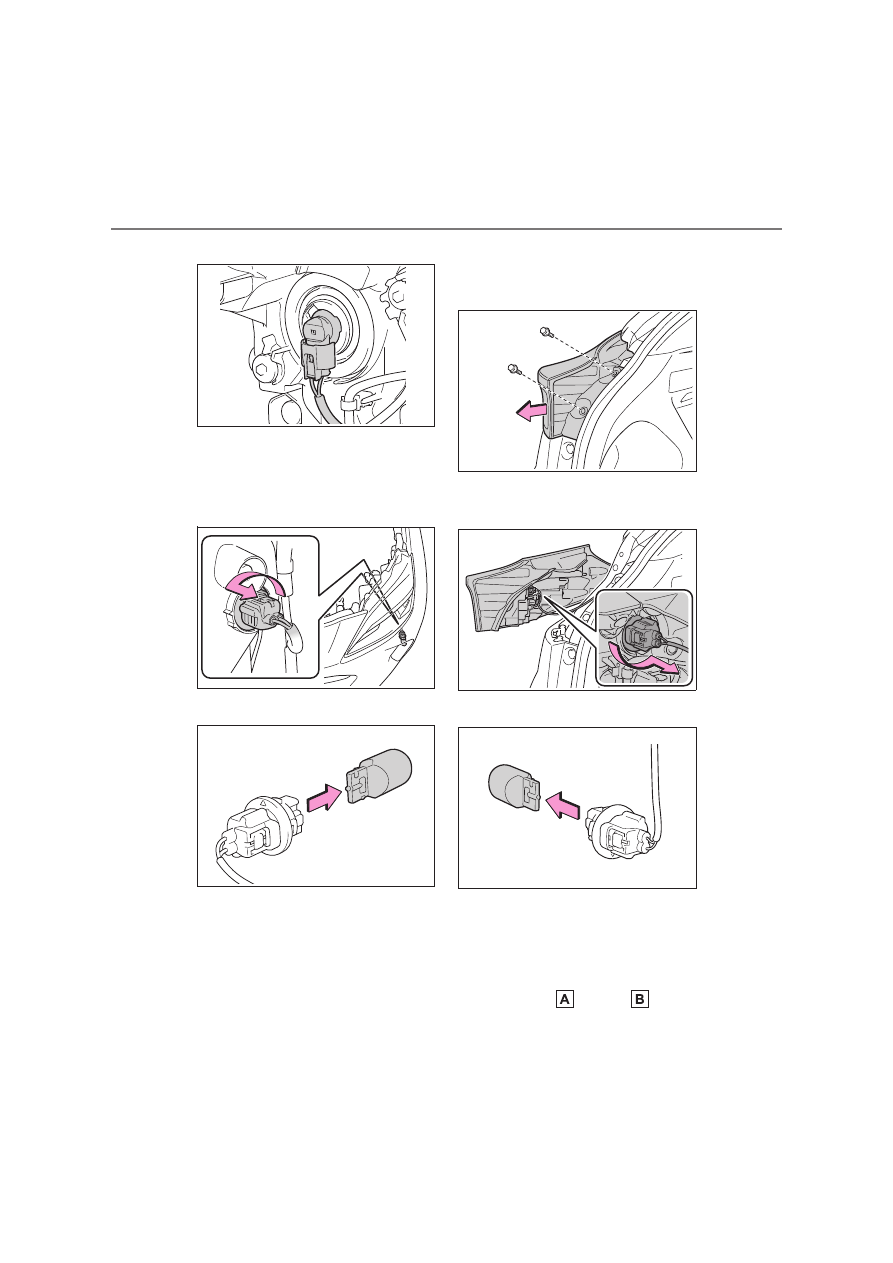

Front turn signal lights (bulb

type)



Rear

Back-up light (bulb type) (left-

hand drive vehicles)

License plate lights

Back-up light (bulb type) (right-

hand drive vehicles)

Rear turn signal lights (bulb

type)

■

Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer



Headlights (LED type)



Front position lights



Front turn signal lights (LED
type)



Daytime running lights



Side turn signal lights



Tail lights



Stop lights



Back-up light (LED type)



Rear fog light



Rear turn signal lights (LED type)



High mounted stoplight

Light bulbs

You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.

Preparing for light bulb
replacement

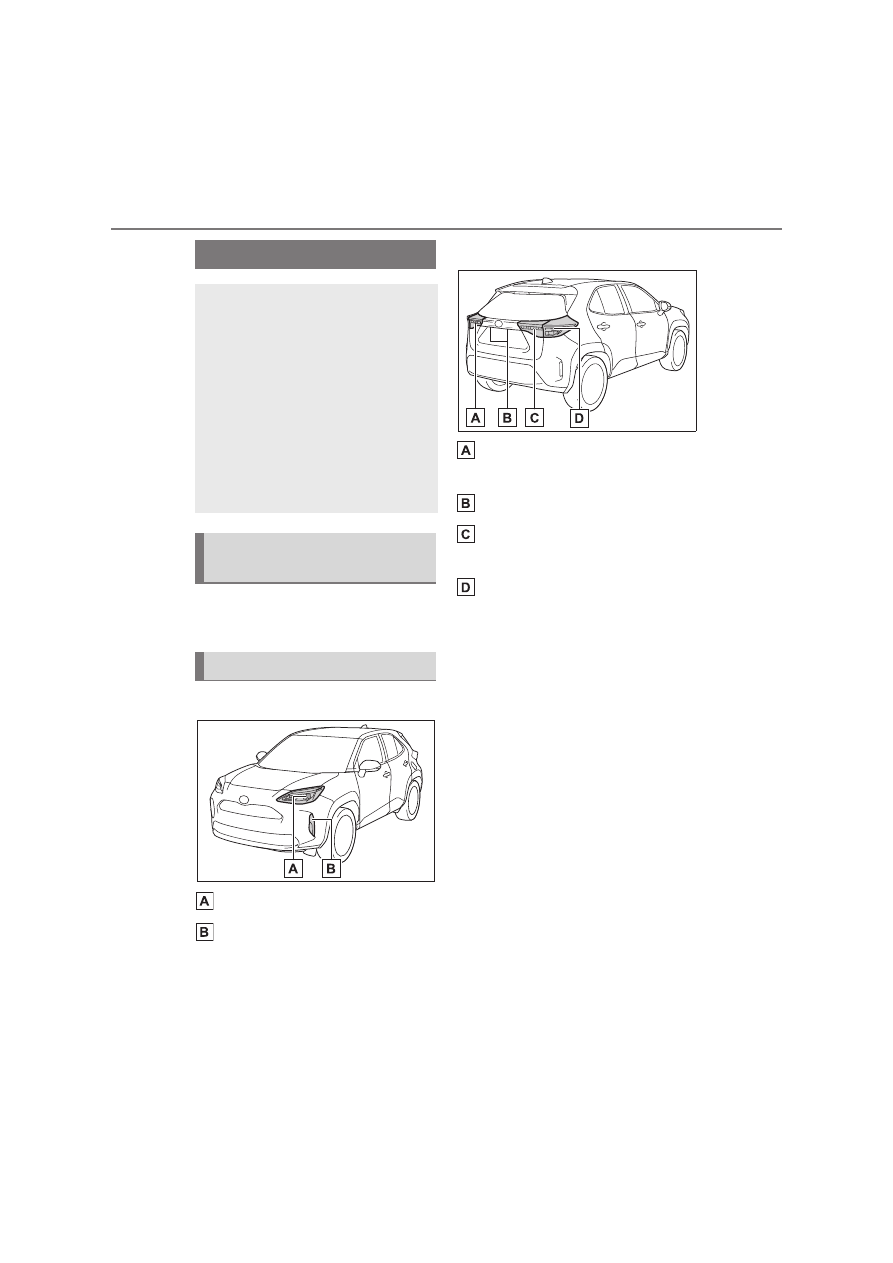

Bulb locations

387

6-3. Do-it-yourself maintenance

Mai
ntenanc

e and c

are

■

LED light bulbs

The lights other than the following lights
each consist of a number of LEDs. If any

of the LEDs burn out, take your vehicle

to any authorized Toyota retailer or
Toyota authorized repairer, or any reli-

able repairer to have the light replaced.

●

Headlights (bulb type)

●

Front turn signal lights (bulb type)

●

Rear turn signal lights (bulb type)

●

License plate lights

●

Back-up light (bulb type)

■

Condensation build-up on the
inside of the lens

Temporary condensation build-up on the

inside of the headlight lens does not
indicate a malfunction. Contact any

authorized Toyota retailer or Toyota

authorized repairer, or any reliable
repairer for more information in the fol-

lowing situations:

●

Large drops of water have built up on

the inside of the lens.

●

Water has built up inside the head-

light.

■

When replacing light bulbs



P.384

■

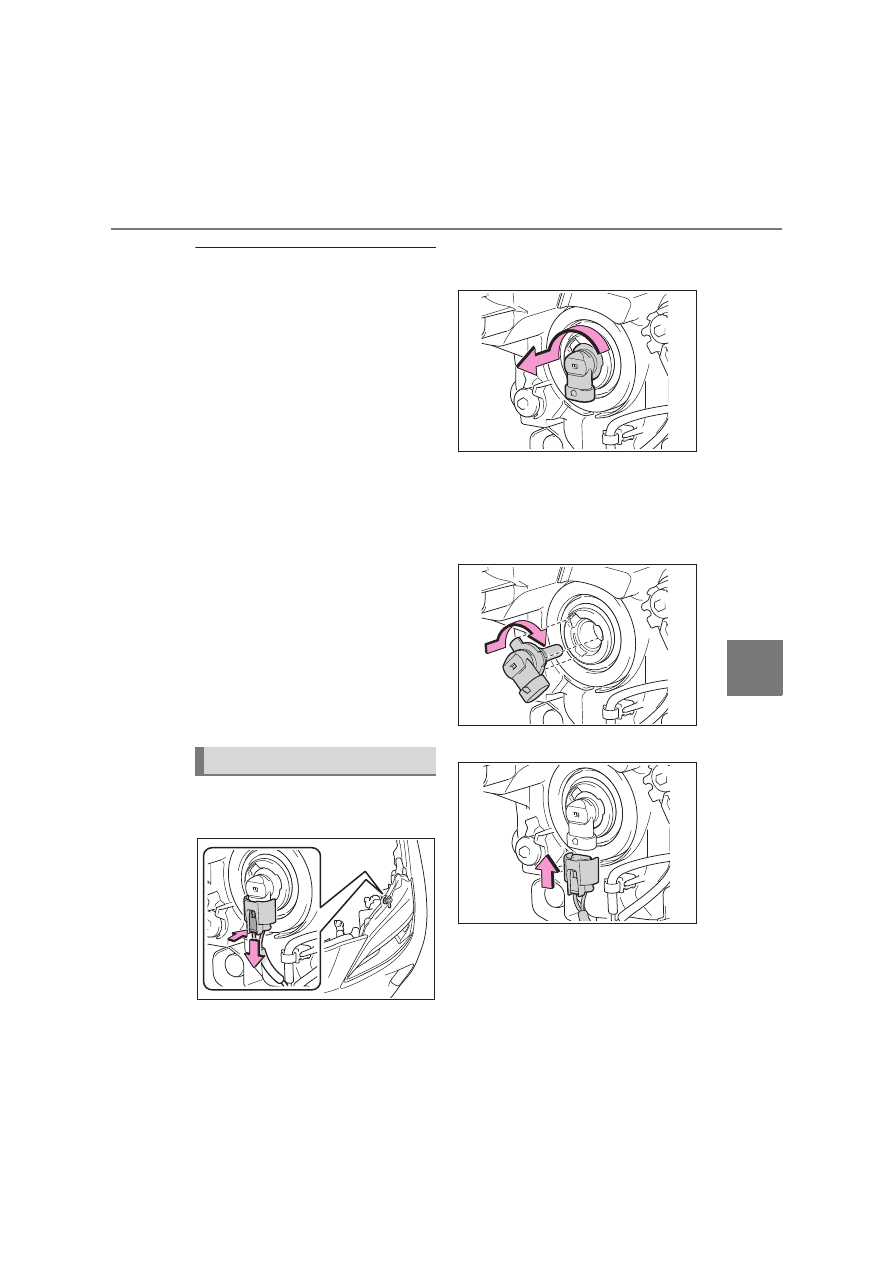

Headlights (bulb type)

Unplug the connector.

Turn the bulb base counter-
clockwise.

Replace the light bulb.

Install the bulb base.

Align the 3 tabs on the light bulb with

the mounting and insert, and turn the
bulb base clockwise.

Plug the connector.

Confirm the bulb base installa-
tion.

Shake the bulb base gently to check

that it is not loose, turn the headlights
on once and visually confirm that no

Replacing light bulbs

388

6-3. Do-it-yourself maintenance

light is leaking through the mounting.

■

Front turn signal lights (bulb
type)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the
steps listed.

■

Rear turn signal lights (bulb
type)

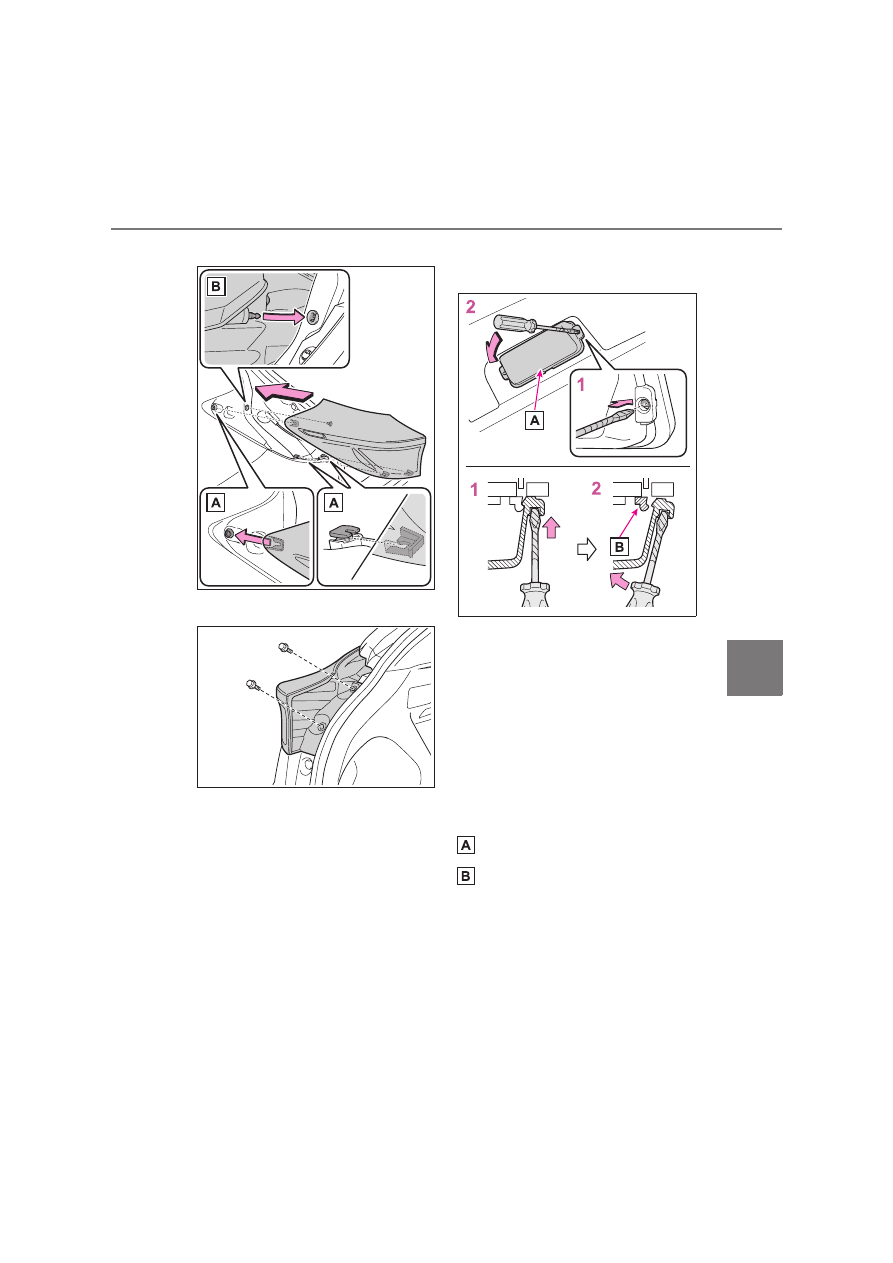

Open the back door.

Remove the 2 bolts and pull the
lamp assembly toward the rear
of the vehicle to remove it.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing the light bulb,
install by conducting

and

with the directions reversed.

Install the lamp assembly.

Align the guides

and pins

on the

lamp assembly with the mounting when

389

6-3. Do-it-yourself maintenance

Mai
ntenanc

e and c

are

installing it.

Install the 2 bolts.

■

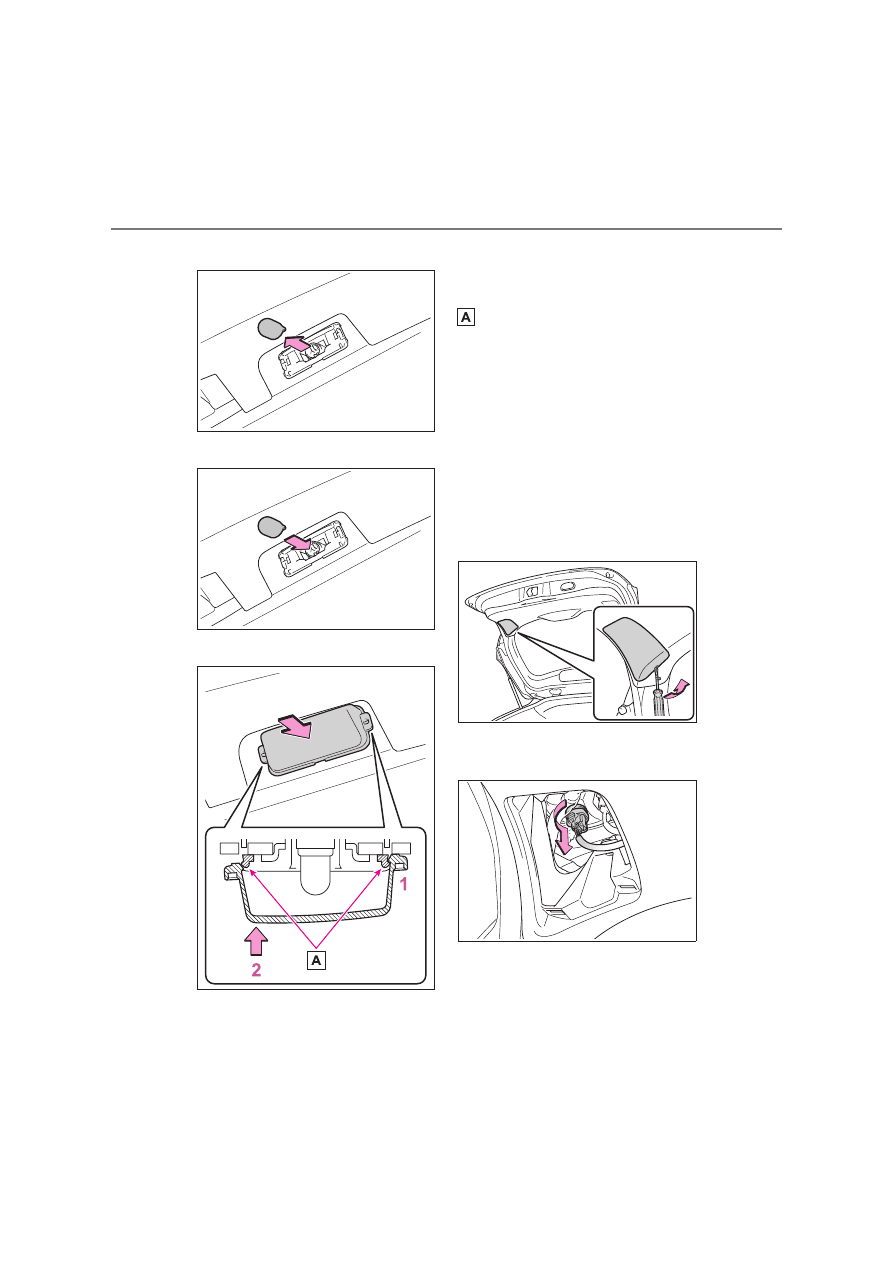

License plate light

Remove the lens.

Insert a small flathead screw-
driver, etc., into either the right
or left hole of the lens.

Tilt the screwdriver in the direc-
tion of the arrow shown in the
illustration so as to release the
fitting portion, and then remove
the lens.

To prevent damage to the vehicle, wrap
the tip of the screwdriver with tape.

Lens

Fitting portion

390

6-3. Do-it-yourself maintenance

Remove the light bulb.

Install a new light bulb.

Install the lens.

Fit the lens into either the right
or left fitting portion.

Push the lens into place.

After installation, confirm that the lens is
properly installed by gently pulling it.

Fitting portion

■

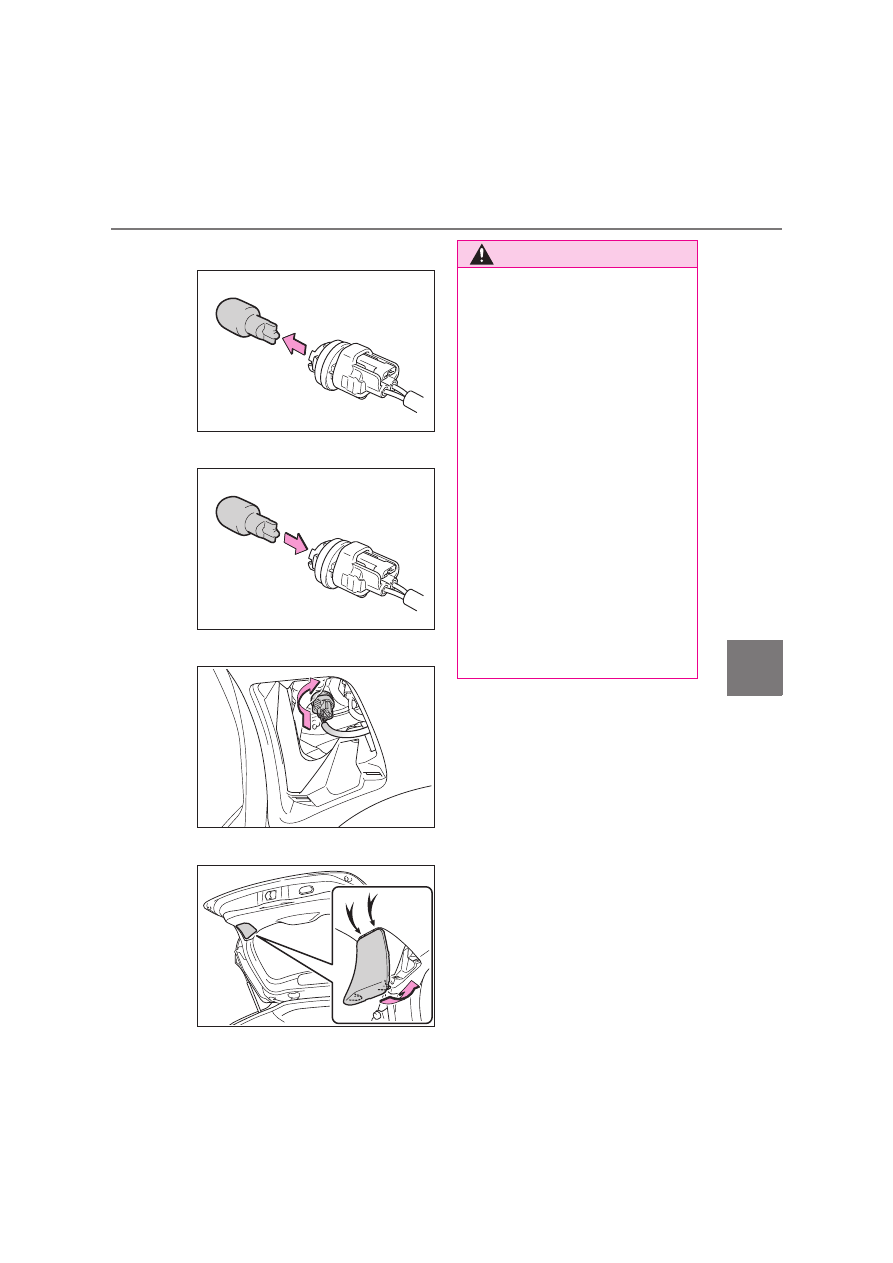

Back-up light (bulb type)

Open the back door and remove
the cover.

Press down on the notch on the cover
and remove the cover.
It is recommended for safeguarding to

wrap the tip of the screwdriver with a
cloth, etc., in order to prevent scratches

to the vehicle.
The back-up light (bulb type) position
will differ for right-hand drive vehicles.

(



P.386)

Turn the bulb base counter-
clockwise.

391

6-3. Do-it-yourself maintenance

Mai
ntenanc

e and c

are

Remove the light bulb.

Install a new light bulb.

Install the bulb base.

Install the back door cover.

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to
replace the bulb immediately after

turning off the lights. The bulbs

become very hot and may cause
burns.

●

Do not touch the glass portion of
the light bulb with bare hands.

When it is unavoidable to hold the

glass portion, use and hold with a
clean dry cloth to avoid getting

moisture and oils on the bulb. Also,

if the bulb is scratched or dropped,
it may blow out or crack.

●

Fully install light bulbs and any
parts used to secure them. Failure

to do so may result in heat damage,

fire, or water entering the light unit.
This may damage the lights or

cause condensation to build up on

the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated and
locked.

393

hen tr

oubl

e aris

When trouble arises

7-1. Essential information

Emergency flashers..........

394

If your vehicle has to be

stopped in an emergency

394

If the vehicle is submerged or

water on the road is rising

.......................................

395

7-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed..............................

397

If you think something is wrong

.......................................

401

Fuel pump shut off system

402

If a warning light turns on or a

warning buzzer sounds...

403

If a warning message is dis-

played.............................

413

If you have a flat tire (vehicles

with an emergency tire punc-
ture repair kit) .................

415

If you have a flat tire (vehicles

with a spare tire).............

426

If the engine will not start..

435

If you lose your keys.........

436

If the electronic key does not

operate properly (vehicles
with a smart entry & start sys-
tem) ................................

437

If the vehicle battery is dis-

charged ..........................

439

If your vehicle overheats...

442

If the vehicle becomes stuck

.......................................

444

394

7-1. Essential information

7-1.Essential information

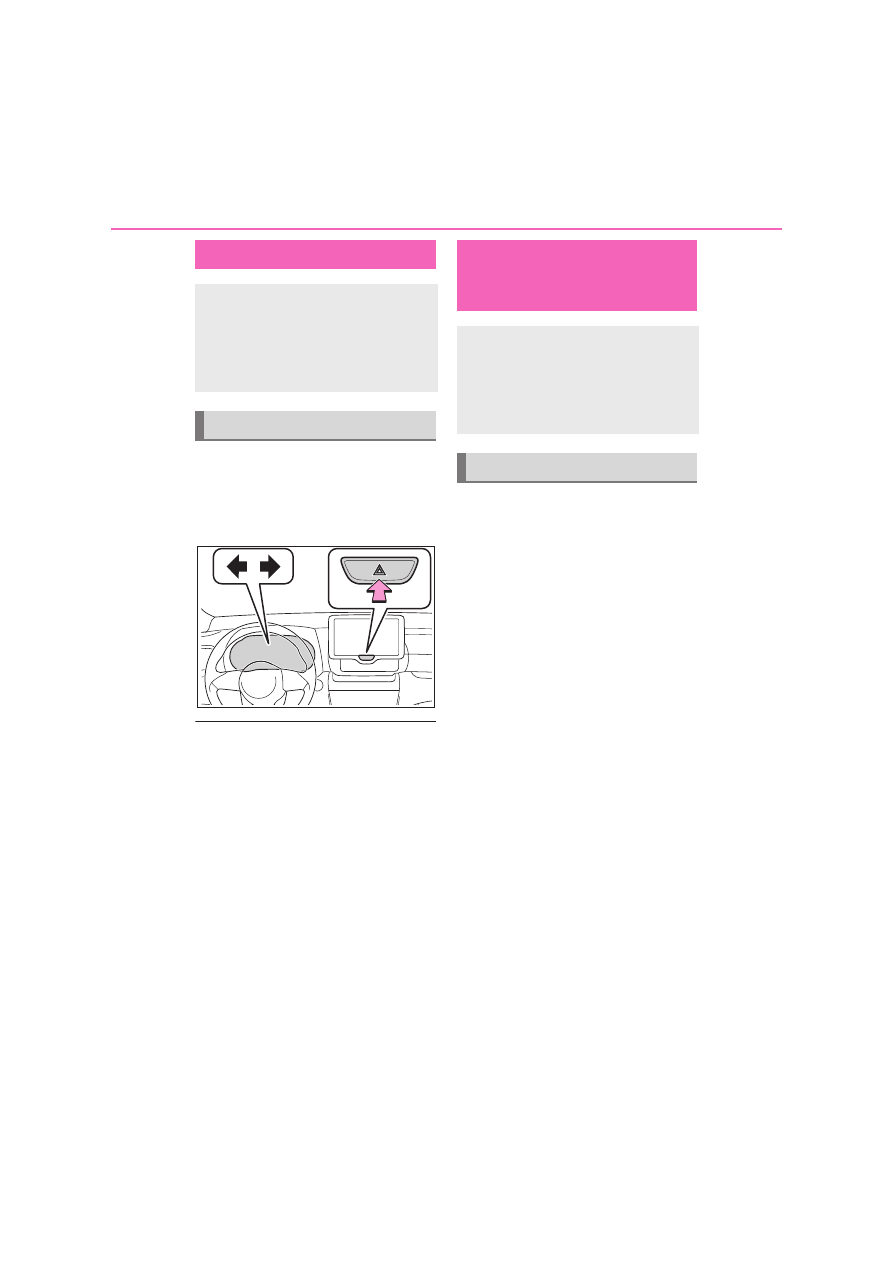

Press the switch.

All the turn signal lights will flash.

To turn them off, press the switch once
again.

■

Emergency flashers

●

If the emergency flashers are used for

a long time while the engine is not
operating, the battery may discharge.

●

If any of the SRS airbags deploy
(inflate) or in the event of a strong rear

impact, the emergency flashers will

turn on automatically.
The emergency flashers will turn off

automatically after operating for

approximately 20 minutes. To manu-
ally turn the emergency flashers off,

press the switch twice.

(The emergency flashers may not turn
on automatically depending on the

force of the impact and conditions of

the collision.)

Steadily step on the brake pedal
with both feet and firmly depress
it.

Do not pump the brake pedal repeat-

edly as this will increase the effort

required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the engine.



If the shift lever cannot be shifted
to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.

Perform the following proce-
dure to stop the engine:



Vehicles without a smart entry &
start system

Turn the engine switch to ACC.

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to a
breakdown, etc.

Operating instructions

If your vehicle has to be

stopped in an emer-

gency

Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:

Stopping the vehicle

395

7-1. Essential information

hen tr

oubl

e aris



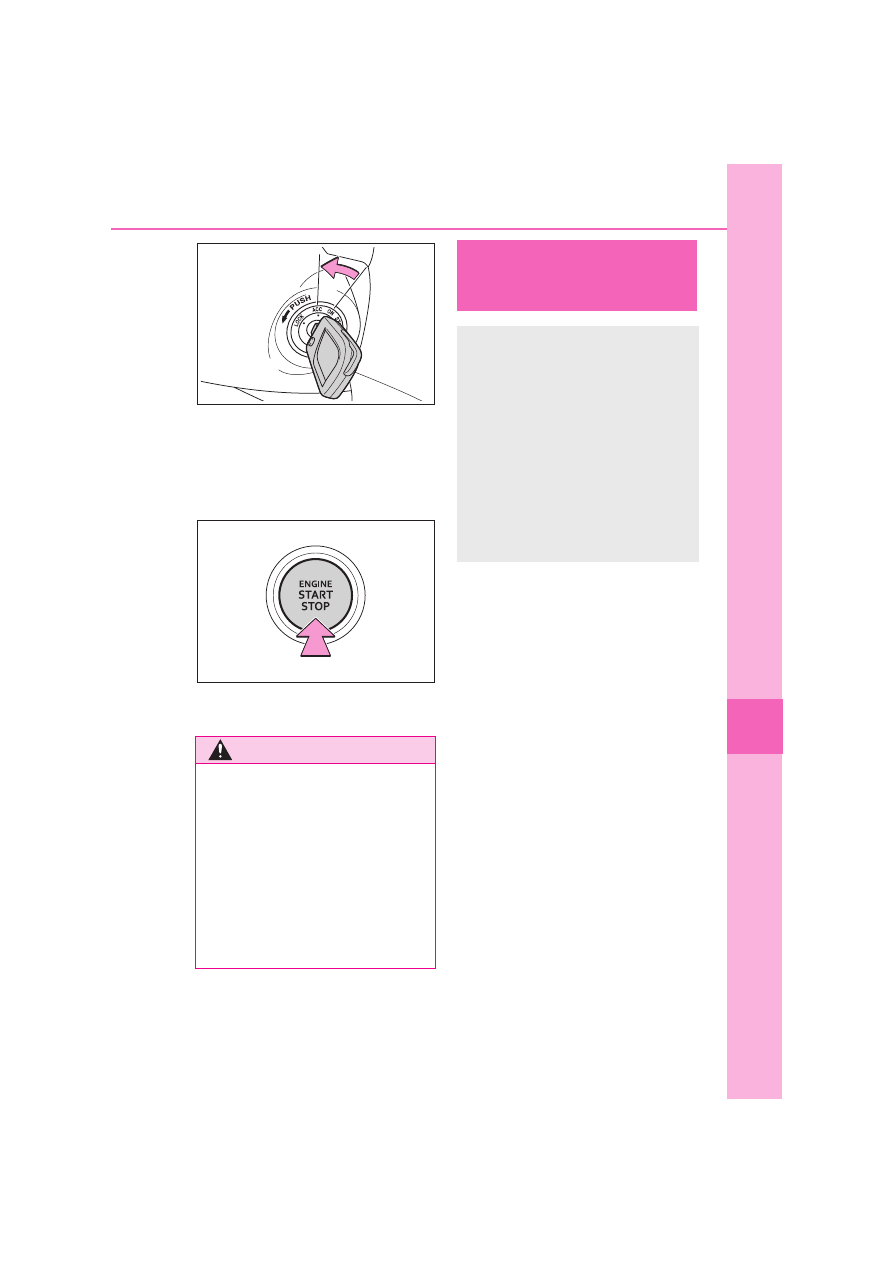

Vehicles with a smart entry &
start system

Press and hold the engine switch for 2
consecutive seconds or more, or press
it briefly 3 times or more in succession.

Stop the vehicle in a safe place
by the road.



If the door can be opened, open
the door and exit the vehicle.



If the door can not be opened,
open the window using the
power window switch and ensure
an escape route.



If the window can be opened,
exit the vehicle through the win-
dow.



If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to
the point that the water pressure
inside of the vehicle equals the
water pressure outside of the
vehicle and then open the door
after waiting for the rising water
to enter the vehicle, and exit the
vehicle. When the outside water
level exceeds half the height of
the door, the door cannot be

WARNING

■

If the engine has to be turned off

while driving

●

Power assist for the brakes and
steering wheel will be lost, making

the brake pedal harder to depress

and the steering wheel heavier to
turn. Decelerate as much as possi-

ble before turning off the engine.

●

Vehicles without a smart entry &

start system: Never attempt to

remove the key, as doing so will
lock the steering wheel.

If the vehicle is sub-

merged or water on the

road is rising

This vehicle is not designed to
be able to drive on roads that
are deeply flooded with water.

Do not drive on roads where
the roads may be submerged
or the water may be rising. It is
dangerous to remain in the
vehicle, if it anticipated that the
vehicle will be flooded or set a
drift. Remain calm and follow
the following.

396

7-1. Essential information

opened from the inside due to
water pressure.

■

Water level exceeds the floor

When the water level exceeds the floor

and time has passed, the electrical
equipment will get damaged, the power

windows will not operate, the engine

stop, and the vehicle may not be able to
get moving.

■

Using an emergency escape ham-
mer

Laminated glass is used in the wind-

shield on this vehicle.

Laminated glass cannot be shattered
with an emergency hammer

Tempered glass is used in the windows

on this vehicle.

: Contact any authorized Toyota retailer

or Toyota authorized repairer, or any
reliable repairer, or aftermarket acces-
sory manufacturer for further informa-
tion about an emergency hammer.

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the water
may be rising. Otherwise the vehicle

may be damaged and cannot move,

as well as become flooded and set a
drift, which may lead to death.

397

7-2. Steps to take in an emergency

hen tr

oubl

e aris

7-2.Steps to take in an emergency

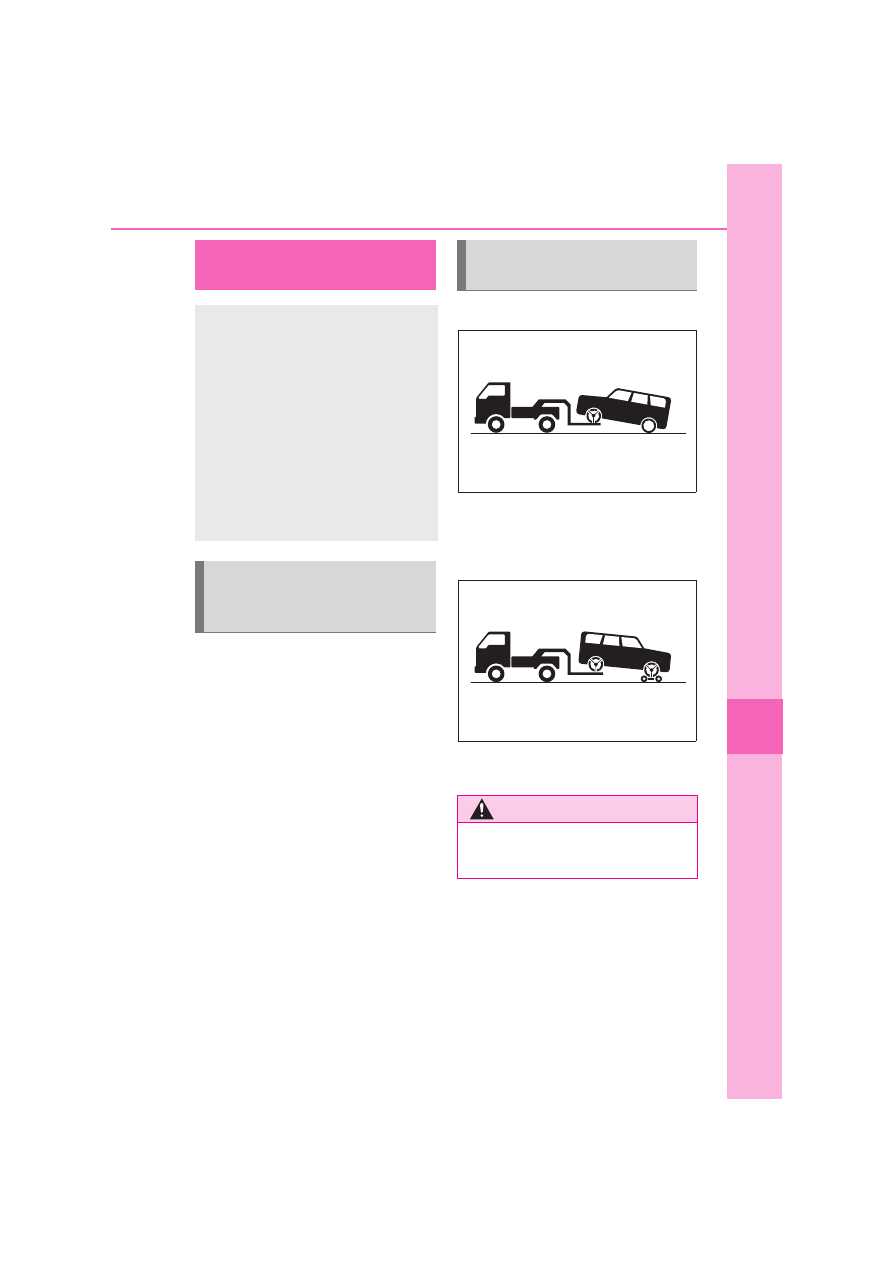

The following may indicate a prob-
lem with your transmission. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer or commercial tow-
ing service before towing.



The engine is running but the
vehicle does not move.



The vehicle makes an abnormal
sound.



From the front

Release the parking brake.
Turn automatic mode off. (



P.187)



From the rear

Use a towing dolly under the front
wheels.

If your vehicle needs to

be towed

If towing is necessary, we rec-
ommend having your vehicle
towed by any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer or commercial towing
service, using a wheel-lift type
truck or flatbed truck.

Use a safety chain system for
all towing, and abide by all
state/provincial and local laws.

Situations when it is neces-
sary to contact dealers
before towing

Towing with a wheel-lift type
truck

WARNING

Observe the following precautions.

Failure to do so may result in death or
serious injury.

398

7-2. Steps to take in an emergency

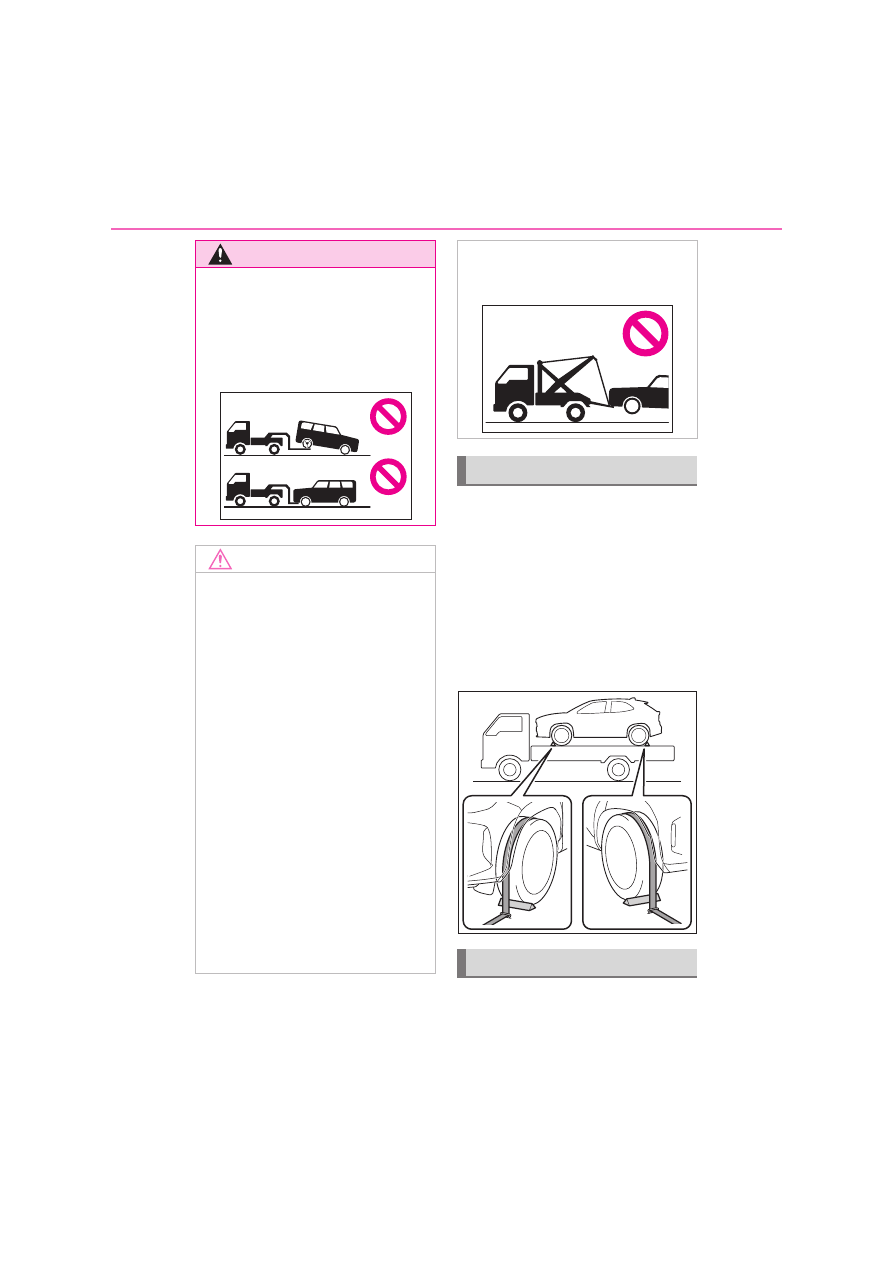

When using a flat-bed truck to
transport the vehicle, use tire strap-
ping belts. Refer to the owner’s
manual of the flat-bed truck for the
tire strapping method.
In order to suppress vehicle move-
ment during transportation, set the
parking brake and turn the engine
switch off.

If a tow truck is not available in an
emergency, your vehicle may be

WARNING

■

When towing the vehicle

Be sure to transport the vehicle with
the front wheels raised or with all four

wheels raised off the ground. If the

vehicle is towed with the front wheels
contacting the ground, the drivetrain

and related parts may be damaged.

NOTICE

■

To prevent damage to the vehicle
when towing using a wheel-lift

type truck

●

Do not tow the vehicle from the rear
when the engine switch is off. The

steering lock mechanism is not

strong enough to hold the front
wheels straight.

●

When raising the vehicle, ensure

adequate ground clearance for tow-

ing at the opposite end of the raised
vehicle. Without adequate clear-

ance, the vehicle could be dam-

aged while being towed.

■

When towing a vehicle equipped

with the Stop & Start system (if
equipped)

If it is necessary to tow the vehicle

with all four wheels on the ground,
perform the following procedure

before towing the vehicle in order to

protect the system. Turn the engine
switch off and then start the engine or

turn the engine switch to ON.

■

Towing with a sling-type truck

Do not tow with a sling-type truck to

prevent body damage.

Using a flatbed truck

Emergency towing

399

7-2. Steps to take in an emergency

hen tr

oubl

e aris

temporarily towed using cables or
chains secured to the emergency
towing eyelets. This should only be
attempted on hard surfaced roads
for at most 80 km (50 miles) at
under 30 km/h (18 mph).
A driver must be in the vehicle to
steer and operate the brakes. The
vehicle’s wheels, drivetrain, axles,
steering and brakes must be in
good condition.
For vehicles with a Multidrive, only
the front towing eyelets may be
used.

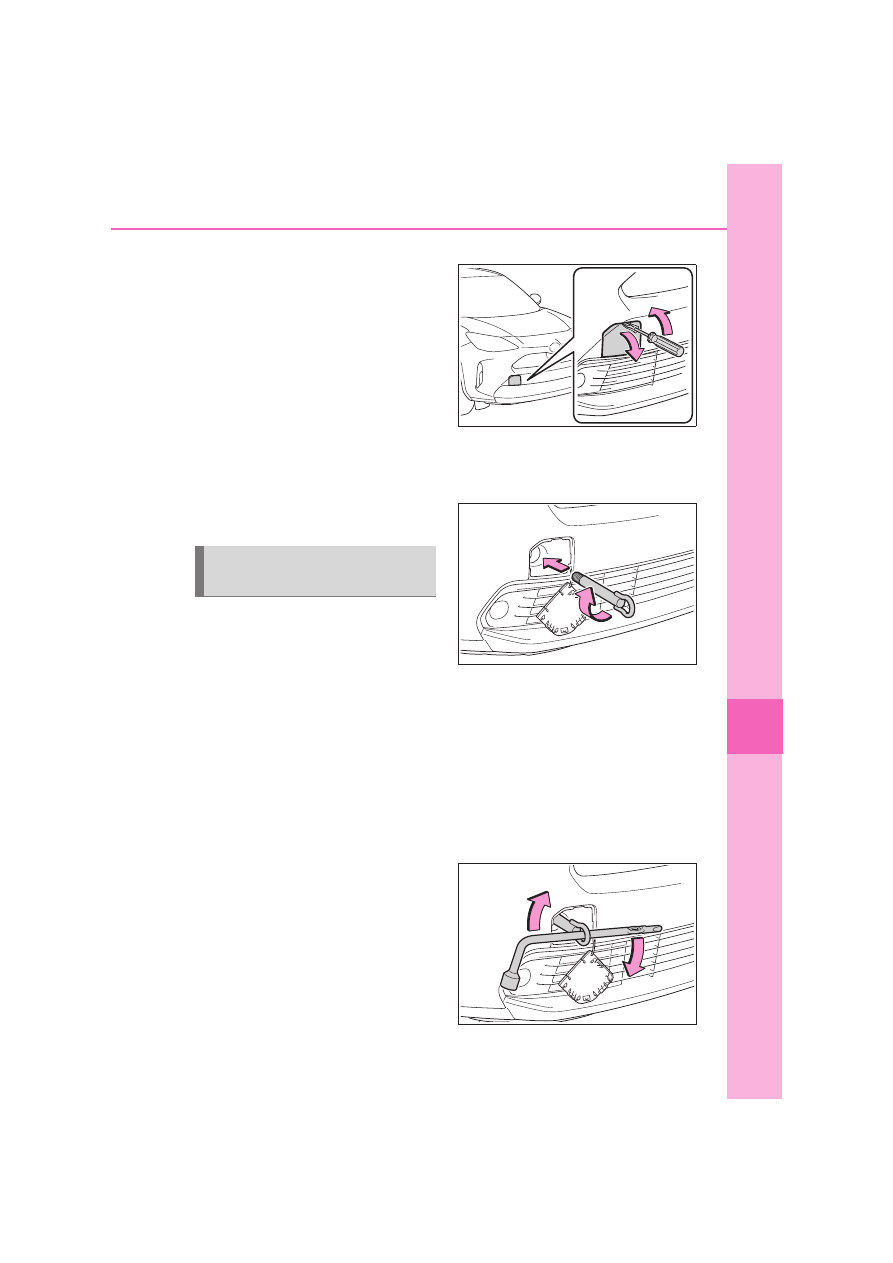

To have your vehicle towed by
another vehicle, the towing eyelet
must be installed to your vehicle.
Install the towing eyelet using the
following procedure.

Take out the wheel nut wrench
and towing eyelet. (



P.417,

427)

Remove the eyelet cover using
a flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehi-

cle body as shown in the illustration.

Insert the towing eyelet into the
hole and tighten partially by
hand.

Tighten down the towing eyelet
securely using a wheel nut
wrench

*1, 2

or hard metal bar.

: If equipped

: If your vehicles does not provide a

wheel nut wrench, you can purchase
it from any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.

Emergency towing proce-
dure

400

7-2. Steps to take in an emergency

Securely attach cables or chains
to the towing eyelet.

Take care not to damage the vehicle
body.

Enter the vehicle being towed
and start the engine.

If the engine does not start, turn the
engine switch to ON.

Shift the shift lever to N and
release the parking brake.
Turn automatic mode off.
(



P.187)

Multidrive: When the shift lever
cannot be shifted:



P.180

■

While towing

If the engine is not running, the power

assist for the brakes and steering will
not function, making steering and brak-

ing more difficult.

■

Wheel nut wrench

*1, 2

Wheel nut wrench is installed in luggage

compartment. (



P.427)

: If equipped

: If your vehicles does not provide a

wheel nut wrench, you can purchase
it from any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

While towing

●

When towing using cables or

chains, avoid sudden starts, etc.
which place excessive stress on the

towing eyelets, cables or chains.

The towing eyelets, cables or
chains may become damaged, bro-

ken debris may hit people, and

cause serious damage.

●

Do not turn the engine switch off.

There is a possibility that the steer-
ing wheel is locked and cannot be

operated.

■

Installing towing eyelets to the

vehicle

Make sure that towing eyelets are
installed securely.

If not securely installed, towing eye-

lets may come loose during towing.

■

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

401

7-2. Steps to take in an emergency

hen tr

oubl

e aris



Fluid leaks under the vehicle.
(Water dripping from the air con-
ditioning after use is normal.)



Flat-looking tires or uneven tire
wear



Engine coolant temperature
gauge needle continually points
higher than normal.



Changes in exhaust sound



Excessive tire squeal when cor-
nering



Strange noises related to the
suspension system



Pinging or other noises related to
the engine



Engine missing, stumbling or
running roughly



Appreciable loss of power



Vehicle pulls heavily to one side
when braking



Vehicle pulls heavily to one side
when driving on a level road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

If you think something is

wrong

If you notice any of the follow-
ing symptoms, your vehicle
probably needs adjustment or
repair. Contact any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer as soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

Toyota Yaris Cross (2022 year). Manual in english - page 24
