Enhanced Roadside Assistance

Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at
Toyota.com in the United States, Toyotapr.com in Puerto Rico and
Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]

●

ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

1-3. Emergency assistance

Fo
r safety and securi

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS).
The license information and/or the source code of such FOSS can be found
at the following URL.
https://www.denso.com/global/en/opensource/dcm/toyota/

■

Certifications for the Safety Connect

1-4. Theft deterrent system

Fo
r safety and secu

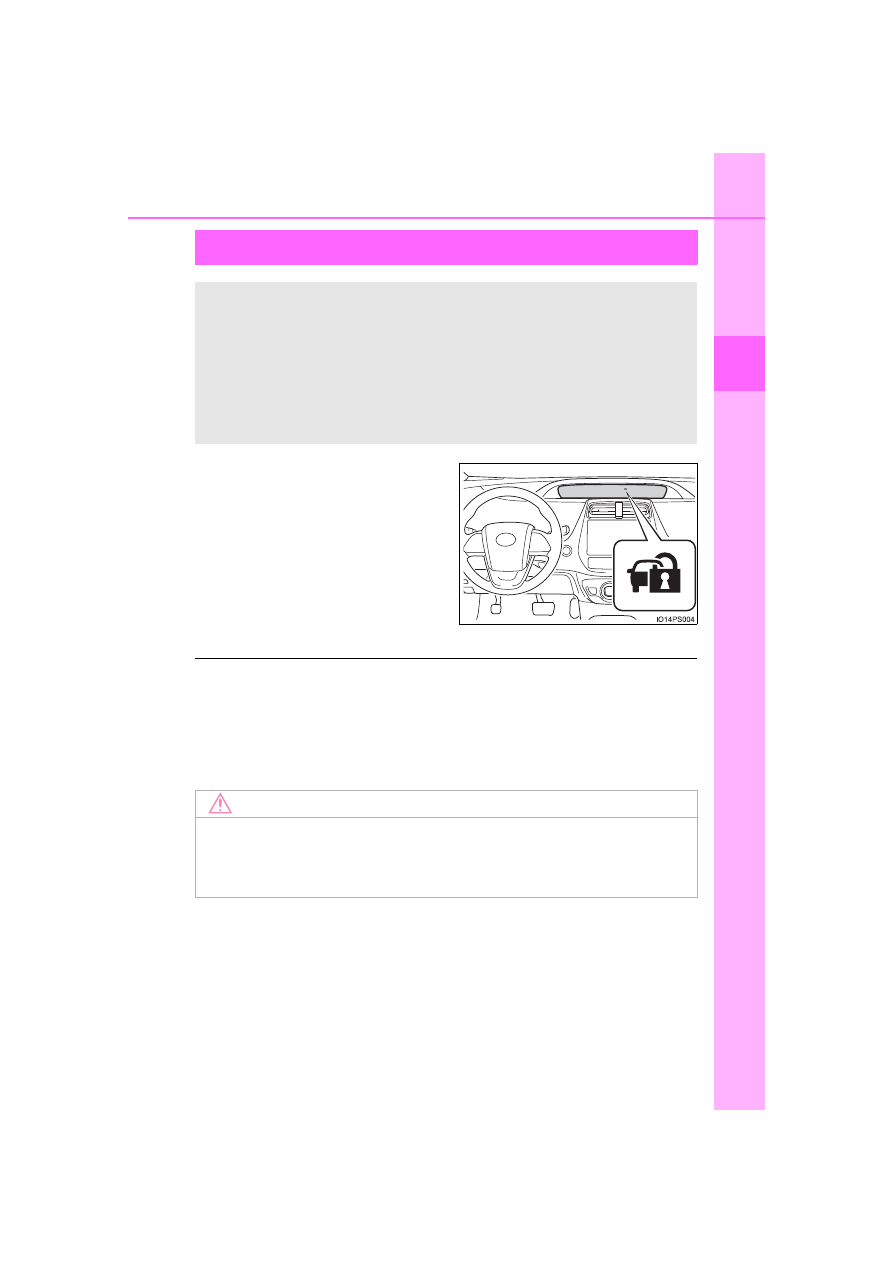

Immobilizer system

The  indicator  light  flashes  after
the power switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  power  switch  has  been
turned  to  ACCESSORY  or  ON
mode  to  indicate  that  the  system
has been canceled.

■

System maintenance

The vehicle has a maintenance-free type immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicle

The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.

This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

NOTICE

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

Plug-in hybrid system

2-1. Plug-in hybrid system

Plug-in hybrid system

features............................. 86

Plug-in hybrid system

precautions ....................... 99

Plug-in hybrid vehicle

driving tips....................... 106

EV driving range ............... 109

2-2. Charging

Charging equipment.......... 111
Charging cable.................. 116
Smart lid & connector

locking system ................ 122

Power sources that can be

used ................................ 132

Charging methods............. 135
Charging tips..................... 140
Things to know before

charging .......................... 142

How to charge................... 147
Using the charging schedule

function ........................... 158

When normal charging

cannot be carried out ...... 181

2-1. Plug-in hybrid system

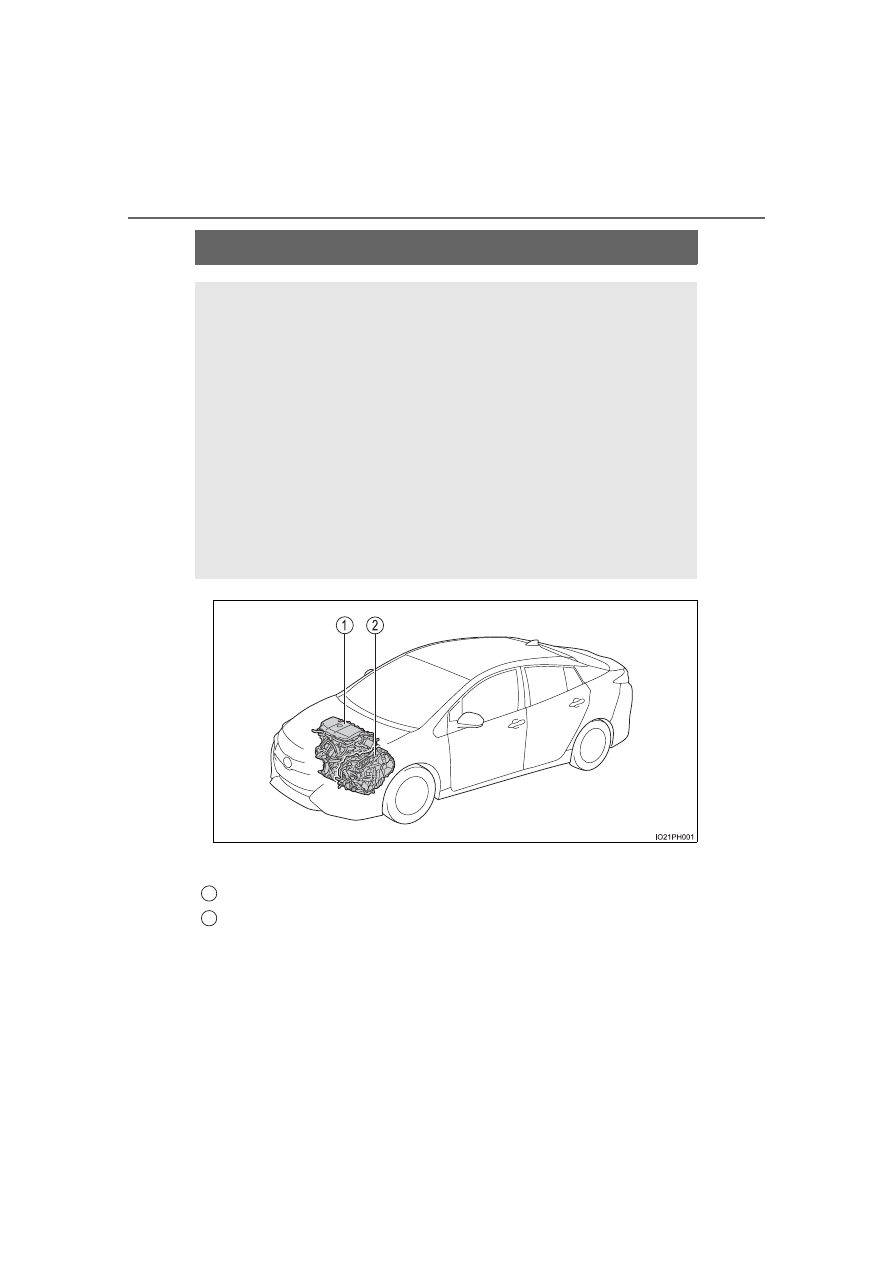

Plug-in hybrid system features

The illustration is an example for explanation and may differ from the
actual item.

Gasoline engine
Electric motor (traction motor)

The plug-in hybrid system is a system excellent in both econom-
ical efficiency of electric vehicles and practicality of hybrid vehi-
cles.

●

EV driving can be performed using electricity charged from an
external power source.

●

If the amount of electricity remaining in the hybrid battery (traction
battery) becomes low, the vehicle is automatically controlled in
such a way that it can be driven as a hybrid vehicle through the
joint use of the gasoline engine.

: The EV driving range will vary in accordance with conditions such as

vehicle speed, the amount of charge remaining in the hybrid battery
(traction battery) and the usage of the air conditioning system. The gaso-
line engine may also be used simultaneously in accordance with driving
conditions.

1
2

2-1. Plug-in hybrid system

Plug-

in hybrid system

The plug-in hybrid system operates in the following modes.

The multi-information display can be used to check which mode the plug-in
hybrid system is currently being driven in. (



P. 220)

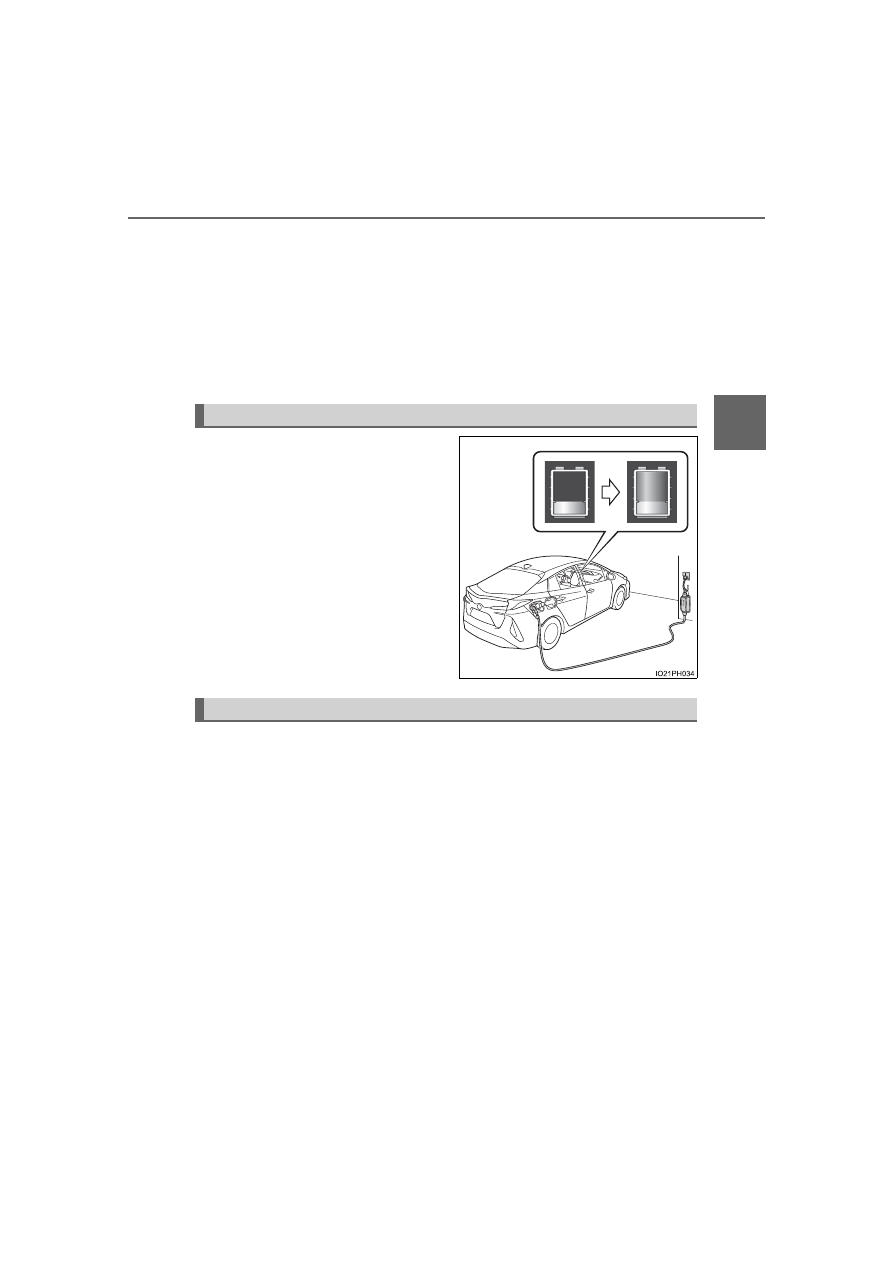

EV mode
When a sufficient amount of electricity is remaining after
charging

, EV driving is performed using electricity stored in the

hybrid battery (traction battery).

When in EV mode, the EV drive mode indicator illuminates.

: The amount of remaining charge can be checked on the multi-informa-

tion display etc. (



P. 231)

: Depending on the situation, EV driving may be canceled and both gaso-

line engine and electric motor are used. (



P. 96)

Plug-in hybrid system operation mode

2-1. Plug-in hybrid system

EV auto mode (



P. 90)

When a sufficient amount of electricity for EV driving is remaining in
the hybrid battery (traction battery) after charging

, the operation

mode can be switched to EV auto mode.
Switching to EV auto mode make powerful driving possible by using
both the gasoline engine and electric motor in a driving condition
that requires large driving force, such as when passing a vehicle on
a highway or driving on a steep slope.

When in EV auto mode, the EV auto mode indicator illuminates.

: The amount of remaining charge can be checked on the multi-informa-

tion display etc. (



P. 231)

HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric motor (traction motor). (



P. 92)

●

If electricity needed for EV driving in EV mode or EV auto mode
is not remaining, the operation mode will be automatically
switched to HV mode.

●

The operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.

(



P. 90). Switching to HV mode when driving on a highway or

when driving uphill is recommended in order to conserve battery
power.

When in HV mode, the EV drive mode indicator and EV auto mode indi-
cator turn off.

: The EV driving range may reduce even after switching to HV mode.

2-1. Plug-in hybrid system

Plug-

in hybrid system

Hybrid battery (traction battery) charge mode (



P. 91)

Electricity generated in the gasoline engine can be charged in the
hybrid battery (traction battery) by switching to the hybrid battery
(traction battery) charge mode when electricity needed for EV driv-
ing is not remaining.

●

The system may not be able to switch to the hybrid battery (trac-
tion battery) charge mode due to the state of the plug-in hybrid
system. (



P. 91)

●

Charging time differs depending on the driving state of the vehi-
cle when driving in hybrid battery (traction battery) charge mode.

When in the hybrid battery (traction battery) charge mode, the hybrid
battery charge mode indicator illuminates.

: When in the hybrid battery (traction battery) charge mode, the hybrid

battery can be charged while driving. However, the gasoline engine runs
to charge the battery and fuel consumption becomes higher compared
with driving in HV mode.

2-1. Plug-in hybrid system

The plug-in hybrid system operation modes can be switched using the
switches.

If there is not enough charge remaining in the hybrid battery (traction bat-
tery) to allow EV driving, EV/EV auto mode will not be selectable.
The hybrid battery (traction battery) charge mode cannot be selected if the
hybrid battery (traction battery) is almost completely charged.

■

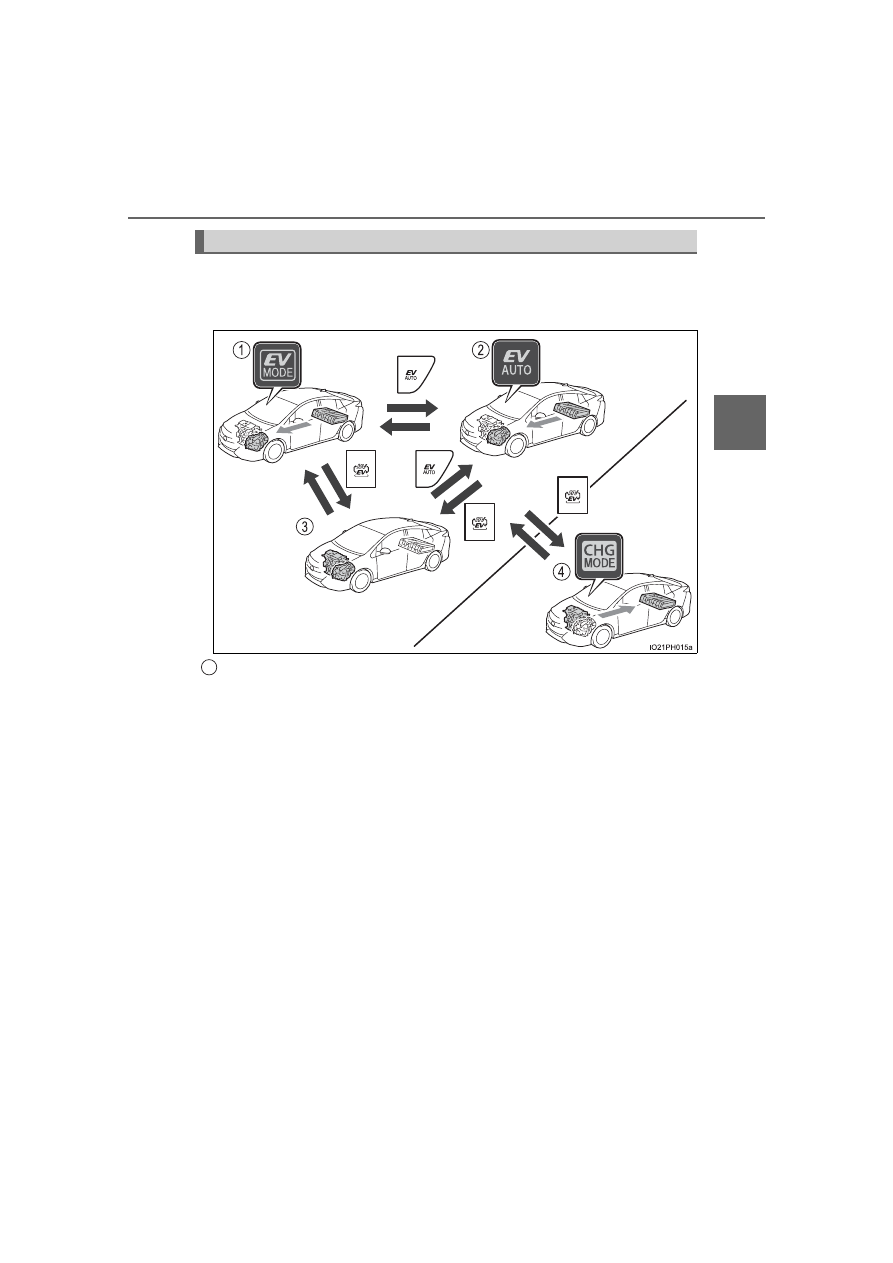

Switching the plug-in hybrid system operation modes

Press the EV/HV mode selection switch or EV auto mode switch to
change modes as the following table shows.

When in EV mode, the EV drive mode indicator illuminates.
When in EV auto mode, the EV auto mode indicator illuminates.
When in HV mode, the EV drive mode indicator and EV auto mode indi-
cator turn off.

: If there is not enough charge remaining in the hybrid battery (traction bat-

tery) to allow EV driving, EV/EV auto mode will not be selectable.

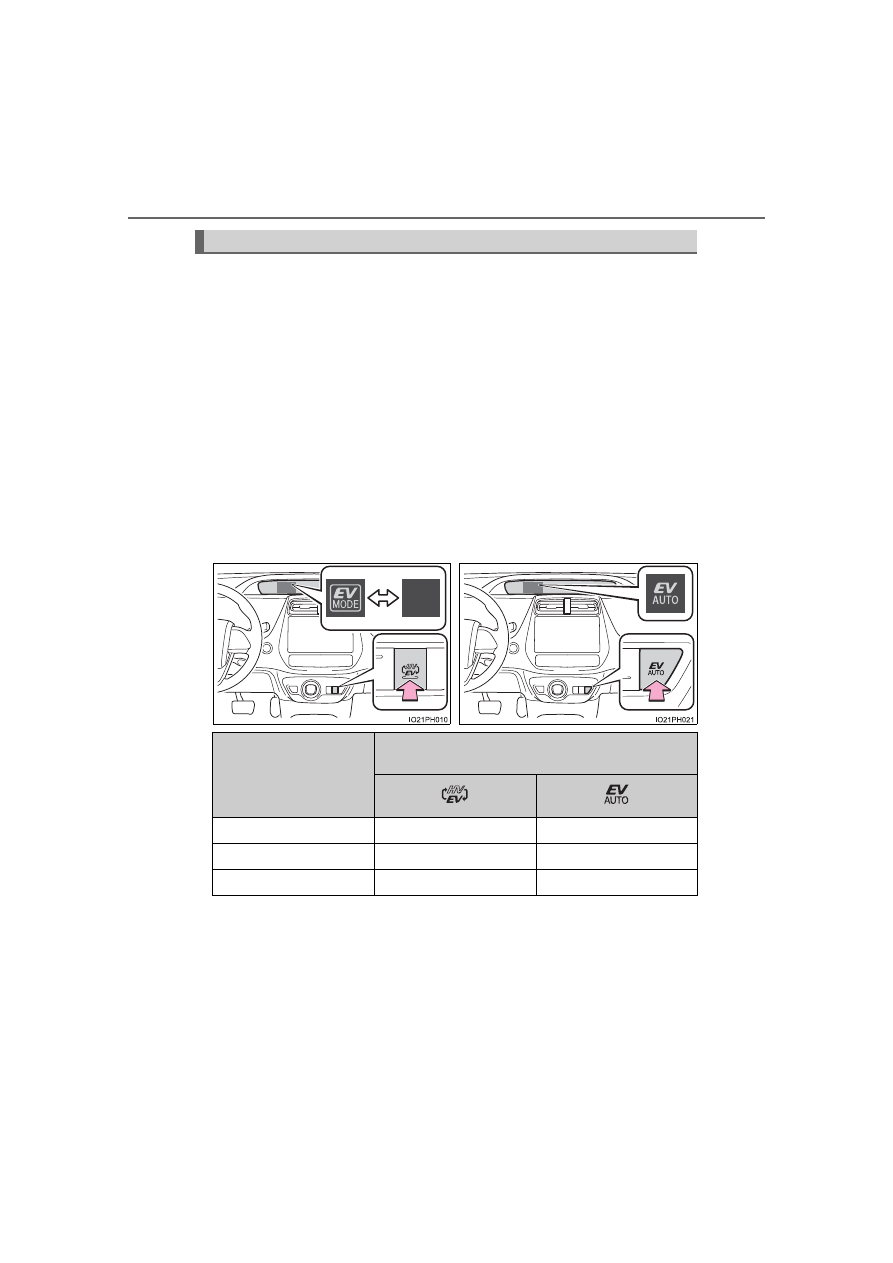

Plug-in hybrid system operation mode selection switches



EV/HV mode selection switch



EV auto mode switch

Current mode

Switch operated

EV mode

HV mode

EV auto mode

HV mode

EV mode

HV mode

EV mode

EV auto mode

2-1. Plug-in hybrid system

Plug-

in hybrid system

■

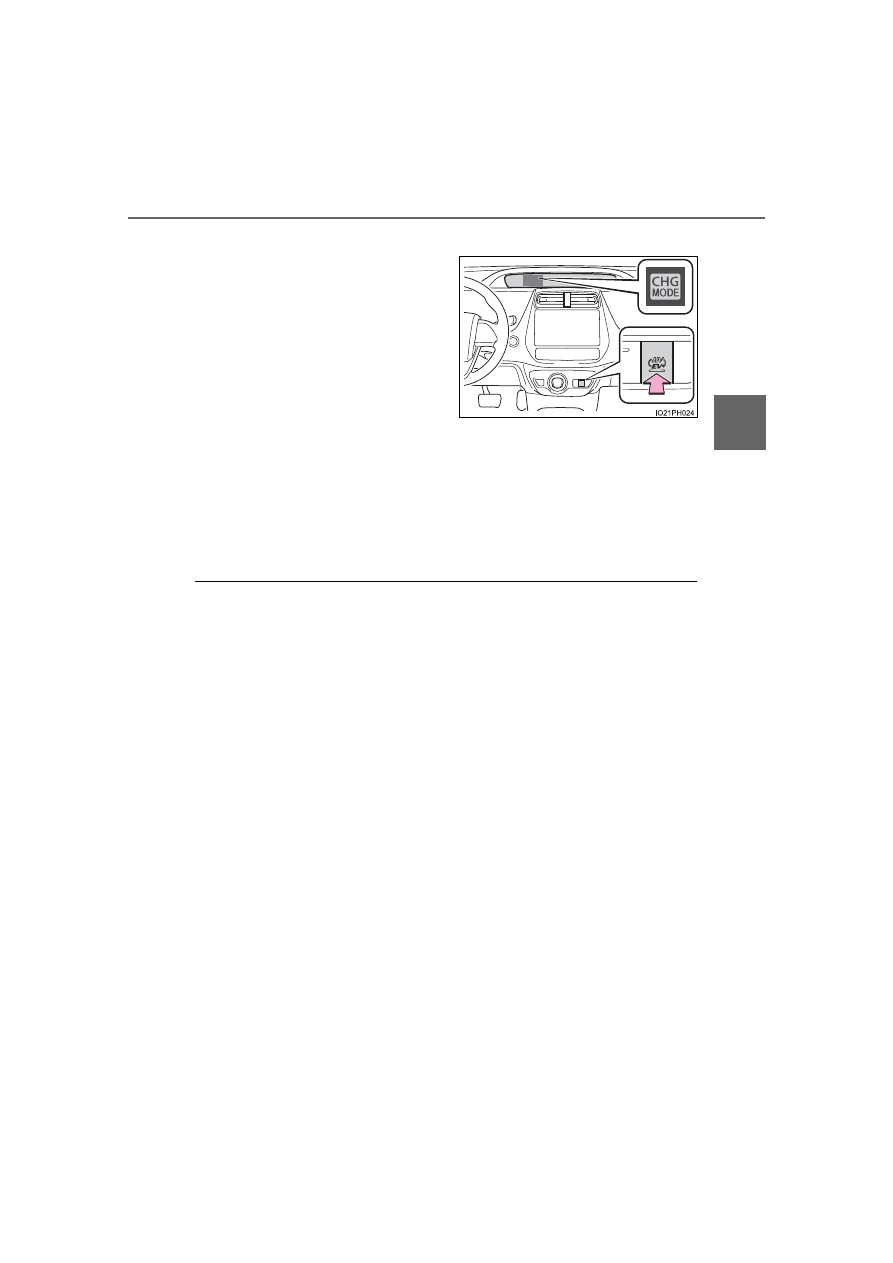

Switching to the hybrid battery (traction battery) charge mode

Press and hold the switch.

Take  your  hand  off  the  switch
once  the  hybrid  battery  charge
mode indicator starts to blink.
The hybrid battery charge mode
indicator  illuminates  when  the
switch to hybrid battery (traction
battery)  charge  mode  is  com-
plete.
When the hybrid battery (traction battery) is fully charged

, the hybrid

battery (traction battery) charge mode is automatically canceled and the
operation mode will be switched to HV mode.
The hybrid battery (traction battery) charge mode will be canceled by
pressing EV/HV mode selection switch or EV auto mode switch.

: The maximum charge amount in the hybrid battery (traction battery)

charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.

■

If the plug-in hybrid system operation mode cannot be changed

In the following situations, the plug-in hybrid system operation mode cannot
be changed even if the EV/HV mode selection switch or EV auto mode switch
is pressed. (In this case, the warning message is displayed on the multi-infor-
mation display when the switch is pressed.)

●

When electricity needed for EV driving is not remaining (when in EV/EV
auto mode)

●

When the traction battery is almost completely charged (hybrid battery [trac-
tion battery] charge mode)

■

When switching from EV mode to another mode using the switch

When the power switch is turned off, operation mode switching is canceled
and the system returns to EV mode the next time the vehicle is started.

■

Hybrid battery (traction battery) charge mode

●

The following may occur to protect the system, etc.
• Cannot switch to hybrid battery (traction battery) charge mode or cannot

cancel it

• Gasoline engine does not start or stops even after switching to hybrid bat-

tery (traction battery) charge mode

●

If a load to the system is large, such as when the power consumption of the
air conditioning system is large or when the temperature of the engine cool-
ant is high, it may take longer time than usual to charge using the hybrid bat-
tery (traction battery) charge mode, or charging to the hybrid battery
(traction battery) may not be performed.

2-1. Plug-in hybrid system

■

When in EV/EV auto mode

In EV/EV auto mode, EV driving (driving using only the electric
motor)

is possible. However, depending on the situation, EV driv-

ing may be canceled and both gasoline engine and electric motor
are used (



P. 96). Also, if a little electricity is remaining in the

hybrid battery (traction battery), HV mode is automatically selected.
To drive in EV/EV auto mode long, observe the followings.

●

Avoid sudden acceleration and sudden deceleration, and be sure
to drive smoothly.
If you repeatedly accelerate, the hybrid battery (traction battery)
charge will deplete quickly. Also, EV driving may be canceled by
rapid acceleration or vehicle speed.

●

Restrain your speed as much as possible. The distance that can
be driven in EV/EV auto mode will reduce considerably at high
speeds.

: The EV driving range can be checked using the multi-information dis-

play etc. (



P. 214, 230, 237, 254)

■

When in HV mode

The vehicle can be used in the same way as a standard hybrid
vehicle.
In HV mode, controls are primarily carried out as follows in accor-
dance with the driving conditions.

●

The gasoline engine stops

when the vehicle is stopped.

●

During start off, the electric motor (traction motor) drives the vehi-
cle.

●

During  normal  driving,  the  gasoline  engine  and  electric  motor
(traction  motor)  are  controlled  effectively,  and  the  vehicle  is
driven  with  optimum  fuel  efficiency. Also,  when  necessary,  the
electric motor (traction motor) operates as an electrical generator
to charge the hybrid battery (traction battery).

●

When the accelerator pedal is depressed heavily, drive force
from both the gasoline engine and the electric motor (traction
motor) is used to accelerate.

: When the hybrid battery (traction battery) requires charging or the

engine is warming up, etc., the gasoline engine will not automatically
stop. (



P. 96)

Control when driving in each mode

2-1. Plug-in hybrid system

Plug-

in hybrid system

■

When braking (regenerative braking)

The electric motor (traction motor) charges the hybrid battery (trac-
tion battery).
The EV driving range can be extended by actively using this regen-
erative braking to store electricity in the hybrid battery (traction bat-
tery).
Moreover, as fuel consumption is also reduced when in HV mode,
the regenerative braking system can be used effectively.

In  order  to  make  EV/EV  auto
mode available, charge the hybrid
battery  (traction  battery)  from  an
external  power  source  before
using the vehicle.

Even if charging the hybrid battery
(traction  battery)  has  not  been
completed,  the  vehicle  can  be
driven.  However,  if  there  is  not
enough charge remaining, it is pos-
sible  that  the  vehicle  cannot  be
driven  in  EV/EV  auto  mode  or  the
EV  driving  range  will  become
shorter.

When driving with the gasoline engine stopped, a sound, which
changes in accordance with the driving speed, will be played in order
to warn people nearby of the vehicle’s approach. The sound will stop
when the vehicle speed exceeds approximately 22 mph (35 km/h).

Charging (



P. 111)

Vehicle proximity notification system

2-1. Plug-in hybrid system

This system operates based on the driving situation and traffic infor-
mation to enhance fuel economy.
For details about Predictive efficient drive, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.

●

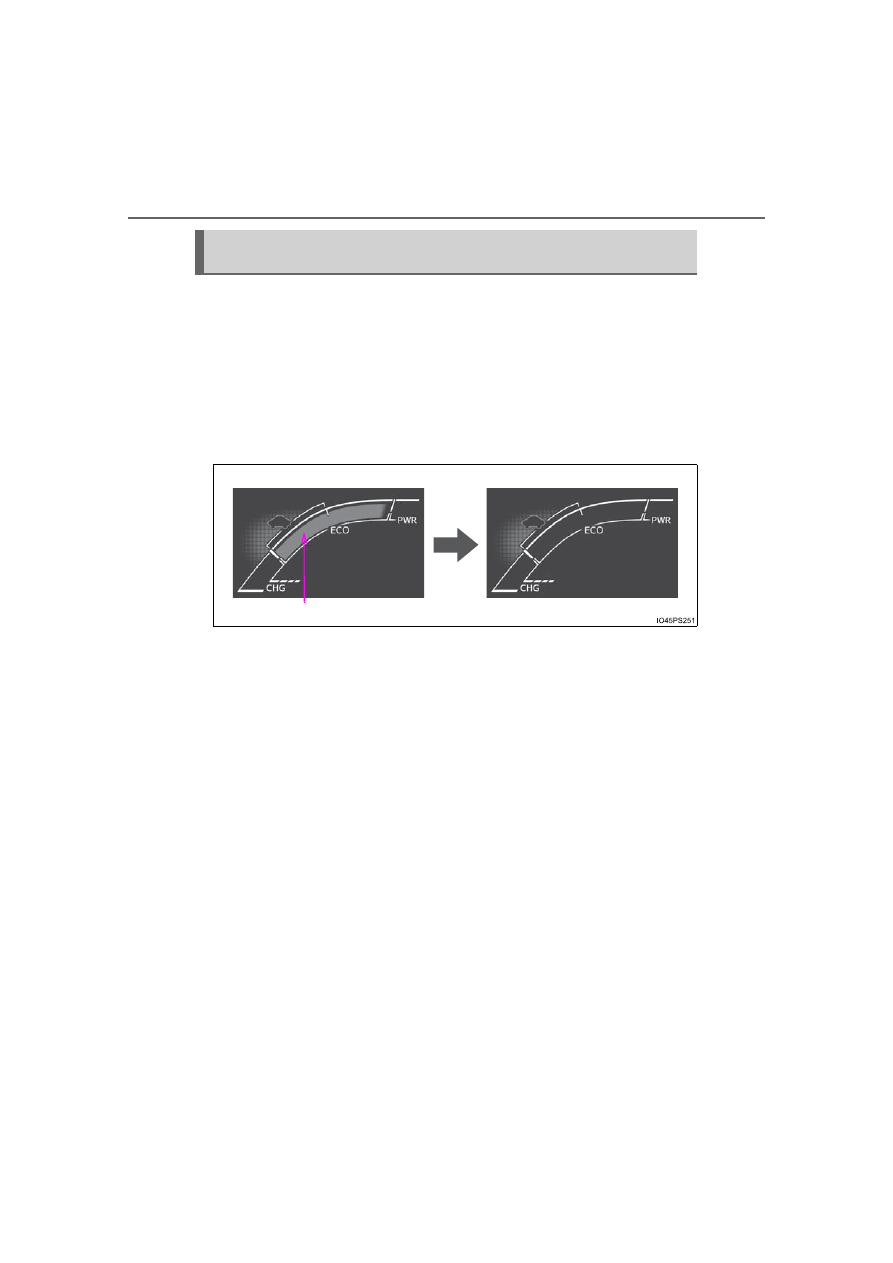

When the vehicle approaches to Predictive deceleration support
points registered in the navigation system, the “ECO Accelerator
Guidance” (



P. 228) on the multi-information display will be turned

off to encourage the driver to reduce excessive acceleration.

●

The engine braking force will be increased according to the driving
conditions to more efficiently charge the hybrid battery (traction bat-
tery) after the accelerator pedal is released.

: This function can only be used in the mainland U.S.A. It cannot be used in

other states and territories, including Alaska and Hawaii.

Predictive efficient drive (Predictive deceleration support) (vehi-
cles with navigation system)

“ECO Accelerator Guidance”

2-1. Plug-in hybrid system

Plug-

in hybrid system

■

Regenerative braking

In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).

●

The accelerator pedal is released while driving with the shift position in D or
B.

●

The brake pedal is depressed while driving with the shift position in D or B.

■

EV driving range

●

The EV driving range is displayed on the multi-information display etc.
(



P. 214, 230, 237, 254)

●

The EV driving range changes in accordance with the charge status of the
hybrid battery (traction battery), the speed of the vehicle, etc.

●

Even if there is enough charge remaining in the hybrid battery (traction bat-
tery), EV driving may be canceled and both gasoline engine and electric
motor are used depending on the situation. (



P. 96)

■

After EV mode has switched to HV mode due to low hybrid battery (trac-
tion battery) charge

If the hybrid battery (traction battery) is regenerated by driving continuously
down a long slope, the EV driving range etc. will be displayed on the multi-
information display and EV mode will be automatically switched to.
If EV mode is not switched to even though EV driving range is being dis-
played, EV mode can be switched to by pressing the EV/HV mode selection
switch.

■

Refilling fuel

Plug-in hybrid vehicles can be driven using electricity charged from an exter-
nal power source. However, as the gasoline engine is used depending on the
situation even if in EV mode, and the gasoline engine is provided on board as
a power source for driving in HV mode, it is needed to refueling the vehicle.
Check the fuel amount and refill immediately when the fuel level becomes
low. (



P. 365)

2-1. Plug-in hybrid system

■

Gasoline engine operation in EV/EV auto mode

Even if there is a sufficient amount of electricity remaining in the hybrid bat-
tery (traction battery) and EV driving range (



P. 214, 230, 237, 254) is being

displayed on the multi-information display etc., EV driving (driving using only
the electric motor) may be canceled and both gasoline engine and electric
motor are used depending on the situation (EV driving will be returned to
automatically after EV driving becomes possible again).
EV driving may be canceled automatically in the following circumstances:

●

When vehicle speed is more than approximately 84 mph (135 km/h).

●

When power is needed temporarily, for example when the accelerator pedal
is depressed firmly or when accelerating suddenly.

●

When the temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.

●

When the temperature of the hybrid system is low.

●

When the heater is switched on when the outside temperature is below
about 14°F (-10°C).

●

When the windshield defogger switch is pressed. (



P. 511, 523)

●

When the system determines that the gasoline engine needs to be started.

The gasoline engine may also operate in circumstances other than those
listed above, depending on conditions.

: When traveling in the EV auto mode only

■

Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions

●

During gasoline engine warm-up

●

During hybrid battery (traction battery) charging

●

When the temperature of the hybrid battery (traction battery) is high or low

●

When the windshield defogger switch is pressed. (



P. 511, 523)

: Depending on the circumstances, the gasoline engine may also not stop

automatically in situations other than those above.

Toyota Prius Prime (2022 year). Manual in english - page 5
