Toyota Highlander Hybrid (2022 year). Manual in english - page 19

301

4-5. Using the driving support systems

ing

Meter control switches

Turning the RCTA function on/off.
When the RCTA function is dis-
abled, the RCTA OFF indicator illu-
minates.

Outside rear view mirror indi-
cators

When a vehicle approaching from
the right or left at the rear of the
vehicle is detected, both outside
rear view mirror indicators will flash.

Audio system screen

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.304) for the detected side will

be displayed on the audio system
screen. This illustration shows an
example of a vehicle approaching
from both sides of the vehicle.

RCTA buzzer

If a vehicle approaching from the

RCTA (Rear Cross Traf-

fic Alert) function

The RCTA function uses the
BSM rear side radar sensors
installed behind the rear
bumper. This function is
intended to assist the driver
in checking areas that are
not easily visible when
backing up.

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely. (



P.286)

■

To ensure the system can

operate properly



P.288

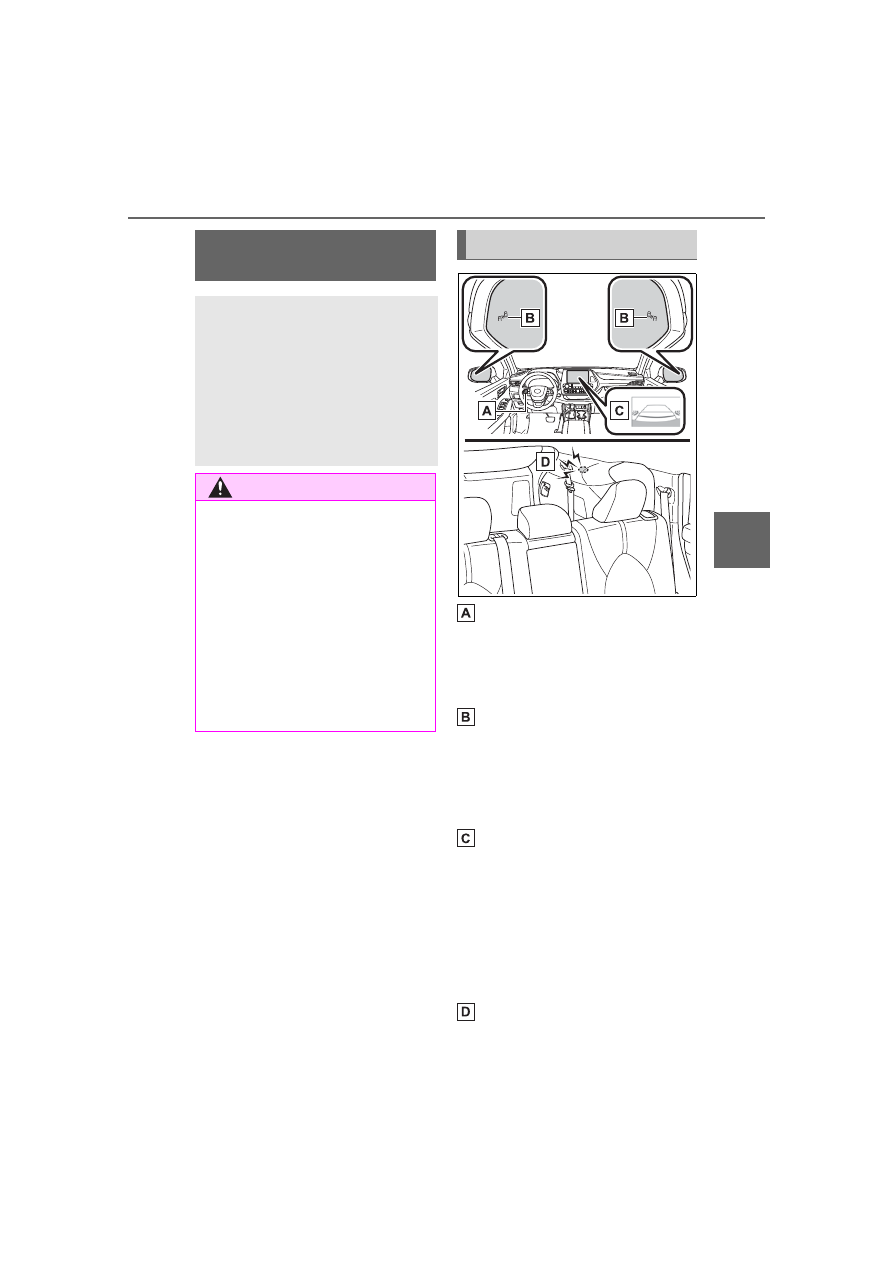

System components

302

4-5. Using the driving support systems

right or left at the rear of the vehicle
is detected, a buzzer will sound.



4.2-inch display

Use the meter control switches
to enable/disable the RCTA
function. (



P.97)

Press

to select

Press

to select

“RCTA” and then press



7-inch display

Use the meter control switches
to enable/disable the RCTA
function. (



P.107)

Press

to select

Press

to select

“RCTA” and then press

When the RCTA function is dis-
abled, the RCTA OFF indicator
(



P.86) illuminates on the

multi-information display. (Each
time the power switch is turned off
then changed to ON, the RCTA
function will be enabled automati-
cally.)

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as if the

audio system volume is high.

■

When “Rear Cross Traffic Alert

Unavailable” is shown on the

multi-information display

Water, ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (



P.288) Removing

the water, ice, snow, mud, etc., from

the attached to the rear bumper

around the sensors to return the

function to normal.
Additionally, the function may not

Turning the RCTA func-
tion on/off

WARNING

■

Cautions regarding the use of

the function

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The RCTA function is only a sup-

plementary function which alerts

the driver that a vehicle is

approaching from the right or left

at the rear of the vehicle. As the

RCTA function may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

Over reliance on this function may

lead to an accident resulting

death or serious injury.

NOTICE

■

Before using the RCTA func-

tion

Do not place objects near the sen-

sors.

303

4-5. Using the driving support systems

ing

operate normally when driving in

extremely hot or cold environments.

■

Rear side radar sensors



P.288

■

Adjusting the buzzer vol-
ume

The buzzer volume can be
adjusted on the multi-informa-
tion display.



4.2-inch display

Use the meter control switches
to change settings. (



P.97)

Press

to select

Press

to select

“RCTA” and then press and
hold

Select the volume and then
press

Each time the switch is pressed,

the volume level will change

between 1, 2, and 3.



7-inch display

Use the meter control switches
to change settings. (



P.107)

Press

to select

Press

to select and

“RCTA” then press and hold

Select the volume and then
press

Each time the switch is pressed,

the volume level will change

between 1, 2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed
on the multi-information display
when an object is detected. To
mute the buzzer, press

Mute will be canceled automati-
cally in the following situations:



When the shift lever is
changed.



When the vehicle speed
exceeds a certain speed.



When the operating function
is temporarily canceled.



When the operating function
is disabled manually.



When the power switch is
turned off.

■

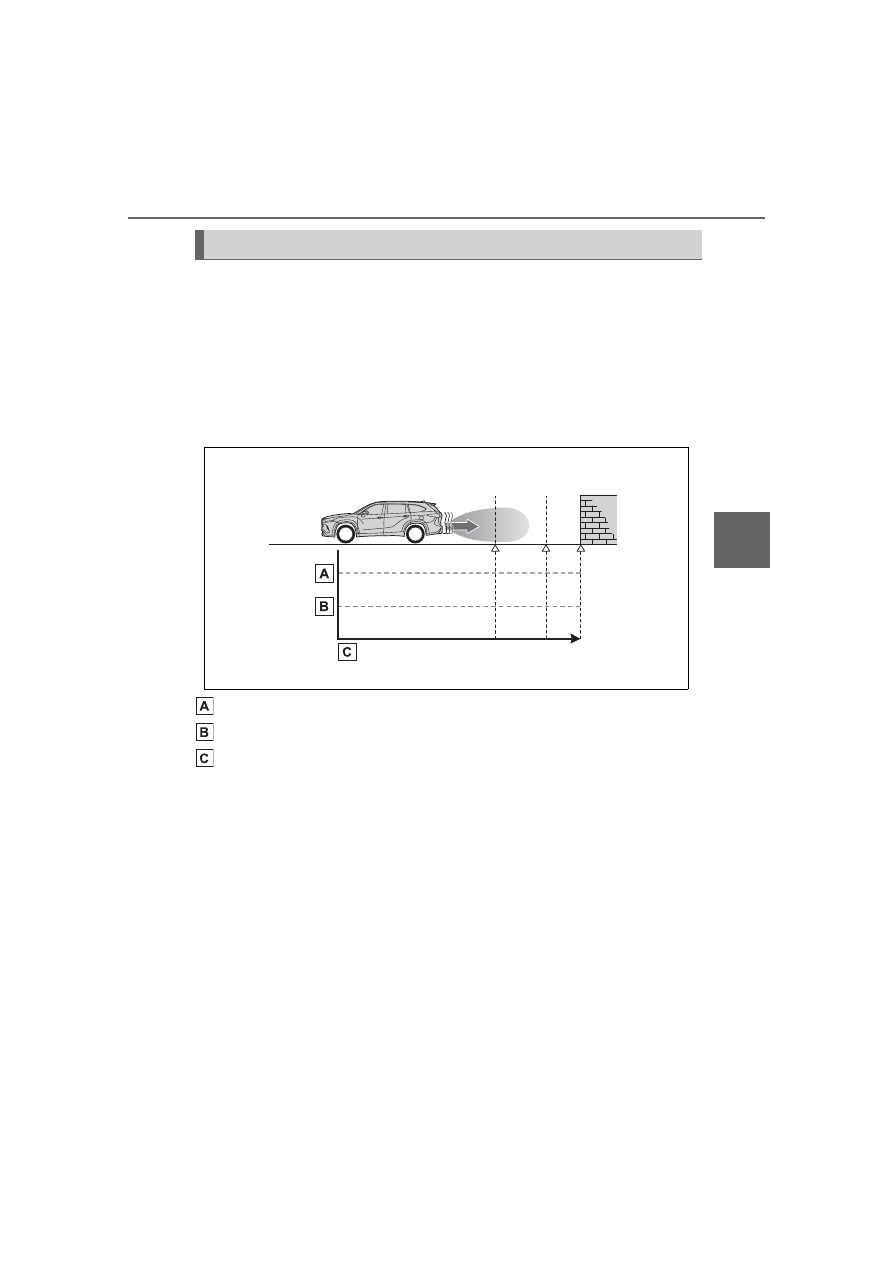

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles
approaching from the right or left at the rear of the vehicle and alerts
the driver of the presence of such vehicles by flashing the outside
rear view mirror indicators and sounding a buzzer.

Setting the buzzer volume
(vehicles with a Intuitive
parking assist)

RCTA function

304

4-5. Using the driving support systems

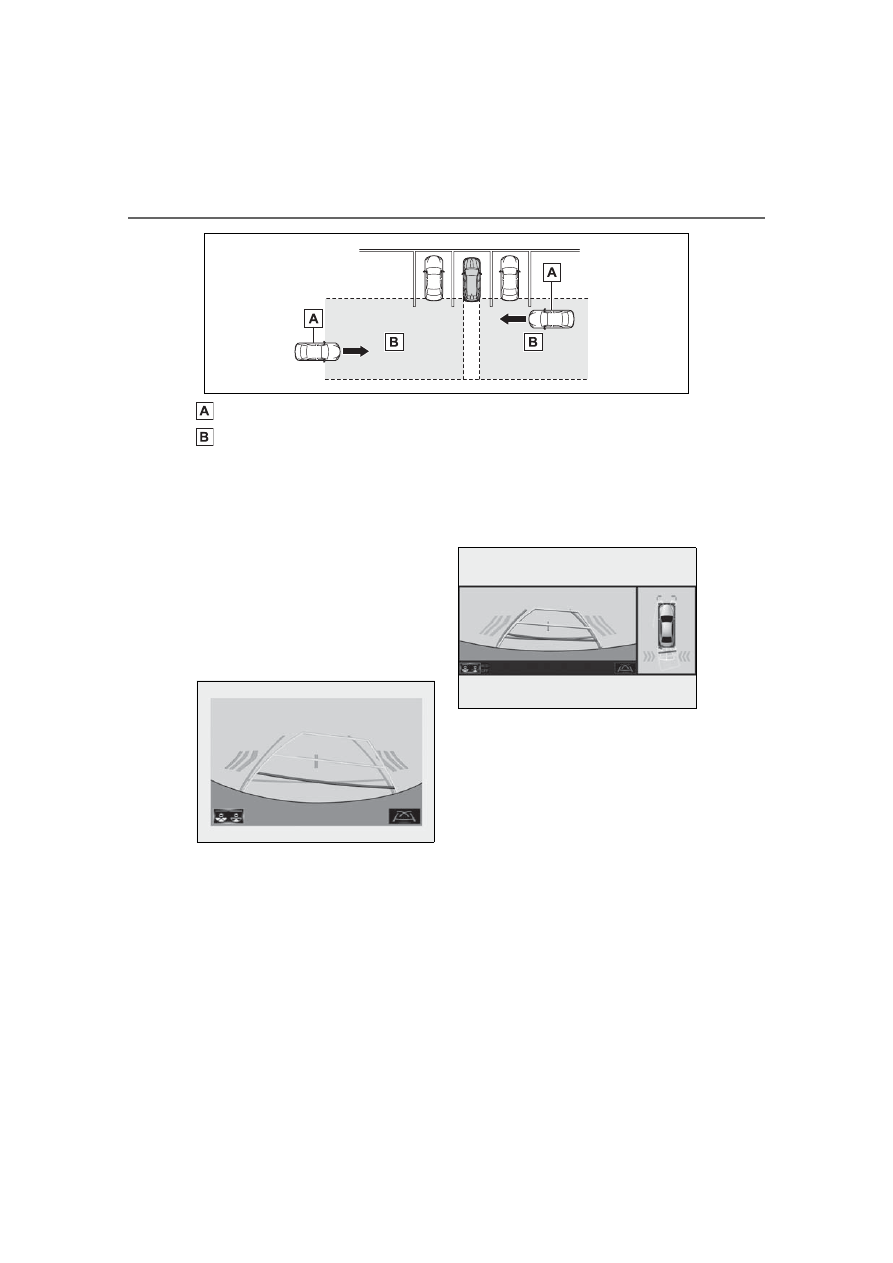

Approaching vehicles
Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the audio system screen.



Example (Toyota parking
assist monitor) (if equipped):
Vehicles are approaching
from both sides of the vehicle



Example (Panoramic view
monitor) (if equipped): Vehi-
cles are approaching from
both sides of the vehicle

■

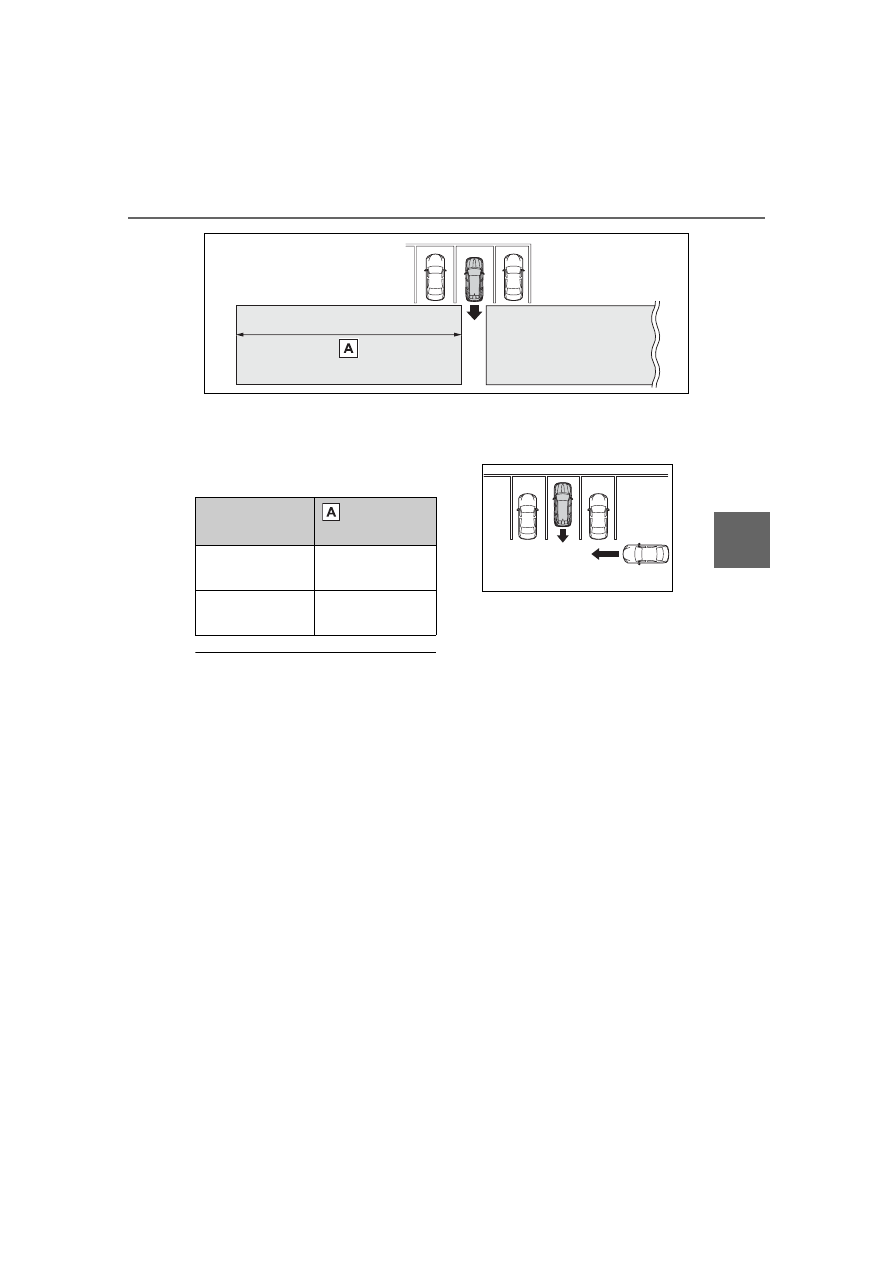

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

305

4-5. Using the driving support systems

ing

The buzzer can alert the driver
of faster vehicles approaching
from farther away.
Example:

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The power switch is in ON.

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is approxi-

mately 5 mph (8 km/h) or less.

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 18 mph (28 km/h).

■

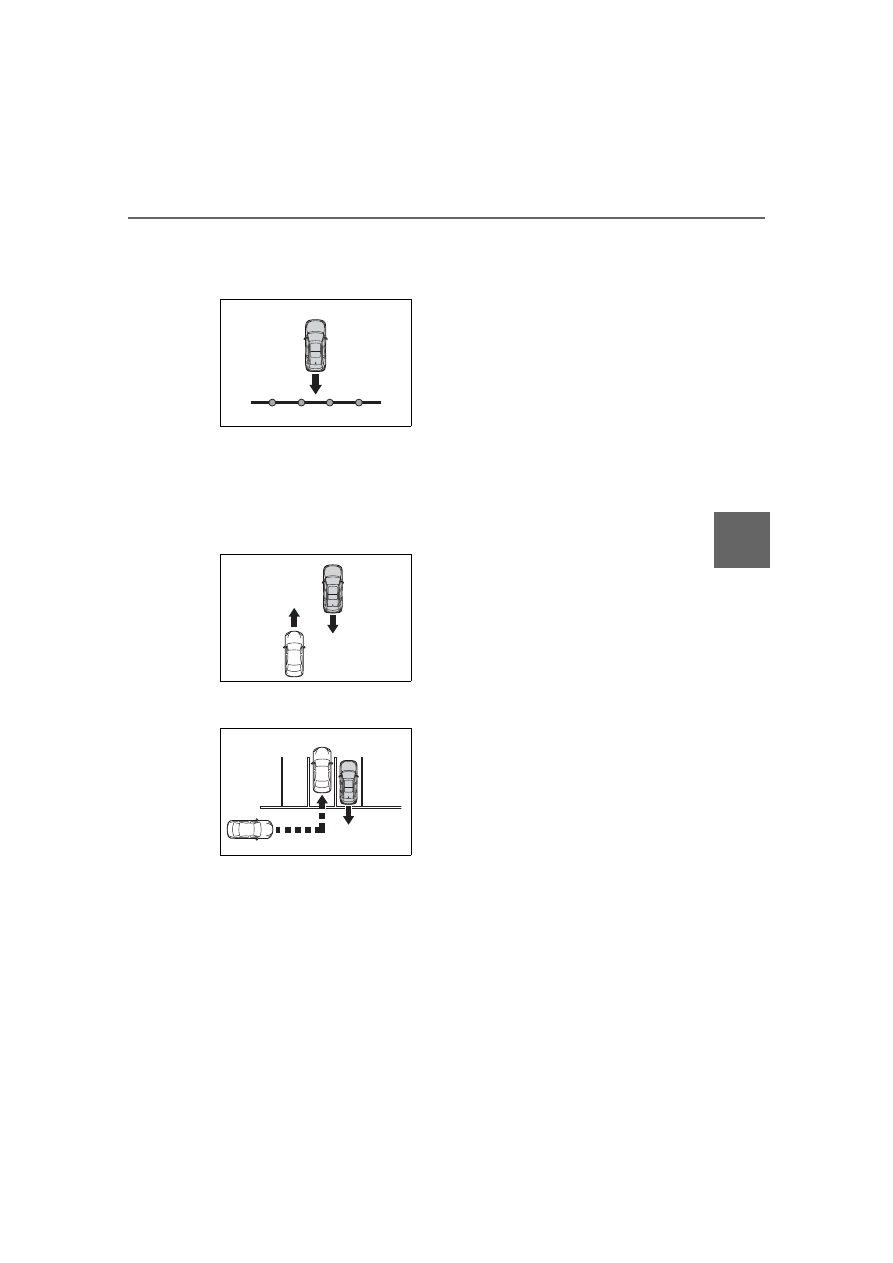

Conditions under which the

system will not detect a vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

●

Small motorcycles, bicycles,
pedestrians, etc.

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

●

The distance between the sensor

and approaching vehicle gets too

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

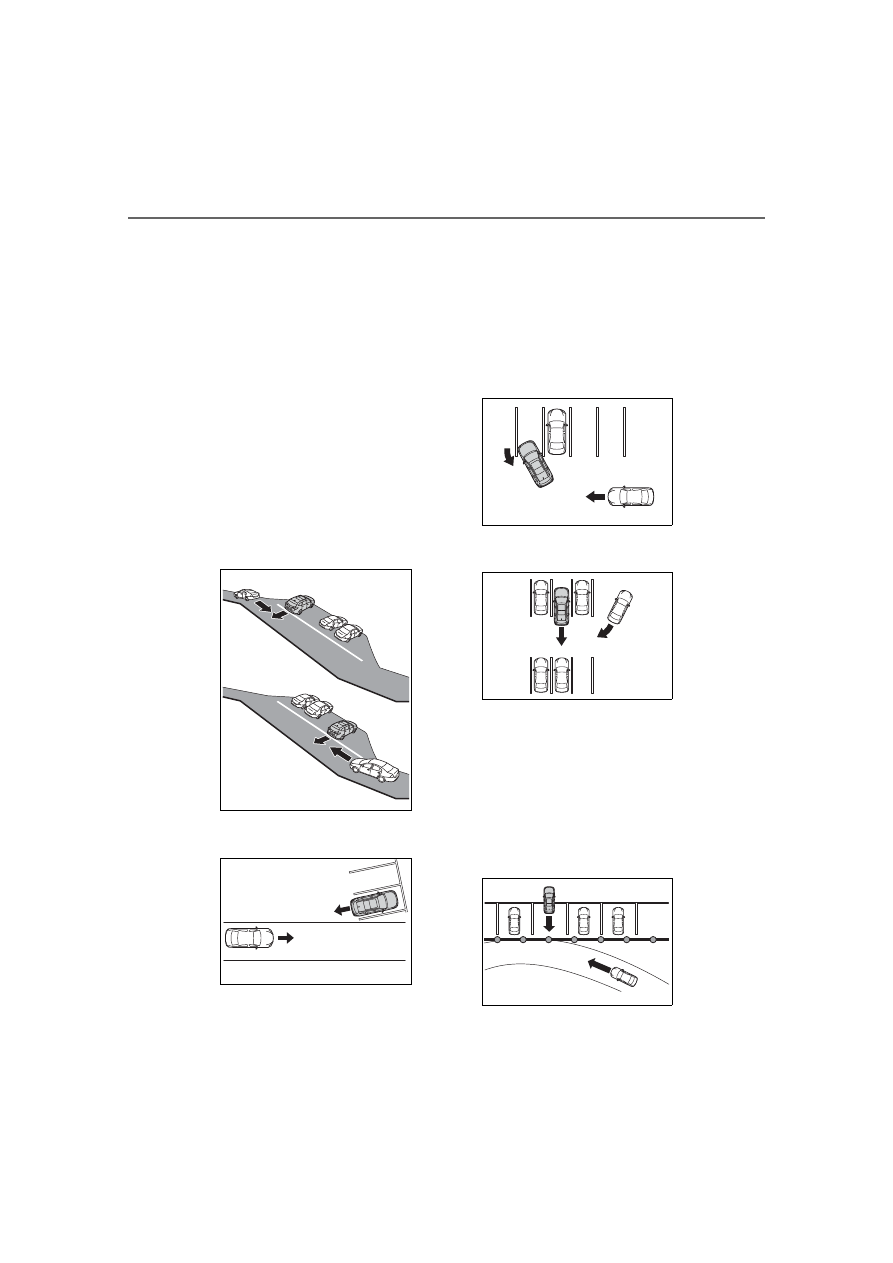

Situations in which the system

may not operate properly

The RCTA function may not detect

vehicles correctly in the following

situations:

●

When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

Approaching

vehicle speed

Approximate

alert distance

18 mph (28
km/h) (fast)

65 ft. (20 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

306

4-5. Using the driving support systems

●

When mud, snow, ice, a sticker,

etc.,is covering the sensor or sur-

rounding area on the position

above the rear bumper

●

When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

●

When multiple vehicles are

approaching with only a small gap

between each vehicle

●

When a vehicle is approaching at

high speed

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When backing up on a slope with

a sharp change in grade

●

When backing out of a sharp

angle parking spot

●

When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

●

When turning while backing up

●

When a vehicle turns into the

detection area

■

Situations in which the system

may operate even if there is no

possibility of a collision

Instances of the RCTA function

unnecessary detecting a vehicle

and/or object may increase in the

following situations:

●

When the parking space faces a

street and vehicles are being

driven on the street

●

When the distance between your

vehicle and metal objects, such as

307

4-5. Using the driving support systems

ing

a guardrail, wall, sigh, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the

side of your vehicle

●

When a detected vehicle turns

while approaching the vehicle

●

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

●

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

●

Moving objects (flags, exhaust

fumes, large rain droplets or

snowflakes, rain water on the road

surface, etc.)

●

When the distance between your

vehicle and a guardrail, wall, etc.,

that enters the detection area is

short

●

Gratings and gutters

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

308

4-5. Using the driving support systems

: If equipped

■

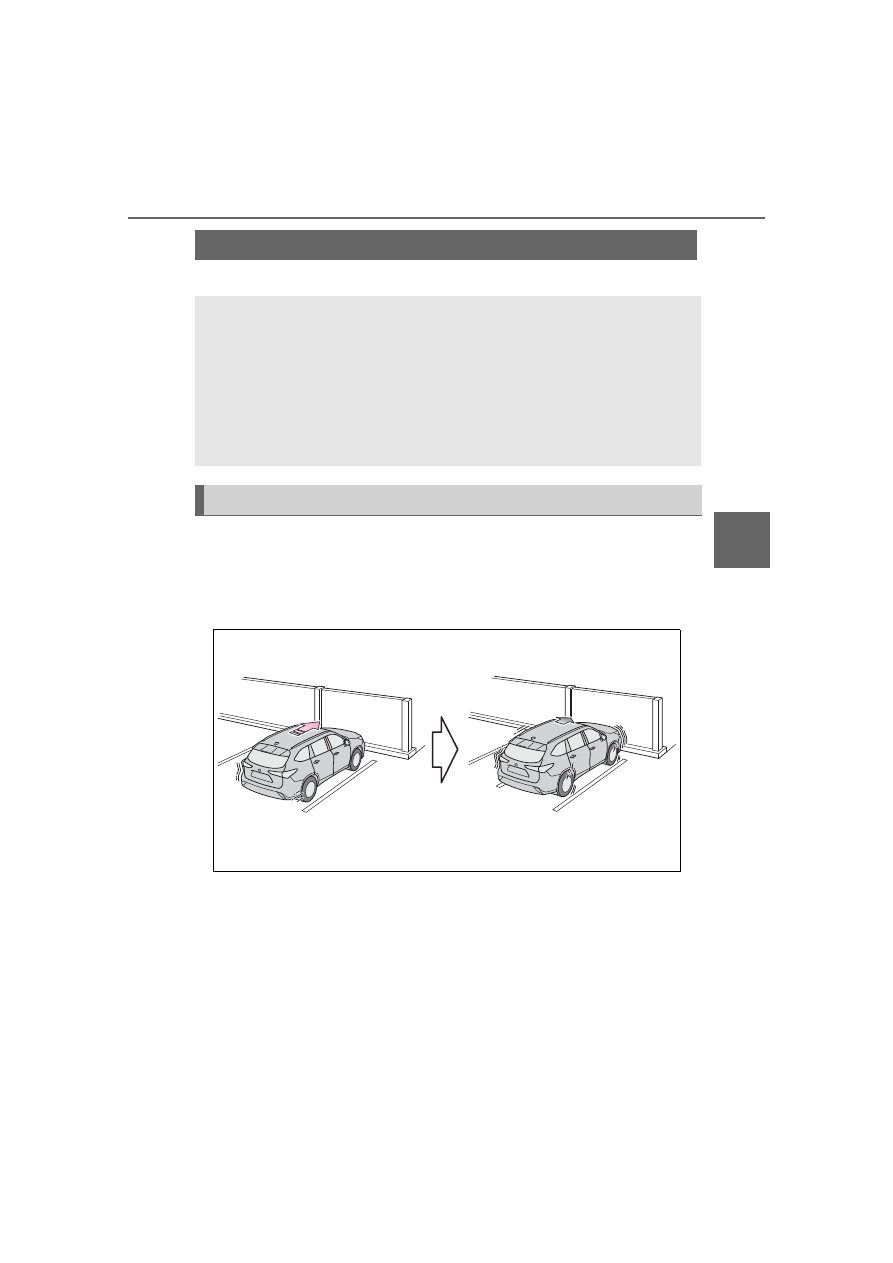

Parking Support Brake
function (static objects) (if
equipped)

Ultrasonic sensors are used to
detect static objects, such as a
wall, in the detection area when
driving at a low speed or back-
ing up. (



P.315)

■

Parking Support Brake
function (rear-crossing
vehicles) (if equipped)

Rear radar sensors are used to
detect approaching vehicles in
the detection area behind the
vehicle when backing up.
(



P.318)

PKSB (Parking Sup-

port Brake)

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
possibility of a collision
with a detected object is
high, a warning operates to
urge the driver to take eva-
sive action. If the system
determines that the possi-
bility of a collision with a
detected object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the col-
lision.

PKSB (Parking Support
Brake) system

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Additionally,

even if the system has stopped

the vehicle, it is necessary to

depress the brake pedal imme-

diately as brake control will be

canceled after approximately 2

seconds.

309

4-5. Using the driving support systems

ing

The Parking Support Brake can
be enabled/disabled on the
multi-information display. All of
the Parking Support Brake func-
tions (static objects and
rear-crossing vehicles) are
enabled/disabled simultane-
ously.
Use the meter control switches
to enable/disable the parking
support brake. (



P.107)

Press

to select

Press

to select

and then press

When the Parking Support Brake is

disabled, the PKSB OFF indicator

(



P.86) illuminates on the instru-

WARNING

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car

washing devices

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

NOTICE

■

If “PKSB Unavailable” is dis-

played on the multi-informa-

tion display and the PKSB

OFF indicator is flashing

If this message is displayed

immediately after the power

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system is not return to

normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

310

4-5. Using the driving support systems

ment cluster.
To re-enable the system when it
was disabled, select

on the

multi-information display, select

and turn it on. If the system is dis-

abled, it will remain off even if the

power switch is turned to ON after

the power switch has been turned

off.

If the hybrid system output restric-
tion control or brake control oper-
ates, a buzzer will sound and a
message will be displayed on the
audio system screen and
multi-information display, to alert
the driver.
Depending on the situation, hybrid
system output restriction control will
operate to either limit acceleration
or restrict output as much as possi-
ble.



Hybrid system output restric-
tion control is operating
(acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Audio system screen (Panoramic
view monitor) (if equipped): No
warning displayed
Multi-information display: “Object
Detected Acceleration Reduced”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Hybrid system output restric-

tion control is operating (out-
put restricted as much as
possible)

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Audio system screen (Panoramic
view monitor) (if equipped):
“BRAKE!”
Multi-information display/Head-up
display (if equipped): “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Audio system screen (Panoramic
view monitor) (if equipped):
“BRAKE!”
Multi-information display/Head-up
display (if equipped): “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Audio system screen (Panoramic
view monitor) (if equipped): “Press
Brake Pedal”
Multi-information display/Head-up
display (if equipped): “Switch to
Brake” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

Displays and buzzers for
hybrid system output
restriction control and
brake control

311

4-5. Using the driving support systems

ing

If the Parking Support Brake determines that a collision with a
detected object is possible, the hybrid system output will be
restricted to restrain any increase in the vehicle speed. (Hybrid sys-
tem output restriction control: See figure 2.)
Additionally, if the accelerator pedal continues to be depressed, the
brakes will be applied automatically to reduce the vehicle speed.
(Brake control: See figure 3.)



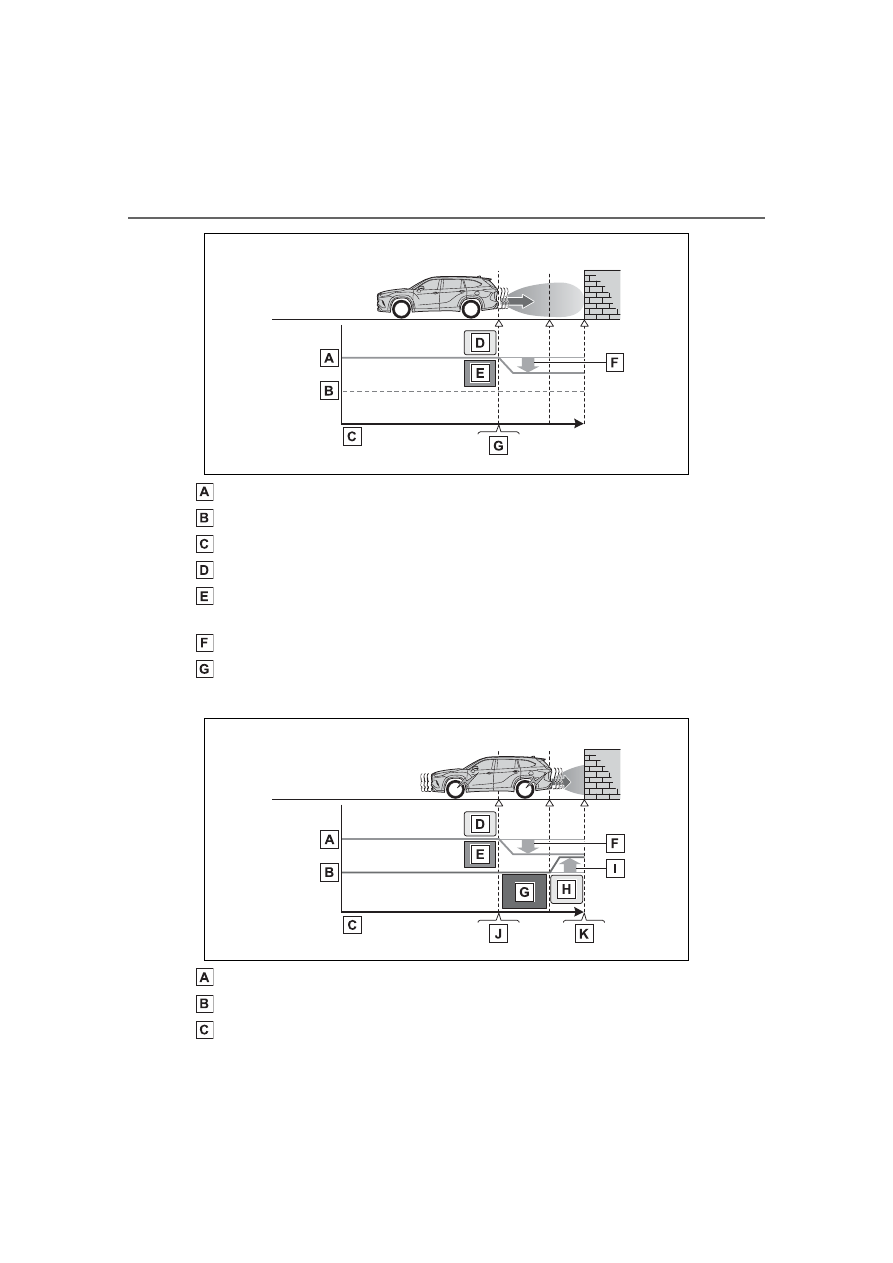

Figure 1 When the PKSB (Parking Support Brake) is disabled

Hybrid system output
Braking force
Time



Figure 2 When hybrid system output restriction control operates

System overview

312

4-5. Using the driving support systems

Hybrid system output
Braking force
Time
Hybrid system output restriction control begins operating
System determines that possibility of collision with detected
object is high
Hybrid system output reduced
Example: Multi-information display: “BRAKE!”



Figure 3 When brake control operates

Hybrid system output
Braking force
Time

313

4-5. Using the driving support systems

ing

Hybrid system output restriction control begins operating
System determines that possibility of collision with detected
object is high
Hybrid system output reduced
System determines that possibility of collision with detected
object is extremely high
Brake control begins operating
Brake control strength increased
Example: Multi-information display: “BRAKE!”
Example: Multi-information display: “Switch to Brake”

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it has been disabled

due to system operation perform

any of the following operations.
At this time, the PKSB OFF indicator

will turn off. (



P.86)

●

Turn the PKSB (Parking Support

Brake) on (



P.309)

●

The shift lever is in P.

●

Drive with no operation targets in

the traveling direction of the vehi-

cle

●

Change the traveling direction of

the vehicle

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator is flashing

●

If this message is displayed only

when the shift lever is in any posi-

tion other than R, a sensor on the

front or rear bumper may be dirty.

Clean the sensors and their sur-

rounding area on the bumpers.

■

If “PKSB Unavailable” and

“Parking Support Brake

Unavailable Remove the Dirt of

Rear Camera” is displayed on

the multi-information display

and the PKSB OFF indicator is

flashing

●

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.

If this message is shown even

after removing dirt from the sen-

sor, or shown when the sensor

was not dirty to begin with, have

the vehicle inspected by your Toy-

ota dealer.

●

A sensor may be frozen. Once the

ice melts, the system will return to

normal.

●

Water may be continuously flow-

ing over the sensor surface, such

as in a heavy rain. When the sys-

tem determines that it is normal,

the system will return to normal.

314

4-5. Using the driving support systems

■

If a 12-volt battery terminal has

been disconnected and recon-

nected

The system needs to be initialized.

To initialize the system, drive the

vehicle straight ahead for 5 seconds

or more at a speed of approximately

22 mph (35 km/h) or more.

315

4-5. Using the driving support systems

ing

: If equipped

This function will operate in situations such as the following if an
object is detected in the traveling direction of the vehicle.

■

When traveling at a low speed and the brake pedal is not
depressed, or is depressed late

Parking Support Brake function (static objects)

If the sensors detect a static object, such as a wall, in the trav-
elling direction of the vehicle and the system determines that
a collision may occur due to the vehicle suddenly moving for-
ward due to an accidental accelerator pedal operation, the
vehicle moving the unintended direction due to the wrong
shift lever position, or while parking or traveling at low
speeds, the system will operate to lessen the impact with the
detected static object and reduce the resulting damage.

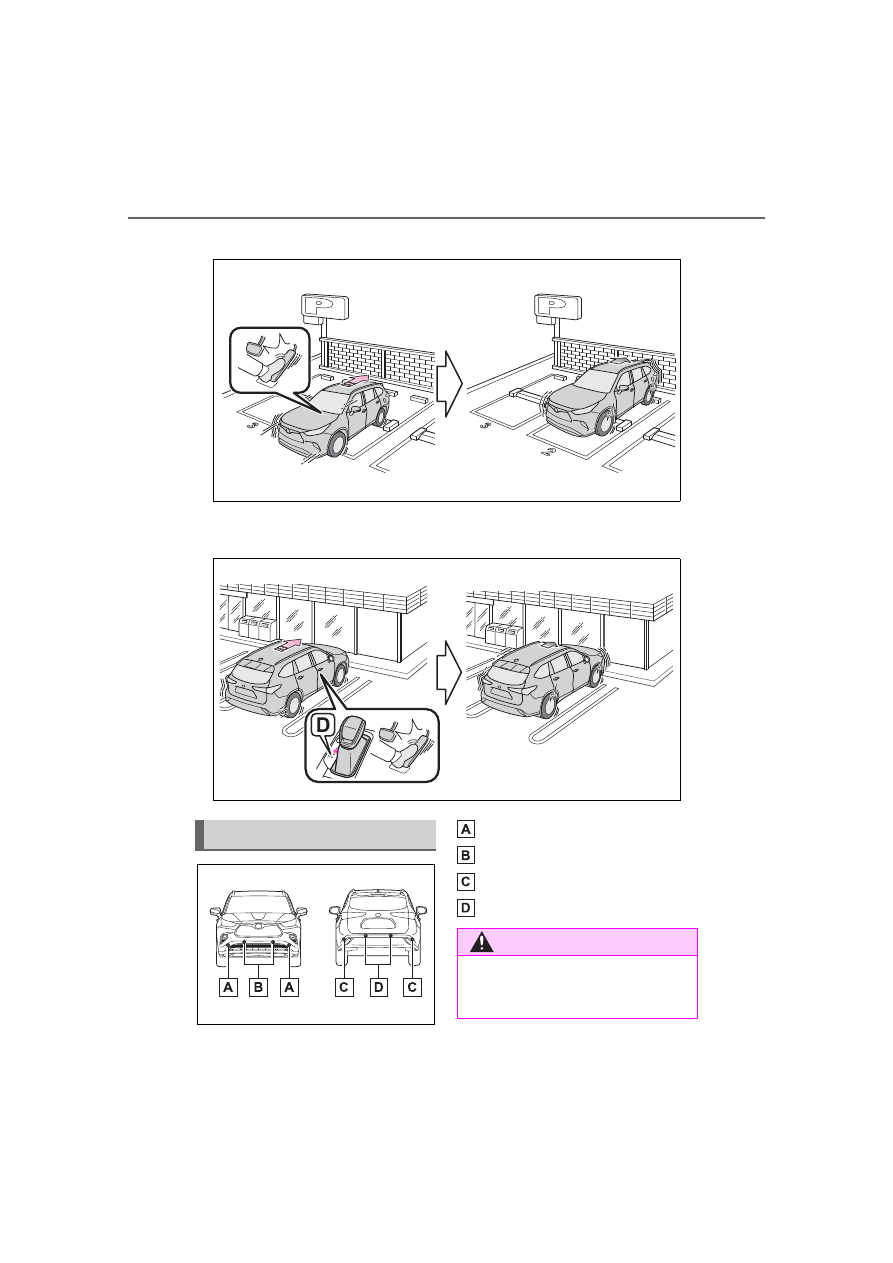

Examples of function operation

316

4-5. Using the driving support systems

■

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to
the wrong shift lever position

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.294

Content .. 17 18 19 20 ..
