Pictorial index

■

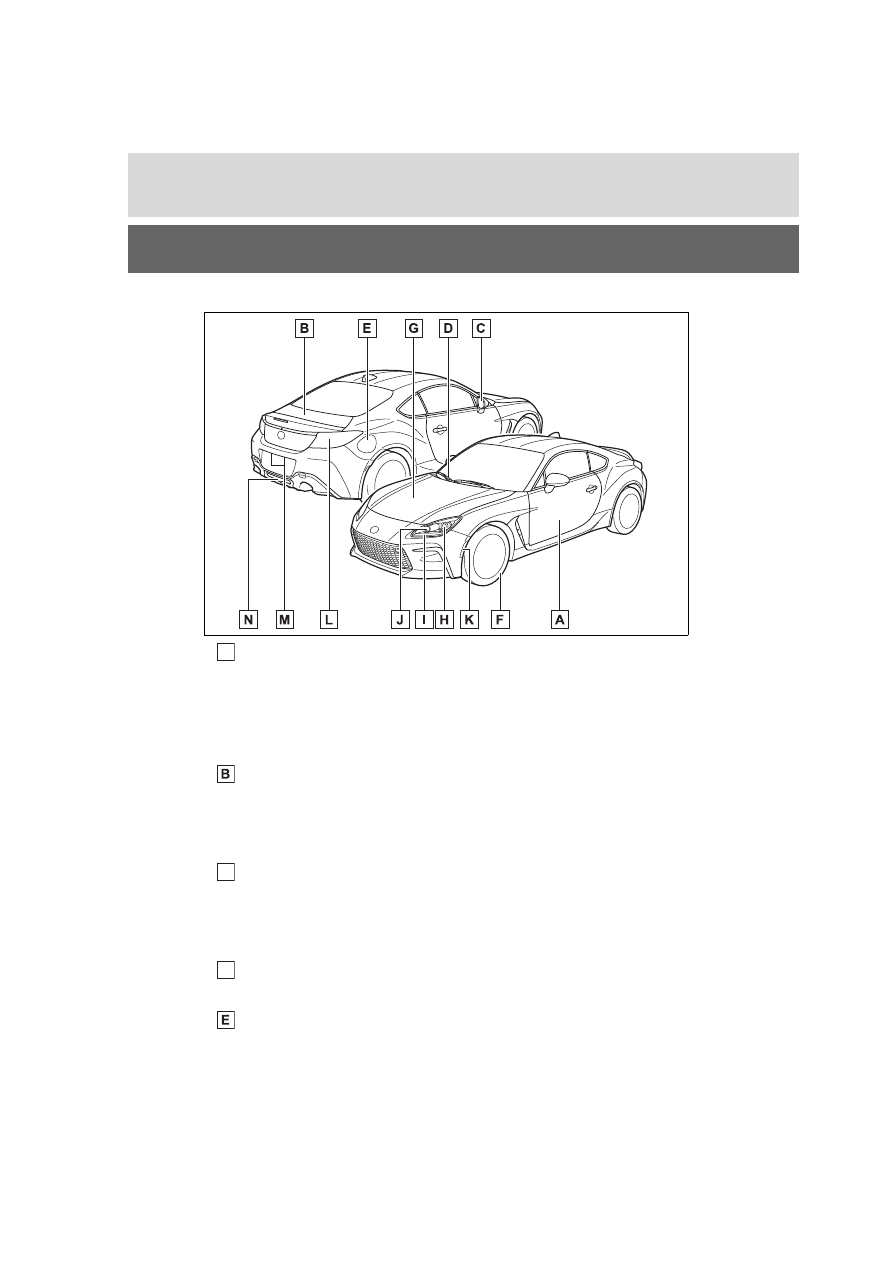

Exterior

Doors................................................................................... P.105

Locking/unlocking ................................................................ P.105
Opening/closing the side windows....................................... P.129
Locking/unlocking by using the mechanical key .................. P.370
Warning lights ...................................................................... P.348

Trunk ................................................................................... P.107

Opening from inside the cabin ............................................. P.109
Opening from outside........................................................... P.109
Warning lights ...................................................................... P.348

Outside rear view mirrors ................................................. P.127

Adjusting the mirror angle .................................................... P.127
Folding the mirrors ............................................................... P.127
Defogging the mirrors .......................................................... P.272

Windshield wipers.............................................................. P.165

Precautions for winter season.............................................. P.266

Fuel filler door .................................................................... P.167

Pictorial index

Refueling method................................................................. P.167
Fuel type/fuel tank capacity ................................................. P.381

Tires..................................................................................... P.312

Tire size/inflation pressure ................................................... P.386
Winter tires/tire chain ........................................................... P.266
Checking/rotation/tire pressure warning system .................. P.312
Coping with flat tires............................................................. P.358

Hood.................................................................................... P.302

Opening ............................................................................... P.302
Engine oil ............................................................................. P.382
Coping with overheating ...................................................... P.375
Warning messages .............................................................. P.357

Headlights........................................................................... P.158

Parking lights/daytime running lights.............................. P.158

Turn signal lights ............................................................... P.155

Side marker lights.............................................................. P.158

Stop lights/tail lights/side marker lights/
turn signal lights ........................................................ P.155, 158

License plate lights............................................................ P.158

Back up light

Shifting the shift lever to R ........................................... P.150, 153

Light bulbs of the exterior lights for driving

(Replacing method: P.333, Watts: P.387)

Pictorial index

■

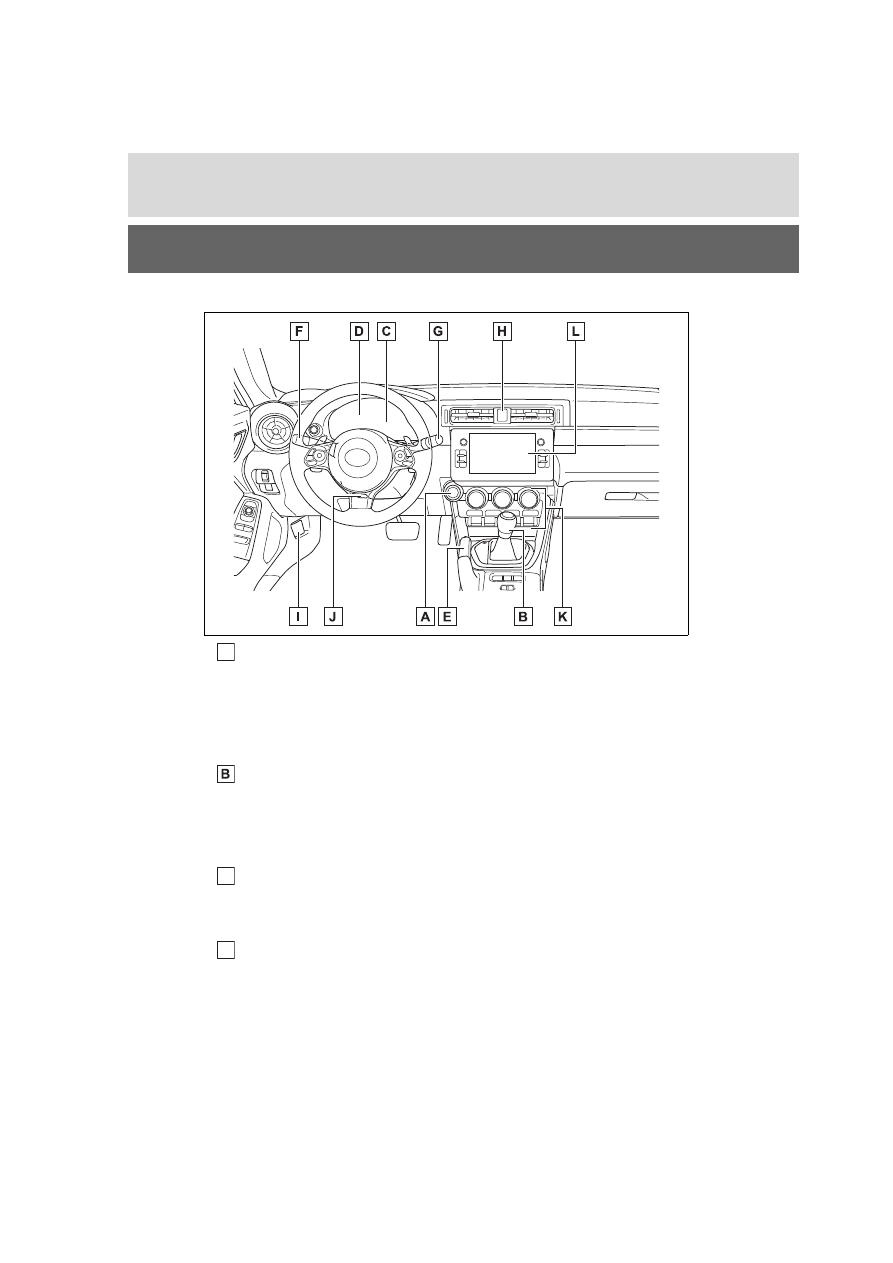

Instrument panel

Engine switch..................................................................... P.145

Starting the engine/changing the mode ............................... P.145
Emergency stop of the engine ............................................. P.338
When the engine will not start.............................................. P.367
Warning messages .............................................................. P.357

Shift lever..................................................................... P.149,153

Changing the shift position............................................ P.150,153
Precautions for towing ......................................................... P.341

When the shift lever does not move

.................................. P.150

Multi-information display .................................................... P.93

Display ................................................................................... P.93
When a warning message is displayed................................ P.357

Meters ................................................................................... P.88

Reading the meters/adjusting the instrument panel lights ..... P.88
Warning lights/indicator lights ................................................ P.84
When a warning light comes on........................................... P.348

Pictorial index

Parking brake ..................................................................... P.156

Applying/releasing................................................................ P.156
Precautions for winter season.............................................. P.267
Warning lights ...................................................................... P.348

Headlight switch ............................................................... P.158
Turn signal lever................................................................. P.155

Headlights/parking lights/tail lights/side marker lights/daytime run-
ning lights............................................................................. P.158

Windshield wiper and washer switch............................... P.165

Usage................................................................................... P.165
Adding washer fluid.............................................................. P.311

Emergency flasher switch................................................. P.338

Hood lock release lever..................................................... P.302

Tilt and telescopic steering lock release lever................ P.125

Adjustment ........................................................................... P.125

Air conditioning system .................................................... P.270

Usage................................................................................... P.270
Rear window defogger ......................................................... P.272

Audio system

:Vehicles with an automatic transmission

:Refer to “MULTIMEDIA OWNER’S MANUAL”.

Pictorial index

■

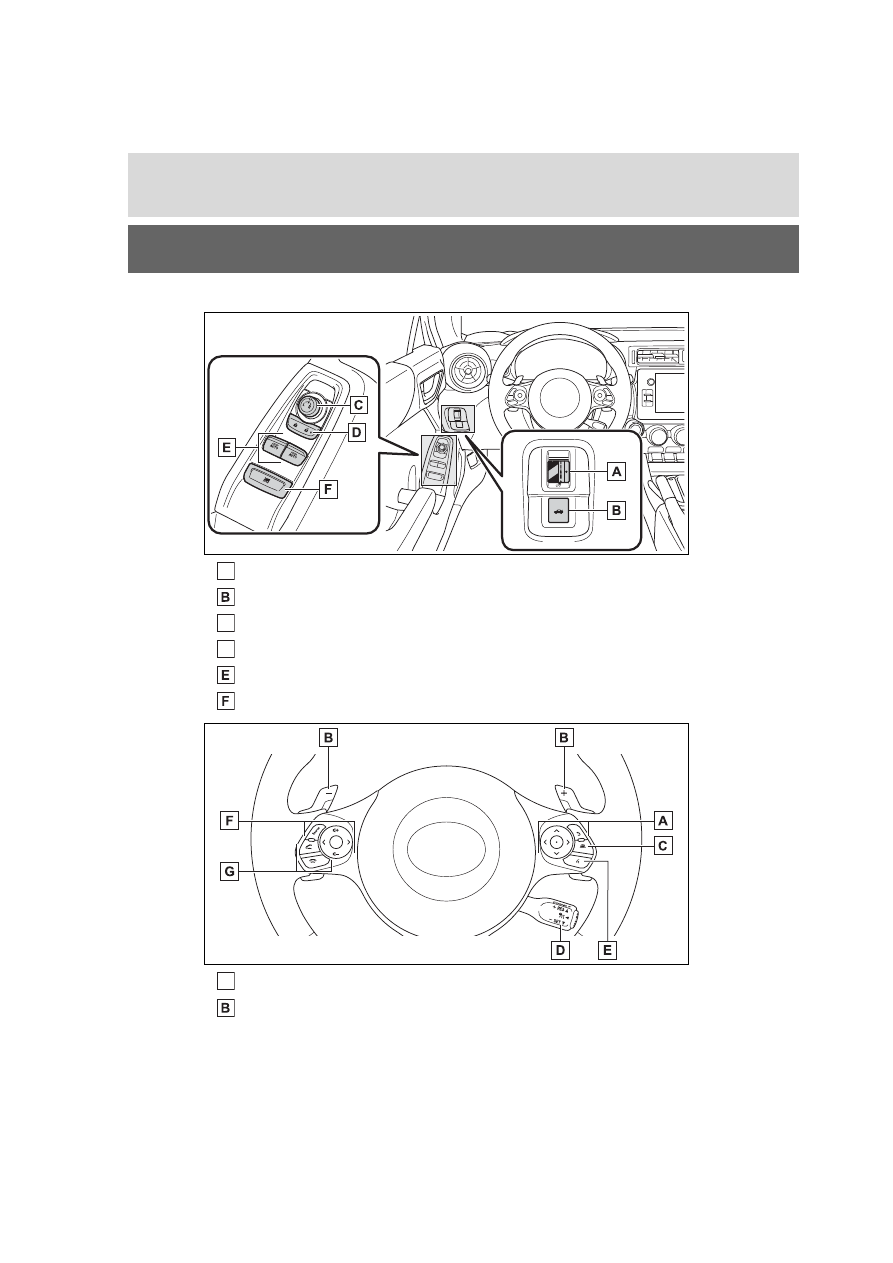

Switches

Instrument panel light control dial ..................................... P.91

Trunk opener switch .......................................................... P.109

Outside rear view mirror switches ................................... P.127

Door lock switches ............................................................ P.106

Power window switches.................................................... P.129

Window lock switch ........................................................... P.130

Meter control switches ........................................................ P.94

Paddle shift switches

.............................................. P.151, 152

C
D

Pictorial index

(Following distance setting) switch

........................ P.178

Cruise control switch

Adaptive cruise control

...................................................... P.190

Conventional cruise control

....................................... P.207, 255

Talk switch

Audio remote control switches

Telephone switches

:If equipped

:Refer to “MULTIMEDIA OWNER’S MANUAL”.

VSC OFF switch ................................................................. P.262

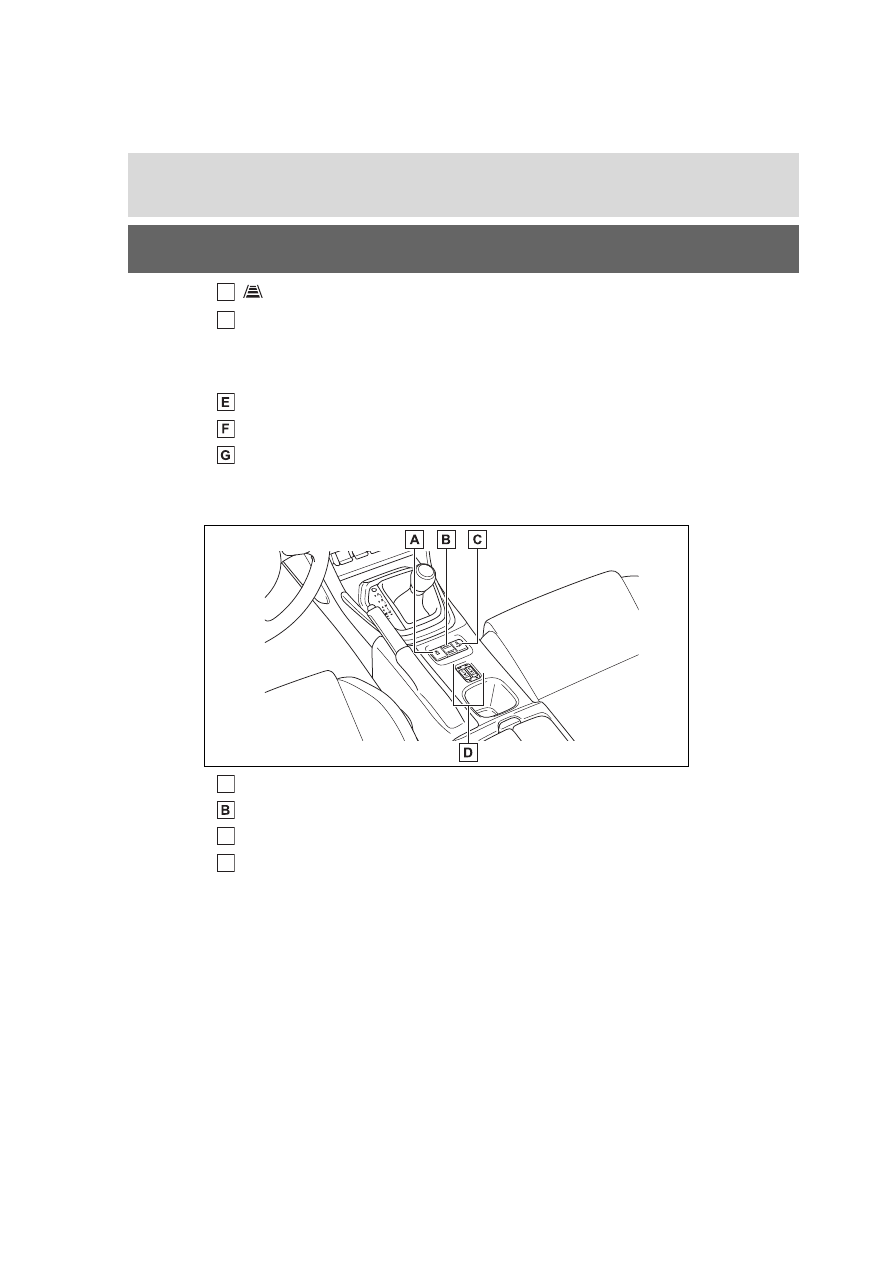

Driving mode select switch

.............................................. P.258

TRACK switch .................................................................... P.263

Seat heater switches

........................................................ P.276

: If equipped

C
D

Pictorial index

■

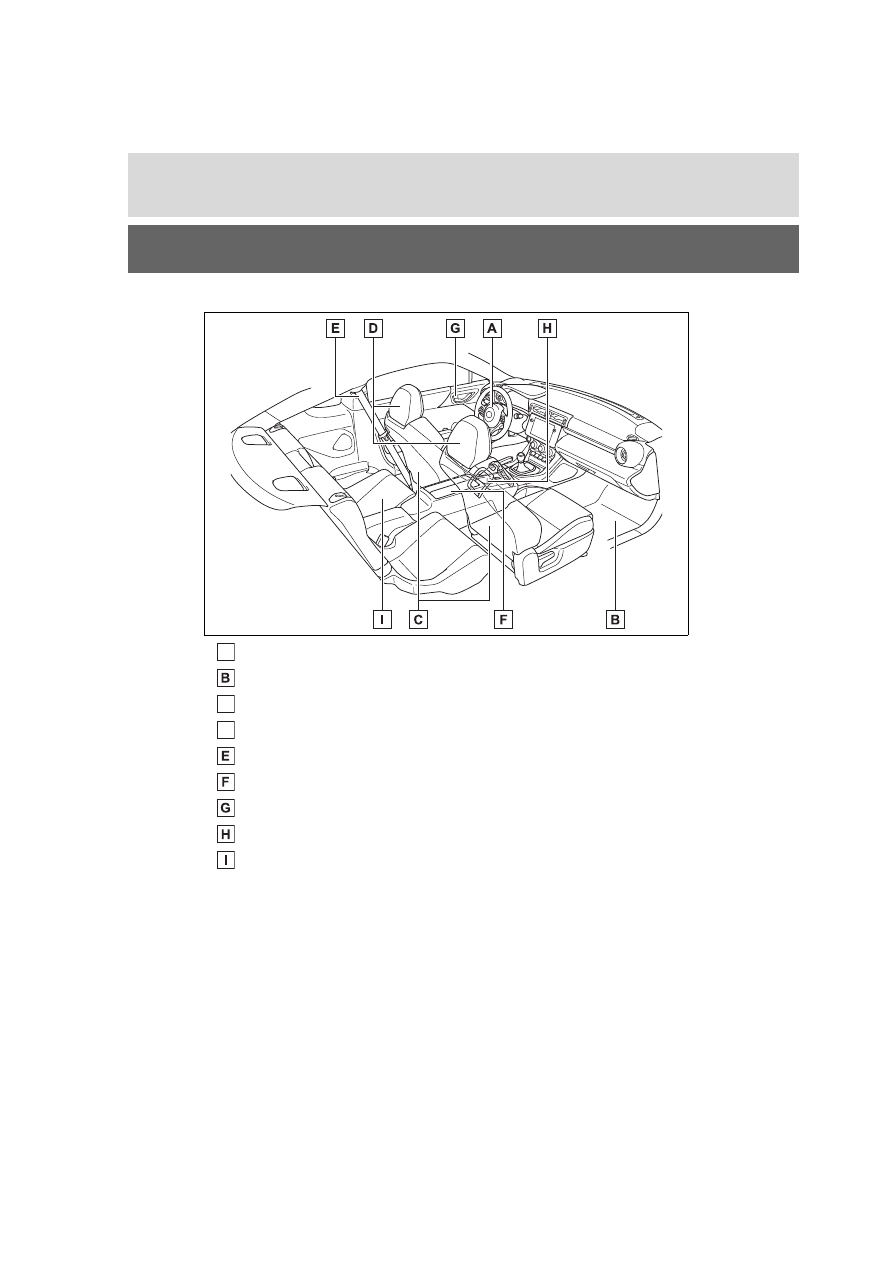

Interior

SRS airbags.......................................................................... P.29

Floor mats............................................................................. P.22

Front seats.......................................................................... P.119

Head restraints................................................................... P.123

Seat belts .............................................................................. P.25

Console box/cup holders .................................................. P.280

Inside lock buttons ............................................................ P.107

Cup holders

....................................................................... P.281

Rear seats........................................................................... P.121

: If equipped

C
D

Pictorial index

■

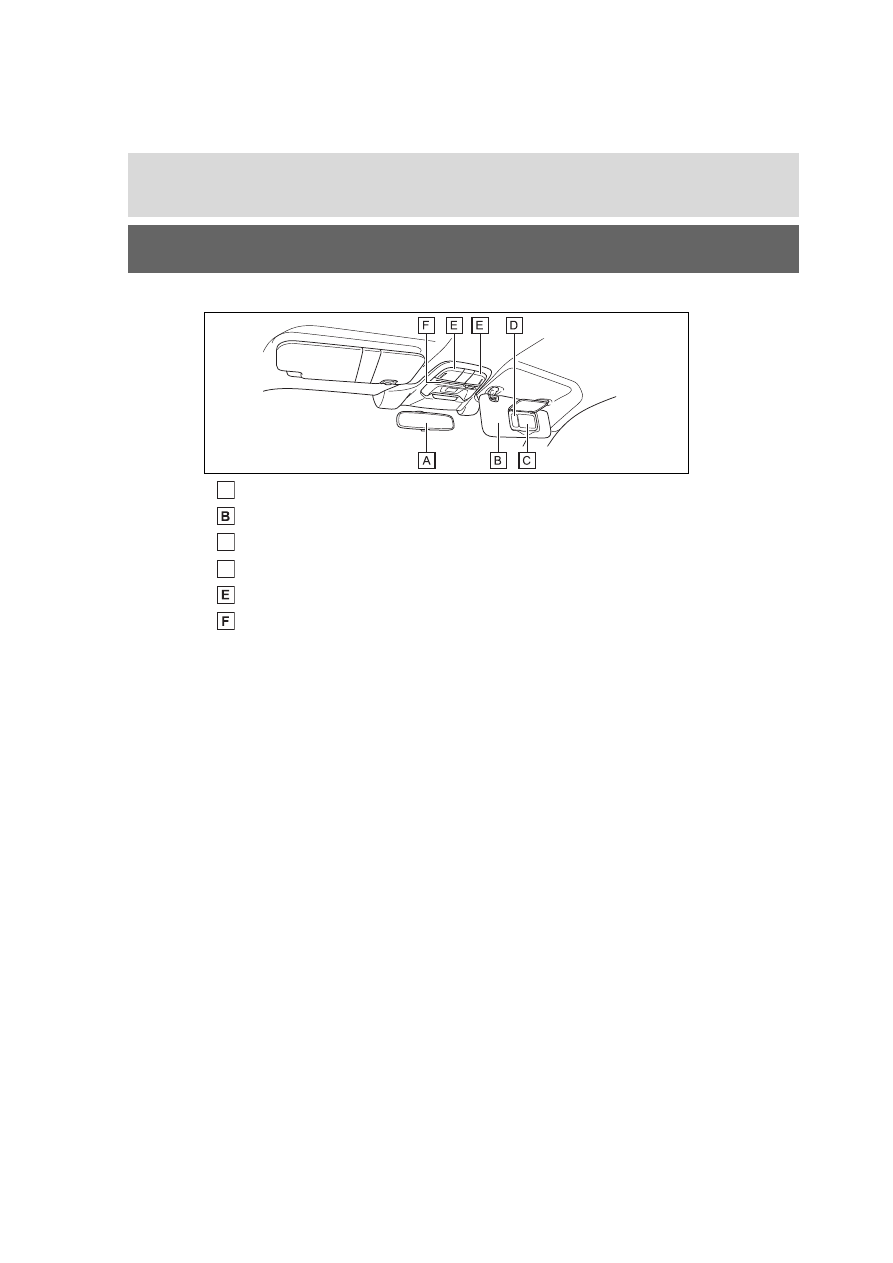

Ceiling

Inside rear view mirror ...................................................... P.126

Sun visors........................................................................... P.284

Vanity mirrors..................................................................... P.284

Vanity mirror lights

........................................................... P.284

Interior lights ...................................................................... P.277

“SOS” button

/“i” button

.................................................... P.75

: If equipped

C
D

For safety and secu

rity

For safety and security

1-1. For safe use

Before driving.................

For safe driving ..............

Seat belts .......................

SRS airbags...................

Front passenger occupant

classification system ....

Exhaust gas precautions

.....................................

1-2. Child safety

Riding with children........

Child restraint systems...

1-3. Emergency assistance

Safety Connect ..............

1-4. Theft deterrent system

Engine immobilizer system

.....................................

Alarm..............................

1-1. For safe use

1-1.For safe use

Use only floor mats designed
specifically for vehicles of the
same model and model year as
your vehicle. Fix them securely
in place onto the carpet.

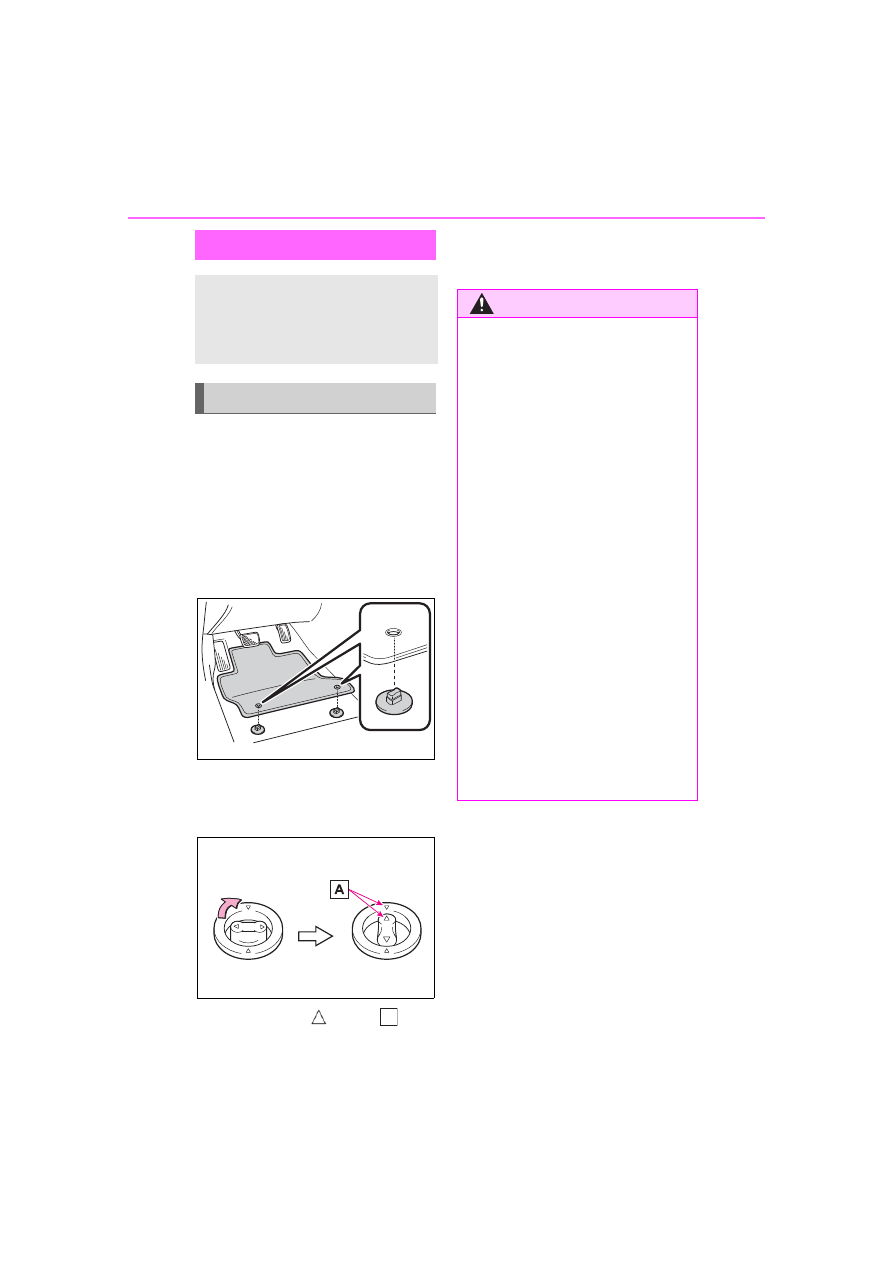

Insert the retaining hooks
(clips) into the floor mat eye-
lets.

Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.

Always align the

marks

The shape of the retaining hooks
(clips) may differ from that shown in
the illustration.

Before driving

Observe the following
before starting off in the
vehicle to ensure safety of
driving.

Floor mats

WARNING

Observe the following precau-

tions.

Failure to do so may cause the

driver’s floor mat to slip, possibly

interfering with the pedals while

driving. An unexpectedly high

speed may result or it may

become difficult to stop the vehi-

cle. This could lead to an acci-

dent, resulting in death or serious

injury.

■

When installing the driver’s

floor mat

●

Do not use floor mats designed

for other models or different

model year vehicles, even if

they are Toyota Genuine floor

mats.

●

Only use floor mats designed

for the driver’s seat.

●

Always install the floor mat

securely using the retaining

hooks (clips) provided.

●

Do not use two or more floor

mats on top of each other.

●

Do not place the floor mat bot-

tom-side up or upside-down.

1-1. For safe use

For safety and secu

rity

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (



P.119)

Adjust the seat so that you
can depress the pedals fully
and so that your arms bend
slightly at the elbow when
gripping the steering wheel.
(



P.119)

Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (



P.123)

Wear the seat belt correctly.
(



P.25)

WARNING

■

Before driving

●

Check that the floor mat is

securely fixed in the correct

place with all the provided

retaining hooks (clips). Be espe-

cially careful to perform this

check after cleaning the floor.

●

With the engine stopped and

the shift lever in P (Automatic

transmission) or N (manual

transmission), fully depress

each pedal to the floor to make

sure it does not interfere with

the floor mat.

For safe driving

For safe driving, adjust the
seat and mirror to an appro-
priate position before driv-
ing.

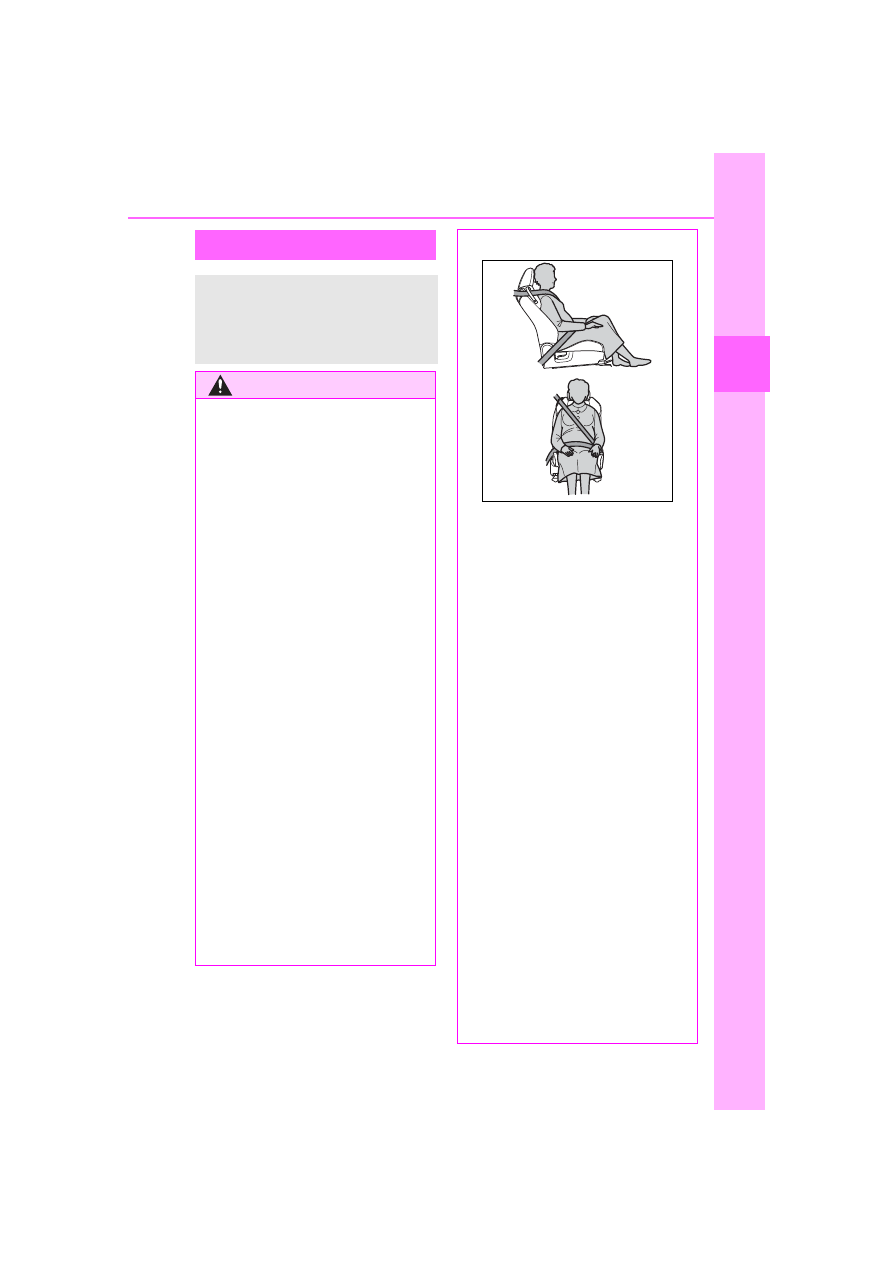

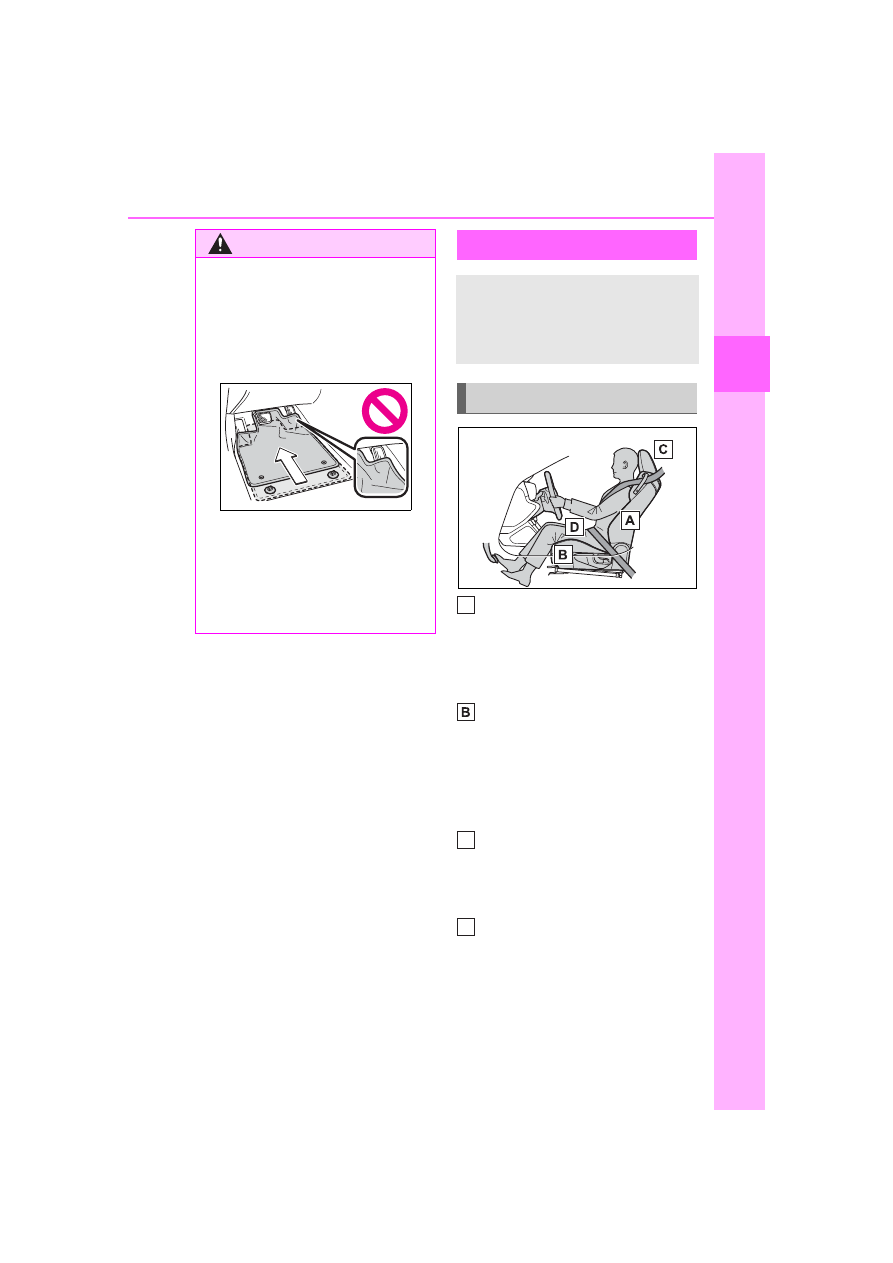

Correct driving posture

1-1. For safe use

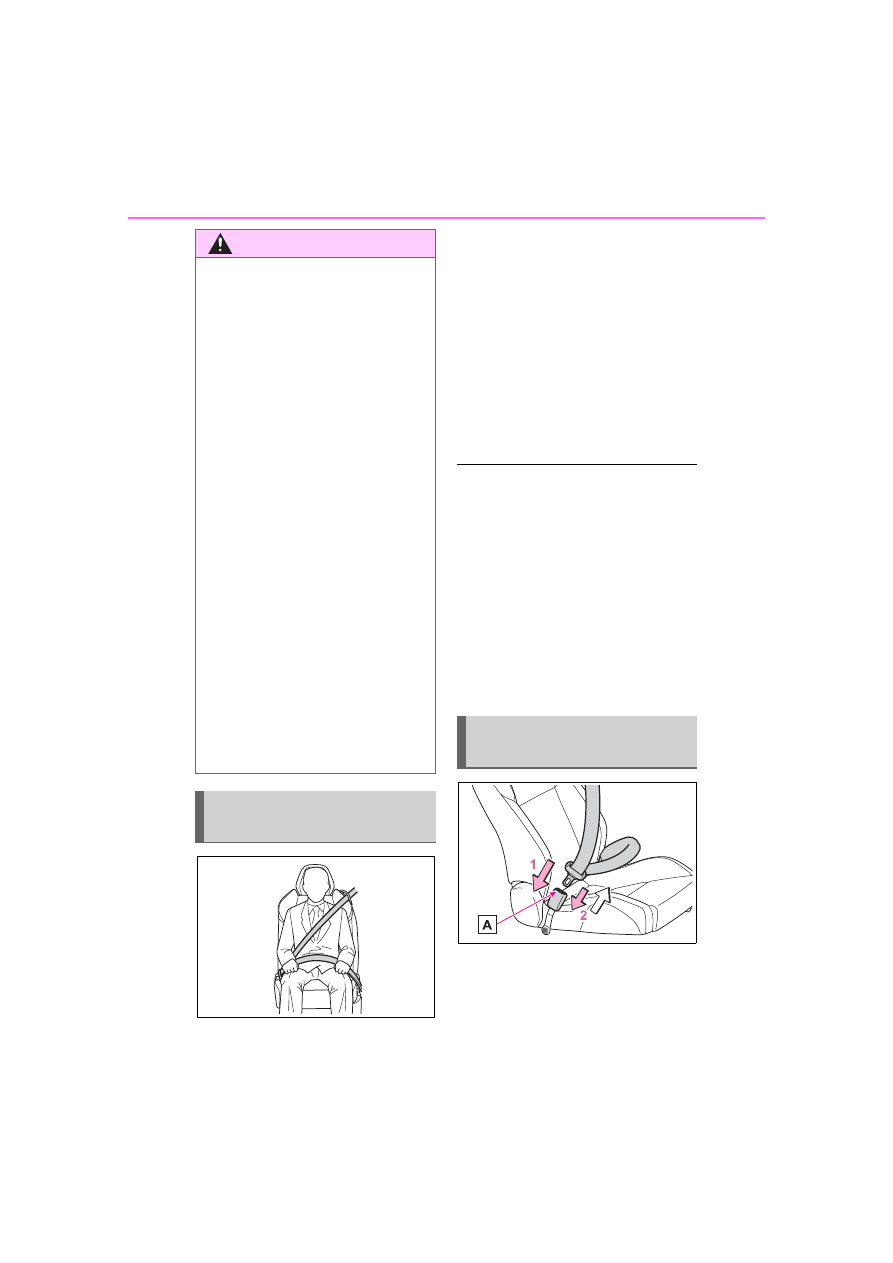

Make sure that all occupants are
wearing their seat belts before
driving the vehicle. (



P.25)

Use a child restraint system
appropriate for the child until the

child becomes large enough to
properly wear the vehicle’s seat
belt. (



P.64)

Make sure that you can see
backward clearly by adjusting
the inside and outside rear view
mirrors properly. (



P.126, 127)

WARNING

■

For safe driving

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not adjust the position of the

driver’s seat while driving.

Doing so could cause the driver

to lose control of the vehicle.

●

Do not place a cushion between

the driver or passenger and the

seatback.

A cushion may prevent correct

posture from being achieved,

and reduce the effectiveness of

the seat belt and head restraint.

●

Do not place anything under the

front seats.

Objects placed under the front

seats may become jammed in

the seat tracks and stop the

seat from locking in place. This

may lead to an accident and the

adjustment mechanism may

also be damaged.

●

Always observe the legal speed

limit when driving on public

roads.

●

When driving over long dis-

tances, take regular breaks

before you start to feel tired.

Also, if you feel tired or sleepy

while driving, do not force your-

self to continue driving and take

a break immediately.

Correct use of the seat
belts

Adjusting the mirrors

1-1. For safe use

For safety and secu

rity

Seat belts

Make sure that all occu-
pants are wearing their seat
belts before driving the
vehicle.

WARNING

Observe the following precautions

to reduce the risk of injury in the

event of sudden braking, sudden

swerving or an accident.

Failure to do so may cause death

or serious injury.

■

Wearing a seat belt

●

Ensure that all passengers wear

a seat belt.

●

Always wear a seat belt prop-

erly.

●

Each seat belt should be used

by one person only. Do not use

a seat belt for more than one

person at once, including chil-

dren.

●

Toyota recommends that chil-

dren be seated in the rear seat

and always use a seat belt

and/or an appropriate child

restraint system.

●

To achieve a proper seating

position, do not recline the seat

more than necessary. The seat

belt is most effective when the

occupants are sitting up straight

and well back in the seats.

●

Do not wear the shoulder belt

under your arm.

●

Always wear your seat belt low

and snug across your hips.

■

Pregnant women

Obtain medical advice and wear

the seat belt in the proper way.

(



P.26)

Women who are pregnant should

position the lap belt as low as

possible over the hips in the same

manner as other occupants,

extending the shoulder belt com-

pletely over the shoulder and

avoiding belt contact with the

rounding of the abdominal area.
If the seat belt is not worn prop-

erly, not only the pregnant

woman, but also the fetus could

suffer death or serious injury as a

result of sudden braking or a colli-

sion.

■

People suffering illness

Obtain medical advice and wear

the seat belt in the proper way.

(



P.26)

■

When children are in the vehi-

cle

Do not allow children to play with

the seat belt. If the seat belt

becomes twisted around a child’s

neck, it may lead to choking or

other serious injuries that could

result in death.

If this occurs and the buckle can-

not be unfastened, scissors

should be used to cut the belt.

1-1. For safe use



Extend the shoulder belt so

that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.



Position the lap belt as low as
possible over the hips.



Adjust the position of the
seatback. Sit up straight and
well back in the seat.



Do not twist the seat belt.

■

Child seat belt usage

The seat belts of your vehicle were

principally designed for persons of

adult size.

●

Use a child restraint system

appropriate for the child, until the

child becomes large enough to

properly wear the vehicle’s seat

belt. (



P.64)

●

When the child becomes large

enough to properly wear the vehi-

cle’s seat belt, follow the instruc-

tions regarding seat belt usage.

(



P.25)

To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.

To release the seat belt,

WARNING

■

Seat belt damage and wear

●

Do not damage the seat belts

by allowing the belt, plate, or

buckle to be jammed in the

door.

●

Inspect the seat belt system

periodically. Check for cuts,

fraying, and loose parts. Do not

use a damaged seat belt until it

is replaced. Damaged seat belts

cannot protect an occupant

from death or serious injury.

●

Ensure that the belt and plate

are locked and the belt is not

twisted.

If the seat belt does not function

correctly, immediately contact

your Toyota dealer.

●

Replace the seat assembly,

including the belts, if your vehi-

cle has been involved in a seri-

ous accident, even if there is no

obvious damage.

●

Do not attempt to install,

remove, modify, disassemble or

dispose of the seat belts. Have

any necessary repairs carried

out by your Toyota dealer. Inap-

propriate handling may lead to

incorrect operation.

Correct use of the seat
belts

Fastening and releasing
the seat belt

1-1. For safe use

For safety and secu

rity

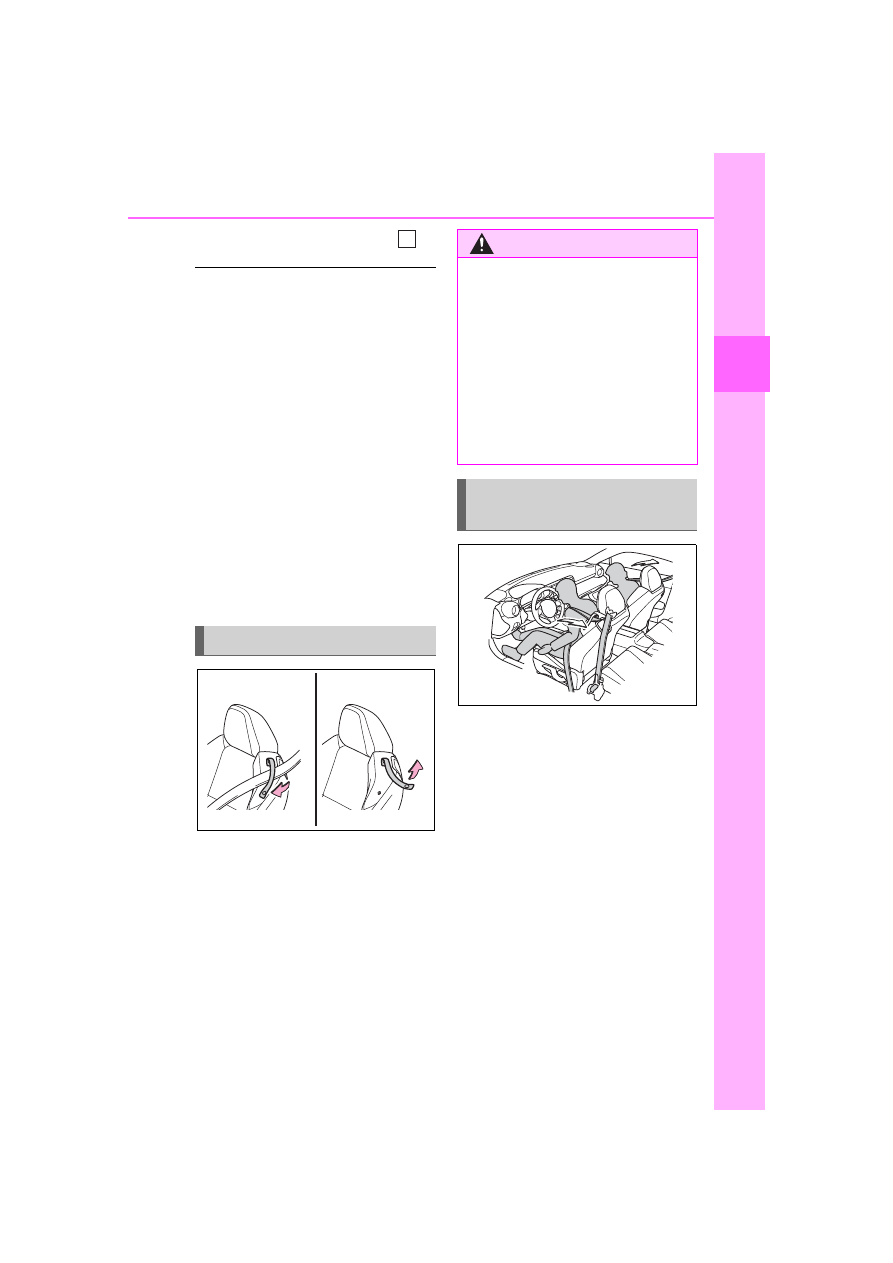

press the release button .

■

Emergency locking retractor

(ELR)

The retractor will lock the belt during

a sudden stop or on impact. It may

also lock if you lean forward too

quickly. When the seat belt locks,

pull the belt strongly and then

release the belt, then a slow and

easy pulling will allow the belt to

extend.

■

Automatic locking retractor

(ALR)

When a passenger’s shoulder belt is

completely extended and then

retracted even slightly, the belt is

locked in that position and cannot

be extended. This feature is used to

hold a child restraint system (CRS)

firmly. To free the belt again, fully

retract the belt and then pull the belt

out once more. (



P.64)

When fastening a front seat belt,
ensure that it is passed through
the seat belt guide. Passing the
seat belt through the guide
enables the seat belt to be eas-
ily extended.

When you get into or out of the rear
seats, release the seat belt from the
seat belt guide.

The pretensioners help the seat
belts to quickly restrain the
occupants by retracting the seat
belts when the vehicle is sub-
jected to certain types of severe
frontal collision or a vehicle roll-
over.

The front seat belt pretensioners
also activate when the vehicle is
subjected to certain types of severe
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.

Seat belt guide

WARNING

■

When using the seat belt

guide

●

Always make sure that the belt

is not twisted, and runs freely

through the guide.

●

Regardless of whether the

guide is used or not, always

secure the seat belt guide but-

ton.

●

Do not hang from or pull the

guide forcefully.

Seat belt pretensioners
(front seats)

1-1. For safe use

■

Replacing the belt after the pre-

tensioner has been activated

If the vehicle is involved in multiple

collisions, the pretensioner will acti-

vate for the first collision, but will not

activate for the second or subse-

quent collisions.

WARNING

■

Seat belt pretensioners

●

Do not place anything, such as

a cushion, on the front passen-

ger’s seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the seat belt pretensioner

for the front passenger’s seat

may not activate in the event of

a collision.

●

If the pretensioner has acti-

vated, the SRS warning light will

come on. In that case, the seat

belt cannot be used again and

must be replaced at your Toyota

dealer.

Toyota 86 (2023 year). Manual in english - page 1
